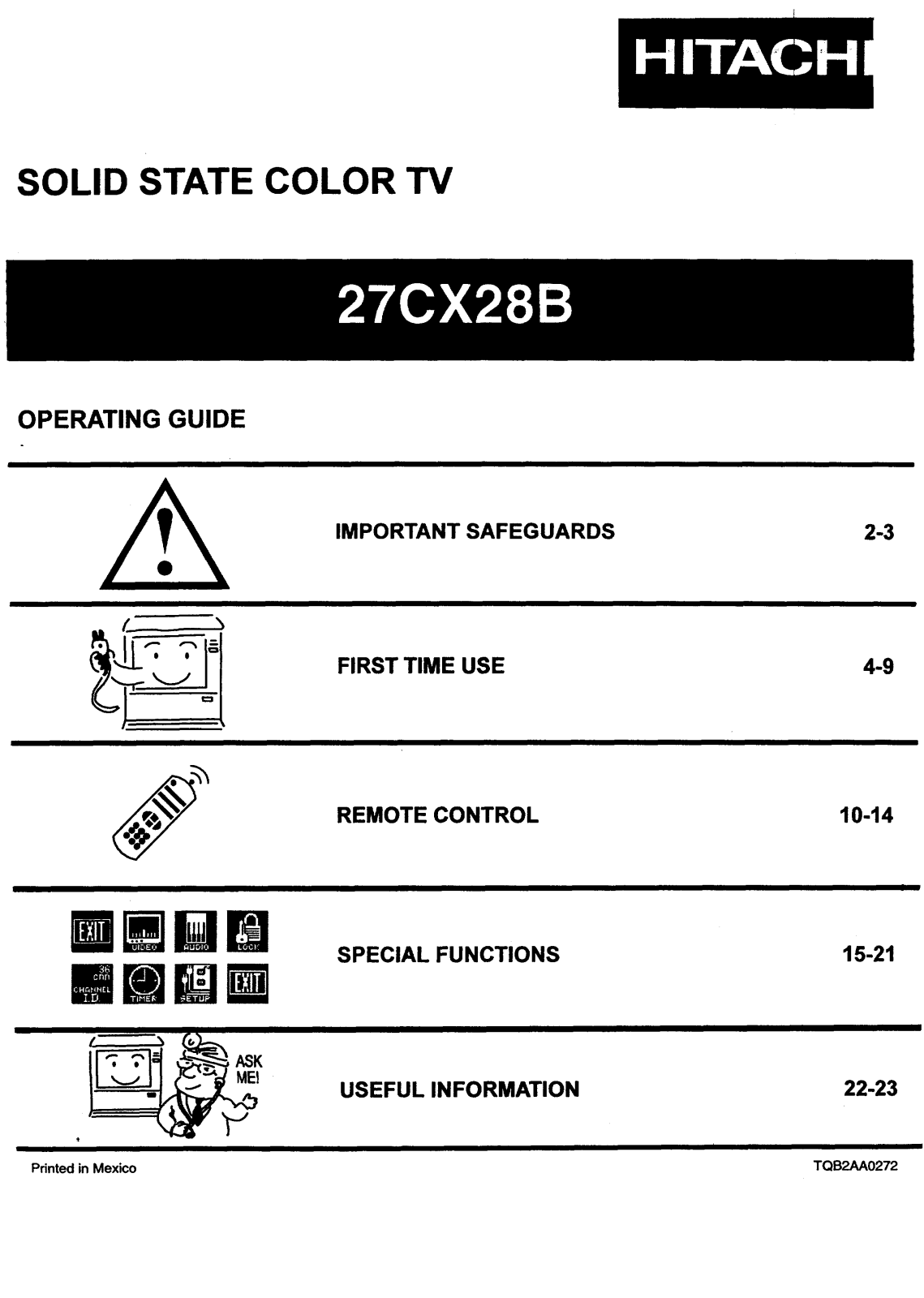

SOLID STATE COLOR TV

OPERATING GUIDE

IMPORTANT SAFEGUARDS 2-3

r--_ Co_,,-..,.

_ ASK

FIRST TIME USE 4-9

REMOTE CONTROL

SPECIAL FUNCTIONS

USEFUL INFORMATION

10-14

15-21

22-23

Printed in Mexico

TQB2AA0272

Page 2

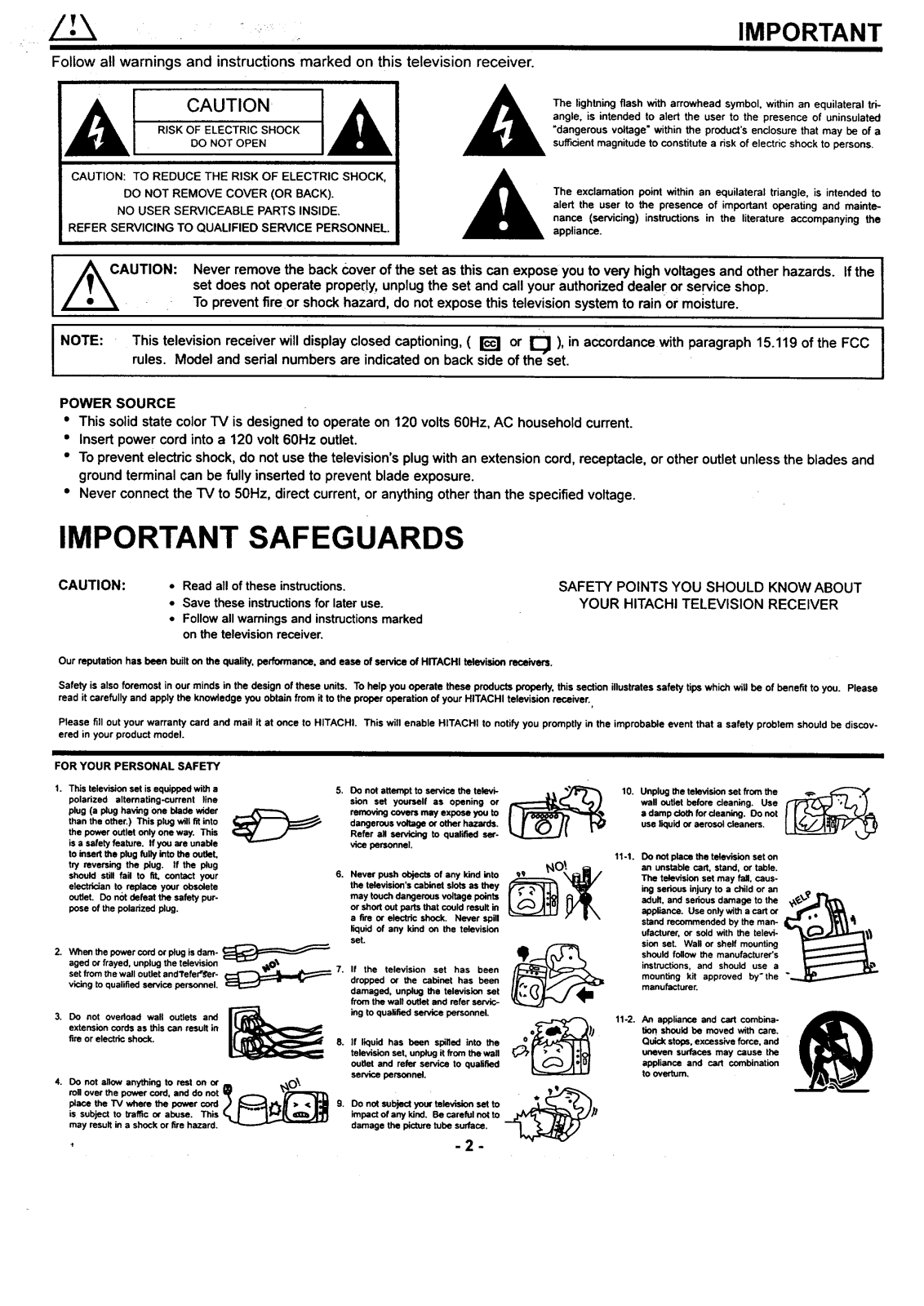

" IMPORTANT

Follow all warnings and instructionsmarked on this television receiver.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE,

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

,_AUTION: Never remove the back cover of the set as this can expose you to very high voltages and other hazards. If the I

set does not operate properly, unplug the set and call your authorized dealer or service shop.

• : To prevent fire or shock hazard, do not expose this te ev sion system to rain or moisture.

The lightning flash with arrowhead symbol, within an equilateral tri- angle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of a suff'_ient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and mainte-

nance (servicing) instructions in the literature accompanying the appliance.

NOTE: This television receiver will display closed captioning, ( _ or _ ), in accordance with paragraph 15.119 of the FCC !

rules. Model and serial numbers are indicated on back side ofthe set.

POWER SOURCE

* This solid state color "IV is designed to operate on 120 volts 60Hz, AC household current.

" Insert power cord into a 120 volt 60Hz outlet.

• To prevent electric shock, do not use the television's plug with an extension cord, receptacle, or other outlet unless the blades and

ground terminal can be fully inserted to prevent blade exposure.

" Never connect the TV to 50Hz, direct current, or anything other than the specified voltage.

IMPORTANT SAFEGUARDS

CAUTION: • Read all of these instructions.

• Save these instrucUonsfor later use.

SAFETY POINTS YOU SHOULD KNOW ABOUT

YOUR HITACHI TELEVISION RECEIVER

• Follow all warnings and instructions marked

on the television receiver.

Our reputation has been built on the quality,performance, and ease of service of HITACHI television receivers.

Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television receiver.

Please fill out your warranty card and mail it at once to HITACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discov- ered in your product model.

FOR YOUR PERSONALSAFETY

This television sat is equipped with a polarized alternating-current line plug (a plug having One blade wider than the other.) This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety pur- pose of the polarized plug.

When the power cord or plug is dam- aged or frayed, unplug the television _ -e,_.

set from the wall outlet and?efer%'er- v vicing to qualified service personnel. _ - "

Do not ovedoad wall outlets and |[_1_ extension cords as this can result in

tim or electric shock. 8.

DO not allow anything to rest on or t_.O\ roll over the power cord, and do not _ _ "tT=--,=_-th

place the TV where the power cord ) _--_..._,t4tR > <r_ g.

is suh_,ct to traffic or abuse. This % I I_[L._-Jl_ may result in a shock or fire hazard, v

DO not attempt to service the televi- s'mn sat yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified ser- vice personnel.

Never push objects of any kind into the television's cabinet slots as they may touch dangerous voltage points or short out parts that could resuR in

a firs or electric shock. Never spill

liquid of any kind on the television

set.

If the television set has been

dropped or the cabinet has been

damaged, unplug the television sat

from the wall outlet and refer servic-

ing to qualified _ personnel

If liquid has been spilled into the

television set, unplug it from the wall

outlet and refer service to qualified

service personnel

Do not subjoct york talevision sat to _

damage the picture tube surface.

impact of any kind. Be careful not to ._j_JV_N_..)I]/

-2-

,,_/)

10.

Unplug the television sat from the

wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

11-1. Do not place the television set on

an unstable cart, stand, or table. The television set may fall, caus- ing serious injury to a child or an adult, and sedous damage to the appliance. Use only with a cart or stand recommended by the man- ufacturer, or sold with the televi- sion set. Wall or shelf mounting

should follow the manufacturer's instructions, and should use a

mounting kit approved by-the

manufacturer.

11-2.

An appliance and cart combina- tion should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the

appliance and cart combination

to overturn.

Page 3

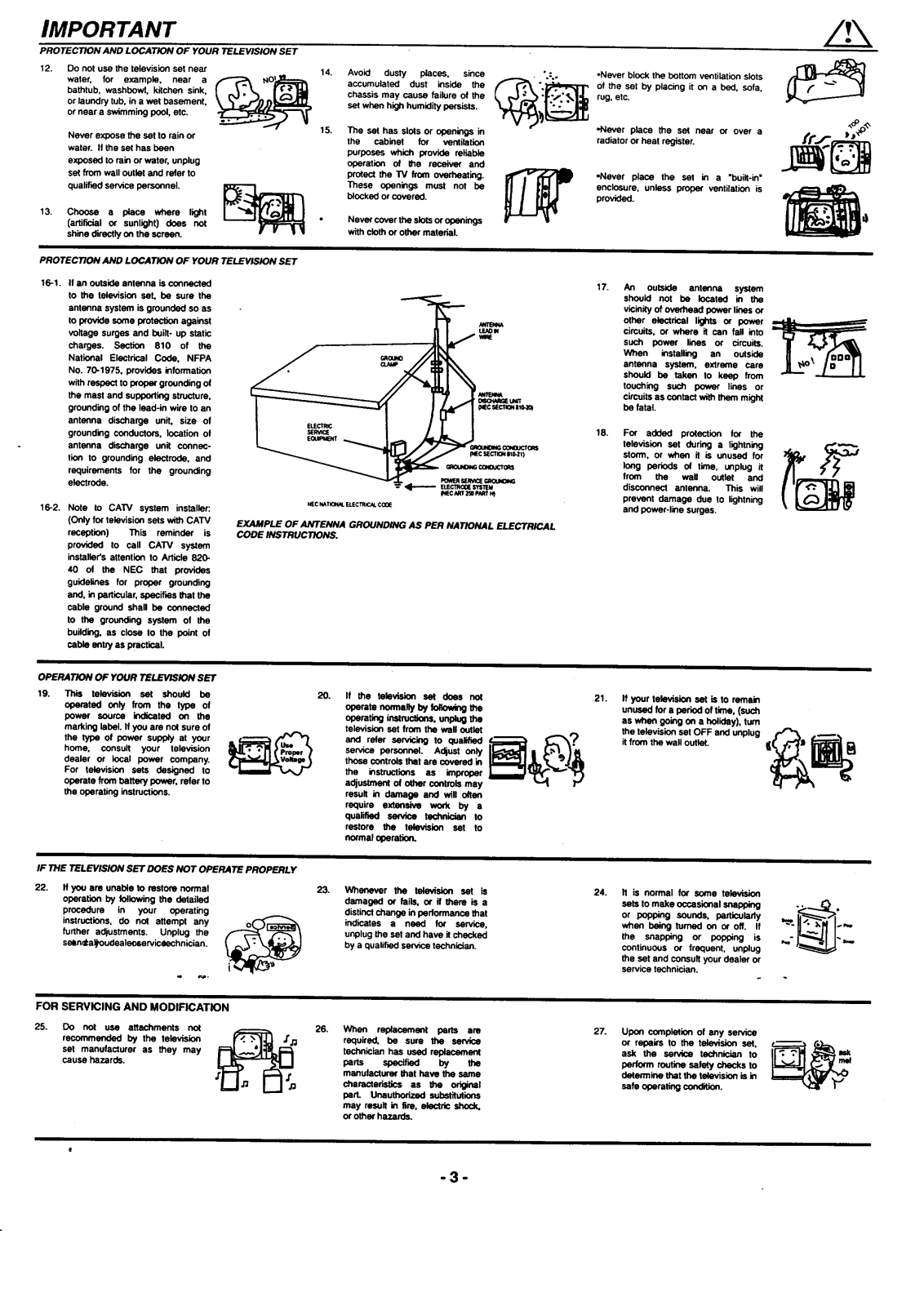

IMPORTANT

PROTECTION AND LOCATION OF YOUR TELEVISION SET

Do not use the television set near

12. water, for example, near a bathtub, v_shbowi, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Never expose the set to rain or water. If the set has been exposed to rain or water, unplug set from wall outlet and rater to

qualified service personnel.

13.

Choose a ptsca ,,_'_em light (artificial or sunlight) does not shine directly on the screen.

PROTECTION AND LOCATION OF YOUR TELEVISION SET

16-1. If an outside antenna is connected

to the television SeL be sure the antenna system is grounded so as

to provide some protection against voltage surges and built- up static

charges. Section 810 of the National Electrical Code, NFPA

No. 70-1975, provides information

with respect to I_oPer grounding of

the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit connsc- lion to grounding electrode, and requirements for the grounding electrode.

16-2. Note to CAW system installer:

(Only for television sets wi_ CATV reception) This reminder is

provided to call CATV system installers attention to Article 820- 40 of the NEC that provides

guidelines for proper grounding and, in pert_,-'ular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of

cable ent_ as practical.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

14.

Avoid dusty places, since accumulated dust inside the

chassis may cause failure of the set when high humidity persiats,

15.

The set has slots or openings in the cabinet for ventilation

purposes which provide reliable operation of the receiver and protect the TV from overheating. These openings must not be

blocked or covered.

Never cover the slots or openings with cloth or other material.

MECNAtmI_LELECmOU.COOE

_¢ SECtlOt1_14101

I_C_C11_NIt0-21)

GROL=_CONDUCTO_

FO/JF._SEJWI_(_0UI_t_

'_ ELECTRODE=YSlT_

CQ_UCtORS

-Never block the bottom ventilation slots of the set by placing it on a bed, sofa,

rug, etc.

•Never place the se4 near or over a

radiator or heat register.

*Never place the set in a "built-in" enclosure, unless proper ventilation is provided.

17.

An outside antenna system should not be located in the

vicinity of overhead power lines or other electrical lights or power

circuits, or where it can fall into such power lines or circuits.

When installing an outside

anto_na syatern, extref'Ne cara

should be taken to keep from touching such power tines or circuitS as contact with them might

be fatal.

18.

For added protection for the television set dudng a lightning

storm, or when it is unused for long periods of time, unplug it

frorn the well outlet and disconnect antenna. This will

prevent damage due to lightning and power-line surges.

OPERATION OF YOUR TELEWSION SET

19. This television set should be

operated only from the type of power source indicated on the marking label, If you are not sure of the type of power supply at your

home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.

IF THE TELEVISION SET DOES NOT OPERATE PROPERLY

22.

If you are unal0fa to restore normal operation by following the detaged procedure in your operating instructions, do not attempt any funher adjustments. Unplug the se=,nd_al)ouduataose rvicaechniclan.

FOR SERVICING AND MODIFICATION

25. Do not use attachments not

recommended by the television

set manufacturer as they may

cause hezards.

20.

If the televisk;m set does not operate normally by followin9 the

operating instructions, unplug the television set from the well outlet

and refer servicing to qualified se_ce personnel. Adjust only

those controls that are covered in the instructions as improper adjustment of other controls may

result in damage end will often require extensive work by a

qualified seneca technician to

restore the television set to

normal operation.

23. Whenever the television set is

damaged or fails, or if there is a distinct change in performance that indicates a need for service, unplug the set and have it checked by a qualified sennca tachnidan.

26.

When replacement parts are

required, be sure the service

technician has used replacement

pens spec_.3,_ by the

manufacturer that have the same

characteristics as _ original

part. Unauthorized substitutions may result in fire, electric shock,

or other hazardu.

21.

If your television set is to remain unused for a period of time, (such as when going on a holiday), turn the television set OFF and unplug

it from the wall outlet.

24.

It is normal for some television setS to make occasional snapping ._._._,

when being turned on or off. If the sn_.g or popping is continuous or frequent, unplug the set and consult your dealer or

service technician.

27.

Upon completion of any service or repaks to the tek_ision set,

ask the service technician to perform routine sefaty checks to

determine that the televlsien is in safe operating condition.

-3-

Page 4

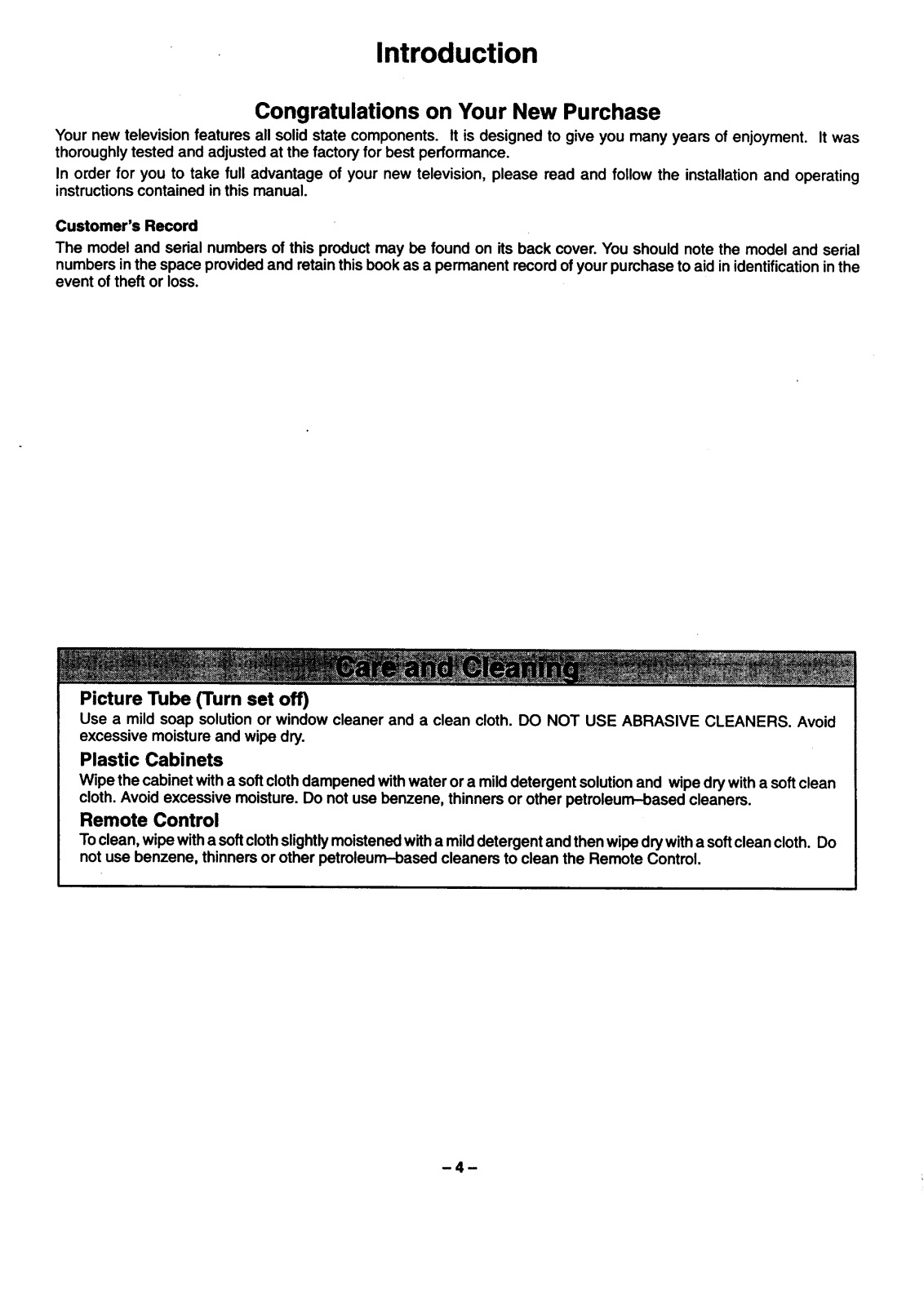

Introduction

Congratulations on Your New Purchase

Your new television features all solid state components. It is designed to give you many years of enjoyment. It was thoroughly tested and adjusted at the factory for best performance.

In order for you to take full advantage of your new television, please read and follow the installation and operating instructionscontained inthis manual.

Customer's Record

The model and serial numbers of this product may be found on its back cover. You should note the model and serial

numbers inthe space provided and retain this book as a permanent record ofyour purchase to aid in identificationin the event oftheft or loss.

Picture Tube (Turn set off)

Use a mild soap solution or window cleaner and a clean cloth. DO NOT USE ABRASIVE CLEANERS. Avoid excessive moisture and wipe dry.

Plastic Cabinets

Wipe the cabinet with a softcloth dampened with water or a mild detergent solutionand wipe dry with a soft clean cloth. Avoid excessive moisture. Do not use benzene, thinners or other petroleum-based cleaners.

Remote Control

Toclean, wipe witha soft clothslightlymoistenedwith a mild detergent and then wipe drywith a soft clean cloth. Do not use benzene, thinners or other petroleum-based cleaners to clean the Remote Control.

-4-

Page 5

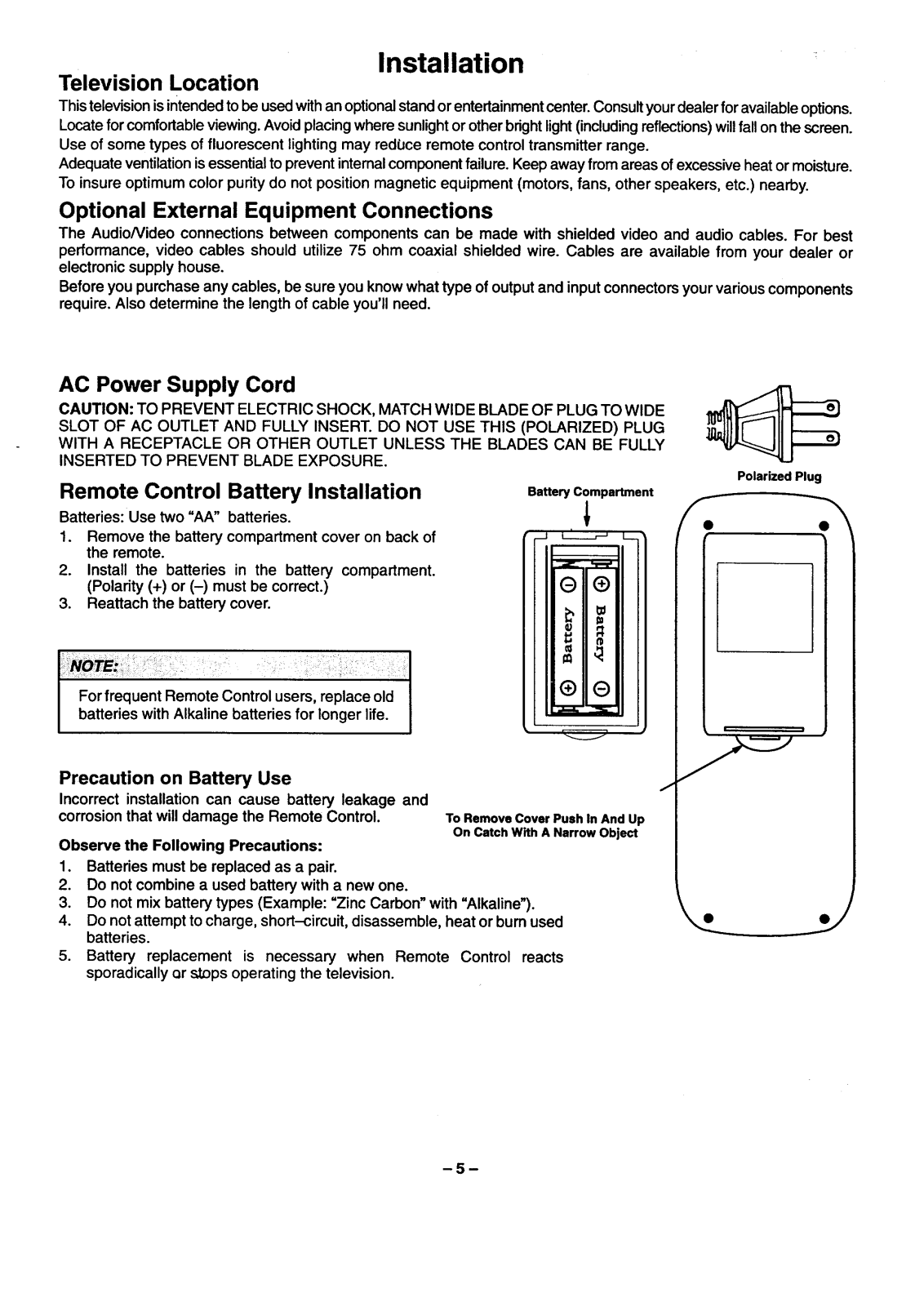

Installation

Television Location

Thistelevisionisintendedto be usedwithan optionalstandorentertainmentcenter.Consultyourdealerforavailableoptions.

Locateforcomfortableviewing.Avoidplacingwhere sunlightor otherbrightlight(includingreflections)willfallonthe screen. Use of some types offluorescent lighting may red0ce remote controltransmitter range.

Adequate ventilationisessentialto preventinternalcomponentfailure.Keepaway from areas of excessiveheat or moisture. To insure optimum color purity do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.

Optional External Equipment Connections

The AudioNideo connections between components can be made with shielded video and audio cables. For best

performance, video cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic supply house.

Before you purchase any cables, be sure you know what type of output and input connectors your various components require. Also determine the length of cable you'll need.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE THIS (POLARIZED) PLUG

WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

Polarized Plug

Remote Control Battery Installation

Batteries: Use two "AA" batteries.

1. Remove the battery compartment cover on back of the remote.

2. Install the batteries in the battery compartment.

(Polarity (+) or (-) must be correct.)

3. Reattach the battery cover.

Battery Compartment

For frequent Remote Control users, replace old I

batteries with Alkaline batteries for longer life. I

Precaution on Battery Use

Incorrect installation can cause battery leakage and

corrosion that will damage the Remote Control.

Observe the Following Precautions:

1. Batteries must be replaced as a pair.

2. Do not combine a used battery with a new one.

Do not mix battery types (Example: "Zinc Carbon" with "Alkaline").

Do not attempt to charge, short-circuit, disassemble, heat or bum used batteries.

Battery replacement is necessary when Remote Control reacts

sporadically Qrstops operating the television.

To Remove Cover Push In And Up

On Catch With A Narrow Object

Page 6

Installation (cont.)

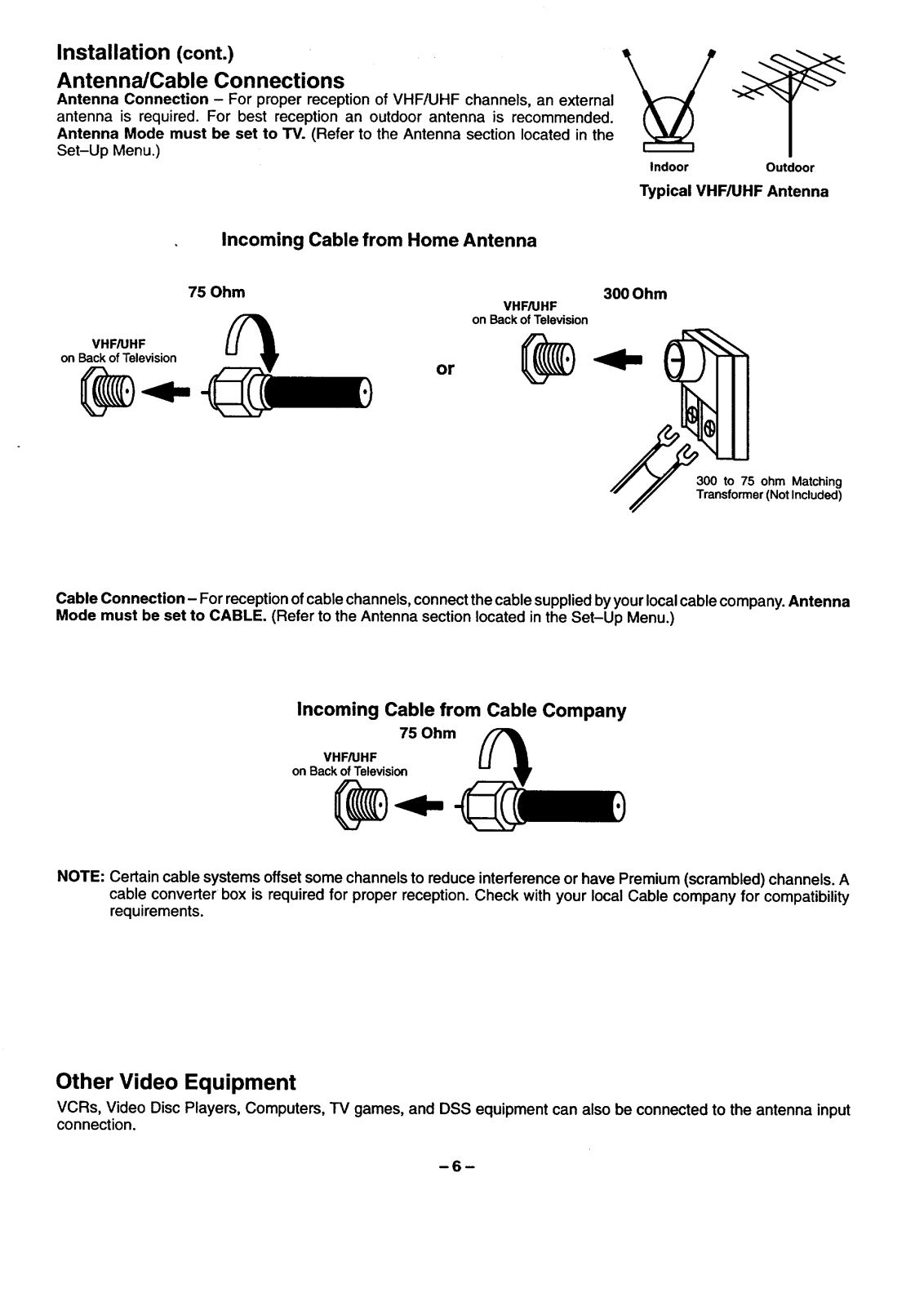

Antenna/Cable Connections

Antenna Connection - For proper reception of VHF/UHF channels, an external antenna is required. For best reception an outdoor antenna is recommended. Antenna Mode must be set to TV. (Refer to the Antenna section located in the Set-Up Menu.)

Incoming Cable from Home Antenna

Indoor Outdoor

Typical VHF/UHF Antenna

75 Ohm

VHF/UHF

on Back of Television

VHF/UHF

on Back of Television

300 Ohm

300 to 75 ohm Matching Transformer (Not Included)

Cable Connection- For reception ofcable channels, connect thecable supplied by your local cable company. Antenna Mode must be set to CABLE. (Refer to the Antenna section located in the Set-Up Menu.)

Incoming Cable from Cable Company

75 Ohm

VHF/UHF

onBackofTelevision

NOTE: Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A

cable converter box is required for proper reception. Check with your local Cable company for compatibility

requirements.

Other Video Equipment

VCRs, Video Disc Players, Computers, TV games, and DSS equipment can also be connected to the antenna input

connection.

-6-

Page 7

Optional Equipment Connection and Operation

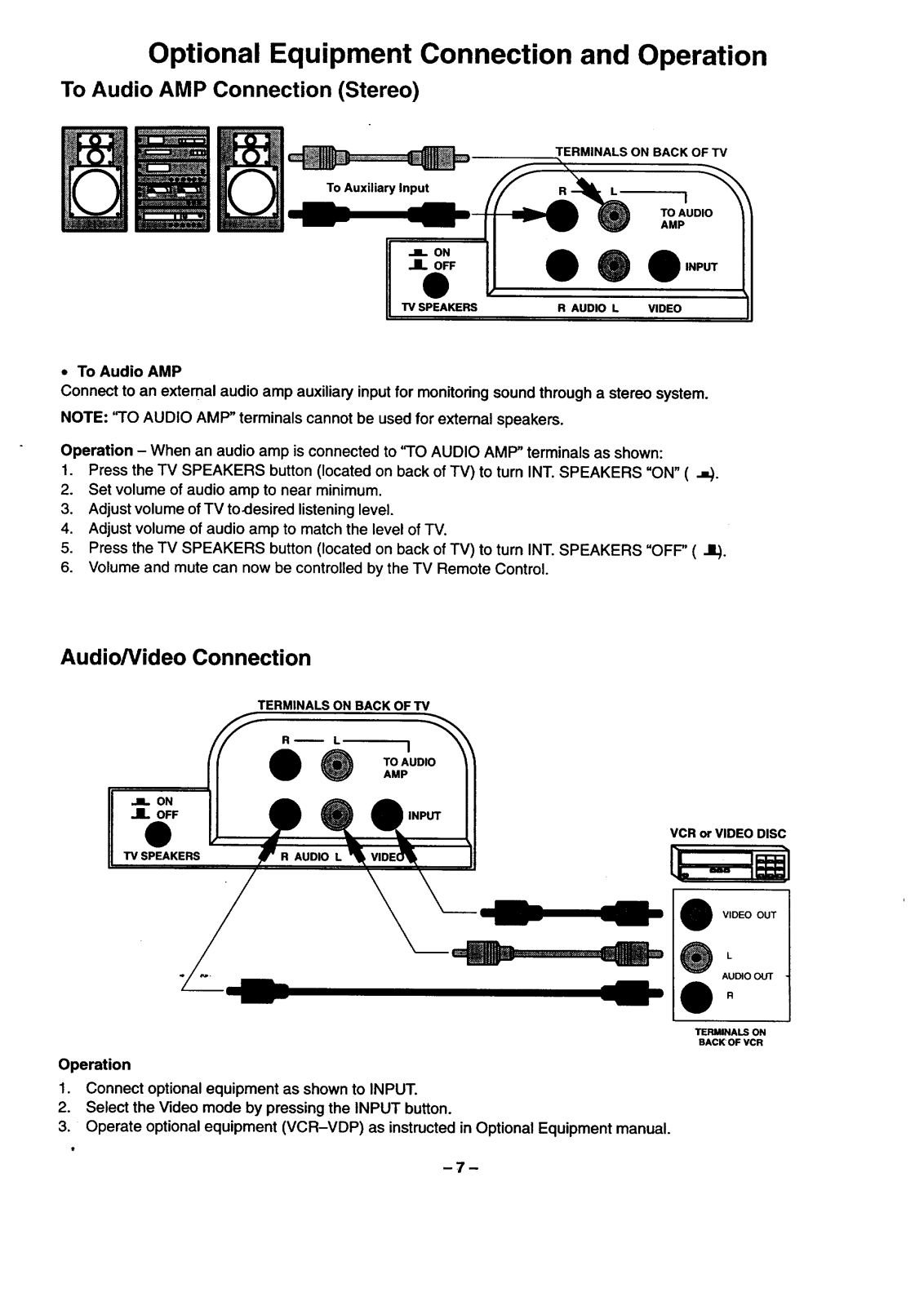

To Audio AMP Connection (Stereo)

TERMINALS ON BACK OF TV

To Auxiliary Input

TO AUDIO AMP

..11.ON

II OFF

"IV SPEAKERS R AUDIO L VIDEO

• To Audio AMP Connect to an extemal audio amp auxiliary input for monitoring sound through a stereo system.

NOTE: 'q'O AUDIO AMP" terminals cannot be used for external speakers. Operation - When an audio amp is connected to "1"OAUDIO AMP" terminals as shown:

1. Press the TV SPEAKERS button (located on back of TV) to turn INT. SPEAKERS "ON" (.L).

2. Set volume of audio amp to near minimum.

3. Adjust volume of TV to_lesired listening level.

4. Adjust volume of audio amp to match the level of TV.

5. Press the TV SPEAKERS button (located on back of TV) to turn INT. SPEAKERS "OFF" (JL).

6. Volume and mute can now be controlled by the TV Remote Control.

O ® O,.,u.

Audio/Video Connection

TERMINALS ON BACK OF TV

R L

0 0 TO AUDIOAMP

Ii ON II OFF INPUT

TV SPEAKERS R AUDIO L

Operation

1. Connect optional equipment as shown to INPUT.

2. Select the Video mode by pressing the INPUT button.

3. Operate optional equipment (VCR-VDP) as instructed in Optional Equipment manual.

m7--

VCR or VIDEO DISC

O VIDEO OUT

AUDIO OUT

TERMINALS ON

BACK OF VCR

Page 8

Optional Equipment Connection and Operation (cont.)

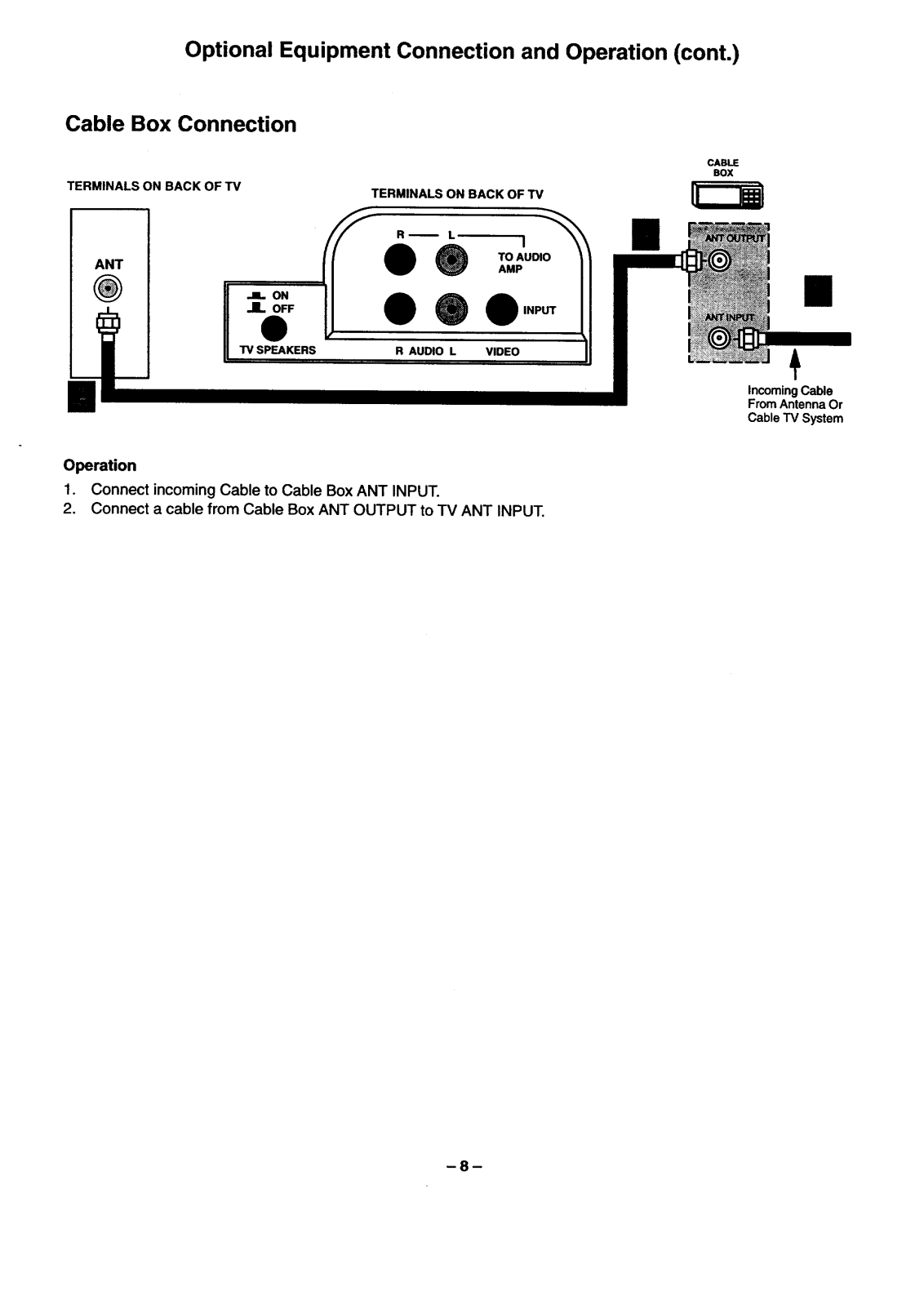

Cable Box Connection

TERMINALS ON BACK OF TV

TERMINALS ON BACK OF "IV

CABLE

BOX

ANT

R L

O O TO AUDIOAMP

JL OFF INPUT

_o. e®e

"IV SPEAKERS R AUDIO L VIDEO

Operation

1. Connect incoming Cable to Cable Box ANT INPUT.

2. Connect a cable from Cable Box ANT OUTPUT to TV ANT INPUT.

Incoming Cable From Antenna Or

Cable "IV System

-8-

Page 9

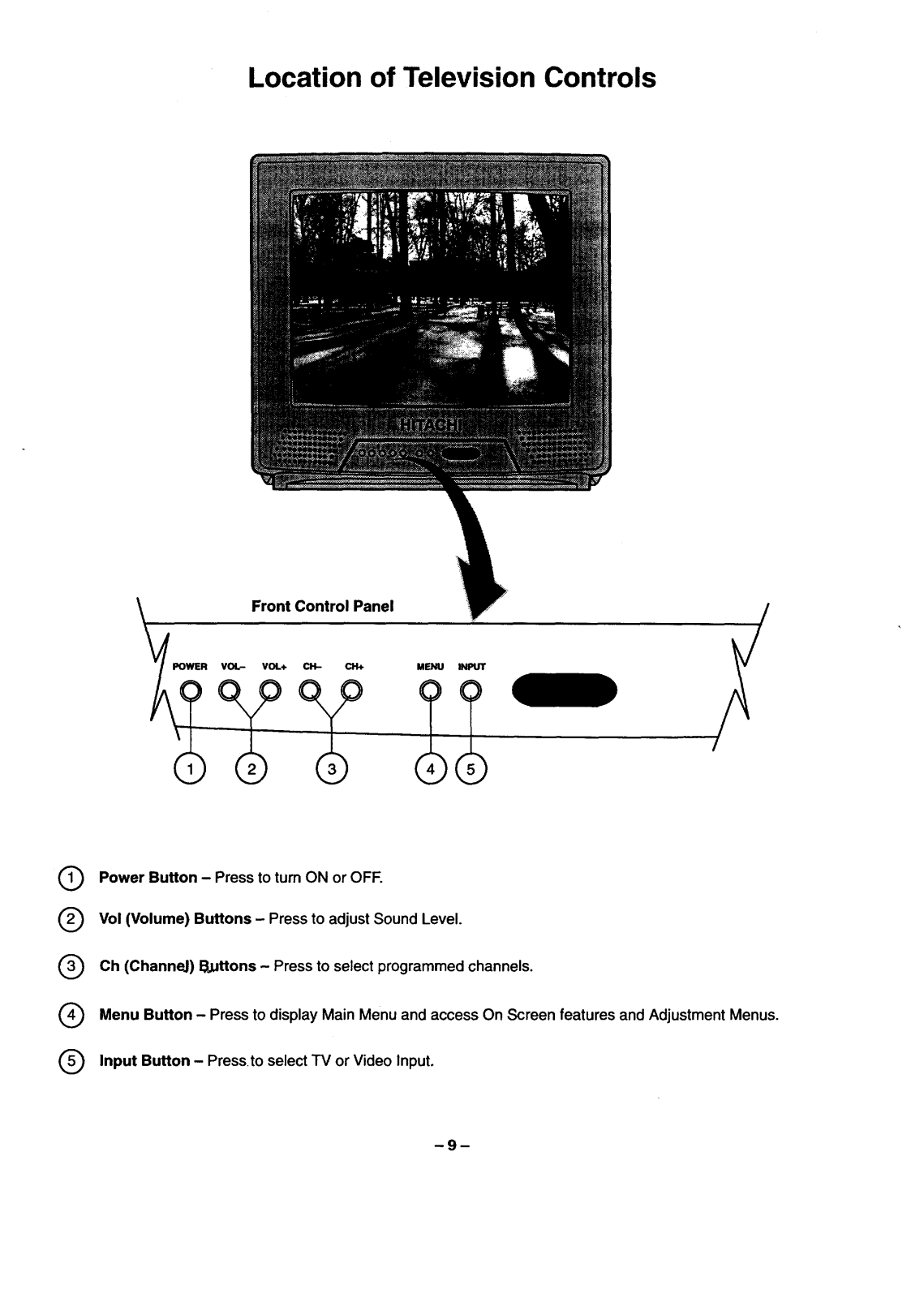

Location of Television Controls

Front Control Panel

VOL- VOL+ CH- CH+ MENU INPUT

Q Power Button - Press to turn ON or OFF.

Q Vol (Volume) Buttons - Press to adjust Sound Level.

Q Ch (Channel) Bjjttons - Press to select programmed channels.

Q Menu Button - Press to display Main Menu and access On Screen features and Adjustment Menus.

Q Input Button - Pressto select TV or Video Input.

Page 10

Power Button Press to turn ON or OFF

Mute Button

Press to mute sound. A second press resumes sound. Press also

to access and delete Closed Caption.

Input Button Press to select TV or Video

Input.

Menu Button

Press to display Main Menu and

access or exit On Screen features and Adjustment Menus.

Recall Button Press to display Time, status of Sleep Timer, Channel, Video Mode,

Channel I.D. and Audio Mode.

Precoded VCR Buttons

These buttons transmit the chosen

precoded VCR codes.

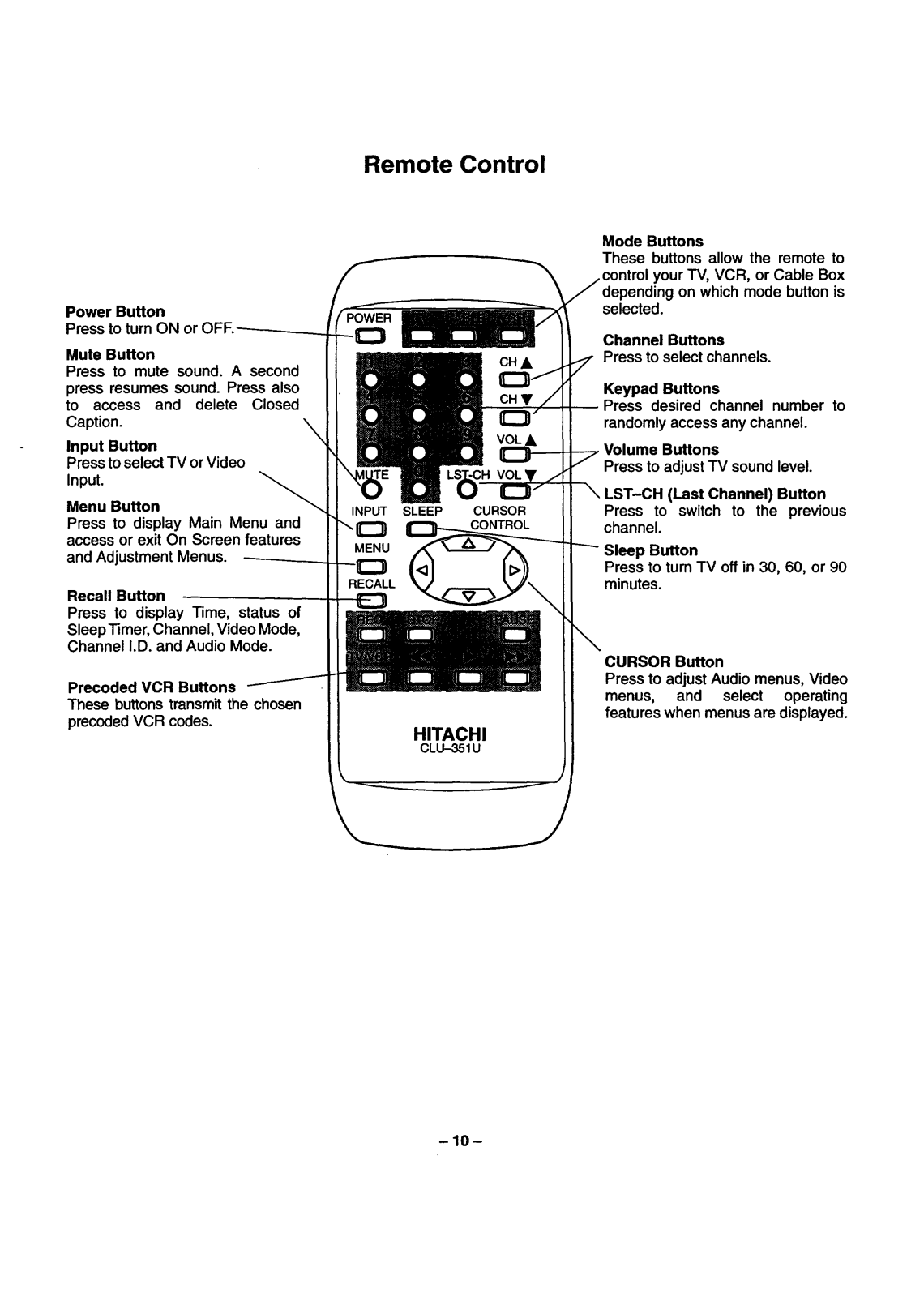

Remote Control

Mode Buttons

These buttons allow the remote to

your TV, VCR, or Cable Box

depending on which mode button is

selected. Channel Buttons

Press to select channels.

Keypad Buttons

Press desired channel number to

VOL •

INPUT

RECALL

SLEEP CURSOR

randomly access any channel.

Volume Buttons

Press to adjust TV sound level.

(Last Channel) Button

Press to switch to the previous

channel.

Sleep Button

Press to tum TV off in 30, 60, or 90 minutes.

CURSOR Button

Press to adjust Audio menus, Video

menus, and select operating features when menus are displayed.

HITACHI

CLU-351U

-10-

Page 11

Remote Control

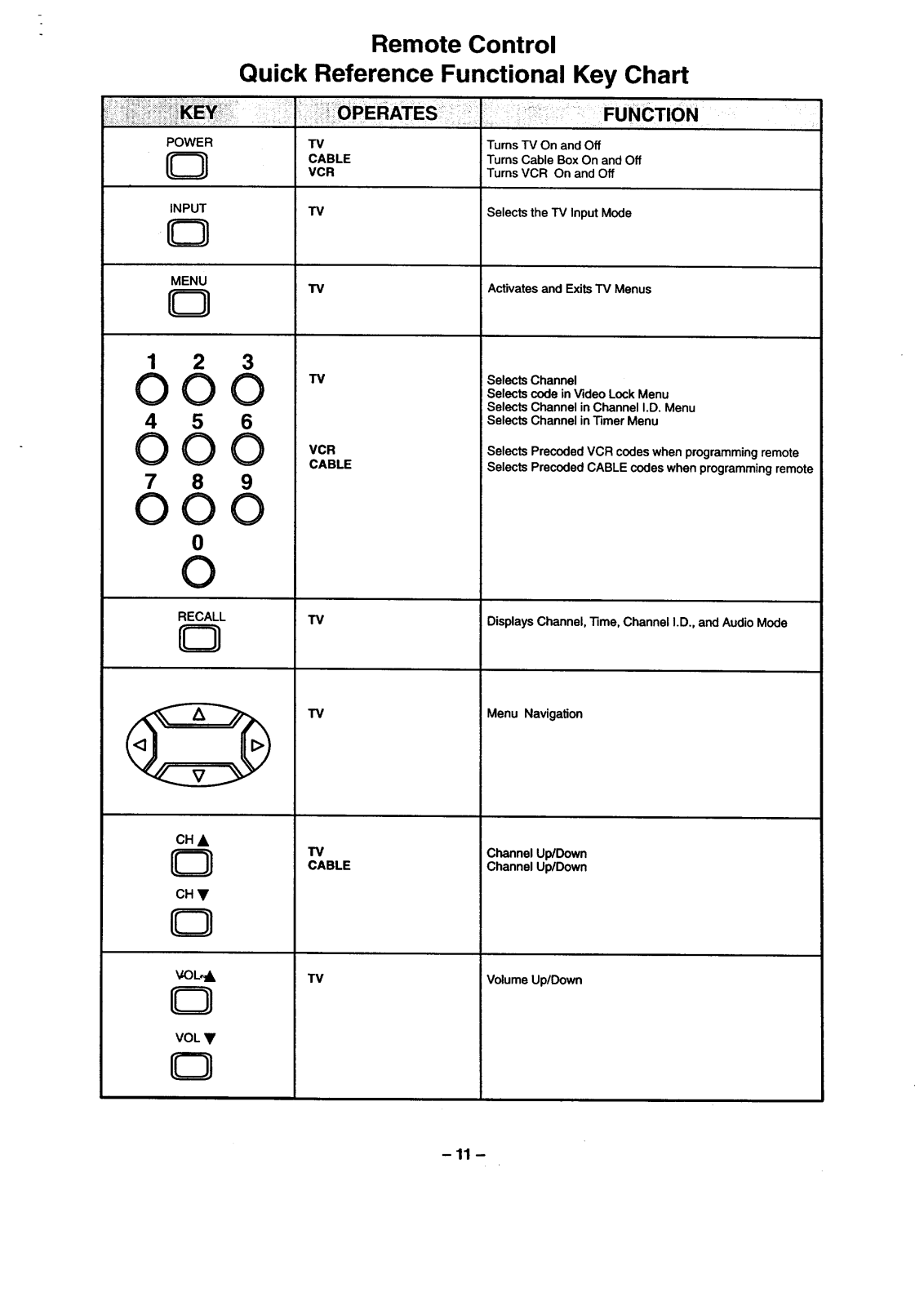

Quick Reference Functional Key Chart

POWER

INPUT

666

4 5 6

000

666

TV CABLE VCR

"iV

VCR CABLE

Turns TV On and Off Turns Cable Box On and Off

Turns VCR On and Off

Selects the TV Input Mode

Activates and Exits TV Menus

SelectsChannel SelectscodeinVideoLock Menu SelectsChannel inChannel I.D. Menu

SelectsChannelinTimerMenu

Selects Precoded VCR codes when programming remote Selects Precoded CABLE codes when programming remote

RECALL

CH •

VOL •

TV CABLE

Displays Channel, Time, Channel I.D., and Audio Mode

Menu Navigation

Channel Up/Down Channel Up/Down

Volume Up/Down

- 11 -

Page 12

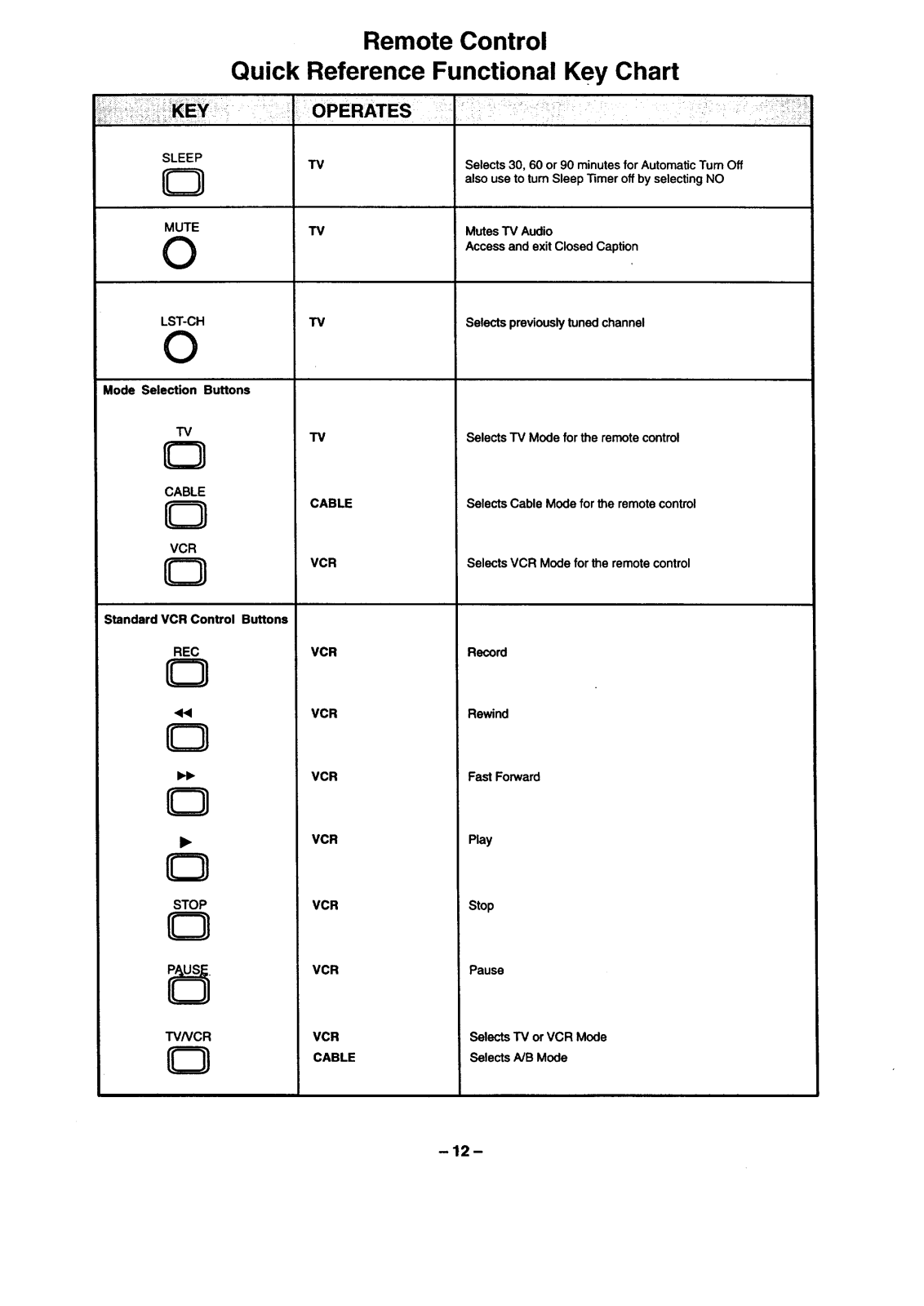

Remote Control

Quick Reference Functional Key Chart

OPERATES i i _ i

SLEEP

MUTE

LST-CH

Mode Selection Buttons

CABLE

VCR

"IV

CABLE

VCR

Selects 30, 60 or 90 minutes for Automatic Turn Off

also use to turn Sleep Timer offby selecting NO

Mutes TV Audio Access and exit Closed Caption

Selects previously tuned channel

SelectsTV Modefor theremotecontrol

Selects Cable Mode for the remote control

Selects VCR Mode for the remote control

Standard VCR Control Buttons

REC

,14

0 0

STOP

TVNCR

VCR

CABLE

Record

Rewind

Fast Forward

Play

Stop

Pause

Selects "IV or VCR Mode Selects NB Mode

-12-

Page 13

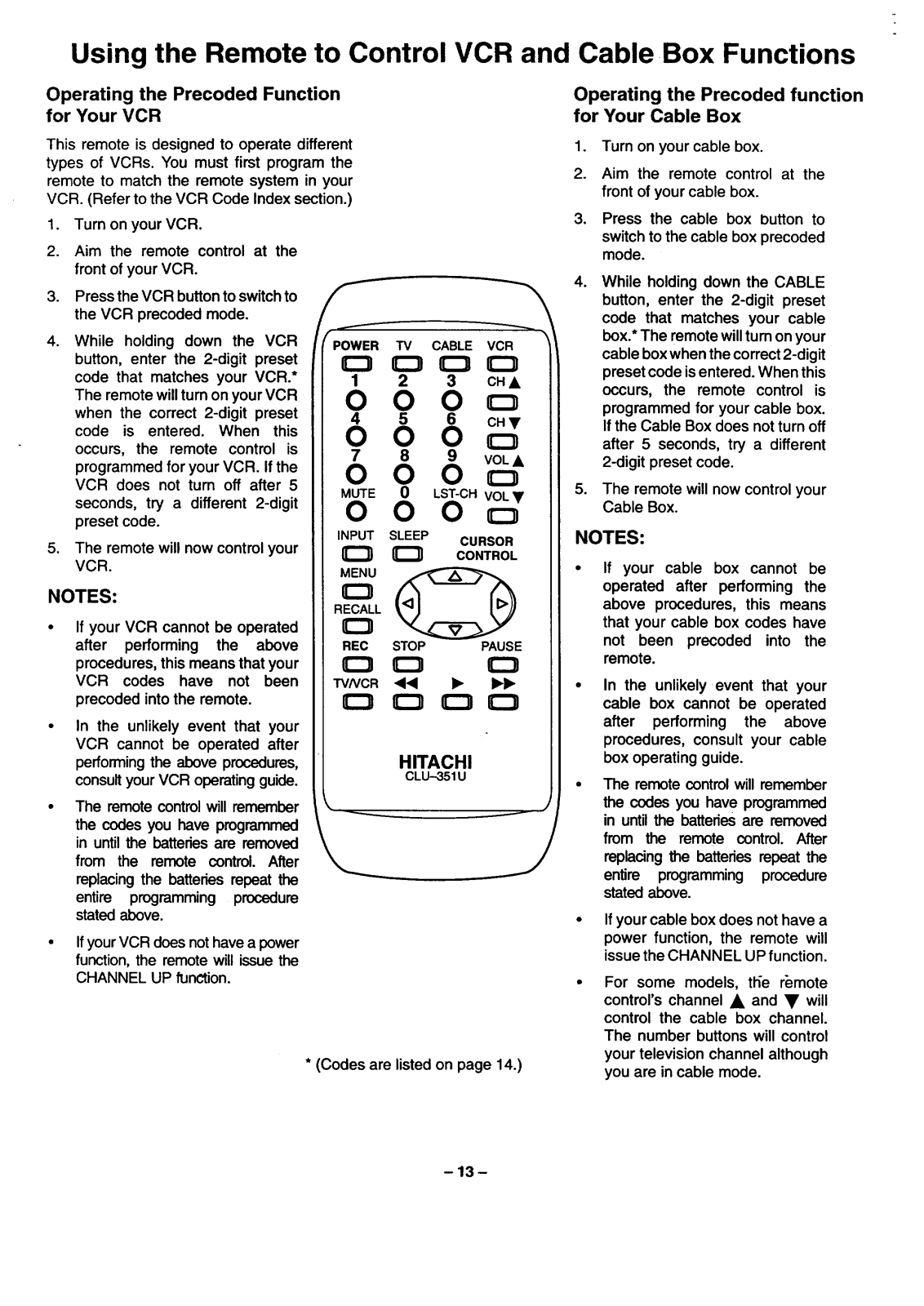

Using the Remote to Control VCR and CableBox Functions

Operating the Precoded Function

for Your VCR

This remote is designed to operate different types of VCRs. You must first program the

remote to match the remote system in your VCR. (Refer to the VCR Code Index section.)

1. Turn on your VCR.

Aim the remote control at the front of your VCR.

Press the VCR button to switch to / the VCR precoded mode.

While holding down the VCR button, enter the 2-digit preset

code that matches your VCR.* The remote will turn on your VCR

when the correct 2-digit preset code is entered. When this

occurs, the remote control is programmed for your VCR. If the

VCR does not tum off after 5 seconds, try a different 2-digit

preset code.

The remote will now control your VCR.

NOTES:

If your VCR cannot be operated

after performing the above

procedures, this means that your

VCR codes have not been

precoded into the remote. In the unlikely event that your

VCR cannot be operated after

performingthe above procedures,

consultyourVCR operatingguide.

The remote controlwill remember _, the codes you have programmed [ --

in until the batteries are removed

from the remote control. After

replacingthe batteries repeat the entire programming procedure

statedabove.

• IfyourVCR does not have a power function,the remote will issue the

CHANNEL UP flJnction.

POWER TV CABLE VCR

RECALL

TV/VCR ,, b," I_1_

* (Codes are listed on page 14.)

c.,

666 c.,

5 6 vo.,

MUTE 0 LST-CH VOL •

0 0 0

INPUT SLEEP CURSOR

CONTROL

MENU @

REC STOP PAUSE

HITACHI

CLU-351U

Operating the Precoded function for Your Cable Box

Turn on your cable box.

Aim the remote control at the front of your cable box.

Press the cable box button to

switch to the cable box precoded mode.

While holding down the CABLE

button, enter the 2-digit preset code that matches your cable box.* The remote will tum on your

cable box when the correct 2-digit preset code is entered. When this

occurs, the remote control is programmed for your cable box.

If the Cable Box does not turn off after 5 seconds, try a different

2-digit preset code.

The remote will now control your Cable Box.

NOTES:

If your cable box cannot be

operated after performing the

above procedures, this means that your cable box codes have

not been precoded into the remote.

In the unlikely event that your

cable box cannot be operated after performing the above

procedures, consult your cable box operating guide.

The remote control will remember

)

the codes you have programmed

in until the batteries are removed

from the remote control. After

replacing the batteries repeat the entire programming procedure

statedabove.

Ifyour cable box does not have a power function, the remote will issue the CHANNEL UP function.

For some models, the remote

control's channel • and • will control the cable box channel.

The number buttons will control your television channel although

you are in cable mode.

-13-

Page 14

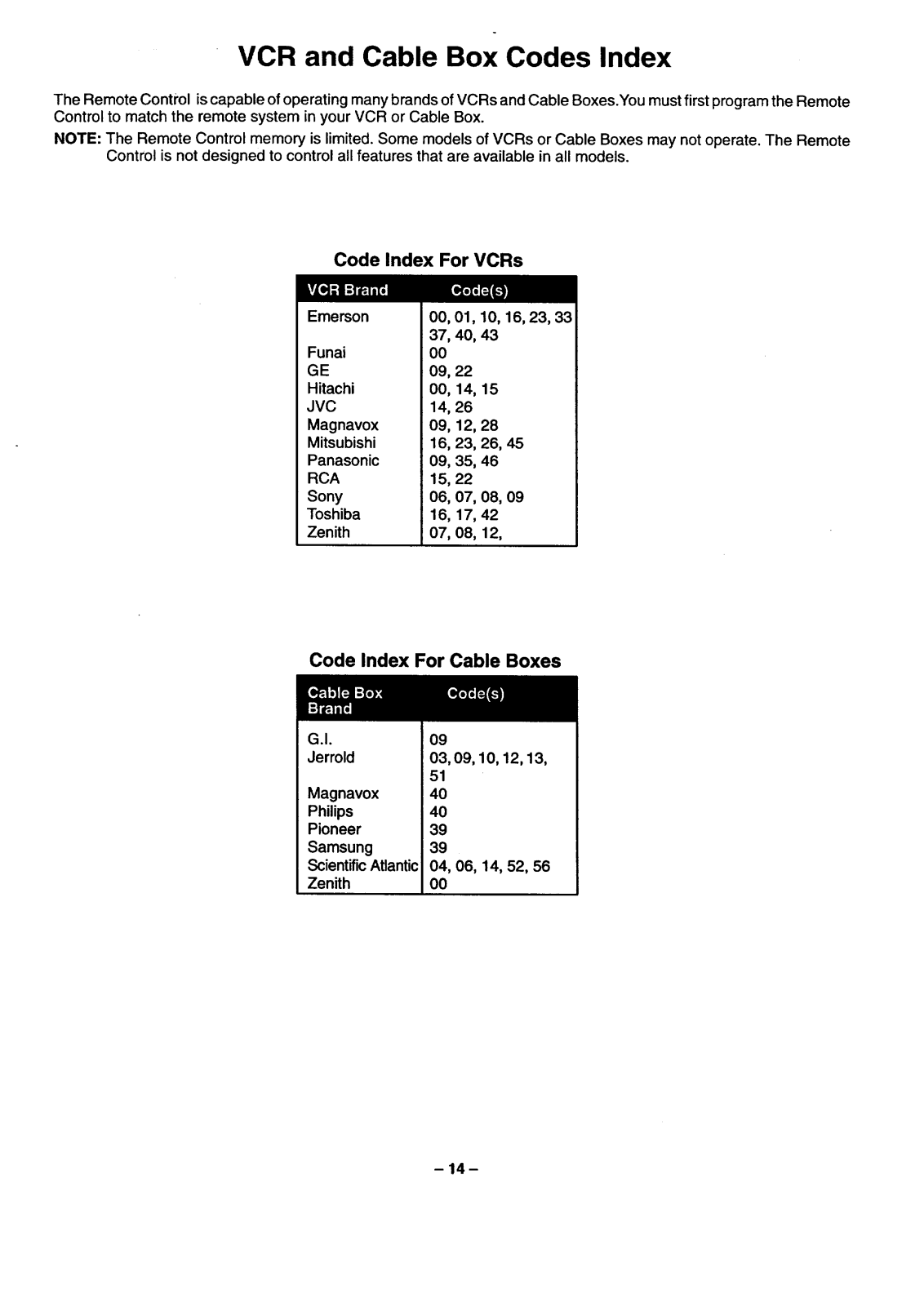

VCR and Cable Box Codes Index

The Remote Control is capable of operating many brands of VCRs and Cable Boxes.You must first program the Remote

Control to match the remote system in your VCR or Cable Box. NOTE: The Remote Control memory is limited. Some models of VCRs or Cable Boxes may not operate. The Remote

Control is not designed to control all features that are available in all models.

Code Index For VCRs

Emerson

Funai GE

Hitachi

JVC

Magnavox Mitsubishi

Panasonic RCA

Sony

Toshiba

Zenith

00, 01, 10, 16, 23, 33

37, 40, 43 O0

09, 22 00, 14, 15

14, 26

09, 12, 28

16, 23, 26, 45

09, 35, 46

15, 22

O6, 07, 08, O9

16, 17, 42

07, 08, 12,

Code Index For Cable Boxes

G.I,

Jerrold

Magnavox Philips

Pioneer Samsung

Scientific Atlantic Zenith

09 03,09, 10, 12, 13,

51 40

39 39

04, 06, 14, 52, 56 O0

-14-

Page 15

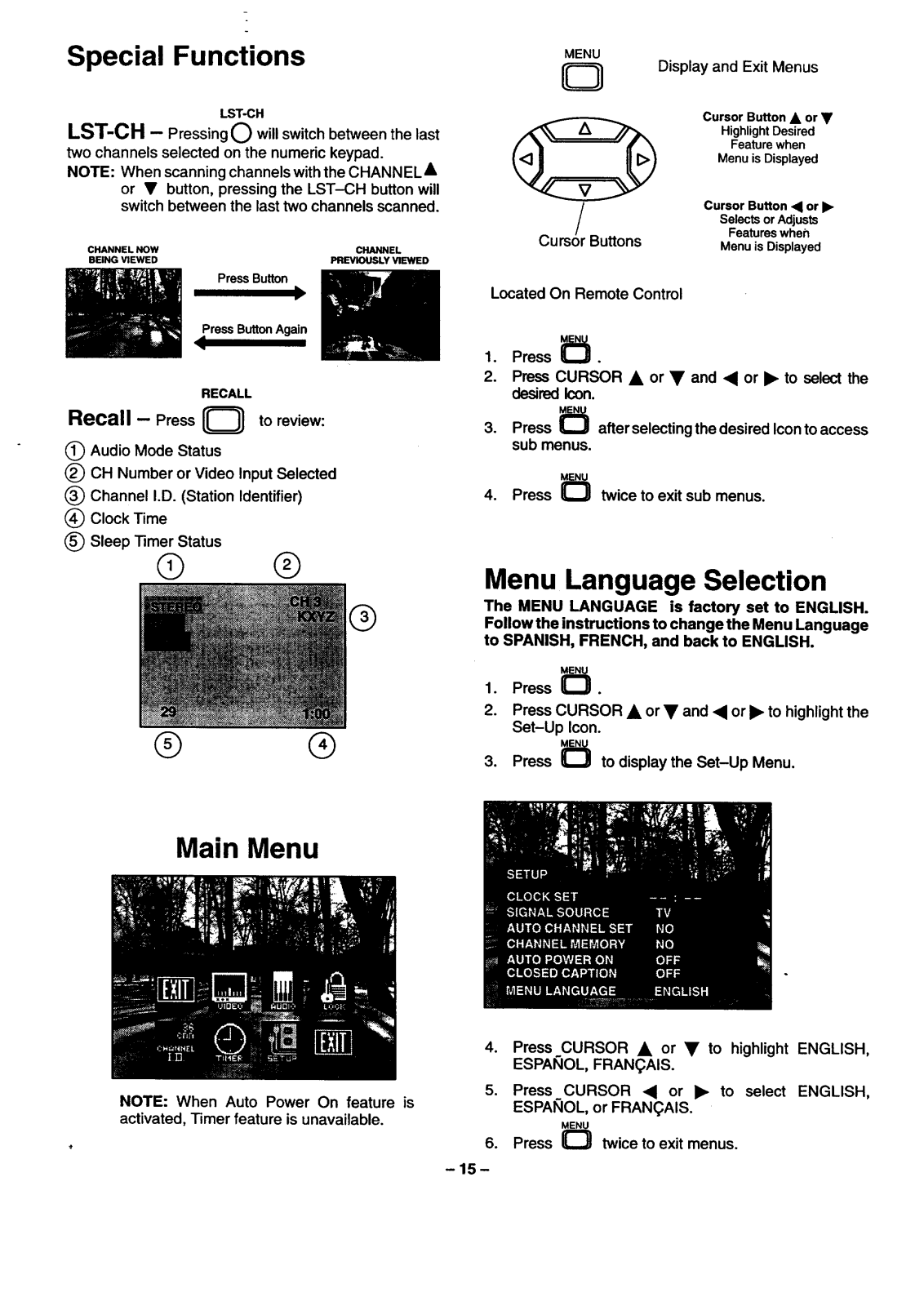

Special Functions

Display and Exit Menus

LST-CH

LST-CH - Pressing (_) willswitch between the last

two channels selected on the numeric keypad.

NOTE: When scanning channels withthe CHANNELA

or • button, pressing the LST-CH button will switch between the lasttwo channels scanned.

CHANNEL NOW CHANNEL

BEING VIEWED PREVIOUSLY VIEWED

PressButton

PressButtonAgain

RECALL

Recall - Press O to review:

(_ Audio Mode Status

(_ CH Number or Video Input Selected

_) Channel I.D. (Station Identifier) _) Clock Time

(_ Sleep Timer Status

® ®

Cursor Button • or •

Highlight Desired

Feature when

Menu is Displayed

Cursor Button <1 or _.

Selects or Adjusts

Buttons

Located On Remote Control

1. Press

2. Press CURSOR • or • and • or I_ to select the

desiredIcon.

3. Press _ afterselecting the desired Iconto access

sub menus.

4. Press 0 twice to exit sub menus.

Features wheh

Menu is Displayed

Menu Language Selection

The MENU LANGUAGE is factory set to ENGLISH.

Follow the instructions to change the Menu Language to SPANISH, FRENCH, and back to ENGLISH.

Press O.

Press CURSOR • or • and • or Ib"to highlight the Set-Up Icon.

Press _ to display the Set-Up Menu.

Main Menu

NOTE: When Auto Power On feature is activated, Timer feature is unavailable.

Press CURSOR • or • to highlight ENGLISH, ESPAI_IOL, FRAN(_AIS.

Press CURSOR • or _. to

ESPAI_IOL, or FRAN(_AIS.

Press _ twice to exit menus.

select ENGLISH,

Page 16

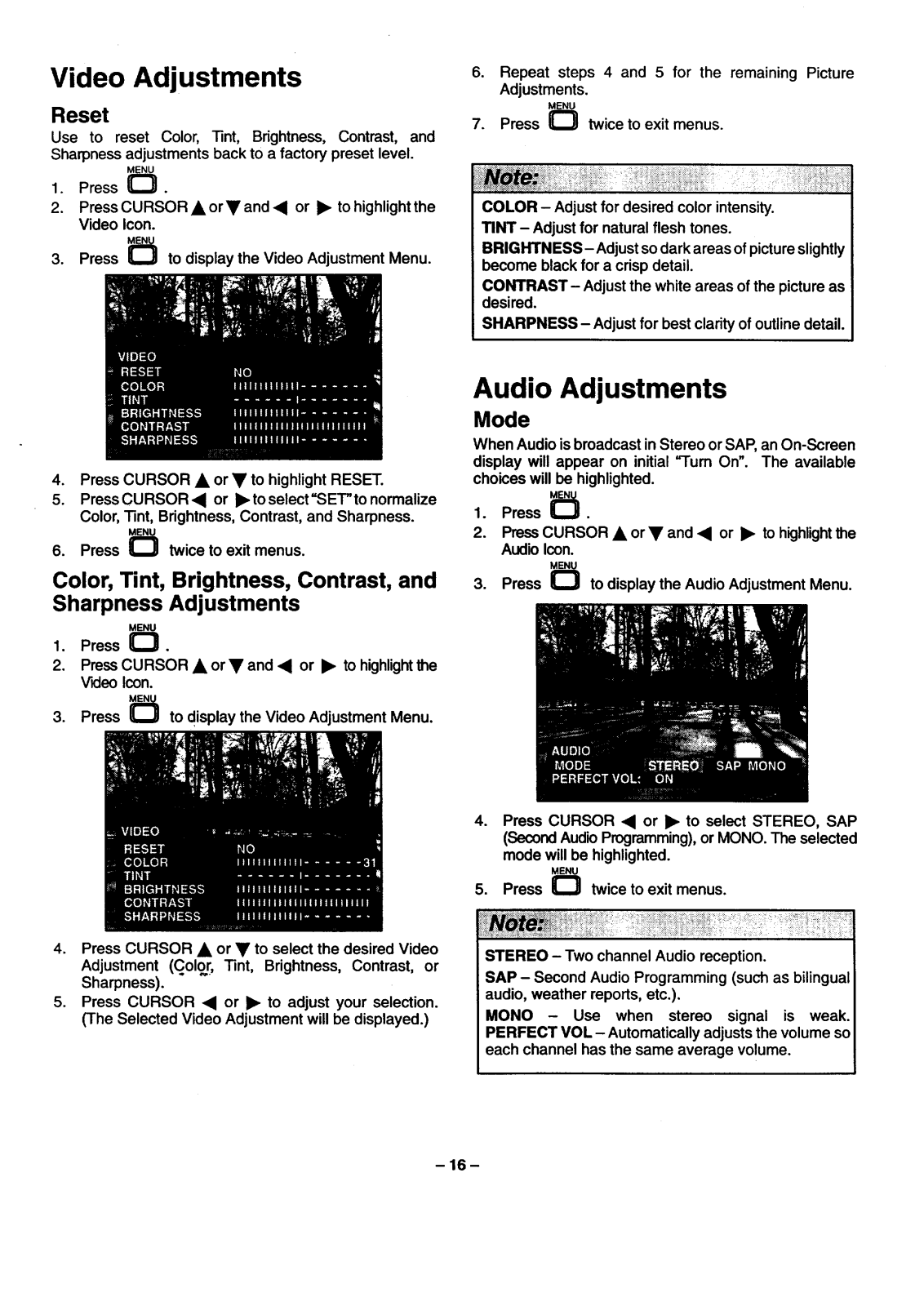

Video Adjustments

Reset

Use to reset Color, 13nt, Brightness, Contrast, and

Sharpness adjustments back to a factory preset level.

1. Press O.

2. Press CURSOR • or • and • or • to highlight the Video Icon.

3. Press _ to display the Video Adjustment Menu.

4. Press CURSOR • or • to highlight RESET.

5. PressCURSOR • or •toselect"SET"tonormalize

Color, Tint, Brightness, Contrast, and Sharpness.

6. Press O twice to exit menus.

Color, Tint, Brightness, Contrast, and Sharpness Adjustments

1. Press _. 2, PressCURSOR • or • and • or • to highlightthe

Vk:leoIcon.

6. Repeat steps 4 and 5 for the

Adjustments.

7. Press _ twice to exit menus.

COLOR - Adjust for desired color intensity. TINT - Adjust for natural flesh tones. BRIGHTNESS- Adjustsodark areas of pictureslightly

become black for a crisp detail. CONTRAST- Adjust the white areas of the picture as

desired. SHARPNESS - Adjust for best clarityof outline detail.

remaining Picture

Audio Adjustments

Mode

When Audio isbroadcast in Stereo or SAP, an On-Screen

display will appear on initial =Turn On". The available choices will be highlighted.

1. Press

2. PressCURSOR • or • and • or • to highlight the

AudioIcon.

3. Press _ to display the Audio Adjustment Menu.

3. Press _ to display the Video Adjustment Menu.

4. Press CURSOR • or • to select the desired Video

Adjustment (Color, Tint, Brightness, Contrast, or Sharpness).

5. Press CURSOR • or • to adjust your selection.

(The Selected Video Adjustment will be displayed.)

4. Press CURSOR • or • to select STEREO, SAP (SecondAudioProgramming),orMONO. The selected mode will be highlighted.

5. Press _ twice to exit menus.

STEREO - Two channel Audio reception. SAP - Second Audio Programming (such as bilingual

audio, weather reports, etc.).

MONO - Use when stereo signal is weak. PERFECT VOL- Automatically adjuststhe volume so

each channel has the same average volume.

-16-

Page 17

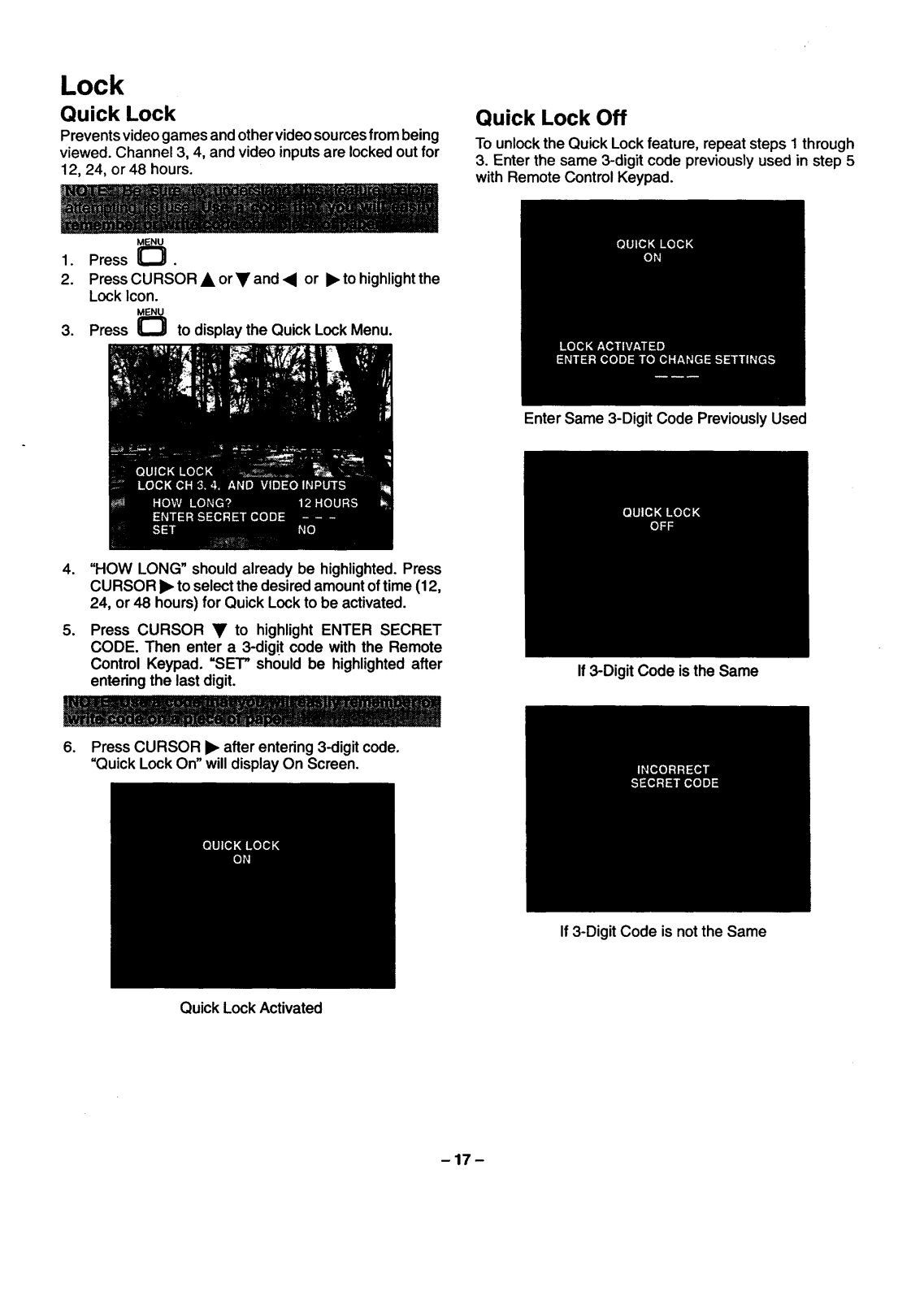

Lock

Quick Lock

Prevents video games and other videosources frombeing viewed. Channel 3, 4, and video inputsare locked out for

12, 24, or48 hours.

1. Press _.

2. Press CURSOR • or • and _ or • to highlight the Lock Icon.

3. Press _ to display the Quick Lock Menu.

Quick Lock Off

To unlockthe Quick Lock feature, repeat steps I through

3. Enter the same 3-digit code previously used in step 5 with Remote Control Keypad.

Enter Same 3-Digit Code Previously Used

4. "HOW LONG" should already be highlighted. Press CURSOR • to select the desired amount of time (12,

24, or 48 hours) for Quick Lock to be activated.

5. Press CURSOR • to highlight ENTER SECRET CODE. Then enter a 3-digit code with the Remote Control Keypad. "SET" should be highlighted after

entering the last digit.

6. Press CURSOR • after entering 3-digit code. "Quick Lock On" will display On Screen.

Quick Lock Activated

If 3-Digit Code isthe Same

If 3-Digit Code is not the Same

-17-

Page 18

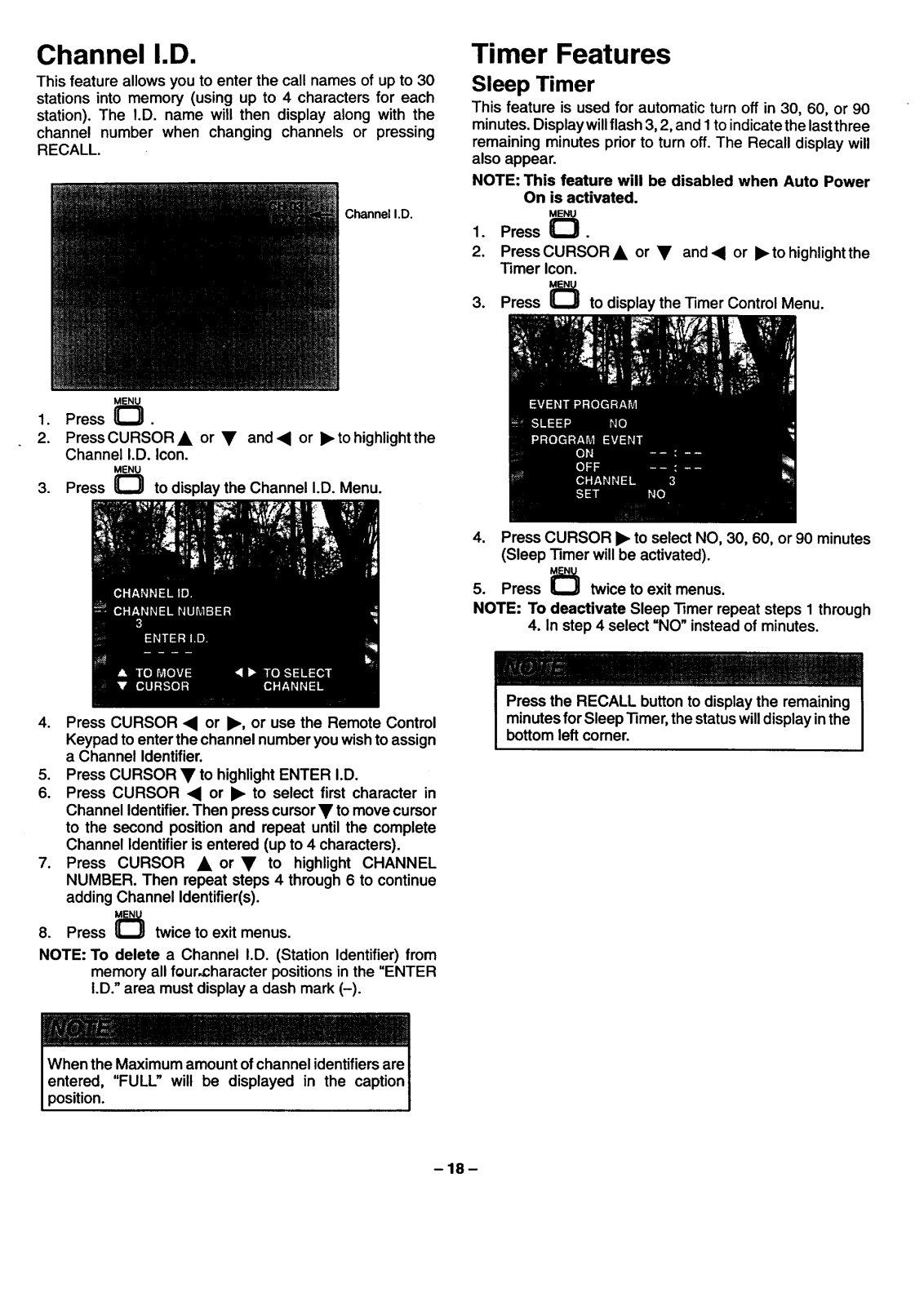

Channel I.D.

This feature allows you to enter the call names of up to 30 stations into memory (using up to 4 characters for each

station). The I.D. name will then display along with the channel number when changing channels or pressing

RECALL.

Channel I.D.

Press O.

Press CURSOR • or • and 4 or • to highlight the Channel I.D. Icon.

Press _ to display the Channel I.D. Menu.

Timer Features

Sleep Timer

This feature is used for automatic turn off in 30, 60, or 90

minutes. Display will flash 3, 2, and I to indicate the last three remaining minutes prior to turn off. The Recall display will

also appear.

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press O.

2. Press CURSOR A or • and4 or •tohighlightthe

Timer Icon.

3. Press _ to display the Timer Control Menu.

4. Press CURSOR • or •, or use the Remote Control

Keypad to enter the channel number you wishto assign a Channel Identifier.

5. Press CURSOR • to highlight ENTER I.D.

6. Press CURSOR • or • to select first character in Channel Identifier.Then press cursor • to move cursor to the second position and repeat until the complete Channel Identifier is entered (up to 4 characters).

7. Press CURSOR • or • to highlight CHANNEL

NUMBER. Then repeat steps 4 through 6 to continue

adding Channel Identifier(s).

8. Press

twice to exit menus.

NOTE: To delete a Channel I.D. (Station Identifier) from

memory all four.character positions in the "ENTER I.D." area must display a dash mark (-).

4. Press CURSOR • to select NO, 30, 60, or 90 minutes (Sleep Timer willbe activated).

5. Press _ twice to exit menus. NOTE: To deactivate Sleep Timer repeat steps 1 through

4. In step 4 select "NO" instead of minutes.

Press the RECALL button to display the remaining minutesfor Sleep Timer, the statuswilldisplay in the

bottom left corner.

position.

-18-

Page 19

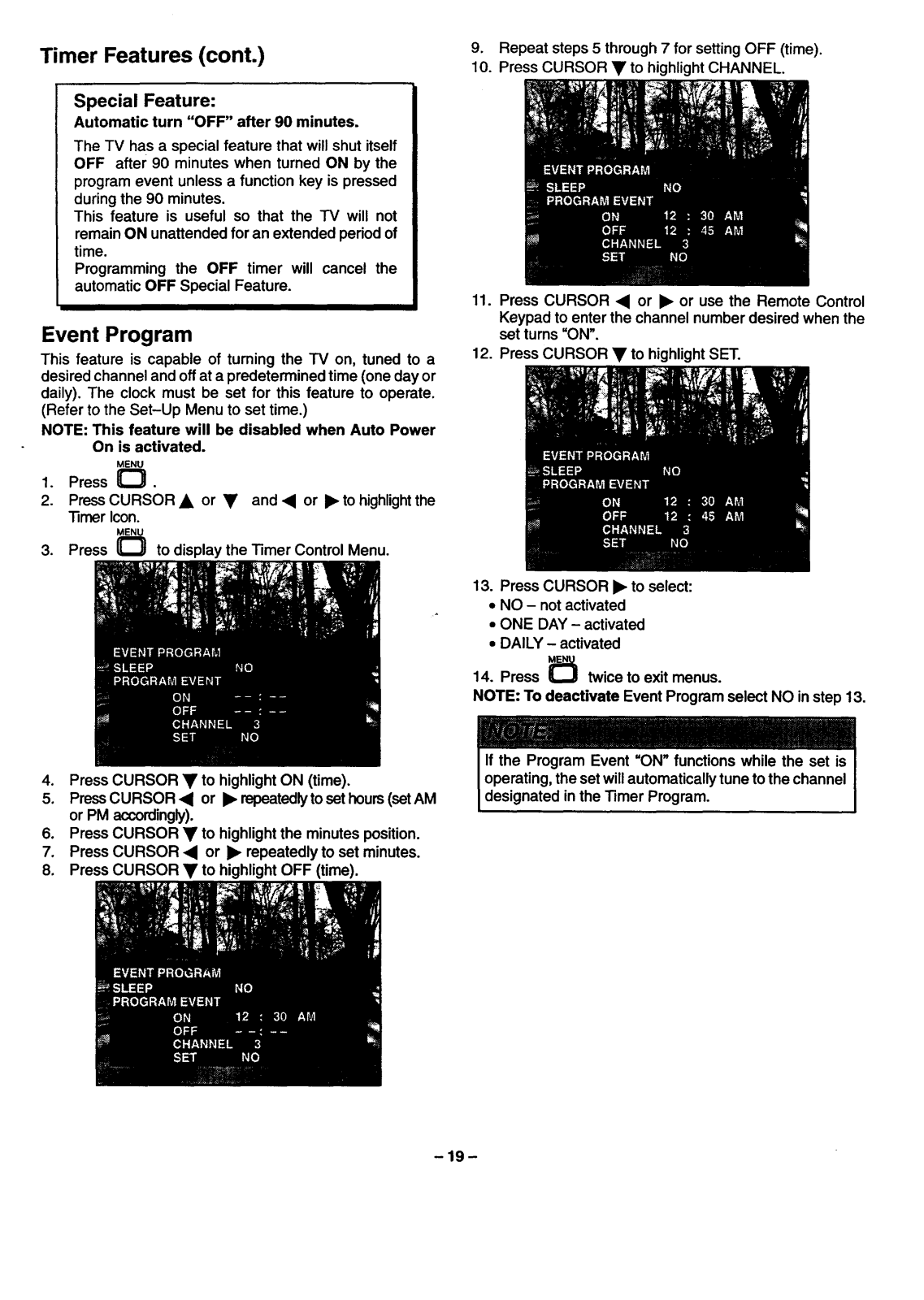

Timer Features (cont.)

Special Feature:

Automatic turn "OFF" after 90 minutes. The TV has a special feature that will shut itself

OFF after 90 minutes when turned ON by the program event unless a function key is pressed during the 90 minutes.

This feature is useful so that the TV will not

remain ON unattended for an extended period of

time.

Programming the OFF timer will cancel the

automatic OFF Special Feature.

Event Program

This feature is capable of tuming the TV on, tuned to a desired channel and off at a predetermined time (one day or daily). The clock must be set for this feature to operate.

(Refer to the Set-Up Menu to set time.) NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press O.

2. PressCURSOR A or • and • or I_ to highlightthe

"13rnerIcon.

3. Press O to display the Timer Control Menu.

9. Repeat steps 5 through 7 for setting OFF (time).

10. Press CURSOR • to highlight CHANNEL.

11. Press CURSOR • or I_ or use the Remote Control Keypad to enter the channel number desired when the

set turns "ON".

12. Press CURSOR • to highlight SET.

4. Press CURSOR • to highlight ON (time).

5. Press CURSOR • or II_ repeatedly to set hours (setAM

or PM accordingly).

6. Press CURSOR • to highlight the minutes position.

7. Press CURSOR • or II_ repeatedly to set minutes.

8. Press CURSOR • to highlight OFF (time).

13. Press CURSOR Ib"to select:

• NO - not activated

• ONE DAY - activated

• DAILY - activated

_Mtt

14. Press _ twice to exit menus. NOTE: To deactivate Event Program select NO instep 13.

If the Program Event "ON_ functions while the set is

operating, the setwill automatically tune tothe channel

designated in the Timer Program.

-19-

Page 20

Set-Up Features

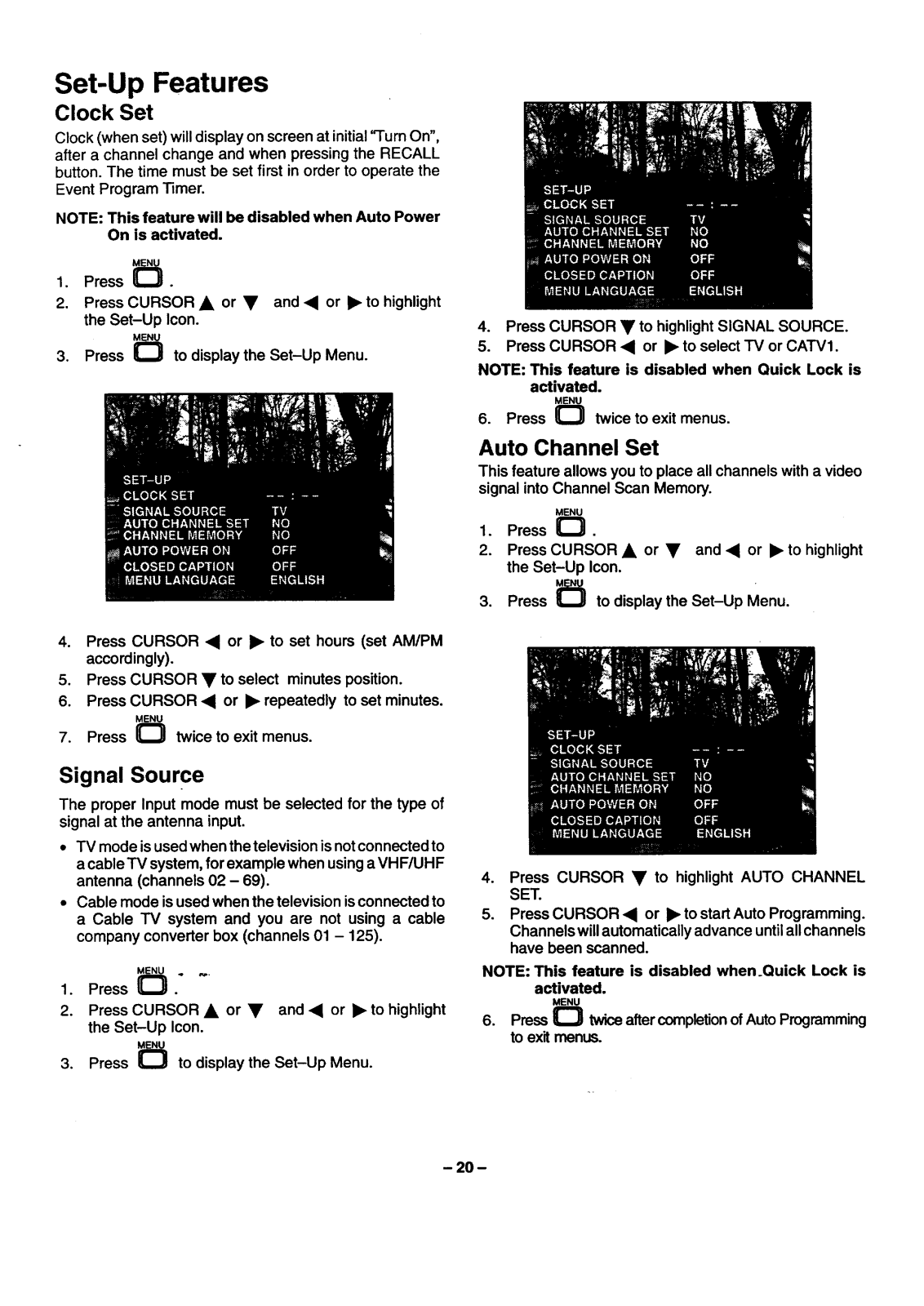

Clock Set

Clock (when set) will display on screen at initial "Turn On", after a channel change and when pressing the RECALL

button. The time must be set first in order to operate the Event Program Timer.

NOTE: This feature will be disabled when Auto Power

On is activated.

1. Press

2. Press CURSOR • or • and • or • to highlight

the Set-Up Icon.

3. Press O to display the Set-Up Menu.

4. Press CURSOR • to highlightSIGNAL SOURCE.

5. Press CURSOR • or • to select rv or CATV1.

NOTE: This feature is disabled when Quick Lock is

activated.

6. Press _ twice to exit menus.

Auto Channel Set

This feature allows you to place all channels with a video signal into Channel Scan Memory.

1. Press _,

2. Press CURSOR • or • and • or • to highlight

the Set-Up Icon.

4. Press CURSOR • or • to set hours (set AM/PM

accordingly).

5. Press CURSOR • to select minutes position.

6. Press CURSOR • or • repeatedly to set minutes.

7. Press O twice to exit menus.

Signal Source

The proper Input mode must be selected for the type of signal at the antenna input.

• TV mode is used when the television is not connected to a cable TV system, for example when using a VHF/UHF

antenna (channels 02 - 69).

• Cable mode is used when the television isconnected to a Cable TV system and you are not using a cable

company converter box (channels 01 - 125).

1. Press _ ° ~

2. Press CURSOR • or • and • or •to highlight

the Set-Up Icon.

3. Press 0 to display the Set-Up Menu.

3. Press _ to display the Set-Up Menu.

4. Press CURSOR • to highlight AUTO CHANNEL

SET.

5. Press CURSOR • or • to startAuto Programming.

Channels willautomatically advance untilallchannels

have been scanned.

NOTE: This feature is disabled when _Quick Lock is

activated.

6. Press _ twiceaftercompletionofAuto Programming

to exit menus.

- 20 -

Page 21

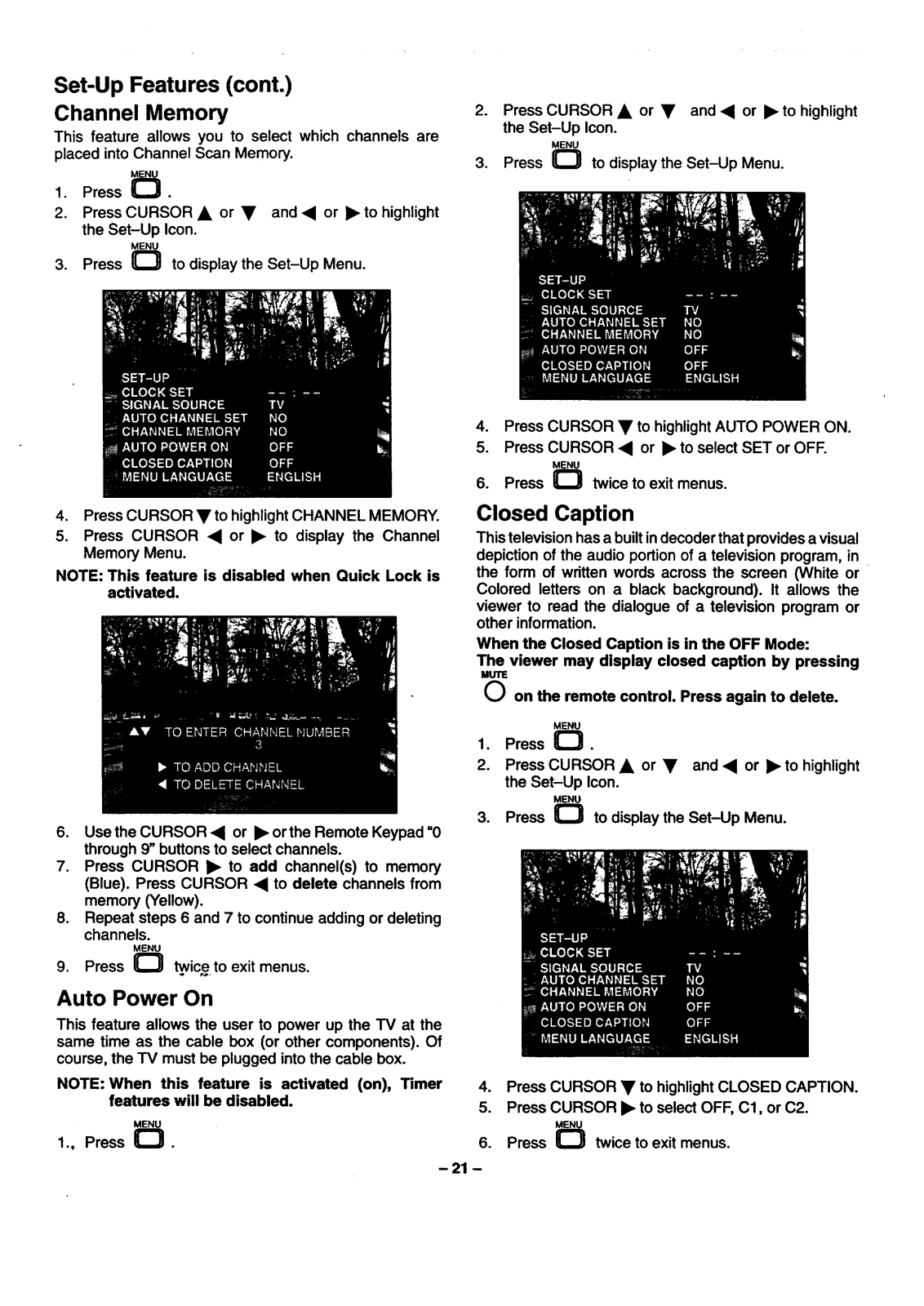

Set-Up Features (cont.) Channel Memory

This feature allows you to select which channels are

placed into Channel Scan Memory.

1. Press

2. Press CURSOR • or • and • or •to highlight the Set-Up Icon.

3. Press _ to display the Set-Up Menu.

2. Press CURSOR • or • and • or • to highlight the Set-Up Icon.

3. Press O to display the Set-Up Menu.

4. Press CURSOR • to highlight AUTO POWER ON.

5. Press CURSOR • or • to select SET or OFF.

6. Press _ twice to exit menus.

4. Press CURSOR • to highlight CHANNEL MEMORY.

5. Press CURSOR • or • to display the Channel

Memory Menu.

NOTE: This feature is disabled when Quick Lock is

activated.

6. Use the CURSOR • or • orthe Remote Keypad "0 through 9" buttons to select channels.

7. Press CURSOR • to add channel(s) to memory (Blue). Press CURSOR • to delete channels from memory (Yellow).

8. Repeat steps 6 and 7 to continue adding or deleting channels.

9. Press O t_viceto exit menus.

Closed Caption

This television has a builtindecoder that providesa visual

depiction of the audio portion of a television program, in

the form of written words across the screen (White or

Colored letters on a black background). It allows the viewer to read the dialogue of a television program or

other information. When the Closed Caption is in the OFF Mode:

The viewer may display closed caption by pressing

MvrE

(_) on the remote control. Press again to delete.

1. Press _.

2. Press CURSOR • or • and • or • to highlight

the Set-Up Icon.

3. Press _ to display the Set-Up Menu.

Auto Power On

This feature allows the user to power up the TV at the same time as the cable box (or other components). Of course, the TV must be plugged intothe cable box.

NOTE: When this feature is activated (on), Timer

features will be disabled.

1.. Press _.

4. Press CURSOR • to highlightCLOSED CAPTION.

5. Press CURSOR • to select OFF, C1, or C2.

6. Press _ twice to exit menus.

- 21 -

Page 22

USEFUL INFORMATION

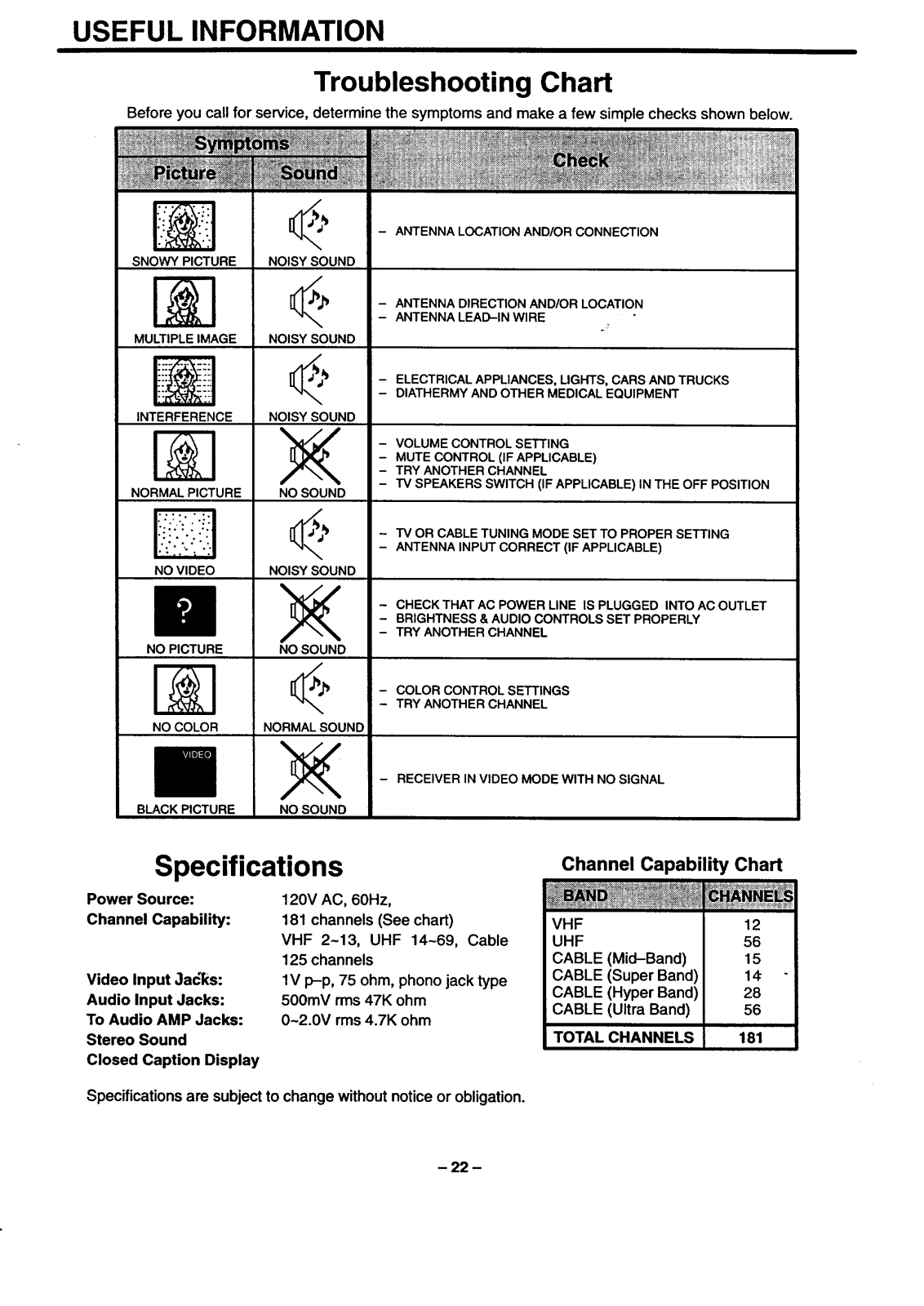

Troubleshooting Chart

Before you call for service, determine the symptoms and make a few simple checks shown below.

SNOWY PICTURE

N--

MULTIPLE IMAGE

INTERFERENCE

NORMAL PICTURE

..:': "..'..".}

NO VIDEO

NO PICTURE

NOISY SOUND

NO SOUND

NOISY SOUND

NO SOUND

- ANTENNA LOCATION AND/OR CONNECTION

- ANTENNA DIRECTION AND/OR LOCATION

- ANTENNA LEAD-IN WIRE

- ELECTRICAL APPLIANCES, LIGHTS, CARS AND TRUCKS

- DIATHERMY AND OTHER MEDICAL EQUIPMENT

- VOLUME CONTROL SETTING

- MUTE CONTROL (IF APPLICABLE)

- TRY ANOTHER CHANNEL

- TV SPEAKERS SWITCH (IF APPLICABLE) IN THE OFF POSITION

- TV OR CABLE TUNING MODE SET TO PROPER SETTING

- ANTENNA INPUT CORRECT (IF APPLICABLE)

- CHECK THAT AC POWER LINE IS PLUGGED INTO AC OUTLET

- BRIGHTNESS & AUDIO CONTROLS SET PROPERLY

- TRY ANOTHER CHANNEL

- COLOR CONTROL SETTINGS

- TRY ANOTHER CHANNEL

- RECEIVER IN VIDEO MODE WITH NO SIGNAL

NO COLOR

BLACK PICTURE

NORMAL SOUND

NO SOUND

Specifications

Power Source: Channel Capability:

Video Input 3a(_Es: Audio Input Jacks:

To Audio AMP Jacks: Stereo Sound

Closed Caption Display

Specifications are subject to change without notice or obligation.

120V AC, 60Hz, 181 channels (See chart)

VHF 2-13, UHF 14-69, Cable 125 channels

1V p-p, 75 ohm, phono jack type 500mV rms 47K ohm

0-2.0V rms 4.7K ohm

Channel Capability Chart

VHF

UHF CABLE (Mid-Band)

CABLE (Super Band)

CABLE (Hyper Band)

CABLE (Ultra Band)

TOTAL CHANNELS

28 56

181

15 1,$

- 22 -

Page 23

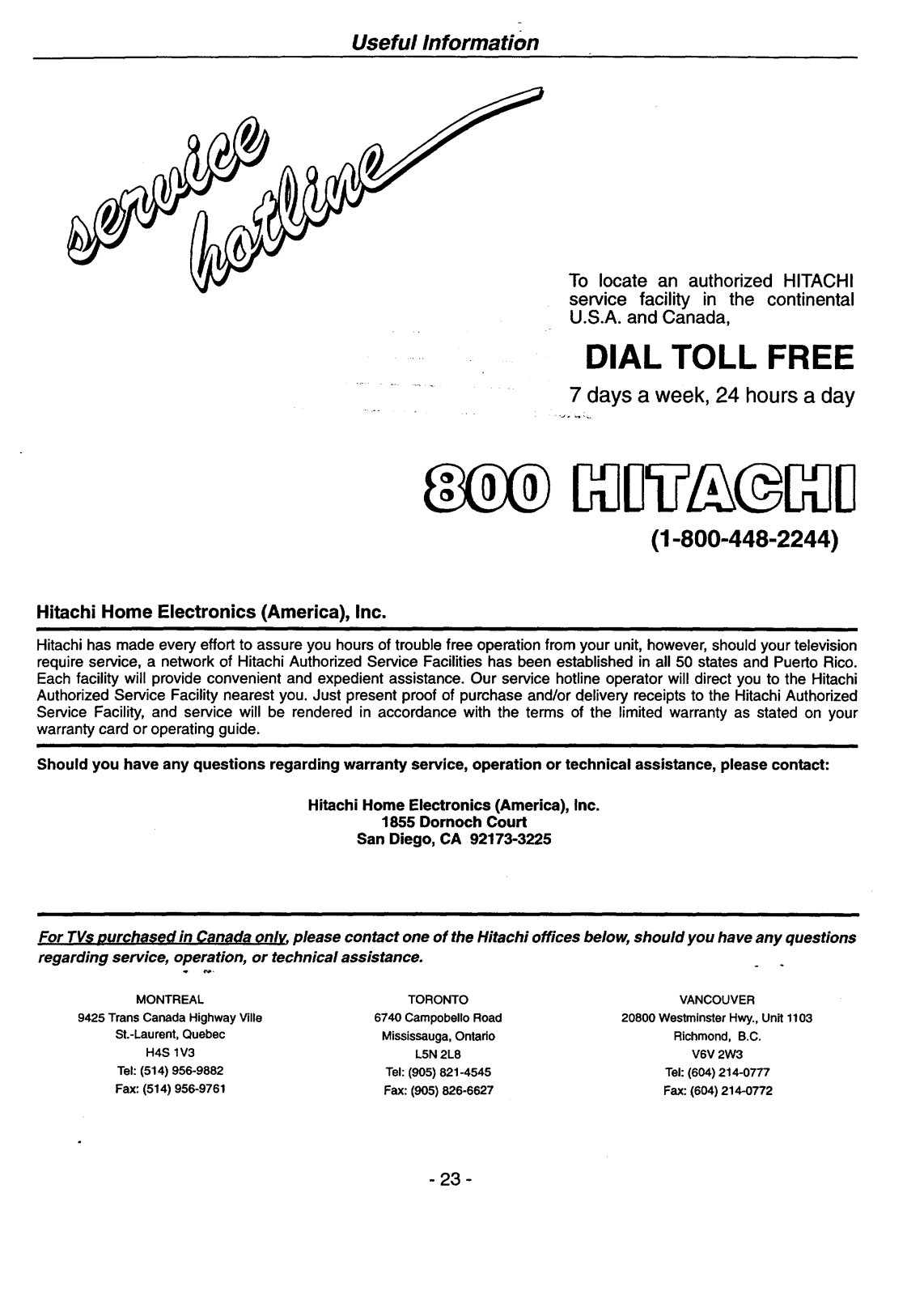

Useful Information

........ 4

To locate an authorized HITACHI service facility in the continental

U.S.A. and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

(1-800-448-2244)

Hitachi Home Electronics (America), Inc.

Hitachi has made every effort to assure you hours of trouble free operation from your unit, however, should your television require service, a network of Hitachi Authorized Service Facilities has been established in all 50 states and Puerto Rico.

Each facility will provide convenient and expedient assistance. Our service hotline operator will direct you to the Hitachi Authorized Service Facility nearest you. Just present proof of purchase and/or delivery receipts to the Hitachi Authorized Service Facility, and service will be rendered in accordance with the terms of the limited warranty as stated on your warranty card or operating guide.

Should you have any questions regarding warranty service, operation or technical assistance, please contact:

Hitachi Home Electronics (America), Inc.

For TV_ purchased in Canada only, please contact one of the Hitachi offices below, should you have any questions regarding service, operation, or technical assistance.

1855 Dornoch Court

San Diego, CA 92173-3225

MONTREAL

9425 Trans Canada Highway Vllle

St.-Laurent, Quebec

H4S 1V3

Tel: (514) 956-9882

Fax: (514) 956-9761

TORONTO

6740 Campobello Road

Mississauga, Ontario

L5N 2L8

Tel: (905) 821-4545

Fax: (905) 826-6627

- 23 -

VANCOUVER

20800 Weslrninster Hwy., Unit 1103

Richmond, B.C.

V6V 2W3

Tel: (604) 214-0777 Fax: (604) 214-0772

Page 24

HITACHI

H462441
