Page 1
2.1 Channel Sound Bar Home Theater System
Model: HS214
Manufactured under license
from Dolby Laboratories. Dolby,
Dolby Audio, and the double-D
symbol are trademarks of Dolby
Laboratories.
USER MANUAL
Before using the sound bar, please read this manual
thoroughly and retain it for future reference.
Roku TV Ready and the Roku TV Ready logo are trademarks of Roku, Inc.
Page 2
Contents
Important Safety Instructions 3
Safety ...........................................................................................................................................................................................3
EN
Warning .......................................................................................................................................................................................4
FCC Information
.....................................................................................................................................................................
Package Contents 6
Product Diagram 7
Main Unit ...................................................................................................................................................................................7
Remote Control ........................................................................................................................................................................8
Instructions 8

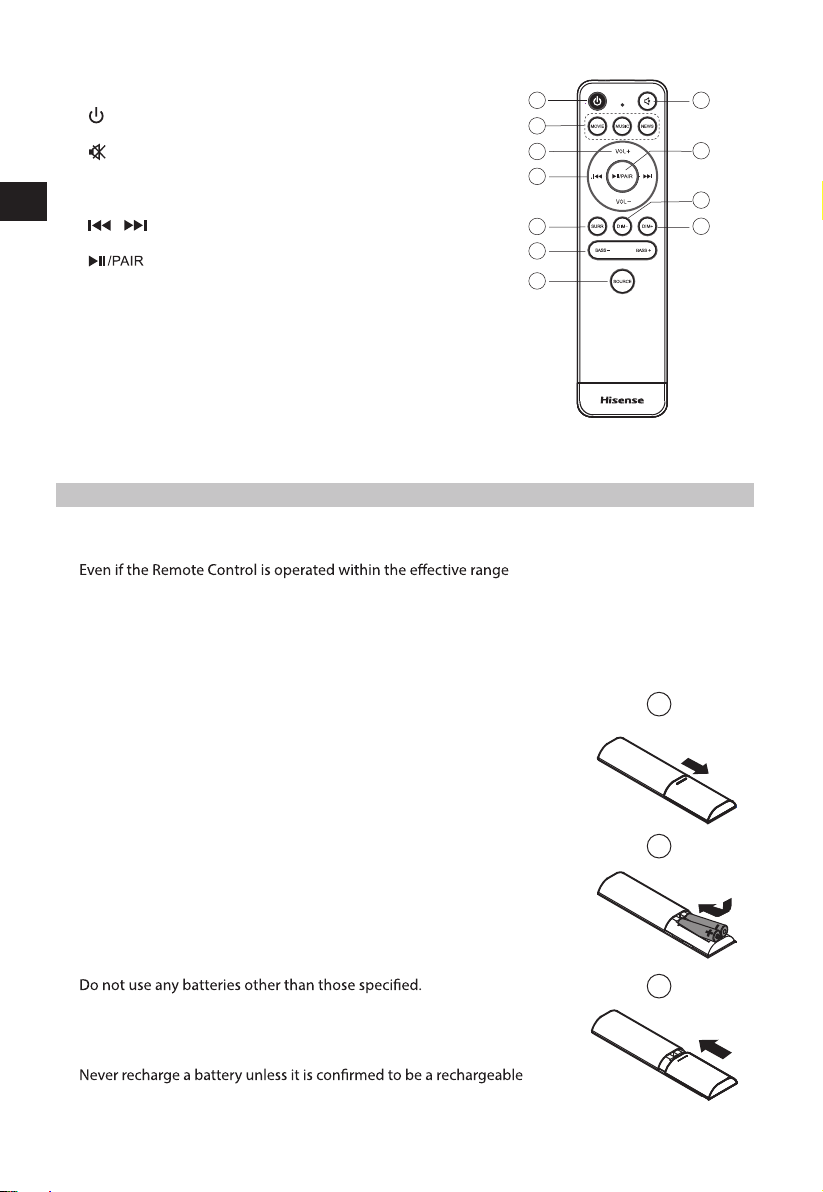

Prepare the Remote Control
Replace the Remote Control Battery ................................................................................................................................8
Precautions Concerning Batteries
Placement and Mounting .....................................................................................................................................................9

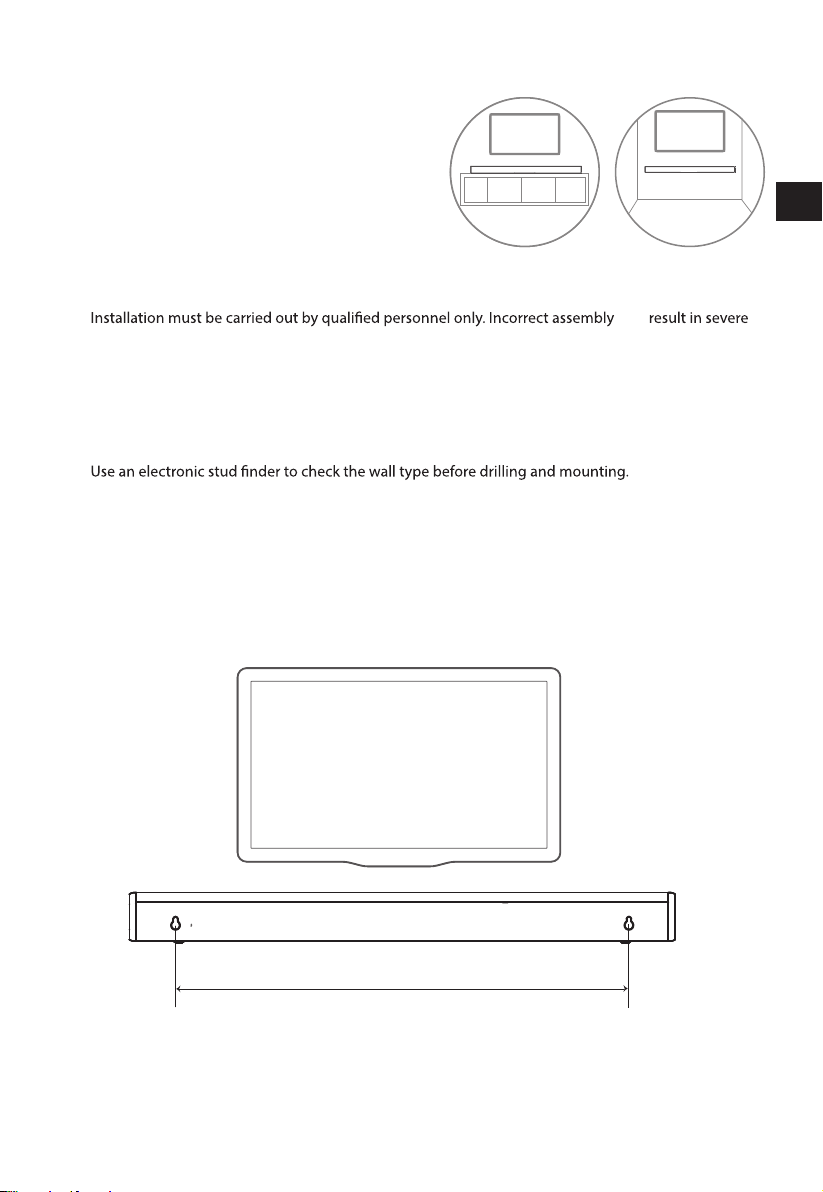

Wall Mounting (if using option-B) ..................................................................................................................................... 9
...............................................................................................................................................
..................................................................................................................................
Connections 10
Connect to COAXIAL Socket
Connect to HDMI ARC Socket
Connect to AUX Socket

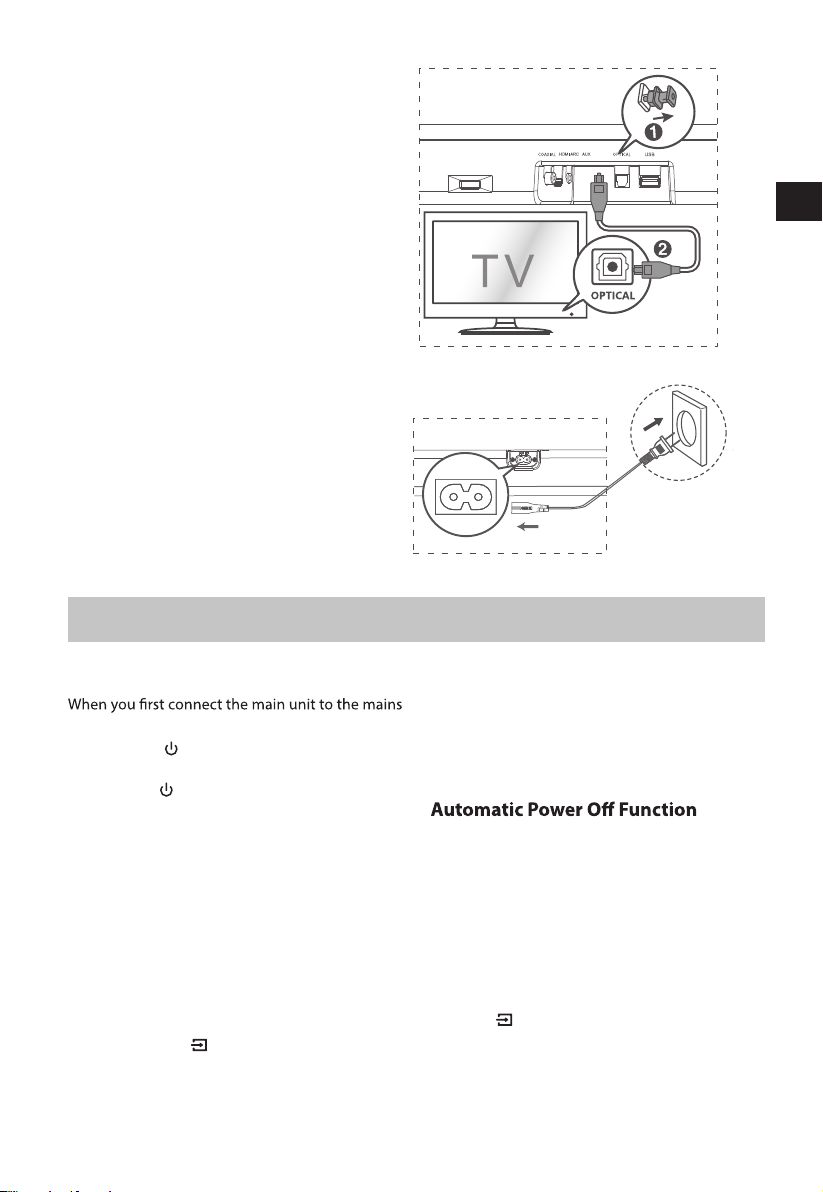

Connect to OPTICAL Socket
Connect Power ......................................................................................................................................................................11
...........................................................................................................................................
..........................................................................................................................................
...................................................................................................................................................10
.............................................................................................................................................
5
8
8
10
10
11
Basic Operation 11
Standby/On ............................................................................................................................................................................11
Auto Wake
How to Enable Auto Wake ................................................................................................................................................11
Automatic Power Off Function
Select Modes
Adjust the Volume
Select a Preset Sound Effect
.............................................................................................................................................................................
......................................................................................................................................
........................................................................................................................................................................
...............................................................................................................................................................
...........................................................................................................................................
11
11
11
12
12
OPTICAL / COAXIAL / HDMI ARC / AUX Operation 12
Bluetooth Operation 12
Pair Bluetooth-enabled Devices ...................................................................................................................................... 12
Listen to Music from Bluetooth Device ........................................................................................................................13
USB Operation 13
Troubleshooting 14
15
2
Page 3
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS
RISQUE DE CHOC
ÉLECTRIQUE NE PAS PUVRIR
Th e lightning flash with arrowhe ad
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude as to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
Safety
1 Read these instructions – All the safety and
operating instructions should be read before
this product is operated.
2 Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3 Heed all wa rnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follo
5 Do not use this apparatus near water – The
6 Clean only with a dry cloth.
7 Do not block any ven tilation op enings.
8 Do not install near any heat sources such as
9 Do not defeat the saf ety p urp ose of the
w all instructions – All operating and
usage instructions should be followed.
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool and the like.
Install in accordance with the manufacturer’s
instructions.
radiators, heaters, stoves, or other apparatus
polarized or grounding plug. A polarized
plug has two blades with one wider than the
other. A grounding plug has two blades and a
third grounding prong. The wide blade or the
third prong is provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10 Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
11
the manufacturer.
12
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
13 Unplug the apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicin g to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the unit has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
15
insulated electrical appliance. It has been
designed in such a way that it does not require
a safety connection to electrical earth.
16 The appara tus shall not be exposed to
dripping or splashing. No objects filled with
liquids, such as vases, shall be placed on the
apparatus.
17 Minimum distance around the apparatus for
18 The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers,table-cloths, curtains, etc.
19 No naked flame sour ces, such as lighted
candles, should be placed on the apparatus.
20 Batteries should be recycled or disposed of as
per state and local guidelines.
21 The use of apparatus in moderate or tropical
climates.
Use only with the cart, stand, tripod,
bracket or table specified by the
manufactu rer, or sold with the
apparatus. When a cart or rack is
This equipment is a Class II or double
EN
3
Page 4
Caution:
- Use of controls or adjustments or performance
of procedures other than those descri bed
herein, may result in hazardous radiation
exposure or other unsafe operation.
-
EN
not expose this apparatus to rain or moisture.
Th e appa ratus must not be exposed to
dripping or splashing and objects filled with
liquids, such as vases, must not be placed on
apparatus.
- The mains plug/appliance coupler is used as
the disconnect device, the disconnect device
must remain readily operable.
- Danger of explosion if battery is incorrectly
replaced. R eplace only with the same or
equivalent type.
Warning
• The battery (batteries or battery pack) shall not
be exposed to excessive heat such as sunshine,
• Bef ore o perating this sys tem , check the
voltage of this system to see if it is identical to
the voltage of your local power supply.
• Do not place this unit close to strong magnetic
• Do not place this unit on the amplifier or
receiver.
• Do not place this unit close to damp areas as the
• If any solid ob ject or liquid falls into the
system, unplug the system and have it checked
further.
• Do not attempt to clean the unit with chemical
clean, dry or slightly damp cloth.
• When removing the power plug from the wall
outlet, always pull directly on the plug, never
yank on the cord.
• Changes or modifications to this unit not
expressly approved by the party responsible
for compliance will void the user’s authority to
operate the equipment.
• The rating label is pasted on the bottom or
back of the equipment.
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, and
the double-D symbol are trademarks of
Dolby Laboratories.
The Bluetooth word mark and logos are registered
trademarks owned by Bluetooth SIG,. Inc.
WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN
HAZARD
If y ou thin k ba tteries might ha ve been
swallowed or placed inside any part of the
body, seek immedia te medical attention.
Keep new and used batte ries away from
children. If the battery compartment does
not close securely, stop using the product
and keep it away from children. The remote
control supplied with this product contains
a coin/button cell battery. If the coin/button
cell battery is swallowed, it can cause severe
intern al burns in just 2 hours and lea
death.
d to
WARNING: This product contains chemicals
known to the State of California to cause cancer
and birth defects or other reproductive harm. For
more information: www.watts.com/prop65
Correct Disposal of this product. This
marking indicates that this product
should not be disposed with other
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use th e return and collection
systems or contact the retailer where the product
was purchased. They can take this product for
environmental safe recycling.
Europe-European Union Notice
Radio products with the CE alert marking comply
with the RED Directive (2014/53/EU) issued by the
Commission of the European Community.
Frequency range: 2402-2480MHz
Versions of software or firmware affecting
compliance with essential requirements:
HW: HS214-01-A0F
Maximum RF output power of the product: +9dBm
Accessories/components marketed together:
Remote control
Hereby, Hisense International Co., Ltd
declares that the 2.1 channel sound
bar with built in subwoofer is in
compliance with Directive
2014/53/EU.
HDMI is a trademark or registered trademark of
HDMI Licensing, LLC in the United States and/or
other countries.
household wastes throughout the EU.
4
Page 5
For U.S. models
Warning:
FCC Information
could void the user’s authority to operate the equipment.”
NOTE:
• This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
• However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
connected.
- - Consult the dealer or an experienced radio / TV technician for help.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC RF Radiation Exposure Statement Caution:
To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm
from nearby persons.
EN
5
Page 6
EN

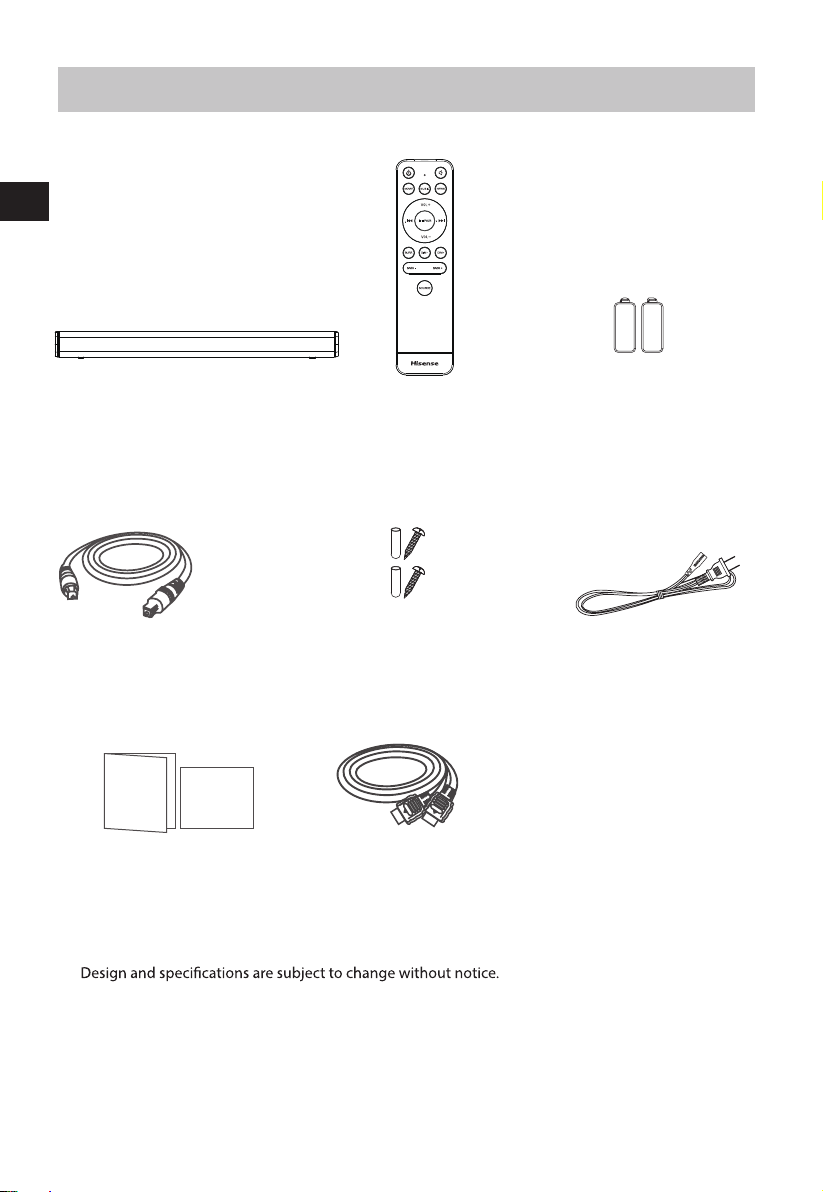

Package Contents
Main Unit Remote Control
User Manual/Quick Start Guide
•
Wall Mounting KitOptical Cable
HDMI Cable
R03(Size AAA)Battery x2
AC Power Cord
6
Page 7

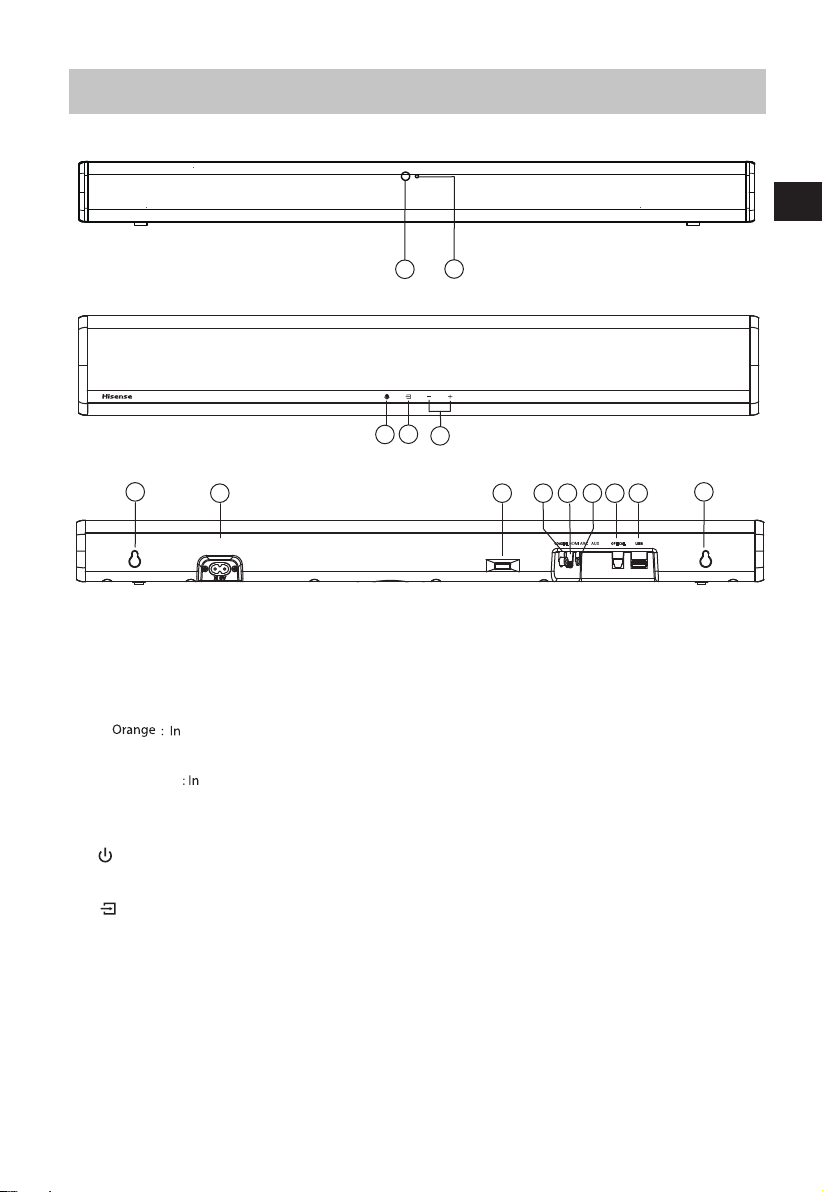

Main Unit
Product Diagram
2
1
4
3
5
EN
6 6
1 Remote Control Sensor
Receive signal from the remote control.
2 LED Indicators
•
Red : In STANDBY mode.
•
•
Blue : In Bluetooth mode.
•
White : In HDMI ARC mode.
•
Light green
•
Green : In AUX mode.
•
Yellow : In USB mode.
3
(ON/OFF) Button
Optical mode.
Coaxial mode.
Switch the unit between ON and STANDBY mode.
4 (SOURCE) Button
Select the play mode.
5 +/- (Vol+/Vol-) Buttons
Increase/decrease the volume level.
6 Wall Mount
7 AC Socket
Connect to the power supply.
8 IR Repeater
Transfer the signal received from
remote control to the TV
9 COAXIAL Socket
Connect to a coaxial audio output on the TV.
10 HDMI ARC Socket
Connect to a TV via HDMI cable.
11 Aux Socket
Connect to an external audio device.
12 OPTICAL Socket
Connect to an optical audio output on the TV.
13 USB Socket
Insert the USB device to play music.
9
87
10 11
Install the wall mounting screws into
the wall mount of the unit.
12 13
7
Page 8
Remote Control
1
3
4
5
7
10
11
EN
(ON/OFF) Switch the unit between ON and
1
2
(MUTE) Mute or resume volume.
EQ
3
4
5
6
7
8
9
11
buttons Select MOVIE/MUSIC/NEWS sound effect.
VOL+/VOL- Increase/decrease the volume level.
,
SURR
DIM -
DIM +
BASS + , BASS - 10
SOURCE
STANDBY mode.
In Bluetooth/USB mode:
Skip to previous/next track.
Play/pause/resume playback in Bluetooth/
USB mode. Press and hold to activate the
pairing function in Bluetooth mode or
disconnect the existing paired Bluetooth device.
Adjust the surround ON/OFF.
Decrease the display brightness.
Increase the display brightness.
Increase/decrease the bass level.
Select the play mode.
Instructions
Prepare the Remote Control
The Remote Control allows the unit to be operated from a distance.
•
operations may be disrupted if there are any obstacles between the unit and the remote control.
• If the Remote Control is operated near other products that generate infrared rays, or if other remote control
devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other products
may operate incorrectly.
First-time Use:
Put the 2 x AAA batteries (included) into the remote control before use.
26.2 feet (8m) inch, remote control
2
6
8
9
1
Replace the Remote Control Battery
1. Push the tab on the side of the battery tray towards the tray and then
pull the battery tray out of the remote control.
2. Remove the old batteries. Place 2 x new AAA batteries into the battery
tray with the correct polarity (+/-) as indicated.
3. Slide the battery tray back into the slot in the remote control.
Precautions Concerning Batteries
• When the remote control is not to be used for a long time (more
than a month), remove the batteries from the remote control to
prevent it from leaking.
• If the batteries leak, wipe away the leakage inside the battery
compartment and replace the batteries with new ones.
•
• Do not heat or disassemble batteries.
• Keep away from heat or moisture.
• Do not carry or store batteries with other metallic objects.
Doing so could cause batteries to short circuit, leak or explode.
•
type.
8
2
3
Page 9
Placement and Mounting
Placement
A If your TV is placed on a table, you can place the
unit on the table directly in front of the TV stand,
centered with the TV screen.
B If your TV is attached to a wall, you can mount
the unit on the wall directly below the TV screen.
A B
Wall Mounting (if using option-B)
Note:
personal injury and property damage (if you intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the
installer’s responsibility to verify that the wall will safely support the total load of the unit and wall
brackets.
- Additional tools (not included) are required for the installation.
- Do not overtighten screws.
- Keep this instruction manual for future reference.
-
may
EN
EN
540MM
9
Page 10
Connect to COAXIAL Socket
• You can use a COAXIAL cable (not included)
EN
to connect the T V's COAXIAL OUT socket
and the COAXIAL socket on the unit.
Tip:
• While in OPTICA L , HDMI ARC or
COAXIAL mode, if there’s no sound output
from the unit, you may need to activate
PCM signal output on your source device
(eg. TV, DVD or Blu-ray player).
Connect to HDMI ARC Socket
Your Soundbar supports HDMI with Audio
Return Channel (ARC). If your TV is HDMI ARC
compliant, you can hear the TV audio through
your Soundbar by using a single HDMI cable.
1 Use a High Speed HDMI cable to connect
the HDMI ARC connector on your Soundbar
and the HDMI ARC connector on the TV.
- The HDMI ARC connector on the TV might
be labelled differently. For details, see the
TV user manual.
2 On your TV, turn on HDMI-CEC operations.
For details, see the TV user manual.
Connections
Tips:
- Your TV must support the HDMI-CEC and
ARC function. HDMI-CEC and ARC must be
set to On.
- The setting method of HDMI-CEC and
ARC may differ depending on the TV. For
details about ARC function, please refer to
your TV user manual.
- Only HDMI 1.4 compatible cable s can
support the ARC function.
Connect to AUX Socket
A Use a RCA to 3.5mm audio cable (not
included) to connect the TV’s audio output
socket and the AUX socket on the unit.
B Use a 3.5mm to 3.5mm audio cable (not
included) to connect the T V’s or external
audio device Aux socket to the Aux socket
on the unit.
BA
AUX
10
Page 11
Connect to OPTICAL Socket
- Remove the protective cap of the OPTICAL
socket, then connect an OPTICAL cable
(included) to the TV’s OPTICAL OUT socket
and the OPTICAL socket on the unit.
Connect Power
Risk of product damage!
- Ensure that the power supply voltage
corresponds to the voltage printed on the
back or the underside of the unit.
-
Before connecting the AC power cord,
ensure you have completed all other
connections.
• Connect the mains cable to the AC Socket
of main unit and then into a mains socket.
Basic Operation
EN
Standby/On
socket, the main unit will be in STANDBY mode.
• Press the
remote control to switch the unit ON.
• Press the
back to STANDBY mode.
• Disconnect the mains plug from the mains
socket if you want to switch the unit OFF
completely.
button on the unit or on the
button again to switch the unit
Auto Wake
•
If a TV or an external device is connected (AUX /
OPTICAL / COAXIAL / HDMI ARC), the unit will
switch on automatically when the TV or the
external device is switched on.
How to Enable Auto Wake
•
Short press the (SOURCE) button and
+ (VOL +) button on the unit to enable or
disable Auto Wake function.
•
Auto Wake On: white and green LED blink twice
sequentially. While in STANDBY mode, the
RED LED is breathing.
•
Auto Wake Off: white and red LED blink twice
sequentially. While in STANDBY mode, the LED
is in solid red.
The unit automatically turns to STANDBY mode
after about 15 minutes if the TV or the external
unit is disconnected or switched off.
•
To switch the unit off completely, disconnect
the mains plug from the mains socket.
• Please turn the unit off completely to save
energy when not in use.
Select Modes
Press the (SOURCE) button repeatedly on
the unit or the SOURCE button on the remote
control to select the desired mode. The LED
indicator on the front of the main unit will show
which mode is currently in use.
11
Page 12
Adjust the Volume
Press the + / - buttons on the unit or VOL+ / VOL-
on the remote control to adjust the volume.
If you wish to turn the sound off, press the
button on the remote control. Press the
again or press the
EN
VOL+ / VOL- on the remote control to unmute.
Note: While adjusting the volume, the status LED
indicator will flash once. When the volume has
hit maximum/minimum value level, the status LED
indicator will flash quickly.
buttons on the unit or
+ / -
OPTICAL/ COAXIAL/HDMI ARC /AUX Operation
button
While playing, press the NEWS / MOVIE / MUSIC
buttons on the remote control to select the preset
equalizers:
MOVIE (recommended for watching movie)
MUSIC (recommended for listening to music)
NEWS (recommended for listening to news)
1 Ensure that the unit is connected to the TV or
audio device.
2 Press the button repeatedly on the unit or the
SOURCE button on the remote control to select
the OPTICAL, COAXIAL, HDMI ARC, AUX mode.
3 Operate your audio device directly for playback
features.
4 Press the +/–
on the remote control to adjust the volume to
your desired level.
button on the unit or VOL+ / VOL-
Bluetooth Operation
Pair Bluetooth-enabled Devices
The first time you connect your bluetooth device to
this unit, you need to pair your device to this unit.
Note:
- The operational range between this unit
and a Bluetooth device is approximately 26
feet (8m) (without any object between the
Bluetooth device and the unit).
- Before you connect a Bluetooth device to this
unit, ensure you know the device’s capabilities.
- Compatibility with all Bluetooth devices is not
guaranteed.
- Any obstacle between this unit and a Bluetooth
device can reduce the operational range.
- If the signal strength is weak, your Bluetooth
receiver may disconnect, but it will re-enter
pairing mode automatically
.
Tip:
• While in OPTICAL , HDMI ARC or COAXIAL
mode, if there’s no sound output from the unit,
you may need to activate PCM signal output
on your source device (eg. TV, DVD or Blu-ray
player).
• For the digital audio out that the unit do not
support, the LED light would be purple and
blink three times.
1 During ON mode, press the
repeatedly on the unit or the
on the remote control to select
Bluetooth mode. The Blue indicator light
will flash.
2 Activate your Bluetooth device and select the
search mode. “Hisense HS214 ” will appear
on your Bluetooth device list.
•
button on the remote control to enter
into pairing mode again .
You will hear audio prompt from the unit and
3 Select “Hisense HS214 ” in the pairing list.
After audio prompt, the system is successfully
connected and the Bluetooth indicator will
light up solidly.
4 Play music from the connected Bluetooth device.
button
SOURCE button
12
Page 13
To disconnect the Bluetooth function, you can :
- Switch to another source on the unit.
- Disable the function from your Bluetooth device.
The Bluetooth device will be disconnected from
the unit after audio prompt.
- Press and hold the button on the
remote control.
Tips:
• Enter "0000" for the password if necessary.
• If no other Bluetooth device pairs with this
unit within two minutes, the unit will
recover its previous connection.
• The unit will also be disconnected when your
device is moved beyond the operational range.
• If you want to reconnect your device to this
unit, place it within the operational range.
• If the device is moved beyond the operational
range, when it is brought back, please check if
the device is still connected t
o the unit.
USB Operation
1 Insert an USB device.
2 Press the
or press the SOURCE button on the remote
control to select USB mode.
3 During playback:
- To play/pause, press the button
on the remote control.
- To skip to the previous/nex t track, press the
Tip:
• The unit can support USB devices with up to
64 GB memory.
button repeatedly on the unit
buttons on the remote control.
,
• If the connection is lost, follow the instructions
above to pair your device to the unit again.
Listen to Music from Bluetooth Device
- If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the
device through the unit.
- If the device also supports Audio Video Remote
Control Profile (AVRCP), you can use the unit's
remote control to play music stored on the
device.
1 Pair your device with the unit.
2 Play music via your device (if it supports A2DP).
3 Use supplied remote control to control play
(if it supports AVRCP).
- To play/pause, press the button
on the remote control.
- To skip a track, press the , buttons on
the remote control.
•
This unit can play MP3.
•
This unit can support WAV/WMA/FLAC.
• The unit support FAT32.
• Embedded USB full speed host for USB
applications should not exceed 6.5Mbps.
•
For the file in FLAC format,the max block
size 8107/8109 can support 4608 as
the maximum.
EN
13
Page 14
Troubleshooting
To keep the warranty valid, never try to repair the
unit yourself. If you encounter problems when
using this unit, check the following points before
EN
requesting service.
No power
• Ensure that the AC power cord of the
unit is properly connected.
• Ensure that there is power at the AC outlet.
• Press standby button to turn the unit on.
Remote control does not work
• Before you press any playback control button,
• Reduce the distance between the remote
control and the unit.
• Inser t the batte ries with its polarities (+/-)
aligned as indicated.
• Replace the batteries.
• Aim the remote control directly to the sensor
in the front of the unit and there is no obstacle
between the remote control and the unit.
No sound
• Increase the volume. Press VOL+ on the
remote control or + on the unit.
• Press on the remote control to ensure
the soundbar is not muted.
•
• When using either of the Digital inputs, if there
- Try setting the TV output to PCM or
- Connect directly to your Blu-ray/other source,
• Your TV may be set to variable audio output.
• If using Bluetooth, ensure that the volume on
SOURCE
source.
is no audio:
some TVs do not pass through digital audio.
Ensure that the audio output setting is set to
FIXED or STANDARD, not VARIABLE. Refer to
your TV’s user manual for more detailed
information.
your source device is turned up and the device
is not muted.
I can’t find the Bluetooth name of
this unit on my Bluetooth device for
Bluetooth pairing
•
Ensure the Bluetooth function is activated on
your Bluetooth device.
•
Ensure you have paired the unit with your
Bluetooth device.
This is a 15 mins power off function,
one of the ERPII standard requirement
for saving power
• When the unit's external input signal level is
too low, the unit will be turned off automatically
in 15 minutes. Please increase the volume level
of your external device.
14
Page 15
Model Name HS214
Soundbar
Power Supply 100-240V~ 50/60Hz
Power Consumption 20W
Standby Power 0.45W
USB Port for Playback
USB Compatibility
USB Playback Support/File Formats
Dimension (WxDxH) 25.59 x 3.74 x 2.42 inches / (650 x 95 x 61.5 mm )
Net Weight 4.78 lbs (2.17kg)
Impedance 4Ω+8Ω x 2
Frequency Response 40Hz-20KHz
Bluetooth Version V4.2
Bluetooth Maximum Power Transmitted 9dBm
Frequency Bands 2402 ~ 2480 MHz
5V
Hi-Speed USB (2.0) / FAT32
WAV、MP3、WMA、FLAC
EN
EN
Amplifler(Output power)
Total 108W
54W + 27W x 2
Remote Control
Distance/Angle 8m / ±30°; 90°
Battery Type AAA Zn-Mn battery
15
Page 16
HS214
Loading...
