Hisense HRFD577B User Manual

HRFD577B

Contents

2

Safety and warning information…........2

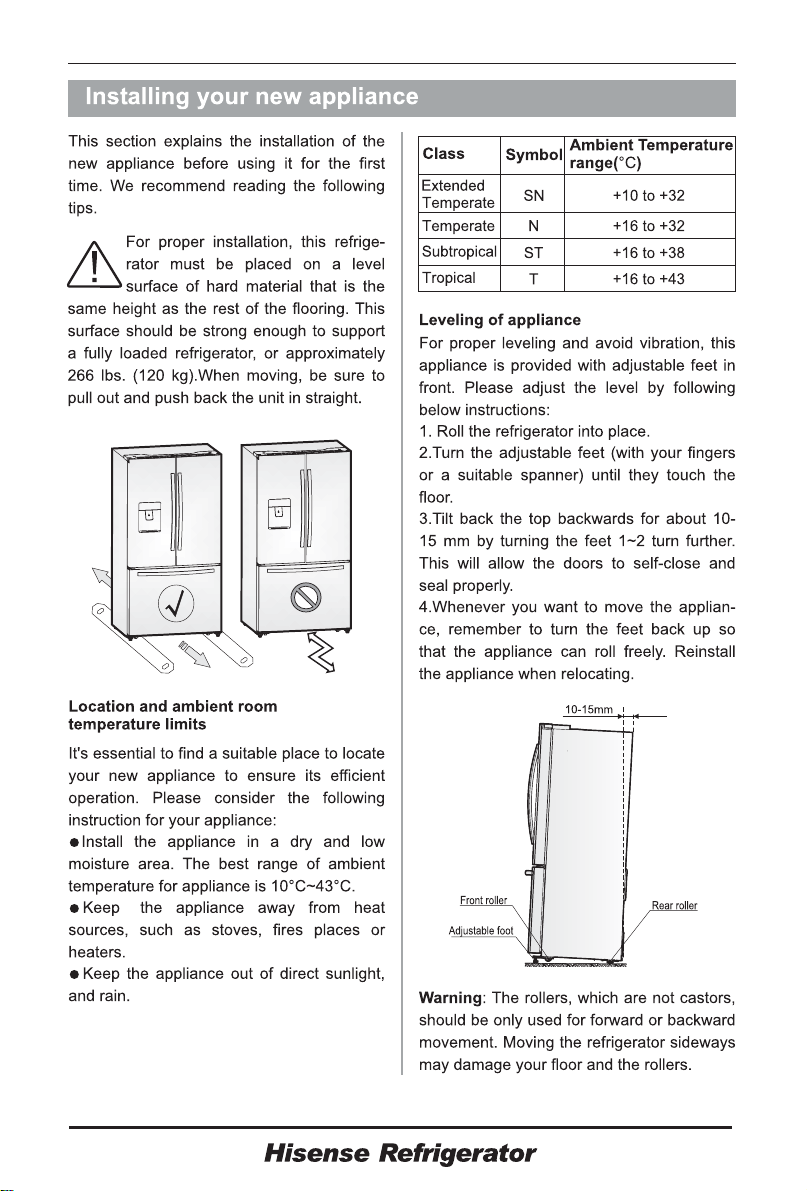

Installing your new appliance………....8

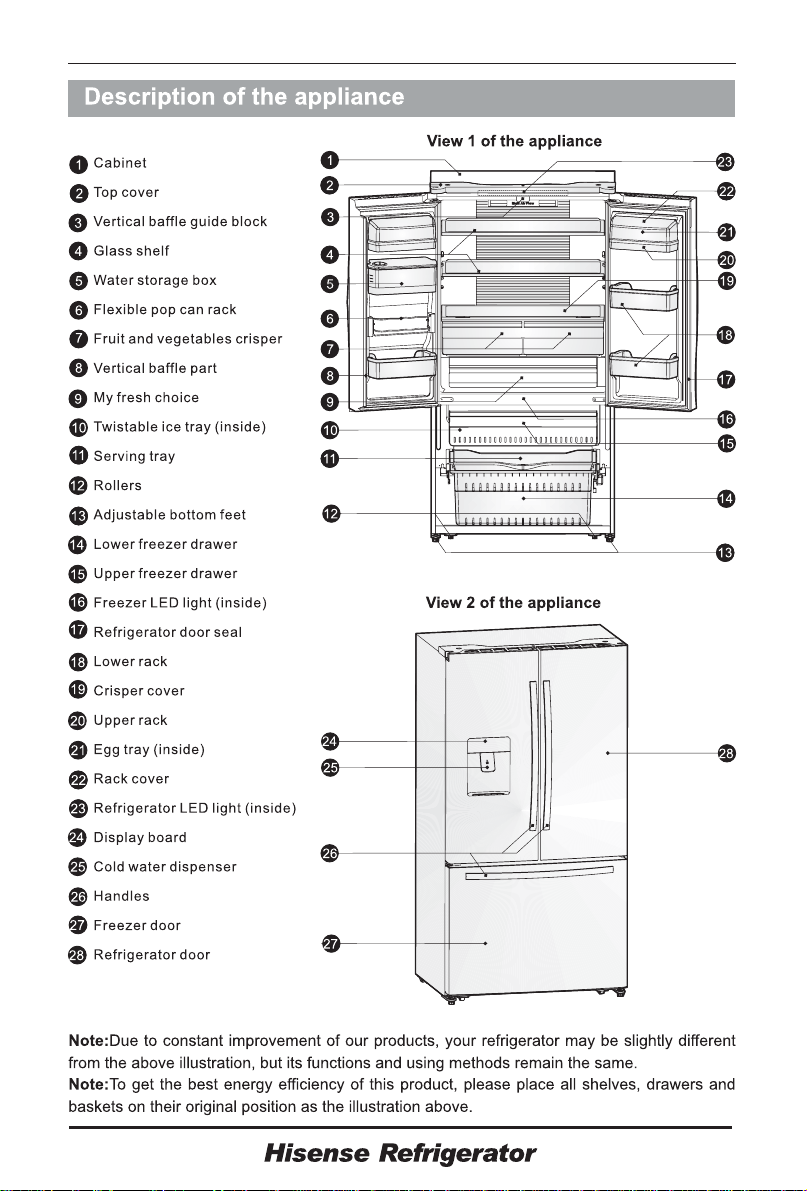

Description of the appliance….......….10

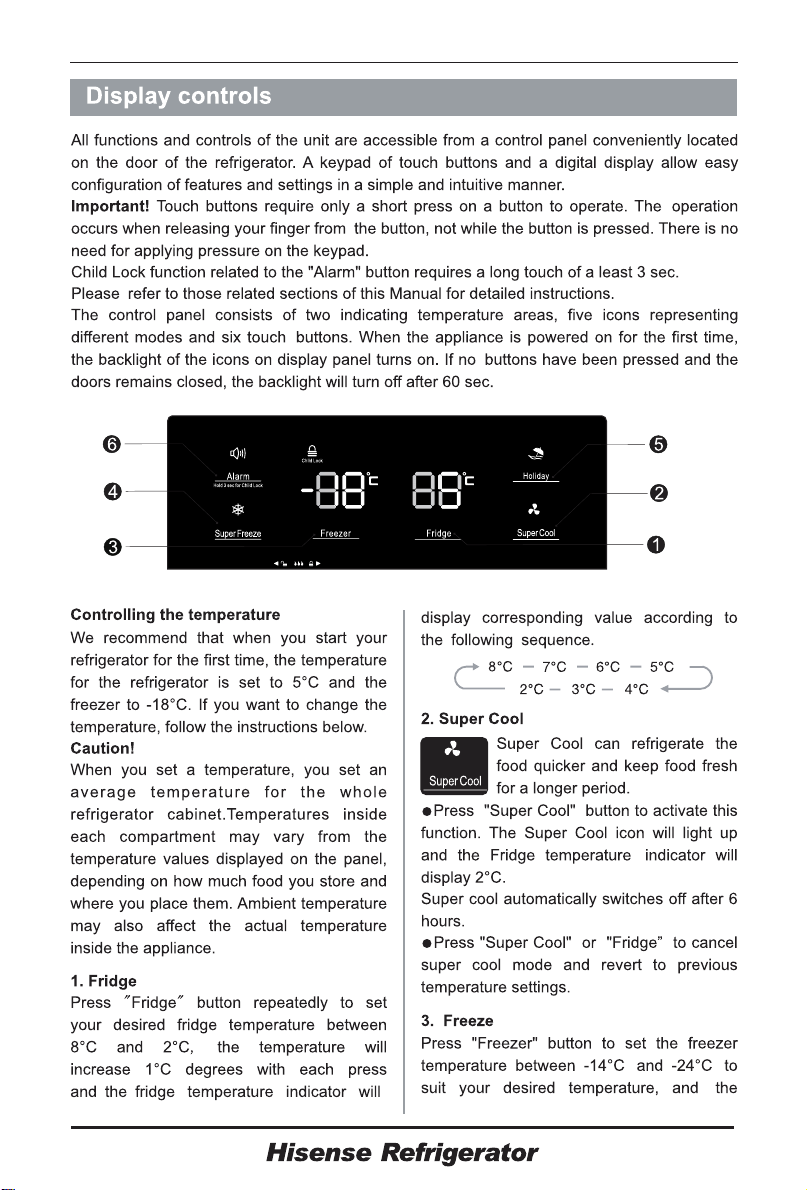

Display controls…………………...…..11

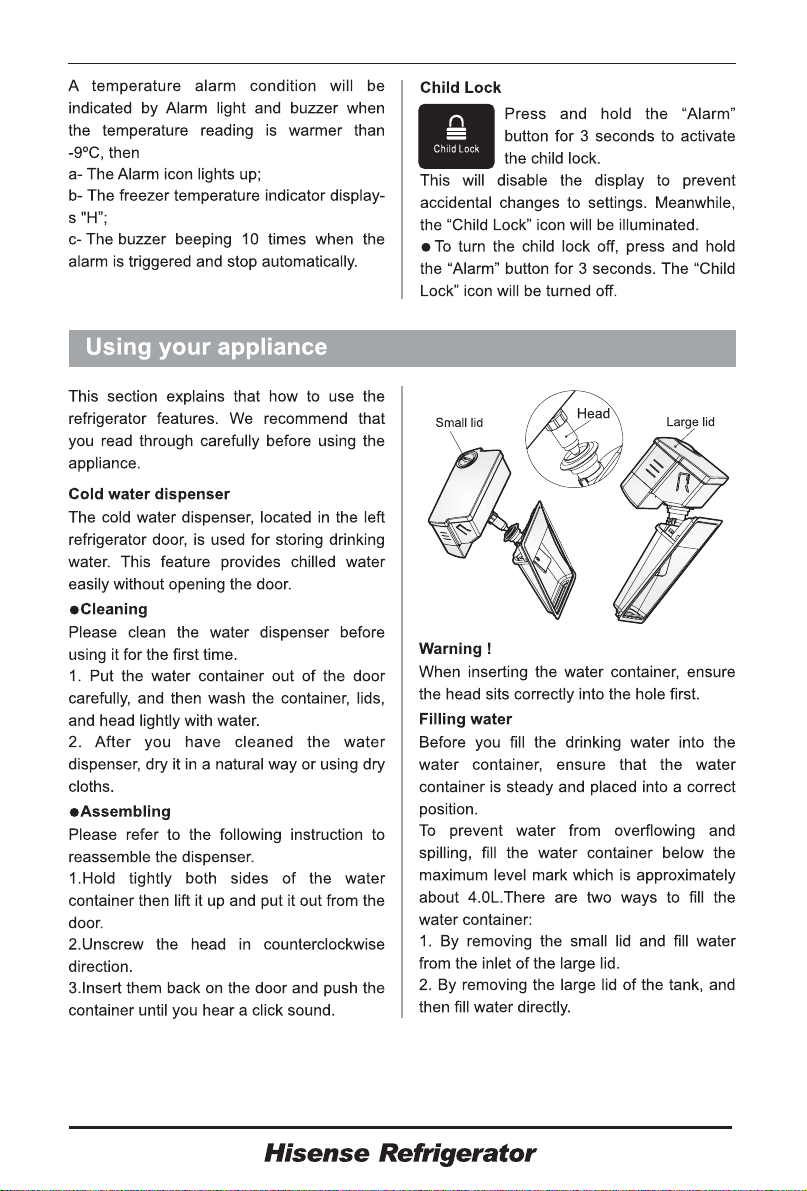

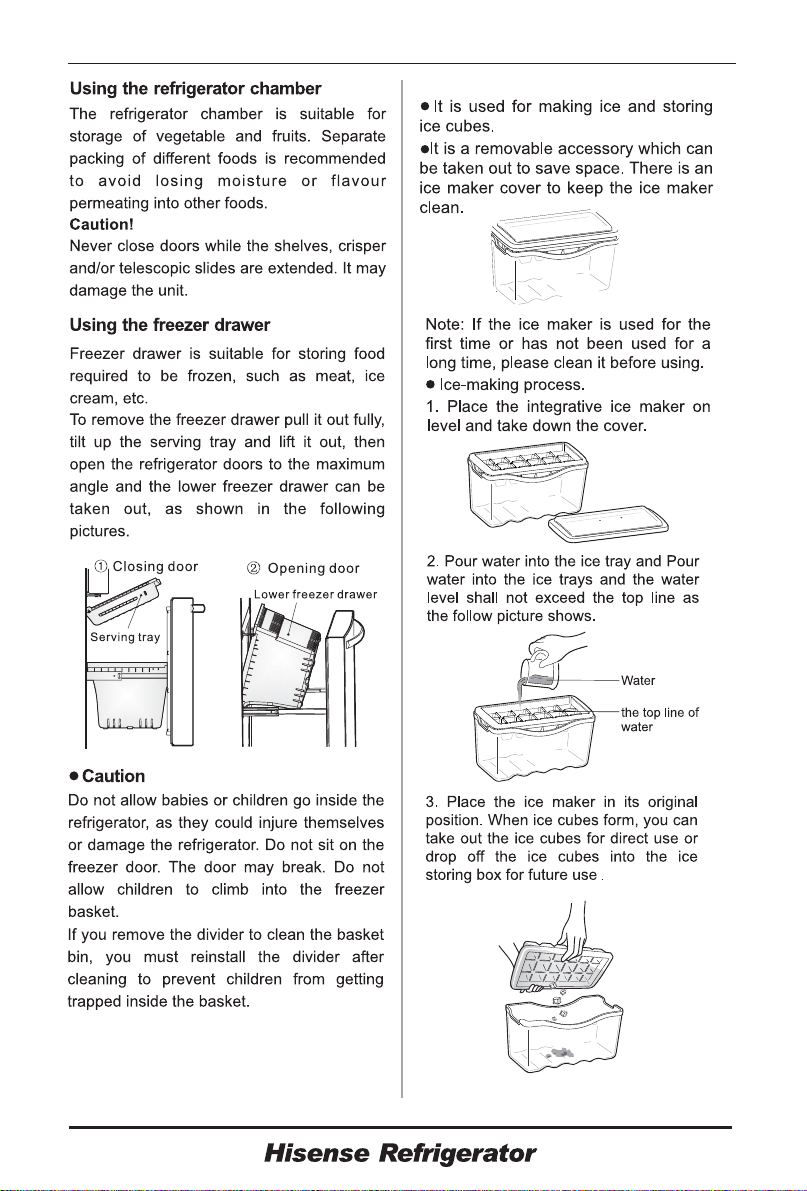

Using your appliance……………........13

For your safety and correct usage before installing and first

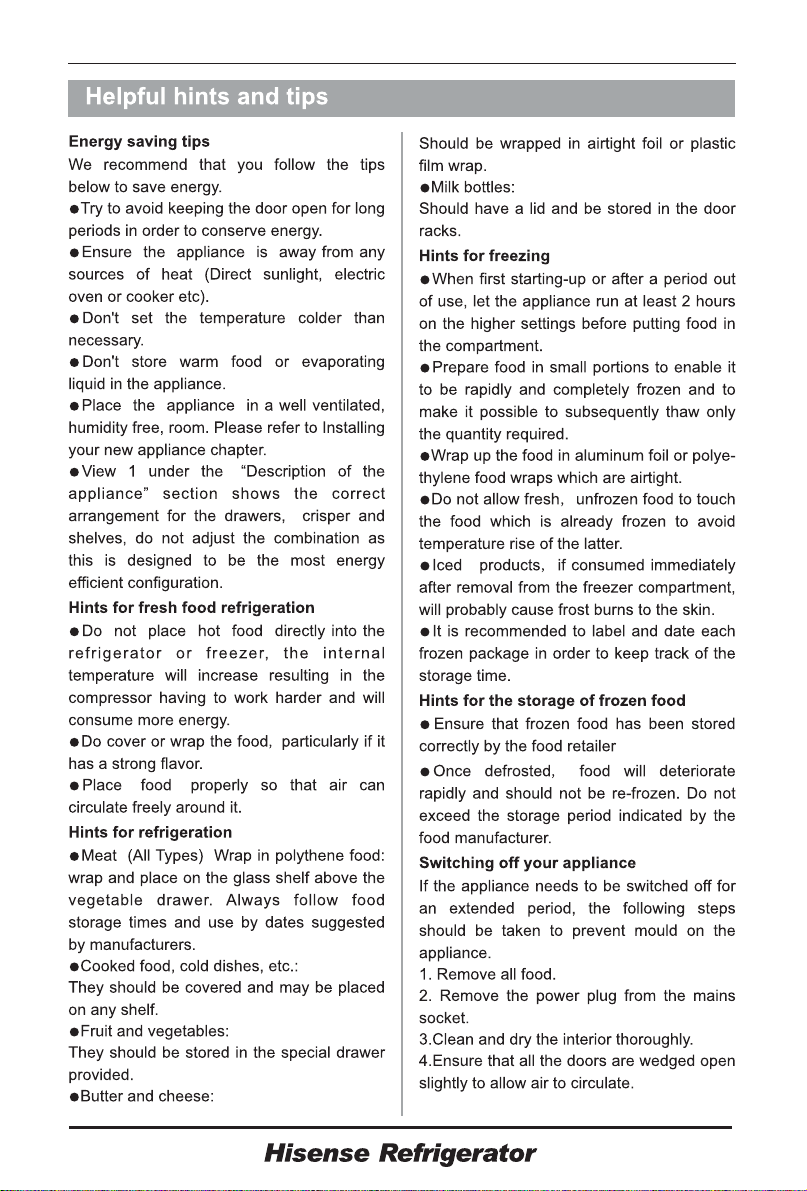

Helpful hints and tips……………… 17

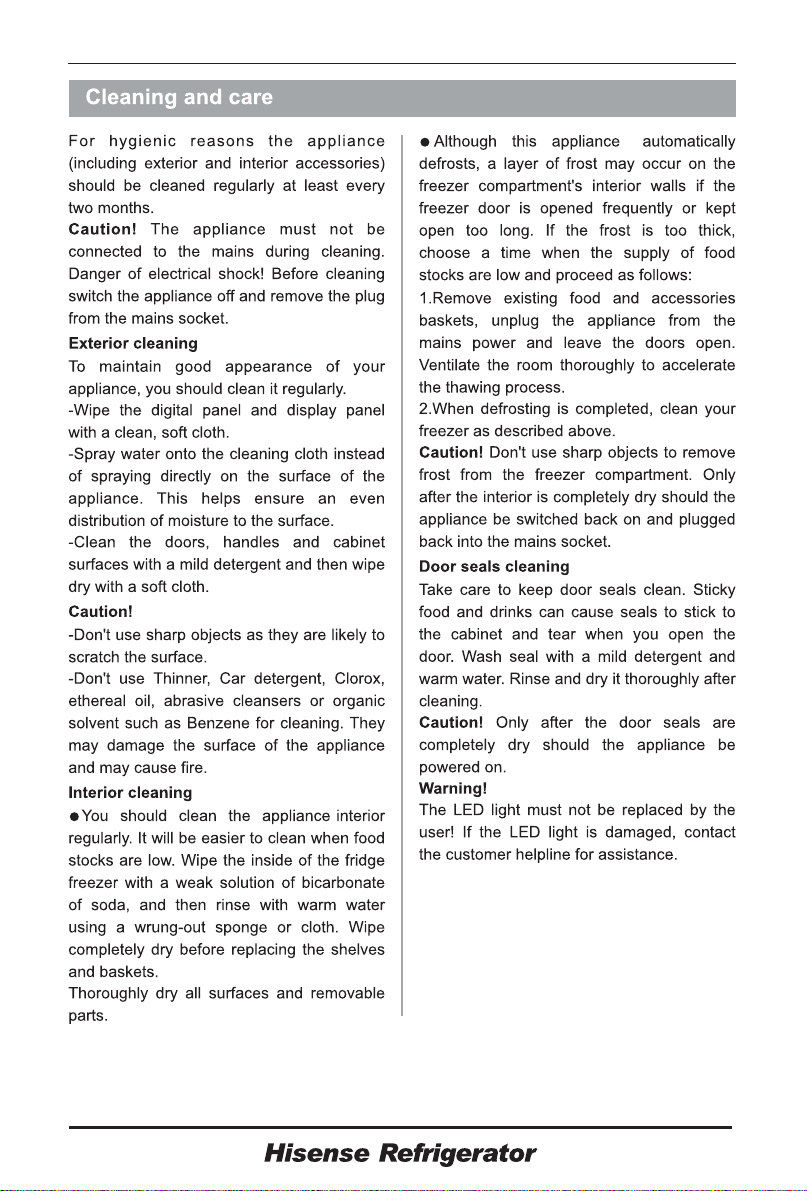

Cleaning and care……………………18

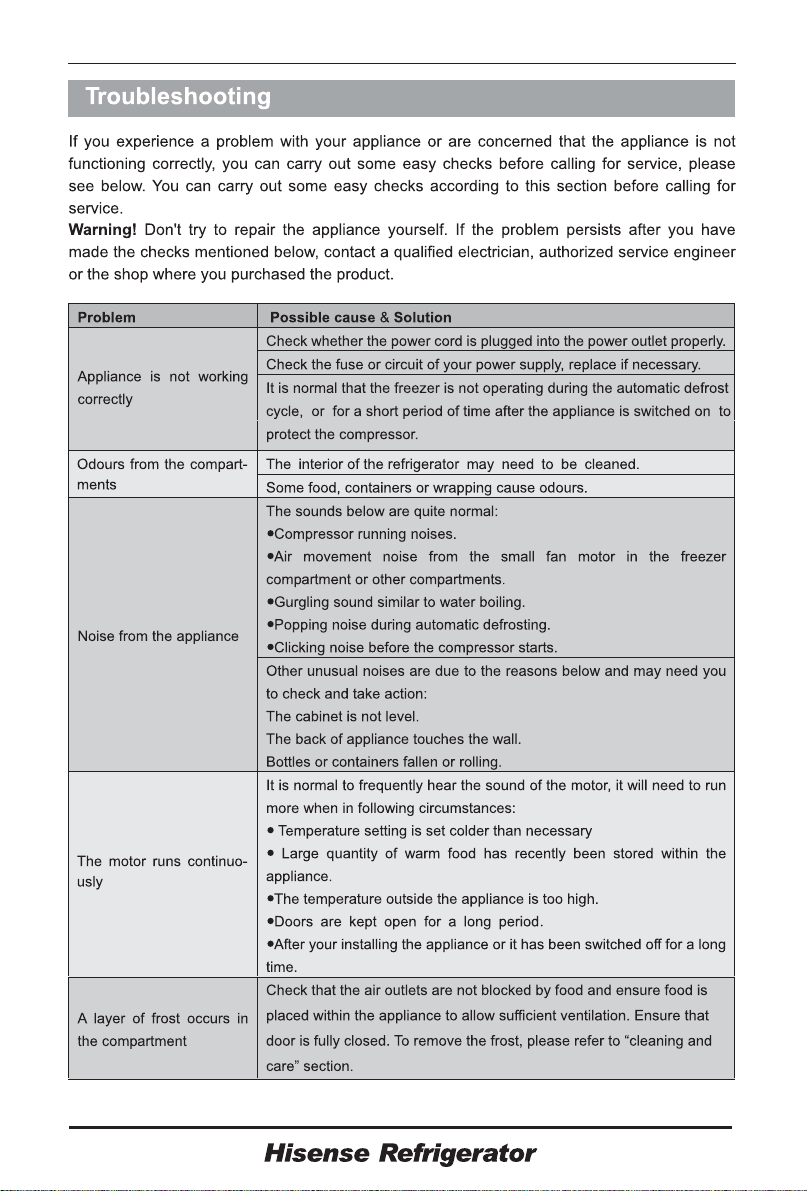

Troubleshooting………………………1

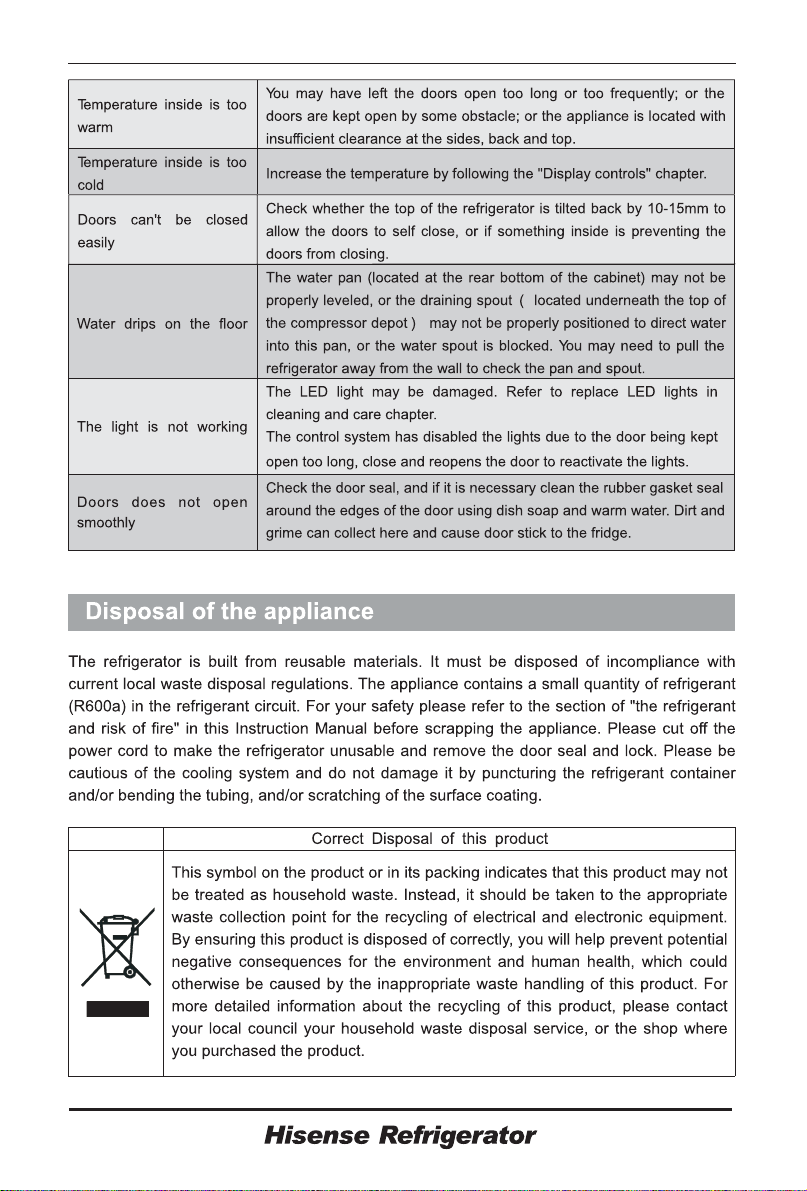

Disposal of the appliance……………20

,
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,

so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.

For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
responsible for damages caused by omission.

Safety for children and otherswho are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

9

Hisense Refrigerator

3

Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make the spring lock unusable before
you discard the old appliance. This will prevent it from
becoming a death trap for a child.

General safety

WARNING —This appliance is intended to be used in
household and similar applications such as

-staff kitchen areas in shops, offices and other working
environments;

-farm houses and by clients in hotels, motels and other
residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.

Hisense Refrigerator

WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to

WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.

flame.

Replacing the illuminating lamps

WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.

This warning is only for refrigerators that contain illuminating

Refrigerant

The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.

4

lamps.

WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.

:

WARNING

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is

Risk of fire / flammable materials

situated.

Hisense Refrigerator

5

It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.

Electrical safety

1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.

3. Make sure that you can access the main plug of the
appliance.

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.

6.You must not operate the appliance without the interior
lighting lamp cover.

7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.

Daily use

Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.

Do not place food products directly against the air outlet on
the rear wall.

Hisense Refrigerator

Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.

caution!
Care and cleaning

Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam

6

Hisense Refrigerator

7

cleaner, ethereal oils, organic solvents or abrasive
cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.

Installation Important!

For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.

Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or
cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.

Service

Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.

1)If the appliance is Frost Free.

2)If the appliance contains freezer compartment.

Note: Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.(This clause applies only to the
EU region.)

Hisense Refrigerator

8

9

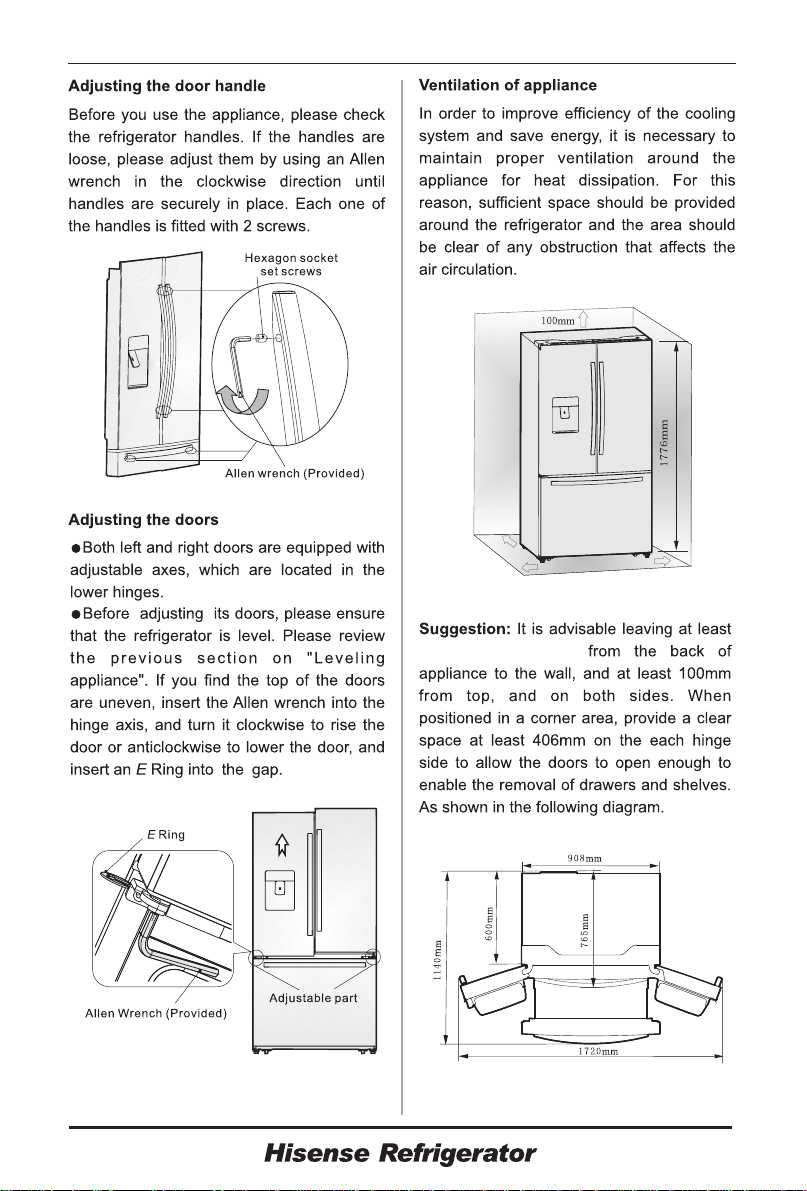

50mm

50mm

50mm of clearance

50mm

10

11

12

13

14

15

Usin g yo ur ice box

16

17

18

19

20

21

To avoid contamination of food, please respect the following instructions

-

Opening the door for long periods can cause a significant increase of the temperature

in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage
systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making icecream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order

1

2

3

4

5

6

7

Compartments
TYPE

Fridge

( Freezer***)*-

***-Freezer

**-Freezer

*-Freezer

0-star

Chill

Target storage
temp.[℃]

+2 +8

~

≤-18

≤-18

≤-12

≤-6

-6 0

~

-2 +3

~

Appropriate food

Eggs, cooked food, packaged food, f ruits and
vegetables, dairy products, cak es, Drinks and
other foods which are not suitable fo r freezing.

Seafood (fish, shrimp, shellfis h), freshwater
aquatic products and meat product s
(recommended time is 3 months – nutri tion
values and taste decrease with time ), suitable
for frozen fresh food.

Seafood (fish, shrimp, shellfis h), freshwater
aquatic products and meat product s
(recommended time is 3 months – nutri tion
values and taste decrease with time ). Not
suitable for freeing fresh food.

Seafood (fish, shrimp, shellfis h), freshwater
aquatic products and meat product s
(recommended time is 2 months – nutri tion
values and taste decrease with time ). Not
suitable for freeing fresh food.

Seafood (fish, shrimp, shellfis h), freshwater
aquatic products and meat product s
(recommended time is 1 month – nutrit ion
values and taste decrease with time ). Not
suitable for freeing fresh food.

Fresh pork, beef, fish, chicken, so me packaged
processed foods, etc. (Recommen ded to eat
within the same day, preferably not later than
3 days) .
Partially packed/wrapped up enc apsulated
processed foods (non-freezabl e foods)

Fresh/frozen pork, beef, chicke n, freshwater
aquatic products, etc.(7 days bel ow 0 ℃ and
above 0 ℃ is recommended for consumpt ion
within that day, preferably no mo re than 2 days).
Seafood (less than 0 for 15 days, it is not
recomm ended to store above 0 ℃)

Hisense Refrigerator

22

Fresh pork, beef, fish, chicken, co oked food, etc.

Fresh Food

8

9

Wine

0 +4

~

+5 +20

~

Note: please store different foods according to the compartments or target storage
temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.

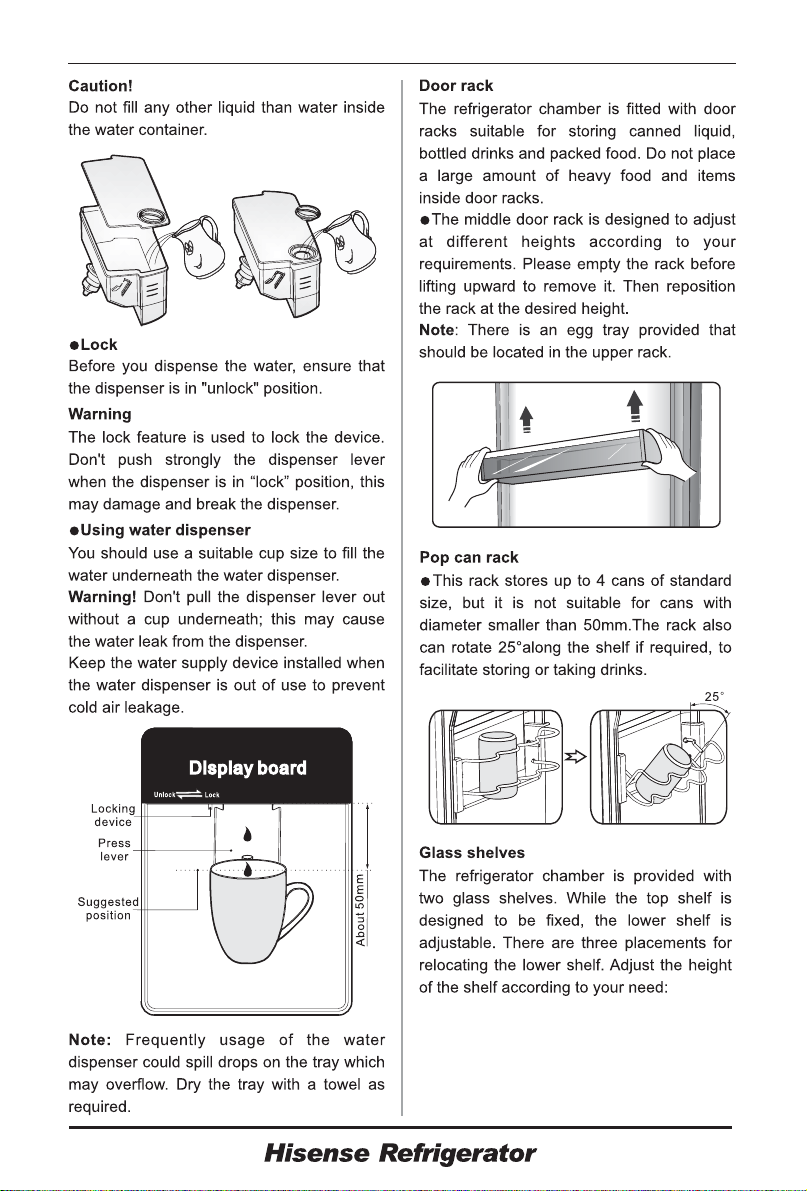

Water dispenser cleaning (special for water dispenser products):

- Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.

WARNING! Food needs to be packed in bags before putting into the refrigerator, and
liquids need to be packed in bottles or capped containers to avoid the problem that
the product design structure is not easy to clean.

(Recommended to eat within the same d ay,
preferably no mo re than 3 days)

red wine,white wine,sparkling w ine etc.

Hisense Refrigerator
