Safety and warning information
For your safety and correct usage, before installing and first using the appliance,read this user manual carefully, including its hints and warnings.To avoid unnecessary mistakes and accidents,it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold,so that anyone using it throughout its life,will be properly informed on its usage and safety notices.
For the safety of life and property,keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
Safety for children and others who are vulnerable people
● According to EN standard
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
● According to IEC standard
This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction
3
concerning use of the appliance by a person being responsible for their safety.
●Children should be supervised to ensure that they do not play with the appliance.
●Keep all packaging away from children as there is a risk of suffocation.
●If you are discarding the appliance,pull the plug out of the socket,cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
●If this appliance, featuring a magnetic door seals,is to replace an older appliance having a spring lock (latch) on the door or lid,be sure to make the spring lock unusable before you discard the old appliance.This will prevent it from becoming a death trap for a child.
General safety
● WARNING —This appliance is intended to be used in household and similar applications such as
-staff kitchen areas in shops,offices and other working environments;
-farm houses and hotels, motels and other residential type environments;
-bed and breakfast type environments; -catering and similar non-retail applications.
●WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
●WARNING — If the supply cord is damaged,it must be replaced by the manufacturer,its service agent or similarly qualified persons in order to avoid a hazard.
●WARNING — Keep ventilation openings,in the appliance enclosure or in the built-in structure,clear of obstruction.
●WARNING — Do not use mechanical devices or other means to accelerate the defrosting process,other than those recommended by the manufacturer.
●WARNING — Do not damage the refrigerant circuit.
●WARNING — Do not use electrical appliances inside the
4
food storage compartments of the appliance,unless they are of the type recommended by the manufacturer.
●WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance,do so only at an authorized waste disposal centre.Do not expose to flame.
●WARNING —When positioning the appliance,ensure the supply cord is not trapped or damaged.
●WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
●WARNING—Food needs to packed in bags before putting into the refrigerator to avoid the problem that the product design structure is not easy to clean.
The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.
WARNING : Risk of fire / flammable materials Replacing the illuminating lamps
● WARNING—The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged,contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance,a natural gas with a high level of environmental compatibility,which is nevertheless flammable.During transportation and installation of the appliance,ensure that none of the components of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
● WARNING — Refrigerators contain refrigerant and gases in the insulation.Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not
5
damage prior to proper disposal.
If the refrigerant circuit should be damaged: -Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a short circuit,fire, and/or electric shock.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a fire.
3.Make sure that you can access the main plug of the appliance.
4.Do not pull the main cable.
5.If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior lighting lamp cover.
7.The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope,for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge.The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.
Daily use
●Do not store flammable gas or liquids in the appliance, there is a risk of an explosion.
●Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers,mixers etc.).
●When unplugging always pull the plug from the mains
6
socket,do not pull on the cable.
●Do not place hot items near the plastic components of this appliance.
●Do not place food products directly against the air outlet on the rear wall.
●Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions.
●The appliances manufactures storage recommendations should be strictly adhered to.Refer to relevant instructions for storage.
●Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance.
●Frozen food can cause frost burns if consumed straight from the freezer compartment.
●Do not place the appliance in direct sunlight.
●Keep burning candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
●The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet.You should take care when move it as the appliance is heavy.
●Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
●Never use the base,drawers,doors etc. to stand on or as supports.
●Frozen food must not be refrozen once it has been thawed out.
●Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
●To avoid items falling and causing injury or damage to the appliance,do not overload the door racks or put too much food in the crisper drawers.
7
Caution!
Care and cleaning
●Before maintenance,switch off the appliance and disconnect the mains plug from the mains socket.
●Do not clean the appliance with metal objects,steam cleaner,ethereal oils,organic solvents or abrasive cleansers.
●Do not use a sharp objects instead of a plastic scraper to remove frost from the appliance.
Installation Important!
●For electrical connection carefully, follow the instructions given in this manual.Unpack the appliance and check if there are damages on it.
●Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.In this case retain packing.
●It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
●Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
●Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor,condenser) to prevent the risk of a fire, follow the instructions relevant to installation.
●The appliance must not be locate close to radiators or cookers.
●Make sure that the mains plug is accessible after the installation of the appliance.
Service
●Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
●This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
8
Installing your new appliance
Before using the appliance for the first time, you should review the following tips.
Ventilation of appliance
Inordertoimproveefficiencyof the cooling system andsave energy,itis necessaryto
maintaingood ventilation around the appliance for the dissipation of heat.For this reason,sufficientclearspaceshould beavailable aroundtherefrigerator.
It is advisable for there to be 50-70mm of space from the back to the wall,at least 100mm from its top,at least 100mm from its side to the wall and a clear space in front to allow the doors to open 135°. Please see the following diagrams.
● Note:
This appliance performs well within the climate class from N to T showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period.
Climate class |
Ambient temperature |
|
|
SN |
+10°C to +32°C |
|
|
N |
+16°C to +32°C |
|
|
ST |
+16°C to +38°C |
|
|
T |
+16°C to +43°C |
|
|
avoid high moisture.
● Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.
Leveling of appliance
●For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted.
●You can adjust them manually by
hand or by using a suitable spanner. ● To allow the doors to self-close, tilt the top backwards by about 10mm.
Door handle installation
Take the handle and screws out of the bag, remove the handle covers from the handle, position the handle on the right side of door, fix it by screws and cover the handle covers.
● Stand your appliance in a dry place to
9
Reversing the door
The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires.
Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

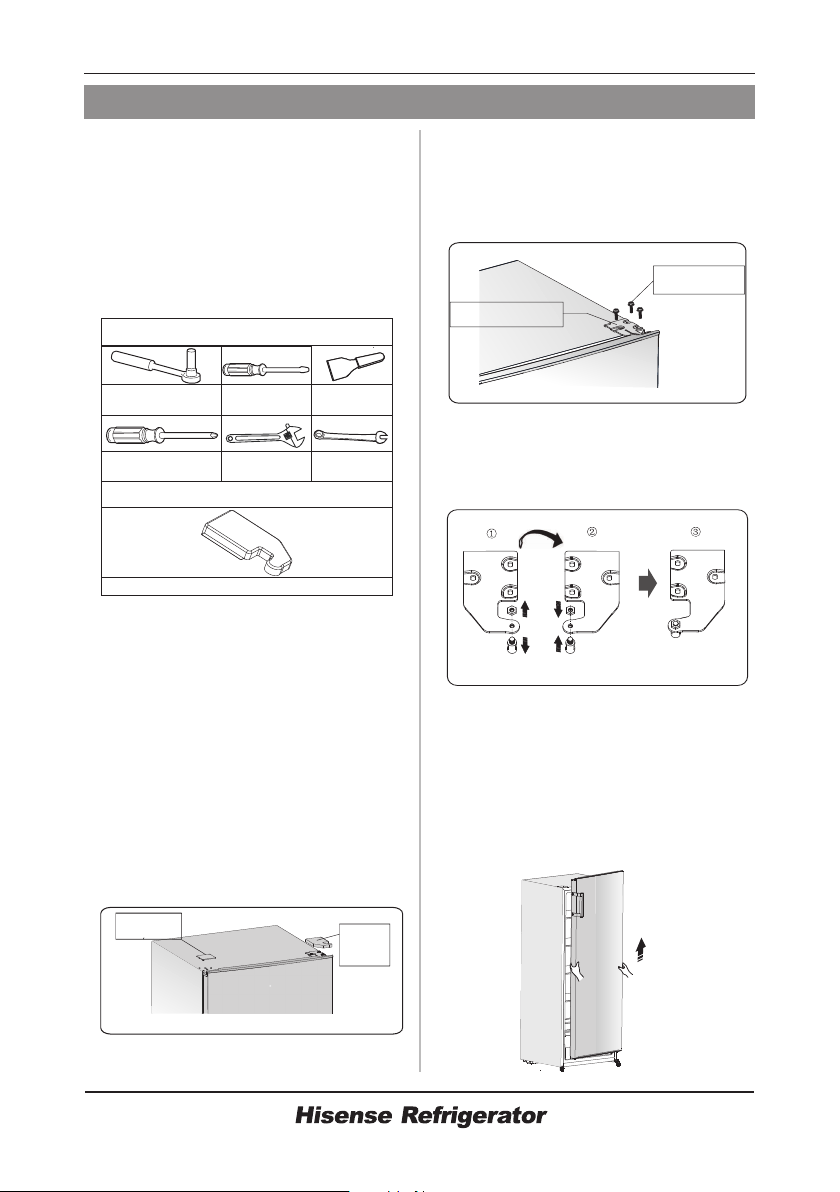

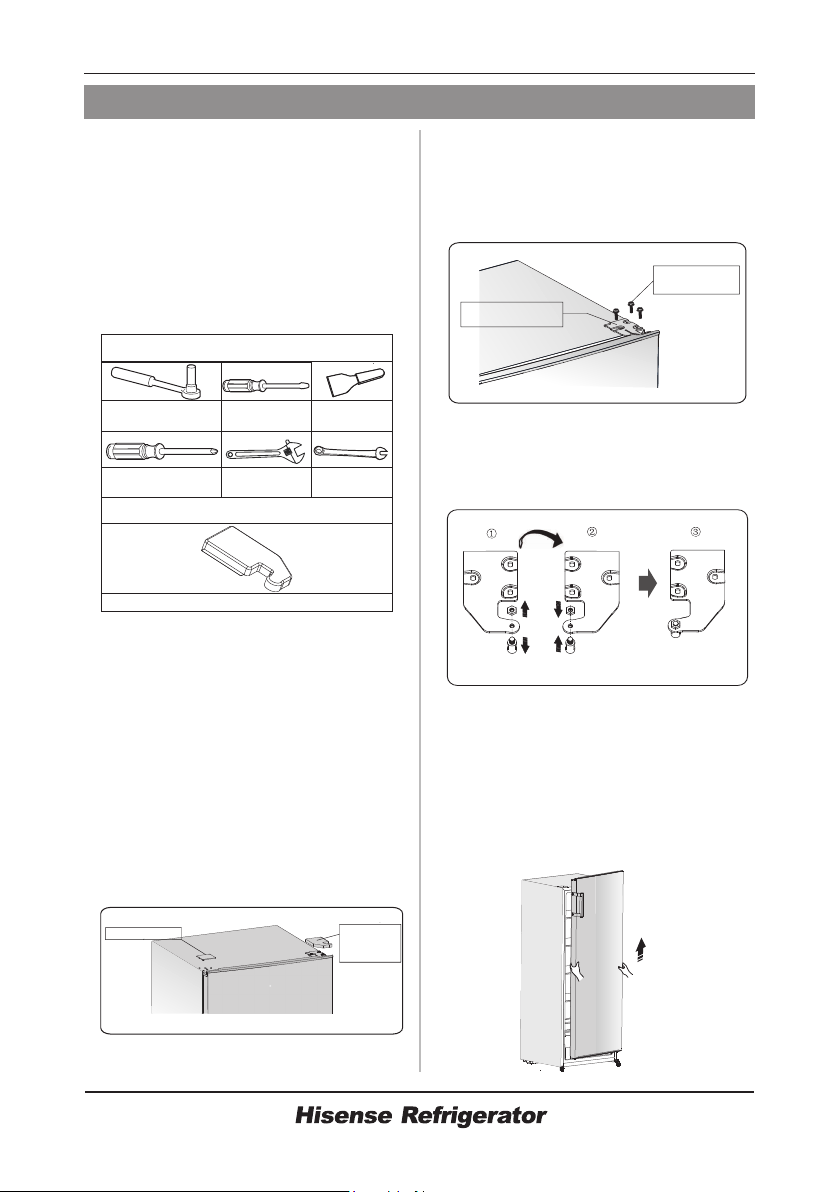

Tools you will need
Not provided
tapping screws which are used for fixing the right upper hinge part by a 8mm socket driver or a spanner (please support the upper door with your hand when doing it) .
8mm socket wrench |
Thin-blade |
Putty knife |
|
screwdriver |
|||
|
|
||
Cross-shaped |
Monkey wrench |
8mm wrench |
|
screwdriver |
|||
|
|
Additional parts(in the plastic bag)
Left Hinge Cover
Note: If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended.
1 . Use a putty knife or thin-blade screwdriver to prize the screw hole cover which is at the top left corner of the refrigerator, and the upper hinge cover which is at the top right corner of the refrigerator.
2. Unscrew the special flange self-
3. Remove the upper hinge axis, transfer it to reversed side and tighten securely, then put it in a safe place.
4. Remove the door from the lower hinge.
NOTE : When removing the door,watch for washer(s) between the lower hinge and the bottom of the lower door that may stick to the door. Do not lose.
5. Place it on a smooth surface with its panel upwards. Loose screw2 and pard 1, then install them to the left side and tighten securely.
6. Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts, and the lower hinge part by unscrewing the special flange selftapping screws.
1Lower hinge part (right)
2Adjustable bottom feet part
3Self-tapping screws
10
the adjustable bottom feet parts to another side and fixing it .
8. Transfer the door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the door.
9.Transfer the upper hinge part and make the upper hinge axis into the upper hole of the door, and adjust the position of the door (please support the door with your hand when doing it), fixing the upper hinge part with the special flange self-tapping screws.
7. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace
11
10.Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag.
11. Move the handle from the left side of door to the right side .
Warning!
When changing the side at which the door opens, the appliance must not be connected to the mains. Remove plug from the mains beforehand.
12
Description of the appliance
View of the appliance
1
2
11 3
4
5 6
7 8
|
9 |
|
10 |
1 |
Control panel |
7 |
Lower wire shelf |
2 |
Wind channel |
8 |
Lower drawer |
3 |
Flap |
9 |
Left adjustable bottom foot |
4 |
Glass shelf |
10 Right adjustable bottom foot |
|
5 |
Middle drawers |
11 Door handle |
|
6 |
Middle wire shelves |
|
|
Note!
●Due to unceasing modification of our products, your appliance may be slightly different from this instruction manual, but its functions and using methods remain the same.
●To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above.
●If remove a drawer, please turn the wire shelf under the drawer up and down 180 degrees to get the best energy efficiency.
13
Display controls

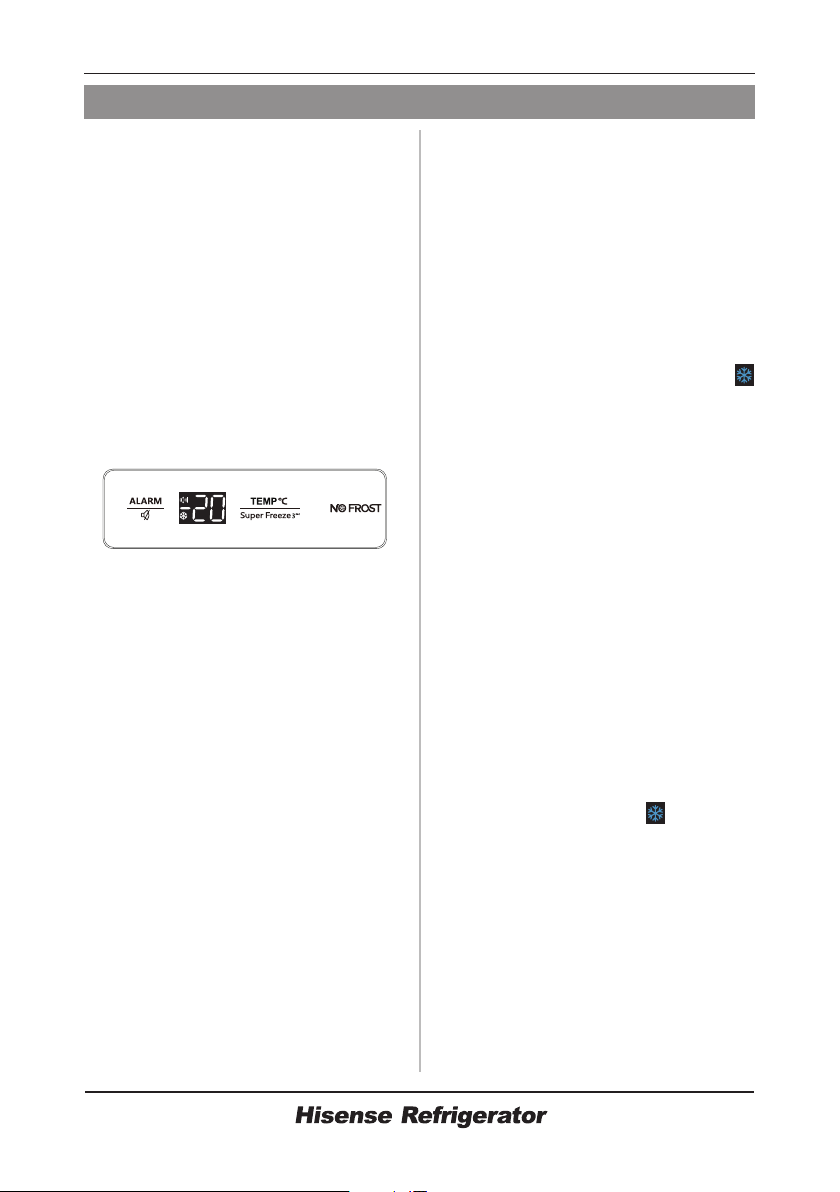

The control panel that controls the temperature inside the freezer compartment is located inside the freezer. Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panel showed in the picture below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. The doors are closed, the back lighting will turn off.
Controlling the temperature
Important! - For optimum food preservation, we recommend that when you start your refrigerator for the first time, the temperature for the freezer is set to -18°C. If you want to change the temperature, follow the instructions below.
NOTE: High temperature setting will accelerate food waste.
Caution!
When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside compartment may vary from the temperatures displayed on the panel, depending on how much food you store and where you place it. High or low room temperature may also affect the actual temperature inside the appliance.
Mode
Super Freeze
Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer.
● Press “TEMP /Super freeze 3sec” button after 3 seconds to select the Super Freeze function. The screen display“-24” and the indicator will be on.
●For the maximum amount of food to be frozen, several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.
●If the freezing capacity according to the rating plate is to be used, switch on super freezing 24 hours before the fresh products are placed in the freezer compartment, Super freeze automatically quit after 52h.
●To switch off the “super freezing”, press the “TEMP /Super freeze 3sec” button. If super freezing is switched off, the super indicatorwill shut off simultaneity, and the appliance automatically switches to the temperature set prior to super freezing mode.
TEMP

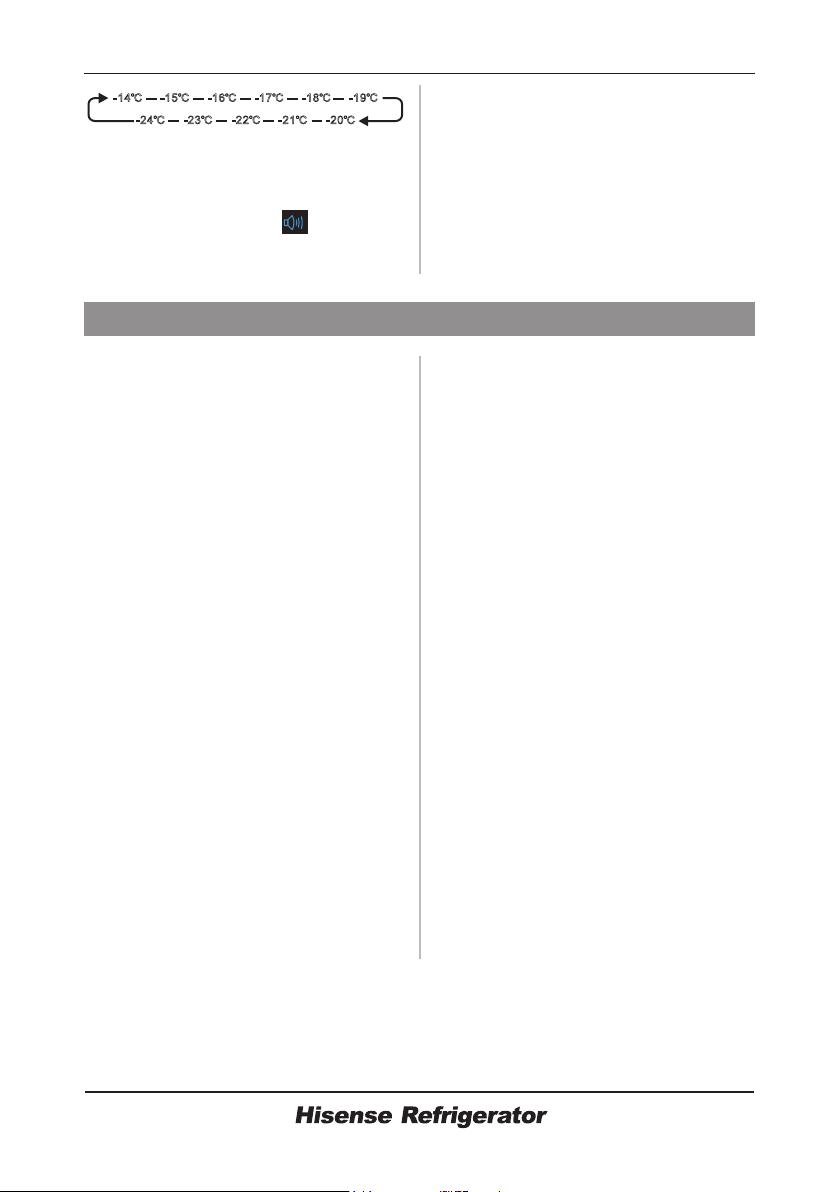

●You can press the “TEMP /Super freeze 3sec” button to activate the mode to control the freezer temperature. When you press the
|
|
14 |

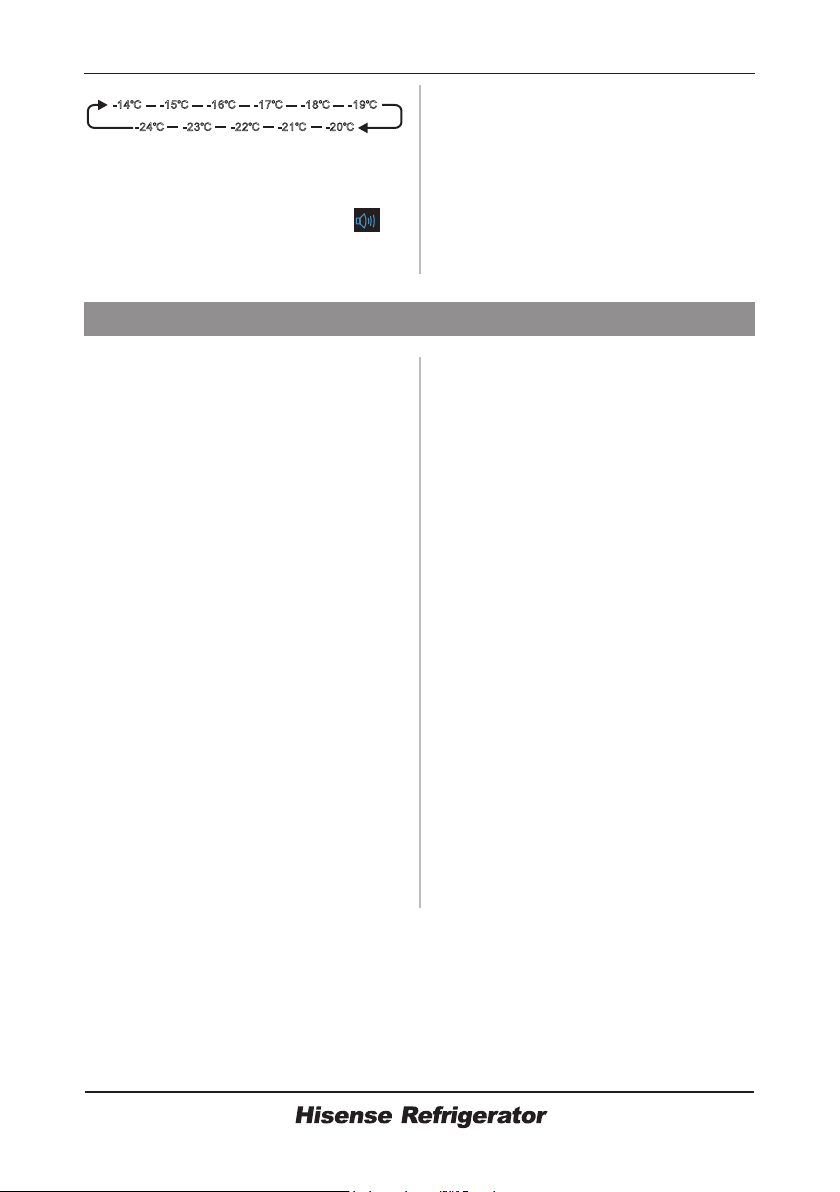

button continuously, the temperature |
The buzzer will stop alarming by |
|
will be set as the following sequence. |
press "ALARM" button and the |
|
|
|
indicator will be on but will stop |
|
|
flashing. |
|
|
●To save energy, please avoid |
Door Alarm |
|
keeping the door open for a long time |
●If the door of freezer is open for over |
when using the appliance. The door |
|
1 minutes, the door alarm will sound |
alarm can be cleared by closing the |
|
and the indicator |
begin to flash. |
door. |
Using your appliance
This section tells you how to use most of the useful features. We recommend that you read through them carefully before using the appliance.
Using your freezer compartment
The freezer compartment is suitable for storage of food which need to be frozen, including meat, fish, ice cream, etc..
Caution! Ensure that bottles are not left in the freezer for longer than needed as freezing may cause the bottles to break.
Shelves
●The shelves are suitable for storing food.
●To remove the wire shelf: lift up at the front and pull out.
Important!
In order to make the most of the volume of the frozen-food storage compartment, the user can remove one or more drawers out of the appliance, according to your daily use.
If remove a drawer, please turn the wire shelf under the drawer up and down 180 degrees to get the best energy efficiency.
In order to save energy, do not take the bottom freezer drawer out.
Drawers
The drawers can be used to store frozen food.
Firstly Pull the drawer out in level, Secondly tip up it then you can take out the drawer.
According to the opposite sequence you can position the drawer rightly. Caution! Never close the freezer door when the shelves, flap, drawers are extended. It may damage both them and freezer door.
Caution! This refrigerating appliance is not intended to be used as a built-in appliance.
15
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips below to save energy.
●Try to avoid keeping the door open for long periods in order to conserve energy.
●Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc)
●Don’t set the temperature colder than necessary.
●Don’t store warm food or evaporating liquid in the appliance.
●Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter.
●If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.
Hints for freezing
●When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
●Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
●Wrap up the food in aluminum foil or polyethylene food wraps which are air tight.
●Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
●Iced products, if consumed
immediately after removal from the freezer compartment, will probably cause frost burns to the skin.
●It is recommended to label and date each frozen package in order to keep track of the storage time.
Hints for the storage of frozen food
●Ensure that frozen food has been stored correctly by the food retailer.
●Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.
Switching off your appliance
If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.
1.Remove all food.
2.Remove the power plug from the mains socket.
3.Clean and dry the interior thoroughly.
4.Ensure that all the doors are wedged open slightly to allow air to circulate.
Cleaning and care
For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly(at least every two months).
Warning!
The appliance must not be connected to the mains during cleaning as there is a danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.
Exterior cleaning
Wipe the control panel with a clean, soft cloth.
● Spray water on to the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
●Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.
Caution!
Don’t use sharp objects as they are likely to scratch the surface.
Don’t use Thinner, Cardetergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.
Interior cleaning
You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a
16
wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and drawers. Thoroughly dry all surfaces and removable parts before putting them back into place. Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or keep to open too long. lf the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow:
1.Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the process.
2.When defrosting is completed, clean your freezer as described above.
Caution!
Do not use sharp objects to remove frost from the freezer compartment. Only after the interiors completely dry should the appliance be switched back on and plugged back into the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.
Caution!
Only after the door seals are completely dry should the appliance be powered on.
17
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service,please see below.
Warning! Don’t try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.
Problem
Appliance is not
working correctly
Odours from the compartments
Noise from the
appliance
The motor runs
continuously
Possible causes & Solutions
Check whether the power cord is plugged into the power outlet properly.
Check the fuse or circuit of your power supply, replace if necessary.
It is normal that the freezer is not operating during the defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
The interior may need to be cleaned
Some food, containers or wrapping cause odours.
The sounds below are quite normal:
Compressor running noises.
Air movement noise from the small fan motor in the freezer compartment or other compartments.
Gurgling sound similar to water boiling.
Popping noise during automatic defrosting.
Clicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall. Bottles or containers fallen or rolling.
It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:
Temperature setting is set colder than necessary
Large quantity of warm food has recently been stored within the appliance.
The temperature outside the appliance is too high.
Doors are kept open too long or too often.
After your installing the appliance or it has been switched off for a long time.
18
A layer of frost occurs in the compartment
Temperature inside is too warm
Temperature inside is too cold
Doors can't be closed easily
Water drips on the floor
Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that door is fully closed. To remove the frost, please refer to the “Cleaning and care” chapter.
You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Increase the temperature by following the “Display controls” chapter.
Check whether the top of the refrigerator is tilted back by10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout(located underneath the top of the compressor depot)may not be properly positioned to direct water into this pan ,or the waterspout is blocked. You may need to pull the refrigerator away from the wall to check the pan and spout.
Disposal of the appliance
It is prohibited to dispose of this appliance as household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.
Before disposal of the appliance
1.Pull out the mains plug from the mains socket.
2.Cut off the power cord and discard with the mains plug.
Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
Correct Disposal of this product
This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product.
19
To avoid contamination of food, please respect the following instructions:
-Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
-Clean regularly surfaces that can come in contact with food and accessible drainage systems.
-Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
-One-, twoand three-star compartments are not suitable for the freezing of fresh food.
Order
1
2
3
4
5
Compartments
TYPE
(***)*-Freezer
***-Freezer
**-Freezer
*-Freezer
0-star
Target storage temp.[ ]
≤-18
Appropriate food
Seafood(fish, shrimp, shell fish) freshwater aquatic products and meat products (recommended for 3 month, the longer the storage time, the worse the taste and nutrition),are not suitable for frozen fresh food.
≤-18 |
Seafood (fish, shrimp, shellfish), |
|
freshwater aquatic products and meat |
||
|
||
|
products (recommended for 3 months, |
|
|
the longer the storage time, the worse |
|
|
the taste and nutrition),are not suitable |
|
|
for frozen fresh food. |
|
≤-12 |
Seafood(fish, shrimp, shellfish) |
|
|
freshwater aquatic products and meat |
|
|
products (recommended for 2 month, |
|
|
the longer the storage time, the worse |
|
|
the taste and nutrition),are not suitable |
|
|
for frozen fresh food. |
|
≤-6 |
Seafood(fish, shrimp, shell fish) |
|
freshwater aquatic products and meat |
||
|
||
|
products (recommended for 1 month, |
|
|
the longer the storage time, the worse |
|
|
the taste and nutrition),are not suitable |
|
|
for frozen fresh food. |
|
-6~0 |
Fresh pork, beef, fish, chicken, some |
|
packaged processed foods, etc. |
(Recommended to eat within the same day, preferably no later than 3 days).
Partially encapsulated processed foods (non-freezable foods)
Note: please store different foods according to the compartments or target storage temperature of your purchased products.
-If the refrigerating appliance is left empty for long periods, switch off, clean, dry, and leave the door open to prevent mould developing within the appliance.
MANUEL DE FONCTIONNEMENT DE L’UTILISATEUR
Avant de faire fonctionner cette unité, veuillez lire ce manuel entièrement, et conservez-le pour une consultation ultérieures
|
|
|
|
2 |
|
|
|
|
|
|
|
|
Contenus |
|
|
|
|
|
Informations de sécurité et de |
|
Utilisation de l’appareil |
14 |
|
|
|
||||
|
mises en garde …................................2 |
Conseils et astuces utiles...................... |
15 |
||
|
Installer votre nouvel appareil................ |
8 |
Nettoyage et entretien |
16 |
|
|
Inverser la porte…..................................9 |
||||
|
Dépannage …......................................17 |
||||
|
Description de l’appareil....................... |
12 |
|||
|
Commandes d’affichages….................13 |
Recyclage de l’appareil électrique......... |
18 |
Informations de sécurité et de mises en garde
Pour votre sécurité et une utilisation correcte, avant d’installer et d’utiliser l’appareil électrique pour la première fois, lisez ce manuel de l’utilisateur avec attention, y compris les astuces et mises en garde. Afin d'éviter les accidents et erreurs de manipulation inutiles, il est important que l'ensemble des personnes amenées à utiliser l'appareil soient totalement familiarisées avec son fonctionnement et avec les fonctions de sécurité. Conservez ces consignes et assurez-vous de les transmettre/transporter avec l'appareil si vous le vendez ou si vous déménagez, de sorte que toute personne amenée à l'utiliser soit informée de son utilisation et des consignes de sécurité. Pour des questions de sécurité et pour que l’appareil fonctionne au mieux de ses capacités, respectez les consignes livrées par le fabricant. ce dernier ne saura être tenu responsable en cas de non-respect des dites consignes.
Sécurité des enfants et des individus vulnérables
● Conformément à la norme NF
Cet appareil peut être utilisé par des enfants âgés de 8 ans ou plus, ainsi que par des personnes à capacités physiques, sensorielles ou mentales réduites, ou manquant des connaissances nécessaire, à la condition que ceux-ci aient été placés sous la surveillance d'une personne tierce, informée des risques et capable d'utiliser correctement ce dispositif. Les enfants ne doivent en aucun cas jouer avec l'appareil. Le nettoyage et l'entretien de l'appareil ne doivent en aucun cas
être pris en charge par les enfants, sauf si ceux-ci sont placés sous surveillance d'un adulte responsable.
Les enfants âgés de 3 à 8 ans sont autorisés à charger et décharger les appareils de réfrigération.
3
● Conformément à la norme IEC
Cet appareil électrique n’est pas prévu pour être utilisé par des personnes (y compris des enfants) avec des capacités physiques, sensorielles ou mentales réduites, ou un manque d’expérience et de connaissance, à moins qu’elle soit supervisée ou guidée concernant l’utilisation de l’appareil
électrique par une personne responsable de leur sécurité.
●Les enfants doivent être surveillés par un adulte qui doit s’assurer qu’ils ne jouent pas avec l’appareil.
●Conservez tous les emballages hors de portée des enfants pour
éviter tout risque d’étouffement.
●Si vous vous débarrassez de cet appareil, débranchez le câble d’alimentation, coupez le câble (aussi proche que possible de l’appareil), et retirez la porte pour éviter que les enfants ne s’électrocutent ou ne s’enferment pas à l'intérieur de l'appareil.
●Si cet appareil, comportant des joints de porte aimantés, doit être remplacé par un appareil électrique plus ancien ayant un blocage à ressort (loquet) sur la porte ou le couvercle, assurez-vous de rendre le blocage à ressort inutilisable avant d’éliminer l’ancien appareil électrique. Cela l’empêchera de devenir un piège mortel pour des enfants.
Sécurité générale
● ATTENTION — Cet appareil est uniquement à usage ménager et usage du même type
-les zones de cuisine du personnel dans les boutiques, les bureaux et les autres environnements de travail ;
-les maisons de fermes et les hôtels et les autres types d’environnements résidentiels ;
-foyer de type lit et petit-déjeuner;
-restauration et situations similaires non commerciales.
●ATTENTION — Ne pas conserver de substances explosives telles que des aérosols (inflammables) à l’intérieur de l’appareil.
●ATTENTION — Si le cordon d’alimentation est endommagé, il doit être remplacé par le fabricant, son agent de service ou une personne qualifiée de manière similaire afin d’éviter tout danger.
●ATTENTION — Gardez la ventilation ouverte dans la structure encastrée de l’appareil, en s’assurant qu’il n’y a pas d’obstruction.
4
●ATTENTION — Ne pas utiliser des dispositifs mécaniques ou
autres pour accélérer le processus de dégivrage, autre que ceux recommandés par le fabricant.
●ATTENTION — Ne pas endommager le circuit du réfrigérant.
●ATTENTION — Ne pas utiliser des appareils électriques à
l’intérieur des compartiments pour aliments de l’appareil sauf s’ils sont recommandés par le fabricant.
●ATTENTION— Le liquide frigorigène et l'isolant sont inflammables. Si vous décidez de mettre cet appareil en rebut, contactez le centre de collecte le plus proche. Ne pas exposer à des flammes.
●ATTENTION — Lors du positionnement de l’appareil
électrique, assurez—vous que le cordon d’alimentation n’est pas coincé ou endommagé.
●ATTENTION — Ne placez pas de prises portables multiples ou d’alimentation électrique portable à l’arrière de l’appareil.
●ATTENTION — ATTENTION! Les aliments doivent être emballés dans des sacs avant d'être mis au réfrigérateur afin d'éviter que la structure de conception du produit soit difficile à nettoyer.
Le symbole constitue un avertissement et indique que le réfrigérant et le gaz de soufflage de l'isolant sont inflammables.
ATTENTION: Risque d’incendie / matériaux inflammables Remplacement des lampes d’éclairage
● ATTENTION — les lampes d’éclairage ne doivent pas être
remplacées par l’utilisateur ! Si les lampes d’éclairage sont endommagées, contactez l’assistance téléphonique client pour une assistance. Cet avertissement est uniquement pour les réfrigérateurs qui contiennent des lampes d’éclairage.
Réfrigérant
Le réfrigérant isobutène (R600a) est contenu dans le circuit frigorifique de l'appareil, un gaz naturel avec un haut niveau de compatibilité environnementale, qui est néanmoins inflammable. Pendant le transport et l’installation de l’appareil, veillez à ce qu’aucun des composants du circuit de réfrigération ne soit abîmé.
Le réfrigérant (R600a) est inflammable.
5
● ATTENTION — Les réfrigérateurs contiennent des
réfrigérants et des gaz dans l’isolation. Les réfrigérants et les gaz doivent être éliminés de manière professionnelle, car ils peuvent provoquer des blessures aux yeux et des départs de feu. Assurez-vous que le tuyau de réfrigérant n’est pas endommagé avec de l’éliminer correctement.
Si le circuit réfrigérant devait être endommagé :
-Évitez les flammes nues et les sources de chaleur.
-Ventilez correctement la salle dans laquelle se trouve l’appareil
Il est dangereux de modifier les spécifications ou ce produit de quelque manière que ce soit.
Tout dommage au cordon d’alimentation peut provoquer un court-circuit, un feu et/ou un choc électrique.
Sécurité électrique
1.Le cordon d’alimentation ne doit pas être branché sur une rallonge.
2.Assurez-vous que la prise d’alimentation n’est pas écrasée ou endommagée.
Une prise d’alimentation écrasée ou endommagée peut surchauffer et provoquer un incendie.
3.Assurez-vous de pouvoir accéder à la prise électrique de l'appareil.
4.Ne tirez pas sur le câble principal.
5.Si la prise s’est détachée, n'insérez pas la fiche. Cela provoquerait un risque d'électrocution ou d'incendie.
6.Vous ne devez jamais faire fonctionner l’appareil si la lampe à l’intérieure n'est pas protégée par son couvercle.
7.Le réfrigérateur doit être alimenté uniquement par une fiche à courant alternatif monophasé de 220-240V / 50Hz. Si la fluctuation
de la tension dans le quartier de l’utilisateur est si grande que la tension dépasse la portée ci-dessus, par souci de sécurité, veuillez installer un Régulateur automatique de courant de plus de 350W pour le réfrigérateur. Le réfrigérateur doit utiliser une prise de courant spéciale et non une prise commune avec d’autres appareils électriques. Sa fiche doit être une fiche mise à la terre.
Utilisation quotidienne
● Ne stockez pas de gaz ou liquides inflammables dans l’appareil électrique. Il y a un risque d’explosion.
6
●Ne faites pas fonctionner un appareil électrique quelconque dans le congélateur (par ex. des machines à glaces, des mélangeurs, etc.)
●Lors du débranchement, tirez toujours la fiche de la prise principale, ne tirez jamais sur le câble.
●Ne placez pas d’éléments chauds près des composants en plastique de cet appareil électrique.
●Ne placez pas de produits d’alimentation directement contre la sortie d’air sur le mur arrière.
●Stockez la nourriture congelée préemballée conformément aux instructions du fabricant de nourriture congelée.
●Les recommandations de stockage de l’appareil doivent être strictement respectées. Reportez-vous aux consignes de rangement.
●Ne placez pas de boissons gazeuses dans le compartiment de congélation, car cela crée une pression sur le conteneur, ce qui pourrait entraîner son explosion et endommager l'appareil.
●Les aliments congelés peuvent brûler s'ils sont consommés juste à leur sortie du compartiment.
●Ne laissez pas l’appareil exposé directement à la lumière du soleil.
●Gardez les bougies, lampes et autres objets à flammes nues loin de l’appareil pour ne pas mettre l’appareil en feu.
●L'appareil est exclusivement destiné au stockage d'aliments/de boissons, dans le cadre d'une consommation domestique, tel que cela est indiqué dans la notice d'utilisation. Soyez vigilant lorsque vous déplacez l'appareil, car celui-ci est lourd.
●Ne retirez pas et ne touchez pas les éléments du compartiment du congélateur si vos mains sont mouillées/humides, car cela pourrait provoquer des abrasions de la peau ou des gelures.
●1¶XWLOLVH] MDPDLV OH VXSSRUW OHV WLURLUV OHV SRUWHV HWF SRXU YRXV mettre dessus ou comme supports.
●Les aliments congelés ne doivent pas être recongelés une fois
qu’ils ont été dégelés.
●Ne consommez pas de la glace ou des glaçons sorti directement du congélateur car cela peut causer des dommages a la bouche et aux lèvres.
●Pour éviter que des objets ne tombent et ne blessent ou n'endommagent l'appareil, ne surchargez pas les grilles de porte et ne mettez pas trop de nourriture dans les tiroirs du bac à légumes.
7
Mise en garde!
Nettoyage et entretien
●Avant d'effectuer un entretien sur l'appareil, mettez-le hors tension et débranchez la fiche de la prise électrique.
●Ne nettoyez pas l'appareil avec des objets métalliques, un nettoyeur vapeur, des huiles essentielles, des solvants organiques ou des nettoyants abrasifs.
●Ne pas utiliser d'objets tranchants en remplacement d'un grattoir en plastique pour enlever le givre de l'appareil.
Installation - Important !
●Pour la connexion électrique, suivez les instructions données
dans le manuel. Déballez l’appareil électrique et vérifiez s’il est endommagé.
● Ne branchez pas l'appareil à l'électricité s'il est endommagé.
Signalez tous dommages immédiatement à votre fournisseur.
Si c’est le cas, conservez l'emballage.
●Il est conseillé d’attendre au moins deux heures avant de brancher l’appareil pour permettre à l’huile de se refluer dans le compresseur.
●Il doit avoir une circulation adéquate d’air autour de l’appareil,
sans quoi cela entraîne à une surchauffe. Pour une ventilation adéquate, veuillez suivre les consignes relatives à l'installation.
● Lorsque c’est possible, l’arrière du produit ne devrait pas être trop près d’un mur pour éviter de toucher ou de coincer des pièces
chaudes (compresseur, condensateur) pour empêcher les risques
d’incendie, suivez les instructions appropriées à l’installation. ● L’appareil électrique ne doit pas être placé près de radiateurs
ou de cuiseurs.
● Assurez-vous que la prise principale est accessible après l’installation de l’appareil électrique.
Maintenance
●Tous les travaux électriques nécessaires pour faire la maintenance de l’appareil électrique devraient être effectués par un électricien qualifié ou une personne compétente.
●Ce produit doit être entretenu par un centre de service agréé,
et seules des pièces de rechange authentiques doivent être utilisées.
1)Si l’appareil est exempt de givre.
2)Si l’appareil contient un compartiment de congélation.
8
Installer votre nouvel appareil
Avant d’utiliser l’appareil électrique pour la première fois, vous devriez examiner les conseils suivants.
Ventilation de l’appareil
Afin d’améliorer l’efficacité du système de réfrigération, et
économiser en énergie, il est nécessaire de maintenir une bonne
ventilation autour de l’appareil pour la dissipation de la chaleur. Pour cette raison, un espace vide suffisant doit être disponible autour du réfrigérateur. Il est conseillé pour cela d’avoir un espace de 50 à 70 mm depuis l’arrière du mur, au moins 100 mm depuis le haut et au moins 100 mm depuis le côté du mur et un espace de dégagement à l’avant pour permettre aux portes d’ouvrir à 135°. Veuillez voir les diagrammes suivants.
607-627 |
140 |
|
1120-1 |
● Remarque:
Cet appareil électrique a de bonnes performances dans les classes de climat de N à T montrées dans le tableau ci-dessous. Il pourrait ne pas fonctionner correctement s’il est exposé une température en dessous ou au dessus de la plage indiquée ci-dessous pendant une longue période.
Classe climatique |
Température ambiante |
|
|
SN |
+10°Cà +32°C |
|
|
N |
+16°Cà +32°C |
|
|
ST |
+16°Cà +38°C |
T+16°Cà +43°C
●Placez votre appareil dans un endroit
sec pour éviter une grande humidité. ● Gardez votre appareil à l’abri de la lumière du soleil, de la pluie et de la
gelée. Gardez votre appareil à l’abri des sources de chaleur telle que le four, le feu ou les appareils de chauffage.
Nivellement de l’appareil électrique
●Pour un nivellement et une circulation d’air suffisant dans la section arrière basse de l’appareil, les pieds du bas peuvent nécessiter d’être ajustés.
●Vous pouvez les ajuster manuellement à la main ou en
utilisant une clé appropriée.
● Pour permettre à la porte de se fermer
automatiquement, inclinez le dessus en arrière de 10mm.
Installation d'une poignée de porte
Retirer la poignée et les vis du sac, retirer les films de protection de poignée, positionner la poignée sur le côté droit de la porte, la fixer à l'aide de vis et installez les caches-vis de poignée.
9
Inverser la porte
La direction dans laquelle la porte s’ouvre peut être changé du côté droit (comme fourni) au côté gauche, si jamais le placement de l’appareil nécessite ce changement.
Attention ! Lors du changement du côté où la porte s’ouvre, l'appareil ne doit pas être sous tension. Assurez-vous que la
fiche est retirée de la prise d’alimentation.
Les outils dont vous aurez besoin Non fourni
|
|
|
|
|
|
|
|
|
|
|
|
Clé à douille de 8mm |
|
Tournevis à |
Couteau à |
||
|
lame mince |
mastic |
|||
|
|
||||
|
|
|
|
|
|
Tournevis |
Clé à molette |
Clé de 8mm |
|||
cruciforme |
|||||
|
|
|
|
Pièces supplémentaires (dans le sac plastique)
Couverture de charnière gauche
Remarque: Si nécessaire, vous pouvez poser le réfrigérateur sur sa face arrière afin d'avoir accès à la base, vous devez le poser sur un emballage en mousse souple ou un matériau similaire pour éviter d'endommager le panneau arrière du réfrigérateur. Pour inverser la porte, les étapes suivantes sont généralement recommandées.
1. Utilisez un couteau à mastic ou un tournevis à lame mince pour fixer le cache-vis qui se trouve dans le coin supérieur gauche du réfrigérateur, et le cache-charnière qui se trouve dans le coin supérieur droit du réfrigérateur.
Couvercle Couvercle du trou de vis supérieur de
charnière (droite)
spéciales de la bride qui servent à fixer la partie supérieure droite de la charnière à l'aide d'un tournevis à douille de 8 mm ou d'une clé (en le faisant, veuillez soutenir la porte supérieure avec votre main).
Vis autotaraudeuses spéciales pour brides
Partie supérieure droite de la charnière
3. Retirez l'axe supérieur de la charnière, transférez-le sur le côté renversé et serrez-le fermement, puis placez-le dans un endroit sûr.
4. Retirer la porte de la charnière inférieure.
REMARQUE : Lorsque vous retirez la porte, faites attention aux rondelles entre la charnière inférieure et le bas de la porte inférieure qui peuvent coller à la porte. Ne le perdez pas.
2. Dévisser les vis autotaraudeuses
