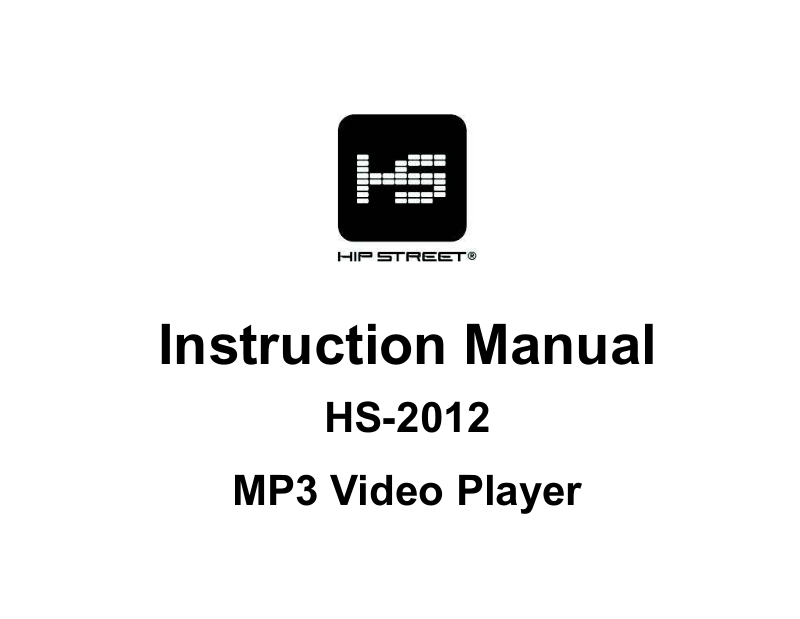

Instruction Manual

HS-2012

MP3 Video Player

1

Thank you for your purchase of this Hip Street MP3 video player and we hope you

enjoy using it. Please visit our website at www.hipstreetonline.com.

The display screen images contained in this user manual are used for identification

purposes only; actual display pictures may vary.

Please ensure that you fully read and understand the information with this

instruction manual prior to using your product. It is advised that you keep this

instruction manual in a safe place for future reference.

This model supports MP3, WAV and AMV files. We sincerely hope that this high

quality product offers you endless hours of entertainment.

2

Note:

1. Do not use the unit in places that are extremely hot, cold, dusty, or humid.

2. Avoid dropping the unit.

3. The battery life may differ under different usage conditions.

4. Please charge the unit when any of the following cases occur:
A. Low battery indicator
B. The player continuously turns off automatically
C. The keys become inactive
D. Can’t turn on the player

5. Do not disconnect the player while it is formatting or uploading/downloading files

6. Do not disassemble as this will void the warranty

7. Specifications are subject to change and improvement without notice

8.

While formatting the player, please select the file system as FAT32

9. Do not immerse this product in liquids of any kind.

10.

Do not clean this product with chemical solvents or abrasive material.

3

Features:

1.5’’ 65K color display

MP3/WMA/WAV playback
MPEG-4 (AVI) movie function
Support JPEG format picture browsing
High quality voice recording; A-B repeat function
No driver necessary under Windows 2000/XP/ME
Mobile storage function
Support 3D sound
Various EQ modes
ID3 TAG support (title, artist, and lyrics)
Built-in rechargeable Lithium-ion battery

USB 2.0

4

Unit Diagram:

ķEarphone jacks

ĸPower switch

ĹUSB jack

ĺPrev./REW

ĻMenu M

ļNext/FF

ĽIncrease volume +

ľDecrease Volume -

ĿPlay/pause/stop/power off

5

1 .Basic operation

1). Power on/off

A). On: Slide the power switch to the “ON” position, and press and hold the “

” button
to turn on the unit. The LCD display will illuminate and the unit will enter the main
interface.
B). Off: Press and hold the “

” button, the player will turn off.

2). Charging

A) With provided USB cable, plug one end into an USB power source and the other into
the USB jack of the player. The unit will charge whether it is on or off.
B) When charging through a computer, the player enters into the U-disk mode
automatically. Exit the U-disk mode and the player will enter the charging mode.

Note: Do not charge for more than 8 hours. To maintain the life of the battery, only
charge when the battery is fully exhausted.

3) Buttons

Under the main interface, press the “+” or “-” to select the menu you want and press the
“

” button to enter. In the various menus, press and hold the “M” button to return to the

main interface.

6

4). FM tuner

The earphone acts as the antenna while listening to FM stations. Please plug the earphone
in prior to starting in the FM mode.

2. Music Playback

The player allows you to enjoy MP3/WMA music files though its high fidelity sound
processor.

1). Playback

Select “Music” in the main menu, and press the “

” button to enter.

2). Buttons

A). Press “Prev./REW

” or “Next/FF “ ” to select audio files.

B). Press the “

” button to start playback.

C). Press and hold the “M” button to return to the main interface.

3). Volume Adjustment

During playback, press and hold “-” to decrease the volume. Press and hold “+” to increase
the volume.

4). Previous file/Next file; FF/RW

Press the “

” button to skip to the next file and press the “ ” button to skip to the

7

previous file.
Press and hold “

” or “ ” to FF or RW.

5). Pause

During playback, press the “

” button to pause and press it again to continue.

6). Play list

Press the “M” button to enter the play list. Press “ˇ” or “ˉ” to select files and press the

“

” button to enter and start playback.

7). Output EQ Mode Setting:

Press and hold the “M” button to return to the main interface. Select “Settings> Music>
EQ Select”. EQ includes 6 modes: normal, MS PlayFX, rock, pop, Classic and Jazz. You
can choose your setting by pressing the “+” or “-” button. Press the “

” button to confirm

and return.

8). Repeat Mode Setting

Press and hold the “M” button to return to the main interface. Select “Settings> Music>
Repeat mode”. By pressing “+” or “-” button, the play mode will change in the below
order: once, repeat 1, Folder once, Folder Repeat, All once, All Repeat and Intro. Press the
“

” button to confirm and return.

9). Play Mode Setting

8

Press and hold the “M” button to return to the main interface. Select “Settings> Music>
Play mode”. By pressing “+” or “-” button, the play mode will change in below order:
order and shuffle.

10). A-B repeat

While playing music, press the “+” button one time to set the start point “A”, the LCD
displays “A-“; press the “+” button again to set the end point “B”, the LCD displays “A-B”,
and the player will start to repeat the chosen section. Press the “+” button a third time to
exit.
“A-B” repeat function is not available under pause status.

Note: Under “A-” or “A-B” status, press and hold the “

” or “ ” button to FF or

REW, the A-B repeat will be cancelled.

3. Video Playback

1). Playback

Select “Video”in the main menu and press the “

” button to enter the explorer mode.

Select the file you want and press the “

” button to start playback.

2). Buttons

A). Press “+” or “-” to select video files.

9

B). Press the “

” button to start playback.

C). Press the “M” button to return to the previous menu.

3). Volume Adjustment

Under playback status, press “-” to decrease the volume. Press “+” to increase the volume.

4). Previous file/Next file; FF/RW

Press the “

” button to skip to the next file and press the “ ” button to skip to the

previous file. Under pause status, press and hold “

” or “ ” to FF or RW.

5). Pause

Under playback mode, press the “

” button to pause and press it again to continue.

4. FM tuner:

1). Enter FM tuner:

Select “FM” in the main menu and press the “

” button to enter.

2). Buttons

A). Press the “

” button to enter the sub menu.
B). Press “+” or “-” to select function menu.
C). Press the “M” button to return to the main menu.

3).Volume adjustment

10

Press “-” to decrease the volume. Press “+” to increase the volume.

4). Manual searching

Press the “

” button to select “manual”, each time you press the “ ” or “ ” button the
frequency will decrease or increase by 0.1 MHz.
Press and hold the “

” or “ ” button and the system will search for stations and save

them automatically.

5). Auto-searching

Press the “

” button to enter the sub menu. Select “auto” by pressing “+” or “-” button

and then press the “

” button to confirm. The unit will begin to search all stations and
store them automatically. You can turn to the “preset” status to listen to the FM stations
after finished searching.

6). Storing

Press the “

” button to enter sub menu, select “mem” by pressing “+” or “-” button and

then press the “

” button to confirm to save the current station. Press the “ ” or “ ”
button to select the channel of saving the station: CH1, CH2…. Select “Yes” and press the
“

” button to save the station. Press the “M” button to exit.

7). Preset station

Press the “

” button to enter the sub menu. Select “preset” by pressing “+” or “-” button

11

and press the “

” button to confirm to start listening to the preset stations. Press the “ ”

or “

” button to select channels.

8). Delete Stations

Press the “

” button to enter the sub menu. Select “del” by pressing “+” or “-” button and

press the “

” button to confirm. Press the “ ” or “ ” button to select the channel want

to delete. Select “Yes” and press the “

” button to confirm. Press the “M” button to exit.

9) FM Recording

A). Enter FM recording: While listening to a FM station, press and hold the “M” button to
enter the FM recording function. The LCD displays “Preparing…”
B). Start FM recording: under “Preparing” status, press the “

” button to start recording,
and the LCD will display “Recording…”
C). Pause FM recording: Under “Recording” mode, press the “

” button to pause, press it
again to continue.
D). Save and continue recording: Press the “M” button to save the recorded file, and skip
to the FM recording status again.
E). Save and exit recording: Press and hold the “M” button to save the recorded file and
exit FM recording.

12

5. Picture display

1). Enter Picture display: Select “Photo” in the main menu and press the “

” button. The
player enters the browser status. You can select the picture you want and view in full
screen.

2). Picture display:
A). Press the “+” or “-” button to select the picture you want to display.
B). When the file is selected, press the “

” button to view it in full screen.

While browsing pictures, press the “

” button to auto view.

C). Press the “

” or “ ” button to skip to the next or previous picture.
D). Press the “M” button to return to the picture browser.
E). Press and hold the “M” button to exit and return to the main interface.

6. E-book

1) Enter E-book: Select “Text” in the main interface and press the “

” button to enter. It

displays the E-book file list.

2). Reading E-book:
A). Press the “+” or “-” button to select the file you want.
B). Press the “

” button to start reading.

13

C). Press the “+” or “-” button to skip to the next or previous page.
D). Press and hold the “

” button to display the “save bookmark” list. Press the “+” or “-”
button to select the bookmark, and press the “M” button to save.
F). Press and hold the “

” button to display the “load bookmark” list. Press the “+” or “-”
button to select the bookmark, and press the “M” button to load it.
G). While reading the E-book, press the “M” button to return to the file list. Press and hold
the “M” button to exit.

Note: The bookmark is only available to the current file, and has to be re-set while
reading other files.

7. Voice recording:

1). Enter recording: Under the main interface, select “Record’ menu and press the “

”

button to enter.

2). Start recording: After entering the recording interface, the LCD will display
“Prepare…” Press the “

” button to start recording.

3). Pause recording: During “Recording”, press the “

” button to pause and press it again

to continue.

4). Save and continue recording: Press the “M” button to save the recorded file, and skip to
