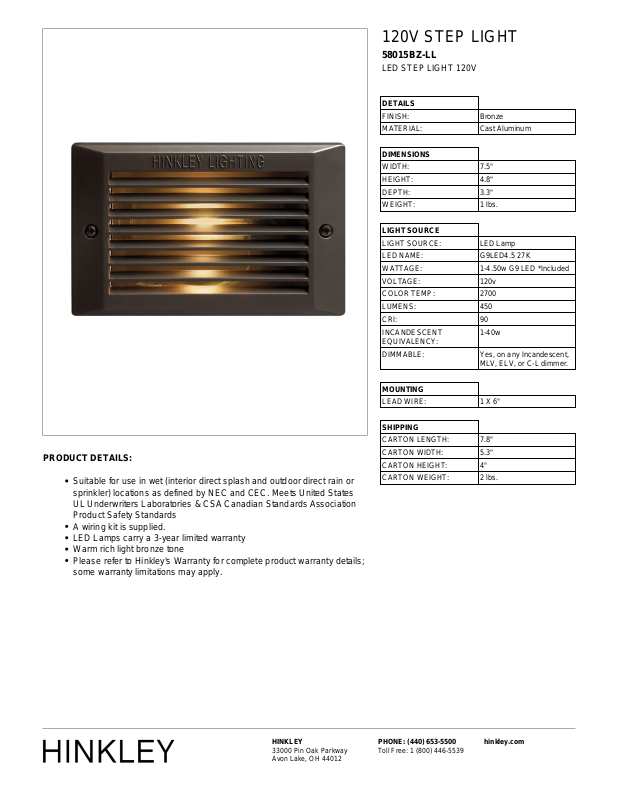

120V STEP LIGHT
58015BZ-LL
LED STEP LIGHT 120V
DETAILS
FINISH: Bronze
MATERIAL: Cast Aluminum
DIMENSIONS
WIDTH: 7.5"
HEIGHT: 4.8"
DEPTH: 3.3"
WEIGHT: 1 lbs.
LIGHT SOURCE
LIGHT SOURCE: LED Lamp
LED NAME: G9LED4.5 27K
WATTAGE: 1-4.50w G9 LED *Included
VOLTAGE: 120v
COLOR TEMP: 2700
LUMENS: 450
CRI: 90
INCANDESCENT
EQUIVALENCY:
DIMMABLE: Yes, on any Incandescent,
1-40w
MLV, ELV, or C-L dimmer.
PRODUCT DETAILS:
Suitable for use in wet (interior direct splash and outdoor direct rain or
sprinkler) locations as defined by NEC and CEC. Meets United States
UL Underwriters Laboratories & CSA Canadian Standards Association
Product Safety Standards
A wiring kit is supplied.
LED Lamps carry a 3-year limited warranty
Warm rich light bronze tone
Please refer to Hinkley's Warranty for complete product warranty details;
some warranty limitations may apply.
MOUNTING
LEAD WIRE: 1 X 6"
SHIPPING
CARTON LENGTH: 7.8"
CARTON WIDTH: 5.3"
CARTON HEIGHT: 4"
CARTON WEIGHT: 2 lbs.
