ORIGINAL OPERATING INSTRUCTIONS
SF 2-A/SFD 2-A cordless drill /
driver
It is essential that the operating instructions are read before the power tool
is operated for the first time.
Always keep these operating instructions together with the power tool.
Ensure that the operating instructions are with the power tool when it is
given to other persons.
Contents
1 Generalinformation ........................... 2
2 Description ................................. 4
3 Inserttools,accessories ........................ 5
4 Technicaldata ............................... 6
5 Safetyinstructions ............................ 7
6 Beforeuse................................. 13
7 Operation ................................. 15
8 Careandmaintenance......................... 18
9 Troubleshooting ............................. 19
10 Disposal .................................. 20
11 Manufacturer’swarranty-tools................... 21
12 ECdeclarationofconformity(original) .............. 21
1 These numbers refer to the illustrations. You can find the illustrations at
the beginning of the operating instructions.
In these operating instructions, the designation “power tool” always refers
to the SF 2-A or SFD 2-A cordless drill / driver, with battery fitted.
Parts, operating controls and indicators
1
@ Keyless chuck (SF 2-A)
; Torque and drilling mode setting ring
= Gear selector switch
% Hex. socket with locking sleeve (SFD 2-A)
& Forward / reverse switch
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
2
( Grip
) Lamp
+ Belt hook (optional)
§ Charging status indicator
/ Release button
: Control switch (with electronic speed control)
1 General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to serious bodily injury or
fatality.
WARNING
Draws attention to a potentially dangerous situation that could lead to
serious personal injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation that could lead to slight
personal injury or damage to the equipment or other property.
NOTE
Draws attention to an instruction or other useful information.
1.2 Explanation of the pictograms and other information
Warning signs
General warning Warning: electricity Warning: caustic
substances
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
3

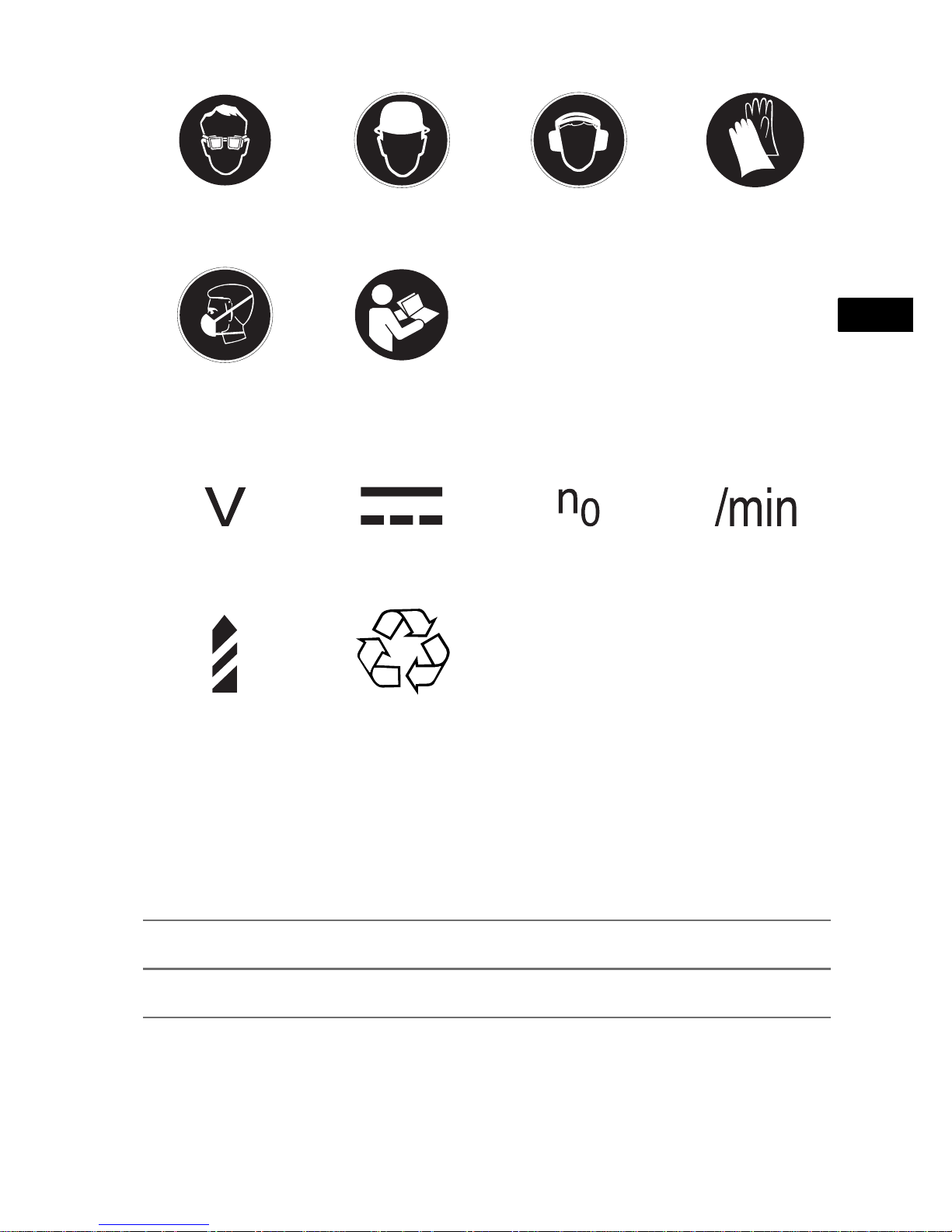

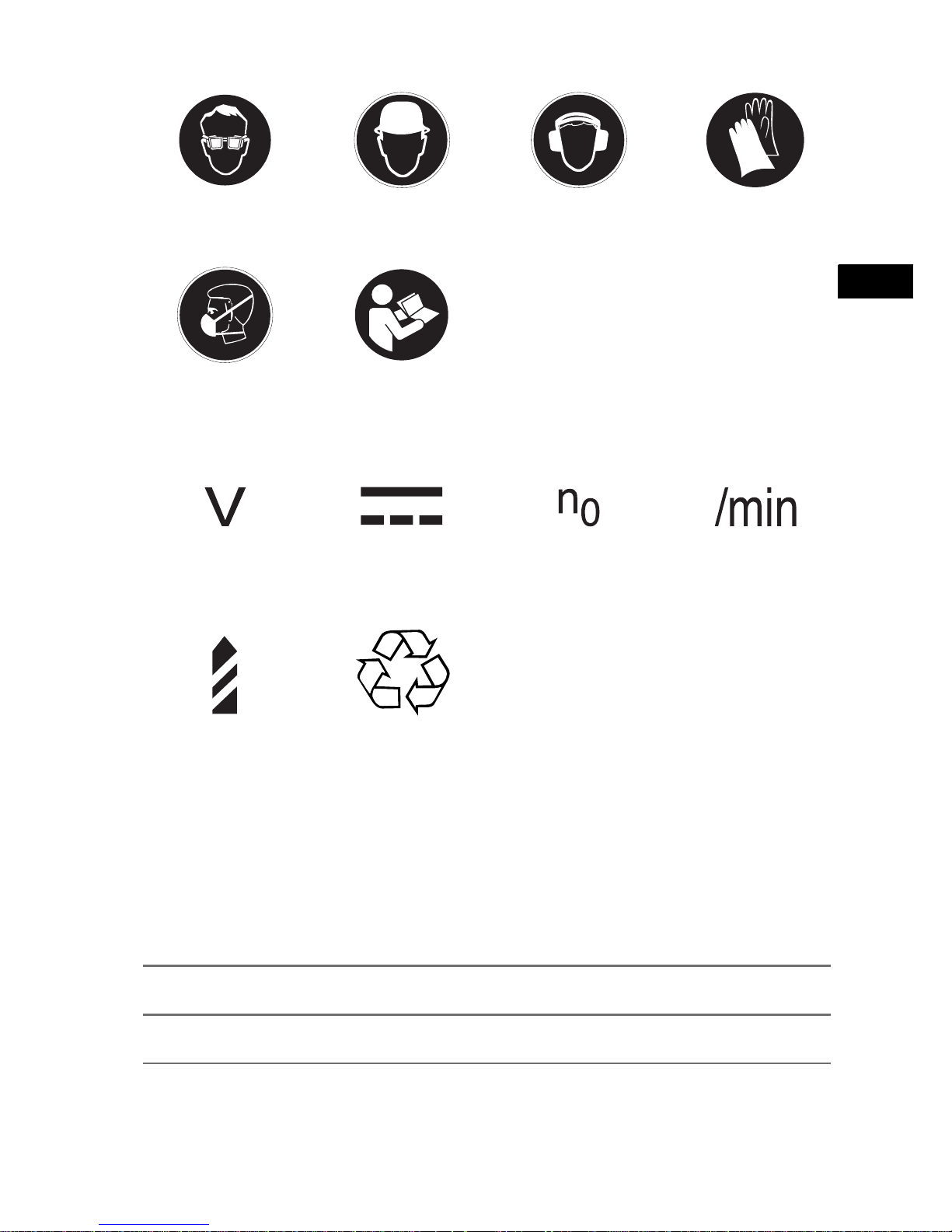

Obligation signs
Wear eye protection Wear a hard hat Wear ear protection Wear protective
gloves
Wear breathing
protection
Read the operating
instructions before
use.
Symbols
Volts Direct current Rated speed under
no load
Revolutions per
minute
Drilling without
hammering
Return materials for
recycling
Location of identification data on the power tool
The type designation can be found on the type identification plate at the
base of the power tool and the serial number on the side of the casing.
Make a note of this data in your operating instructions and always refer to it
when making an enquiry to your Hilti representative or service department.
Type:
Generation: 01
Serial no.:
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
4
2 Description
2.1 Use of the product as directed
The SF 2A and SFD 2A are hand-held cordless drill / drivers for driving
and removing screws and drilling in steel, wood and plastic.
Working on materials hazardous to the health (e.g. asbestos) is not
permissible.
Do not use the battery as a power source for other unspecified appliances.
Modification of the power tool or tampering with its parts is not permissible.
To avoid the risk of injury, use only genuine Hilti accessories and insert tools.
Observe the information printed in the operating instructions concerning
operation, care and maintenance.
The power tool is designed for professional use and may be operated,
serviced and maintained only by trained, authorized personnel. This
personnel must be informed of any special hazards that may be encountered.
The power tool and its ancillary equipment may present hazards when used
incorrectly by untrained personnel or when used not as directed.
The working environment may be as follows: construction site, workshop,
renovation, conversion or new construction.
2.2 Chuck
The SF 2-A has a keyless chuck and the SFD 2-A features a hex. socket drive.
2.3 Switches
Control switch with electronic speed control
Gear selector switch
Forward / reverse selector switch with transport lock
Torque and drilling mode setting ring
2.4 Grips
Vibration-absorbing grip
2.5 The items supplied include (toolbox versions):
1 Power tool
1 Operating instructions
1 Hilti toolbox
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
5
2.6 The items supplied include (cardboard box versions):
1 Power tool
1 Operating instructions
2.7 Additional items required for operating the tool:
B 12/2.6 Li-Ion battery and C4⁄1250 charger.
2.8 Liion battery charge status display
LEDs light constantly LEDs blink Charge status C
LED1,2,3,4 - C≧75%
LED1,2,3 - 50 % ≦ C < 75 %
LED 1, 2 - 25 % ≦ C < 50 %
LED 1 - 10 % ≦ C < 25 %
- LED 1 C<10%
2.9 Overload and overheating protection
The power tool is equipped with an electronic protection system to prevent
overloading and overheating. The power tool switches itself off automatically
in the event of overloading and overheating. After releasing the control
switch, the power tool may not restart immediately when the switch is
pressed again (while the power tool is cooling down).
NOTE
Overloading or overheating are not indicated by the LEDs on the battery.
3 Insert tools, accessories
Designation Short designation
Charger for Liion batteries C 4/12-50
Battery B12/2.6LiIon
Belt hook (optional)
Designation Description
Keyless chuck clamping range ∅ 0.8…10 mm
Drilling diameter range in wood
(soft)
∅ 0.8…14 mm
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
6
Designation Description
Drilling diameter range in wood
(hard)
∅ 0.8…10 mm
Drilling diameter range in metal ∅0.8…6mm
Wood screws (max. length 80 mm) ∅3…6mm
4 Technical data
Right of technical changes reserved.
Power tool SF 2-A SFD 2-A
Rated voltage (DC
voltage)
10.8 V 10.8 V
Weight in accordance
with EPTA procedure
01/2003
1.1 kg 1.0 kg
Speed in 1st gear (with
B 12/2.6)
0…400/min 0…400/min
Speed in 2nd gear
(with B 12/2.6)
0…1,500/min 0…1,500/min
Torque with tool set
to drilling symbol
(soft/flexible joint)
Max. 12 Nm Max. 12 Nm
Torque range (15 settings)
0.5…3.5 Nm 0.5…3.5 Nm
NOTE
The vibration emission level given in this information sheet has been
measured in accordance with a standardized test given in EN 60745 and
maybeusedtocompareonetoolwithanother. Itmaybeusedfora
preliminary assessment of exposure. The declared vibration emission level
represents the main applications of the tool. However if the tool is used for
different applications, with different accessories or poorly maintained, the
vibration emission may differ. This may significantly increase the exposure
level over the total working period. An estimation of the level of exposure to
vibration should also take into account the times when the tool is switched
off or when it is running but not actually doing the job. This may significantly
reduce the exposure level over the total working period. Identify additional
safety measures to protect the operator from the effects of vibration such as:
maintain the tool and the accessories, keep the hands warm, organization
of work patterns.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
7
Noise and vibration information (measured in accordance with
EN 60745):
Typical A-weighted sound power
level for the SF 2A/SFD 2-A
75 dB (A)
Typical A-weighted emission sound
pressure level for the SF 2A/SFD 2A
64 dB (A)
Uncertainty for the given sound level 3dB(A)
Triaxial vibration values (vibration
vector sum)
Measured in accordance with
EN 6074522
For the SF 2A/SFD 2-A: Screwdriving without impact action, a
h
0.5 m/s²
Uncertainty (K) 1.5 m/s²
Triaxial vibration values (vibration
vector sum)
Measured in accordance with
EN 6074521
For the SF 2A/SFD 2-A: Drilling in
metal, a
h,D
1.9 m/s²
Uncertainty (K) for triaxial vibration
measurements
1.5 m/s²
Battery B 12/2.6 LiIon
Rated voltage 10.8 V
Capacity 2.6 Ah
Energy capacity 28.08 Wh
Weight 0.24 kg
Temperature monitoring Yes
Type of cell LiIon
No. of cells 3
5 Safety instructions
NOTE
The safety rules in section 5.1 contain all general safety rules for electric
tools which, in accordance with the applicable standards, must be listed in
the operating instructions. Accordingly, some of the rules listed may not be
relevant to this tool.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
8
5.1 General power tool safety warnings
a)
WARNING
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future reference. The
term “power tool” in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
5.1.1 Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
5.1.2 Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased risk
of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
5.1.3 Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
9
or under the influence of drugs, alcohol or medication. Amoment
of inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the
off‐position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
5.1.4 Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
therateforwhichitwasdesigned.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
10
before use. Many accidents are caused by poorly maintained power
tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5.1.5 Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A
chargerthatissuitableforonetypeofbatterypackmaycreateariskof
fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a
fire.
d) Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
5.1.6 Service
a) Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of the
power tool is maintained.
5.2 Drill safety warnings
a) Wear ear protectors when impact drilling. Exposure to noise can
cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can
cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make exposed metal
parts of the power tool "live" and could give the operator an electric
shock.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
11
5.3 Additional safety instructions
5.3.1 Personal safety
a) Hold power tool by insulated gripping surfaces, when performing an
operation where the fastener may contact hidden wiring. Fasteners
contacting a "live" wire may make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
b) Always hold the power tool securely with both hands on the grips
provided. Keep the grips dry, clean and free from oil and grease.
c) Improve the blood circulation in your fingers by relaxing your hands
and exercising your fingers during breaks between working.
d) Avoid touching rotating parts. Switch the power tool on only after
bringing it into position at the workpiece. Touching rotating parts,
especially rotating insert tools, may lead to injury.
e) Activate the safety lock (forward / reverse switch in the middle
position) before storing or transporting the power tool.
f) The power tool is not intended for use by children, by debilitated
persons or those who have received no instruction or training.
g) Children must be instructed not to play with the power tool.
h) Dust from material such as paint containing lead, some wood species,
minerals and metal may be harmful. Contact with or inhalation of the dust
may cause allergic reactions and/or respiratory diseases to the operator
or bystanders. Certain kinds of dust are classified as carcinogenic
such as oak and beech dust especially in conjunction with additives for
wood conditioning (chromate, wood preservative). Material containing
asbestos must only be treated by specialists. Wheretheuseofadust
extraction device is possible it shall be used. To achieve a high
level of dust collection, use a suitable vacuum cleaner of the type
recommended by Hilti for wood dust and/or mineral dust together
with this tool. Ensure that the workplace is well ventilated. The use
of a dust mask of filter class P2 is recommended. Follow national
requirements for the materials you want to work with.
5.3.2 Power tool use and care
a) Secure the workpiece. Use clamps or a vice to secure the work-
piece. The workpiece is thus held more securely than by hand and both
hands remain free to operate the power tool.
b) Check that the insert tools used are compatible with the chuck
system and that they are secured in the chuck correctly.
c) Large and heavy insert tools must only be operated in first gear.
There is otherwise a risk that the tool will be damaged when it is switched
off or, under unfavorable conditions, the chuck might be detached.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
12
5.3.3 Battery tool use and care
a) Ensure the switch is in the off position before inserting battery pack.
Inserting the battery pack into power tools that have the switch on invites
accidents.
b) Do not expose batteries to high temperatures and keep them away
from fire. This presents a risk of explosion.
c) Do not disassemble, squash or incinerate batteries and do not
subject them to temperatures over 80°C. This presents a risk of fire,
explosion or injury through contact with caustic substances.
d) Avoid ingress of moisture. Ingress of moisture may cause a short
circuit, resulting in burning injuries or fire.
e) Use only batteries of the type approved for use with the applicable
power tool. Use of unapproved batteries or use of the batteries in areas
of application for which they are not approved presents a risk of fire and
explosion.
f) Observe the special guidelines applicable to the transport, storage
and use of Li-ion batteries.
g) Remove the battery before storing or transporting the tool.
h) Avoid short circuiting the battery terminals. Before inserting the
battery in the tool, make sure that the battery terminals and the
terminals in the tool are free from foreign objects. Short circuiting the
battery terminals presents a risk of fire, explosion and chemical burns.
i) Do not charge or continue to use damaged batteries (e.g. batteries
with cracks, broken parts, bent or pushed-in and/or pulled-out
contacts).
j) If the battery is too hot to touch it may be defective. Place the tool in
a location where it can be kept under observation, well away from
flammable materials, and allow it to cool down. Contact Hilti Service
after the battery has cooled down.
5.3.4 Electrical safety
Before beginning work, check the working area (e.g. using a metal
detector) to ensure that no concealed electric cables or gas and water
pipes are present. External metal parts of the power tool may become live,
for example, when an electric cable is damaged accidentally. This presents
a serious risk of electric shock.
5.3.5 Work area
a) Ensure that the workplace is well lit.
b) Ensure that the workplace is well ventilated. Exposure to dust at a
poorly ventilated workplace may result in damage to the health.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
13

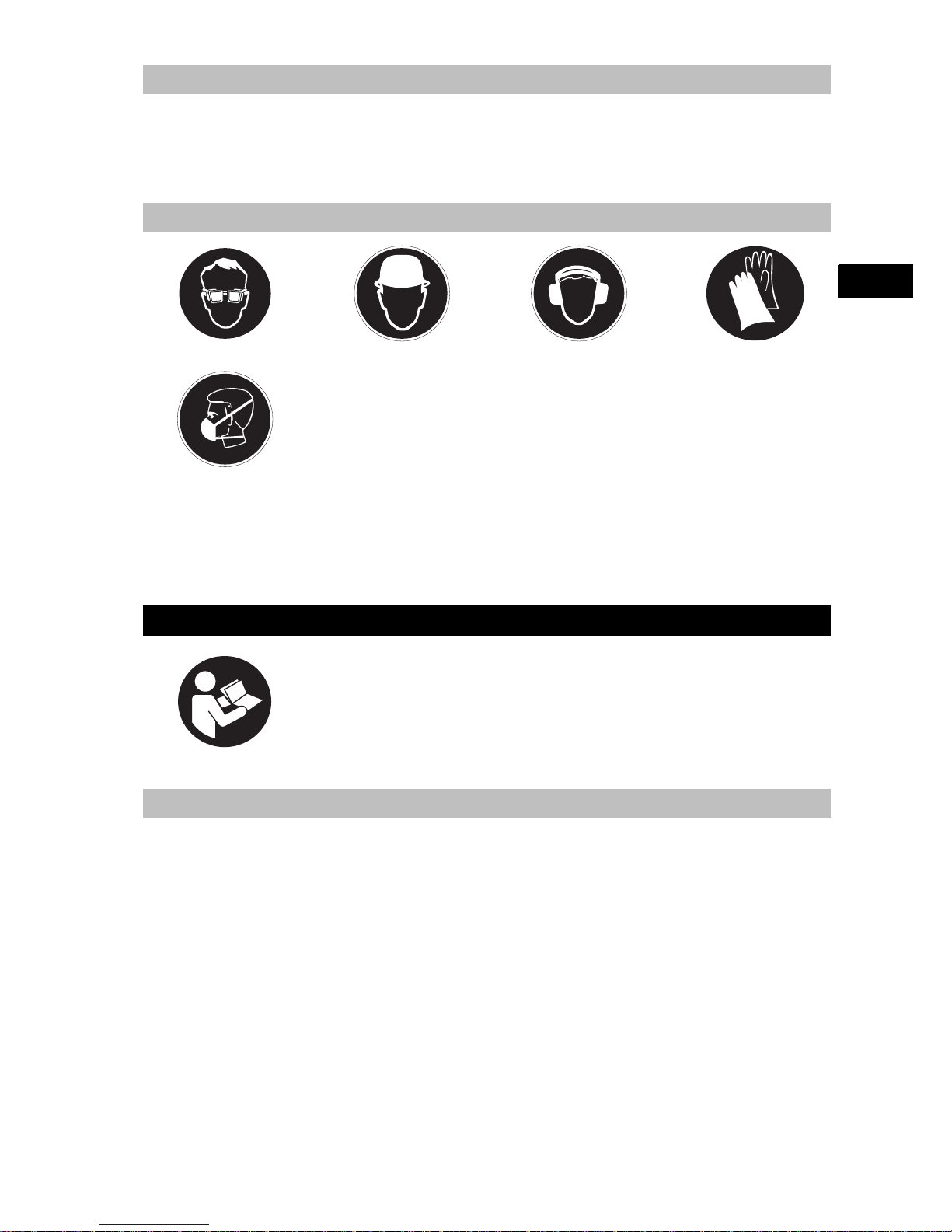

5.3.6 Personal protective equipment
The user and any other persons in the vicinity must wear suitable eye
protection, a hard hat, ear protection, protective gloves and breathing
protection while the tool is in use.
6Beforeuse
6.1 Battery use and care
NOTE
Battery performance drops at low temperatures. Use the tool only after
fully charging the battery. This ensures that maximum battery capacity is
available. Change to the second battery in good time. Recharge the battery
immediately so that it is ready for reuse.
Store the battery in a cool, dry place. Never store the battery where it is
exposed to the heat of the sun, on a radiator or behind glass, e.g. at a
window. Batteries that have reached the end of their life must be disposed
of safely and correctly to avoid environmental pollution.
6.2 Charging the battery
DANGER
Use onlytheHiltibatteriesandHiltichargers listedunder“Accessories”.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
14
6.2.1 Charging a new battery for the first time
Charge the battery fully before using it for the first time.
6.2.2 Charging a previously used battery
Ensure that the outer surfaces of the battery are clean and dry before
inserting it in the corresponding charger.
Information about charging can be found in the operating instructions for
the charger.
Lithium-ion batteries are ready for use even when only partially charged.
6.3 Fitting the battery
CAUTION
Before fitting the battery, check that the power tool is switched off and
that the safety lock is engaged (forward/reverse switch in the middle
position). Use only the Hilti batteries approved for use with this power
tool.
CAUTION
Before inserting the battery in the power tool, check to ensure that
the battery terminals and the contacts in the power tool are free from
foreign objects.
1. Push the battery into the power tool from the front, as far as it will go,
and until it is heard to engage with a click.
2. CAUTION A falling battery may present a risk of injury to yourself
and others.
Check that the battery is seated securely in the power tool.
6.4 Removing the battery 2
1. Press the release button.
2. Pull the battery out of the tool towards the front.
6.5 Transport and storage of battery packs
Remove the battery from the tool before transport or storage. Make sure that
the battery contacts are not short-circuited. Remove loose metal items such
as screws, nails, clamps, loose screwdriving bits, wires or metal cuttings
and chips from the toolbox or transport container, or prevent these items
from coming into contact with the battery.
Observe national and international transport regulations when shipping
battery packs (transportation by road, rail, sea or air).
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
15
6.6 Belt hook 3
CAUTION
Check that the belt hook is fitted securely before beginning work.
The belt hook allows the power tool to be attached to a belt worn by the
operator. The belt hook can also be fitted to the other side of the power tool
for use by left-handed persons.
1. Remove the battery from the tool.
2. Fit the mounting plate into the guides provided.
3. Secure the belt hook with the two screws.
7 Operation
CAUTION
The tool may get hot during use. Wear protective gloves.
CAUTION
When drilling and screwdriving, the grip of the tool may be deflected
laterally (the tool tends to pivot about its own axis).
CAUTION
To avoid injuries caused by the insert tool, wear protective gloves when
changing insert tools.
7.1 Setting forward or reverse rotation 4
NOTE
The forward / reverse switch is used to select the direction of rotation of the
drive spindle. An interlock prevents switching while the motor is running.
The control switch is locked when the forward / reverse switch is in the
middle position. Push the forward / reverse switch to the left (when the
power tool is held in the working direction) to select forward rotation. Push
the forward / reverse switch to the right (when the power tool is held in the
working direction) to select reverse rotation.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
16
7.2 Selecting the speed range 5
WARNING
Large and heavy insert tools must only be operated in first gear. There
is otherwise a risk that the tool will be damaged when it is switched off or,
under unfavorable conditions, the chuck might be detached.
NOTE
The gearselectorswitchcan be used to select the speed range. Speed range
for the SF 2-A/SFD 2-A with a fully charged battery: 1st gear: 0400/min,
2nd gear: 01500/min.
NOTE
The gear selector switch can be operated only when the motor is at a
standstill.
7.3 Switching on / off
Speed of rotation can be increased smoothly up to maximum speed by
pressing the control switch slowly.
7.4 Changing sockets
CAUTION
Wear protective gloves when changing insert tools as the insert tools
get hot during use.
Check that the connection end of the insert tool is clean. Clean the
connection end if necessary.
7.4.1 Changing bits with the SF 2-A
NOTE
The power tool is equipped with a keyless chuck that accepts various
accessories such as drill bits, screwdriving bits and bit holders.
7.4.1.1 Fitting the insert tool
1. Set the forward / reverse switch to the middle position or remove the
battery from the power tool.
2. Open the keyless chuck.
3. Insert the drill bit in the chuck and then turn the keyless chuck sleeve
until tight.
4. Check that the drill bit is held securely.
7.4.1.2 Removing the tool
1. Set the forward / reverse switch to the middle position or remove the
battery from the power tool.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
17
2. Open the keyless chuck.
3. Pull the insert tool out of the chuck.
7.4.2 Changing bits with the SFD 2-A 6
NOTE
The power tool is equipped with a ¹/₄" hex. socket with locking sleeve
that accepts various accessories such as drill bits, screwdriving bits andbit
holders.
7.4.2.1 Fitting the insert tool
1. Set the forward / reverse switch to the middle position or remove the
battery from the power tool.
2. Push the locking sleeve on the hex. socket forward and hold it securely
in this position.
3. Push the bit into the hex. socket as far as it will go and then release the
locking sleeve.
4. Check that the drill bit is held securely.
7.4.2.2 Removing the tool
1. Set the forward / reverse switch to the middle position or remove the
battery from the power tool.
2. Push the locking sleeve on the hex. socket forward and hold it securely
in this position.
3. Pull the bit out of the hex. socket and then release the locking sleeve.
7.5 Drilling
CAUTION
Use clamps or a vice to secure the workpiece. The workpiece is thus
held more securely than by hand and both hands remain free to operate
the power tool.
1. Turn the torque and drilling mode setting ring to the drilling symbol.
2. Move the forward / reverse switch to the “Forward” position.
7.6 Screwdriving
1. Turn the torque and drilling mode setting ring to the desired torque value.
2. Set the forward / reverse switch to the desired direction of rotation.
7.7 Reading the charge status LED display on Liion batteries 7
NOTE
The charge status cannot be indicated while the tool is in operation.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
18
NOTE
The charge status display LEDs may light briefly while the battery is being
fitted to the tool.
The Li-ion battery features a charge status LED display. When the tool
is not in operation, the charge status is displayed by four LEDs when the
lockbutton on the battery is pressed.
8 Care and maintenance
CAUTION
Before beginning cleaning, remove the battery in order to prevent the
electric tool starting unintentionally.
8.1 Care of insert tools
Clean off dirt and dust deposits adhering to the insert tools and protect
them from corrosion by wiping the insert tools from time to time with an oilsoaked rag.
8.2 Care of the power tool
CAUTION
Keep the power tool, especially its grip surfaces, clean and free from
oil and grease. Do not use cleaning agents which contain silicone.
Never operate the power tool when the ventilation slots are blocked. Clean
the ventilation slots carefully using a dry brush. Do not permit foreign
objects to enter the interior of the power tool. Clean the outside of the
power tool at regular intervals with a slightly damp cloth. Do not use a spray,
steam pressure cleaning equipment or running water for cleaning. This may
negatively affect the electrical safety of the power tool.
8.3 Care of the Liion battery
Avoid ingress of moisture.
Charge the battery fully before using it for the first time.
In order to achieve maximum battery life, stop drawing power from the
battery as soon as a significant drop in battery performance is noticed.
NOTE
If use continues, further battery discharge will be stopped automatically
before the battery cells suffer damage.
Charge the batteries with the Hilti chargers approved for use with Li-ion
batteries.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
19
NOTE
– A conditioning charge (as is required with NiCd or NiMH batteries) is
not necessary.
– Interruption of the charging procedure has no negative effect on
battery life.
– Charging can be started at any time with no negative effect on battery
life. There is no memory effect (as with NiCd or NiMH batteries).
– For best results, batteries shouldbestoredfullychargedinacool
dry place. Storing the battery in places subject to high ambient
temperatures (e.g. at a window) has an adverse effect on battery life
and increases the rate of self-discharge.
– If the battery no longer reaches full charge, it may have lost capacity
due to aging or overstressing. It is still possible to work with this
battery. You should, however, soon replace the battery with a new one.
8.4 Maintenance
WARNING
Repairs to the electrical section of the power tool may be carried out
only by trained electrical specialists.
Check all external parts of the power tool for damage at regular intervals
and check that all controls operate faultlessly. Do not operate the power
tool if parts are damaged or when the controls do not function faultlessly. If
necessary, the power tool should be repaired by Hilti Service.
8.5 Checking the power tool after care and maintenance
After carrying out care and maintenance work on the power tool, check that
all protective and safety devices are fitted and that they function faultlessly.
9 Troubleshooting
Fault Possible cause Remedy
The power tool doesn’t run.
The battery is
discharged or is not
pushed all the way in.
The battery must be
heard to engage with
a click or, respectively,
needs to be charged.
Electrical fault. Remove the battery from
the tool and contact Hilti
Service.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
20
Fault Possible cause Remedy
The on / off switch
can’t be pressed, i.e.
the switch is locked.
The forward / reverse
switch is in the middle
position (transport lock
engaged).
Push the forward / reverse switch to the left or
right.
The battery runs
down more quickly
than usual.
Very low ambient temperature.
Allow the battery to
warm up slowly to room
temperature.
The battery doesn’t
engage with an audible click.
The retaining lugs on the
battery are dirty.
Clean the retaining lugs
and push the battery in
until it engages. Contact
Hilti Service if the problem persists.
The power tool or
the battery becomes
very warm.
Electrical fault. Switch the power tool
off immediately, remove
the battery from the tool
and allow it to cool down
while keeping an eye on
it, contact Hilti Service.
The power tool has been
overloaded (application
limits exceeded).
Use the right power tool
for the job (don’t use a
low-powered tool for
heavy work).
10 Disposal
CAUTION
Improper disposal of the equipment may have serious consequences: the
burning of plastic components generates toxic fumes which may present
a health hazard. Batteries may explode if damaged or exposed to very
high temperatures, causing poisoning, burns, acid burns or environmental
pollution. Careless disposal may permit unauthorized and improper use of
the equipment. This may result in serious personal injury, injury to third
parties and pollution of the environment.
CAUTION
Dispose of defective batteries right away. Keep them out of reach of
children. Do not disassemble or incinerate the batteries.
CAUTION
Batteries that have reached the end of their life must be disposed of in
accordance with national regulations or returned to Hilti.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
21
Most of the materials from which Hilti power tools or appliances are
manufactured can be recycled. The materials must be correctly separated
before they can be recycled. In many countries, Hilti has already made
arrangements for taking back your old power tools or appliances for
recycling. Please ask your Hilti customer service department or Hilti
representative for further information.
For EC countries only
Disposal of electric tools together with household waste is not
permissible.
In observance of the European Directive on waste electrical
and electronic equipment and its implementation in accordance
with national law, electrical appliances that have reached the
end of their life must be collected separately and returned to an
environmentally compatible recycling facility.
11 Manufacturer’s warranty - tools
Please contact your local Hilti representative if you have questions about
the warranty conditions.
12 EC declaration of conformity (original)
Designation: Cordless drill / driver
Type: SF 2-A/SFD 2-A
Generation: 01
Year of design: 2013
We declare, on our sole responsibility, that this product complies with
the following directives and standards: 2006/42/EC, until 19th April 2016:
2004/108/EC, from 20th April 2016: 2014/30/EU, 2011/65/EU, 2006/66/EC,
EN 607451, EN 6074521, EN 6074522, EN ISO 12100.
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
en
22
Hilti Corporation, Feldkircherstrasse 100, FL9494 Schaan
Paolo Luccini Tassilo Deinzer
Head of BA Quality and Process Management Executive Vice President
Business Area Electric Tools & Accessories Business Unit Power Tools & Accessories
08/2015 08/2015
Technical documentation filed at:
Hilti Entwicklungsgesellschaft mbH
Zulassung Elektrowerkzeuge
Hiltistrasse 6
86916 Kaufering
Deutschland
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
fr
23
NOTICE ORIGINALE
SF 2-A/SFD 2-A Visseuseperceuse sans fil
Avantde mettre l'appareilen marche, lire impérativementson mode d'emploi
et bien respecter les consignes.
Le présent mode d'emploi doit toujours accompagner l'appareil.
Ne pas prêter ou céder l'appareil à un autre utilisateur sans lui fournir le
mode d'emploi.
Sommaire
1 Consignesgénérales.......................... 24
2 Description ................................ 26
3 Outils,accessoires ........................... 28
4 Caractéristiques techniques . . . . ................. 28
5 Consignesdesécurité ......................... 30
6 Miseenservice ............................. 37
7 Utilisation . . . . . ............................ 39
8 Nettoyageetentretien ......................... 42
9 Guidededépannage .......................... 43
10 Recyclage ................................. 44
11 Garantie constructeur des appareils . . . ............. 45
12 DéclarationdeconformitéCE(original).............. 45
1 Les numéros renvoient aux illustrations. Les illustrations se trouvent au
début de la notice d'utilisation.
Dans le présent mode d'emploi, « l'appareil » désigne toujours la visseuse-
perceuse sans fil SF 2A ou SFD 2A avec bloc-accu encliqueté.
Pièces constitutives de l'appareil, éléments de commande et d'affichage
1
@ Mandrin de perçage à serrage rapide (SF 2-A)
; Bague de réglage du couple et de la fonction perçage
= Sélecteur de vitesse
% Hexagonal int. avec douille de verrouillage (SFD 2-A)
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
fr
24
& Inverseur du sens de rotation droite / gauche
( Poignée
) Lampe
+ Patte d'accrochage (en option)
§ Indicateur de l'état de charge
/ Touche de déverrouillage
: Interrupteur de commande (avec variateur de vitesse électronique)
1 Consignes générales
1.1 Termes signalant un danger et leur signification
DANGER
Pour un danger imminent qui peut entraîner de graves blessures corporelles
ou la mort.
AVERTISSEMENT
Pour attirer l'attention sur une situation pouvant présenter des dangers
susceptibles d'entraîner des blessures corporelles graves ou la mort.
ATTENTION
Pour attirer l'attention sur une situation pouvant présenter des dangers
susceptibles d'entraîner des blessures corporelles légères ou des dégâts
matériels.
REMARQUE
Pour des conseils d'utilisation et autres informations utiles.
1.2 Explication des pictogrammes et autres symboles d'avertissement
Symboles d'avertissement
Avertissement
danger général
Avertissement
tension électrique
dangereuse
Avertissement
matières corrosives
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
fr
25
Symboles d'obligation
Porter des lunettes
de protection
Porter un casque de
protection
Porter un casque
antibruit
Porter des gants de
protection
Porter un masque
respiratoire léger
Lire le mode
d'emploi avant
d'utiliser l'appareil
Symboles
Volt Courant continu Vitesse nominale à
vide
Tours par minute
Perçage sans
percussion
Recyclage des
matériaux
Emplacement des détails d'identification sur l'appareil
Ladésignationdumodèlefiguresurlaplaquesignalétiquesouslepiedde
l'appareil et le numéro de série sur le côté du carter. Inscrire ces renseignements dans le mode d'emploi et toujours s'y référer pour communiquer
avec notre représentant ou agence Hilti.
Type :
Génération : 01
N° de série :
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
fr
26
2 Description
2.1 Utilisation conforme à l'usage prévu
La SF 2A et la SFD 2A sont des visseuses-perceuses sur accu à guidage
manuel servant à serrer et desserrer de la visserie, percer dans de l'acier,
du bois ou du plastique.
Ne pas travailler sur des matériaux susceptibles de nuire à la santé (par ex.
amiante).
Ne pas utiliser les accus comme source d'énergie pour d'autres appareils
non spécifiés.
Toute manipulation ou modification de l'appareil est interdite.
Pour éviter tout risque de blessure, utiliser uniquement les accessoires et
outils Hilti d'origine.
Bien respecter les consignes concernant l'utilisation, le nettoyage et l'entre-
tien de l'appareil qui figurent dans le présent mode d'emploi.
L’appareil est destiné aux utilisateurs professionnels et ne doit être utilisé,
entretenu et réparé que par un personnel agréé, formé à cet effet. Ce
personnel doit être au courant des dangers inhérents à l'utilisation de
l'appareil. L'appareil et ses accessoires peuvent s'avérer dangereux s'ils
sont utilisés de manière incorrecte par un personnel non qualifié ou de
manière non conforme à l'usage prévu.
L'environnement de travail peut être : chantiers, ateliers, sites de rénovation,
sites de constructions nouvelles ou de constructions en cours de réaménagement.
2.2 Porte-outil
Mandrin de perçage à serrage rapide pour le modèle SF 2-A et hexagonal
intérieurpourlemodèleSFD2-A.
2.3 Interrupteur
Interrupteur de commande avec variateur de vitesse électronique
Sélecteur de vitesse
Inverseur du sens de rotation droite / gauche avec dispositif de blocage
Bague de réglage du couple et de la fonction perçage
2.4 Poignée
Poignée antivibration
Printed: 04.12.2015 | Doc-Nr: PUB / 5174912 / 000 / 01
Loading...
