Hikvision UD19348N User Manual

Network Camera User Manual

User Manual

UD19348N

Network Camera

Network Camera User Manual

This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as "Hikvision"), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual, any information contained herein.

About this Manual

The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (http://www.hikvision.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

Trademarks Acknowledgement

 and other Hikvision’s trademarks and logos are the properties of

Hikvision in various jurisdictions.

 Other trademarks and logos mentioned are the properties of their respective

owners.

 The terms HDMI and HDMI High-Definition Multimedia Interface, and

the HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc. in the United States and other countries.

LEGAL DISCLAIMER

 TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS

Network Camera User Manual

MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

 YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES

FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

 YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL

APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND

Network Camera User Manual

OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN

SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to

avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

Notice:

If camera fails to synchronize local time with that of the network, you need to set

up camera time manually. Visit the camera and enter system setting interface for

time setting.

Network Camera User Manual

 Please adopt the power adapter which can meet the safety extra low voltage

(SELV) standard. And source with 12 VDC or 24 VAC (depending on models)

according to the IEC60950-1 and Limited Power Source standard.

 To reduce the risk of fire or electrical shock, do not expose this product to rain or

moisture.

 This installation should be made by a qualified service person and should conform

to all the local codes.

 Please install blackouts equipment into the power supply circuit for convenient

supply interruption.

 Please make sure that the ceiling can support more than 50(N) Newton gravities if

the camera is fixed to the ceiling.

 If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by unauthorized repair or

maintenance.)

Cautions:

 Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an

extended period of time, put on the lens cap to protect the sensor from dirt.  Do not aim the camera lens at the strong light such as sun or incandescent lamp.

The strong light can cause fatal damage to the camera.  The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser

beam.  Do not place the camera in extremely hot, cold temperatures (refer to product

specification for working temperature), dusty or damp environment, and do not

Network Camera User Manual

expose it to high electromagnetic radiation.

 To avoid heat accumulation, ensure there is good ventilation to the device.  Keep the camera away from water and any liquids.  While shipping, pack the camera in its original, or equivalent, packing materials.

Or packing the same texture.  Improper use or replacement of the battery may result in hazard of explosion.

Please use the manufacturer recommended battery type.

Notes:

For the camera supports IR, you are required to pay attention to the following

precautions to prevent IR reflection:  Dust or grease on the dome cover will cause IR reflection. Please do not remove

the dome cover film until the installation is finished. If there is dust or grease on

the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.  Make certain the installation location does not have reflective surfaces of objects

too close to the camera. The IR light from the camera may reflect back into the

lens causing reflection.  The foam ring around the lens must be seated flush against the inner surface of

the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera

body so that the foam ring and the dome cover are attached seamlessly.

Network Camera User Manual

Table of Contents

System Requirement ...........................................................................10

Network Connection ........................................................................... 11

Setting the Network Camera over the LAN ........................................................ 11

Wiring over the LAN ................................................................................................... 11

Activating the Camera ................................................................................................ 12

(Optional) Setting Security Question .......................................................................... 19

Setting the Network Camera over the WAN ....................................................... 19

Static IP Connection ................................................................................................... 19

Dynamic IP Connection .............................................................................................. 20

Access to the Network Camera ...........................................................23

Accessing by Web Browsers ............................................................................... 23

Accessing by Client Software ............................................................................. 24

Wi-Fi Settings ......................................................................................26

Configuring Wi-Fi Connection in Manage and Ad-hoc Modes ............................ 26

Easy Wi-Fi Connection with WPS function ......................................................... 31

IP Property Settings for Wireless Network Connection ...................................... 33

Live View .............................................................................................35

Live View Page ................................................................................................... 35

Starting Live View .............................................................................................. 36

Live Operation ........................................................................................................... 36

Install Plug-in ............................................................................................................. 37

Recording and Capturing Pictures Manually ...................................................... 38

Live View Quick Setup ........................................................................................ 39

Operating PTZ Control ........................................................................................ 40

5.5.1 PTZ Control Panel ....................................................................................................... 40

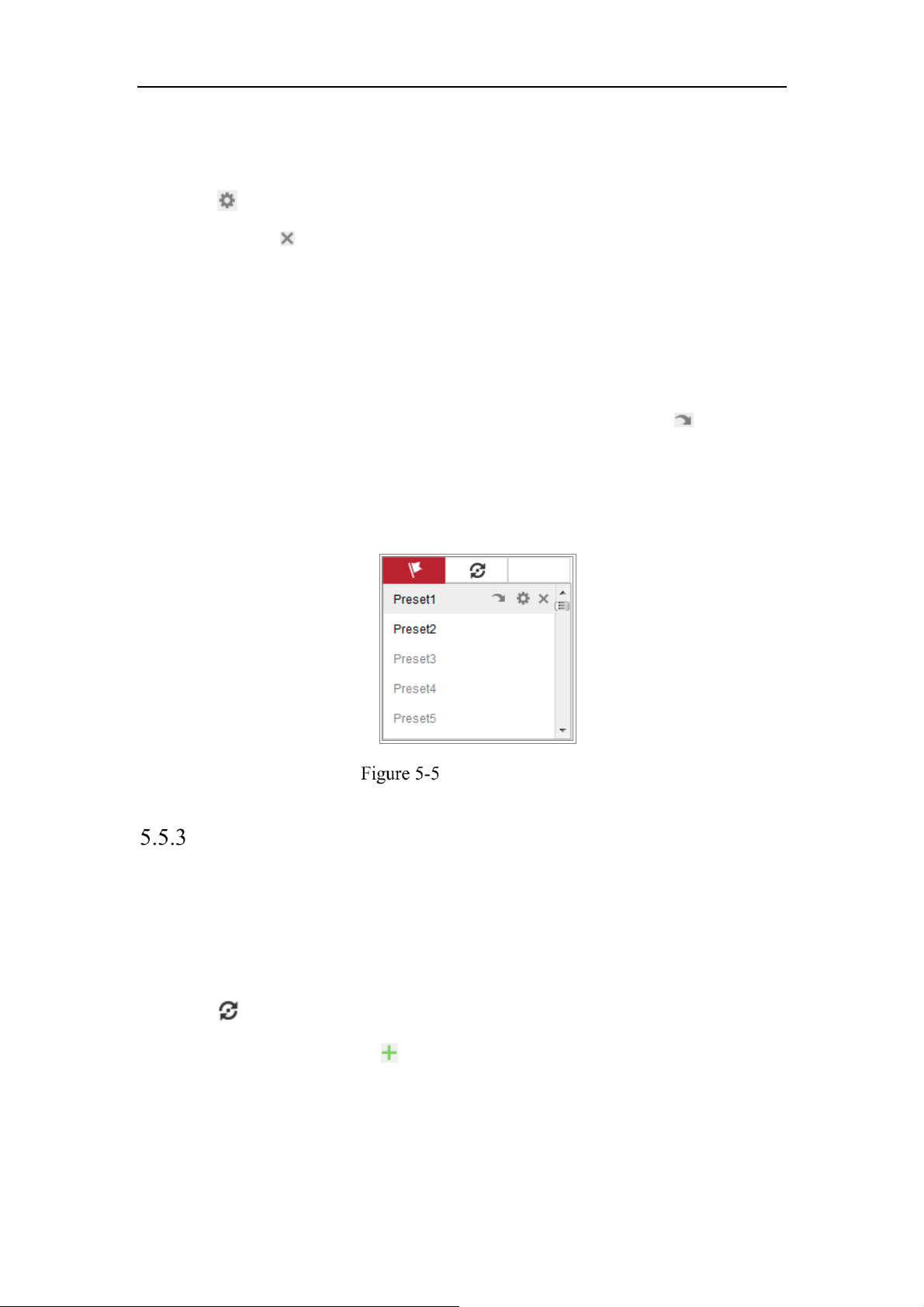

Setting/Calling a Preset .............................................................................................. 41

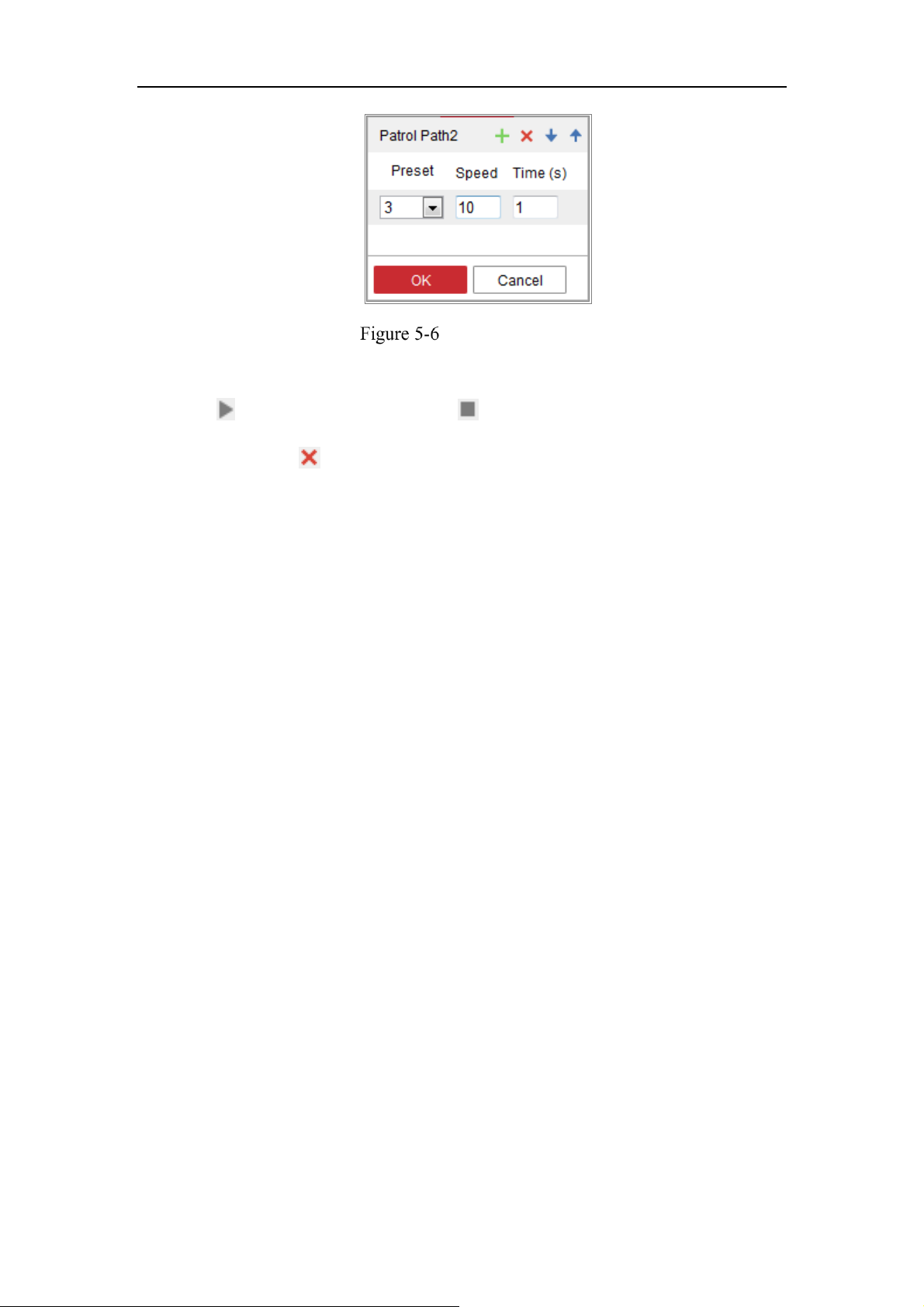

Setting/Calling a Patrol ............................................................................................... 42

Network Camera Configuration .........................................................44

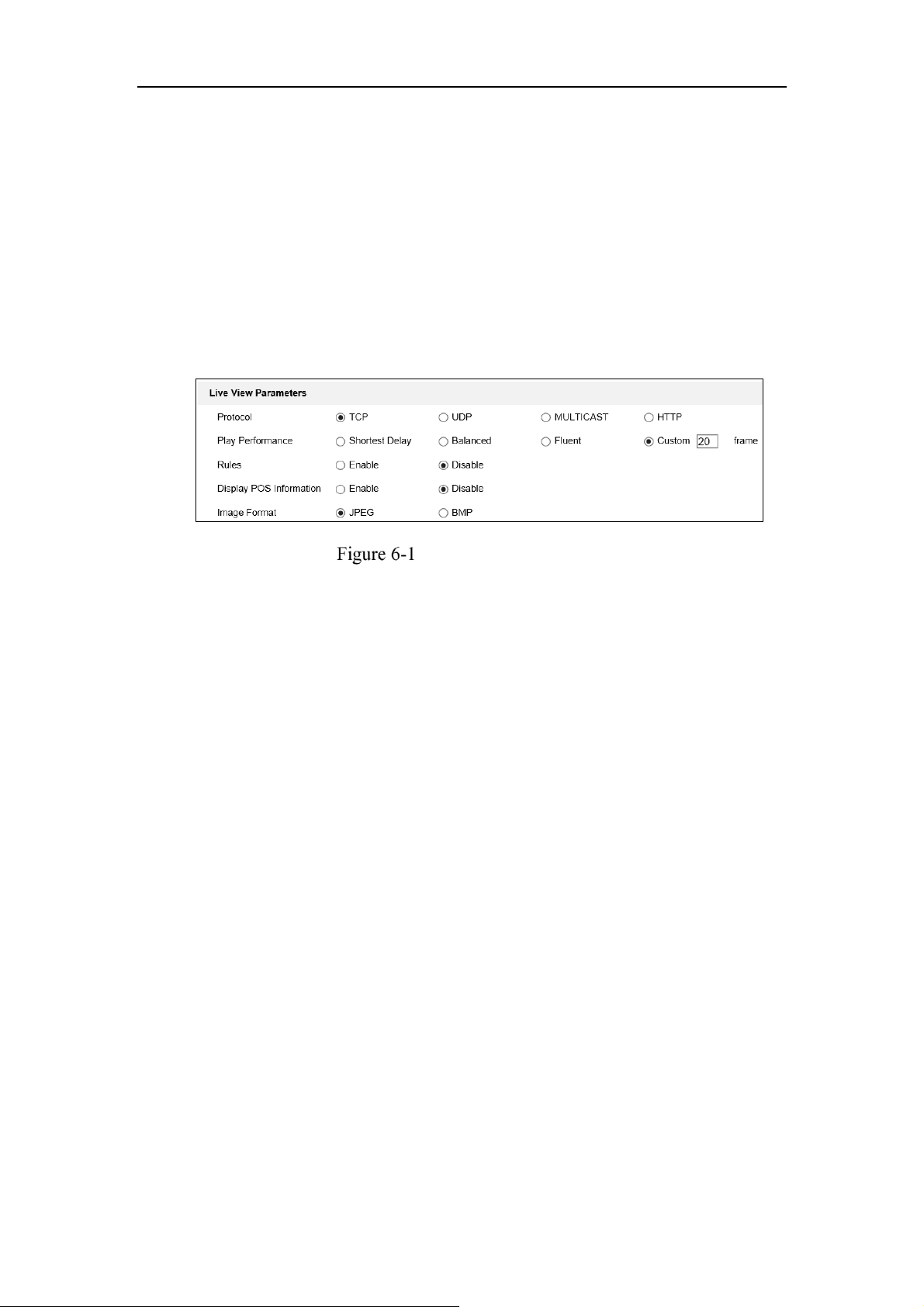

Configuring Local Parameters............................................................................. 44

Configure System Settings .................................................................................. 46

Configuring Basic Information .................................................................................... 46

Configuring Time Settings .......................................................................................... 46

Configuring RS232 Settings......................................................................................... 48

Configuring RS485 Settings......................................................................................... 49

Network Camera User Manual

Configuring DST Settings ............................................................................................ 50

Configuring External Devices ...................................................................................... 51

Configuring VCA Resource .......................................................................................... 52

Configuring Metadata Settings ................................................................................... 52

Open Source Software License ................................................................................... 53

Maintenance ...................................................................................................... 53

Upgrade & Maintenance ............................................................................................ 53

Log ............................................................................................................................ 55

System Service ........................................................................................................... 56

Security Audit Log ...................................................................................................... 57

Security Settings ................................................................................................ 58

Authentication ........................................................................................................... 59

IP Address Filter ......................................................................................................... 59

Security Service ......................................................................................................... 61

Advanced Security ..................................................................................................... 61

User Management ............................................................................................. 62

User Management ..................................................................................................... 62

Security Question ...................................................................................................... 64

Online Users .............................................................................................................. 66

Network Settings .................................................................................68

Configuring Basic Settings .................................................................................. 68

Configuring TCP/IP Settings ........................................................................................ 68

Configuring DDNS Settings ......................................................................................... 70

Configuring PPPoE Settings ........................................................................................ 72

Configuring Port Settings ............................................................................................ 72

Configure NAT (Network Address Translation) Settings ............................................... 74

Configuring Multicast ................................................................................................. 75

Configure Advanced Settings ............................................................................. 76

Configuring SNMP Settings ......................................................................................... 76

Configuring FTP Settings............................................................................................. 79

Configuring Email Settings .......................................................................................... 81

Platform Access ......................................................................................................... 83

Wireless Dial .............................................................................................................. 84

HTTPS Settings ........................................................................................................... 86

Configuring QoS Settings ............................................................................................ 89

Configuring 802.1X Settings ....................................................................................... 89

Integration Protocol ................................................................................................... 91

Bandwidth Adaptation ............................................................................................... 91

Network Service......................................................................................................... 92

Smooth Streaming ..................................................................................................... 93

Video/Audio Settings ...........................................................................95

Network Camera User Manual

Configuring Video Settings ................................................................................. 95

Video Settings ............................................................................................................ 95

Custom Video ............................................................................................................ 98

Configuring Audio Settings ............................................................................... 100

Configuring ROI Encoding................................................................................. 100

Display Info. on Stream .................................................................................... 102

Configuring Target Cropping............................................................................. 103

Image Settings ................................................................................... 104

Configuring Display Settings............................................................................. 104

Configuring OSD Settings ................................................................................. 108

Configuring Privacy Mask ................................................................................. 110

Configuring Picture Overlay ............................................................................. 111

Configuring Image Parameters Switch.............................................................. 112

Event Settings .................................................................................... 113

Basic Events ..................................................................................................... 113

10.1.1 Configuring Motion Detection .................................................................................. 113

Configuring Video Tampering Alarm ......................................................................... 119

Configuring Alarm Input ........................................................................................... 120

Configuring Alarm Output ........................................................................................ 122

Handling Exception .................................................................................................. 123

Configuring Flashing Alarm Light Output .................................................................. 123

Configuring Audible Alarm Output ........................................................................... 124

Configuring Other Alarm .......................................................................................... 125

Smart Events .................................................................................................... 128

Configuring Audio Exception Detection .................................................................... 128

Configuring Defocus Detection ................................................................................. 130

Configuring Scene Change Detection ........................................................................ 131

Configuring Face Detection ...................................................................................... 132

Configuring Intrusion Detection ............................................................................... 133

Configuring Line Crossing Detection ......................................................................... 136

Configuring Region Entrance Detection .................................................................... 138

Configuring Region Exiting Detection ........................................................................ 140

Configuring Unattended Baggage Detection ............................................................. 142

Configuring Object Removal Detection ..................................................................... 144

VCA Configuration ............................................................................................ 146

Behavior Analysis ..................................................................................................... 146

Face Capture ............................................................................................................ 153

People Counting ...................................................................................................... 157

Counting .................................................................................................................. 161

Network Camera User Manual

Heat Map................................................................................................................. 162

Road Traffic .............................................................................................................. 164

Queue Management ................................................................................................ 166

Storage Settings ................................................................................. 169

Configuring Record Schedule ........................................................................... 169

Configure Capture Schedule ............................................................................. 172

Configuring Net HDD ........................................................................................ 174

Memory Card Detection................................................................................... 176

Configuring Lite Storage ................................................................................... 178

Playback ............................................................................................ 180

Picture ............................................................................................... 182

Application ................................ ........................................................ 183

Face Capture Statistics ..................................................................................... 183

People Counting Statistics ................................................................................ 184

Heat Map Statistics .......................................................................................... 184

Counting Statistics ........................................................................................... 186

Queue Management Statistics ......................................................................... 186

Queuing-Up Time Analysis ....................................................................................... 187

Queue Status Analysis .............................................................................................. 188

Raw Data ................................................................................................................. 189

Open Platform ................................................................................................. 189

Appendix …………………………………………………………………………192

Appendix 1 SADP Software Introduction .................................................................. 192

Appendix 2 Port Mapping .......................................................................................... 195

Network Camera User Manual

System Requirement

Operating System

Microsoft Windows XP SP1 and above version

CPU

2.0 GHz or higher

RAM

1G or higher

Display

1024×768 resolution or higher

Web Browser

For camera that supports plug-in free live view

Internet Explorer 8 – 11, Mozilla Firefox 30.0 and above version and Google

Chrome 41.0 and above version.

Note:

For Google Chrome 45 and its above version or Mozilla Firefox 52 and its above

version which are plug-in free, Picture and Playback functions are hidden.

To use mentioned functions via web browser, change to their lower version, or

change to Internet Explorer 8.0 and above version.

For camera that does NOT support plug-in free live view

Internet Explorer 8 – 11, Mozilla Firefox 30.0 – 51, and Google Chrome 41.0 –

44.

Network Camera User Manual

Network Connection

Note:

 You shall acknowledge that the use of the product with Internet access might be

under network security risks. For avoidance of any network attacks and

information leakage, please strengthen your own protection. If the product does

not work properly, please contact with your dealer or the nearest service center.

 To ensure the network security of the network camera, we recommend you to

have the network camera assessed and maintained termly. You can contact us if

you need such service.

Before you start:

 If you want to set the network camera via a LAN (Local Area Network), please

refer to Section 2.1 Setting the Network Camera over the LAN.  If you want to set the network camera via a WAN (Wide Area Network), please

refer to Section 2.2 Setting the Network Camera over the WAN.

Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network

camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

Wiring over the LAN

The following figures show the two ways of cable connection of a network camera

and a computer:

Purpose:

 To test the network camera, you can directly connect the network camera to the

Network Camera User Manual

computer with a network cable as shown in Figure 2-1.

 Refer to the Figure 2-2 to set network camera over the LAN via a switch or a

router.

Network Cable

Network Camera

Computer

Connecting Directly

Network Cable

Network Camera Computer

Connecting via a Switch or a Router

Activating the Camera

You are required to activate the camera first by setting a strong password for it before

you can use the camera.

Activation via Web Browser, Activation via SADP, and Activation via Client Software

are all supported.

 Activation via Web Browser

Steps:

1. Power on the camera, and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to

enter the activation interface.

Notes:

 The default IP address of the camera is 192.168.1.64.  The computer and the camera should belong to the same subnet.  For the camera enables the DHCP by default, you need to use the SADP software

Network Camera User Manual

to search the IP address.

Activation via Web Browser

3. Create and input a password into the password field.

A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED–We highly recommend you

create a strong password of your own choosing (using a minimum of 8

characters, including at least three of the following categories: upper case letters,

lower case letters, numbers, and special characters) in order to increase the

security of your product. And we recommend you reset your password regularly,

especially in the high security system, resetting the password monthly or weekly

can better protect your product.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the camera, and

resetting the password.

Get the SADP software from the supplied disk or the official website, and install the

SADP according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the SADP software to search the online devices.

Network Camera User Manual

2. Check the device status from the device list, and select the inactive device.

SADP Interface

Note:

The SADP software supports activating the camera in batch. Refer to the user manual

of SADP software for details.

3. Create and input the password in the password field, and confirm the password.

A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED– We highly recommend

you create a strong password of your own choosing (using a minimum

of 8 characters, including at least three of the following categories:

upper case letters, lower case letters, numbers, and special characters) in

order to increase the security of your product. And we recommend you

reset your password regularly, especially in the high security system,

resetting the password monthly or weekly can better protect your

product.

Note:

You can enable the Hik-Connect service for the device during activation.

4. Click Activate to start activation.

You can check whether the activation is completed on the popup window. If activation

Select inactive device.

Input and confirm password.

Network Camera User Manual

failed, please make sure that the password meets the requirement and try again.

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

Modify the IP Address

6. Input the admin password and click Modify to activate your IP address

modification.

The batch IP address modification is supported by the SADP. Refer to the user manual

of SADP for details.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of

devices.

Get the client software from the supplied disk or the official website, and install the

software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in

Network Camera User Manual

the figure below.

Control Panel

2. Click the Device Management icon to enter the Device Management interface, as

shown in the figure below.

Network Camera User Manual

Device Management Interface

3. Check the device status from the device list, and select an inactive device.

4. Click the Activate button to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the

password. A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED–We highly recommend

you create a strong password of your own choosing (using a minimum of

8 characters, including at least three of the following categories: upper

case letters, lower case letters, numbers, and special characters) in order

to increase the security of your product. We recommend you reset your

password regularly, especially in the high security system, resetting the

password monthly or weekly can better protect your product.

Network Camera User Manual

Activation Interface (Client Software)

6. Click OK button to start activation.

7. Click the Modify Netinfo button to pop up the Network Parameter Modification

interface, as shown in the figure below.

Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

Network Camera User Manual

(Optional) Setting Security Question

Security question is used to reset the admin password when admin user forgets the

password. Admin user can follow the pop-up window to complete security question settings

during camera activation. Or, admin user can go to User Management interface to set

up the function.

Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP

or a dynamic IP.

Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP

address, you can connect the network camera via a router or connect it to the WAN

directly.

 Connecting the network camera via a router

Steps:

1. Connect the network camera to the router.

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2

for detailed IP address configuration of the network camera.

3. Save the static IP in the router.

4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary

according to the different routers. Please call the router manufacturer for

assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

Network Camera User Manual

5. Visit the network camera through a web browser or the client software over the

internet.

Accessing the Camera through Router with Static IP

 Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet

without using a router. Refer to Section 2.1.2 for detailed IP address configuration of

the network camera.

Accessing the Camera with Static IP Directly

Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect

the network camera to a modem or a router.

 Connecting the network camera via a router

Steps:

1. Connect the network camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer

to Section 2.1.2 for detailed IP address configuration of the network camera.

3. In the router, set the PPPoE user name, password and confirm the password.

4. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance

Network Camera User Manual

with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the camera via the applied domain name.

 Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to

configure the PPPoE parameters of the network camera. Refer to Section 7.1.3

Configuring PPPoE Settings for detailed configuration.

Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address

always changes after rebooting the camera. To solve the inconvenience of the

dynamic IP, you need to get a domain name from the DDNS provider (E.g.

DynDns.com). Please follow the steps below for normal domain name resolution and

private domain name resolution to solve the problem.

 Normal Domain Name Resolution

Normal Domain Name Resolution

Steps:

Network Camera User Manual

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the network

camera. Refer to Section 7.1.2 Configuring DDNS Settings for detailed

configuration.

3. Visit the camera via the applied domain name.

Network Camera User Manual

Access to the Network

Camera

Accessing by Web Browsers

Note:

For certain camera models, HTTPS is enabled by default and the camera creates an unsigned certificate automatically. When you access to the camera the first time, the web browser prompts a notification about the certificate issue. To cancel the notification, install a signed-certificate to the camera. For detailed operation, see 7.2.6 HTTPS Settings.

Steps:

1. Open the web browser.

2. In the browser address bar, input the IP address of the network camera, and press

the Enter key to enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP

address to the same subnet with your computer.

3. Input the user name and password and click Login.

The admin user should configure the device accounts and user/operator permissions

properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The IP address gets locked if the admin user performs 7 failed password attempts

(5 attempts for the user/operator).

Network Camera User Manual

4. Click Login.

5. (Optional) Install the plug-in before viewing the live video and operating the

camera. Follow the installation prompts to install the plug-in

Note: For camera that supports plug-in free live view, if you are using Google Chrome 45 and its above version or Mozilla Firefox 52 and its above version, plug-in installation is not required. But Picture and Playback functions are hidden. To use

mentioned function via web browser, change to their lower version, or change to

Internet Explorer 8.0 and above version.

Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software.

Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as below.

Network Camera User Manual

iVMS-4200 Control Panel

iVMS-4200 Main View

Network Camera User Manual

Wi-Fi Settings

Purpose:

By connecting to the wireless network, you don’t need to use cable of any kind for

network connection, which is very convenient for the actual surveillance application.

Note: This chapter is only applicable for the cameras with the built-in Wi-Fi module.

Configuring Wi-Fi Connection in Manage and

Ad-hoc Modes

Purpose:

Two connection modes are supported. Choose a mode as desired and perform the

steps to configure the Wi-Fi.

Wireless Connection in Manage Mode

Steps:

1. Enter the Wi-Fi configuration interface.

Configuration> Network> Advanced Settings> Wi-Fi

2. Click Search to search the online wireless connections.

Wi-Fi List

Network Camera User Manual

3. Click to choose a wireless connection on the list.

Wi-Fi Setting- Manage Mode

4. Check the radio button to select the Network mode as Manage, and the

Security mode of the network is automatically shown when you select the

wireless network, please don’t change it manually.

Note: These parameters are exactly identical with those of the router.

5. Enter the key to connect the wireless network. The key should be that of the

wireless network connection you set on the router.

Wireless Connection in Ad-hoc Mode

If you choose the Ad-hoc mode, you don’t need to connect the wireless camera via a

router. The scenario is the same as you connect the camera and the PC directly with a

network cable.

Steps:

1. Choose Ad-hoc mode.

Wi-Fi Setting- Ad-hoc

Network Camera User Manual

2. Customize a SSID for the camera.

3. Choose the Security Mode of the wireless connection.

4. Enable the wireless connection function for your PC.

5. On the PC side, search the network and you can see the SSID of the camera

listed.

Ad-hoc Connection Point

6. Choose the SSID and connect.

Security Mode Description:

Security Mode

You can choose the Security Mode as not-encrypted, WEP, WPA-personal, WPA-enterprise, WPA2-personal, and WPA2-enterprise. WEP mode:

Network Camera User Manual

WEP Mode

 Authentication - Select Open or Shared Key System Authentication, depending on

the method used by your access point. Not all access points have this option, in

which case they probably use Open System, which is sometimes known as SSID

Authentication.

 Key length - This sets the length of the key used for the wireless encryption, 64 or

128 bit. The encryption key length can sometimes be shown as 40/64 and

104/128.

 Key type - The key types available depend on the access point being used. The

following options are available: HEX - Allows you to manually enter the hex key. ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and

13 characters for 128-bit WEP. WPA-personal and WPA2-personal Mode: Enter the required Pre-shared Key for the access point, which can be a hexadecimal number or a passphrase.

Security Mode- WPA-personal

WPA- enterprise and WPA2-enterprise Mode:

+ 168 hidden pages
