Hikvision UD04315B Quick Start Guide

Network Covert Camera

Quick Start Guide

UD04315B

0504051070109

Network Covert Camera·Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).

This user manual (hereinafter referred to be “the Manual”) cannot

be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of

Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to 64xx Network Camera.

The Manual includes instructions for using and managing the

product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without

notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the

properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Network Covert Camera·Quick Start Guide

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL

HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF

THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL

NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET

SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS

PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

Network Covert Camera·Quick Start Guide

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC Conditions

Network Covert Camera·Quick Start Guide

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU

upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info

which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info

therefore with the applicable harmonized European

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union.

See the product documentation for specific battery information. The battery is marked with this symbol,

Network Covert Camera·Quick Start Guide

Warnings Follow these

safeguards to prevent serious injury or death.

Cautions Follow these precautions to prevent potential injury or material damage.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings

are neglected.

Cautions: Injury or equipment damage may occur if any of the

cautions are neglected.

Warnings

● Proper configuration of all passwords and other security

settings is the responsibility of the installer and/or end-user.

● In the use of the product, you must be in strict compliance with

the electrical safety regulations of the nation and region. Please

refer to technical specifications for detailed information.

Network Covert Camera·Quick Start Guide

● Input voltage should meet both the SELV (Safety Extra Low

Voltage) and the Limited Power Source with 24 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical

specifications for detailed information.

● Do not connect several devices to one power adapter as

adapter overload may cause over-heating or a fire hazard.

● Please make sure that the plug is firmly connected to the power

socket. When the product is mounted on wall or ceiling, the

device shall be firmly fixed.

● If smoke, odor or noise rise from the device, turn off the power

at once and unplug the power cable, and then please contact the service center.

Cautions

● Make sure the power supply voltage is correct before using the

camera.

● Do not drop the camera or subject it to physical shock.

● Do not touch sensor modules with fingers. If cleaning is

necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.

● Do not aim the camera at the sun or extra bright places.

Blooming or smearing may occur otherwise (which is not a malfunction), and affect the endurance of sensor at the same time.

Network Covert Camera·Quick Start Guide

● The sensor may be burned out by a laser beam, so when any

laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.

● Do not place the camera in extremely hot, cold (the operating

temperature shall be-30°C ~+60°C, or -40°C ~ +60°C if the

camera model has an “H” in its suffix), dusty or damp locations,

and do not expose it to high electromagnetic radiation.

● To avoid heat accumulation, good ventilation is required for

operating environment.

● Keep the camera away from liquid while in use.

● While in delivery, the camera shall be packed in its original

packing, or packing of the same texture.

● Regular part replacement: a few parts (e.g. electrolytic

capacitor) of the equipment shall be replaced regularly

according to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all

the users. Please contact with your dealer for more details.

● Improper use or replacement of the battery may result in

hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions

provided by the battery manufacturer.

● If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.)

Network Covert Camera·Quick Start Guide

Table of Contents

1 Appearance Description ............................................................... 10

1.1 General Appearance...................................................... 10

1.2 Front Panel .................................................................... 11

1.3 Rear Panel ..................................................................... 13

1.4 Sensor Units .................................................................. 14

2 Installation .................................................................................... 19

2.1 Installing the Main Unit ................................................. 19

2.2 Installing the Block-Shaped Sensor Unit ........................ 21

2.2.1 Concealed Mounting .......................................... 21

2.2.2 Exposed Mounting ............................................. 23

2.2.3 Mounting with Pole-Shaped Bracket .................. 25

Installing the Cylindrical Sensor Unit ............................. 33

Installing the Fixed Focal Sensor Unit ............................ 35

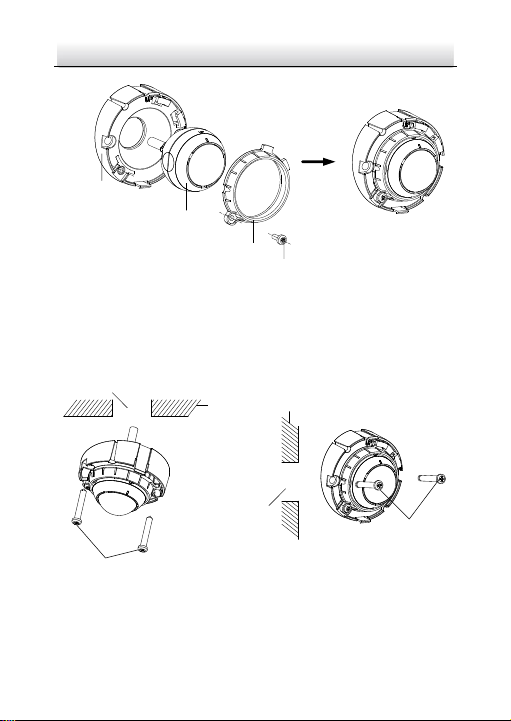

2.5 Installing the Ball-Shaped Sensor Unit ........................... 39

2.5.1 Mounting with the Included Bracket .................. 39

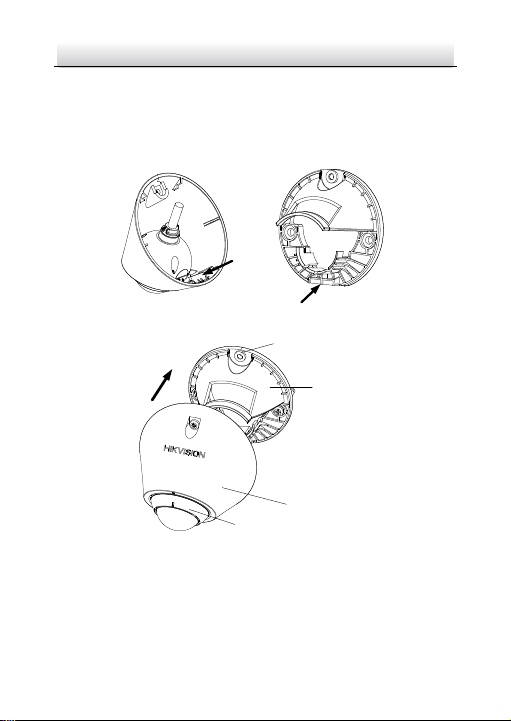

2.5.2 Mounting with a Incline Bracket ......................... 43

3 Setting the Network Camera over the LAN .................................. 47

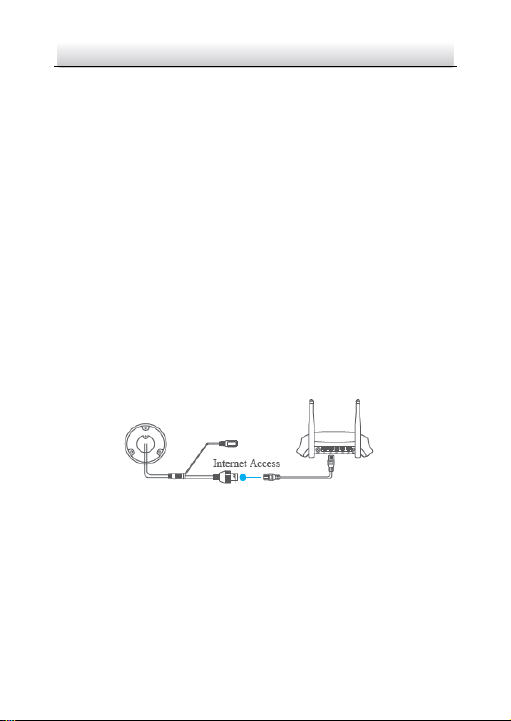

Wiring ........................................................................... 47

Activating the Camera ................................................... 48

Activation via Web Browser ................................ 48

Activation via SADP Software ............................. 49

Modifying the IP Address .............................................. 51

4 Accessing via Web Browser .......................................................... 54

5 Operating via Hik-Connect App .................................................... 56

5.1 Enable Hik-Connect Service on Camera ......................... 56

Enable Hik-Connect Service via SADP Software .. 56

Network Covert Camera·Quick Start Guide

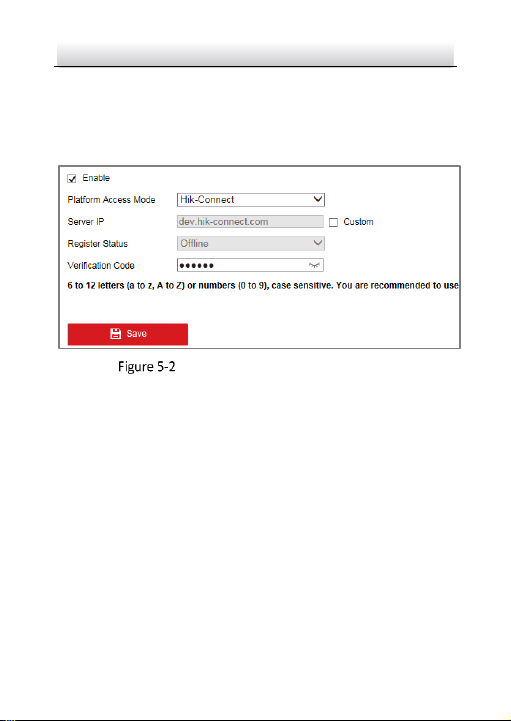

Enable Hik-Connect Service via Web Browser .... 57

5.2 Hik-Connect Setup ........................................................ 59

5.3 Adding Camera to Hik-Connect ..................................... 59

5.4 Initializing the Memory Card ......................................... 61

0504051070109

Network Covert Camera·Quick Start Guide

No.

Description

Main unit

Mounting rail

1 Appearance Description

1.1 General Appearance

The general appearance of the covert camera is shown below:

Figure 1-1 General Appearance

Table 1-1 Description of the General Appearance

Network Covert Camera·Quick Start Guide

No.

Description

Rear panel

Front panel

POWER

Indicator LED

Solid red: Power-on Unlit: Power-off

STATUS

Indicator LED

Solid green: The camera works properly.

Unlit: The camera does not work

properly.

LINK Indicator

LED

Flashing amber: Network properly connected.

Unlit: Network disconnected.

AUDIO IN

AUDIO OUT

VIN1

1.2 Front Panel

The covert camera equips with three types of front panel, as shown

in Figure 1-2, Figure 1-3, and Figure 1-4.

Figure 1-2 The Type I Front Panel

Network Covert Camera·Quick Start Guide

AUDIO OUT

AUDIO IN

VIN1

VIN2

AUDIO IN

AUDIO OUT

VIN1

No.

Description

Audio input

Audio output

RJ-12 video input interface(s)

MicroSD card slot

Figure 1-3 The Type II Front Panel

Figure 1-4 The Type III Front Panel

Table 1-2 Description of the Front Panel

Network Covert Camera·Quick Start Guide

ALARM

RS232

RXD TXD GND IN1 1B 1A

LAN(PoE)

DC 12V

RESET

1 2

No.

Description

Reset

Power input

RS-232 and alarm input and output

interfaces

Ethernet interface with PoE function

1.3 Rear Panel

The rear panel of the covert camera is shown in Figure 1-5.

Figure 1-5 Rear Panel

Table 1-3 Description of the Rear Panel

Network Covert Camera·Quick Start Guide

No.

Description

Block-Shaped sensor unit

Decorative cover

Straight mounting bracket

Video output cable with RJ-12 interface

1.4 Sensor Units

The different covert camera model is equipped with four different types of sensor unit, including block-shaped sensor unit, cylindrical sensor unit, fixed focal sensor unit and ball-shaped sensor unit.

Type I: Block-Shaped Sensor Unit

Figure 1-6 Block-Shaped Sensor Unit

Table 1-4 Description of the Block-Shaped Sensor Unit

Network Covert Camera·Quick Start Guide

No.

Description

Cylindrical Sensor Unit

Video output cable with RJ-12 interface

Round Rail Mounting Bracket

Type II: Cylindrical Sensor Unit

Figure 1-7 Cylindrical Sensor Unit

Table 1-5 Description of the Block-Shaped Sensor Unit

Network Covert Camera·Quick Start Guide

No.

Description

Fixed Focal Camera

Ceiling Mounting Bracket

Video output cable with RJ-12 interface

Type III: Fixed Focal Sensor Unit

Figure 1-8 Fixed Focal Sensor Unit

Table 1-6 Description of the Block-Shaped Sensor Unit

Network Covert Camera·Quick Start Guide

RJ-12 Interface

M12 Interface

Type IV: Ball-Shaped Sensor Unit

The ball-shaped sensor unit has two models with different communication interfaces, the RJ-12 interface and M12 interface.

Figure 1-9 Ball-Shaped Sensor Unit and Included Bracket

Table 1-7 Description of Ball-Shaped Sensor Unit

Network Covert Camera·Quick Start Guide

No.

Description

Ball-Shaped Sensor Unit

Video output cable with RJ-12 interface

Video out cable with M12 aviation plug

Bracket Included

+ 44 hidden pages
