1

About This Manual

This document introduces the TS16 Series Handheld Thermal Binoculars.
It covers what is handheld thermal binoculars, device powering on/off, picture management, how to set thermal view/visible light view. Besides, it shows concrete functions and descriptions of the binoculars.

Overview of Contents

This document contains the following chapters, and appendixes:
Chapter 1 Overview introduces the Handheld Thermal Binoculars, including the main description, major functions, appearance, and interface/menu description.
Chapter 2 Device Operation shows how to charge, power on/off the binoculars, and how to connect the cables.
Chapter 3 Binoculars Setup describes the binoculars focus, digital zoom, brightness and contrast configuration of the image and the screen.
Chapter 4 Capture and Video shows you the way to view thermal view and visible light view, and fusion views. Besides, it shows you how to capture snapshots and record videos.
Chapter 5 Appendix lists the dimensions of the device, and the emissivity value of common materials for reference.
Dual-Lens Handheld Thermal Binoculars | User Manual
2

Overview

1.1 Box Content

+
-
+
-
+
-
+
-
Thermal Binoculars (× 1)
Power Adapter (× 1)
Battery Charger (× 1)
Aviation Plug Cables (× 1)
Non-dust Cloth (× 1)
Battery Charger Cable (× 1)
Manual (× 1)
Battery (× 8)
Straps (× 2)

1.2 Description

The handheld thermal binoculars (binoculars for short) is a pair of binoculars with both thermal observation function and target searching function. In harsh conditions, such as in total dark or under extreme low illumination, you can observe the long-distance targets with the binoculars.
The binoculars are well-designed, and easily adopted for patrol and outdoor activities in the night.
Dual-Lens Handheld Thermal Binoculars | User Manual
3

1.3 Functions

Thermal View
Device detects the real-time temperature, and display it on the screen.
Fusion
Device can display fusion of thermal view and optical view.
Palette
Device supports multiple palettes, and you can set the palette mode according to the scene.
Wi-Fi Hot Spot
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
GPS Function
The device can be located with GPS system.
Dual-Lens Handheld Thermal Binoculars | User Manual
4

1.4 Appearance

1.4.1 Components

Front
View
Top View
Rear View
Approaching
Sensor
Thermal
Lens
Visible Light Lens
Battery
Compartment
Tripod Screw
Eyepieces
Aviation Connector
Eyeshades
1
Eyeshades
Cover the eyes.
Dual-Lens Handheld Thermal Binoculars | User Manual
5
2
Eyepieces
View from there.
3
Visible Light Lens
Let the visible light in.
4
Thermal Lens
Let the infrared light in.
5
Battery Compartment
The battery is here.
6
Tripod Screw
Install the binoculars on tripod.
7
Aviation Connector
Connect with the cables. See 1.4.2.
8
Approaching Sensor
Detect whether human eyes are approaching to save power. If it detected eyes, the OLED screen turns on, otherwise the OLED screen is off.

1.4.2 Cables Description

BNC
USB
DB9
1
BNC
Connect it to the display screen.
2
USB
Connect it to your PC to backup videos/images.
3
DB9
Reserved.

1.4.3 Key Description

The main keys of the binoculars are shown below.
Dual-Lens Handheld Thermal Binoculars | User Manual
6
Menu
Key
Capture
Key
Mode
Key
Adjust
Key
Power Key
For the descriptions of the menu buttons, see the table below.
Adjust Key
Press the key to switch between Near, Middle, and Far in fusion mode.
Hold the key to correct nonuniformity of display.
Mode Key
Press the key to switch the pallets.
Hold the key to adjust the digit zoom.
Power Key
Press the key to emphasize the high-temperature target in the view in fusion mode.
Hold the key to power on/off the device.
Capture Key
Press the key to capture the view.
Hold the key to start/stop recording.
Menu Key
Press the key to switch between White Hot mode and Black Hot mode.
Hold the key to enter the menu.
Dual-Lens Handheld Thermal Binoculars | User Manual
7

Device Operation

2.1 Device Charging

Purpose:
For the first use, and when the device is running low, charge the batteries with your charger.
Steps:

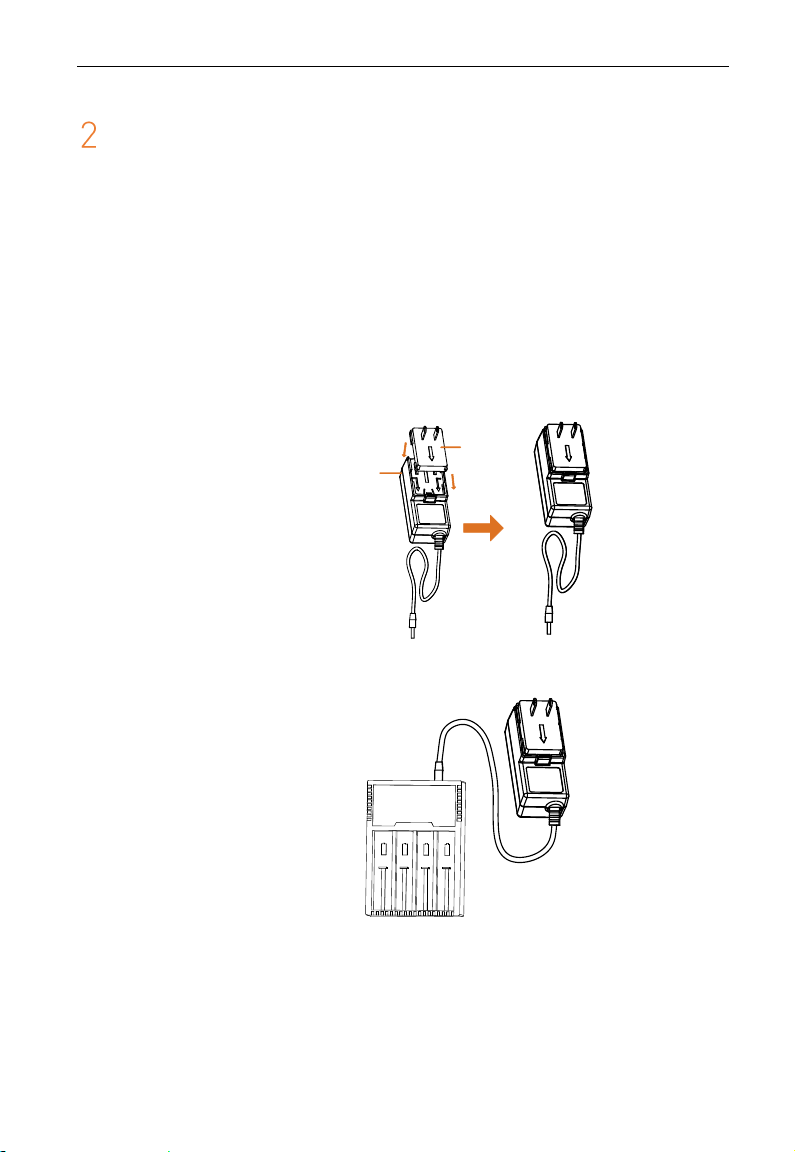

1. Take the proper plug adapter.
2. Push and hold it, at the mean time slide it toward the inside
to assemble the power adapter.
1
2
Plug
Adapter
Charger
Base
3. Connect the power adapter to the battery charger.
4. Insert the batteries in the charger with positive/negative
terminals corresponded.
Note:
Dual-Lens Handheld Thermal Binoculars | User Manual
8
When the charger is powered on, the LCD display automatically lights up, and all the battery. The charger will detect the battery and charge it.
1
Model & battery bars
Standby mode
2
Unlighted
Power-saving mode Press any button to activate it.
3
Err
Battery is damaged.
4
Blinking
Battery is being charged.
5
Chg.Finish
Battery is fully charged.
5. Complete battery charging and disassemble the battery.

2.2 Battery Installation

Purpose:
Insert the batteries into the battery compartment.
Steps:
1. Rotate the battery cover anticlockwise to disassemble it.
2
1
2. Insert four batteries with positive/negative marks match
with that of the battery compartment
Batteries
-
+
Dual-Lens Handheld Thermal Binoculars | User Manual
9
3. Align the shape of battery cover with that of the batteries
and cover the batteries.
4. Rotate the battery cover clockwise to fix it.

2.3 Power On/Off

2.3.1 Power On

Step:
When the binoculars is sufficiently charged, press the key to power on the binoculars.
Notes:
See the battery icon for the electricity quantity. means battery
is fully charged, and means that the battery runs low.
When the Low power note shows, charge the battery.

2.3.2 Power Off

Step:
When the binoculars is running, hold the key for four seconds to power off the binoculars.

2.4 Cable Connection

Attentions:
Do NOT drag the cables when you do the connecting, or when it is
connected to the binoculars.
Dual-Lens Handheld Thermal Binoculars | User Manual
10
To plug in/out the cable, hold the cable end and then plug in/out it.
Do NOT twist the cables, or the pins inside may be damaged.
Purpose:
Connect the binoculars with the aviation cable, and you can connect the device to your PC via USB interface or the display via the BNC interface.
Step:
Connect the aviation cable with the aviation Interface. Make sure the anchor points match with each other and insert the cable.
Anchor
Point
To disconnect the cable, lift the cable.

2.5 Focus

Notes:
Do NOT touch the lens directly with your finger, or place any sharp objects near them.
Steps:
1. Slightly rotate the focus wheel to focus the objective lens.
Dual-Lens Handheld Thermal Binoculars | User Manual
11
2. Slightly rotate the focus wheel to focus the objective lens.
Rotate Left/Right
Dual-Lens Handheld Thermal Binoculars | User Manual
12

Binoculars Setup

3.1 Menu Description

Step:
Hold the button to show the menu. In the menu, the direction keys, OK key, and the Exit key are
shown below.
OK
Previous
Next
Back

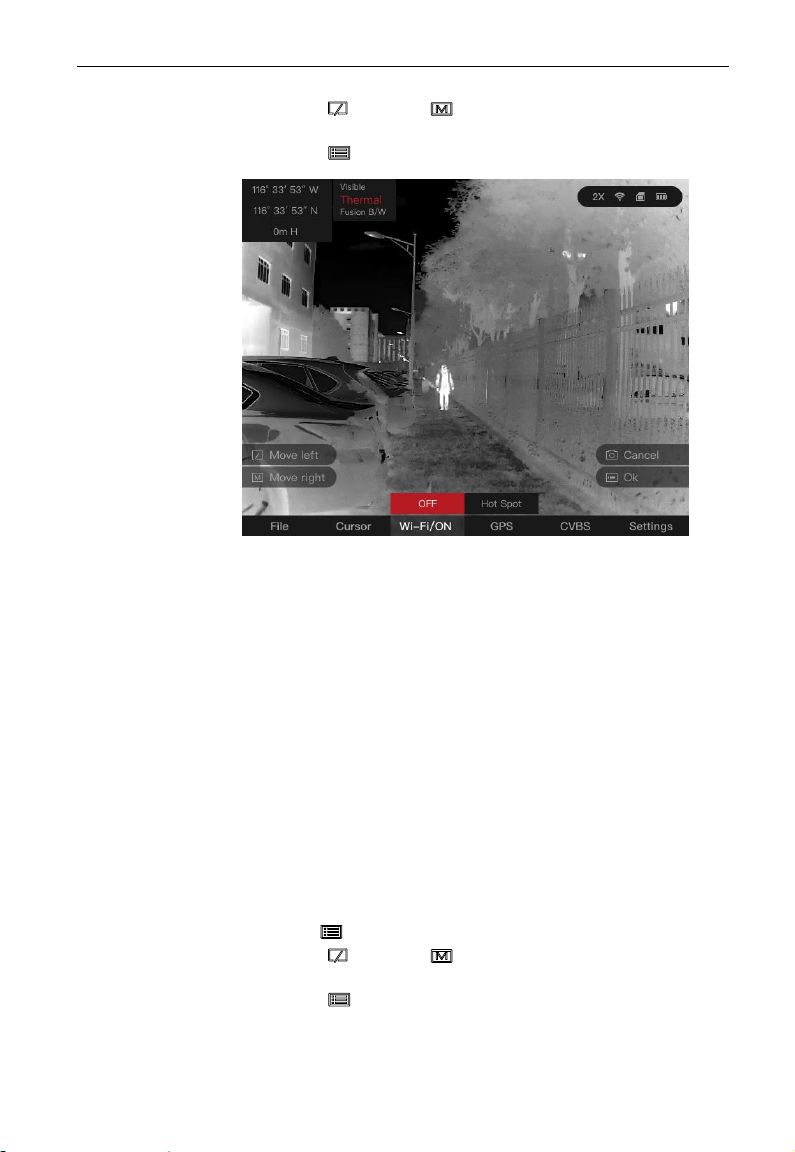

See the figure below for the menu interface.
Note:
The figure below is only for reference, the font size is readjusted for better viewing.
Dual-Lens Handheld Thermal Binoculars | User Manual
13
Digital Zoom
Storage
Battery
Palettes
Wi-Fi
GPS

3.2 Local Output

Before you start:
Connect the binoculars to the display unit via CVBS interface of the aviation plug. Refer to Section 2.4.
Purpose:
View the binoculars image on the display unit for details.
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor and
open CVBS ON/OFF submenu.
3. Press the key to confirm.
Note:
To disable the local output, go to CVBS ON/OFF submenu and press the key.
Dual-Lens Handheld Thermal Binoculars | User Manual
14

3.3 File Export

Before you start:
Connect the binoculars to your PC via USB interface of the aviation plug. Refer to Section 2.4.
Purpose:
Export the videos and snapshots with your PC.
Steps:
1. In your PC, go to the Removable Disk.
2. Double-click to open the disk. View or copy the videos or
snapshots.
3. Disconnect the binoculars with the PC.

3.4 Display Settings

3.4.1 Display Brightness & Contrast

Adjust the brightness and contrast of the screen display.
Note:
This adjustment also affects the brightness and contrast of menu, icons, etc.
Screen Brightness
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to
Settings submenu.
3. Press the key to confirm.
4. Press the key and key to move the cursor to
Display Brightness submenu.
5. Press the key to confirm.
6. Press the key and key to set the brightness
value. The higher, the brighter.
Screen Contrast
Steps:
1. Hold the key to show the menu of binoculars.
Dual-Lens Handheld Thermal Binoculars | User Manual
15
2. Press the key and key to move the cursor to
Settings submenu.
3. Press the key to confirm.
4. Press the key and key to move the cursor to
Display Contrast submenu.
5. Press the key to confirm.
6. Press the key and key to set the contrast
value. The higher, the more contrasting.

3.4.2 Image Brightness & Contrast

Adjust the brightness and contrast of the image.
Note:
This adjustment only affects the brightness and contrast of image.
Image Brightness
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to
Settings submenu.
3. Press the key to confirm.
4. Press the key and key to move the cursor to
Image Brightness submenu.
5. Press the key to confirm.
6. Press the key and key to set the brightness
value. The higher, the brighter.
Image Contrast
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to
Settings submenu.
3. Press the key to confirm.
4. Press the key and key to move the cursor to
Image Contrast submenu.
5. Press the key to confirm.
6. Press the key and key to set the contrast
value. The higher, the more contrasting.
Dual-Lens Handheld Thermal Binoculars | User Manual
16

3.4.3 Cursor Display

Purpose:
Display the cursor on the live view, and the distance towards the target can be measured.
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor
to Cursor submenu.
3. Press the key to confirm.
4. Manually move the binoculars, align the horizontal
line with the target bottom and measure the distance to the target.
5. Hold the key to exit.
Note:
To disable the cursor, go to Cursor submenu and press the key.

3.4.4 Digital Zoom

Purpose:
Dual-Lens Handheld Thermal Binoculars | User Manual
17
Enable the digital zoom function to enlarge the image display.
Steps:
1. Hold the key to switch the digital zoom of
binoculars. The value of digital zoom can be set to 1X, 2X, 3X, 4X.

3.4.5 OSD Setting

Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor
to Settings submenu.
3. Press the key to confirm.
4. Press the key and key to move the cursor
to OSD submenu.
5. Press the key to switch on/off OSD.

3.5 Palettes Settings

Dual-Lens Handheld Thermal Binoculars | User Manual
18
Purpose:
The binoculars has dual-lens: thermal and visible light lens. You can set the thermal/optical view to show thermal channel, visible light channel, or both them combined. For thermal view, you can set the palettes.
Step:
1. In the live view interface, press the key to display the
palettes menu.
2. Press the key to switch the view mode.
Thermal
In thermal mode, the device displays the thermal view. Press the key to switch between white hot and black hot mode.
Visible
In visible mode, the device displays the view of visible light channel.
Fusion B/W
It displays the combined view of thermal channel and optical channel in black and white.
City
Applicable to city environment.
Jungle
Applicable to jungle environment.
Desert
Applicable to desert environment.
Sea
Applicable to sea environment.
Snow
Applicable to snow environment.
Result:
After setting the palette, the current palette, next palette, and the previous palette are shown in the upper right corner.
Current Palette
Next Palette
Previous Palette

3.6 Wi-Fi

Purpose:
Connect your phone to the binoculars via Wi-Fi, you can configure the parameters and realize functions of the device.
Steps:
1. Hold the key to show the menu of binoculars.
Dual-Lens Handheld Thermal Binoculars | User Manual
19
2. Press the key and key to move the cursor and
open Wi-Fi submenu.
3. Press the key to switch on Wi-Fi.
4. Setting the Wi-Fi name and password of your phone or the
router as follow:
- Wi-Fi Name: WLAN-IPTP.
- Wi-Fi Password: abcd1234.
5. Search the “iVMS-4500” on App Store (iOS System) or
Google Play TM (Android System) to download and install the app.
6. Open the APP and connect your phone with the device.
You can view the interface of binoculars on your phone.

3.7 Hot Spot

Purpose:
Connect your phone to the hot spot of the binoculars, you can configure the parameters and realize functions of the device.
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to Wi-Fi
submenu.
3. Press the key to confirm.
Dual-Lens Handheld Thermal Binoculars | User Manual
20
4. Press the key and key to move the cursor to Hot
Spot submenu.
5. Press the key to confirm.
6. Turn on the WLAN of your phone and connect to the hot
spot.
- Hot Spot Name: HIK-IPTS Serial No.
- Hot Spot Password: Serial No.
7. Search the “iVMS-4500” on App Store (iOS System) or
Google Play TM (Android System) to download and install the app.
8. Open the APP and connect your phone with the device.
You can view the interface of binoculars on your phone.

3.8 GPS

Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to GPS
submenu.
3. Press the key to switch ON or OFF.

3.9 Reset Default Settings

Purpose:
Dual-Lens Handheld Thermal Binoculars | User Manual
21
Restore the device to default settings.
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to
Settings submenu.
3. Press the key to confirm.
4. Press the key and key to move the cursor to
Reset submenu.
5. Press the key to confirm.
Dual-Lens Handheld Thermal Binoculars | User Manual
22

Capture and Video

4.1 Capture Settings

4.1.1 Capture Snapshots

Step:
In the live view mode, press the key to capture a snapshot.
When capturing succeeded, it shows Capture succeeded. When capturing failed, it shows Capture failed.

4.1.2 View Snapshots

Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor
to File>Image submenu.
3. Press the key to confirm.
4. Press the key and key to select snapshot.
5. Press the key to view the selected snapshot.

4.1.3 Delete Snapshots

Attention:
Once a snapshot is deleted, it can NOT be recovered. Do this operation with attention.
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to
File>Image submenu.
3. Press the key to confirm.
4. Press the key and key to select snapshot.
5. Hold the key to delete the selected snapshot.
Dual-Lens Handheld Thermal Binoculars | User Manual
23
Or
You can delete the snapshot while viewing the live view.

4.2 Video Settings

4.2.1 Video Recording

Steps:
1. In the live view mode, hold the key to record
videos. When the recording time shows on the top, it starts to
record.
2. When the desired video is recorded, hold the key
to stop recording.

4.2.2 Video Playback

Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor
to File>Video submenu.
3. Press the key to confirm.
4. Press the key and key to select video.
5. Press the key to play the selected video.

4.2.3 Delete Snapshots

Attention:
Once a snapshot is deleted, it can NOT be recovered. Do this operation with attention.
Steps:
1. Hold the key to show the menu of binoculars.
2. Press the key and key to move the cursor to
File>Video submenu.
3. Press the key to confirm.
Dual-Lens Handheld Thermal Binoculars | User Manual
24
4. Press the key and key to select video.
5. Hold the key to delete the selected video.
Dual-Lens Handheld Thermal Binoculars | User Manual
25

Appendix

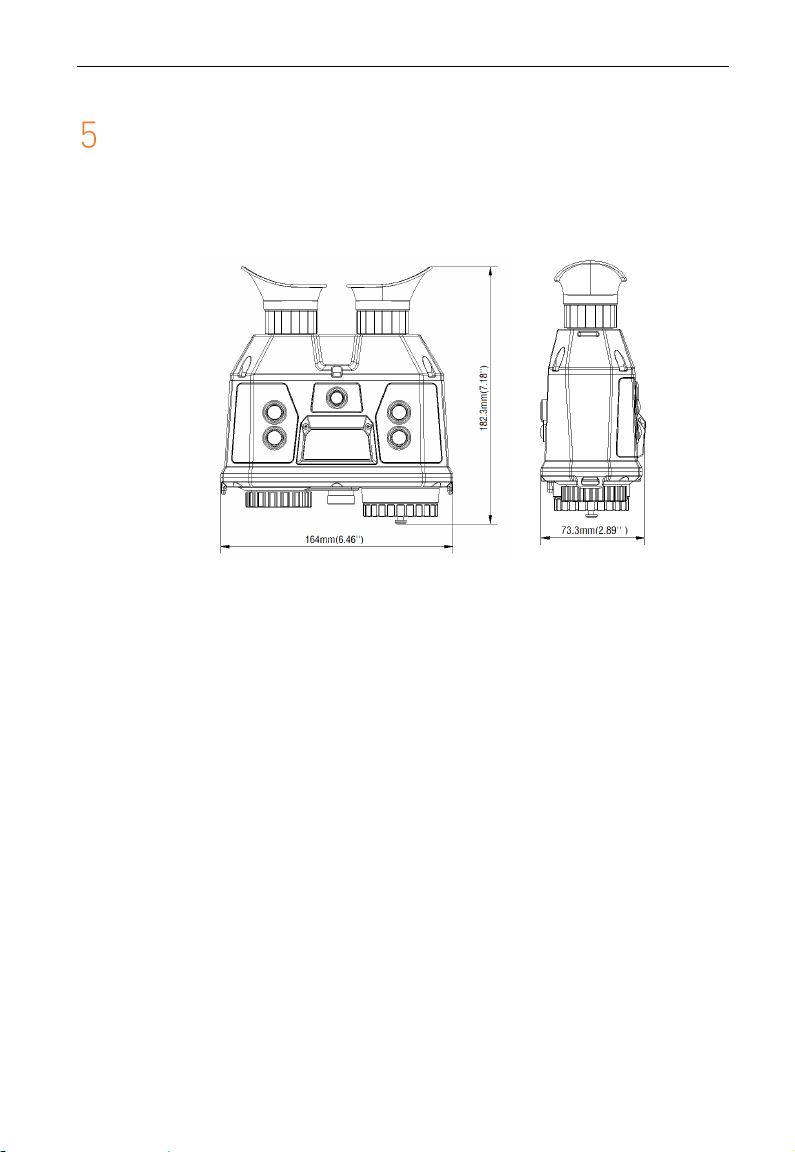

5.1 Dimensions

Dual-Lens Handheld Thermal Binoculars | User Manual
26

5.2 Common Material Emissivity Reference

Material
Emissivity
Human Skin
0.98
PCB
0.91
Cement Concrete
0.95
Ceramics
0.92
Rubber
0.95
Paint
0.93
Wood
0.85
Asphalt
0.96
Brick
0.95
Sand
0.90
Soil
0.92
Cotton
0.98
Cardboard
0.90
White Paper
0.90
Water
0.96
Dual-Lens Handheld Thermal Binoculars | User Manual
27
UD10552B
0200001080611
Loading...
