Network Video Recorder

User Manual

UD07098N

Network Video Recorder User Manual

User Manual

About this Manual

This Manual is applicable to Network Video Recorder (NVR).

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website.

Please use this user manual under the guidance of professionals.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND OUR COMPANY MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL OUR COMPANY, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Network Video Recorder User Manual

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the

EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for

specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder User Manual

Series

Model

DS-96000NI-I16 DS-96128NI-I16

DS-96256NI-I16

DS-96000NI-I16/H DS-96128NI-I16/H

DS-96256NI-I16/H

DS-96000NI-I24 DS-96128NI-I24

DS-96256NI-I24

DS-96000NI-I24/H DS-96128NI-I24/H

DS-96256NI-I24/H

Symbol

Description

Provides additional information to emphasize or supplement important points of the main text.

Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.

Applicable Models

This manual is applicable to the models listed in the following table.

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Network Video Recorder User Manual

Safety Instructions

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

 In the use of the product, you must be in strict compliance with the electrical safety

regulations of the nation and region. Please refer to technical specifications for detailed information.

 Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.

 Do not connect several devices to one power adapter as adapter overload may cause

over-heating or a fire hazard.

 Please make sure that the plug is firmly connected to the power socket.  If smoke, odor or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

 Ensure unit is installed in a well-ventilated, dust-free environment.  Unit is designed for indoor use only.  Keep all liquids away from the device.  Ensure environmental conditions meet factory specifications.  Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of

dropping it may cause damage to the sensitive electronics within the unit.

 Use the device in conjunction with an UPS if possible.  Power down the unit before connecting and disconnecting accessories and peripherals.  A factory recommended HDD should be used for this device.  Improper use or replacement of the battery may result in hazard of explosion. Replace with

the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

Network Video Recorder User Manual

Product Key Features

General

 Connectable to network cameras, network dome and encoders.  Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom,

Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO, and cameras that adopt ONVIF or PSIA protocol.

 Connectable to the smart IP cameras.  H.265, H.264, SVAC, MPEG4, and MJPEG (only for Hikvision IP camera) video formats.  PAL/NTSC adaptive video inputs.  Each channel supports dual-stream.  Up to 128/256 network cameras can be added according to different models.  Independent configuration for each channel, including resolution, frame rate, bit rate, image

quality, etc.

 The quality of the input and output record is configurable.

Local Monitoring

 HDMI 1, HDMI 2, and VGA outputs are provided.  HDMI 2 video output at up to 4K resolution.  Multiple screen display in live view is supported, and the display sequence of channels is

adjustable.

 Live view screen can be switched in group. Manual switch and auto-switch are provided and

the auto-switch interval is configurable.

 Configurable main stream and sub-stream for the live view.  Quick setting menu is provided for live view.  Motion detection, video tampering, video exception alert and video loss alert functions.  Privacy mask.  Multiple PTZ protocols supported; PTZ preset, patrol and pattern.  Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

 Up to 16 SATA hard disks and 1 eSATA disk can be connected for DS-96000NI-I16(/H) series

NVR.

Up to 24 SATA hard disks and 1 eSATA disk can be connected for DS-96000NI-I24(/H) series NVR.

 Up to 10 TB storage capacity for each disk supported.  Supports 8 network disks (NAS/IP SAN disk).  Supports S.M.A.R.T. and bad sector detection.

Network Video Recorder User Manual

 HDD group management.  Supports HDD standby function.  HDD property: redundancy, read-only, read/write (R/W).  HDD quota management; different capacity can be assigned to different channel.  RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 are supported.  Hot-swappable RAID storage scheme, and can be enabled and disabled on your demand. And

16/24 arrays can be configured.

 Disk clone to the eSATA disk.  HDD health monitoring.

Recording, Capture and Playback

 Holiday recording schedule configuration.  Continuous and event video recording parameters.  Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm,

and VCA.

 8 recording time periods with separated recording types.  Pre-record and post-record for alarm, motion detection for recording, and pre-record time for

schedule and manual recording.

 Searching record files and captured pictures by events (alarm input/motion detection).  Tag adding for record files, searching and playing back by tags.  Locking and unlocking record files.  Local redundant recording and capture.  Normal/Smart/custom video playback mode.  Searching and playing back record files by channel number, recording type, start time, end

time, etc.

 Supports the playback by main stream or sub-stream.  Smart search for the selected area in the video.  Zooming in when playback.  Reverse playback of multi-channel.  Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when

playback, and locating by dragging the mouse.

 Supports thumbnails view and fast view during playback.  Up to 20-ch synchronous playback at 1080p real time.  Supports playback by transcoded stream.  Manual capture, continuous capture of video images and playback of captured pictures.  Supports enabling H.264+ to ensure high video quality with lowered bitrate.

Files Management

Network Video Recorder User Manual

 Important files search and export.  Vehicle detection files and human appearance files search and export.  Export video data by USB, SATA or eSATA device.  Export video clips when playback.  Management and maintenance of backup devices.  Either Normal or Hot Spare working mode is configurable to constitute an N+1 hot spare

system.

Alarm and Exception

 Configurable arming time of alarm input/output.  Alarm for video loss, motion detection, tampering, abnormal signal, video input/output

standard mismatch, illegal login, network disconnected, IP confliction, abnormal record/capture, HDD error, and HDD full, etc.

 VCA detection alarm is supported.  Smart analysis for people counting and heat map  Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email

and alarm output.

 Automatic restore when system is abnormal.

Other Local Functions

 Operable by front panel, mouse, remote control, or control keyboard.  Three-level user management; admin user is allowed to create many operating accounts and

define their operating permission, which includes the limit to access any channel.

 Admin password resetting by exporting/importing the GUID file.  Operation, alarm, exceptions and log recording and searching.  Manually triggering and clearing alarms.  Import and export of device configuration information.

Network Functions

 Four self-adaptive 10M/100M/1000M network interfaces and the multi-address, load balance,

and network fault-tolerance working modes are configurable.

 IPv6 is supported.  TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, and iSCSI are supported.  TCP, UDP and RTP for unicast.  Auto/Manual port mapping by UPnP

 Support access by guarding vision.  Remote web browser access by HTTPS ensures high security.

Network Video Recorder User Manual

 ANR (Automatic Network Replenishment) function is supported, which enables the IP camera

save the recording files in the local storage when the network is disconnected, and synchronizes the files to the device when the network is resumed.

 Remote reverse playback via RTSP.  Supports accessing by the platform via ONVIF.  Remote search, playback, download, locking and unlocking of the record files, and support

downloading files broken transfer resume.

 Remote parameters setup; remote import/export of device parameters.  Remote viewing of the device status, system logs and alarm status.  Remote keyboard operation.  Remote HDD formatting and program upgrading.  Remote system restart and shutdown.  RS-232, RS-485 transparent channel transmission.  Alarm and exception information can be sent to the remote host  Remotely start/stop recording.  Remotely start/stop alarm output.  Remote PTZ control.  Virtual host function is provided to get access and manage the IP camera directly.  Two-way audio and voice broadcasting.  Embedded WEB server.

Development Scalability:

 SDK for Windows system.  Source code of application software for demo.  Development support and training for application system.

Network Video Recorder User Manual

TABLE OF CONTENTS

Chapter 1 Introduction ................................................................................................................... 16

1.1 Front Panel ....................................................................................................................... 16

1.1.1 DS-96000NI-I16(/H) Series ...................................................................................... 16

1.1.2 DS-90000NI-I24(/H) Series ...................................................................................... 17

1.2 IR Remote Control Operations ......................................................................................... 18

1.2.1 Pairing (Enabling) the IR Remote to a Specific Device (optional) ........................... 18

1.2.2 Unpairing (Disabling) an IR Remote from a Device ................................................. 19

1.2.3 Troubleshooting ...................................................................................................... 22

1.3 USB Mouse Operation ...................................................................................................... 23

1.4 Rear Panel ........................................................................................................................ 24

Chapter 2 Getting Started .............................................................................................................. 26

2.1 Start up the Device ........................................................................................................... 26

2.2 Activate the Device .......................................................................................................... 26

2.3 Configure Unlock Pattern for Login .................................................................................. 27

2.4 Login to the Device ........................................................................................................... 29

2.4.1 Log in via Unlock Pattern ......................................................................................... 29

2.4.2 Log in via Password ................................................................................................. 29

2.5 Enter Wizard to Configure Quick Basic Settings .............................................................. 30

2.6 Enter Main Menu ............................................................................................................. 34

2.7 System Operation ............................................................................................................. 35

2.7.1 Log out..................................................................................................................... 35

2.7.2 Shut Down the Device ............................................................................................. 35

2.7.3 Reboot the Device ................................................................................................... 35

Chapter 3 Camera Management ................................................................................................... 36

3.1 Add the IP Cameras .......................................................................................................... 36

3.1.1 Add the IP Camera Manually .................................................................................. 36

3.1.2 Add the Automatically Searched Online IP Cameras .............................................. 37

3.2 Enable the H.265 Stream Access ...................................................................................... 37

3.3 Upgrade the IP Camera .................................................................................................... 37

3.4 Configure the Customized Protocols ................................................................................ 38

Chapter 4 Camera Settings ............................................................................................................ 40

4.1 Configure OSD Settings ................................................................................................... 40

Network Video Recorder User Manual

4.2 Configure Privacy Mask .................................................................................................... 41

4.3 Configure the Video Parameters ...................................................................................... 42

4.4 Configure the Day/Night Switch ....................................................................................... 42

4.5 Configure Other Camera Parameters ............................................................................... 42

Chapter 5 Live View ....................................................................................................................... 44

5.1 Start Live View ................................................................................................................. 44

5.1.1 Digital Zoom ............................................................................................................ 44

5.1.2 Fisheye View ........................................................................................................... 44

5.1.3 3D Positioning ......................................................................................................... 45

5.1.4 Live View Strategy ................................................................................................... 46

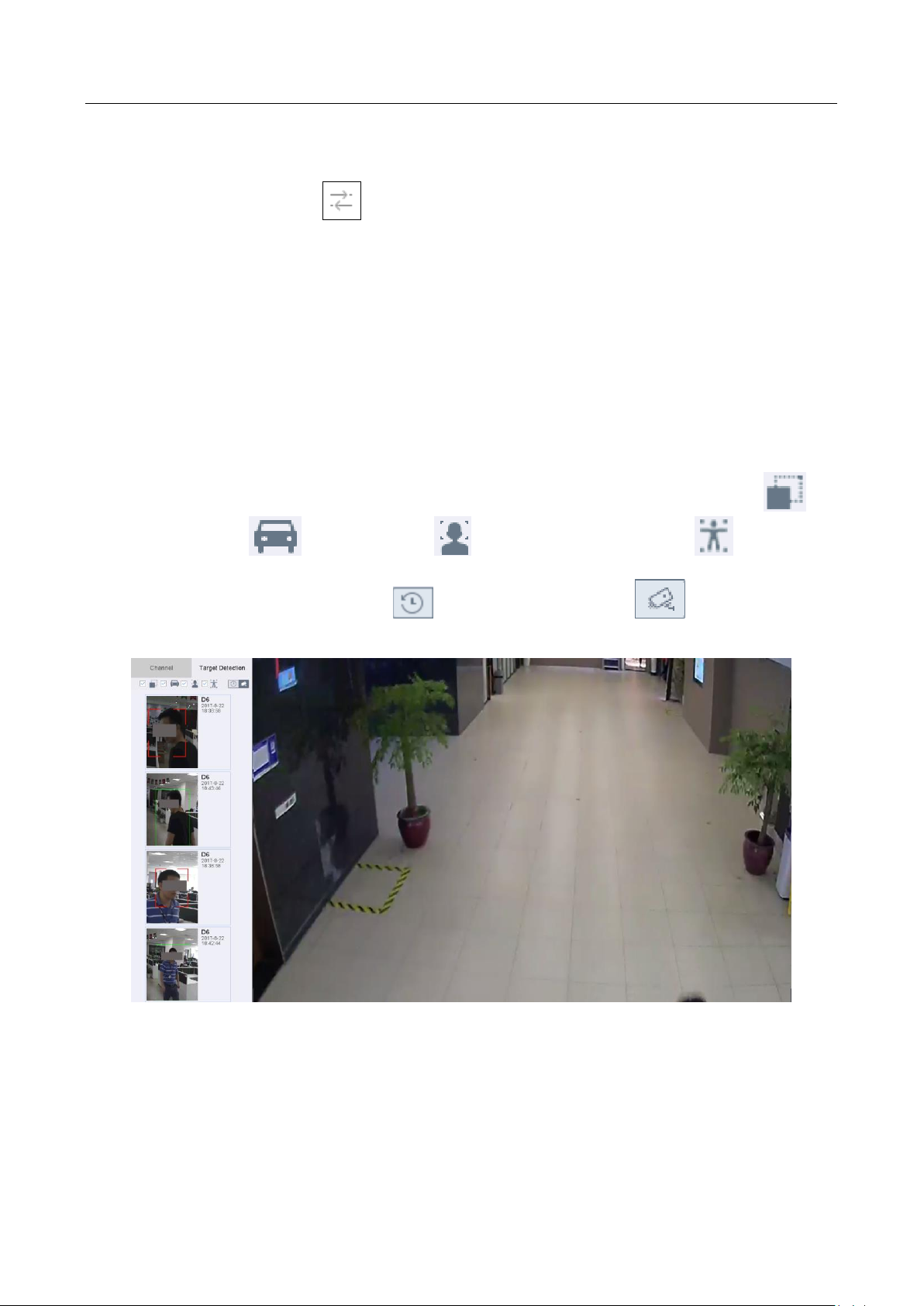

5.2 Target Detection ............................................................................................................... 46

5.3 Configure Live View Settings ............................................................................................ 47

5.4 Configure Live View Layout .............................................................................................. 47

5.5 Configure Auto-Switch of Cameras .................................................................................. 49

5.6 Configure Channel-zero Encoding .................................................................................... 49

5.7 Using an Auxiliary Monitor ............................................................................................... 50

Chapter 6 PTZ Control ................................................................................................................... 51

6.1 PTZ Control Wizard .......................................................................................................... 51

6.2 ConfigurePTZ Parameters ................................................................................................. 51

6.3 Set PTZ Presets, Patrols & Patterns .................................................................................. 52

6.3.1 Set a Preset .............................................................................................................. 52

6.3.2 Call a Preset ............................................................................................................. 53

6.3.3 Set a Patrol .............................................................................................................. 54

6.3.4 Call a Patrol ............................................................................................................. 55

6.3.5 Set a Pattern ............................................................................................................ 56

6.3.6 Call a Pattern ........................................................................................................... 57

6.3.7 Set Linear Scan Limits .............................................................................................. 57

6.3.8 Call Linear Scan ....................................................................................................... 58

6.3.9 One-touch Park ....................................................................................................... 58

6.4 Auxiliary Functions ........................................................................................................... 59

Chapter 7 Storage ............................................................................................................................ 61

7.1 Storage Device Management ........................................................................................... 61

7.1.1 Install the HDD ........................................................................................................ 61

7.1.2 Add the Network Disk ............................................................................................. 61

7.1.3 Configure eSATA for Data Storage ........................................................................... 63

Network Video Recorder User Manual

7.2 Storage Mode ................................................................................................................... 64

7.2.1 Configure HDD Group ............................................................................................. 64

7.2.2 Configure HDD Quota .............................................................................................. 66

7.2.3 Configure Data Release ........................................................................................... 67

7.3 Recording Parameters ...................................................................................................... 68

7.3.1 Main Stream ............................................................................................................ 68

7.3.2 Sub-Stream .............................................................................................................. 69

7.3.3 Picture ..................................................................................................................... 69

7.3.4 ANR .......................................................................................................................... 69

7.3.5 Configure Advanced Recording Settings ................................................................. 69

7.4 Configure Recording Schedule ......................................................................................... 70

7.5 Configure Continuous Recording ..................................................................................... 72

7.6 Configure Motion Detection Triggered Recording ........................................................... 72

7.7 Configure Event Triggered Recording ............................................................................... 72

7.8 Configure Alarm Triggered Recording .............................................................................. 73

7.9 Configure Picture Capture ................................................................................................ 73

7.10 Configure Holiday Recording and Capture ..................................................................... 74

7.11 Configure Redundant Recording and Capture ............................................................... 76

Chapter 8 Disk Array ...................................................................................................................... 78

8.1 Create Disk Array .............................................................................................................. 78

8.1.1 Enable RAID ............................................................................................................. 78

8.1.2 One-Touch Creation ................................................................................................ 79

8.1.3 Manual Creation ...................................................................................................... 79

8.2 Rebuild Array .................................................................................................................... 81

8.2.1 Configure Hot Spare Disk ........................................................................................ 81

8.2.2 Automatically Rebuild Array ................................................................................... 81

8.2.3 Manually Rebuild Array ........................................................................................... 82

8.3 Delete Array ..................................................................................................................... 83

8.4 Check and Edit Firmware ................................................................................................. 84

Chapter 9 File Management .......................................................................................................... 85

9.1 Search and Export All Files ............................................................................................... 85

9.1.1 Search Files.............................................................................................................. 85

9.1.2 Export Files .............................................................................................................. 85

9.2 Search and Export Human Files ....................................................................................... 86

9.2.1 Search Human Files ................................................................................................. 86

Network Video Recorder User Manual

9.2.2 Export Human Files ................................................................................................. 86

9.3 Search and Export Vehicle Files ....................................................................................... 87

9.3.1 Search Vehicle Files ................................................................................................. 87

9.3.2 Export Vehicle Files ................................................................................................. 87

9.4 Search History Operation ................................................................................................. 88

9.4.1 Save Search Condition ............................................................................................. 88

9.4.2 Call Search History................................................................................................... 88

Chapter 10 Playback ....................................................................................................................... 89

10.1 Play Video Files .............................................................................................................. 89

10.1.1 Instant Playback .................................................................................................... 89

10.1.2 Play Normal Video ................................................................................................ 89

10.1.3 Play Smart Searched Video ................................................................................... 90

10.1.4 Play Custom Searched Files ................................................................................... 91

10.1.5 Video Synopsis ...................................................................................................... 92

10.1.6 Play Tag Files ......................................................................................................... 93

10.1.7 Play Event Files ...................................................................................................... 95

10.1.8 Play by Sub-periods ............................................................................................... 96

10.1.9 Play Log Files ......................................................................................................... 97

10.1.10 Play External File ................................................................................................. 97

10.2 Playback Operations ....................................................................................................... 98

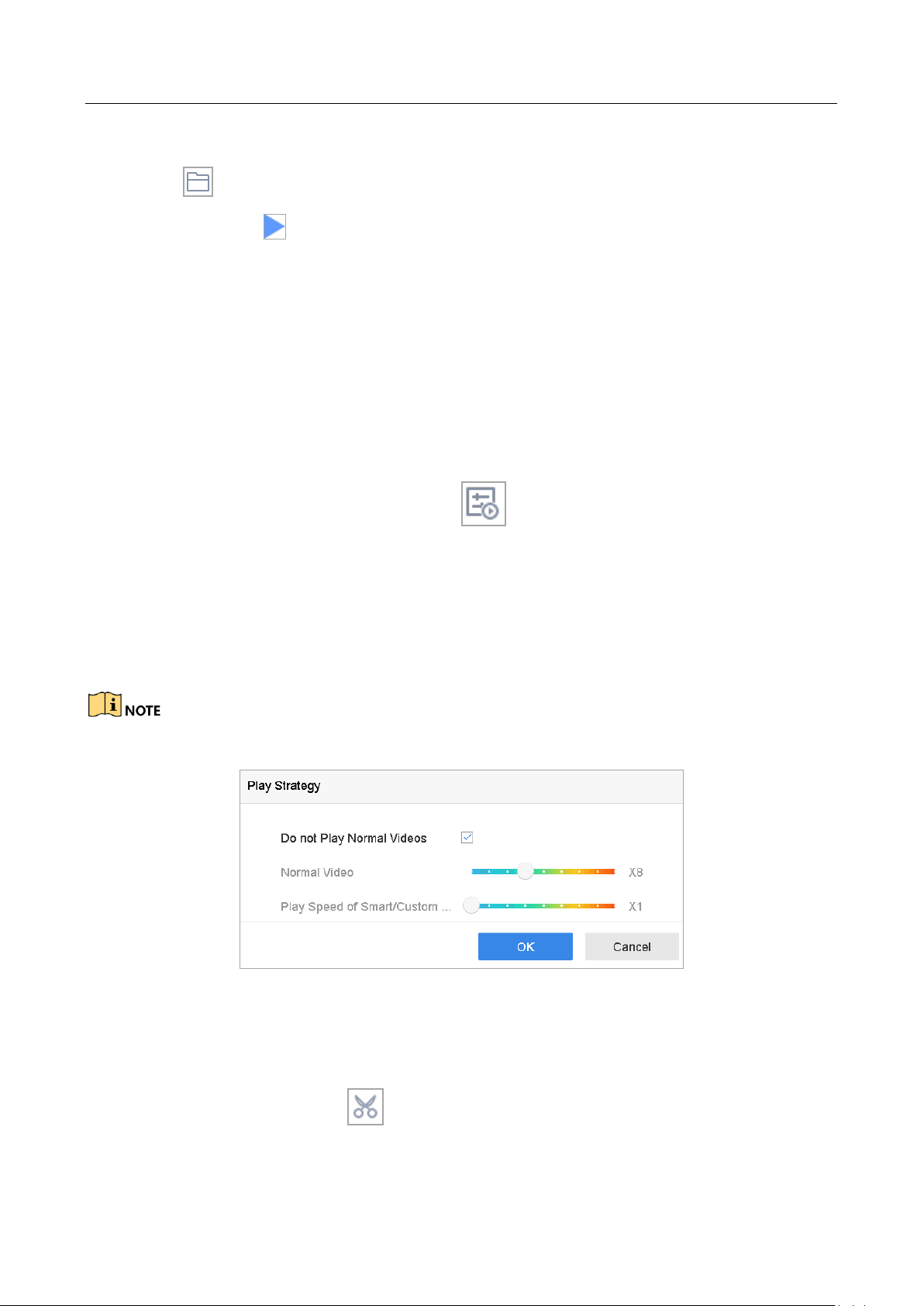

10.2.1 Set Play Strategy in Smart/Custom Mode ............................................................. 98

10.2.2 Edit Video Clips ..................................................................................................... 98

10.2.3 Switch between Main Stream and Sub-Stream .................................................... 99

10.2.4 Thumbnails View................................................................................................... 99

10.2.5 Fisheye View ......................................................................................................... 99

10.2.6 Fast View ............................................................................................................. 100

10.2.7 Digital Zoom ........................................................................................................ 100

Chapter 11 Event and Alarm Settings ........................................................................................ 101

11.1 Configure Arming Schedule .......................................................................................... 101

11.2 Configure Alarm Linkage Actions ................................................................................. 101

11.3 Configure Motion Detection Alarm.............................................................................. 103

11.4 Configure Video Loss Alarm ......................................................................................... 105

11.5 Configure Video Tampering Alarm ............................................................................... 106

11.6 Configure Sensor Alarms .............................................................................................. 107

11.6.1 Configure Alarm Input ......................................................................................... 107

Network Video Recorder User Manual

11.6.2 Configure One-Key Disarming ............................................................................. 108

11.6.3 Configure Alarm Output ...................................................................................... 108

11.7 Configure Exceptions Alarm ......................................................................................... 110

11.8 Alarm Linkage Actions .................................................................................................. 112

11.8.1 Configure Auto-switch Full Screen Monitoring ................................................... 112

11.8.2 Configure Audio Warning .................................................................................... 112

11.8.3 Notify Surveillance Center .................................................................................. 112

11.8.4 Configure Email Linkage ...................................................................................... 113

11.8.5 Trigger Alarm Output .......................................................................................... 113

11.8.6 Configure PTZ Linkage ......................................................................................... 113

11.9 Trigger or Clear Alarm Output Manually ...................................................................... 114

Chapter 12 VCA Event Alarm ..................................................................................................... 116

12.1 Face Detection.............................................................................................................. 116

12.2 Vehicle Detection ......................................................................................................... 117

12.3 Line Crossing Detection ................................................................................................ 118

12.4 Intrusion Detection ...................................................................................................... 120

12.5 Region Entrance Detection .......................................................................................... 122

12.6 Region Exiting Detection .............................................................................................. 123

12.7 Unattended Baggage Detection ................................................................................... 124

12.8 Object Removal Detection ........................................................................................... 125

12.9 Audio Exception Detection ........................................................................................... 126

12.10 Sudden Scene Change Detection ............................................................................... 127

12.11 Defocus Detection ...................................................................................................... 128

12.12 PIR Alarm .................................................................................................................... 129

Chapter 13 Smart Analysis .......................................................................................................... 131

13.1 People Counting ........................................................................................................... 131

13.2 Heat Map ...................................................................................................................... 131

Chapter 14 Network Settings ...................................................................................................... 133

14.1 Configure TCP/IP Settings ............................................................................................. 133

14.2 Configure Guarding Vision ........................................................................................... 134

14.3 Configure DDNS ............................................................................................................ 135

14.4 Configure PPPoE ........................................................................................................... 136

14.5 Configure NTP .............................................................................................................. 136

14.6 Configure SNMP ........................................................................................................... 137

14.7 Configure Email ............................................................................................................ 138

Network Video Recorder User Manual

14.8 Configure Ports ............................................................................................................. 139

Chapter 15 Hot Spare Device Backup ........................................................................................ 141

15.1 Set Hot Spare Device .................................................................................................... 141

15.2 Set Working Device ...................................................................................................... 142

15.3 Manage Hot Spare System ........................................................................................... 142

Chapter 16 System Maintenance ................................................................................................. 144

16.1 Storage Device Maintenance ....................................................................................... 144

16.1.1 Configure Disk Clone ........................................................................................... 144

16.1.2 S.M.A.R.T Detection ............................................................................................ 145

16.1.3 Bad Sector Detection .......................................................................................... 146

16.1.4 HDD Health Detection ......................................................................................... 147

16.2 Search & Export Log Files ............................................................................................. 148

16.2.1 Search the Log Files ............................................................................................. 148

16.2.2 Export the Log Files ............................................................................................. 149

16.3 Import/Export IP Camera Configuration Files .............................................................. 150

16.4 Import/Export Device Configuration Files ................................................................... 152

16.5 Upgrade System ........................................................................................................... 153

16.5.1 Upgrade by Local Backup Device ......................................................................... 153

16.5.2 Upgrade by FTP ................................................................................................... 153

16.6 Restore Default Settings ............................................................................................... 155

16.7 System Service.............................................................................................................. 155

16.7.1 Network Security Settings ................................................................................... 155

16.7.2 Managing ONVIF User Accounts ......................................................................... 157

16.7.3 Managing IP Camera Activation .......................................................................... 158

Chapter 17 General System Settings........................................................................................... 160

17.1 Configure General Settings .......................................................................................... 160

17.2 Configure Date & Time................................................................................................. 161

17.3 Configure DST Settings ................................................................................................. 162

17.4 Manage User Accounts ................................................................................................. 162

17.4.1 Add a User ........................................................................................................... 162

17.4.2 Set the Permission for a User .............................................................................. 164

17.4.3 Set Local Live View Permission for Non-Admin Users ........................................ 166

17.4.4 Edit the Admin User ............................................................................................ 167

17.4.5 Edit the Operator/Guest User ............................................................................. 169

17.4.6 Delete a User ....................................................................................................... 170

Network Video Recorder User Manual

Chapter 18 Appendix ................................................................................................................... 171

18.1 Specifications ............................................................................................................... 171

18.1.1 DS-96000NI-I16/H................................................................................................ 171

18.1.2 DS-96000NI-I16 ................................................................................................... 172

18.1.3 DS-96000NI-I24(H) .............................................................................................. 173

18.1.4 DS-96000NI-I24 ................................................................................................... 174

18.2 Glossary ........................................................................................................................ 175

18.3 Troubleshooting ........................................................................................................... 176

Network Video Recorder User Manual

No.

Name

Description

Panel lock

Locks or unlocks the panel by the key.

Shortcut buttons

Exit



Returns to the previous menu.



Press it twice quickly to switch the main and auxiliary

port.



In live view mode, press it to enter PTZ control

interface.



Press it to pop up main menu.



Hold it for 5 seconds to turn on/off button sound.



During playback, press it to show/hide control panel.

Status indicator

HDD



Solid red: at least one HDD is installed



Unlit: no HDD is detected.



Blinking red: HDD is reading/writing.

Tx/Rx

Blinking blue indicates network communication is normal.

Chapter 1 Introduction

1.1 Front Panel

1.1.1 DS-96000NI-I16(/H) Series

Figure 1-1 DS-96000NI-I16(/H) Series

Table 1-1 Description

Network Video Recorder User Manual

Power switch

Powers on/off device. Solid blue indicates device is powered on. Solid red indicates device is shut down.

Control buttons

ENTER



Confirms selection in any of the menu modes.



Checks the checkbox fields.



Switches on/off status.



Plays or pauses the video playing in playback mode.



Advances the video by a single frame in single-frame

playback mode.



Stops/starts auto switch in auto-switch mode.

DIRECTION



Navigates between different fields and items in

menus.



In the playback mode, use the Up and Down buttons to speed up and slow down recorded video. Use the Left and Right buttons to select the next and previous video files.



Cycles through channels in live view mode.



Controls the movement of the PTZ camera in PTZ control mode.

USB interfaces

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

No.

Name

Description

Power switch

Powers on/off device.

Status indicator

Power

Solid blue indicates device is powered on. Solid red indicates device is shut down.

1.1.2 DS-90000NI-I24(/H) Series

Figure 1-2 DS-96000NI-I24(/H) Series

Table 1-2 Panel Description

Network Video Recorder User Manual

HDD



Solid red: at least one HDD is installed



Unlit: no HDD is detected.



Blinking red: HDD is reading/writing.

Tx/Rx

Blinking blue indicates network communication is normal.

Ready

Solid blue indicates device runs properly.

Alarm

Solid red indicates alarm occurs.

USB interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Panel lock

Locks or unlocks the panel by the key.

HDD sequence indicator

Shows the HDD installation slot.

1.2 IR Remote Control Operations

The device may also be controlled with the included IR remote control, shown in Figure 1-3.

Batteries (2×AAA) must be installed before operation.

The IR remote is set at the factory to control the device (using default Device ID# 255) without any additional steps. Device ID# 255 is the default universal device identification number shared by the devices. You may also pair an IR Remote to a specific device by changing the Device ID#, as follows:

1.2.1 Pairing (Enabling) the IR Remote to a Specific Device (optional)

You can pair an IR Remote to a specific device by creating a user-defined Device ID#. This feature is useful when using multiple IR Remotes and devices.

On the device:

Step 1 Go to System > General. Step 2 Type a number (255 digits maximum) into the Device No. field.

On the IR Remote:

Step 3 Press the DEV button. Step 4 Use the Number buttons to enter the Device ID# that was entered into the device. Step 5 Press Enter button to accept the new Device ID#.

Network Video Recorder User Manual

Figure 1-3 Remote Control

1.2.2 Unpairing (Disabling) an IR Remote from a Device

To unpair an IR Remote from a device so that the unit cannot control any device functions, proceed as follows:

Press the DEV key on the IR Remote. Any existing Device ID# will be erased from the unit’s memory

and it will no longer function with the device.

(Re)-enabling the IR Remote requires pairing to a device. See “Pairing the IR Remote to a Specific device (optional),” above.

The keys on the remote control closely resemble the ones on the front panel. See the table 1.4.

Network Video Recorder User Manual

No.

Name

Function Description

POWER ON/OFF

•To Turn Power On:

-If User Has Not Changed the Default device Device ID# (255):

1.Press Power On/Off button (1).

-If User Has Changed the device Device ID#:

1.Press DEV button.

2.Press Number buttons to enter user-defined Device ID#.

3.Press Enter button.

4.Press Power button to start device.

•To Turn device Off:

-If User Is Logged On:

1.Hold Power On/Off button (1) down for five seconds to display the “Yes/No” verification prompt.

2.Use Up/Down Arrow buttons (12) to highlight desired selection.

3.Press Enter button (12) to accept selection.

-If User Is Not Logged On:

1.Hold Power On/Off button (1) down for five seconds to display the user name/password prompt.

2.Press the Enter button (12) to display the on-screen keyboard.

3.Input the user name.

4.Press the Enter button (12) to accept input and dismiss the on-screen keyboard.

5.Use the Down Arrow button (12) to move to the “Password” field.

6.Input password (use on-screen keyboard or numeric buttons (3) for numbers).

7.Press the Enter button (12) to accept input and dismiss the on-screen keyboard.

8.Press the OK button on the screen to accept input and display

the Yes/No” verification prompt (use Up/Down Arrow buttons (12)

to move between fields)

9.Press Enter button (12) to accept selection.

User name/password prompt depends on device is configuration.

Table 1-3 IR Remote Functions

Network Video Recorder User Manual

See “System Configuration” section.

DEV Enable IR Remote: Press DEV button, enter device Device ID# with

number keys, press Enter to pair unit with the device

Disable IR Remote: Press DEV button to clear Device ID#; unit will no longer be paired with the device

Numerals Switch to the corresponding channel in Live View or PTZ Control

mode

Input numbers in Edit mode

EDIT Delete characters before cursor

Check the checkbox and select the ON/OFF switch

Adjust focus in the PTZ Control menu

Switch on-screen keyboards (upper and lower case alphabet, symbols, and numerals)

REC

Enter Manual Record setting menu

Call a PTZ preset by using the numeric buttons in PTZ control settings

Turn audio on/off in Playback mode

PLAY Go to Playback mode

Auto scan in the PTZ Control menu

INFO

Reserved

VOIP

Switches between main and spot output

Zooms out the image in PTZ control mode

Return to Main menu (after successful login)

N/A

Show/hide full screen in Playback mode

DIRECTION

Navigate between fields and menu items

Use Up/Down buttons to speed up/slow down recorded video, and Left/Right buttons to advance/rewind 30 secs in Playback mode

Cycle through channels in Live View mode

Control PTZ camera movement in PTZ control mode

ENTER

Confirm selection in any menu mode

Network Video Recorder User Manual

Checks checkbox

Play or pause video in Playback mode

Advance video a single frame in single-frame Playback mode

Stop/start auto switch in auto-switch mode

PTZ

Enter PTZ Control mode

ESC Go back to previous screen

N/A

RESERVED

Reserved

Select all items on a list

N/A

Switch between play and reverse play in Playback mode

PTZ Control

Adjust PTZ camera iris, focus, and zoom

F2 Cycle through tab pages

Switch between channels in Synchronous Playback mode

1.2.3 Troubleshooting

Make sure you have installed batteries properly in the remote control. And you have to aim the remote control at the IR receiver in the front panel.

If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.

Step 1 Go to System > General by operating the front control panel or the mouse. Step 2 Check and remember device ID#. The default ID# is 255. This ID# is valid for all the IR remote

controls.

Step 3 Press the DEV button on the remote control. Step 4 Enter the device ID# you set in step 2. Step 5 Press the ENTER button on the remote.

If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator does not turn blue and there is still no response from the remote, please check the following:

 Batteries are installed correctly and the polarities of the batteries are not reversed.

Network Video Recorder User Manual

Name

Action

Description

Left-Click

Single-Click



Live view: Select channel and show the quick set menu.



Menu: Select and enter.

Double-Click

Live view: Switch between single-screen and multi-screen.

Click and Drag



PTZ control: pan, tilt and zoom.



Video tampering, privacy mask and motion detection: Select target area.



Digital zoom-in: Drag and select target area.



Live view: Drag channel/time bar.

Right-Click

Single-Click



Live view: Show menu.



Menu: Exit current menu to upper level menu.

Scroll-Wheel

Scrolling up



Live view: Previous screen.



Menu: Previous item.

Scrolling down



Live view: Next screen.



Menu: Next item.

 Batteries are fresh and not out of charge.  IR receiver is not obstructed.  No fluorescent lamp is used nearby

If the remote still can’t function properly, please change a remote and try again, or contact the

device provider.

1.3 USB Mouse Operation

A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB mouse:

Step 1 Plug USB mouse into one of the USB interfaces on the front panel of the device. Step 2 The mouse should automatically be detected. If in a rare case that the mouse is not detected,

the possible reason may be that the two devices are not compatible, please refer to the recommended the device list from your provider.

The operation of the mouse:

Table 1-4 Description of the Mouse Control

Network Video Recorder User Manual

No.

Name

Description

HDMI 1/2

HDMI video output connector.

Audio in

RCA connector for audio input.

Audio out

RCA connector for audio output.

USB 3.0

Universal Serial Bus (USB 3.0) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

LAN

4 10/100/1000 Mbps self-adaptive Ethernet interfaces.

eSATA

Connects external SATA HDD, CD/DVD-RM.

VGA

DB9 connector for VGA output.

Mini SAS (optional)

Connector for mini SAS. 8

Reset

Reset button.

RS-232

Connector for RS-232 devices.

1.4 Rear Panel

Purpose:

The interfaces of DS-96000NI-I16 and DS-96000NI-I24 are the same. The interfaces of DS-96000NI-I16/H and DS-96000NI-I24/H are the same. We take the example of DS-96000NI-I16/H series to introduce the rear panel.

The difference between DS-96000NI-I16 and DS-96000NI-I16/H is DS-96000NI-I16/H contains the decoding board, that is the module marked as 13 in following figure.

Figure 1-4 DS-96000NI-I16/H Series

Table 1-5 Panel Description

Network Video Recorder User Manual

Alarm in

Connector for alarm input.

Alarm out

Connector for alarm output.

RS-485

Connector for RS-485 devices.

Connector for keyboard.

GND

Ground (needs to be connected when NVR starts up).

Power supply modules

Only one power supply module is provided by default. Two power supply modules are optional for redundancy.

Decoding board

Decoding board. Only available for DS-96000NI-I16/H and DS-96000NI-I24/H.

Network Video Recorder User Manual

Chapter 2 Getting Started

2.1 Start up the Device

Purpose:

Proper startup and shutdown procedures are crucial to expanding the life of the device.

Before you start:

Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground connection is working properly.

Step 1 Connect the device power supply interface and electrical socket with delivered power cable. It

is HIGHLY recommended that an Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power button on the front panel should be red, indicating the device is receiving the power.

2.2 Activate the Device

Purpose:

For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation. You can also activate the device via Web Browser, SADP or Client Software.

Step 1 Input the same password in the text field of Create New Password and Confirm New Password.

You can click the to show the characters input.

Network Video Recorder User Manual

Figure 2-1 Setting Admin Password

We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Step 2 In the IP Camera Activation text field, enter the password to activate the IP camera (s)

connected to the device.

Step 3 Optionally, check the Export GUID to export the GUID for future password resetting. Step 4 Click OK to save the password and activate the device.



After the device is activated, you should properly keep the password.



When you have enabled the Export GUID, continue to export the GUID file to the USB flash driver for the future password resetting.



You can duplicate the password to the IP cameras that are connected with default protocol.

2.3 Configure Unlock Pattern for Login

For the admin user, you can configure the unlock pattern for device login.

Network Video Recorder User Manual

Step 1 After the device is activated, you can enter the following interface to configure the device

unlock pattern.

Step 2 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when the

pattern is done.

Figure 2-2 Draw the Pattern



Connect at least 4 dots to draw the pattern.



Each dot can be connected for once only.

Step 3 Draw the same pattern again to confirm it. When the two patterns match, the pattern is

configured successfully.

If the two patterns are different, you must set the pattern again.

Network Video Recorder User Manual

2.4 Login to the Device

2.4.1 Log in via Unlock Pattern



Only the admin user has the permission to unlock the device.



Please configure the pattern first before unlocking. Please refer to Chapter 2.2 Activate the Device.

Step 1 Right click the mouse on the screen and select the menu to enter the interface.

Figure 2-3 Draw the Unlock Pattern

Step 2 Draw the pre-defined pattern to unlock to enter the menu operation.



If you have forgotten your pattern, you can select the Forgot My Pattern or Switch User option to enter the normal login dialog box.



When the pattern you draw is different from the pattern you have configured, you should try again.



If you have drawn the wrong pattern for more than 5 times, the system will switch to the normal login mode automatically.

2.4.2 Log in via Password

Purpose:

If device has logged out, you must login the device before operating the menu and other functions.

Network Video Recorder User Manual

Step 1 Select the User Name in the dropdown list.

Figure 2-4 Login Interface

Step 2 Input password. Step 3 Click OK to log in.



When you forget the password of the admin, you can click Forgot Password to reset the password.



In the Login dialog box, if you enter the wrong password 7 times, the current user account will be locked for 60 seconds.

2.5 Enter Wizard to Configure Quick Basic Settings

By default, the Setup Wizard starts once the device has loaded.

The Setup Wizard can walk you through some important settings of the device. If you don’t want to use the Setup Wizard at that moment, click the Exit button.

Step 1 Configure the date and time on the Date and Time Setup interface.

Network Video Recorder User Manual

Figure 2-5 Date and Time Settings

Step 2 After the time settings, click Next to enter the Network Setup Wizard window, as shown in the

following figure.

Figure 2-6 Network Settings

Step 3 Click Next after you configured the network parameters, which takes you to the HDD

Management window.

Network Video Recorder User Manual

Figure 2-7 HDD Management

Step 4 To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD. Step 5 Click Next. You enter the Camera Setup interface to add the IP cameras.

1) Click Search to search the online IP Camera. Before adding the camera, make sure the IP

camera to be added is in active status.

2) Click the Add to add the camera.

If the camera is in inactive status, you can select the camera from the list and click Activate to activate the cameras.

Figure 2-8 Search for IP Cameras

Step 6 Enter the Platform Access and configure the Hik-Connect settings.

Network Video Recorder User Manual

Figure 2-9 Hik-Connect Access

Step 7 Click Next to enter the Change Password interface to create the new admin password if

required.

Figure 2-10 Change Password

You can enter click the to show the characters input.

1) Check the checkbox of New Admin Password.

2) Enter the original password in the text field of Admin Password

3) Input the same password in the text field of New Password and Confirm.

4) Check the Unlock Pattern to enable the unlock pattern login.

Network Video Recorder User Manual

Icon

Description

Live View

Playback

File Management

Smart Analysis

Camera Management

Storage Management

System Management

Step 8 Click OK to complete the startup Setup Wizard.

2.6 Enter Main Menu

After you have completed the wizard, you can right click on the screen to enter the main menu bar. Refer to the following figure and table for the description of main menu and sub-menus.

Figure 2-11 Main Menu Bar

Table 2-1 Description of Icons

Network Video Recorder User Manual

System Maintenance:

2.7 System Operation

2.7.1 Log out

Purpose:

After logging out, the monitor turns to the live view mode and if you want to perform any operations, you need to enter user name and password to log in again.

Step 1 Click on the menu bar. Step 2 Click Logout.

After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name and password to unlock the system.

2.7.2 Shut Down the Device

Step 1 Click on the menu bar. Step 2 Click the Shutdown button. Step 3 Click the Yes button.

Do not press the POWER button again when the system is shutting down.

2.7.3 Reboot the Device

From the Shutdown menu, you can also reboot the device.

Step 1 Click on the menu bar. Step 2 Click Reboot to reboot the device.

Network Video Recorder User Manual

Chapter 3 Camera Management

3.1 Add the IP Cameras

3.1.1 Add the IP Camera Manually

Purpose:

Before you can get live video or record the video files, you should add the network cameras to the connection list of the device.

Before you start:

Ensure the network connection is valid and correct, and the IP camera to add has already been activated.

Step 1 Click on the main menu bar to enter the Camera Management.

Step 2 Click the Custom Add tab on the title bar or click in the idle channel window to enter the

Add IP Camera interface.

Step 3 Enter IP address, protocol, management port, and other information of the IP camera to add. Step 4 Enter the login user name and password of the IP camera.

Figure 3-1 Add IP Camera

Network Video Recorder User Manual

Step 5 Click Add to finish the adding of the IP camera. Step 6 (Optional) Click Continue to Add to continue to add other IP cameras.

3.1.2 Add the Automatically Searched Online IP Cameras

Step 1 On the Camera Management interface, click the Online Device panel to expand the Online

Device interface.

Step 2 Select the automatically searched online devices. Step 3 Click Add.

Figure 3-2 Add IP Camera

If the IP camera to add has not been actiavated, you can activate it from the IP camera list on the camera management interface.

3.2 Enable the H.265 Stream Access

The device can automatically switch to the H.265 stream of IP camera (which supports H.265 video format) for the initial access.

Step 1 Go to More Settings > H.265 Auto Switch Configuration at the top taskbar. Step 2 Check the checkbox of Enable H.265 (For Initial Access). Step 3 Click OK.

3.3 Upgrade the IP Camera

The IP camera can be remotely upgraded through the device.

Plug the U-flash drive with the IP camera’s firmware upgrade file to the device.

Network Video Recorder User Manual

Step 1 On the camera management interface, select a camera. Step 2 Go to More Settings > Upgrade at the top taskbar. Step 3 Select the firmware upgrade file from the U-flash drive. Step 4 Click Upgrade.

Result:

The IP camera will reboot automatically after the upgrading completes.

3.4 Configure the Customized Protocols

Purpose

To connect the network cameras which are not configured with the standard protocols, you can configure the customized protocols for them. The system provides 16 customized protocols.

Step 1 Click Protocol at the top taskbar to enter the protocol management interface.

Figure 3-3 Protocol Management

Step 2 Select the protocol type of transmission and choose the transfer protocols.

 Type: The network camera adopting custom protocol must support getting stream through

standard RTSP.

 Path: you have to contact the manufacturer of the network camera to consult the URL

(uniform resource locator) for getting main stream and sub-stream.

 The format of the URL is: [Type]://[IP Address of the network camera]:[Port]/[Path].

Network Video Recorder User Manual

 Example: rtsp://192.168.1.55:554/ch1/main/av_stream.

The protocol type and the transfer protocols must be supported by the connected IP camera.

Step 3 Click OK to save the settings.

Result:

After adding the customized protocols, you can see the protocol name is listed in the drop-down list.

Network Video Recorder User Manual

Chapter 4 Camera Settings

4.1 Configure OSD Settings

Purpose:

You can configure the OSD (On-screen Display) settings for the camera, including date/time, camera name, etc.

Step 1 Go to Camera > Display. Step 2 Select the camera from the drop-down list. Step 3 Edit the name in the Camera Name text field. Step 4 Check the checkbox of the Display Name, Display Date and Display Week if you want to show

the information on the image.

Step 5 Set the date format, time format, and display mode.

Figure 4-1 OSD Configuration Interface

Step 6 You can use the mouse to click and drag the text frame on the preview window to adjust the

OSD position.

Step 7 Click the Apply button to apply the settings.

Network Video Recorder User Manual

4.2 Configure Privacy Mask

Purpose:

The privacy mask can be used to protect personal privacy by concealing parts of the image from view or recording with a masked area.

Step 1 Go to Camera >Privacy Mask. Step 2 Select the camera to set privacy mask. Step 3 Click the checkbox of Enable to enable this feature. Step 4 Use the mouse to draw a zone on the window. The zones will be marked with different frame

colors.

Figure 4-2 Privacy Mask Settings Interface

Up to 4 privacy masks zones can be configured and the size of each area can be adjusted.

Related Operation:

The configured privacy mask zones on the window can be cleared by clicking the corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to clear all zones.

Step 5 Click Apply to save the settings.

Network Video Recorder User Manual

4.3 Configure the Video Parameters

Purpose:

You can customize the image parameters including the brightness, contrast, saturation for the live view and recording effect.

Step 1 Go to Camera > Display. Step 2 Select the camera from the drop-down list. Step 3 Adjust the slider or click on the up/down arrow to set the value of the brightness, contrast or

saturation.

Step 4 Click Apply to save the settings.

4.4 Configure the Day/Night Switch

The camera can be set to day, night or auto switch mode according to the surrounding illumination conditions.

Step 1 Go to Camera > Display. Step 2 Select the camera from the drop-down list. Step 3 Select the day/night switch mode to Day, Night, Auto or Auto-Switch.

Auto: The camera switches between the day mode and the night mode according to the illumination automatically.

The sensitivity ranges from 0 to 7, and the higher sensitivity results in the more easily to trigger the mode switch.

The switch time refers to the interval time between the day/night switch. You can set it from 5 sec to 120 sec.

Auto-Switch: The camera switches the day mode and the night mode according to the start time and end time you set.

Step 4 Click the Apply to save the settings.

4.5 Configure Other Camera Parameters

For the connected camera, you can configure the camera parameters including the exposure mode, backlight and image enhancement.

Step 1 Go to Camera > Display. Step 2 Select the camera from the drop-down list. Step 3 Configure the camera parameters.

Network Video Recorder User Manual

 Exposure: Set the exposure time (1/10000 to 1 sec) of camera. The larger exposure value

results in the brighter image.

 Backlight: Set the wide dynamic range (0 to 100) of the camera. When the surrounding

illumination and the object have larger difference in brightness, you should set the WDR value.

 Image Enhancement: For optimized image contrast enhancement.

Step 4 Click the Apply to save the settings.

Network Video Recorder User Manual

Chapter 5 Live View

Live view shows you the video image getting from each camera in real time.

5.1 Start Live View

Click on the main menu bar to enter the live view.

 You can select a window and double click a camera from the list to play the video from the

camera in the selected window.

 Use the toolbar at the playing window bottom to realize the capture, instant playback, audio

on/off, digital zoom, live view strategy, show information and start/stop recording, etc.

5.1.1 Digital Zoom

Digital Zoom is for zooming in the live image. You can zoom in the image to different proportions (1 to 16X).

Step 1 In the live view mode, click from the toolbar to enter the digital zoom interface. Step 2 You can move the sliding bar or scroll the mouse wheel to zoom in/out the image to different

proportions (1 to 16X).

Figure 5-1 Digital Zoom

5.1.2 Fisheye View

The device supports the fisheye expansion for the connected fisheye camera in live view or playback mode.

Network Video Recorder User Manual

 The fisheye expansion view feature is supported by the DS-7600/7700/8600/9600-I (/P) series

device only.

 The connected camera must support the fisheye view.

Step 1 In the live view mode, click the to enter the fisheye expansion mode. Step 2 Select the expansion view mode.

 180° Panorama ( ): Switch the live view image to the 180° panorama view.

 360° Panorama ( ): Switch the live view image to the 360° panorama view.

 PTZ Expansion ( ): The PTZ Expansion is the close-up view of some defined area in the

fisheye view or panorama expansion, and it supports the electronic PTZ function, which is also called e-PTZ.

 Radial Expansion ( ): In the radial expansion mode, the whole wide-angle view of the

fisheye camera is displayed. This view mode is called Fisheye View because it

approximates the vision of a fish’s convex eye. The lens produces curvilinear images of a

large area, while distorting the perspective and angles of objects in the image.

5.1.3 3D Positioning

3D Positioning (for I series device) is for zooming in/out the specific area of live image.

Step 1 In the live view mode, click the to enter the 3D positioning mode. Step 2 Operate the zoom in/out in the image.

 Zoom in

Use the left key of mouse to click on the desired position in the video image and drag a rectangle area in the lower right direction to realize zoom in.

 Zoom out

Use the left key of mouse to drag a rectangle area in the upper left direction to move the position to the center and enable the rectangle area to zoom out.

Network Video Recorder User Manual

5.1.4 Live View Strategy

Step 1 In the live view mode, click to enter the digital zoom operation interface in full screen

mode.

Step 2 Select the live view strategy to Real-time, Balanced or Fluency.

5.2 Target Detection

In live view mode, the target detection function can be used to detect the human motoion/face/vechicle/human body during the last 5 seconds and the following 10 seconds.

Step 1 In the live view mode, click Target Detection tab to enter the target detection interface.

Step 2 Check the checkbox of the icons to select different detection types: motion detection ( ),

vehicle detection ( ), face detection ( ) and human body detection ( ).

Step 3 You can select the historical analysis ( ) or the real-time analysis ( ) to obtain the

results.

Figure 5-2 Target Detection

Result:

The smart analysis results of the detection are displayed in the list. Optionally, click a result in list to play the related video.

Network Video Recorder User Manual

5.3 Configure Live View Settings

Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

Step 1 Go to System > Live View > General.

Figure 5-3 Live View-General

Step 2 Configure the live view parameters.

 Video Output Interface: Select the video output to configure.  Live View Mode: Select the display mode for live view, e.g., 2*2, 1*5, etc.  Dwell Time: The time in seconds to dwell between switching of cameras when enabling

auto-switch in Live View.

 Enable Audio Output: Enable/disable audio output for the selected video output.  Volume: Adjust the volume of live view, playback and two-way audio for the selected output

interface.

 Event Output: Select the output to show event video.  Full Screen Monitoring Dwell Time: Set the time in seconds to show alarm event screen.

Step 3 Click OK to save the settings.

5.4 Configure Live View Layout

Step 1 Go to System> Live View>View Settings.

Network Video Recorder User Manual

Figure 5-4 Live View Step 2 Select the video output interface, e.g., HDMI/ VGA or channel-zero. Step 3 Select a window division mode from the toolbar. Step 4 Select a division window, and double-click on the camera from the list to set the camera to the

window.

You can enter the number in the text field to quickly search the camera from the list.

You can also click-and-drag the camera to the desired window on the live view interface to set the camera order.

Related Operation:

 Click button to start live view for all the channels.

 Click to stop all the live view.

Step 5 Click Apply to save the settings.

Network Video Recorder User Manual

5.5 Configure Auto-Switch of Cameras

You can set the auto-switch of cameras to play in different display modes.

Step 1 Go to System > Live View > General. Step 2 Set the video output interface, live view mode and dwell time.

 Video Output Interface: Select the video output interface.  Live View Mode: Select the display mode for live view, e.g., 2*2, 1*5, etc.  Dwell Time: The time in seconds to dwell between switching of cameras when enabling

auto-switch. The range is from 5s to 300s.

Step 3 Go to View Settings to set the view layout. Step 4 Click OK to save the settings.

5.6 Configure Channel-zero Encoding

Purpose:

You can enable the channel-zero encoding when you need to get a remote view of many channels in real time from web browser or CMS (Client Management System) software, in order to decrease the bandwidth requirement without affecting the image quality.

Step 1 Go to System > Live View > General. Step 2 Select the video output interface to Channel-Zero. Step 3 Go to System > Live View > Channel-Zero. Step 4 Check the checkbox to enable the channel-zero.

Figure 5-5 Live View- Channel-Zero Encoding

Step 5 Configure the Frame Rate, Max. Bitrate Mode and Max. Bitrate. The higher frame rate and

bitrate settings result in the higher requirement of bandwidth.

Step 6 Click Apply.

Network Video Recorder User Manual

Result:

You can view all of the channels in one screen using the CMS or web browser.

5.7 Using an Auxiliary Monitor

Certain features of the Live View are also available while in an Aux monitor. These features include:

 Single Screen: Switch to a full screen display of the selected camera. Camera can be selected

from a dropdown list.

 Multi-screen: Switch between different display layout options. Layout options can be selected

from a dropdown list.

 Next Screen: When displaying less than the maximum number of cameras in Live View,

clicking this feature will switch to the next set of displays.

 Playback: Enter into Playback mode.  PTZ Control: Enter PTZ Control mode.  Main Monitor: Enter Main operation mode.

In the live view mode of the main output monitor, the menu operation is not available while Aux output mode is enabled.

Network Video Recorder User Manual

Chapter 6 PTZ Control

6.1 PTZ Control Wizard

Before you start

Please make sure the connected IP camera supports the PTZ function and is properly connected.

Purpose

Follow the PTZ control wizard to guide you through the basic PTZ operation.

Step 1 Click on the quick settings toolbar of the PTZ camera live view. The PTZ control wizard

pops up as below.

Figure 6-1 PTZ Control Wizard

Step 2 Follow the wizard to adjust the PTZ view, focus, and zoom in/out the camera. Step 3 (Optional) Check Do not show this prompt again. Step 4 Click OK to exit.

6.2 ConfigurePTZ Parameters

Purpose

Follow the procedure to set the parameters for PTZ. The configuration of the PTZ parameters should be done before you control the PTZ camera.

Network Video Recorder User Manual

Step 1 Click on the quick settings toolbar of the PTZ camera live view. The PTZ control panel

displays on the right of the interface.

Step 2 Click PTZ Parameters Settings to set the PTZ parameters.

Figure 6-2 PTZ Parameters Settings

Step 3 Edit the parameters of the PTZ camera.

All the parameters should be exactly the same as the PTZ camera parameters.

Step 4 Click OK to save the settings.

6.3 Set PTZ Presets, Patrols & Patterns

Before you start:

Please make sure that the presets, patrols and patterns should be supported by PTZ protocols.

6.3.1 Set a Preset

Purpose:

Follow the steps to set the preset location which you want the PTZ camera to point to when an event takes place.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

Network Video Recorder User Manual

The PTZ control panel displays on the right of the interface.

Step 2 Use the directional buttons on the PTZ control panel to wheel the camera to the location

where you want to set preset, and the zoom and focus operations can be recorded in the preset as well.

Step 3 Click in the lower right corner of live view to set the preset.

Figure 6-3 Set Preset

Step 4 Select the preset No. (1~255) from the drop-down list. Step 5 Enter the preset name in the text field. Step 6 Click Apply to save the preset. Step 7 Repeat steps 2-6 to save more presets. Step 8 (Optional) Click Cancel to cancel the location information of the preset.

Step 9 (Optional) Click in the lower right corner of live view to view the configured presets.

Figure 6-4 View the Configured Presets

6.3.2 Call a Preset

Purpose:

This feature enables the camera to point to a specified position such as a window when an event takes place.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

Step 2 Click in the lower right corner of live view. Step 3 Select the preset No. from the drop-down list. Step 4 Click Call to call it.

Figure 6-5 Call Preset (1)

Or click in the lower right corner of live view, and click the configured preset to call it.

Network Video Recorder User Manual

Figure 6-6 Call Preset (2)

6.3.3 Set a Patrol

Purpose:

Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving on to the next key point. The key points are corresponding to the presets.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click Patrol to configure patrol.

Figure 6-7 Patrol Configuration

Step 3 Select the patrol No. in the text field. Step 4 Click Set to enter the Patrol Settings interface.

Figure 6-8 Patrol Settings

Step 5 Click to add key point for the patrol.

Network Video Recorder User Manual

Figure 6-9 Key Point Configuration

1) Configure key point parameters.

Preset: It determines the order at which the PTZ will follow while cycling through the patrol.

Speed: It defines the speed at which the PTZ will move from one key point to the next.

Duration: It refers to the time span to stay at the corresponding key point.

2) Click Apply to save the key points to the patrol.

Step 6 (Optional) Click to edit the added key point.

Figure 6-10 Edit Key Point

Step 7 (Optional) Select a key point and click to delete it. Step 8 (Optional) Click or to adjust the key point order.

Step 9 Click Apply to save the settings of the patrol.

Step 10 Repeat steps 3-9 to set more patrols.

6.3.4 Call a Patrol

Purpose:

Calling a patrol makes the PTZ to move according to the predefined patrol path.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

Network Video Recorder User Manual

The PTZ control panel displays on the right of the interface.

Step 2 Click Patrol on the PTZ control panel.

Figure 6-11 Patrol Configuration

Step 3 Select a patrol in the text field. Step 4 Click Call to call it. Step 5 (Optional) Click Stop to stop calling it.

6.3.5 Set a Pattern

Purpose:

Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement according to the predefined path.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click Pattern to configure pattern.

Figure 6-12 Pattern Configuration

Step 3 Select the pattern No. in the text field. Step 4 Set the pattern.

1) Click Record to start recording.

2) Click corresponding buttons on the control panel to move the PTZ camera.

3) Click Stop to stop recording.

The movement of the PTZ is recorded as the pattern.

Step 5 Repeat steps 3-4 to set more patterns.

Network Video Recorder User Manual

6.3.6 Call a Pattern

Purpose:

Follow the procedure to move the PTZ camera according to the predefined patterns.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click Pattern to configure pattern.

Figure 6-13 Pattern Configuration

Step 3 Select a pattern in the text field. Step 4 Click Call to call it. Step 5 (Optional) Click Stop to stop calling it.

6.3.7 Set Linear Scan Limits

Before you start:

Please make sure the connected IP camera supports the PTZ function, and is properly connected.

Purpose:

The linear scan can be enabled to trigger the scan in the horizontal direction in the predefined range.

This function is supported by some certain models.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click the directional buttons to wheel the camera to the location where you want to set the

limit, and click Left Limit or Right Limit to link the location to the corresponding limit.

Network Video Recorder User Manual

The speed dome starts linear scan from the left limit to the right limit, and you must set the left limit on the left side of the right limit, as well the angle from the left limit to the right limit should be no more than 180º.

6.3.8 Call Linear Scan

Before operating this function, make sure the connected camera supports the linear scan and is in HIKVISION protocol.

Purpose:

Follow the procedure to call the linear scan in the predefined scan range.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click Linear Scan to start the linear scan and click it again to stop it. Step 3 (Optional) Click Restore to clear the defined left limit and right limit data.

Reboot the camera to take the settings into effect.

6.3.9 One-touch Park

Before operating this function, make sure the connected camera supports the linear scan and is in HIKVISION protocol.

Purpose

For some certain model of the speed dome, it can be configured to start a predefined park action (scan, preset, patrol and etc.) automatically after a period of inactivity (park time).

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click Park (Quick Patrol), Park (Patrol 1) or Park (Preset 1) to activate the park action.

Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in order after the park time. The undefined preset will be skipped.

Network Video Recorder User Manual

Park (Patrol 1): The dome starts moving according to the predefined patrol 1 path after the park time.

Park (Preset 1): The dome moves to the predefined preset 1 location after the park time.

The park time can only be set via the speed dome configuration interface. The value is 5s by default.

Step 3 Click Stop Park (Quick Patrol), Stop Park (Patrol 1) or Stop Park (Preset 1) to inactivate it.

6.4 Auxiliary Functions

Before you start

Please make sure the connected IP camera supports the PTZ function, and is properly connected.

Purpose

You can operate the auxiliary functions including light, wiper, 3D positioning, and center on the PTZ control panel.

Step 1 Click on the quick settings toolbar of the PTZ camera live view.

The PTZ control panel displays on the right of the interface.

Step 2 Click Aux Function.

Figure 6-14 Aux Function Configuration

Step 3 Click the icons to operate the aux functions. See the table for the description of the icons.

Network Video Recorder User Manual

Icon

Description

Light on/off

Wiper on/off

3D positioning

Center

Table 6-1 Description of Aux Functions Icons

Network Video Recorder User Manual

Chapter 7 Storage

7.1 Storage Device Management

7.1.1 Install the HDD

Before startup of the device, install and connect the HDD to the device. Refer to the Quick Start Guide for the installation instructions.

7.1.2 Add the Network Disk

You can add the allocated NAS or disk of IP SAN to device, and use it as network HDD. Up to 8 network disks can be added.

Adding NAS

Step 1 Go to Storage > Storage Device. Step 2 Click Add to enter the Custom Add interface. Step 3 Select the NetHDD from the drop-down list. Step 4 Select the type to NAS. Step 5 Enter the NetHDD IP address in the text field. Step 6 Click Search to search the available NAS disks.

Network Video Recorder User Manual

Figure 7-1 Add NAS Disk

Step 7 Select the NAS disk from the list shown below, or you can manually enter the directory in the

text field of NetHDD Directory.

Step 8 Click the OK to complete the adding of the NAS disk.

Result:

After having successfully added the NAS disk, return to the HDD Information menu. The added NetHDD will be displayed in the list.

Adding IP SAN

Step 1 Go to Storage > Storage Device. Step 2 Click Add to enter the Custom Add interface. Step 3 Select the NetHDD from the drop-down list. Step 4 Select the type to IP SAN. Step 5 Enter the NetHDD IP address in the text field. Step 6 Click Search to search the available IP SAN disks. Step 7 Select the IP SAN disk from the list shown below. Step 8 Click OK to complete the adding of the IP SAN disk.

Network Video Recorder User Manual

Up to 1 IP SAN disk can be added.

Figure 7-2 Add IP SAN Disk

Result:

After having successfully added the IP SAN disk, return to the HDD Information menu. The added NetHDD will be displayed in the list.

If the installed HDD or NetHDD is uninitialized, please select it and click the Init button for initialization.

7.1.3 Configure eSATA for Data Storage

When there is an external eSATA device connected to device, you can configure eSATA for the data storage, and you can manage the eSATA in the device.

Step 1 Click Storage>Advanced. Step 2 Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA.

Export: use the eSATA for backup.

Record/Capture: use the eSATA for record/capture. Refer to the following steps for operating

instructions.

Network Video Recorder User Manual

Figure 7-3 Set eSATA Mode

Step 3 When the eSATA type is selected to Record/Capture, enter the storage device interface. Step 4 Edit the property of the selected eSATA, or initialize it is required.

7.2 Storage Mode

7.2.1 Configure HDD Group

Purpose:

Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings.

Step 1 Go to Storage> Storage Device. Step 2 Check the checkbox to select the HDD to set the group.

Figure 7-4 Storage Device

Step 3 Click to enter the Local HDD Settings interface.

Network Video Recorder User Manual

Figure 7-5 Local HDD Settings

Step 4 Select the Group number for the current HDD. Step 5 Click OK.

Regroup the cameras for HDD if the HDD group number is changed.

Step 6 Go to Storage> Storage Mode. Step 7 Check the checkbox of Group tab. Step 8 Select the group No. from the list. Step 9 Check the checkbox to select the IP camera (s) to record/capture on the HDD group.

Network Video Recorder User Manual

Figure 7-6 Storage Mode-HDD Group

Step 10 Click Apply.

Reboot the device to activate the new storage mode settings.

7.2.2 Configure HDD Quota

Purpose:

Each camera can be configured with allocated quota for the storage of recorded files or captured pictures.

Step 1 Go to Storage> Storage Mode. Step 2 Check the checkbox of Quota tab. Step 3 Select a camera to set quota. Step 4 Enter the storage capacity in the text fields of Max. Record Capacity (GB) and Max. Picture

Capacity (GB).

Network Video Recorder User Manual

Figure 7-7 Storage Mode-HDD Quota

Step 5 (Optional) You can click Copy to if you want to copy the quota settings of the current camera to

other cameras.

Step 6 Click the Apply button to apply the settings. Reboot the device to activate the new storage

mode settings.

When the quota capacity is set to 0, all cameras will use the total capacity of HDD for record and picture capture.

7.2.3 Configure Data Release

Purpose:

Enable smart release function and set the quota radio between the normal video and important video. After these, the device immigrates the important video from the normal video quota to the quota of important video. The device will automatically delete the expired videos. The function greatly improves the utility rate of space without consuming R/W performance.

Step 1 Go to Storage > Storage Mode.

Network Video Recorder User Manual

Figure 7-8 Storage Mode

Step 2 Select Mode as Smart Release. Step 3 Adjust the Quota Radio between the normal video and important video. You can view the

Estimated Saving Time for the continuous video and import video.

 Estimated Saving Time: Calculated based on the quota radio, storage capacity, and video size

of last week. Expired continuous videos will be deleted. The time updates every minute.

Step 4 Click Apply. Step 5 Click Yes on popup message dialog to reboot device. Step 6 Optionally, go to Maintenance > System Info > Smart Release Status to view release status

for each channel.

7.3 Recording Parameters

7.3.1 Main Stream

The Main Stream refers to the primary stream that affects data recorded to the hard disk drive and will directly determine your recording quality and image size.

Comparing with the sub-stream, the main stream can provide a higher quality video with higher resolution and frame rate.

Frame Rate (FPS - Frames Per Second): refers to how many frames are captured each second. A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

Resolution: Image resolution is a measure of how much detail a digital image can hold: the greater the resolution, the greater the level of detail. Resolution can be specified as the number of pixel-columns (width) by the number of pixel-rows (height), e.g.,1024×768.

Network Video Recorder User Manual

Bitrate: The bit rate (in kbit/s or Mbit/s) is often referred to as speed, but actually defines the number of bits/time unit and not distance/time unit.

Enable H.264+ Mode: The H.264+ mode helps to ensure the high video quality with a lowered bitrate. It can effectively reduces the need of bandwith and HDD storage space.

A higher resolution, frame rate and bitrate setting will provide you the better video quality, but it will also require more internet bandwidth and use more storage space on the hard disk drive.

7.3.2 Sub-Stream

The sub-stream is a second codec that runs alongside the mainstream. It allows you to reduce the outgoing internet bandwidth without sacrificing your direct recording quality.

The sub-stream is often exclusively used by smartphone applications to view live video. Users with limited internet speeds may benefit most from this setting.

7.3.3 Picture

The picture refers to the live picture capture in continuous or event recording type.

Picture Quality: set the picture quality to low, medium or high. The higher picture quality results in more storage space requirement.

Interval: the interval of capturing live picture.

7.3.4 ANR

ANR (Automatic Network Replenishment) function which enables the IP camera to save the recording files in the local storage when the network is disconnected, and when the network is resumed, it uploads the files to the device.

Enable the ANR (Automatic Network Replenishment) function via the web browser (Configuration > Storage > Schedule Settings > Advanced).

7.3.5 Configure Advanced Recording Settings

Step 1 Go to Storage > Schedule Settings > Record Schedule/Capture Schedule. Step 2 Check the checkbox of Enable to enable scheduled recording. Step 3 Click Advanced to set the recording parameters.

Network Video Recorder User Manual

Figure 7-9 Advanced Record Settings

 Record Audio: Check the checkbox to enable or disable audio recording.  Pre-record: The time you set to record before the scheduled time or event. For example, when

an alarm triggers the recording at 10:00, and if you set the pre-record time as 5 seconds, the camera records at 9:59:55.

 Post-record: The time you set to record after the event or the scheduled time. For example,

when an alarm triggered recording ends at 11:00, and if you set the post-record time as 5 seconds, it records till 11:00:05.

 Expired Time: The expired time is period for a recorded file to be kept in the HDD. When the

deadline is reached, the file will be deleted. If you set the expired time to 0, the file will not be deleted. The actual keeping time for the file should be determined by the capacity of the HDD.

 Redundant Record/Capture: By enabling redundant record or capture you save the record and

captured picture in the redundant HDD. See Chapter Configure Redundant Recording and Capture.

 Stream Type: Main stream and sub-stream are selectable for recording. When you select

sub-stream, you can record for a longer time with the same storage space.

Step 4 Click OK to save the settings.

7.4 Configure Recording Schedule

Set the record schedule, and then the camera automatically starts/stops recording according to the configured schedule.

Before you start

Make sure you have installed the HDDs to the device or added the network disks before you want to store the video files, pictures and log files.

Refer to the Quick Start Guide for the HDD installation.

Network Video Recorder User Manual

Refer to Chapter 7.1.2 Add the Network Disk for network HDD connections.

Step 1 Go to Storage > Recording Schedule.

Figure 7-10 Recording Schedule

Step 2 Select a camera. Step 3 Check Enable Schedule. Step 4 Select a record type. The record type can be Continuous, Motion Detection, Alarm, Motion |

Alarm, Motion & Alarm, and Event.

Different recording types are configurable.

Continuous: scheduled recording.

Event: recording triggered by all event triggered alarm.

Motion: recording triggered by motion detection.

Alarm: recording triggered by alarm.

M/A: recording triggered by either motion detection or alarm.

M&A: recording triggered by motion detection and alarm.

Step 5 Select a day and click-and-drag the mouse on the time bar to set the record schedule. Step 6 Repeat the above steps to schedule recording or capture for other days in the week.

Network Video Recorder User Manual

The all-day continuous recording is configured for the device by factory default.

Step 7 Click Apply to save the settings.

To enable Motion, Alarm, M | A (motion or alarm), M & A (motion and alarm) and Event triggered recording and capture, you must configure the motion detection settings, alarm input settings and other events as well. Please refer to Chapter 10 and Chapter 12 for details.

7.5 Configure Continuous Recording

Step 1 Go to Camera > Encoding Parameters > Recording Parameters. Step 2 Set the continuous main stream/sub-stream recording parameters for the camera. Step 3 Go to Storage > Recording Schedule. Step 4 Select the recording type to Continuous. Step 5 Drag the mouse on the time bar to set the continuous recording schedule. Refer to Chapter 7.4

Configure Recording Schedule for details.

7.6 Configure Motion Detection Triggered Recording

You can configure the recording triggered by the motion detection event.

Step 1 Go to System > Event > Normal Event > Motion Detection. Step 2 Configure the motion detection and select the channel (s) to trigger the recording when motion

event occurs. Refer to Chapter 11.3 Configure Motion Detection Alarm for details.

Step 3 Go to Camera > Encoding Parameters > Recording Parameters. Step 4 Set the event main stream/sub-stream recording parameters for the camera. Step 5 Go to Storage > Recording Schedule. Step 6 Select the recording type to Motion. Step 7 Drag the mouse on the time bar to set the motion detection recording schedule. Refer to

Chapter 7.4 Configure Recording Schedule for details.

7.7 Configure Event Triggered Recording

You can configure the recording triggered by the motion detection, motion detection and alarm, face detection, vehicle detection, line crossing detection, etc.

Network Video Recorder User Manual

Step 1 Go to System > Event. Step 2 Configure the event detection and select the channel (s) to trigger the recording when event

occurs. Refer to Chapter 10 and Chapter 12 VCA Event Alarm for details.

Step 3 Go to Camera > Encoding Parameters > Recording Parameters. Step 4 Set the event main stream/sub-stream recording parameters for the camera. Step 5 Go to Storage > Recording Schedule. Step 6 Select the recording type to Event. Step 7 Drag the mouse on the time bar to set the event detection recording schedule. Refer to Chapter

7.4 Configure Recording Schedule for details.

7.8 Configure Alarm Triggered Recording

You can configure the recording triggered by the motion detection, face detection, vehicle detection, line crossing detection, etc.

Step 1 Go to System > Event > Normal Event > Alarm Input. Step 2 Configure the alarm input and select the channel (s) to trigger the recording when alarm occurs.

Refer to Chapter 10 and Chapter 12 VCA Event Alarm for details.

Step 3 Go to Camera > Encoding Parameters > Recording Parameters. Step 4 Set the event main stream/sub-stream recording parameters for the camera. Step 5 Go to Storage > Recording Schedule. Step 6 Select the recording type to Alarm Step 7 Drag the mouse on the time bar to set the alarm recording schedule. Refer to Chapter 7.4

Configure Recording Schedule for details.

7.9 Configure Picture Capture

The picture refers to the live picture capture in continuous or event recording type.

Step 1 Go to Camera > Encoding Parameters > Capture. Step 2 Set the picture parameters.

 Resolution: set the resolution of the picture to capture.  Picture Quality: set the picture quality to low, medium or high. The higher picture quality results

in more storage space requirement.

 Interval: the interval of capturing live picture.

Step 3 Go to Storage > Capture Schedule.

Network Video Recorder User Manual

Step 4 Select the camera to configure the picture capture.

Figure 7-11 Set Picture Capture Schedule

Step 5 Set the picture capture schedule. Refer to Chapter 7.4 Configure Recording Schedule for details.

7.10 Configure Holiday Recording and Capture

Purpose:

Follow the steps to configure the record or capture schedule on holiday for that year. You may want to have different plan for recording and capture on holiday.

Step 1 Go to System > Holiday Settings. Step 2 Select a holiday item from the list and click .

Step 3 Check the Enable to configure the holiday.

Network Video Recorder User Manual

Figure 7-12 Edit Holiday Settings

1) Edit the holiday name.

2) Select the mode to by date, by week or by month.

3) Set the start and end date of the holiday.

4) Click OK.

Step 4 Set the schedule for the holiday recording. Refer to Chapter 7.4 Configure Recording Schedule

for details.

Network Video Recorder User Manual

7.11 Configure Redundant Recording and Capture

Purpose:

Enabling redundant recording and capture, which means saving the record files and captured pictures not only in the R/W HDD but also in the redundant HDD, will effectively enhance the data safety and reliability. .

You must set the storage mode to Group before you set the HDD property to Redundancy. For detailed information, please refer to Chapter 7.2.1 Configure HDD Group. There should be at least another HDD which is in Read/Write status.

Step 1 Go to Storage > Storage Device.

Step 2 Select a HDD from the list and Click to enter the Local HDD Settings interface. Step 3 Set the HDD property to Redundancy.

Figure 7-13 HDD Property-Redundancy

Step 4 Go to Storage > Schedule Settings > Record Schedule/Capture Schedule. Step 5 Click Advanced to set the camera recording parameters.

Network Video Recorder User Manual

Figure 7-14 Record Parameters

Step 6 Check the checkbox of Redundant Record/Capture. Step 7 Click OK to save settings.

Network Video Recorder User Manual

Chapter 8 Disk Array

Purpose:

Disk array is a data storage virtualization technology that combines multiple physical disk drive components into a single logical unit. An array stores data over multiple HDDs to provide enough redundancy so that data can be recovered if one disk fails. Data is distributed across the drives in one of several ways called "RAID levels", depending on what level of redundancy and performance is required.

8.1 Create Disk Array

Purpose:

The device supports the disk array that is realized by software. You can enable the RAID function as required. Two ways are available for creating array: one-touch configuration and manual configuration. The following flow chart shows the process of creating array.

8.1.1 Enable RAID

Purpose:

Perform the following steps to enable the disk array function.

Step 1 Go to Storage > Advanced.

Figure 8-1 Advanced Step 2 Check Enable RAID.

Step 3 Click Apply. Step 4 Reboot device to take effect the settings.

Network Video Recorder User Manual

8.1.2 One-Touch Creation

Purpose:

One-touch configuration helps you to quickly create the disk array. By default, the array type created by one-touch configuration is RAID 5.

Before you start:

 Enable RAID function. For details, refer to Chapter 8.1.1 Enable RAID.  Install at least 3 HDDs. If more than 10 HDDs are installed, 2 arrays will be created. To maintain

reliable and stable running of the HDDs, it is recommended to use enterprise-level HDDs with the same model and capacity.

Step 1 Go to Storage > RAID Setup > Physical Disk.

Figure 8-2 Physical Disk

Step 2 Click One-touch Config. Step 3 Edit the array name in Array Name text filed and click OK to start configuring.

If you install 4 HDDs or more, a hot spare disk for array rebuilding will be created.

Step 4 A message box will pop up when the array creation is completed, click OK on it. Step 5 Optionally, the device will automatically initialize the created array. Go to Storage > RAID

Setup > Array view the information of created arrray.

8.1.3 Manual Creation

Purpose:

Manually create the array of RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10.

Step 1 Go to Storage > RAID Setup > Physical Disk. Step 2 Click Create.

Network Video Recorder User Manual

RAID Level

Required Number of HDD

RAID 0

At least 2 HDDs.

RAID 1

At least 2 HDDs.

RAID 5

At least 3 HDDs.

RAID 6

At least 4 HDDs.

RAID 10

The number of HDD must be an even ranges from 4 to 16.

Table 8-1 Create Array Step 3 Enter the array name. Step 4 Select RAID Level as RAID 0, RAID 1, RAID 5, RAID 6, or RAID 10 as required. Step 5 Select the physical disks to constitute array.

Table 8-2 Required Number of HDD

Step 6 Click OK. Step 7 Optionally, the device will automatically initialize the created array. Go to Storage > RAID

Setup > Array view the information of created arrray.

Figure 8-3 Array List

Network Video Recorder User Manual

8.2 Rebuild Array

Purpose:

The status of array includes Functional, Degraded and Offline. To ensure the high security and reliability of the data stored in array, you should take immediate and proper maintenance at arrays according their status.

 Functional: No disk loss in the array.  Offline: The number of lost disks has exceeded the limit.  Degraded: If amount of HDD fail in array, array degrades. You should recover it to Functional by

array rebuilding.

8.2.1 Configure Hot Spare Disk

Purpose:

Hot spare disks are required for disk array automatic rebuilding.

Step 1 Go to Storage > RAID Setup > Physical Disk.

Figure 8-4 Physical Disk

Step 2 Click of an available HDD to set it as the hot spare disk.

8.2.2 Automatically Rebuild Array

Purpose:

The device can automatically rebuild degraded arrays with the hot spare disks.

Before you start:

Create hot spare disks. For details, refer to Chapter 8.2.1 Configure Hot Spare Disk.

Step 1 The device will automatically rebuild the degraded arrays with the hot spare disks. Go to

Storage > RAID Setup > Array to view rebuilding progress.

Figure 8-5 Array List

Network Video Recorder User Manual

8.2.3 Manually Rebuild Array

Purpose:

If no hot spare disks are configured, rebuild the degraded array manually.

Before you start:

At least one available physical disk should exist for rebuilding the array.

Step 1 Go to Storage > RAID Setup > Array.

Figure 8-6 Array List

Step 2 Click of degraded array.

Figure 8-7 Rebuild Array

Step 3 Select the available physical disk. Step 4 Click OK. Step 5 Click OK on the pop up message box “Do not unplug the physical disk when it is under

rebuilding”.

Network Video Recorder User Manual

8.3 Delete Array

Deleting array will delete all the data saved in it.

Step 1 Go to Storage > RAID Setup > Array.

Step 2 Click of array to delete.

Figure 8-8 Array List

Step 3 Click Yes on the popup message box.

Figure 8-9 Attention

Network Video Recorder User Manual

8.4 Check and Edit Firmware

Purpose:

You can view the information of the firmware and set the background task speed on the Firmware interface.

Step 1 Go to Storage > RAID Setup > Firmware.

Figure 8-10 Firmware

Step 2 Optionally, set the Background Task Speed. Step 3 Click Apply.

Network Video Recorder User Manual

Chapter 9 File Management

9.1 Search and Export All Files

9.1.1 Search Files

Purpose

Specify detailed conditions to search videos and pictures.

Step 1 Go to File Management > All Files. Step 2 Specify detailed conditions, including time, camera, event type, etc.

Figure 9-1 Search All Files

Step 3 Click Search to display results. The matched files will be displayed.

9.1.2 Export Files

Purpose

Export files for backup purposes using USB device (USB flash drive, USB HDD, USB optical disc drive), SATA optical disc drive or eSATA HDD.

Step 1 Search files to export. For details, see 9.1.1 Search Files. Step 2 Click to select files and click Export. Step 3 Select the file to export as Video and Log and click OK. Step 4 Click OK to export files to backup device.

Network Video Recorder User Manual

9.2 Search and Export Human Files

9.2.1 Search Human Files

Purpose

Specify detailed conditions to search human pictures and videos.

Before you start

Configure human body detection function for the cameras you want to search and export human pictures and videos.

Step 1 Go to File Management > Human Files. Step 2 Select Time and Camera to search.

Figure 9-2 Search Human Files

Step 3 Click Search to display results. The matched files are displayed in thumbnail or list. Step 4 Select Target Picture or Source Picture in menu bar to display related pictures only.

 Target Picture: Display the search results of people close-up.  Source Picture: Display the search results of original picture captured by camera.

9.2.2 Export Human Files

Purpose

Export files for backup purposes using USB device (USB flash drive, USB HDD, USB optical disc drive), SATA optical disc drive or eSATA HDD.

Step 1 Search for the human files to export. For details, see 9.2.1 Search Human Files. Step 2 Click to select files and click Export. Step 3 Select the file to export as Video and Log and click OK. Step 4 Click OK to export files to backup device.

Network Video Recorder User Manual

9.3 Search and Export Vehicle Files

9.3.1 Search Vehicle Files

Purpose

Specify detailed conditions to search vehicle pictures and videos.

Before you start

Configure vehicle detection function for the cameras you want to search and export vehicle pictures and videos.

Step 1 Go to File Management > Vehicle Files. Step 2 Specify detailed conditions, including Time, Camera, Plate No., and Area/Country.

Figure 9-3 Search Vehicle Files

Step 3 Click Search to display results. The matched files are displayed in thumbnail or list. Step 4 Select Target Picture or Source Picture in menu bar to display related pictures only. Select

Video or Picture to specify the file type.

 Target Picture: Display the search results of vehicle close-up.  Source Picture: Display the search results of original picture captured by camera.

9.3.2 Export Vehicle Files

Purpose

Export files for backup purposes using USB device (USB flash drive, USB HDD, USB optical disc drive), SATA optical disc drive or eSATA HDD.

Step 1 Search for the vehicle files to export. For details, see 9.3.1 Search Vehicle Files. Step 2 Click to select files and click Export. Step 3 Select the file to export as Video and Log and click OK.

Step 4 Click OK to export files to backup device.

Network Video Recorder User Manual

9.4 Search History Operation

9.4.1 Save Search Condition

Purpose

You can save the search conditions for future reference and quick search.

Step 1 Go to File Management > All Files/People Appearance File/Vehicle File. Step 2 Set the search conditions. Step 3 Click Save. Step 4 Enter a name in text field and click Finished. The saved search conditions will be displayed in

search history list.

9.4.2 Call Search History

Purpose:

You can quickly search files by calling search history.

Step 1 Go to File Management > All Files/Human Files/Vehicle Files. Step 2 Click a search conditon to quickly search files.

Network Video Recorder User Manual

Chapter 10 Playback

10.1 Play Video Files

10.1.1 Instant Playback

Instant Playback enables the device to play the recorded video files in last five minutes. If no video is found, it means there is no recording during the last five minutes.

Step 1 On the live view window of the selected camera, move the cursor to the window bottom to

access the toolbar.

Step 2 Click to start instant playback.

Figure 10-1 Playback Interface

10.1.2 Play Normal Video

Step 1 Go to Playback. Step 2 Check one or more cameras in the camera list to start playing the video. Step 3 Select a date in the calendar.

 Use the toolbar in the bottom part of playback interface to control the playing and realize a

series of operations. Refer to Chapter 10.2 Playback Operations 8.2.

Network Video Recorder User Manual

Figure 10-2 Playback Interface

Figure 10-3 Toolbar of Playback

 Click the channel(s) to execute simultaneous playback of multiple channels.

The playing speed of 256X is supported.

10.1.3 Play Smart Searched Video

In the smart playback mode, the device can analyze the video containing the motion, line or intrusion detection information, mark it in red color and play the smart searched video.

The smart playback must be in the single-channel playing mode.

Step 1 Go to Playback. Step 2 Start playing the video of camera. Step 3 Click Smart. Step 4 From the toolbar at the bottom of the playing window, click the motion/line crossing/ intrusion

icon for search.

Network Video Recorder User Manual

Figure 10-4 Playback by Smart Search

Step 5 Set the rules and areas for smart search of line crossing detection, intrusion detection or

motion detection event triggered recording.

 Line Crossing Detection

5) Click the icon.

6) Click on the image to specify the start point and end point of the line.

 Intrusion Detection

7) Click the icon.

8) Specify 4 points to set a quadrilateral region for intrusion detection. Only one region can be set.

 Motion Detection

9) Click the icon.

10) Hold the mouse on the image to draw the detection area manually.

11) Click Search to search the matched video and start to play it.

10.1.4 Play Custom Searched Files

You can play the files by custom search with different conditions.

Step 1 Go to Playback. Step 2 Select a camera or cameras from the list. Step 3 Click Custom Search on the left bottom to enter the Search Condition interface. Step 4 Enter the search conditions for the files, e.g., time, file status, event type, etc.

Step 5 Click Search.

Network Video Recorder User Manual

Figure 10-5 Custom Search

Figure 10-6 Custom Searched Video Files

Step 6 On the search results interface, select a file and click to start playing the video.

10.1.5 Video Synopsis

Purpose:

Video synopsis is an approach to create a short video summary of a long video. It tracks and analyzes moving objects (also called events), and converts video streams into a database of objects and activities.

Before you start:

Enable Dual-VCA and intrusion detection/line crossing detection on the network camera.

Step 1 Go to Playback interface.

Step 2 Click in toolbar.

Network Video Recorder User Manual

Figure 10-7 Synopsis Playback

Step 3 Select a camera in channel list. Step 4 Specify Start Time and End Time. The duration must be within 24 hours. Step 5 Click Search to start play. Step 6 Optionally, double click a target on the playback window. A 60-second video of 30 seconds

before and after the time will be played.

10.1.6 Play Tag Files

Purpose:

Video tag allows you to record related information like people and location of a certain time point during playback. You can use video tag(s) to search for video files and position time point.

Before playing back by tag:

Add Tag Files

Step 1 Go to Playback. Step 2 Search and play back the video file(s).

Step 3 Click to add the tag. Step 4 Edit the tag information. Step 5 Click OK.

Network Video Recorder User Manual

Max. 64 tags can be added to a single video file.

Edit Tag Files

Step 1 Go to Playback. Step 2 Click Tag.

The available tags are white marked and displayed in the time bar.

Step 3 Point the white marked tag in the time bar to access the tag information.

Figure 10-8 Edit Tag Files

Step 4 Click to edit the tag name. Step 5 Click OK.

Play Tag Files

Step 1 Go to Playback. Step 2 Click Custom Search on the left bottom to enter the Search Condition interface. Step 3 Enter the search conditions for the tag files, including the time and the tag keyword.

Step 4 Click Search.

Network Video Recorder User Manual

Figure 10-9 Tag Search

Figure 10-10 Searched Tag Files

Step 5 On the search results interface, select a tag file and click to start playing the video.

10.1.7 Play Event Files

Purpose

Play back video files on one or several channels searched by event type (e.g., alarm input, motion detection, line crossing detection, face detection, vehicle detection, etc.).

Step 1 Go to Playback. Step 2 Click Custom Search on the left bottom to enter the Search Condition interface. Step 3 Enter the search conditions for the event files, e.g., time, event type, file status, vehicle

information (for vehicle detection event), etc.

Step 4 Click Search.

Network Video Recorder User Manual

Step 5 On the search results interface, select an event video file/picture file and double click to start

playing the video.

Figure 10-11 Event Files

Step 6 You can click or button to play 30s backward or forward.



Refer to Chapter 10 and Chapter 12 VCA Event Alarm for details for event and alarm settings.



Refer to Chapter 7.7 Configure Event Triggered Recording for the event triggered recording/capture settings.

10.1.8 Play by Sub-periods

Purpose:

The video files can be played in multiple sub-periods simultaneously on the screens.

Step 1 Go to Playback.

Step 2 Select icon at the left bottom corner to enter the sub-period playing mode. Step 3 Select a camera. Step 4 Set the start time and end time for searching video. Step 5 Select the different multi-period at the right bottom corner, e.g., 4-Period.

Network Video Recorder User Manual

According to the defined number of split-screens, the video files on the selected date can be divided into average segments for playback. E.g., if there are video files existing between 16:00 and 22:00, and the 6-screen display mode is selected, then it can play the video files for 1 hour on each screen simultaneously.

10.1.9 Play Log Files

Purpose:

Play back record file(s) associated with channels after searching system logs.

Step 1 Go to Maintenance>Log Information. Step 2 Click Log Search tab to enter Playback by System Logs. Step 3 Set search time and type and click Search.

Figure 10-12 System Log Search Interface

Step 4 Choose a log with video file and click to start playing the log file.

10.1.10 Play External File

Purpose:

You can play files from the external storage devices.

Before You Start:

Connect the storage device with the video files to your device.

Network Video Recorder User Manual

Step 1 Go to Playback.

Step 2 Click the icon at the left bottom corner. Step 3 Select and click the button or double click to play the file.

10.2 Playback Operations

10.2.1 Set Play Strategy in Smart/Custom Mode

Purpose:

When you are in the smart or custom video playback mode, you can set the playing speed separately for the normal video and the smart/custom video, or you can select to skip the normal video.

In the Smart/Custom video playback mode, click to set the play strategy.

 When Do not Play Normal Videos is checked, the device will skip the normal video and play

the smart (motion/line crossing/intrusion) video and the custom (searched video) only in the normal speed (X1).

 When Do not Play Normal Videos is unchecked, you can set the play speed for the normal

video the smart/custom video separately. The speed range is from X1 to XMAX.

You can set the speed in the single-channel play mode only.

Figure 10-13 Play Strategy

10.2.2 Edit Video Clips

You can take video clips during the playback and export the clips.

In the video playback mode, click to start video clipping operation.

Network Video Recorder User Manual

 : Set the start time and end time of the video clipping.

 : Export the video clips to the local storage device.

10.2.3 Switch between Main Stream and Sub-Stream

You can switch between the main stream and the sub-stream during the playback.

: Play the video in main stream.

: Play the video in sub-stream.

The encoding parameters for the main stream and sub-stream can be configured in Storage > Encoding Parameters.

10.2.4 Thumbnails View

With the thumbnails view on the playback interface, you can conveniently locate the required video files on the time bar.

In the video playback mode, move the mouse to the time bar to get the preview thumbnails of the video files.

Figure 10-14 Thumbnails View

You can select and click on a required thumbnail to enter the full-screen playback.

10.2.5 Fisheye View

You can enter the fisheye expansion view during the video playback.

Click the to enter the fisheye expansion mode.

 180° Panorama ( ): Switch the live view image to the 180° panorama view.
