DS-90xxHUHI-F8/N Series
Available Models:
F4/N
TurboHD DVR
• H.264+ and Dual-Stream Video Compression
• Hot-Swappable HDD Support for RAID 0,
RAID 1, RAID 5, RAID 6, and RAID 10
• Full Channel Recording at up to 3 MP
• Full Channel 1080p Real-Time Recording
• HDMI1 and VGA Output up to 1920 x 1080
• HDMI2 Output up to 3840 x 2160
• Long Over-the-Coax Transmission Distance
• 8/16-ch Synchronous Playback
TurboHD DS-90xxHUHI-F8/N Series DVRs
feature support of HD-TVI, CVBS and IP
cameras on up to 16 channels. They offer long
transmission distances and feature H.264+
compression technology, which improves
recording efficiency and reduces data storage
costs.
Additionally, the DS-90xxHUHI-F8/N Series
DVRs support advanced analytics such as line
crossing, intrusion, scene change detection,
people counting, heat map functionality, and
Video Quality Diagnostics (VQD).
DS-9008HUHI-F8/N
DS-9016HUHI-
Specifications
DS-9008HUHI-F8/N
DS-9016HUHI-F8/N
Video / Audio Input
Video Compression
H.264+ / H.264
Analog Video Input
8-ch
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting UTC (Up-the-Coax) connection
HD-TVI Input
3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Supported
IP Video Input
10-ch (up to 18-ch)
18-ch (up to 32-ch)
Up to 8 MP resolution
H.265 / H.264+ / H.264
Network Bandwidth
260 Mbps
320 Mbps
Audio Compression
G.711u
Audio Input
8-ch, RCA (2.0 Vp-p, 1KΩ)
16-ch, (RCA (2.0 Vp-p, 1KΩ)
Video / Audio Output
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1 / VGA Output
1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
HDMI2 / VGA Output
1-ch, 4 K (3840 × 2160) / 30 Hz, 2 K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz,1280 × 720 / 60 Hz, 1024 × 768 /
60 Hz
Encoding Resolution
3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate
Main stream: 3 MP@15 fps;1080p / 720p / WD1 / 4CIF / VGA / CIF@ 25 fps (P) / 30 fps (N)
Sub-stream: WD1 / 4CIF @ 12 fps; CIF / QVGA / QCIF @ 25 fps (P) / 30 fps (N)
Video Bit Rate
32 Kbps to 10 Mbps
Audio Output
2-ch (CVBS and VGA), RCA (Linear, 1 kΩ)
Audio Bit Rate
64 Kbps
Dual-Stream
Supported
Stream Type
Video, video and audio
Synchronous Playback
8-ch
16-ch
Network Management
Remote Connections
128
Network Protocols
TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF,SNMP
Hard Disk
SATA
8 SATA interfaces
eSATA
Supported
Capacity
Up to 6 TB capacity for each disk
Disk Array
Array Type
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
External Interface
Two-Way Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network Interface
2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial Interface
RS-485 (half-duplex), RS-485 (full-duplex), keyboard
Alarm In / Out
16 / 4
USB Interface
Front panel: 2 × USB 2.0; rear panel: 1 × USB 3.0
General
Power Supply
100 to 240 VAC
Consumption (without
HDD)
≤ 45 W
≤ 65 W
Working Temperature
14° F to 131° F (-10° C to 55° C)
Working Humidity
10 to 90 % non-condensing
Dimensions (W x D x H)
17.5" × 18.5" × 3.5" (445 mm x 470 mm x 90 mm)
Weight (without HDD)
≤17.6 lbs (8 kg)
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017-2019 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 032819NA

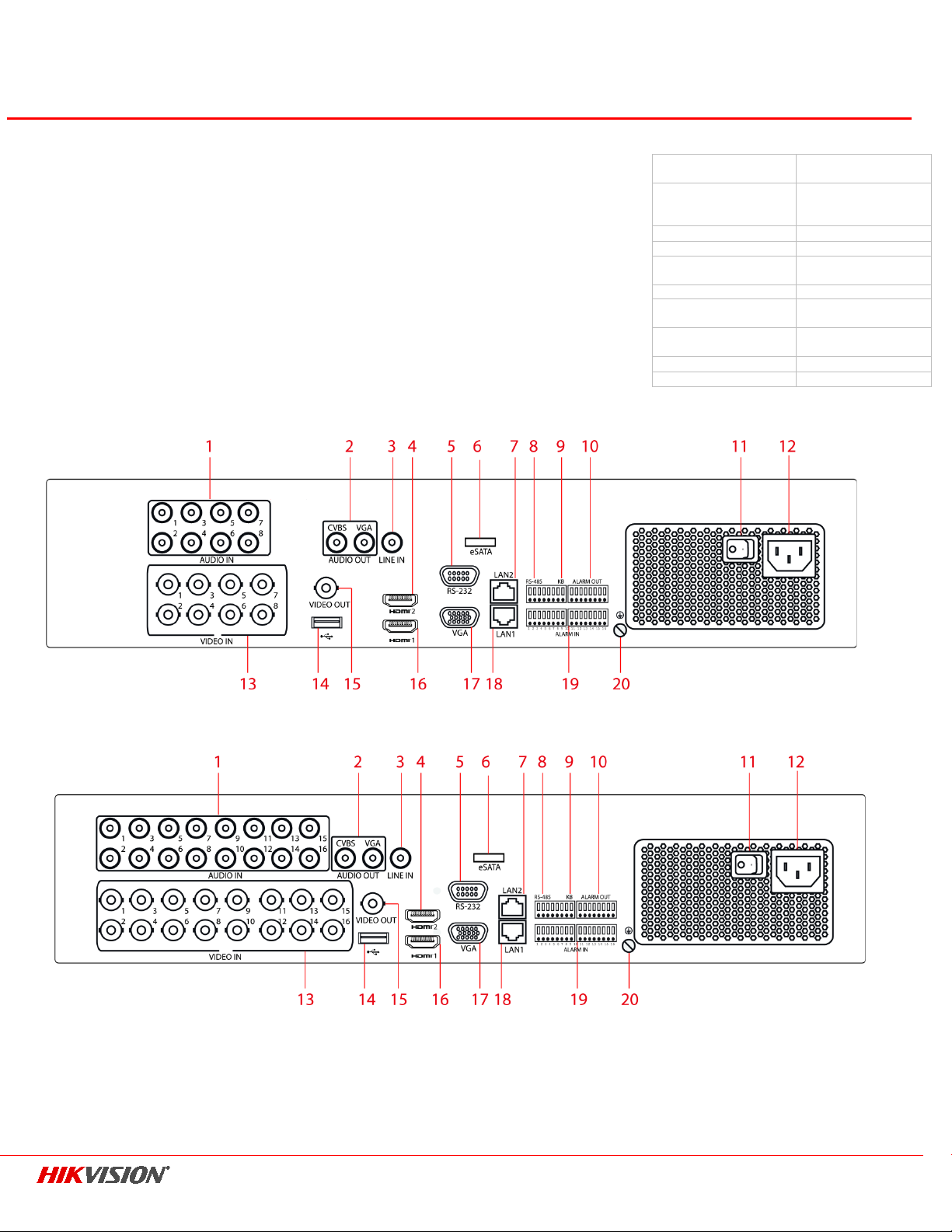

Rear Panel
1. AUDIO IN
2. CVBS AUDIO OUT
OUT
3. LINE IN
13. VIDEO IN
4. HDMI2 Interface
14. USB Port
5. RS-232 Serial
Interface
6. eSATA Interface
16. HDMI1 Interface
7. LAN2 Network
Interface
8. RS-485 Serial
Interface
18. LAN1 Network
Interface
9. Keyboard Interface
19. ALARM IN
10. ALARM OUT
20. GND
DS-9008HUHI-F8/N
DS-9016HUHI-F8/N
11. Power Switch
and VGA AUDIO
12. 100 to 240 VAC
Power Input
15. VIDEO OUT
17. VGA Port
