Hikvision DS-6301DI, DS-6304DI, DS-6308DI User Manual
DS-630XDI Series Decoder Server
USER’S MANUAL
Version 2.0.0
Hikvision® Network Digital Video Recorder User’s Manual
This manual, as well as the software described in it, is furnished under license and may be used or copied only in
accordance with the terms of such license. The content of this manual is furnished for informational use only, is
subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology
Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may
appear in the book.
Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written
permission of Hikvision.
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
REGARDING THE HIKVISION SOFTWARE. HIKVISION DOES NOT WARRANT, GUARANTEE, OR
MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE
HIKVISION SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY,
CURRENTNESS, OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF
THE HIKVISION SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS
NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.
IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE
TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES (INCLUDING
DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE HIKVISION
SOFTWARE EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
Preventive and Cautionary Tips
Before connecting and operating your DVR, please be advised of the following tips:
• Ensure unit is installed in a well-ventilated, dust-free environment.
• Keep all liquids away from the DVR.
• Please check the power supply to avoid the damage caused by voltage mismatch.
• Please make sure the DVR work in the allowed range of temperature and humidity.
• Please keep the device horizontal and avoid the installation under severe vibration environment.
• The dust board will cause a short circuit after damping; Please dedust regularly for the board, connector, chassis
fan etc with brush.
TABLE OF CONTENTS
C H A P T E R 1 ........................................................................................................................ 6
Introduction ............................................................................................................................... 6
1.1 Description ...................................................................................................................... 7
1.2 Features ........................................................................................................................... 7
C H A P T E R 2 ...................................................................................................................... 10
Structure .................................................................................................................................. 10
2.1 Front Panel .................................................................................................................... 11
2.2 Rear Panel ...................................................................................................................... 11

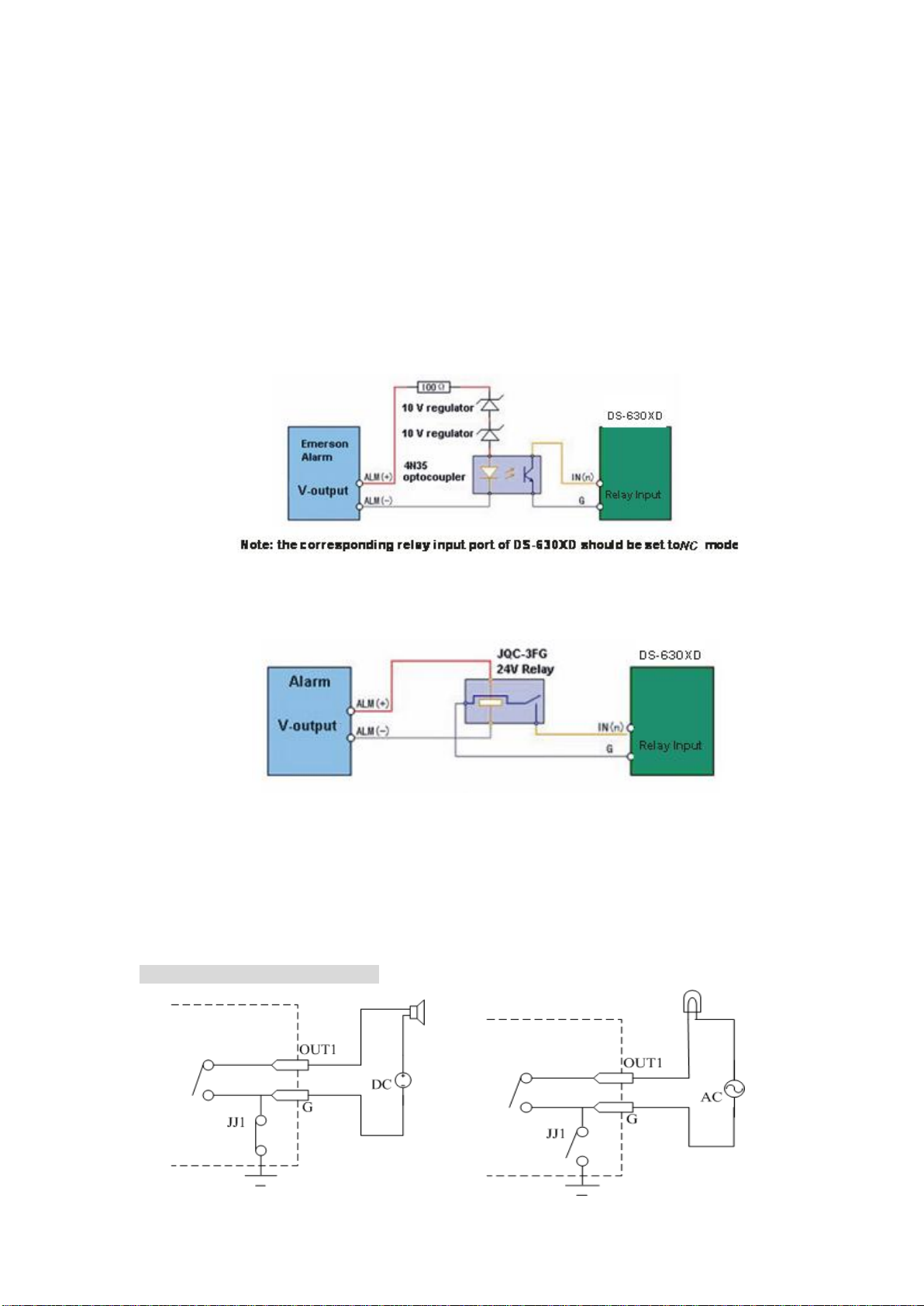

2.3 Alarm Connections ........................................................................................................ 12
2.3.1 Alarm Input Connections ....................................................................................... 12
2.3.2 Alarm Output Connections ..................................................................................... 12
2.3.3 Signal Line Connections ......................................................................................... 13
C H A P T E R 3 ...................................................................................................................... 14
Network Parameters Configuration ......................................................................................... 14

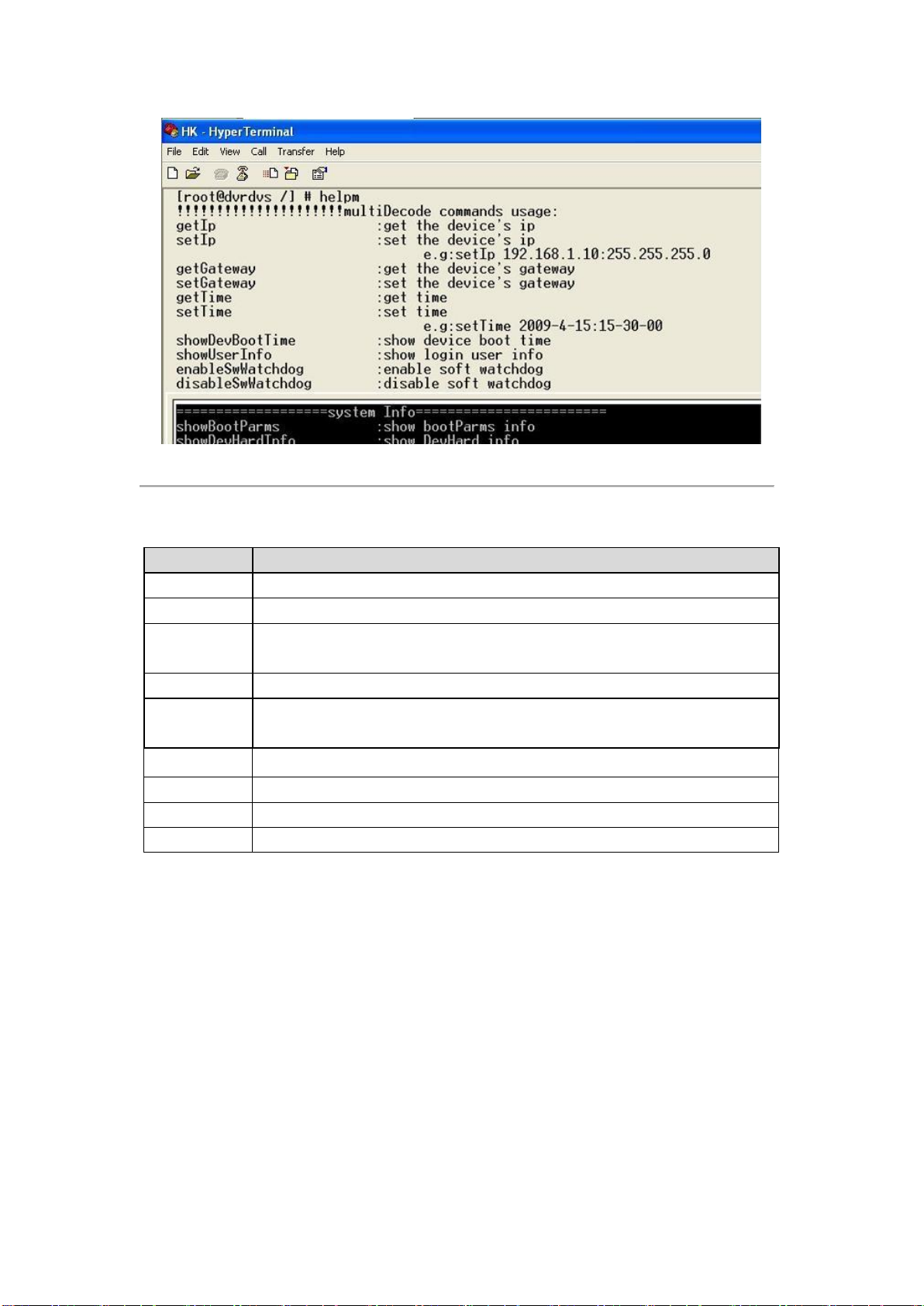

3.1 Hyper Terminal Setup ................................................................................................... 15
3.2 Network Configuration by Hyper Terminal .................................................................. 17
C H A P T E R 4 ...................................................................................................................... 19
Decoder Configuration ............................................................................................................ 19
4.1 Decoder Configure Software ......................................................................................... 20
4.2 Add Decoder .................................................................................................................. 21
4.3 Decoder Configuration .................................................................................................. 22
4.4 TV Wall Settings ........................................................................................................... 24

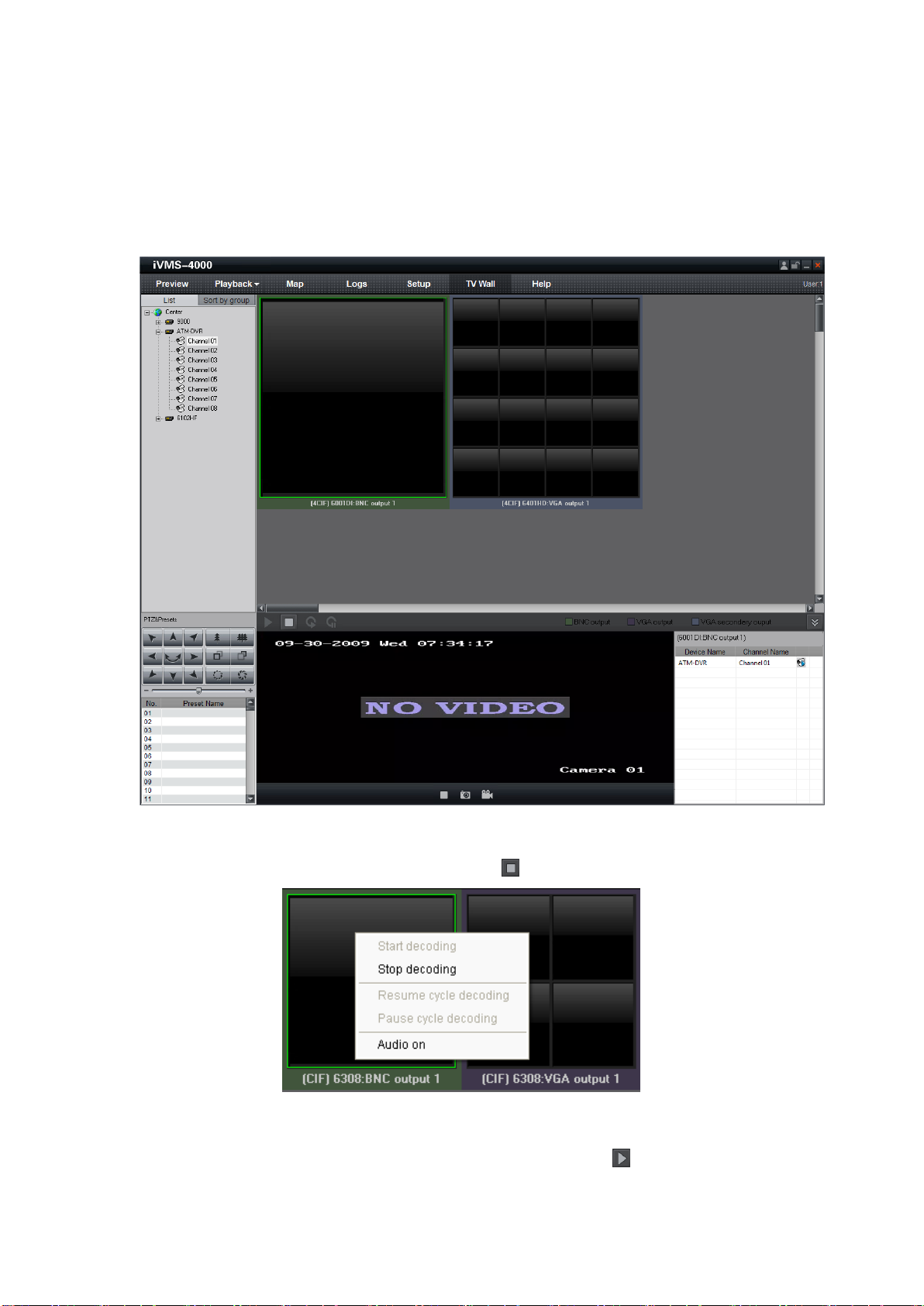

4.5 Decoder control ............................................................................................................. 26
4.5.1 Video decode control .............................................................................................. 28
4.5.2 Cycle decoding control ................................ ................................ ........................... 29
4.5.3 PTZ control ............................................................................................................. 31
C H A P T E R 5 ...................................................................................................................... 32
Appendix ................................................................................................................................. 32
Appendix A Specifications ............................................................................................... 33
Appendix B FAQ .............................................................................................................. 35
Appendix C Glossary ....................................................................................................... 36
C H A P T E R 1
Introduction
1.1 Description
Developed by Hikvision based on TI DM648 platform, DS-630XD is a kind of multi-purpose video/audio decoder
which is capable of allowing the coded images from HIK DVR/DVS or other encoding devices to be decoded and
displayed on the TV wall after transmission via IP network. Specially designed for the allocation and management
of the video surveillance system, DS-630XD supports multiple network transmission protocols, and it applies the
code downloaded in FLASH, ensuring high stability and reliability of system performance.
DS-630XD Video/Audio Decoder adopts highly integrated TI DM648 processing chip which provides powerful
decoding capability. It supports multiple bitrate transmission methods, and is capable of decoding /outputting the
high-definition 720P video stream and decoding images at 4CIF/DCIF/2CIF/CIF resolution, as well as outputting
decoded images via BNC and VGA ports simultaneously. In addition, the Decoder also provides capabilities such
as voice talk, alarm input/output, PTZ control, etc., maintaining powerful support for the large TV wall decoding
service.
1.2 Features
Decoding
Decoding images and audio
Support HIK H.264, standard H.264 and MPEG4 image compression formats;
Support PS, RTP and HIK customized encapsulation formats
Support PAL and NTSC image formats
Support decoding at 720P, VGA, SVGA, 4CIF, 2CIF, DCIF, CIF and QCIF image resolutions
Support audio decoding at OggVorbis formats
Decoding Resources
DS-6308DI is capable of decoding 16 streams at CIF/8 streams at 4CIF/4 streams at 720P, and it adopts 8
BNC and 4 VGA outputs, of which BNC output supports 1/2/4 multi-camera display and main VGA output
supports 1/2/4/9/16 multi-camera display, and other VGA outputs support 1/2/4 multi-camera display.
DS-6304DI is capable of decoding 8 streams at CIF/4 streams at 4CIF/2 streams at 720P, and it adopts 4 BNC
and 2 VGA outputs, of which BNC output supports 1/2/4 multi-camera display, main VGA output supports
1/2/4/9 multi-camera display, other VGA output support 1/2/4 multi-camera display.
DS-6301DI is capable of decoding 4 streams at CIF/2 streams at 4CIF/1 streams at 720P, and it adopts 1 BNC
and 1 VGA output, of which BNC output support 1/2/4 multi-camera display, main VGA output supports
1/2/4 multi-camera display.
Decoding Mode
Multiple bitrate transmission methods: support TCP, UDP, multi-cast and RTP transmission methods when
the HIK customized protocols are adopted; and support RTP over TCP and RTP over UDP when standard
H.264 and MPEG4 are adopted.
Dynamic decoding: dynamically input encoder’s IP address and switch decoding channels; maintain rapid
decoding and switch.
Cycle decoding: set multiple remote monitoring channels on a decoding channel, and the decoder is capable of
performing cycle decoding according to the configured sequence and time. The stream sources can be obtained
via remote access to the encoder or stream media server and decoded for local output. A maximum of 64
channels are allowed for cycle decoding.
Obtain stream from stream media: receive real-time data by remote access to HIK stream media server, and
then decode stream for local output.
Remote playback of encoder’s record files: by remote access to the encoder with storage capability, and
directly obtain the record files from the encoder, and finally decode for local output.
Passive decoding: the decoder passively receives stream sources, and then proceeds decoding and transmission.
Passive decoding supports TCP and UDP transmission modes.
Network
One 10/100/1000Mbps self-adaptive UTP Ethernet interface
Support TCP/IP, UDP and RTP network protocols.
Get allocated IP address, sub mask and gateway via DHCP server.
Accomplish auto time adjustment for decoder through NTP protocol
Support DDNS capability
Capable of searching decoder in real time through SADP software, as well as modifying the IP address, sub
mask, gateway of decoder and some other parameters.
Capable of accessing decoder by TELNET command to view device information, modify network
parameters, etc.
Alarm
Relay Alarm Input
The decoder provides alarm input/output ports in relay signal input mode which can be set to NO or NC. Four
different arming periods can be set, in which the alarm occurs, the device is capable of triggering corresponding
alarm handling method, relay output and buzzer alarm, as well as upload to center, etc.
Relay Alarm Output
The relay alarm output can be connected to alarm devices for alarm response actions, e.g., combined aural and
visual alarm unit, etc., which is capable of proceeding alarm handling within the arming period.
Exception Handling
Exception Alarm Handling
Exception alarms include network disconnect alarm, IP address conflict alarm, illegal access alarm, etc.;
multiple alarm handling methods are supported: relay alarm output, buzzer alarm, upload to center, etc.
Exception Reboot
Software watchdog capability: for inspecting important threads and system resources of device; in case of
exceptions cannot recovered, the device will be automatically rebooted.
Firmware watchdog: for inspecting the firmware of device; in case of exceptions in system task scheduling, the
device will be automatically rebooted.
User Administration
A maximum of 32 users can be created by the system, including 1 administrator and 31 users. The user name of
the administrator is admin, which cannot be modified, and the password is allowable to be modified by the
administrator only; no deletion of the administrator is allowed, and the administrator is authorized to set the
operation permissions for normal users.
SDK Interface
Transparent Channel
The decoder adopts the RS232/RS485 serial interface to realize transparent transmission. The data sent
remotely to the decoder via network can be transmitted by RS232/RS485 interface of decoder without any
handling, and the transparent channel of the decoder supports multi-cast transparent transmission as well, and
multiple transparent channels can be established simultaneously.
PTZ Control
Through SDK transparent channel, the PTZ of DVR or DVS can be remotely controlled.
Voice Talk
The decoder is capable of realizing voice talk with the remote client. When the client has submitted application,
the voice talk between the client and decoder is created.
C H A P T E R 2
Structure
2.1 Front Panel
Interface
Connections
1
VIDEO/AUDIO OUT
BNC connectors for video/audio output
2
LINE IN
1 BNC connector for voice talk audio in, connects to active audio input device.
3
LINE OUT
1 BNC connector for voice talk audio out, connects to audio output device, e.g.
sound box.
4
AUDIO-1 to AUDIO-4
The corresponding audio outputs of VGA1 to VGA4, BNC interface, connect
to audio output device.
5
VGA
VGA1 to VGA4 connect to monitor
6
RS232
Connect to RS-232 devices, e.g., PC, etc.
7
LAN
10/100/1000Mbps self-adaptive UTP Ethernet interface
8
RS-485
RS-485 data connector
9
ALAM IN
8 alarm inputs
10
ALAM OUT
8 alarm outputs
11
POWER
12V DC power supply
12
GND
Ground
2.2 Rear Panel
DS-6308D Rear Panel
