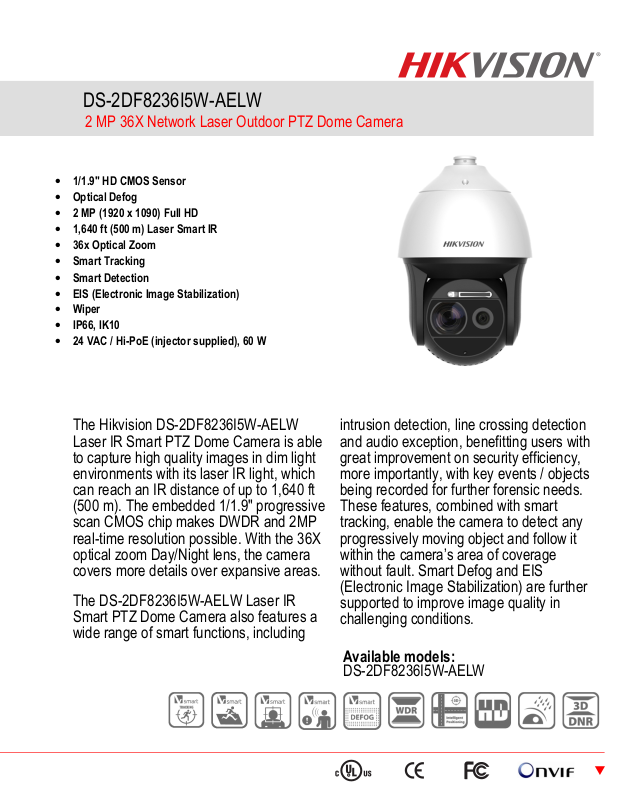

Hikvision DS-2DF8236I5W-AELW Specsheet
Available models:
DS-2DF8236I5W
-
AELW
DS-2DF8236I5W-AELW
2 MP 36X Network Laser Outdoor PTZ Dome Camera
• 1/1.9" HD CMOS Sensor
• Optical Defog
• 2 MP (1920 x 1090) Full HD
• 1,640 ft (500 m) Laser Smart IR
• 36x Optical Zoom
• Smart Tracking
• Smart Detection
• EIS (Electronic Image Stabilization)
• Wiper
• IP66, IK10
• 24 VAC / Hi-PoE (injector supplied), 60 W
The Hikvision DS-2DF8236I5W-AELW
Laser IR Smart PTZ Dome Camera is able
to capture high quality images in dim light
environments with its laser IR light, which
can reach an IR distance of up to 1,640 ft
(500 m). The embedded 1/1.9" progressive
scan CMOS chip makes DWDR and 2MP
real-time resolution possible. With the 36X
optical zoom Day/Night lens, the camera
covers more details over expansive areas.
The DS-2DF8236I5W-AELW Laser IR
Smart PTZ Dome Camera also features a
wide range of smart functions, including
intrusion detection, line crossing detection
and audio exception, benefitting users with
great improvement on security efficiency,
more importantly, with key events / objects
being recorded for further forensic needs.
These features, combined with smart
tracking, enable the camera to detect any
progressively moving object and follow it
within the camera’s area of coverage
without fault. Smart Defog and EIS
(Electronic Image Stabilization) are further
supported to improve image quality in
challenging conditions.
Specifications
DS-2DF8236I5W
-
AELW
Camera Module
Image Sensor
1/1.9" Progressive Scan CMOS
Minimum Illumination
Color: 0.002
lux @ (F1.5, AGC ON), B/W : 0.0002 lux @ (F1.5, AGC ON), 0 lux with IR
Maximum Image Resolution
1920 × 1080
Focal Length
5.7 mm to 205 mm, 36x
Digital Zoom
16x
Zoom Speed
Approximately 7.4 s (optical wide
-
tele)
Angle of View
62.0 to
2.0 (
wide-tele)
Minimum Working Distance
10
to
1500 mm (
wide-tele)
Aperture Range
F1.5 to
F4.5
Focus Mode
Auto / semiautomatic / manual
WDR 120 dB
Shutter Time
50
Hz: 1 to 1 / 30,000
s; 60 Hz: 1 to
1 / 30,000 s
AGC Auto / Manual
White Balance
Auto /
manual / ATW /
indoor / outdoor / daylight lamp / sodium lamp
Day & Night
IR
cut filter
Privacy Mask
8 privacy masks programmable; optional multiple colors and mosaics
Optical Defog
Support
ed
Enhancement
3D DNR, EIS, HLC/BLC, SVC
Pan and Tilt
Range Pan: 360°
endless; Tilt:
-
20° to 90° (auto flip)
Speed Pan manual speed: 0.1° to 160°/s, pan preset speed: 240°/s
Number of Presets
300
Patrol 8 patrols, up to 32 presets per patrol
Pattern
4 patterns,
with the recording time not less than 10 minutes per pattern
Park Action
Preset /
patrol / pattern / auto scan / tilt scan / random scan / frame scan / panorama scan
Scheduled Task
Preset /
patrol / pattern / auto scan / tilt scan / random scan / frame
scan / panorama scan / dome reboot / dome adjust / aux output
Smart Features
Smart Tracking
Manual / panorama / intrusion trigger / line crossing trigger / region entrance trigger / region exiting trigger / smart trac
king when patrol between
Smart
Detection
Intrusion detection, line crossing detection, audio exception detection, region entrance detection, region exiting detection
ROI encoding
Support 24 areas with adjustable levels
Infrared
IR Distance
Up to 1640 ft (500 m)
IR
Intensity
Automatically adjusted, depending on the zoom ratio
Alarm
Alarm I/O
7/2
I
ntrusion detection, line crossing detection, r
egion entrance, region exiting,
audio exception detection, motion detection, dynamic analysis,
Alarm Action
Preset, patrol, pattern, microSD/SDHC card recording, relay output, notification on client, send email
, upload to FTP, trigger channel
Input / Output
Monitor Output
Monitor Output 1.0
V [p-p] / 75 Ω, NTSC (or PAL) composite, BNC (S/N ratio
≥
55dB)
Audio Input
1 microphone in / line in interface, line input: 2 to 2.4 V [p
-
p]; output impedance: 1 K
Ω
, ±10%
Audio Output
1 Audio output interface, line level, impedance: 600
Ω
Network
Ethernet
10 Base
-
T / 100Base
-
TX, RJ45 connector
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 50 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz:
30 fps (1920 × 1080, 1280 × 960,
Sub Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960,
1280 × 720, 704 × 576, 640 x 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720,
Image Compression
H.264 / MJPEG / encoding with baseline / main / high profile
Audio Compression
G.711 alaw / G.711 ulaw /
G.722 / G.726 / MP2L2 / PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View
Up to 20
users
Mini SD Memory Card
Support
for
microSD / SDHC / SDXC
card
s up to 128 GB;
Support
for Edge recording
User/Host Level
Up to 32 users, 3 levels: administrator, operator and user
Security Measures
User authentication (ID and PW); host authentication (MAC address); IP address filtering
System Integration
Application programming
Open-ended API, support
for ONVIF, PSIA, CGI
, and Genetec
Web Browser
IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, multi
-
language
support
RS-485 Protocols
HIKVISION, Pelco
-
P, Pelco
-
D, self-adaptive
Power
24 VAC and Hi
-
PoE
(injector included), m
ax
imum 60 W
Working Temperature
-40° F to 149° F (
-
40° C
to 65° C
)
Humidity
90% or less
Protection Level
IP66, IK10, TVS 6,000
V lightning protection, surge protection
, and voltage transient protection
Certification
FCC, CE, UL,
RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /
EN60950
-1
Dimensions
Ø 10.50
" x
17.13
266.6 mm x
435 mm)
Weight (approximate)
17.64 lb
s (approximately 8kg)
Tilt manual speed: 0.1° to 120°/s, tilt preset speed: 200°/s
Alarm Trigger
multiple scenarios
tampering alarm, network disconnect, IP address conflict, storage exception
1280 × 720); 60 fps (1920 × 1080, 1280 × 960, 1280 × 720)
704 × 576, 640 x 480, 352 × 288)
" (Ø
