Hikvision DS-2CE56H0T-IT1F-2-8mm, DS-2CE56H0T-IT1F-3-6mm, DS-2CE56H0T-IT1F-6mm, DS-2CE56H0T-IT3F User Manual
Type
Model
Type I Camera
DS-2CE56H0T-IT1F
DS-2CE56H0T-IT3F
Type II Camera
DS-2CE56H0T-ITMF
Type III Camera
DS-2CE56H0T-ITPF
TURBO HD
H0T Series Turret Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
0100001071116
Regulatory Information
FCC Information
Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the
applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.
2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains
a battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
include lettering to indicate cadmium (Cd), lead (Pb),
marked with this symbol, which may
or mercury (Hg). For proper recycling, return the
battery to your supplier or to a designated collection
point. For more information see:
www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or
material damage.
Safety Instruction
These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.
Warnings
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
the nation and region.
Input voltage should meet both the SELV (Safety Extra
Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.
Do not connect multiple devices to one power
adapter to avoid over-heating or a fire hazard caused
by overload.
Make sure that the plug is firmly connected to the
power socket.
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off
the power at once and unplug the power cord, and
then contact the service center.
Never attempt to disassemble the camera by
unprofessional personal.
Cautions
Do not drop the camera or subject it to physical
shock.
Do not touch senor modules with fingers.
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
If cleaning is necessary, use clean cloth with a bit of
ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright
places.
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty or damp
environment.
To avoid heat accumulation, good ventilation is
required for the operating environment.
Mark
Description
DC Voltage
DC12VIN
Enclosure
Main Body
Mounting Base
Video Cable
Switch Button
Power Cord
12 VDC
DC12VIN
Clip Plate
Mounting Base
Enclosure
Main Body
Trim Ring
Switch Button
Video Cable
Power Cord
12 VDC
Keep the camera away from liquid while in use for
non-water-proof device.
While in delivery, the camera shall be packed in its
original packing, or packing of the same texture.
Mark Description
Table 0-1 Mark Description
1 Introduction
1.1 Product Features
The camera is applicable for both indoor and outdoor
conditions, and the application scenarios include road,
warehouse, underground parking lot, bar, etc..
The main features are as follows:
High performance CMOS sensor
IR cut filter with auto switch
OSD menu with configurable parameters
Auto white balance
Internal synchronization
SMART IR mode
3-axis adjustment
Note:
Type III camera is applicable to indoor conditions only.
1.2 Overview
1.2.1 Overview of Type I Camera
Note:
Figure 1-1 Overview of Type I Camera
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.2 Overview of Type II Camera
Figure 1-2 Overview of Type II Camera
DC12VIN
Mounting Base
Main Body
Enclosure
Switch Button
Power Cord
12 VDC
Video Cable
Mark
Notch
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
1.2.3 Overview of Type III Camera
Figure 1-3 Overview of Type III Camera
Note:
Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.
2 Installation
Before you start:
Make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off
during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched with
your required output to avoid damage.
Make sure the wall is strong enough to withstand
three times the weight of the camera and the mount.
If the wall is cement, insert expansion screws before
installing the camera. If the wall is wooden, use
self-tapping screw to secure the camera.
If the product does not work properly, contact your
dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.
2.1 Installation of Type I Camera
2.1.1 Ceiling/Wall Mounting without Junction Box
Steps:

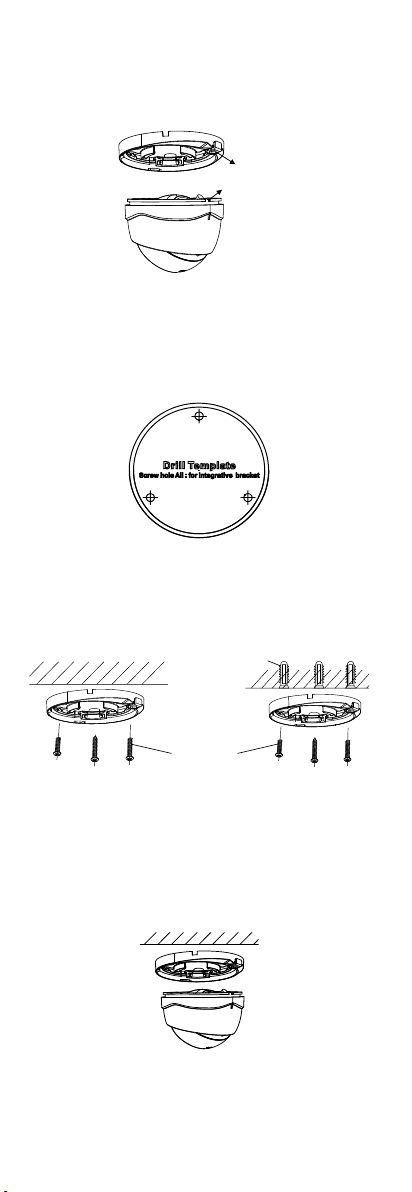

1. Disassemble the turret camera by rotating the
camera to align the notch to one of the marks, as
shown in the figure below.
Figure 2-1 Disassemble the Camera
2. Remove the mounting base from the camera body
with a flat object, e.g., a coin.
3. Paste the drill template (supplied) to the place
where you want to install the camera.
Screw Hole
Cable Hole
Tilt Position
[0°to 75°]
Pan Position
[0° to 360°]
Rotation Position
[0°to 360°]
4. Drill the screw holes and the cable hole (optional)
on the ceiling/wall according to the drill template.
Note:
Figure 2-2 Drill Template
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
5. Attach the mounting base to the ceiling/wall, and
secure them with supplied screws.
Figure 2-3 Attach the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden wall/ceiling,
self-tapping screws are required.
6. Route the cables through the cable hole, or the side
opening.
7. Align the camera with the mounting base, and
tighten the camera on the mounting base.
Figure 2-4 Secure the Camera with Mounting Base
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Figure 2-5 3-axis Adjustment
1). Hold the camera body, and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
Screw Hole
Cable
Hole
Inclined Ceiling
Mount Cover
Inclined Ceiling
Mount Body
2.1.2 Mounting with Inclined Ceiling Mount
Steps:

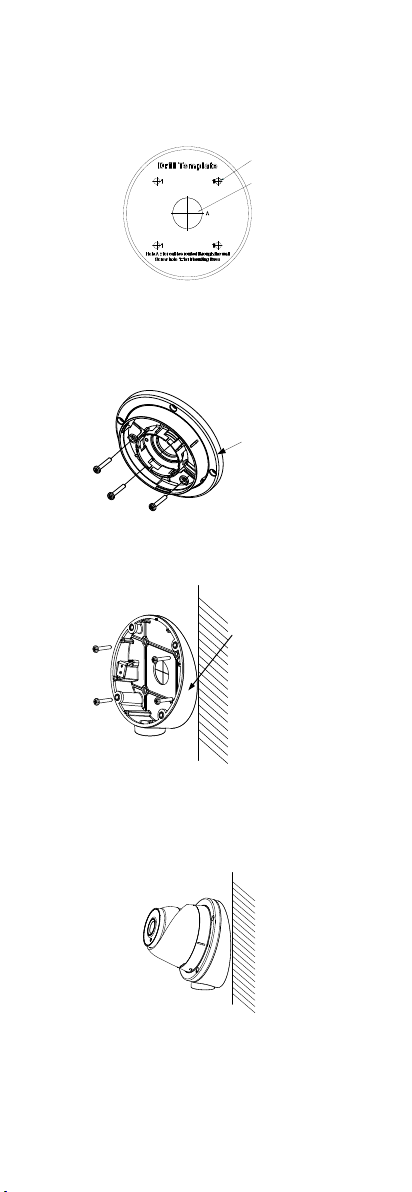

1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill screw holes, and the cable hole on the
ceiling/wall according to the supplied drill template.
3. Disassemble the inclined ceiling mount by the screw
Figure 2-6 The Drill Template
driver.
4. Install the turret camera’s mounting base on the
inclined ceiling mount’s cover with three PM4
screws.
Figure 2-7 Install Turret Camera’s Mounting Base
5. Install the inclined ceiling mount’s body on the
ceiling/wall with four PA4 × 25 screws, as shown in
Figure 2-8.
6. Combine inclined ceiling mount’s cover with its
Figure 2-8 Fix the Inclined Base Body
body with supplied screws.
7. Repeat steps 6 to 9 of the 2.1.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
Figure 2-9 Fix the Camera to the Inclined Base
2.2 Installation of Type II Camera
Before you start:
Both wall mounting and ceiling mounting are suitable
for the turret camera. Ceiling mounting will be taken as
an example in this section. You can take steps of ceiling
Notch
Clip Plate
Fixing Screw
Expansion Bolts
mounting as the reference, when adopting the wall
mounting.
Steps:

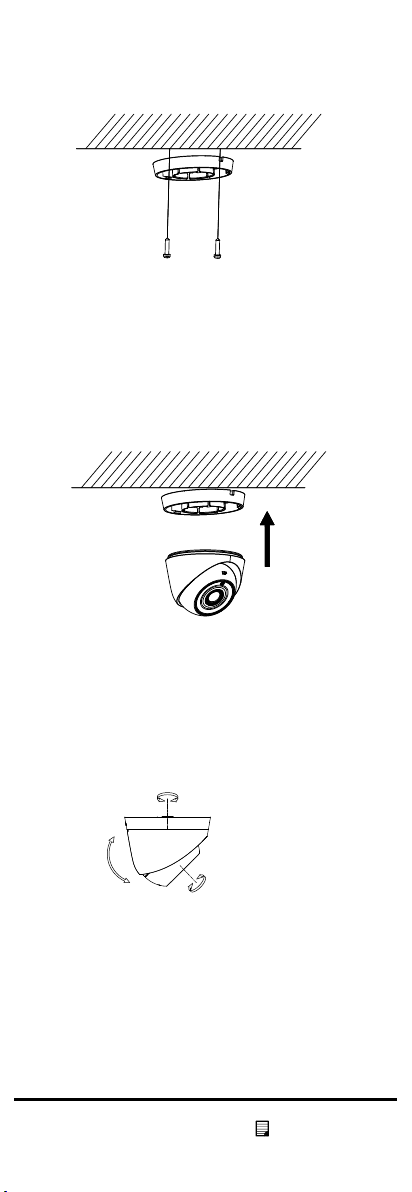

1. Disassemble the turret camera by rotating the
camera to align the notch to the clip plate, as shown
in the Figure 2-10.
Figure 2-10 Disassemble the Camera
2. Pry the mounting base to remove the mounting
base from the camera body.
3. Paste the drill template (supplied) to the place
where you want to install the camera.
4. Drill the screw holes according to the drill template,
and the cable hole (optional) on the ceiling.
Figure 2-11 Drill Template
Note:
Drill the cable hole in the center of the drill template,
when adopting the ceiling outlet to route the cable.
5. Secure the mounting base to the ceiling with the
supplied screws.
Figure 2-12 Fix the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
6. Route the cables through the cable hole, or the side
opening.
7. Secure the camera on the mounting base.
Figure 2-13 Secure the Camera
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
Tilt Position
[0° to 75°]
Pan Position
[0° to 360°]
Rotation Position
[0° to 360°]
Type I Camera
Type II Camera
Junction Box Body
Junction Box Body
Junction Box Cover
not, adjust the camera according to the figure below
to get an optimum angle.
Figure 2-14 3-axis Adjustment
1). Hold the camera body, and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
2.3 Installation of Type I and Type II Camera
2.3.1 Ceiling/Wall Mounting with Junction Box
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.
Figure 2-15 Drill Template of the Junction Box
Note:
Drill the cable hole, when adopting the ceiling
outlet to route the cable.
3. Take apart the junction box, and align the screw
holes of the turret camera’s mounting base with
those on junction box’s cover.
4. Fix the mounting base on junction box’s cover by
supplied screws.
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
6. Combine the junction box’s cover with the junction
box’s body.
7. Repeat steps 6 to 9 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to install the camera to the
junction box.
2.3.2 Wall Mounting
Before you start:
You need to purchase a wall mount first.
Figure 2-16 Fix the Gang Box
Type I Camera
Type II Camera
Type I Camera
Type II Camera
Mark
Notch
60 mm (2.36" )
Ø
30
mm
(
1
.
18
" )
Ø
77
.
5
mm
(
3
.
05
" )
2
-
Ø
4
.
5
mm
(
0
.
18
" )
Steps:
1. Drill four screw holes in the wall according to the
holes of the mount.
2. Install the mount to the wall by aligning the four
screw holes of the mount with expansion screws on
the wall.
3. Secure the mount with four hex nuts and washers.
4. Install the mounting base of the turret camera to
Figure 2-17 Install the Mount
the wall mounting bracket, and secure them with
supplied screws.
Figure 2-18 Install the Mounting Base to the Bracket
5. Route the cables through the mount.
6. Repeat steps 7 to 9 of 2.1.1 Ceiling/Wall Mounting
without Junction Box to complete the installation.
2.4 Ceiling Mounting of Type III Camera
Steps:
1. Disassemble the turret camera by rotating the
camera to align the notch to one of the marks, as
shown in the figure below.
2. Remove the mounting base from the camera body
with a flat object, e.g., a coin.
3. Paste the drill template (supplied) to the place
Figure 2-19 Disassemble the Camera
where you want to install the camera.
4. Drill the screw holes and the cable hole (optional)
on the ceiling/wall according to the drill template.
Figure 2-20 Drill Template
Pan Position
[0° to 360°]
Rotation Position
[0°to 360°]
Tilt Position
[0°to 75°]
Note:
Drill the cable hole, when adopting the ceiling outlet
to route the cable.
5. Attach the mounting base to the ceiling/wall, and
secure them with supplied screws.
Figure 2-21 Attach the Mounting Base to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden wall/ceiling,
self-tapping screws are required.
6. Route the cables through the cable hole, or the side
opening.
7. Align the camera with the mounting base, and
tighten the camera on the mounting base.
Figure 2-22 Secure the Camera with Mounting Base
8. Connect the corresponding cables, such as power
cord, and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.
Figure 2-23 3-axis Adjustment
1). Hold the camera body, and rotate the enclosure
to adjust the pan position [0° to 360°].
2). Move the camera body up and down to adjust
the tilt position [0° to 75°].
3). Rotate the camera body to adjust the rotation
position [0° to 360°].
3 Menu Description
Purpose:
Call the menu by clicking the button on the PTZ
Control interface, or call preset No.95.
Camera
TVI DVR
Monitor
MAIN MENU
VIDEO
SETTINGS
FACTORY
DEFAULT
EXIT
EXPOSURE MODE
CONTRAST
SHARPNESS
SATURATION
DNR
MIRROR
BACK
AGC
EXPOSURE
LANGUAGE
VIDEO
FORMAT
BACK
EXIT
SAVE & EXIT
WHITE
BALANCE
BRIGHTNESS
SAVE & EXIT
EXIT
SAVE & EXIT
DAY/NIGHT
COLOR
B/W
AUTO
BACK
EXIT
SAVE & EXIT
Steps:
1. Connect the camera with the TVI DVR, and the
monitor, shown as the figure 3-1.
Figure 3-1 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control interface.
4. Call the camera menu by clicking button, or call
preset No. 95.
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
Figure 3-2 Main Menu Overview
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
EXPOSURE
EXPOSURE MODE
AGC
BACK
EXIT
SAVE & EXIT
GLOBAL
LOW
3.1 VIDOE FORMAT
You can set the video format as 5MP@20fps,
4MP@25fps, 4MP@30fps, 2MP@25fps, and
2MP@30fps.
3.2 LANGUAGE
Supports English.
3.3 EXPOSURE
Exposure describes the brightness-related parameters, which can be adjusted by EXPOSURE MODE, and AGC.
Figure 3-3 EXPOSURE
EXPOSURE MODE
You can set the EXPOSURE MODE as GLOBAL, BLC, and
DWDR.
GLOBAL
GLOBAL refers to the normal exposure mode which
performs exposure according to the whole image
brightness.
BLC (Backlight Compensation)
BLC (Backlight Compensation) compensates light for the
front object to make it clear, but this may cause the
over-exposure of the background, where the light is
strong.
DWDR (Digital Wide Dynamic Range)
The DWDR helps the camera provide clear images even
under backlight circumstances. When both very bright
and very dark areas simultaneously exist in the image,
DWDR balances the brightness level of the whole image
to provide clear images with details.
AGC (Automatic Gain Control)
It optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MEDIUM,
or LOW. Select OFF to disable the AGC function.
Note:
The noise will be amplified, when the AGC is ON.
3.4 DAY/NIGHT
COLOR, BW (Black White), and AUTO are selectable for
DAY/NIGHT switch.
COLOR
The image is colored in day mode all the time.
B & W (Black and White) The image is black and white all the time, and the IR
LIGHT turns on in the poor light conditions.
You can turn on/off the IR LIGHT and set the value of
SMART IR in this menu
DAY/NIGHT
MODE
IR LIGHT
SMART IR
BACK
EXIT
SAVE & EXIT
B & W
ON
2
DAY/NIGHT
MODE
IR LIGHT
SMART IR
D à N THRESHOLD
N à D THRESHOLD
BACK
EXIT
SAVE & EXIT
AUTO
ON
2
2
7
Figure 3-4 B & W
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 1 to 3. The higher the value is, the more obvious
effects are.
AUTO
Automatically switch Color, or BW (Black and White)
according to actual scene brightness.
You can turn on/off the IR LIGHT, and set the value of
SMART IR in this menu.
Figure 3-5 AUTO
IR LIGHT
You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.
SMART IR
The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 1 to 3. The higher the value is, the more obvious
effects are.
Dà N Threshold (Day to Night Threshold)
Day to Night Threshold is used to control the sensitivity
of switching the day mode to the night mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
Nà D Threshold (Night to Day Threshold)
Night to Day Threshold is used to control the sensitivity
of switching the night mode to the day mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.
VIDEO SETTINGS
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
DNR
MIRROR
BACK
EXIT
SAVE & EXIT
5
5
5
5
5
OFF
WHITE BALANCE
MODE
R-GAIN
B-GAIN
BACK
EXIT
SAVE & EXIT
MANUAL
5
5
3.5 VIDEO SETTINGS
Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. WHITE BALANCE, BRIGHTNESS,
CONTRAST, SHARPNESS, SARUTATION, DNR, and
MIRROR are adjustable.
Figure 3-6 VIDEO SETTINGS
WHITE BALANCE
White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set the mode as AUTO, or MANUAL.
AUTO
Under AUTO mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.
MANUAL
You can set the R GAIN/B GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.
Figure 3-7 MANUAL MODE
BRIGHTNESS
Brightness refers to the brightness of the image.
You can set the brightness value from 1 to 9 to darken
or brighten the image. The higher the value is, the
brighter the image is.
CONTRAST
This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 9.
SHARPNESS
Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 9.
UD08035B
SATURATION
Adjust this feature to change the saturation of the color.
The value ranges from 1 to 9.
DNR (Digital Noise Reduction)
The DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions and delivering more accurate and sharp
image. You can set the DNR value from 1 to 9.
MIRROR
OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and
vertically.
3.6 FACTORY DEFAULT
Move the cursor to FACTORY DEFAULT and click Iris+ to
reset all the settings to the factory default.
3.7 EXIT
Move the cursor to EXIT and click Iris+ to exit the menu
without saving.
3.8 SAVE & EXIT
Move the cursor to SAVE & EXIT and click Iris+ to save
the settings, and exit the menu.
Loading...
