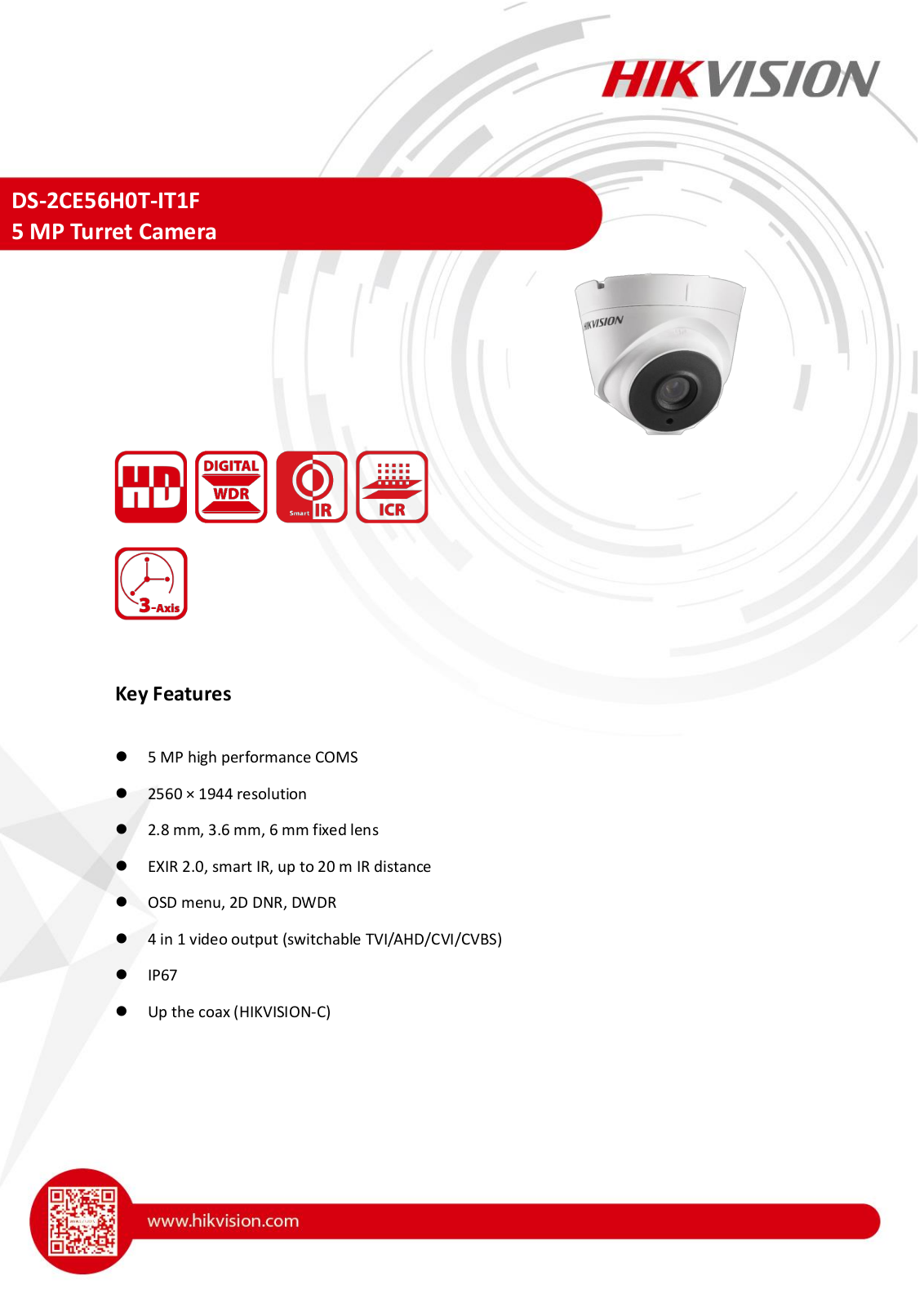

Hikvision DS-2CE56H0T-IT1F Technical data
DS-2CE56H0T-IT1F
5 MP Turret Camera
Key Features
5 MP high performance COMS
2560 × 1944 resolution
2.8 mm, 3.6 mm, 6 mm fixed lens
EXIR 2.0, smart IR, up to 20 m IR distance
OSD menu, 2D DNR, DWDR
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
Up the coax (HIKVISION-C)

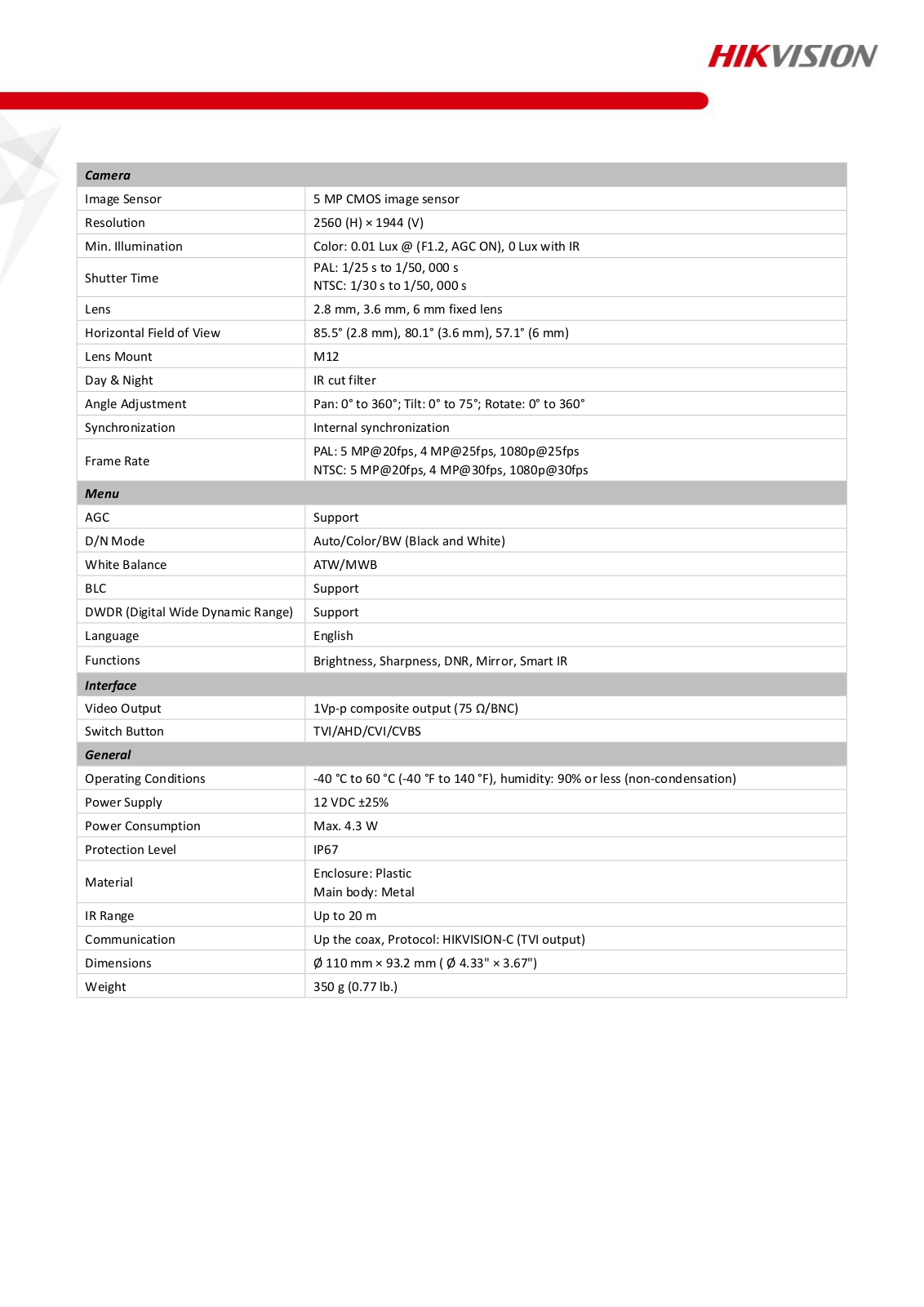

Camera
|
Image Sensor |
5 MP CMOS image sensor |
|
|
|
|
Resolution |
2560 (H) × 1944 (V) |
|
|
|
|
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
|
|
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s |
|
NTSC: 1/30 s to 1/50, 000 s |
|
|
|
|
|
|
|
|
Lens |
2.8 mm, 3.6 mm, 6 mm fixed lens |
|
|
|
|
Horizontal Field of View |
85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm) |
|
|
|
|
Lens Mount |
M12 |
|
|
|
|
Day & Night |
IR cut filter |
|
|
|
|
Angle Adjustment |
Pan: 0°to 360°; Tilt: 0°to 75°; Rotate: 0°to 360° |
|
|
|
|
Synchronization |
Internal synchronization |
|
|
|
|
Frame Rate |
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps |
|
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
|
|
|
|
|
|
|
|
Menu |
|
|
|
|
|
AGC |
Support |
|
|
|
|
D/N Mode |
Auto/Color/BW (Black and White) |
|
|
|
|
White Balance |
ATW/MWB |
|
|
|
|
BLC |
Support |
|
|
|
|
DWDR (Digital Wide Dynamic Range) |
Support |
|
|
|
|
Language |
English |
|
|
|
|
Functions |
Brightness, Sharpness, DNR, Mirror, Smart IR |
|
|
|
|
Interface |
|
|
Video Output |
1Vp-p composite output (75 Ω/BNC) |
|
|
|
|
Switch Button |
TVI/AHD/CVI/CVBS |
|
|
|
|
General |
|
|
|
|
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
|
|
|
Power Supply |
12 VDC ±25% |
|
|
|
|
Power Consumption |
Max. 4.3 W |
|
|
|
|
Protection Level |
IP67 |
|
|
|
|
Material |
Enclosure: Plastic |
|
Main body: Metal |
|
|
|
|
|
|
|
|
IR Range |
Up to 20 m |
|
|
|
|
Communication |
Up the coax, Protocol: HIKVISION-C (TVI output) |
|
|
|
|

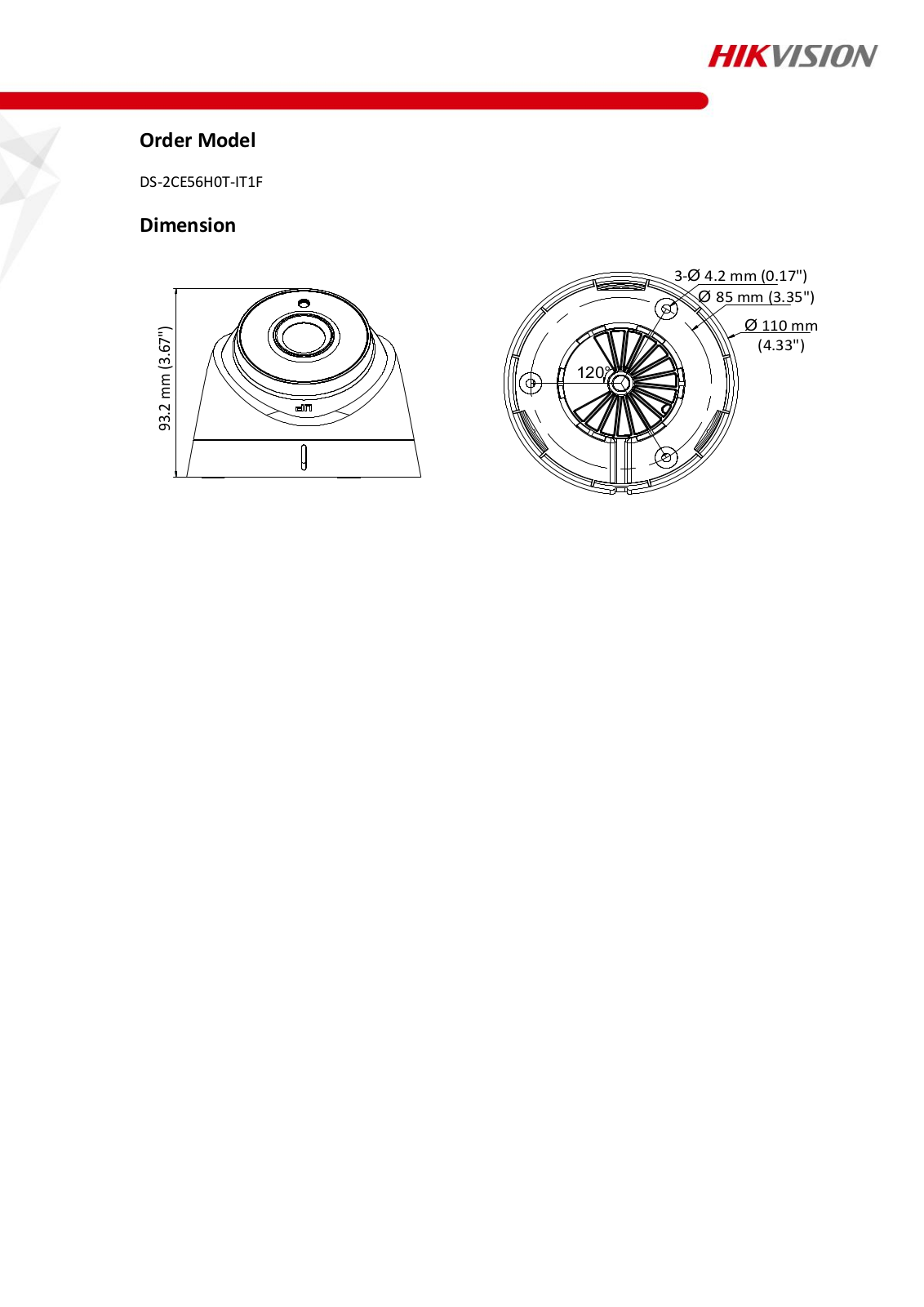

Dimensions |
Ø 110 mm × 93.2 mm ( Ø 4.33" × 3.67") |
|
|
|
|
Weight |
350 g (0.77 lb.) |
|
|
|
