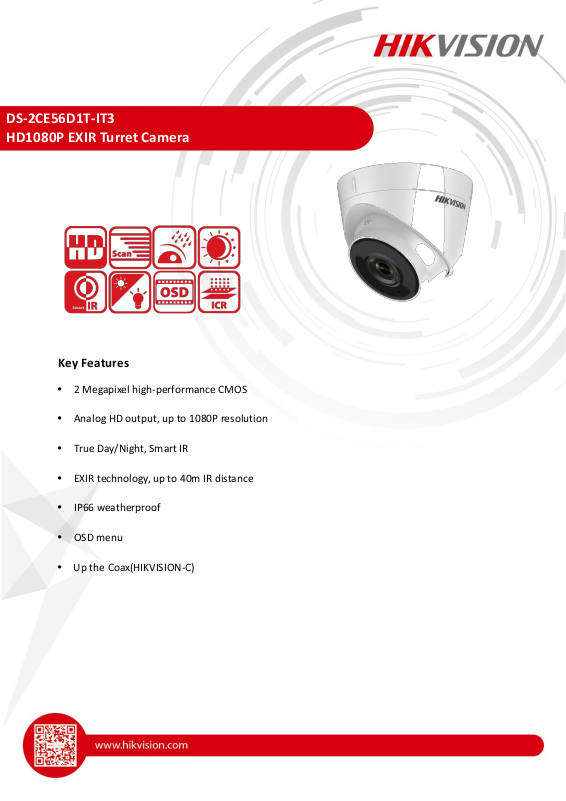

DS-2CE56D1T-IT3
HD1080P EXIR Turret Camera
Key Features
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night, Smart IR
EXIR technology, up to 40m IR distance
IP66 weatherproof
OSD menu
Up the Coax(HIKVISION-C)
|
|
Specifications |
|
|
|
|
Camera |
|
|
|
|
|
Image Sensor |
2MP CMOS Image Sensor |
|
|
|
|
Signal System |
PAL/NTSC |
|
|
|
|
Effective Pixels |
1984(H)*1105(V) |
|
|
|
|
Min. illumination |
0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
|
|
|
Shutter Time |
1/25(1/30)s to 1/50,000s |
|
|
|
|
Lens |
3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) |
|
Angle of View: 105.8°(2.8mm), 84.3°(3.6mm), 55.4°(6mm), 38.7°(8mm), 24.8°(12mm), |
|
|
|
|
|
|
19.2°(16mm) |
|
Lens Mount |
M12 |
|
|
|
|
Day & Night |
ICR |
|
|
|
|
Angle Adjustment |
Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
|
|
|
|
Synchronization |
Internal synchronization |
|
|
|
|
Video Frame Rate |
1080p@25fps/1080p@30fps |
|
|
|
|
HD Video Output |
1 Analog HD output |
|
|
|
|
S/N Ratio |
62dB |
|
|
|
|
Menu |
|
|
|
|
|
AGC |
High/Medium/Low/Off |
|
|
|
|
D/N Mode |
Smart IR/Color/BW |
|
|
|
|
White Balance |
Auto/Manual |
|
|
|
|
BLC (Backlight Compensation) |
Support |
|
|
|
|
DWDR (Digital Wide Dynamic Range) |
Support |
|
|
|
|
Language |
English |
|
|
|
|
Functions |
Digital noise reduction, Mirror |
|
|
|
|
General |
|
|
|
|
|
Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) |
|
|
|
|
Power Supply |
12 VDC±15% |
|
|
|
|
Power Consumption |
Max. 4W |
|
|
|
|
Protection Level |
IP66 |
|
|
|
|
IR Range |
Up to 40m |
|
|
|
|
Communication |
Up the coax, Protocol: HIKVISION-C(TVI output) |
|
|
|
|
Dimensions |
Φ110 × 93.2 mm(Φ4.33” × 3.67”) |
|
|
|
|
Weight |
350 g |
|
|
|
|
Order Models |
|
DS-2CE56D1T-IT3
