Hikvision DS-2CE56D0T-IT3 User Manual

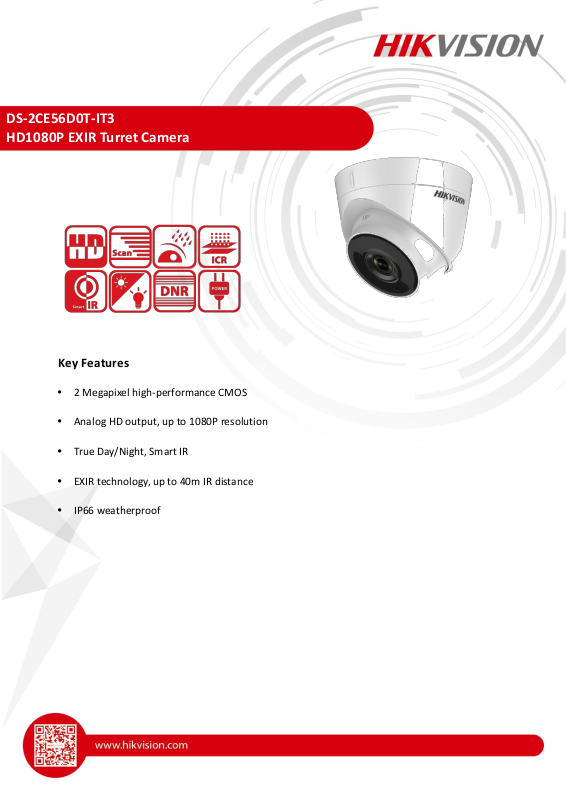

DS-2CE56D0T-IT3
HD1080P EXIR Turret Camera

 2 Megapixel high-performance CMOS

 Analog HD output, up to 1080P resolution

 True Day/Night, Smart IR

 EXIR technology, up to 40m IR distance

 IP66 weatherproof

Key Features

Specifications

Camera

Image Sensor

2MP CMOS Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1920(H)*1080(V)

Min. illumination

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time

1/25(1/30)s to 1/50,000s

Lens

3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)

Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°( 8mm), 24.2°( 12mm), 18.8°( 16mm)

Lens Mount

M12

Day & Night

ICR

Angle Adjustment

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Synchronization

Internal synchronization

Video Frame Rate

1080p@25fps/1080p@30fps

HD Video Output

1 Analog HD output

S/N Ratio

＞62dB

General

Operating Conditions

-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
Power Supply

12 VDC±15%

Power Consumption

Max. 4W

Protection Level

IP66

IR Range

Up to 40m

Dimension

Φ110 × 93.2 mm(Φ4.33” × 3.67”)

Weight

350 g

Order Models

DS-2CE56D0T-IT3
