Hikvision DS-2CE16U1T-IT3F-2-8mm, DS-2CE16U1T-IT3F-6mm, DS-2CE16U1T-ITF-2-8mm, DS-2CE16U1T-ITF-6mm User Manual

TURBO HD

U1T Series Bullet Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE16U1T-ITF

DS-2CE16U1T-ITPF

Type II Camera

DS-2CE16U1T-IT1F

DS-2CE16U1T-IT3F

DS-2CE16U1T-IT5F

This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.

0100001080607

Regulatory Information

FCC Information

Please take attention that changes or modification not
expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,
including interference that may cause undesired
operation.

EU Conformity Statement

This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the

applicable harmonized European
standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new
equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd),
lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated
collection point. For more information see:
www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

Warning

This is a class A product. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.

Safety Instruction

These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.
The precaution measure is divided into “Warnings” and
“Cautions”.
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.

Warnings

 In the use of the device, you must be in strict

compliance with the electrical safety regulations of
the nation and region.

 Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.

 Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused
by overload.

 Make sure that the plug is firmly connected to the

power socket.

 Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

 If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and
then contact the service center.

 Never attempt to disassemble the camera by

unprofessional personal.

Cautions

 Do not drop the camera or subject it to physical

shock.

 Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.

 Do not touch senor modules with fingers.
 If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

 Do not aim the camera at the sun or extra bright

places.

 The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.

 Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp
environment.

 To avoid heat accumulation, good ventilation is

required for the operating environment.

Warnings Follow
these safeguards to
prevent serious injury
or death.

Cautions Follow these
precautions to prevent
potential injury or
material damage.

 Keep the camera away from liquid while in use for

non-water-proof device.

 While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

1 Introduction

1.1 Product Features

The main features are as follows:

 High performance CMOS sensor
 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 Internal synchronization
 SMART IR mode
 3-axis adjustment

1.2 Overview

This manual applies to two types of bullet cameras.
The overviews of each type are shown in the figures
below.

1.2.1 Overview of Type I Camera

DC12VIN

Video Cable

Switch Button

Power

Cord

Bracket
Main Body

Lens

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

DC12VIN

Switch Button

Power Cord

Video Cable

Bracket

Main Body

Lens

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch button for 5 seconds to
switch the video output. Four kinds of video outputs
are available: TVI, AHD, CVI, and CVBS.

2 Installation

Before you start:

 Make sure that the device in the package is in good

condition and all the assembly parts are included.

 Make sure that all the related equipment is power-off

during the installation.

 Check the specification of the products for the

installation environment.

 Check whether the power supply is matched with

your power output to avoid the damage.

 Make sure the wall is strong enough to withstand

three times the weight of the camera and the
bracket.

 If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.

 If the product does not function properly, contact

your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes and the cable hole (optional) in

the ceiling/wall according to the drill template.

Template

Cable

Hole

Side Opening

Screw

Hole

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet
to route the cable.

3. Attach the bracket to the ceiling/wall and secure the

camera with supplied screws.

Fixing Screw

Adjusting Screws

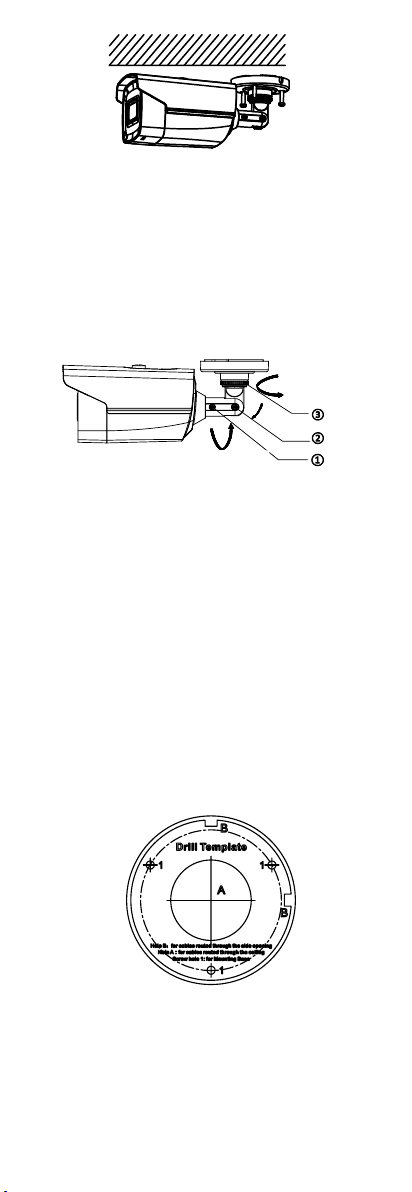

Figure 2-2 Fix the Camera to the Ceiling

Note:

 The supplied screw package contains self-tapping

screws, and expansion bolts.

 For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.

4. Route the cables through the cable hole, or the side

opening.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.

P Screw

T Screw

R Screw

Tilt Position
[0° to 180°]

Pan Position
[0° to 360°]

Rotation Position
[0° to 360°]

Figure 2-3 3-axis Adjustment

1). Loosen the P screw to adjust the pan position [0°

to 360°]. Tighten the screw after completing the
adjustment.

2). Loosen the T screw to adjust the tilt position [0°

to 180°]. Tighten the screw after completing the
adjustment.

3). Loosen the R screw and rotate the camera [0° to

360°]. Tighten the screw after completing the
adjustment.

2.1.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole in the

ceiling/wall according to the holes of the drill
template.

Figure 2-4 Drill Template of Junction Box

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the
Junction box’ cover.

4. Fix the camera on the junction box’s cover with

supplied screws.

Junction Bo x

Cover

Figure 2-5 Fix the Camera on the Junction Box’s Cover

5. Attach the junction box body to the ceiling/wall by

aligning the screw holes of the junction box.

6. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Junction Box

Body

Figure 2-6 Fix the Junction Box to the Wall/Ceiling

7. Route the cables through the bottom cable hole, or

the side cable hole of the junction box.

8. Combine the junction box cover with its body.

Figure 2-7 Fix the Junction Box Cover back to its

Body

9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall

Mounting without Junction Box to complete the
installation.

2.2 Installation of Type II Camera

2.2.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes according to the drill template,

and the cable hole (optional) on the ceiling.

Template

Cable

Hole

Side Opening

Screw

Hole

Figure 2-8 Drill Template

Note:

Drill the cable hole in the center of the drill template,
when adopting ceiling outlet to route the cable.

3. Route the cables through the cable hole (optional)

or the side opening.

4. Fix the camera to the ceiling with supplied screws.

Figure 2-9 Fix the Camera to the Ceiling

Note:

 The supplied screw package contains self-tapping

screws, and expansion bolts.

 For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If
not, adjust the surveillance angle.

0° to 360°

0° to 360°

0° to 180°

Figure 2-10 3-Axis Adjustment

1). Loosen the No.1 adjusting screw to adjust the

pan position [0° to 360°]. Tighten the No.1
adjusting screw.

2). Loosen the No.2 adjusting screw to adjust the

tilting position [0° to180°]. Tighten the No. 2
adjusting screw.

3). Loosen the No.3 adjusting screw to adjust the

rotation position [0° to 360°]. Tighten the No.3
adjusting screw.

2.2.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the drill template on the ceiling/wall.

2. Drill screw holes and the cable hole (optional) in the

ceiling/wall according to the holes of the drill
template.

Figure 2-11 Drill Template of Junction Box

Note:

Drill the cable hole, when adopting ceiling outlet to
route the cable.

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the
Junction box’s cover.

4. Fix the camera on the junction box’s cover with

three supplied screws.

5. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Figure 2-12 Install the Junction Box

6. Route the cables through the bottom cable hole, or

the side cable hole of the junction box.

7. Combine the junction box cover with its body with

supplied screws on the junction box’s cover.

Figure 2-13 Combine the Junction Box’s Cover with its

Body

8. Repeat the step 5 and 6 of 2.2.1 Ceiling/Wall

Mounting without Junction Box to complete the
installation.

3 Menu Description

Purpose:

Call the menu by clicking button on the PTZ Control
interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

MAIN MENU

VIDEO

SETTINGS

FACTORY

DEFAULT

EXIT

EXPOSURE MODE

CONTRAST

SHARPNESS

SATURATION

DNR

MIRROR

BACK

AGC

EXPOSURE

VIDEO

FORMAT

BACK

EXIT

SAVE & EXIT

WHITE

BALANCE

BRIGHTNESS

SAVE & EXIT

EXIT

SAVE & EXIT

DAY/NIGHT

MODE

BACK

EXIT

SAVE & EXIT


MODE

Figure 3-2 Main Menu Overview

5. Click the direction arrow to control the camera.

1). Click up/down direction button to select the

item.

2). Click Iris + to confirm the selection.

3). Click left/right direction button to adjust the

value of the selected item.

3.1 VIDEO FORMAT

You can set the video format as 8MP@12.5 fps, 8
MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps,
2MP@25fps, and 2MP@30fps.

Note:

 When switching the video output as CVBS, you can

set the video format as PAL, or NTSC.

 When switching the video output as AHD, only

5MP@20fps is supported.

 When switching the video output as CVI, you can

set the video format as 8MP@12.5 fps, or
8MP@15fps.

3.2 EXPOSURE

Exposure describes the brightness-related parameters,
which can be adjusted by EXPOSURE MODE, and AGC.

EXPOSURE

EXPOSURE MODE
AGC
BACK
EXIT
SAVE & EXIT

GLOBAL
LOW





Figure 3-3 EXPOSURE

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, and
DWDR.

 GLOBAL

GLOBAL refers to the normal exposure mode which
performs exposure according to the whole image
brightness.

 BLC (Backlight Compensation)

BLC (Backlight Compensation) compensates light for the
front object to make it clear, but this may cause the
over-exposure of the background, where the light is
strong.

 DWDR (Digital Wide Dynamic Range)

The DWDR helps the camera provide clear images even
under backlight circumstances. When both very bright
and very dark areas simultaneously exist in the image,
DWDR balances the brightness level of the whole image
to provide clear images with details.

AGC (Automatic Gain Control)

It optimizes the clarity of the image in poor light
conditions. The AGC level can be set as HIGH, MEDIUM,
or LOW.

Note:

The noise will be amplified when setting the AGC level.
The higher the level is, the more obvious the noise is.

3.3 DAY/NIGHT

COLOR, BW (Black White), and AUTO are selectable for
DAY/NIGHT switch.

COLOR

The image is colored in day mode all the time.

B & W (Black and White)

The image is black and white all the time, and the IR
LIGHT turns on in the poor light conditions.
You can turn on/off the IR LIGHT and set the value of
SMART IR in this menu

DAY/NIGHT

MODE
IR LIGHT
SMART IR
BACK
EXIT
SAVE & EXIT

B & W
ON
2





Figure 3-4 B & W

 IR LIGHT

You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.

 SMART IR

The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 0 to 3. The higher the value is, the more obvious
effects are.

AUTO

Automatically switch Color, or BW (Black and White)
according to actual scene brightness.

You can turn on/off the IR LIGHT, and set the value of
SMART IR in this menu.

DAY/NIGHT

MODE
IR LIGHT
SMART IR
D à N THRESHOLD
N à D THRESHOLD
BACK
EXIT
SAVE & EXIT

AUTO
ON
2
2
7





Figure 3-5 AUTO

 IR LIGHT

You can turn on/off the IR LIGHT to meet the
requirements of different circumstances.

 SMART IR

The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 0 to 3. The higher the value is, the more obvious
effects are.

 Dà N Threshold (Day to Night Threshold)

Day to Night Threshold is used to control the sensitivity
of switching the day mode to the night mode. You can
set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.

 Nà D Threshold (Night to Day Threshold)

Night to Day Threshold is used to control the sensitivity
of switching the night mode to the day mode. You can

set the value from 1 to 9. The larger the value is, the
more sensitive the camera is.

3.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to
enter the submenu. IMAGE MODE, WHITE BALANCE,

BRIGHTNESS, CONTRAST, SHARPNESS, SARUTATION,
DNR, and MIRROR are adjustable.

VIDEO SETTINGS

IMAGE MODE STD
WHITE BALANCE
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION

DNR
MIRROR
BACK
EXIT
SAVE & EXIT



5
5
5
5

5

OFF





Figure 3-6 VIDEO SETTINGS

IMAGE MODE

IMAGE MODE is used to adjust the image saturation,
and you can set it as STD (Standard), or HIGH-SAT (High
Saturation).

WHITE BALANCE

White balance, the white rendition function of the
camera, is to adjust the color temperature according to
the environment. It can remove unrealistic color casts in
the image. You can set the mode as AUTO, or MANUAL.

 AUTO

Under AUTO mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.

 MANUAL

You can set the R-GAIN/B-GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.

WHITE BALANCE

MODE
R-GAIN
B-GAIN
BACK
EXIT

SAVE & EXIT

MANUAL
5
5





Figure 3-7 MANUAL MODE

BRIGHTNESS

Brightness refers to the brightness of the image.
You can set the BRIGHTNESS value from 1 to 9 to
darken or brighten the image. The higher the value is,
the brighter the image is.

CONTRAST

This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 9.

SHARPNESS

Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 9.

SATURATION

Adjust this feature to change the saturation of the color.
The value ranges from 1 to 9.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect,
especially when capturing moving images in poor light
conditions and delivering more accurate and sharp
image. You can set the DNR value from 1 to 9.

MIRROR

OFF, H, V, and HV are selectable for mirror.
OFF: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and

vertically.

3.5 FACTORY DEFAULT

Move the cursor to FACTORY DEFAULT and click Iris+ to
reset all the settings to the factory default.

3.6 EXIT

Move the cursor to EXIT and click Iris+ to exit the menu
without saving.

3.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save
the settings, and exit the menu.

UD10381B
