Hikvision DS-2CE16H5T-IT3E 12MM User Manual

Type

Model

Type I

Camera

DS-2CE16H5T-IT(E)

DS-2CE16H5T-ITP(E)

Type II

Camera

DS-2CE16H5T-IT1(E)

DS-2CE16H5T-IT3(E)

DS-2CE16H5T-IT5(E)

TURBO HD
H5T Series Bullet Camera

User Manual

UD05381B

User Manual

Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:

This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.

0100001070419

Regulatory Information

FCC Information

Please take attention that changes or modification not
expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,
including interference that may cause undesired
operation.

EU Conformity Statement

This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the

standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.

equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a

include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

applicable harmonized European

2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new

battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may

Warnings Follow
these safeguards to
prevent serious injury
or death.

Cautions Follow these
precautions to prevent
potential injury or
material damage.

Safety Instruction

These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.

The precaution measure is divided into “Warnings” and
“Cautions”.

Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.

Warnings

 In the use of the device, you must be in strict

compliance with the electrical safety regulations of
the nation and region.

 Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.

 Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused
by overload.

 Make sure that the plug is firmly connected to the

power socket.

 Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

 If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and
then contact the service center.

 Never attempt to disassemble the camera by

unprofessional personal.

Cautions

 Do not drop the camera or subject it to physical

shock.

 Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.

 Do not touch senor modules with fingers.
 If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

 Do not aim the camera at the sun or extra bright

places.

 The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.

 Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp
environment.

 To avoid heat accumulation, good ventilation is

required for the operating environment.

Mark

Description

DC Voltage

Main Body

Photoresistor

Lens

Bracket

Video Cable

Power Cord
12 VDC

Camera

Bracket

Video Cable

Power Cord
12 VDC

Lens

 Keep the camera away from liquid while in use for

non-water-proof device.

 While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

1 Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor
conditions, and the application scenarios include road,
warehouse, underground parking lot, bar, etc..
The main features are as follows:

 High performance CMOS sensor
 Low illumination, 0.008 Lux@(F1.2, AGC ON), 0 Lux

with IR

 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 internal synchronization
 SMART IR mode
 PoC (with -E)
 3-axis adjustment

1.2 Overview

1.2.1 Overview of Type I Camera

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Figure 1-2 Overview of Type II Camera

Template

Cable

Hole

Side Opening

Screw

Hole

Fixing Screw

Adjusting Screws

2 Installation

Before you start:

 Make sure that the device in the package is in good

condition and all the assembly parts are included.

 Make sure that all the related equipment is power-off

during the installation.

 Check the specification of the products for the

installation environment.

 Check whether the power supply is matched with

your power output to avoid the damage.

 Make sure the wall is strong enough to withstand

three times the weight of the camera and the
bracket.

 If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.

 If the product does not function properly, contact

your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes and the cable hole (optional) in

the ceiling/wall according to the drill template.

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet
to route the cable.

3. Attach the bracket to the ceiling/wall and secure the

camera with supplied screws.

Figure 2-2 Fix the Camera to the Ceiling

Note:

 The supplied screw package contains self-tapping

screws, and expansion bolts.

 For cement wall/ceiling, expansion bolts are

required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.

4. Route the cables through the cable hole, or the side

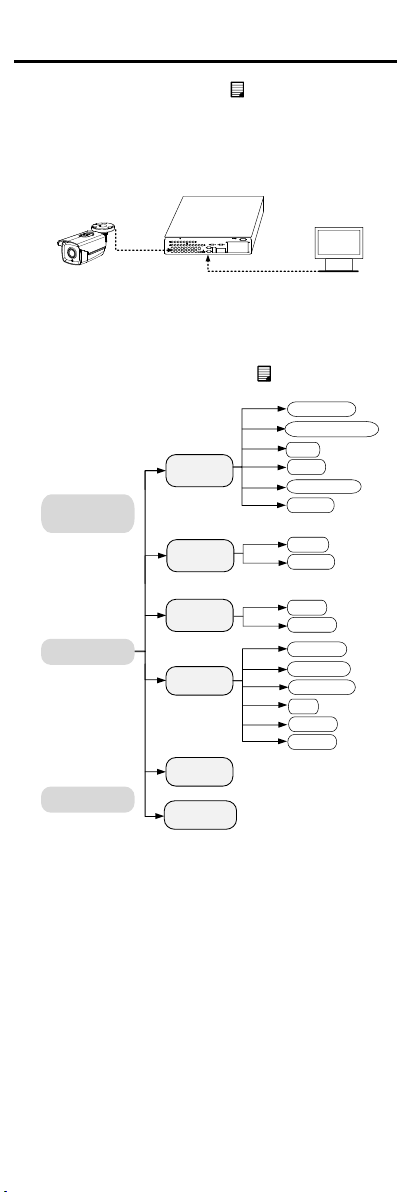

opening.
