Hikvision DS-2CE16D3T-IT3F-2-8, DS-2AE5232T-A, DS-2AE5232T-A3, DS-2AE7232TI-A Quick Start Guide

HD-TVI Speed Dome

Quick Start Guide

HD-TVI Speed Dome·Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to HD-TVI Speed Dome. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

and other Hikvision's trademarks and logos are the properties of Hikvision in

Regulatory Information FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

iii

HD-TVI Speed Dome·Quick Start Guide

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot

be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements

Warnings Follow

these safeguards to prevent serious injury or death.

Cautions Follow these precautions to prevent potential injury or material damage.

HD-TVI Speed Dome·Quick Start Guide

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cautions: Injury or equipment damage may occur if any of the cautions are neglected.

Warnings

 All the electronic operation should be strictly compliance with the electrical safety regulations,

fire prevention regulations and other related regulations in your local region.

 Please use the power adapter, which is provided by normal company. The standard of the power

adapter is 24 VAC 10% or 12 VDC 10% (depending on models). The power consumption cannot be less than the required value.

 Do not connect several devices to one power adapter as adapter overload may cause over-heat

or fire hazard.

 Please make sure that the power has been disconnected before you wire, install or dismantle the

speed dome.

 When the product is installed on wall or ceiling, the device shall be firmly fixed.  If smoke, odors or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

 If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the speed dome yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions

 Do not drop the dome or subject it to physical shock, and do not expose it to high

electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).

 Do not place the dome in extremely hot, cold, dusty or damp locations, otherwise fire or

electrical shock will occur. The operating temperature should be -30°C to 65°C (outdoor speed dome) and -10°C to 50°C (indoor speed dome).

 The dome cover for indoor use shall be kept from rain and moisture.  Exposing the equipment to direct sun light, low ventilation or heat source such as heater or

radiator is forbidden (ignorance can cause fire danger).

HD-TVI Speed Dome·Quick Start Guide

 Do not aim the speed dome at the sun or extra bright places. A blooming or smear may occur

otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.

 Please use the provided glove when open up the dome cover, avoid direct contact with the dome

cover, because the acidic sweat of the fingers may erode the surface coating of the dome cover.

 Please use a soft and dry cloth when clean inside and outside surfaces of the dome cover, do not

use alkaline detergents.

 Please keep all wrappers after unpack them for future use. In case of any failure occurred, you

need to return the speed dome to the factory with the original wrapper. Transportation without the original wrapper may result in damage on the speed dome and lead to additional costs.

0304401080126

HD-TVI Speed Dome·Quick Start Guide

Table of Contents

1 Installation ................................................................................................... 1

1.1 Connecting the Cables .............................................................................................................. 1

1.2 DIP Switch Settings ................................................................................................................... 2

1.2.1 Mini Speed Dome Settings ................................................................................................ 2

1.2.2 5-inch Speed Dome Settings .............................................................................................. 4

1.2.3 Mini IR & 5-inch IR Speed Dome Settings .......................................................................... 7

1.2.4 7-inch IR Speed Dome Settings ........................................................................................ 10

1.3 Wiring and Installation ........................................................................................................... 12

1.3.1 Wiring .............................................................................................................................. 12

1.3.2 Installing the Mount ........................................................................................................ 13

1.3.3 Setting the DIP Switch ..................................................................................................... 14

1.3.4 Installing the Speed Dome ............................................................................................... 14

2 In-door Mounting Applications .................................................................. 16

2.1 5-inch Speed Dome In-ceiling Mounting Applications ............................................................ 16

2.2 5-inch Speed Dome Ceiling Mounting Applications ................................................................ 18

2.2.1 Removing the Mounting Mount ...................................................................................... 18

2.2.2 Wiring .............................................................................................................................. 19

2.2.3 Ceiling Mounting ............................................................................................................. 20

2.3 Mini Speed Dome In-ceiling Mounting Applications ............................................................... 22

2.4 Mini Speed Dome Ceiling Mounting Applications .................................................................. 24

2.4.1 Wiring .............................................................................................................................. 24

2.4.2 Ceiling Mounting ............................................................................................................. 24

3 Application and Operations ........................................................................ 26

3.1 System Application ................................................................................................................. 26

3.2 Basic Operations ..................................................................................................................... 26

3.2.1 Configuring Patrol ............................................................................................................ 27

3.2.2 Configuring Park Actions ................................................................................................. 30

4 Troubleshooting ......................................................................................... 32

4.1 Device Exceptions ................................................................................................................... 32

4.2 PTZ Control Exceptions ........................................................................................................... 32

4.3 Other Questions ..................................................................................................................... 32

VI EOD

Alarm

Power Supply

Video Output

RS-485

Name

Description

Power Supply

24 VAC/12 VDC

Video Output

Coaxial video output

RS-485

485 control

Alarm

Alarm input and alarm output

HD-TVI Speed Dome·Quick Start Guide

1 Installation

Before you start:

Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included.

There are several ways to install the analog speed dome. The wall mounting is taken as an example below.

1.1 Connecting the Cables

Turn the power off before connecting the cables.

The cable interfaces of speed dome are shown in following figure. The cables are distinguished by different colors. The labels attached on the cables are for identification.

The Figure 1-1 contains all the possible cables, and they may vary according to different camera models. Refer to the actual device for the specific cables.

Figure 1-1 Cables

Table 1-1 Cables Description

DIP Switch

1 75 6432 8 9 10

ON DIP

1 2

Switch No.

Function

1 to 2 (SW2)

Set the terminal resistor

1 to 5 (SW1)

Set the address for the speed dome

6 to 7 (SW1)

Set the baudrate for the speed dome

8 (SW1)

Set the protocol for the speed dome

9 to 10 (SW1)

Set the video output mode for the speed dome

HD-TVI Speed Dome·Quick Start Guide

1.2 DIP Switch Settings

1.2.1 Mini Speed Dome Settings

The DIP switch is for setting the speed dome address, baudrate, protocol, video output mode, and terminal resistor, with value OFF=0. The mini speed dome’s DIP switch is shown in Figure1-2.

Figure 1-2 DIP Switch of Mini Analog Speed Dome

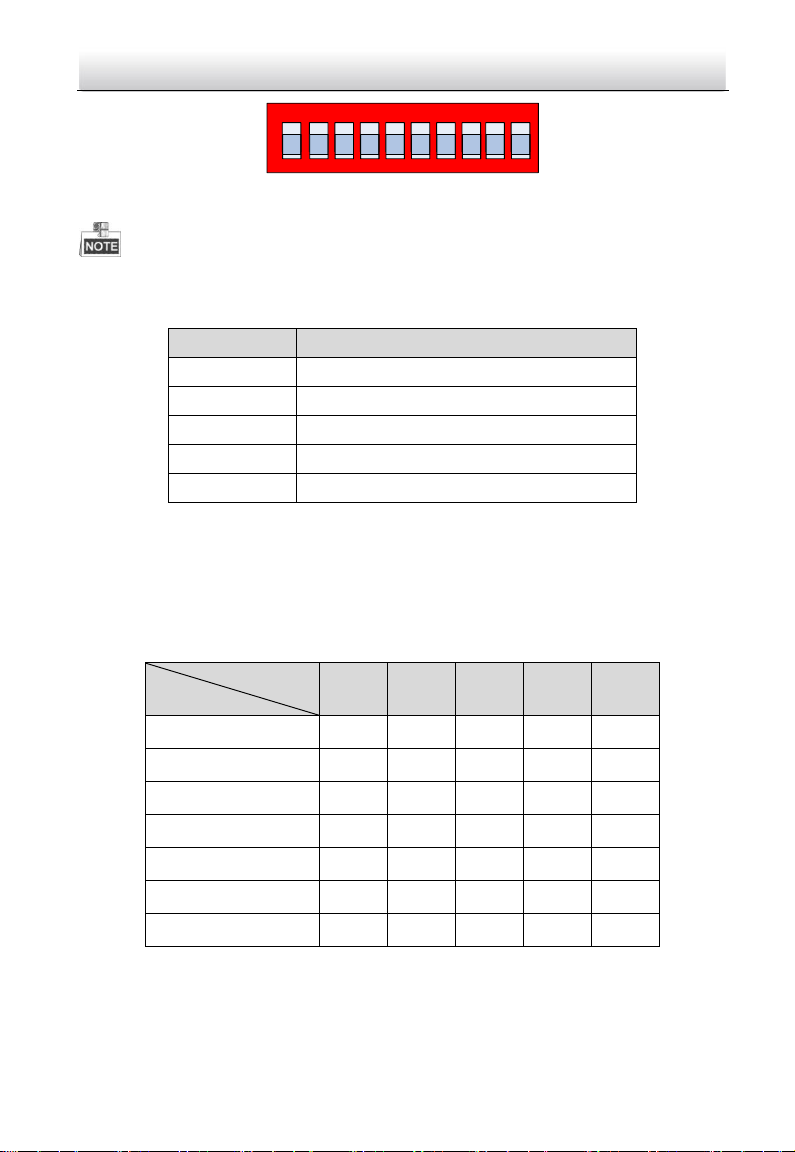

Figure 1-3 Enlarged View of DIP Switch

 For some certain models, the two individual DIP switches are at the left side of the Figure1-3 for

turning on/off the terminal resistor.

 The default address is 0, the default baudrate is 2400, and the default terminal resistor is OFF.

 Address Settings

Table 1-2 Switch Functions

Switch

Dome Address

1 2 3 4 5

OFF

…

… … … … …

Switch No.

Baudrate

2400

OFF

4800

OFF

9600

OFF

19200

Switch No.

Protocol

Self-adaptive

OFF

MAN_AD

HD-TVI Speed Dome·Quick Start Guide

The No.1 to No.5 DIP switches are for setting the address of speed dome, with value ON=1, 2, 3, 4, 5 standing respectively for 1, 2, 4, 8, 16, and OFF=0. You can refer to Table 1-3 for setting the address.

Table 1-3 Set Dome Address

 Baudrate Settings

The No.6 and No.7 DIP switches are for setting the baudrate. You can refer to Table 1-4 for setting the baudrate.

Table 1-4 Set Baudrate

 Protocol Settings

The No.8 DIP switch are for setting the protocol of the speed dome. You can refer to Table 1-5 for setting the protocol.

Table 1-5 Set Protocol

Switch No.

Video Output

TVI

OFF

AHD

OFF

CVI

OFF

CVBS

Switch No.

1 2 Turn on the Resistor

Turn off the Resistor

OFF

1 2 3 4 5 6 7 8

DIP Switch

HD-TVI Speed Dome·Quick Start Guide

The speed dome is self-adaptive to private protocol when the No.8 switch is OFF.

 Video Output Settings

The No.10 DIP switch is for setting the video output mode of the speed dome. You can refer to Table 1-6 for setting the video output.

Table 1-6 Set Video Output

 Terminal Resistor Settings

The two individual DIP switches, No.1 and No.2, are used for turning on/off the 120 Ω terminal resistor. You can refer to Table 1-7 for setting the terminal resistor.

Table 1-7 Set Terminal Resistor

1.2.2 5-inch Speed Dome Settings

The DIP switch is used for setting the address, protocol, video output mode, and baudrate for the speed dome, with value OFF=0. The 5-inch speed domes’ DIP switches are shown in Figure 1-4 and Figure 1-5.

Figure 1-4 DIP Switch for 5-inch Outdoor Speed Dome

1 2 3 4 5 6 7 8

1 2

DIP Switch

Switch No.

Function

1 to 5

Set the address for the speed dome

6 to 7

Set the baudrate for the speed dome

Set the protocol for the speed dome

1 to 2 (Right)

Set the video output mode for the speed dome

Switch No.

Dome Address

1 2 3 4 5

OFF

HD-TVI Speed Dome·Quick Start Guide

Figure 1-5 DIP Switch for 5-inch Indoor Speed Dome

Figure 1-6 Enlarged View of DIP Switch

The default address is 0. The default baudrate is 2400.

Table 1-8 Switch Functions

 Address Settings

The No.1 to No.5 DIP switches are for setting the address of speed dome, with value ON=1, 2, 3, 4, 5 standing respectively for 1, 2, 4, 8, 16, and OFF=0. You can refer to Table 1-9 for setting the address.

Table 1-9 Set Dome Address

Switch No.

Dome Address

1 2 3 4 5

…

… … … … …

Switch No.

Baudrate

2400

OFF

4800

OFF

9600

OFF

19200

Switch No.

Protocol

Self-adaptive

OFF

MAN_AD

HD-TVI Speed Dome·Quick Start Guide

 Baudrate Settings

The No.6 and No.7 DIP switches are for setting the baudrate of the speed dome. The baudrate can be 2400bps, 4800bps, 9600bps, or 19200bps. The baudrate will be set as 2400bps by default when it is out of this range. Refer to the following table for details

Table 1-10 Set Baudrate

 Protocol Settings

The No.8 switch is for setting the protocol of the speed dome. You can refer to Table 1-11 for setting the protocol.

 Video Output Settings

The individual DIP switches, No. 1 and No.2 are for setting the video output mode of the speed dome. You can refer to Table 1-12 for setting the video output mode.

Table 1-11 Set Protocol
