Hikvision DS-2CE16D0T-IR User Manual

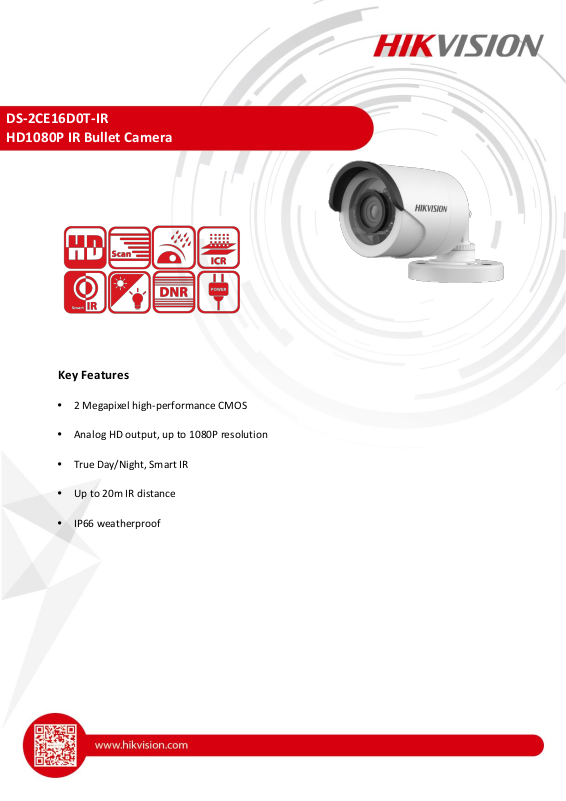

DS-2CE16D0T-IR
HD1080P IR Bullet Camera

 2 Megapixel high-performance CMOS

 Analog HD output, up to 1080P resolution

 True Day/Night, Smart IR

 Up to 20m IR distance

 IP66 weatherproof

Key Features

Specifications

Camera

Image Sensor

2MP CMOS Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1920(H)*1080(V)

Min. illumination

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time

1/25(1/30)s to 1/50,000s

Lens

2.8mm, 3.6mm, 6mm optional

Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)

Lens Mount

M12

Day & Night

ICR

Angle Adjustment

Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°

Synchronization

Internal synchronization

Video Frame Rate

1080p@25fps/1080p@30fps

HD Video Output

1 Analog HD output

S/N Ratio

＞62dB

General

Operating Conditions

-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)

Power Supply

12 VDC±15%

Power Consumption

Max. 4W

Protection Level

IP66

IR Range

Up to 20m

Dimensions

Φ70×149.5mm (Φ2.76”×5.89”)

Weight

400g

Order Models

DS-2CE16D0T-IR
