DS-2CD852F (-E)(-W)
Key Features
z Embedded Linux OS
z CS Lens Mount (Provide Optional Adapter for C Mount Lens)
z TI Davinci Hardware Compression
z MPEG-4 Video Compression
z 1 Channel Audio Compression
z High Resolution Video Preview: 1600×1200 Pixels
z Support 4CIF/DCIF/2CIF/CIF/QCIF Real Time Compression
z Support SD Card for Local Recording
z Support Dual Stream Compression
z Support Motion Detection, and Notification on PC Client
z Support both Variable Bit rate and Variable Frame Rate
z Support TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE, etc.
z Support IE for Network Preview
z Support HIKVISION Watermark
z Support E-PTZ Function
z Support Sensor Alarm Input and Relay Output
z Support Network Voice Talk Function
z Compatible with Current HIKVISION DVR/DVS SDK and Client Software
Specification
Parameter Model DS-2CD852F(-E)(-W)
Camera
Image Sensor 1/3 inch CMOS
Effective Pixel 1600(H)×1200(V)
Lens Mount C/CS Mount
©2006 – 2010 by HIKVISION. All rights reserved.
3
Day&Night Electronic
Min. Illumination
Lens Option Yes
Compression Standard
Video Compression MPEG-4
Hikvisio n Technical Manual
0.5Lux/F1.2
0.1Lux/F1.2, Sensitization X5
Video Output
Audio Compression OggVorbis
Image Resolution
Frame Rate
Functions
Electronic PTZ Support
Motion Detect Support
Dual Stream Support
SD Card Local Recording Support
Heartbeat Support
Password Protect Support
32 K～2M, Adjustable(8Mbps Maximum)
50Hz:
1600x1200,1280x720,800x600,704x576,
640x480,528x384,704x288,352x288,176x144
60Hz:
1600x1200,1280x720,800x600,704x480,640x480,
528x320,704x240,352x240,176x120
50HZ:
5fps(1600x1200),12.5fps(1280x720),25fps（704x576）
60HZ:
5fps(1600x1200),10fps(1280x720),30fps（704x480）
Protocols
Interface
Voice Talk Input
Voice Output 1 Channel 3.5mm Audio Interface(600Ω)
Communication 1 RJ45 10M/100M Self-Adapted Ethernet Port and, 1 RS-4 85 Interface
Alarm Input 1 Channel Signal Input
Alarm Output 1 Channel Signal on-off Output
Others
Working Temperature
©2006 – 2010 by HIKVISION. All rights reserved.
TCP/IP,HT TP,DHCP,DNS,RTP/RTCP, PP PoE (FTP,SMTP,NTP,S NMP ad dible).
(-W) series Support IEEE802.11g Wireless WLAN Criterion,2.4GHz Fequency.
1 Channel 3.5mm Audio Interface(2.0～2.4Vp-p,1kΩ)
－10℃-60℃
4
Hikvisio n Technical Manual
Power Supply 12VDC, ±10%, (-E) series Support PoE (Power over Ethernet)
Power Consumption 3W MAX
Dimensions (mm) 63×59×116
Weight 650g

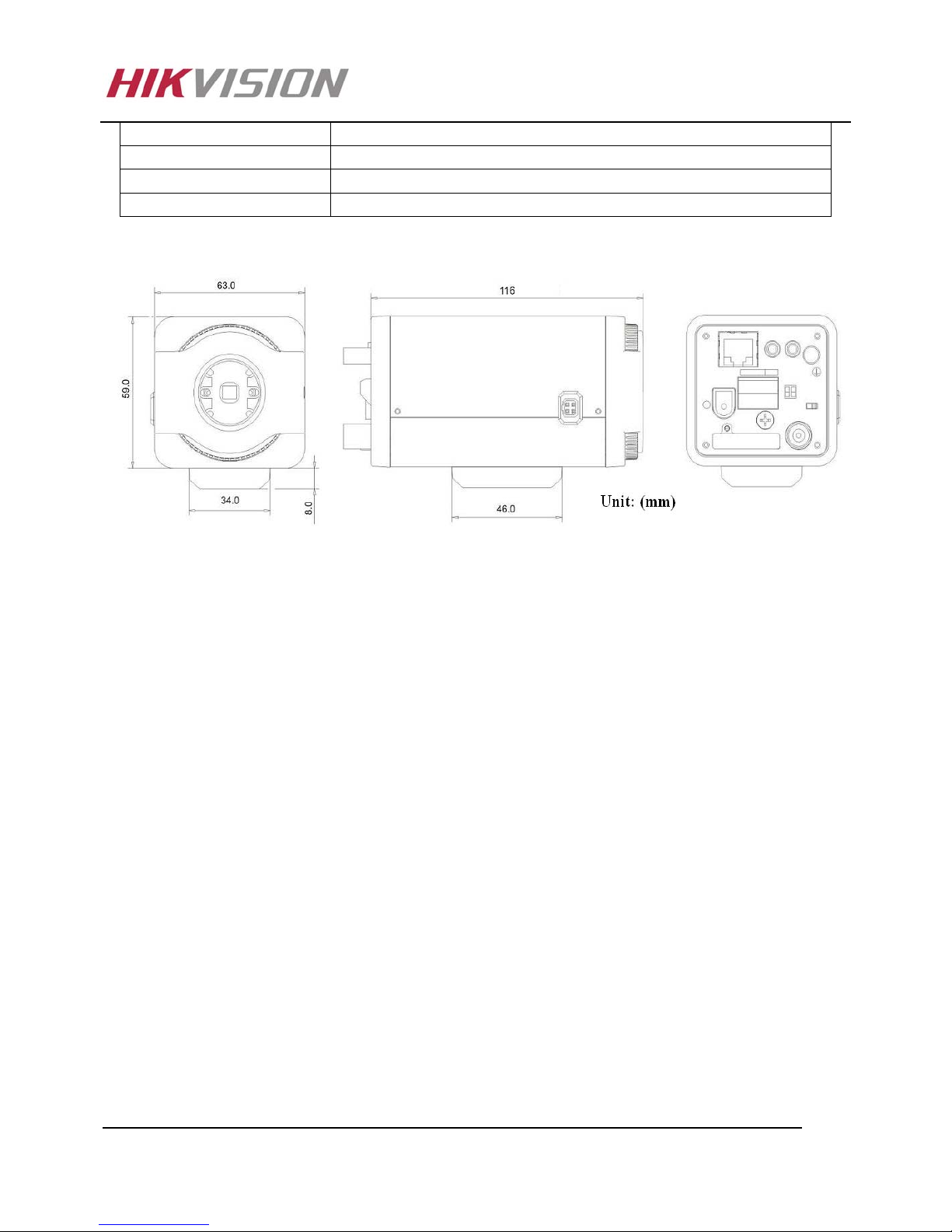

Appearance
©2006 – 2010 by HIKVISION. All rights reserved.
5
