Hikvision DS-2CD7253F-EZ, DS-2CD7253F-EZH, DS-2CD764FWD-EIZ, DS-2CD764FWD-EZ, DS-2CD8254FWD-EIZ User Manual

...

Network Camera

User Manual

V5.0

UD.6L0201D1001A01

Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

User Manual of Network Camera

1









This manual is applied to the following camera models:



Type





Model























DS-2CD883F-E(W), DS-2CD855(F)-E, DS-2CD854F(WD)-E(W),











DS-2CD853F-E(W), DS-2CD864F(WD)-E(W),





Box camera I





DS-2CD863PF(NF)-E(W), DS-2CD893PFWD(NFWD)-E(W),











DS-2CD833F-E(W),











DS-2CD893PF(NF)-E(W)











DS-2CD733F-E(I)(Z), DS-2CD793PF(NF)-E(I)(Z),











DS-2CD793PFWD(NFWD)-E(I)(Z), DS-2CD763PF(NF)-E(I)(Z),





Dome camera I





DS-2CD764FWD-E(I)(Z), DS-2CD764F-E(I)(Z), DS-2CD753F-E(I)(Z),











DS-2CD754F-E(I)(Z), DS-2CD754FWD-E(I)(Z)(B),











DS-2CD783F-E(I)(Z), DS-2CD755F-E(I)(Z)











DS-2CD7233F-E(I)Z(H)(S), DS-2CD7253F-E(I)Z(H)(S),











DS-CD7254F-E(I)Z(H)(S), DS-CD7254FWD- E(I)Z(H)(S),





Dome camera II





DS-2CD7255F- E(I)Z(H)(S), DS-2CD7283F-E(I)Z(H)(S),









DS-2CD7293PFWD(NFWD)- E(I)Z(H)(S),





















DS-2CD7263NF(PF)- E(I)Z(H)(S), DS-2CD 7264FWD- E(I)Z(H)(S),











DS-2CD7293PF(NF)- E(I)Z(H)(S)





Dome camera III





DS-2CD2312-I5, DS-2CD2332-I5





Dome camera IV





DS-2CD2112-(I), DS-2CD2132-(I)





Dome Camera V





DS-2CD7353F-E(I)(S), DS-2CD7393(PF)(NF)(WD)-E(I)(S)





Dome Camera VI





DS-2CD2712F-I(S); DS-2CD2732F-I(S)











DS-2CD8253F- E(I)(Z)(S), DS-2CD8233F-E(I)(Z)(S),











DS-2CD8264FWD-E(I)(Z)(S), DS-2CD8264F-E(I)(Z)(S),





Bullet Camera I





DS-2CD8254F- E(I)(Z)(S), DS-2CD8254FWD- E(I)(Z)(S),









DS-2CD8283F- E(I)(Z)(S), DS-2CD8255F- E(I)(Z)(S),





















DS-2CD4212F-IS, DS-2CD4212F-IZS, DS-2CD4212F-I,











DS-2CD4212F, DS-2CD4224-IZS, DS-2CD4224F-I





Bullet Camera II





DS-2CD864-EI(3)(5), DS-2CD855-EI(3)(5)





Bullet Camera III





DS-2CD2012-I, DS-2CD2032-I





Bullet Camera IV





DS-2CD2212-I(3)(5), DS-2CD2232-I(3)(5),





Bullet Camera V





DS-2CD2612F-I(S), DS-2CD2632F-I(S)





Cube Camera I





DS-2CD8133F-E(I)(W), DS-2CD8153F-E(I)(W)





Cube Camera II





DS-2CD8464F-E(I)(W), DS-2CD8433F-E(I)(W)





Mini Dome





DS-2CD7164-E,DS-2CD7153-E, DS-2CD7133-E





Camera









User Manual of Network Camera

2









Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer.

This manual applies to Network Camera.

This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF

ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

3









Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.This device may not cause harmful interference.

2.This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive

2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to

indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

Hikvision DS-2CD7253F-EZ, DS-2CD7253F-EZH, DS-2CD764FWD-EIZ, DS-2CD764FWD-EZ, DS-2CD8254FWD-EIZ User Manual

User Manual of Network Camera

4









Safety Warnings and Cautions

Please pay attention to the following warnings and cautions:

Hazardous Voltage may be present: Special measures and precautions must be taken when using this device. Some potentials (voltages) on the device may present a hazard to the user. This device should only be used by employees from our company with knowledge and training in working with these types of devices that

contain live circuits.

Power Supply Hazardous Voltage: AC mains voltages are present within the power supply assembly. This device must be connected to a UL approved, completely enclosed power supply, of the proper rated voltage and current. No user serviceable parts inside the power supply.

System Grounding (Earthing): To avoid shock, ensure that all AC wiring is not exposed and that the earth grounding is maintained. Ensure that any equipment to which this device will be attached is also connected to properly wired grounded receptacles and are approved medical devices.

Power Connect and Disconnect: The AC power supply cord is the main disconnect device to mains (AC power).The socket outlet shall be installed near the equipment and shall be readily accessible.

Installation and Maintenance: Do not connect/disconnect any cables to or perform installation/maintenance on this device during an electrical storm.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

5









Power Cord Requirements: The connector that plugs into the wall outlet must be a grounding-type male plug designed for use in your region. It must have certification marks showing certification by an agency in your region. The connector that plugs into the AC receptacle on the power supply must be an IEC 320, sheet C13, female connector. See the following website for more information http://kropla.com/electric2.htm.

Lithium Battery: This device contains a Lithium Battery. There is a risk of explosion if the battery is replaced by an incorrect type.

Dispose of used batteries according to the vendor’s instructions and in accordance with local environmental regulations. Perchlorate Material: Special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate. This notice is required by California Code of Regulations, Title 22, Division 4.5, Chapter 33: Best Management Practices for Perchlorate Materials. This device includes a battery which contains perchlorate material.

Taiwan battery recycling:

Please recycle batteries.

Thermal and Mechanical Injury: Some components such as heat sinks, power regulators, and processors may be hot; care should be taken to avoid contact with these components.

Electro Magnetic Interference: This equipment has not been tested for compliance with emissions limits of FCC and similar international regulations. This device is not, and may not be, offered for sale or lease, or sold, or leased until authorization from the United States FCC or its equivalent in other countries has been obtained. Use of this equipment in a residential location is prohibited. This equipment generates, uses and can radiate radio frequency energy which may result in harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

6









determined by turning the equipment on and off, the user is required to take measures to eliminate the interference or discontinue the use of this equipment.

Lead Content:

Please recycle this device in a responsible manner. Refer to local environmental regulations for proper recycling; do not dispose of device in unsorted municipal waste.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

7









Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings Follow these safeguards to Cautions Follow these precautions to prevent serious injury or death. prevent potential injury or material

damage.

Warnings:

Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. And source with DC 12V or AC 24V (depending on models) according to the IEC60950-1 and Limited Power Source standard.

If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.

This installation should be made by a qualified service person and should conform to all the local codes.

Please install blackouts equipment into the power supply circuit for convenient supply interruption.

Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is fixed to the ceiling.

If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

8









Cautions:

Make sure the power supply voltage is correct before using the camera.

Do not drop the camera or subject it to physical shock.

Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the camera.

The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor not be exposed to the laser beam.

Do not place the camera in extremely hot, cold temperatures (the operating temperature should be between -10°C ~ 60°C), dusty or damp environment, and do not expose it to high electromagnetic radiation.

To avoid heat accumulation, good ventilation is required for a proper operating environment.

Keep out of water and any liquid.

While shipping, the camera should be packed in its original packing.

Improper use or replacement of the battery may result in hazard of explosion. Please use the manufacturer recommended battery type.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

9













Contents



CHAPTER 1

SYSTEM REQUIREMENT............................................................................................

12

CHAPTER 2

NETWORK CONNECTION ..........................................................................................

13

2.1

SETTING THE NETWORK CAMERA OVER THE LAN..............................................................................

13

2.1.1 Wiring over the LAN ..........................................................................................................

13

2.1.2 Detecting and Changing the IP Address.............................................................................

14

2.2

SETTING THE NETWORK CAMERA OVER THE WAN ............................................................................

15

2.2.1



Static IP Connection...........................................................................................................

15

2.2.2



Dynamic IP Connection......................................................................................................

16

CHAPTER 3

ACCESS TO THE NETWORK CAMERA.........................................................................

18

3.1

ACCESSING BY WEB BROWSERS .....................................................................................................

18

3.2

ACCESSING BY CLIENT SOFTWARE...................................................................................................

20

3.2.1 Accessing by iVMS-4200 Software.....................................................................................

20

3.2.2 Accessing by iVMS-4500 Software.....................................................................................

21

CHAPTER 4

WI-FI SETTINGS ........................................................................................................

21

4.1

CONFIGURING WI-FI CONNECTION IN MANAGE AND AD-HOC MODES..................................................

22

4.2

EASY WI-FI CONNECTION WITH WPS FUNCTION ..............................................................................

26

4.3

IP PROPERTY SETTINGS FOR WIRELESS NETWORK CONNECTION...........................................................

28

CHAPTER 5

LIVE VIEW ................................................................................................................

29

5.1

LIVE VIEW PAGE .........................................................................................................................

29

5.2

STARTING LIVE VIEW ...................................................................................................................

30

5.3

RECORDING AND CAPTURING PICTURES MANUALLY...........................................................................

30

5.4

OPERATING PTZ CONTROL ...........................................................................................................

31

5.4.1



PTZ Control Panel...............................................................................................................

31

5.4.2 Setting / Calling a Preset....................................................................................................

32

5.5

CONFIGURING LIVE VIEW PARAMETERS ...........................................................................................

33

CHAPTER 6

NETWORK CAMERA CONFIGURATION......................................................................

33

6.1

CONFIGURING LOCAL PARAMETERS ................................................................................................

33

6.2

CONFIGURING TIME SETTINGS.......................................................................................................

35

6.3

CONFIGURING NETWORK SETTINGS................................................................................................

37

6.3.1



Configuring TCP/IP Settings ...............................................................................................

37

6.3.2



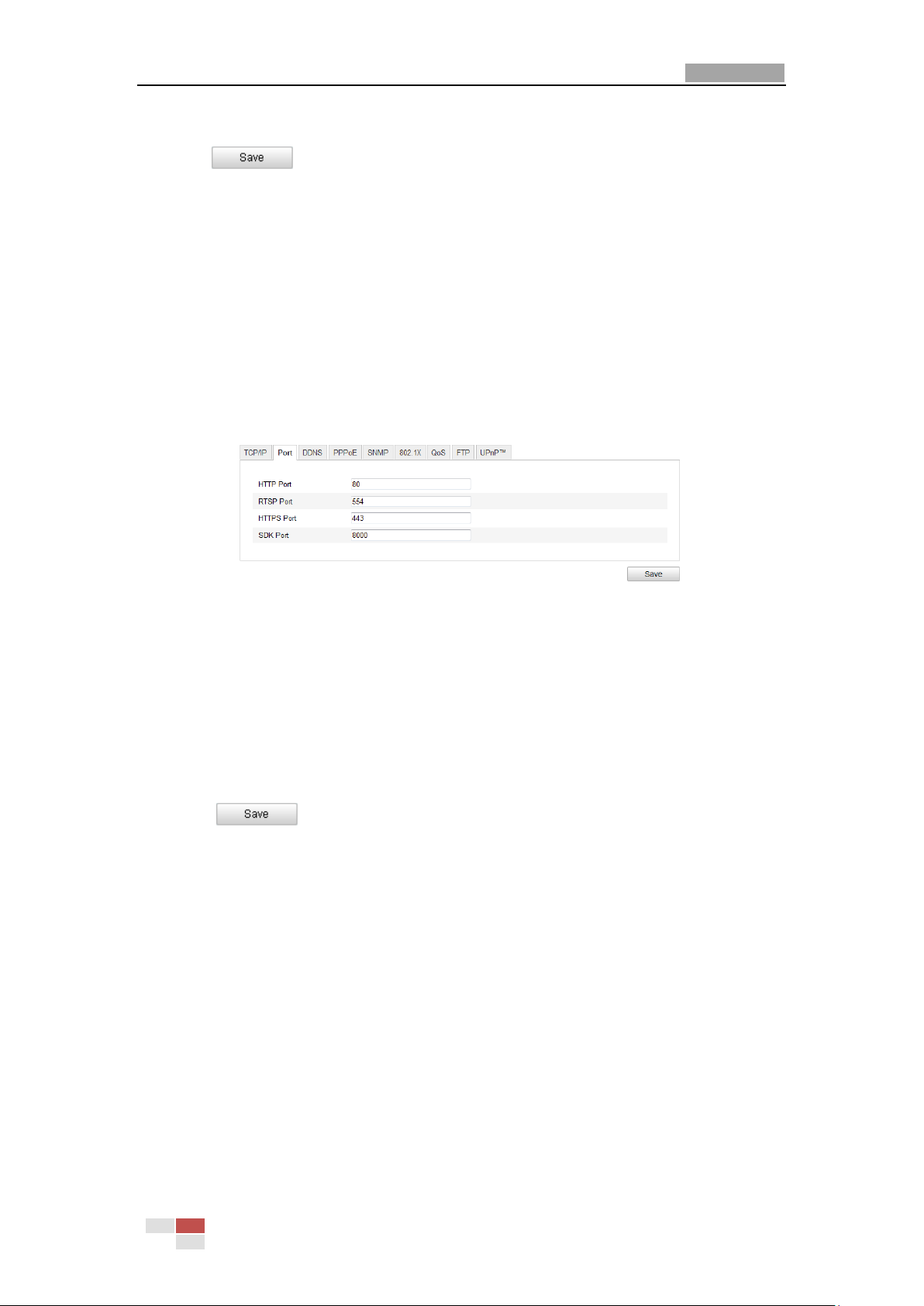

Configuring Port Settings ...................................................................................................

38

6.3.3



Configuring PPPoE Settings................................................................................................

38

6.3.4



Configuring DDNS Settings.................................................................................................

39

6.3.5



Configuring SNMP Settings ................................................................................................

41

6.3.6



Configuring 802.1X Settings...............................................................................................

42

6.3.7



Configuring QoS Settings ...................................................................................................

43

6.3.8



Configuring FTP Settings ....................................................................................................

44

6.3.9



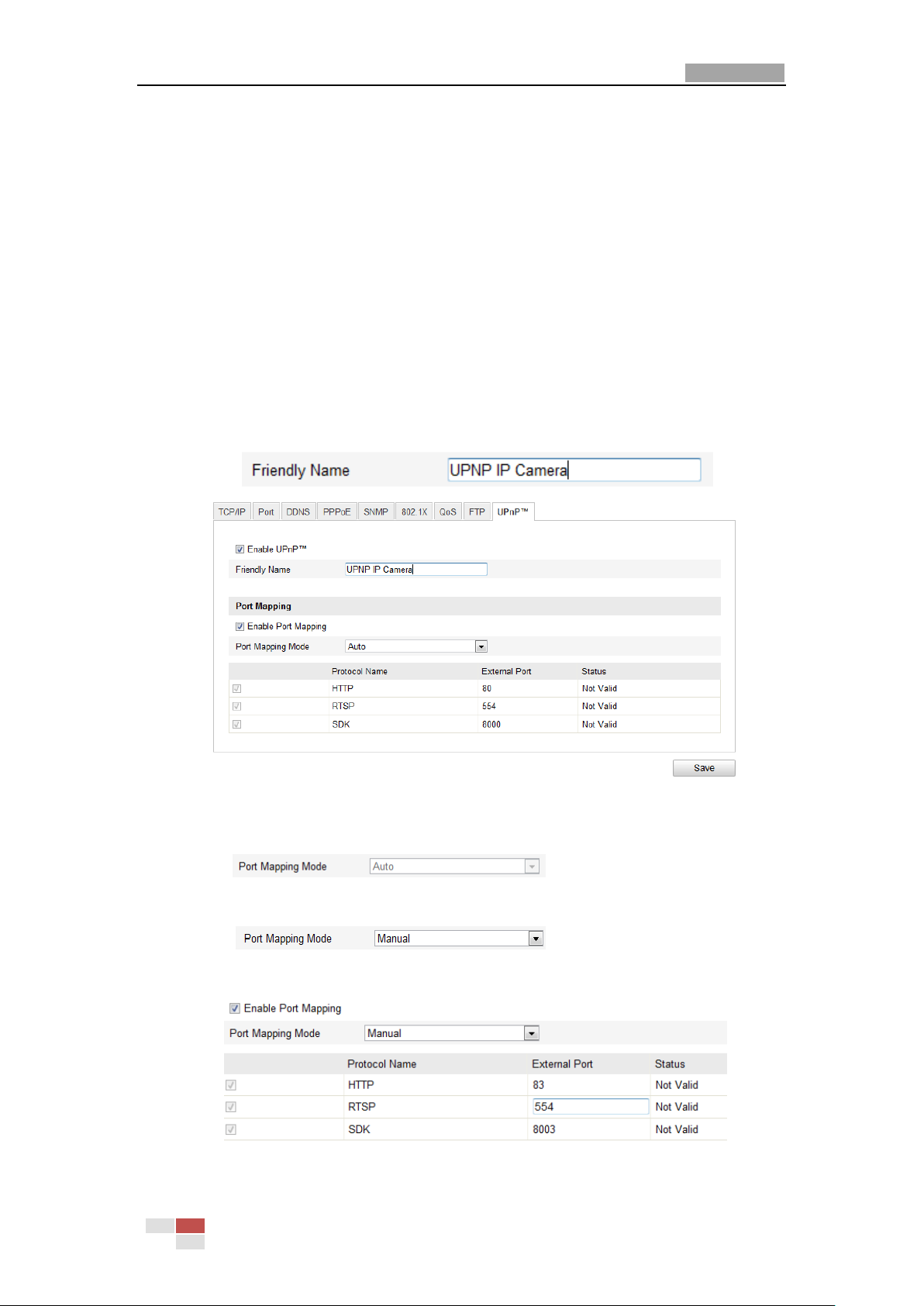

Configuring UPnP™ Settings ..............................................................................................

45



© Hikvision Digital Technology Co., Ltd. All Rights Reserved.



User Manual of Network Camera

10









6.4

CONFIGURING VIDEO AND AUDIO SETTINGS.....................................................................................

46

6.4.1



Configuring Video Settings ................................................................................................

46

6.4.2



Configuring Audio Settings ................................................................................................

47

6.4.3



Configuring ROI Encoding ..................................................................................................

48

6.5

CONFIGURING IMAGE PARAMETERS................................................................................................

48

6.5.1



Configuring Display Settings ..............................................................................................

48

6.5.2



Configuring OSD Settings...................................................................................................

50

6.5.3 Configuring Text Overlay Settings ......................................................................................

52

6.5.4



Configuring Privacy Mask ..................................................................................................

52

6.5.5



Configuring Picture Overlay ...............................................................................................

53

6.6

CONFIGURING AND HANDLING ALARMS ..........................................................................................

54

6.6.1



Configuring Motion Detection ...........................................................................................

54

6.6.2



Configuring Tamper-proof Alarm.......................................................................................

57

6.6.3 Configuring External Alarm Input ......................................................................................

59

6.6.4



Configuring Alarm Output .................................................................................................

60

6.6.5



Handling Exception ............................................................................................................

61

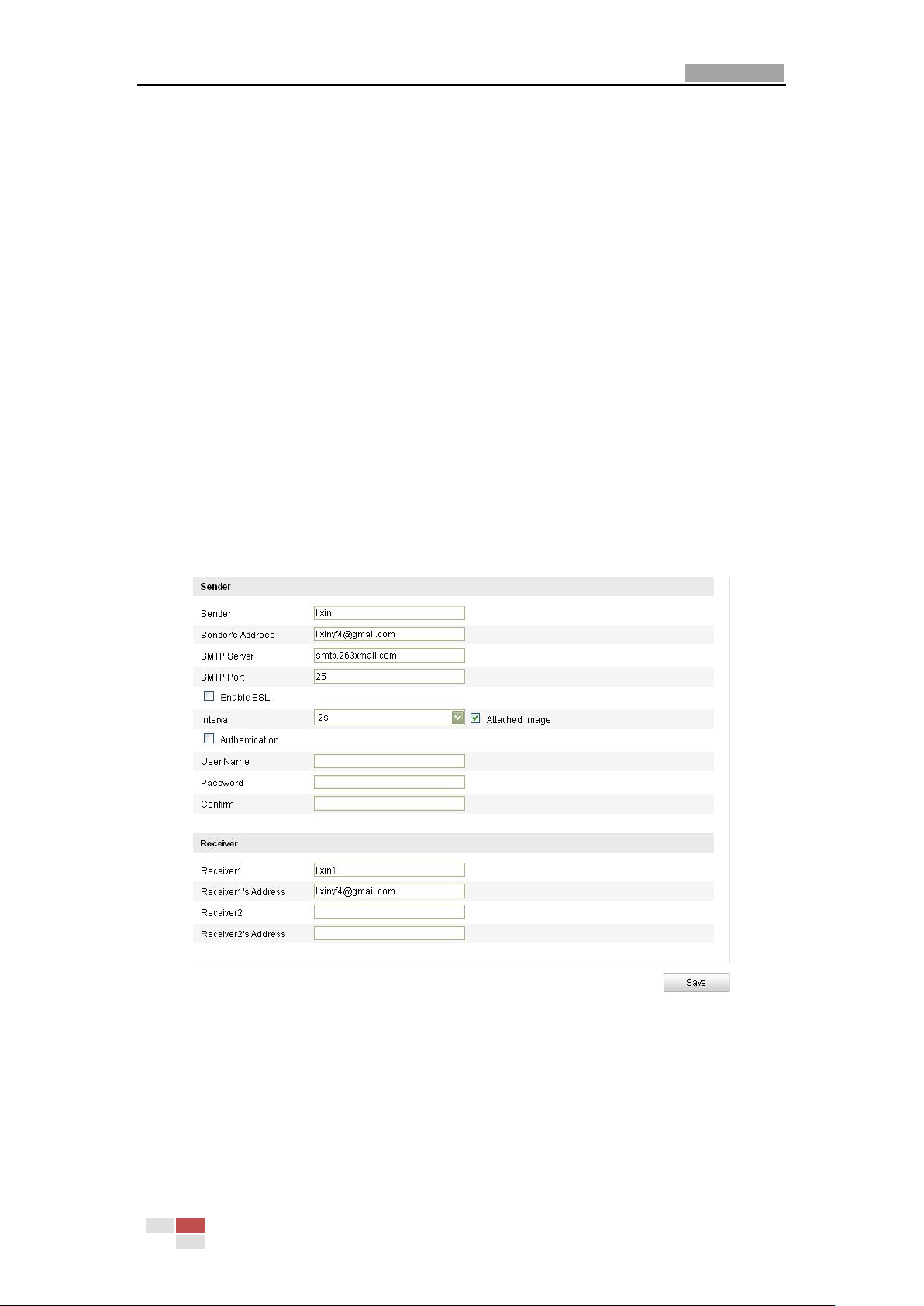

6.6.6 Email Sending Triggered by Alarm .....................................................................................

62

6.6.7



Configuring Snapshot Settings...........................................................................................

63

6.6.8



Face Detection ...................................................................................................................

64

6.6.9



Configuring Other Alarms ..................................................................................................

65

6.6.10

Arming or Disarming the Camera ..................................................................................

70

CHAPTER 7

STORAGE SETTINGS..................................................................................................

72

7.1

CONFIGURING NAS SETTINGS .......................................................................................................

72

7.2

CONFIGURING RECORDING SCHEDULE.............................................................................................

73

CHAPTER 8

PLAYBACK ................................................................................................................

78

CHAPTER 9

LOG SEARCHING .......................................................................................................

80

CHAPTER 10

OTHERS ....................................................................................................................

81

10.1 MANAGING USER ACCOUNTS........................................................................................................

81

10.2 CONFIGURING RTSP AUTHENTICATION ...........................................................................................

83

10.3

ANONYMOUS VISIT .....................................................................................................................

83

10.4

IP ADDRESS FILTER......................................................................................................................

84

10.5

VIEWING DEVICE INFORMATION ....................................................................................................

86

10.6

MAINTENANCE...........................................................................................................................

87

10.6.1

Rebooting the Camera...................................................................................................

87

10.6.2

Restoring Default Settings .............................................................................................

87

10.6.3

Importing/Exporting Configuration File ........................................................................

87

10.6.4

Upgrading the System....................................................................................................

88

10.7

RS-232 SETTINGS ......................................................................................................................

88

10.8

RS-485 SETTINGS ......................................................................................................................

89

APPENDIX ........................................................................................................................................



90

APPENDIX 1 SADP SOFTWARE INTRODUCTION .............................................................................................

90

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

11









APPENDIX 2 PORT MAPPING .....................................................................................................................

92

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

12









Chapter 1 System Requirement

Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher

Display: 1024×768 resolution or higher

Web Browser: Internet Explorer 6.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 3.5 and above version and Google Chrome8 and above versions.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

13









Chapter 2 Network Connection

Before you start:

If you want to set the network camera via a LAN (Local Area Network), please refer to Section 2.1 Setting the Network Camera over the LAN.

If you want to set the network camera via a WAN (Wide Area Network), please refer to Section 2.2 Setting the Network Camera over the WAN.

2.1 Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

To test the network camera, you can directly connect the network camera to the computer with a network cable as shown in Figure 2-1.

Refer to the Figure 2-2 to set the network camera over the LAN via a switch or a router.

Figure 2-1 Connecting Directly

Figure 2-2 Connecting via a Switch or a Router

User Manual of Network Camera

14









2.1.2 Detecting and Changing the IP Address

You need the IP address to visit the network camera.

Steps:

1.To get the IP address, you can choose either of the following methods:

Use SADP, a software tool which can automatically detect the online network cameras in the LAN and list the device information including IP address, subnet mask, port number, device serial number, device version, etc., shown in Figure 2-3.

Use the client software to list the online devices. Please refer to the user manual of client software for detailed information.

2.Change the IP address and subnet mask to the same subnet as that of your computer.

3.Enter the IP address of network camera in the address field of the web browser

to view the live video.

Notes:

The default IP address is 192.0.0.64 and the port number is 8000. The default user name is admin, and password is 12345.

For accessing the network camera from different subnets, please set the gateway for the network camera after you logged in. For detailed information, please refer to Section 5.3.1 Configuring TCP/IP Settings.

Figure 2-3 SADP Interface

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

15









2.2 Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

Connecting the network camera via a router

Steps:

1.Connect the network camera to the router.

2.Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed IP address configuration of the camera.

3.Save the static IP in the router.

4.Set port mapping, E.g., 80, 8000, 8200 and 554 ports. The steps for port mapping vary depending on different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5.Visit the network camera through a web browser or the client software over the internet.

Figure 2-4 Accessing the Camera through Router with Static IP

Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed IP address configuration of the camera.

Figure 2-5 Accessing the Camera with Static IP Directly

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

16









2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

Connecting the network camera via a router

Steps:

1.Connect the network camera to the router.

2.In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 Detecting and Changing the IP Address for detailed LAN configuration.

3.In the router, set the PPPoE user name, password and confirm the password.

4.Set port mapping. E.g. 80, 8000, 8200 and 554 ports. The steps for port mapping

vary depending on different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5.Apply a domain name from a domain name provider.

6.Configure the DDNS settings in the setting interface of the router.

7.Visit the camera via the applied domain name.

Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 5.3.3 Configuring PPPoE Settings for detailed configuration.

Figure 2-6 Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address

always changes after rebooting the camera. To solve the inconvenience of the

dynamic IP, you need to get a domain name from the DDNS provider (E.g.

DynDns.com). Please follow below steps for normal domain name resolution and

private domain name resolution to solve the problem.

Normal Domain Name Resolution

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

17









Figure 2-7 Normal Domain Name Resolution

Steps:

1.Apply a domain name from a domain name provider.

2.Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 5.3.4 Configuring DDNS Settings for detailed configuration.

3.Visit the camera via the applied domain name.

Private Domain Name Resolution

Figure 2-8 Private Domain Name Resolution

Steps:

1.Install and run the IP Server software in a computer with a static IP.

2.Access the network camera through the LAN with a web browser or the client software.

3.Enable DDNS and select IP Server as the protocol type. Refer to Section 5.3.4 Configuring DDNS Settings for detailed configuration.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

18









Chapter 3 Access to the Network

Camera

3.1 Accessing by Web Browsers

Steps:

1.Open the web browser.

2.In the address field, input the IP address of the network camera, e.g., 192.0.0.64 and press the Enter key to enter the login interface.

3.Input the user name and password and click .

Note: The default user name is admin, password is 12345.

Figure 3-1 Login Interface

4. Install the plug-in before viewing the live video and operating the camera. Please follow the installation prompts to install the plug-in.

User Manual of Network Camera

19









Figure 3-2 Download and Install Plug-in

Figure 3-3 Install Plug-in (1)

Figure 3-4 Install Plug-in (2)

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

20









Figure 3-5 Install Plug-in (3)

Note: You may have to close the web browser to install the plug-in. Please reopen

the web browser and log in again after installing the plug-in.

3.2 Accessing by Client Software

3.2.1 Accessing by iVMS-4200 Software

The product CD contains the iVMS-4200 client software (Client or PCNVR). You can view the live video and manage the camera with the client software.

Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 are shown as bellow.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

21









Figure 3-6 iVMS-4200 Live View

Figure 3-7 iVMS-4200 Configuration Panel

Note: For detailed information about iVMS-4200 client software, please refer to the user manual of the iVMS-4200 software.

3.2.2 Accessing by iVMS-4500 Software

To view the camera with a mobile phone, install the iVMS-4500 client software in your mobile phone. You can find the software in the CD in the package, and you can also download the software from our website www.hikvision.com.

Note: For detailed information about iVMS-4500 client software, please refer to the user manual of iVMS-4500 software.

Chapter 4 Wi-Fi Settings

Purpose:

By connecting to the wireless network, you don’t need to use cable of any kind for network connection, which is very convenient for the actual surveillance application.

Note:

This chapter is only applicable for the cameras with the Wi-Fi module built-in.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

22









4.1 Configuring Wi-Fi Connection in Manage and

Ad-hoc Modes

Before you start:

A wireless network must be configured.

Wireless Connection in Manage Mode

Steps:

1. Enter the Wi-Fi configuration interface.

Configuration> Advanced Configuration> Network> Wi-Fi

Figure 4-1 Wireless Network List

2.Click button to search the online wireless connections.

3.Click to choose a wireless connection on the list.

Figure 4-2 Wi-Fi SettingManage Mode

4.Check the checkbox to select the Network mode as Manage, and the Security mode and the Encryption Type of the network is automatically shown when

you select the wireless network, please don’t change it manually. Note: These parameters are exactly identical with those of the router.

5.Enter the key to connect the wireless network. The key should be that of the wireless network connection you set on the router.

Wireless Connection in Ad-hoc Mode

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

23









If you choose the Ad-hoc mode, you don’t need to connect the wireless camera via a router. The scenario is the same as you connect the camera and the PC directly with a network cable.

Steps:

1.Choose Ad-hoc mode.

Figure 4-3 Wi-Fi Setting- Ad-hoc

2.Customize a SSID for the camera.

3.Choose the Security Mode of the wireless connection.

Figure 4-4

Figure 4-5 Security Mode- Ad-hoc Mode

4.Enable the wireless connection function for your PC.

5.On the PC side, search the network and you can see the SSID of the camera listed.

Figure 4-6 Ad-hoc Connection Point

6.Choose the SSID and connect.

Security Mode Description:

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

24









You can choose the Security Mode as not –encrypted, WEP, WPA-personal, WPA-enterprise, WPA2-personal, WPA2-enterprise.

WEP mode:

Authentication - Select Open or Shared Key System Authentication, depending on the method used by your access point. Not all access points have this option, in which case they probably use Open Sys-tem, which is sometimes known as SSID Authentication.

Key length - This sets the length of the key used for the wireless encryption, 64 or

128 bit. The encryption key length can sometimes be shown as 40/64 and

104/128.

Key type - The key types available depend on the access point being used. The following options are available:

HEX - Allows you to manually enter the hex key.

ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and 13 characters for 128-bit WEP.

WPA-personal and WPA2-personal Mode:

Enter the required Pre-shared Key for the access point, which can be a hexadecimal number or a passphrase.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

25









WPAenterprise and WPA2-enterprise Mode:

Choose the type of client/server authentication being used by the access point; EAP-TLS or EAP-PEAP.

EAP-TLS

Identity - Enter the user ID to present to the network.

Private key password – Enter the password for your user ID.

EAPOL version - Select the version used (1 or 2) in your access point.

CA Certificates - Upload a CA certificate to present to the access point for authentication.

EAP-PEAP:

User Name - Enter the user name to present to the network

Password - Enter the password of the network

PEAP Version - Select the PEAP version used at the access point.

Label - Select the label used by the access point.

EAPOL version - Select version (1 or 2) depending on the version used at the access point

CA Certificates - Upload a CA certificate to present to the access point for authentication

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

26









4.2 Easy Wi-Fi Connection with WPS function

Purpose:

The setting of the wireless network connection is never easy. To avoid the complex setting of the wireless connection you can enable the WPS function.

WPS (Wi-Fi Protected Setup) refers to the easy configuration of the encrypted connection between the device and the wireless router. The WPS makes it easy to add new devices to an existing network without entering long passphrases. There are two modes of the WPS connection, the PBC mode and the PIN mode.

Note: If you enable the WPS function, you don’t need to configure the parameters such as the encryption type and you don’t need to know the key of the wireless connection.

Steps:

Figure 4-7 Wi-Fi Settings - WPS

PBC Mode:

PBC refers to the Push-Button-Configuration, in which the user simply has to

push a button, either an actual or virtual one (as the button on the

configuration interface of the IE browser), on both the Access Point (and a registrar of the network) and the new wireless client device.

1.Check the checkbox of to enable WPS.

2.Choose the connection mode as PBC.

Note: Support of this mode is mandatory for both the Access Points and the connecting devices.

3.Check on the Wi-Fi router to see if there is a WPS button. If yes push the button and you can see the indicator near the button start flashing, which means the WPS function of the router is enabled. For detailed operation, please see the user guide of the router.

4.Push the WPS button to enable the function on the camera.

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

27









If there is not a WPS button on the camera, you can also click the virtual button to enable the PBC function on the web interface.

Click button.

When the PBC mode is both enabled in the router and the camera, the camera and the wireless network is connected automatically.

PIN Mode:

The PIN mode requires a Personal Identification Number (PIN) to be read from either a sticker or the display on the new wireless device. This PIN must then be entered to connect the network, usually the Access Point of the network.

Steps:

1.Choose a wireless connection on the list and the SSID is shown.

Figure 4-8 Wi-Fi Settings – WPS PIN Mode

2.Choose the.

If the PIN code is generated from the router side, you should enter the PIN code you get from the router side in the field.

3. Click button.

Or

© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

User Manual of Network Camera

28









You can generate the PIN code on the camera side. And the expired time for the PIN code is 120 seconds.

1.Click

2.Enter the code to the router, in the example, enter 48167581 to the router.

4.3IP Property Settings for Wireless Network Connection

The default IP address of wireless network interface controller is 192.168.1.64. When you connect the wireless network you can change the default IP.

Steps:

1. Enter the TCP/IP configuration interface. Configuration> Advanced Configuration> Network> TCP/IP or

Configuration> Basic Configuration> Network> TCP/IP

Figure 4-9 TCP/IP Settings

2.Select the NIC as wlan.

3.Customize the IPv4 address, the IPv4 Subnet Mask and the Default Gateway.

The setting procedure is the same with that of LAN.

If you want to be assigned the IP address you can check the checkbox to enable the DHCP.
