Hikvision DS-2CD5065G0, DS-2CD5165G0-IZS, DS-2CD5A26G0-IZHS, DS-2CD5A26G0-IZHS8, DS-2CD5A65G0-IZHS User Manual
...
Network Camera User Manual
Network Camera
User Manual
UD08468B
0
Network Camera User Manual
User Manual
COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the
properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries
(hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be
“the Manual”) cannot be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of Hikvision. Unless
otherwise stipulated, Hikvision does not make any warranties, guarantees or
representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Camera.
The Manual includes instructions for using and managing the product. Pictures, charts,
images and all other information hereinafter are for description and explanation only.
The information contained in the Manual is subject to change, without notice, due to
firmware updates or other reasons. Please find the latest version in the company
website (http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision's trademarks and logos are the properties of
Hikvision in various jurisdictions. Other trademarks and logos mentioned below are
the properties of their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND
HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,
1
Network Camera User Manual
Notice:
If camera fails to synchronize local time with that of the network, you need to set
up camera time manually. Visit the camera and enter system setting interface for
time setting.
FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF
THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,
CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,
AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN
CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL
NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT
IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE
LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS
PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to
avoid danger or property loss.
2
Network Camera User Manual
Warnings Follow these safeguards to
prevent serious injury or death.
Cautions Follow these precautions to
prevent potential injury or material
damage.
The precaution measure is divided into ‘Warnings’ and ‘Cautions’:
Warnings: Serious injury or death may be caused if any of these warnings are
neglected.
Cautions: Injury or equipment damage may be caused if any of these cautions are
neglected.
Warnings:
Please adopt the power adapter which can meet the safety extra low voltage
(SELV) standard. And source with 12 VDC or 24 VAC (depending on models)
according to the IEC60950-1 and Limited Power Source standard.
To reduce the risk of fire or electrical shock, do not expose this product to rain or
moisture.
This installation should be made by a qualified service person and should conform
to all the local codes.
Please install blackouts equipment into the power supply circuit for convenient
supply interruption.
Please make sure that the ceiling can support more than 50(N) Newton gravities if
the camera is fixed to the ceiling.
If the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the camera yourself. (We shall not
assume any responsibility for problems caused by unauthorized repair or
maintenance.)
Cautions:
3
Network Camera User Manual
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules with fingers. If cleaning is necessary, use a clean
cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an
extended period of time, put on the lens cap to protect the sensor from dirt.
Do not aim the camera lens at the strong light such as sun or incandescent lamp.
The strong light can cause fatal damage to the camera.
The sensor may be burned out by a laser beam, so when any laser equipment is
being used, make sure that the surface of the sensor not be exposed to the laser
beam.
Do not place the camera in extremely hot, cold temperatures (refer to product
specification for working temperature), dusty or damp environment, and do not
expose it to high electromagnetic radiation.
To avoid heat accumulation, ensure there is good ventilation to the device.
Keep the camera away from water and any liquids.
While shipping, pack the camera in its original, or equivalent, packing materials.
Or packing the same texture.
Improper use or replacement of the battery may result in hazard of explosion.
Please use the manufacturer recommended battery type.
Notes:
For the camera supports IR, you are required to pay attention to the following
precautions to prevent IR reflection:
Dust or grease on the dome cover will cause IR reflection. Please do not remove
the dome cover film until the installation is finished. If there is dust or grease on
the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.
Make certain the installation location does not have reflective surfaces of objects
too close to the camera. The IR light from the camera may reflect back into the
lens causing reflection.
The foam ring around the lens must be seated flush against the inner surface of
the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera
4
Network Camera User Manual
body so that the foam ring and the dome cover are attached seamlessly.
5
Network Camera User Manual
Table of Contents
Chapter 1 System Requirement ............................................................................ 10
Chapter 2 Network Connection ............................................................................ 11
Setting the Network Camera over the LAN ........................................................ 11
Wiring over the LAN ................................................................................................... 11
Activating the Camera ................................................................................................ 12
(Optional) Setting Security Question .......................................................................... 18
Setting the Network Camera over the WAN ....................................................... 18
Static IP Connection ................................................................................................... 19
Dynamic IP Connection .............................................................................................. 20
Chapter 3 Access to the Network Camera ............................................................ 22
Accessing by Web Browsers ............................................................................... 22
Accessing by Client Software ............................................................................. 23
Chapter 4 Wi-Fi Settings ...................................................................................... 25
Configuring Wi-Fi Connection in Manage and Ad-hoc Modes ............................ 25
Easy Wi-Fi Connection with WPS function ......................................................... 30
IP Property Settings for Wireless Network Connection ...................................... 32
Chapter 5 Live View ............................................................................................. 34
Live View Page ................................................................................................... 34
Starting Live View .............................................................................................. 35
Recording and Capturing Pictures Manually ...................................................... 36
Operating PTZ Control ........................................................................................ 36
PTZ Control Panel ....................................................................................................... 36
Setting/Calling a Preset .............................................................................................. 37
Setting/Calling a Patrol ............................................................................................... 38
Chapter 6 Network Camera Configuration .......................................................... 40
Configuring Local Parameters............................................................................. 40
Configure System Settings .................................................................................. 42
Configuring Basic Information .................................................................................... 42
Configuring Time Settings .......................................................................................... 43
Configuring RS232 Settings......................................................................................... 45
Configuring RS485 Settings......................................................................................... 45
Configuring DST Settings ............................................................................................ 46
Configuring External Devices ...................................................................................... 47
Configuring VCA Resource .......................................................................................... 48
Open Source Software License ................................................................................... 49
6
Network Camera User Manual
Maintenance ...................................................................................................... 49
Upgrade & Maintenance ............................................................................................ 49
Log ............................................................................................................................ 50
System Service ........................................................................................................... 52
Security Settings ................................................................................................ 52
Authentication ........................................................................................................... 52
IP Address Filter ......................................................................................................... 53
Security Service ......................................................................................................... 54
User Management ............................................................................................. 55
User Management ..................................................................................................... 55
Security Question ...................................................................................................... 57
Online Users .............................................................................................................. 58
Chapter 7 Network Settings ................................................................................. 59
Configuring Basic Settings .................................................................................. 59
Configuring TCP/IP Settings ........................................................................................ 59
Configuring DDNS Settings ......................................................................................... 61
Configuring PPPoE Settings ........................................................................................ 63

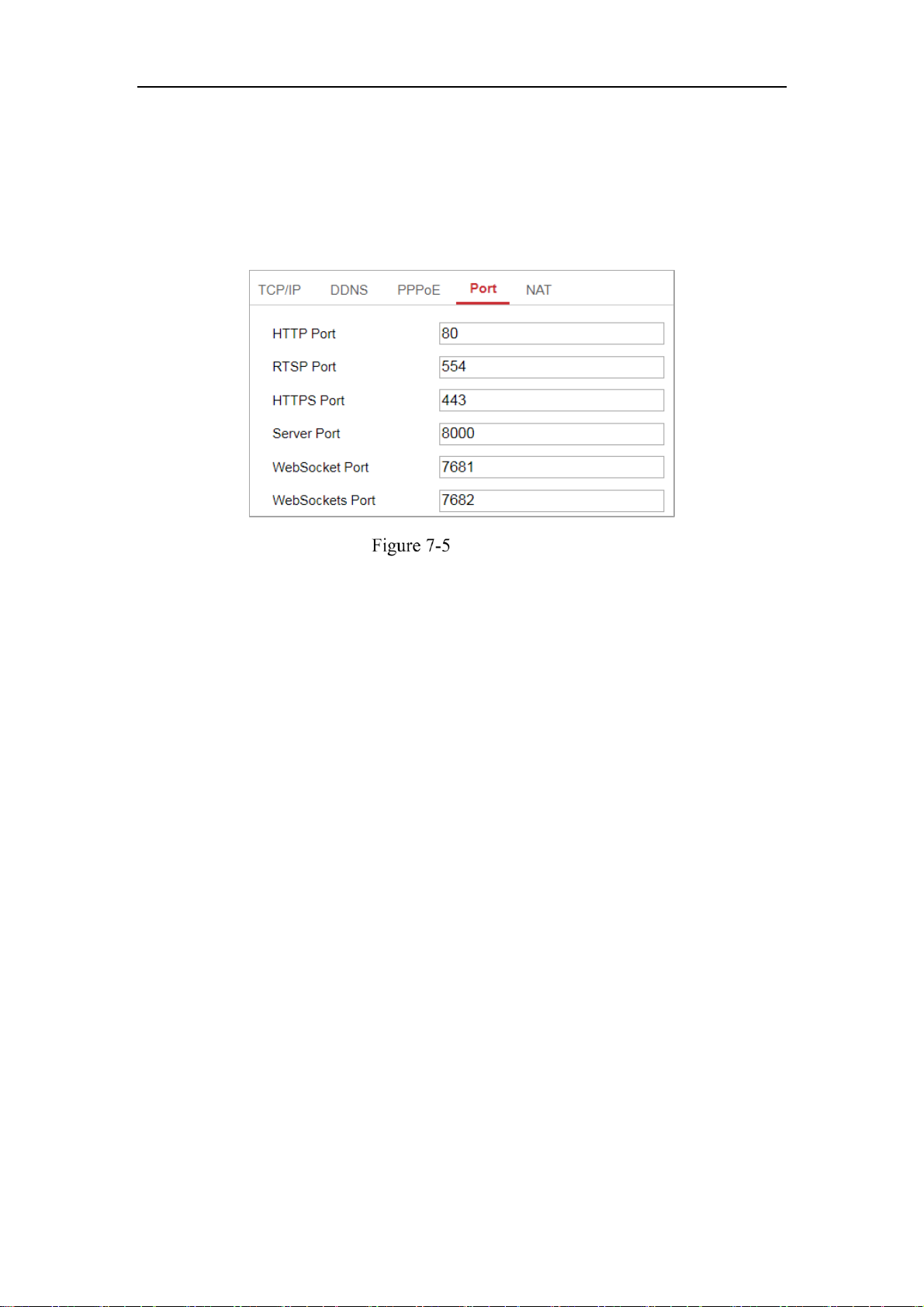

Configuring Port Settings ............................................................................................ 63
Configure NAT (Network Address Translation) Settings ............................................... 65
Configure Advanced Settings ............................................................................. 66
Configuring SNMP Settings ......................................................................................... 66
7.2.2 Configuring FTP Settings............................................................................................. 69
7.2.3 Configuring Email Settings .......................................................................................... 71
Platform Access ......................................................................................................... 73
Wireless Dial .............................................................................................................. 74
HTTPS Settings ........................................................................................................... 76
Configuring QoS Settings ............................................................................................ 78
Configuring 802.1X Settings ....................................................................................... 79
Integration Protocol ................................................................................................... 80
Bandwidth Adaptation ............................................................................................... 81
Network Service......................................................................................................... 81
Chapter 8 Video/Audio Settings ........................................................................... 82
Configuring Video Settings ................................................................................. 82
Video Settings ............................................................................................................ 82
Custom Video ............................................................................................................ 86
Configuring Audio Settings ................................................................................. 87
Configuring ROI Encoding................................................................................... 88
Display Info. on Stream ...................................................................................... 89
Configuring Target Cropping............................................................................... 90
Chapter 9 Image Settings ..................................................................................... 91
7
Network Camera User Manual
Configuring Display Settings............................................................................... 91
Day/Night Auto-Switch ............................................................................................... 91
Day/Night Scheduled-Switch ...................................................................................... 95
Configuring OSD Settings ................................................................................... 96
Configuring Privacy Mask ................................................................................... 98
Configuring Picture Overlay ............................................................................... 99
Chapter 10 Event Settings ................................................................................ 101
Basic Events ..................................................................................................... 101
10.1.1 Configuring Motion Detection .................................................................................. 101
10.1.2 Configuring Video Tampering Alarm ......................................................................... 107
10.1.3 Configuring Alarm Input ........................................................................................... 108
10.1.4 Configuring Alarm Output ........................................................................................ 110
10.1.5 Handling Exception .................................................................................................. 111
10.1.6 Configuring Other Alarm .......................................................................................... 111
Smart Events .................................................................................................... 114
Configuring Audio Exception Detection .................................................................... 115
Configuring Defocus Detection ................................................................................. 116
Configuring Scene Change Detection ........................................................................ 117
Configuring Face Detection ...................................................................................... 118
Configuring Intrusion Detection ............................................................................... 120
Configuring Line Crossing Detection ......................................................................... 122
Configuring Region Entrance Detection .................................................................... 125
Configuring Region Exiting Detection ........................................................................ 126
Configuring Unattended Baggage Detection ............................................................. 128
Configuring Object Removal Detection ................................................................ 130
VCA Configuration ............................................................................................ 132
Behavior Analysis ..................................................................................................... 132
Face Capture ............................................................................................................ 139
People Counting ...................................................................................................... 143
Counting .................................................................................................................. 146
Heat Map................................................................................................................. 147
Road Traffic .............................................................................................................. 149
Chapter 11 Storage Settings ............................................................................. 152
Configuring Record Schedule ........................................................................... 152
Configure Capture Schedule ............................................................................. 155
Configuring Net HDD ........................................................................................ 157
Memory Card Detection................................................................................... 159
Configuring Lite Storage ................................................................................... 161
Chapter 12 Playback ........................................................................................ 163
8
Network Camera User Manual
Chapter 13 Picture ........................................................................................... 165
Chapter 14 Application .................................................................................... 166
Face Capture Statistics ..................................................................................... 166
People Counting Statistics ................................................................................ 166
Heat Map Statistics .......................................................................................... 167
Counting Statistics ........................................................................................... 168
Appendix............................................................................................................... 170
Appendix 1 SADP Software Introduction .................................................................. 170
Appendix 2 Port Mapping .......................................................................................... 173
0505041071212
9
Network Camera User Manual
Chapter 1 System Requirement
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above
version, Mozilla Firefox 30.0 and above version and Google Chrome 31.0 and above
version.
10
Network Camera User Manual
Chapter 2 Network Connection
Note:
You shall acknowledge that the use of the product with Internet access might be
under network security risks. For avoidance of any network attacks and
information leakage, please strengthen your own protection. If the product does
not work properly, please contact with your dealer or the nearest service center.
To ensure the network security of the network camera, we recommend you to
have the network camera assessed and maintained termly. You can contact us if
you need such service.
Before you start:
If you want to set the network camera via a LAN (Local Area Network), please
refer to Section 2.1 Setting the Network Camera over the LAN.
If you want to set the network camera via a WAN (Wide Area Network), please
refer to Section 2.2 Setting the Network Camera over the WAN.
Setting the Network Camera over the LAN
Purpose:
To view and configure the camera via a LAN, you need to connect the network
camera in the same subnet with your computer, and install the SADP or iVMS-4200
software to search and change the IP of the network camera.
Note: For the detailed introduction of SADP, please refer to Appendix 1.
Wiring over the LAN
The following figures show the two ways of cable connection of a network camera
and a computer:
Purpose:
To test the network camera, you can directly connect the network camera to the
11
Network Camera User Manual
Network Cable
or
Network Camera
Computer
Network Cable
Network Cable
or
or
Network Camera Computer
computer with a network cable as shown in Figure 2-1.
Refer to the Figure 2-2 to set network camera over the LAN via a switch or a
router.
Connecting Directly
Connecting via a Switch or a Router
Activating the Camera
You are required to activate the camera first by setting a strong password for it before
you can use the camera.
Activation via Web Browser, Activation via SADP, and Activation via Client Software
are all supported.
Activation via Web Browser
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to
enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64.
The computer and the camera should belong to the same subnet.
For the camera enables the DHCP by default, you need to use the SADP software
12
to search the IP address.
Network Camera User Manual
Activation via Web Browser
3. Create a password and input the password into the password field.
STRONG PASSWORD RECOMMENDED–We highly recommend you
create a strong password of your own choosing (using a minimum of 8
characters, including at least three of the following categories: upper case letters,
lower case letters, numbers, and special characters) in order to increase the
security of your product. And we recommend you reset your password regularly,
especially in the high security system, resetting the password monthly or weekly
can better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via SADP Software
SADP software is used for detecting the online device, activating the camera, and
resetting the password.
Get the SADP software from the supplied disk or the official website, and install the
SADP according to the prompts. Follow the steps to activate the camera.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the inactive device.
13
Note:
Select inactive device.
Input and confirm
password.
Network Camera User Manual
SADP Interface
The SADP software supports activating the camera in batch. Refer to the user manual
of SADP software for details.
3. Create a password and input the password in the password field, and confirm the
password.
STRONG PASSWORD RECOMMENDED– We highly recommend
you create a strong password of your own choosing (using a minimum
of 8 characters, including at least three of the following categories:
upper case letters, lower case letters, numbers, and special characters) in
order to increase the security of your product. And we recommend you
reset your password regularly, especially in the high security system,
resetting the password monthly or weekly can better protect your
product.
Note:
You can enable the Hik-Connect service for the device during activation.
4. Click Activate to start activation.
You can check whether the activation is completed on the popup window. If activation
failed, please make sure that the password meets the requirement and try again.
14
Network Camera User Manual
5. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the checkbox of Enable DHCP.
Modify the IP Address
6. Input the admin password and click Modify to activate your IP address
modification.
The batch IP address modification is supported by the SADP. Refer to the user manual
of SADP for details.
Activation via Client Software
The client software is versatile video management software for multiple kinds of
devices.
Get the client software from the supplied disk or the official website, and install the
software according to the prompts. Follow the steps to activate the camera.
Steps:
1. Run the client software and the control panel of the software pops up, as shown in
the figure below.
15
Network Camera User Manual
Control Panel
2. Click the Device Management icon to enter the Device Management interface, as
shown in the figure below.
16
Network Camera User Manual
Device Management Interface
3. Check the device status from the device list, and select an inactive device.
4. Click the Activate button to pop up the Activation interface.
5. Create a password and input the password in the password field, and confirm the
password.
STRONG PASSWORD RECOMMENDED–We highly recommend
you create a strong password of your own choosing (using a minimum of
8 characters, including at least three of the following categories: upper
case letters, lower case letters, numbers, and special characters) in order
to increase the security of your product. We recommend you reset your
password regularly, especially in the high security system, resetting the
password monthly or weekly can better protect your product.
Activation Interface (Client Software)
6. Click OK button to start activation.
7. Click the Modify Netinfo button to pop up the Network Parameter Modification
interface, as shown in the figure below.
17
Network Camera User Manual
Modifying the Network Parameters
8. Change the device IP address to the same subnet with your computer by either
modifying the IP address manually or checking the checkbox of Enable DHCP.
9. Input the password to activate your IP address modification.
(Optional) Setting Security Question
Security question is used to reset the admin password when admin user forgets the
password.
Admin user can follow the pop-up window to complete security question settings
during camera activation. Or, admin user can go to User Management interface to set
up the function.
Setting the Network Camera over the WAN
Purpose:
This section explains how to connect the network camera to the WAN with a static IP
or a dynamic IP.
18
Network Camera User Manual
Static IP Connection
Before you start:
Please apply a static IP from an ISP (Internet Service Provider). With the static IP
address, you can connect the network camera via a router or connect it to the WAN
directly.
Connecting the network camera via a router
Steps:
1. Connect the network camera to the router.
2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2
for detailed IP address configuration of the network camera.
3. Save the static IP in the router.
4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary
according to the different routers. Please call the router manufacturer for
assistance with port mapping.
Note: Refer to Appendix 2 for detailed information about port mapping.
5. Visit the network camera through a web browser or the client software over the
internet.
Accessing the Camera through Router with Static IP
Connecting the network camera with static IP directly
You can also save the static IP in the camera and directly connect it to the internet
without using a router. Refer to Section 2.1.2 for detailed IP address configuration of
the network camera.
19
Network Camera User Manual
Accessing the Camera with Static IP Directly
Dynamic IP Connection
Before you start:
Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect
the network camera to a modem or a router.
Connecting the network camera via a router
Steps:
1. Connect the network camera to the router.
2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer
to Section 2.1.2 for detailed IP address configuration of the network camera.
3. In the router, set the PPPoE user name, password and confirm the password.
4. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary
depending on different routers. Please call the router manufacturer for assistance
with port mapping.
Note: Refer to Appendix 2 for detailed information about port mapping.
5. Apply a domain name from a domain name provider.
6. Configure the DDNS settings in the setting interface of the router.
7. Visit the camera via the applied domain name.
Connecting the network camera via a modem
Purpose:
This camera supports the PPPoE auto dial-up function. The camera gets a public IP
address by ADSL dial-up after the camera is connected to a modem. You need to
configure the PPPoE parameters of the network camera. Refer to Section 7.1.3
20
Network Camera User Manual
Configuring PPPoE Settings for detailed configuration.
Accessing the Camera with Dynamic IP
Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address
always changes after rebooting the camera. To solve the inconvenience of the
dynamic IP, you need to get a domain name from the DDNS provider (E.g.
DynDns.com). Please follow the steps below for normal domain name resolution and
private domain name resolution to solve the problem.
Normal Domain Name Resolution
Normal Domain Name Resolution
Steps:
1. Apply a domain name from a domain name provider.
2. Configure the DDNS settings in the DDNS Settings interface of the network
camera. Refer to Section 7.1.2 Configuring DDNS Settings for detailed
configuration.
3. Visit the camera via the applied domain name.
21
Network Camera User Manual
Chapter 3 Access to the Network
Camera
Accessing by Web Browsers
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network camera, and press
the Enter key to enter the login interface.
Note:
The default IP address is 192.168.1.64. You are recommended to change the IP
address to the same subnet with your computer.
3. Input the user name and password and click Login.
The admin user should configure the device accounts and user/operator permissions
properly. Delete the unnecessary accounts and user/operator permissions.
Note:
The IP address gets locked if the admin user performs 7 failed password attempts
(5 attempts for the user/operator).
Login Interface
4. Click Login.
5. (Optional) Install the plug-in before viewing the live video and operating the
camera. Follow the installation prompts to install the plug-in
Note:
If you are using Google Chrome 45 and its above version or Mozilla Firefox 52 and
its above version, plug-in installation is not required.
22
Network Camera User Manual
Accessing by Client Software
The product CD contains the iVMS-4200 client software. You can view the live video
and manage the camera with the software.
Follow the installation prompts to install the software. The control panel and live view
interface of iVMS-4200 client software are shown as below.
iVMS-4200 Control Panel
23
Network Camera User Manual
iVMS-4200 Main View
24
Network Camera User Manual
Chapter 4 Wi-Fi Settings
Purpose:
By connecting to the wireless network, you don’t need to use cable of any kind for
network connection, which is very convenient for the actual surveillance application.
Note: This chapter is only applicable for the cameras with the built-in Wi-Fi module.
Configuring Wi-Fi Connection in Manage and
Ad-hoc Modes
Purpose:
Two connection modes are supported. Choose a mode as desired and perform the
steps to configure the Wi-Fi.
Wireless Connection in Manage Mode
Steps:
1. Enter the Wi-Fi configuration interface.
Configuration> Network> Advanced Settings> Wi-Fi
2. Click Search to search the online wireless connections.
Wi-Fi List
25
Network Camera User Manual
3. Click to choose a wireless connection on the list.
Wi-Fi Setting- Manage Mode
4. Check the radio button to select the Network mode as Manage, and the
Security mode of the network is automatically shown when you select the
wireless network, please don’t change it manually.
Note: These parameters are exactly identical with those of the router.
5. Enter the key to connect the wireless network. The key should be that of the
wireless network connection you set on the router.
Wireless Connection in Ad-hoc Mode
If you choose the Ad-hoc mode, you don’t need to connect the wireless camera via a
router. The scenario is the same as you connect the camera and the PC directly with a
network cable.
Steps:
1. Choose Ad-hoc mode.
Wi-Fi Setting- Ad-hoc
26
Network Camera User Manual
2. Customize a SSID for the camera.
3. Choose the Security Mode of the wireless connection.
4. Enable the wireless connection function for your PC.
5. On the PC side, search the network and you can see the SSID of the camera
listed.
Ad-hoc Connection Point
6. Choose the SSID and connect.
Security Mode Description:
Security Mode
You can choose the Security Mode as not-encrypted, WEP, WPA-personal,
WPA-enterprise, WPA2-personal, and WPA2-enterprise.
WEP mode:
27
Network Camera User Manual
WEP Mode
Authentication - Select Open or Shared Key System Authentication, depending on
the method used by your access point. Not all access points have this option, in
which case they probably use Open System, which is sometimes known as SSID
Authentication.
Key length - This sets the length of the key used for the wireless encryption, 64 or
128 bit. The encryption key length can sometimes be shown as 40/64 and
104/128.
Key type - The key types available depend on the access point being used. The
following options are available:
HEX - Allows you to manually enter the hex key.
ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and
13 characters for 128-bit WEP.
WPA-personal and WPA2-personal Mode:
Enter the required Pre-shared Key for the access point, which can be a hexadecimal
number or a passphrase.
Security Mode- WPA-personal
WPA- enterprise and WPA2-enterprise Mode:
28
Network Camera User Manual
Choose the type of client/server authentication being used by the access point;
EAP-TLS or EAP-PEAP.
EAP-TLS
EAP-TLS
Identity - Enter the user ID to present to the network.
Private key password – Enter the password for your user ID.
EAPOL version - Select the version used (1 or 2) in your access point.
CA Certificates - Upload a CA certificate to present to the access point for
authentication.
EAP-PEAP:
User Name - Enter the user name to present to the network
Password - Enter the password of the network
PEAP Version - Select the PEAP version used at the access point.
Label - Select the label used by the access point.
EAPOL version - Select version (1 or 2) depending on the version used at the
access point
CA Certificates - Upload a CA certificate to present to the access point for
authentication
For your privacy and to better protect your system against security risks, we
