Network Dome Camera
Quick Operation Guide
UD.6L0201B1228A01
Camera
Network Dome Camera·Quick Operation Guide
1
1
Model
Model
DS-2CD4312F-(I)(Z)(H)(S)
DS-2CD4312FWD-(I)(Z)(H)(S)
DS-2CD4324F-(I)(Z)(H)(S)
DS-2CD4332FWD-(I)(Z)(H)(S)
Thank you for purchasing our product. If there are any questions, or
requests, please do not hesitate to contact the dealer.
About This Document
This manual applies to the following camera models.
This manual may contain several technical incorrect places or
printing errors, and the content is subject to change without notice.
The updates will be added to the new version of this manual. We will
readily improve or update the products or procedures described in
the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification
does not cover the performance or reliability of the security or
signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING
RELATED FUNCTIONS OF THIS PRODUCT.
0500081030923
Network Dome Camera·Quick Operation Guide
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2006/95/EC, the
EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
Network Dome Camera·Quick Operation Guide
3
3
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
or dispose of it at designated collection points. For more information
see: www.recyclethis.info.
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information
see: www.recyclethis.info
upon the purchase of equivalent new equipment,
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
Network Dome Camera·Quick Operation Guide
4
4
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
Network Dome Camera·Quick Operation Guide
5
5
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
Network Dome Camera·Quick Operation Guide
6
6
● Do not place the camera in extremely hot, cold (the operating
temperature shall be-30℃~+60℃,or -40°C ~ 60°C if the camera
model has an “H” in its suffix), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required for
operating environment.
● Keep the camera away from liquid while in use.
● While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
● Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
Network Dome Camera·Quick Operation Guide
7
7
Table of Contents
1 Appearance Description ................................................................. 8
1.1 Overview of Type I Dome Camera ................................... 8
1.2 Overview of Type II Dome Camera .................................. 9
2 Installation .................................................................................... 11
2.1 Installation of Type I Dome Camera............................... 12
2.2 Installation of Type II Dome Camera.............................. 16
3 Setting the Network Camera over the LAN .................................. 20
4 Accessing via Web Browser .......................................................... 25
Network Dome Camera·Quick Operation Guide
8
8
3
1
2
4
6
5
7
8
9
10
Appearance Description 1
Overview of Type I Dome Camera 1.1
Overview (1) of Type I Dome Camera Figure 1-1
Overview (2) of Type II Dome Camera Figure 1-2
9
9
No.
Description
No.
Description
1
Black Liner
6
Reset
2
Bubble
7
Power Cable
3
Mounting Base
8
10/100M Self-adaptive
Ethernet Interface
4
SD Card Slot
9
Lens 5 Video Out Interface
10
Audio/ Alarm Cables
Overview of Type II Dome Camera 1.2
5
6
8
1
2
3
4
9
7
Network Dome Camera·Quick Operation Guide
Description of Overview (1~2) Table 1-1
Overview of Type II Dome CameraFigure 1-3
Network Dome Camera·Quick Operation Guide
10
10
No.
Description
No.
Description
1
Bubble
6
10/100M Self-adaptive
Ethernet Interface
2
SD Card Slot
7
Lens
3
Video Out Interface
8
Audio/Alarm Cables
4
Reset 9 Mounting Base
5
Power Cable
10
Description of Type II Dome Camera Table 1-2
● The most distinguish difference between type I and type II dome
camera is type II dome camera has an internal PT (Pan and Tilt)
control unit, and you can adjust the pan and tilt angle of the
camera from the client software or via web browser.
● Press RESET about 10s when the camera is power on or rebooting
to restore the default settings, including the user name, password,
IP address, and the port No., etc.
Network Dome Camera·Quick Operation Guide
11
11
Installation 2
Before you start:
● Make sure the device in the package is in good condition and all
the assembly parts are included.
● Make sure all the related equipment is power-off during the
installation.
● Check the specification of the products for the installation
environment.
● Make sure the power supply is matched with your required
voltage to avoid damage.
● If the product does not function properly, please contact your
dealer or the nearest service center. Do not disassemble the
camera for repair or maintenance by yourself.
● Make sure that the wall is strong enough to withstand three
times the weight of the camera.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
● Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
Network Dome Camera·Quick Operation Guide
12
12
Drill Tempalte
1
1
2
2
2
2
3
3
3
3
4
4
4
4
Screw Hole 3: for
Mounting Base
Hole A: for cables routed
through the ceiling
Code: 190600839
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
Installation of Type I Dome Camera 2.1
Steps:
1. Drill the screw holes and the cable hole according to the supplied
drill template.
2. Install the mounting base to the ceiling with the supplied screws.
Drill Template Figure 2-1
Network Dome Camera·Quick Operation Guide
13
13
Dome
Drive

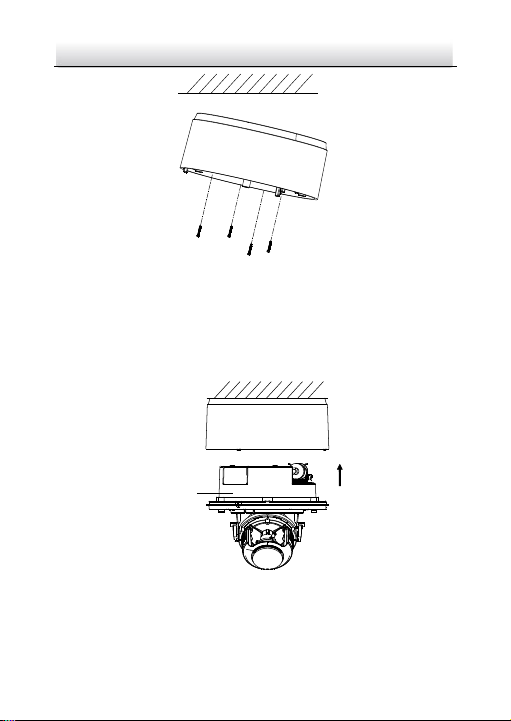

Install the Mounting Base Figure 2-2
3. Connect the corresponding power cable, network cable, audio
and alarm cables.
4. Install the dome drive to the mounting base.
Install the Dome Drive Figure 2-3
5. Adjust the surveillance angle.
Network Dome Camera·Quick Operation Guide
14
14
Tilt 0~80°
Pan 0~350°
Rotation 0~350°
1). Loosen the lock screw besides the lens.
2). Hold the plastic plate and rotate the camera to adjust the
panning angle [0~350°].
3). Push the lens forward and backward to adjust the tilting angle
[0~80°]
4). Rotate the lens to adjust the azimuth angle of the camera
[0~350°]
5). Tighten the lock screw.
3-axis Adjustment Figure 2-4
6. Adjust the Lens
1). Connect the VIDEO OUT interface of the camera to the
debugging monitor.
2). Set the iris type to MANUAL first.
3). Adjust the No.2 Zoom Lever (T~W) to select a proper angle of
view.
Network Dome Camera·Quick Operation Guide
15
15
2
1
4). Adjust the No.1 Focus Lever (F~N) to obtain a perfect image on
the monitor.
5). Set the iris type as MANUAL if the environment has a good and
stable illumination, and set the iris type as AUTO if the
environment has a strong and changeable illumination.
Adjust the Focus and Zoom Figure 2-5
7. Fit the black liner back to the camera.
8. Align the bubble to camera and fix it by tightening the screws.
Network Dome Camera·Quick Operation Guide
16
16
Install the Black Liner and Bubble Figure 2-6
Complete the Installation Figure 2-7
Installation of Type II Dome Camera 2.2
Steps:
1. Drill the screw holes and the cable hole according to the supplied
drill template.
Network Dome Camera·Quick Operation Guide
17
17
Drill Tempalte
1
1
2
2
2
2
3
3
3
3
4
4
4
4
Screw Hole 3: for
Mounting Base
Hole A: for cables routed
through the ceiling
Code: 190600839
Drill Template Figure 2-8
2. Install the mounting base to the ceiling with the supplied screws.
3. Connect the corresponding power cable, network cable, audio
and alarm cables.
Install the Mounting Base Figure 2-9
Network Dome Camera·Quick Operation Guide
18
18
4. Install the dome drive to the mounting base.
Install the Dome Drive Figure 2-10
The surveillance angle of the camera is well- adjusted by default. If
the pan and tilt angle is required to adjusted according to the
different installation environment, you can view the camera after the
installation is completed. Please refer to the pan and tilt adjustment
interface below.
Pan and Tilt Adjustment Interface Figure 2-11
5. Install the bubble to complete the installation.
Network Dome Camera·Quick Operation Guide
19
19
Install the Bubble Figure 2-12
Network Dome Camera·Quick Operation Guide
20
20
Setting the Network Camera over the 3
LAN
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the SADP or PCNVR software to search and change
the IP of network camera.
The following figure shows the cable connection of network
camera and PC:
Wiring over LAN Figure 3-1
Set the IP address of the camera for accessing via LAN.
Steps:
1. To get the IP address, you can choose either of the following
methods:
Use SADP, a software tool which can automatically detect
network camera in the LAN and list the device information like IP
address, subnet mask, port number, device serial number, device
version, etc., shown in Figure 3-2.
Network Dome Camera·Quick Operation Guide
21
21
Use PCNVR software and to list the online devices. Please refer
to the user manual of PCNVR client software for detailed
information.
2. Change the IP address and subnet mask to the same subnet as of
your PC.
Refer to the following introductions to set IP address with SADP
software:
Search active devices online
Search online devices automatically:
After launch the SADP software, it automatically searches the
online devices every 15 seconds from the subnet where your
computer locates. It displays the total number and
information of the searched devices in the Online Devices
interface. Device information including the device type, IP
address, port number, gateway, etc. will be displayed.
Network Dome Camera·Quick Operation Guide
22
22

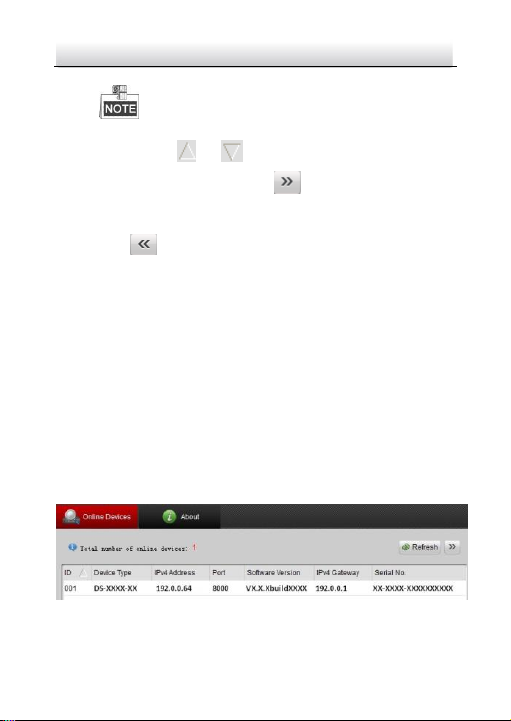

Search Online Devices Figure 3-2
Device can be searched and displayed in the list in 15
seconds after it goes online; it will be removed from the list
in 45 seconds after it goes offline.
Search online devices manually:
You can also click to refresh the online device
list manually. The newly searched devices will be added to
the list.
Network Dome Camera·Quick Operation Guide
23
23
You can click or on each column heading to order
the information; you can click to show the device table
and hide the network parameter panel on the right side, or
click to show the network parameter panel.
Modify device information
Steps:
1). Select the device to be modified in the device list as shown
in Figure 3-3. The network parameters of the device will be
displayed in the Modify Network Parameters panel on the
right side as shown in Figure 3-4.
2). Edit the modifiable network parameters, e.g. IP address and
port number.
3). Enter the password of the admin account of the device in
the Password field and click Save to save the changes.
Select a Device Figure 3-3
Network Dome Camera·Quick Operation Guide
24
24
Modify Network Parameters Figure 3-4
3. Enter the IP address of network camera in the address field of
the web browser to view the live video.
The default value of the IP address is “192.0.0.64”. The default
user name is “admin”, and password is “12345”.
For accessing the network camera from different subnets, please
set the gateway for the network camera after you log in.
Network Dome Camera·Quick Operation Guide
25
25
Accessing via Web Browser 4
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version /
Vista / Win7 / Server 2003 / Server 2008 32bits
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 6.0 and above version, Apple Safari
5.02 and above version, Mozilla Firefox 3.5 and above version and
Google Chrome8 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, e.g., 192.0.0.64 and press the Enter key to enter the
login interface.
3. Input the user name and password.
4. Click Login.
Network Dome Camera·Quick Operation Guide
26
26
Login Interface Figure 4-1
5. Install the plug-in before viewing the live video and managing
the camera. Please follow the installation prompts to install the
plug-in.
You may have to close the web browser to finish the installation of
the plug-in.
Network Dome Camera·Quick Operation Guide
27
27
Download Plug-in Figure 4-2
Network Dome Camera·Quick Operation Guide
28
28
Install Plug-in Figure 4-3
Install Plug-in Figure 4-4
Network Dome Camera·Quick Operation Guide
29
29
6. Reopen the web browser after the installation of the plug-in and
repeat the above steps 2-4 to login.
For detailed instructions of further configuration, please refer to the
user manual of network camera.
Network Dome Camera·Quick Operation Guide
0
0
Loading...
