Hikvision DS-2CD5028G0-E-HI User Manual

Download

Network Camera User Manual

User Manual

Network Camera

Network Camera User Manual

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries

(hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be

“the Manual”) cannot be reproduced, changed, translated, or distributed, partially or

wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND

FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,

Network Camera User Manual

FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the

limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

Network Camera User Manual

with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive

2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose

of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery

information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Camera User Manual

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material damage.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage

(SELV) standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard.

 To reduce the risk of fire or electrical shock, do not expose this product to rain or

moisture.

 This installation should be made by a qualified service person and should conform

to all the local codes.

 Please install blackouts equipment into the power supply circuit for convenient

supply interruption.

 Please make sure that the ceiling can support more than 50(N) Newton gravities if

the camera is fixed to the ceiling.

 If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not

Network Camera User Manual

assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions:

 Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or incandescent lamp.

The strong light can cause fatal damage to the camera.

 The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser beam.

 Do not place the camera in extremely hot, cold temperatures (the operating

temperature should be between -30°C to +60°C, or -40°C to +60°C if the camera model has an “H” in its suffix), dusty or damp environment, and do not expose it to high electromagnetic radiation.

 To avoid heat accumulation, ensure there is good ventilation to the device.  Keep the camera away from water and any liquids.  While shipping, pack the camera in its original, or equivalent, packing materials.

Or packing the same texture.

 Improper use or replacement of the battery may result in hazard of explosion.

Please use the manufacturer recommended battery type.

Notes:

For the camera supports IR, you are required to pay attention to the following precautions to prevent IR reflection:  Dust or grease on the dome cover will cause IR reflection. Please do not remove

the dome cover film until the installation is finished. If there is dust or grease on

Network Camera User Manual

the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.

 Make certain the installation location does not have reflective surfaces of objects

too close to the camera. The IR light from the camera may reflect back into the lens causing reflection.

 The foam ring around the lens must be seated flush against the inner surface of

the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly.

Network Camera User Manual

Table of Contents

Chapter 1 System Requirement ........................................................................... 1

Chapter 2 Network Connection ........................................................................... 2

2.1 Setting the Network Camera over the LAN ........................................................ 2

2.1.1 Wiring over the LAN ......................................................................................................... 2

2.1.2 Activating the Camera ...................................................................................................... 3

2.2 Setting the Network Camera over the WAN ...................................................... 9

2.2.1 Static IP Connection .......................................................................................................... 9

2.2.2 Dynamic IP Connection ................................................................................................... 10

Chapter 3 Access to the Network Camera........................................................... 13

3.1 Accessing by Web Browsers ............................................................................ 13

3.2 Accessing by Client Software .......................................................................... 14

Chapter 4 Wi-Fi Settings ................................................................................... 16

4.1 Configuring Wi-Fi Connection in Manage and Ad-hoc Modes .......................... 16

4.2 Easy Wi-Fi Connection with WPS function ...................................................... 21

4.3 IP Property Settings for Wireless Network Connection .................................... 23

Chapter 5 Live View .......................................................................................... 25

5.1 Live View Page ............................................................................................... 25

5.2 Starting Live View .......................................................................................... 26

5.3 Recording and Capturing Pictures Manually .................................................... 27

5.4 Operating PTZ Control .................................................................................... 27

5.4.1 PTZ Control Panel ............................................................................................................ 27

5.4.2 Setting/Calling a Preset ................................................................................................... 28

5.4.3 Setting/Calling a Patrol ................................................................................................... 30

Chapter 6 Network Camera Configuration ........................................................ 31

6.1 Configuring Local Parameters ......................................................................... 31

6.2 Configure System Settings .............................................................................. 33

6.2.1 Configuring Basic Information ........................................................................................ 33

6.2.2 Configuring Time Settings ............................................................................................... 34

6.2.3 Configuring RS485 Settings ............................................................................................. 36

6.2.4 Configuring DST Settings ................................................................................................. 37

6.2.5 Configuring External Devices .......................................................................................... 38

6.3 Maintenance ................................................................................................. 39

6.3.1 Upgrade & Maintenance ................................................................................................. 39

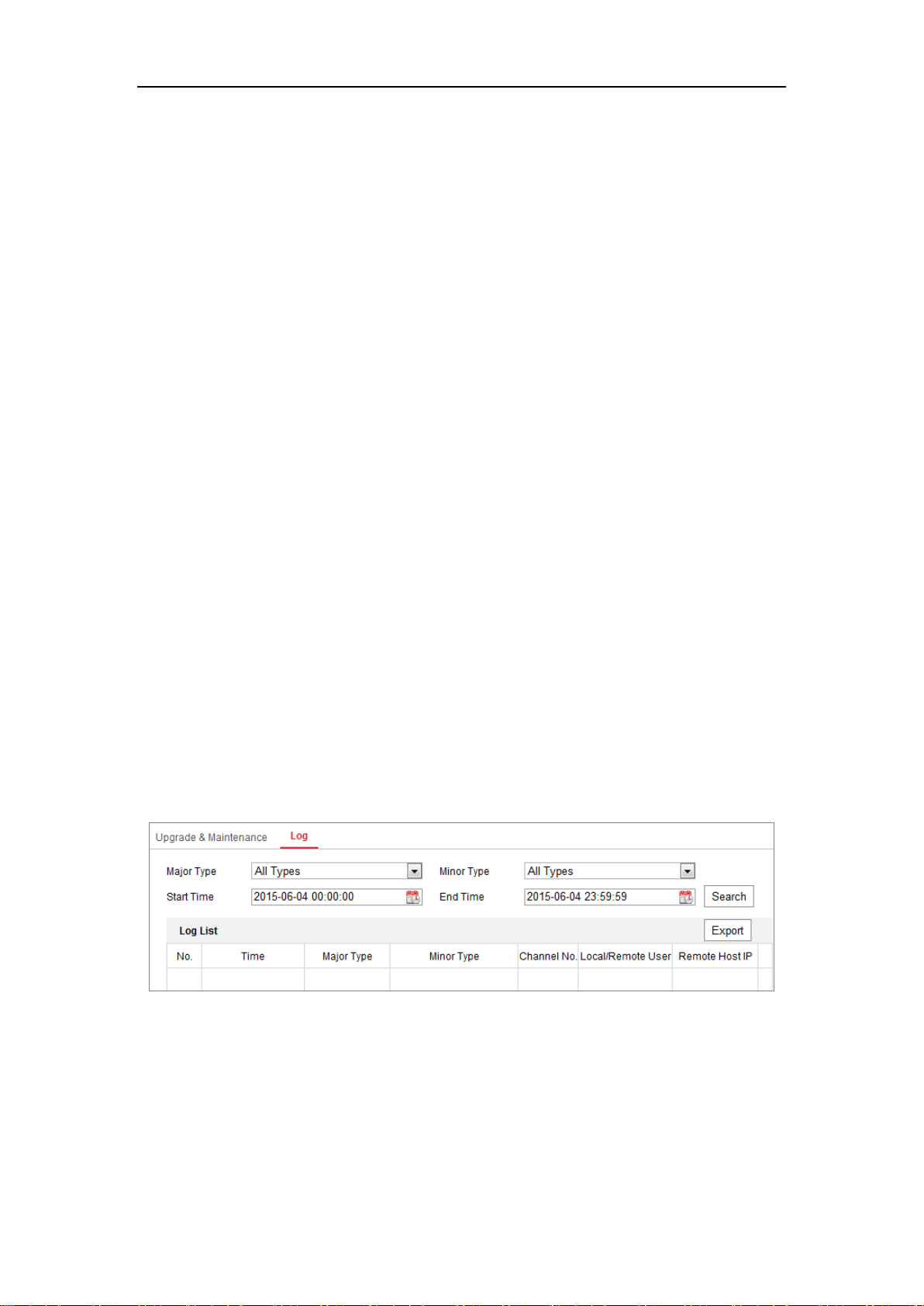

6.3.2 Log .................................................................................................................................. 40

6.3.3 System Service ................................................................................................................ 41

Network Camera User Manual

6.4 Security Settings ............................................................................................ 41

6.4.1 Authentication ................................................................................................................ 42

6.4.2 IP Address Filter .............................................................................................................. 42

6.4.3 Security Service............................................................................................................... 44

6.5 User Management ......................................................................................... 44

6.5.1 User Management .......................................................................................................... 44

6.5.2 Online Users .................................................................................................................... 48

Chapter 7 Network Settings ............................................................................... 49

7.1 Configuring Basic Settings .............................................................................. 49

7.1.1 Configuring TCP/IP Settings ............................................................................................ 49

7.1.2 Configuring DDNS Settings .............................................................................................. 51

7.1.3 Configuring PPPoE Settings ............................................................................................. 53

7.1.4 Configuring Port Settings ................................................................................................ 53

7.1.5 Configure NAT (Network Address Translation) Settings .................................................. 54

7.2 Configure Advanced Settings .......................................................................... 55

7.2.1 Configuring SNMP Settings ............................................................................................. 55

7.2.2 Configuring FTP Settings ................................................................................................. 58

7.2.3 Configuring Email Settings .............................................................................................. 60

7.2.4 HTTPS Settings ................................................................................................................ 62

7.2.5 Configuring QoS Settings ................................................................................................ 64

7.2.6 Configuring 802.1X Settings ............................................................................................ 65

Chapter 8 Video/Audio Settings ......................................................................... 67

8.1 Configuring Video Settings ............................................................................. 67

8.2 Configuring Audio Settings ............................................................................. 70

8.3 Configuring ROI Encoding ............................................................................... 71

8.4 Display Info. on Stream .................................................................................. 73

Chapter 9 Image Settings .................................................................................. 74

9.1 Configuring Display Settings ........................................................................... 74

9.2 Configuring OSD Settings ................................................................................ 79

Chapter 10 Event Settings ................................................................................ 82

10.1 Basic Events ................................................................................................... 82

10.1.1 Configuring Motion Detection ........................................................................................ 82

10.1.2 Configuring Video Tampering Alarm .............................................................................. 88

10.1.3 Configuring Alarm Input ................................................................................................. 89

10.1.4 Configuring Alarm Output .............................................................................................. 91

10.1.5 Handling Exception ......................................................................................................... 92

10.2 Smart Events .................................................................................................. 92

10.2.1 Configuring Audio Exception Detection .......................................................................... 92

10.2.2 Configuring Face Detection ............................................................................................. 94

Network Camera User Manual

10.2.3 Configuring Intrusion Detection ..................................................................................... 95

10.2.4 Configuring Line Crossing Detection ............................................................................... 97

10.2.5 Configuring Region Entrance Detection .......................................................................... 99

10.2.6 Configuring Region Exiting Detection ........................................................................... 101

Chapter 11 Storage Settings ........................................................................... 104

11.1 Configuring Record Schedule ........................................................................ 104

11.2 Configure Capture Schedule ......................................................................... 107

11.3 Configuring Net HDD .................................................................................... 109

Chapter 12 Playback...................................................................................... 112

Chapter 13 Picture ........................................................................................ 114

Appendix ........................................................................................................... 115

Appendix 1 SADP Software Introduction ............................................................... 115

Appendix 2 Port Mapping ...................................................................................... 118

Network Camera User Manual

Chapter 1 System Requirement

Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above

version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version.

Network Camera User Manual

Chapter 2 Network Connection

Note:

 You shall acknowledge that the use of the product with Internet access might be

under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

 To ensure the network security of the network camera, we recommend you to

have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

 If you want to set the network camera via a LAN (Local Area Network), please

refer to Section 2.1 Setting the Network Camera over the LAN.

 If you want to set the network camera via a WAN (Wide Area Network), please

refer to Section 2.2 Setting the Network Camera over the WAN.

2.1 Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

 To test the network camera, you can directly connect the network camera to the

computer with a network cable as shown in Figure 2-1.

Network Camera User Manual

 Refer to the Figure 2-2 to set network camera over the LAN via a switch or a

router.

Network Cable

Network Camera

Computer

Figure 2-1 Connecting Directly

Network Cable

Network Camera Computer

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Activating the Camera

You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.

 Activation via Web Browser

Steps:

1. Power on the camera, and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface.

Notes:

 The default IP address of the camera is 192.168.1.64.  The computer and the camera should belong to the same subnet.  For the camera enables the DHCP by default, you need to use the SADP software

Network Camera User Manual

to search the IP address.

Figure 2-3 Activation via Web Browser

3. Create a password and input the password into the password field.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the camera, and resetting the password. Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select the inactive device.

Network Camera User Manual

Select inactive device.

Input and confirm

password.

Figure 2-4 SADP Interface

Note:

The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details.

3. Create a password and input the password in the password field, and confirm the

password.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Note:

You can enable the Hik-Connect service for the device during activation.

4. Click Activate to start activation. You can check whether the activation is completed on the popup window. If activation

failed, please make sure that the password meets the requirement and try again.

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

Network Camera User Manual

Figure 2-5 Modify the IP Address

6. Input the admin password and click Modify to activate your IP address

modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in

the figure below.

Network Camera User Manual

Figure 2-6 Control Panel

2. Click the Device Management icon to enter the Device Management interface, as

shown in the figure below.

Figure 2-7 Device Management Interface

Network Camera User Manual

3. Check the device status from the device list, and select an inactive device.

4. Click the Activate button to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the

password.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. We recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Figure 2-8 Activation Interface (Client Software)

6. Click OK button to start activation.

7. Click the Modify Netinfo button to pop up the Network Parameter Modification

interface, as shown in the figure below.

Network Camera User Manual

Figure 2-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

2.2 Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

 Connecting the network camera via a router

Steps:

1. Connect the network camera to the router.

Network Camera User Manual

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2

for detailed IP address configuration of the network camera.

3. Save the static IP in the router.

4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary

according to the different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Visit the network camera through a web browser or the client software over the

internet.

Figure 2-10 Accessing the Camera through Router with Static IP

 Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

Figure 2-11 Accessing the Camera with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

 Connecting the network camera via a router

Steps:

Network Camera User Manual

1. Connect the network camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer

to Section 2.1.2 for detailed IP address configuration of the network camera.

3. In the router, set the PPPoE user name, password and confirm the password.

4. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the camera via the applied domain name.

 Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 7.1.3 Configuring PPPoE Settings for detailed configuration.

Figure 2-12 Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address

always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.  Normal Domain Name Resolution

Network Camera User Manual

Figure 2-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the network

camera. Refer to Section 7.1.2 Configuring DDNS Settings for detailed configuration.

3. Visit the camera via the applied domain name.  Private Domain Name Resolution

Figure 2-14 Private Domain Name Resolution

Steps:

1. Install and run the IP Server software in a computer with a static IP.

2. Access the network camera through the LAN with a web browser or the client

software.

3. Enable DDNS and select IP Server as the protocol type. Refer to Section 7.1.2

Configuring DDNS Settings for detailed configuration.

Network Camera User Manual

Chapter 3 Access to the Network

Camera

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the browser address bar, input the IP address of the network camera, and press

the Enter key to enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP address to the same subnet with your computer.

3. Input the user name and password and click Login.

The admin user should configure the device accounts and user/operator permissions

properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Figure 3-1 Login Interface

4. Click Login.

5. Install the plug-in before viewing the live video and operating the camera. Follow

the installation prompts to install the plug-in.

Network Camera User Manual

Figure 3-2 Download and Install Plug-in

Note: You may have to close the web browser to finish the installation of the

plug-in.

6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4

to login.

Note: For detailed instructions of further configuration, please refer to the user

manual of network camera.

3.2 Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software. Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as below.

Network Camera User Manual

Figure 3-3 iVMS-4200 Control Panel

Figure 3-4 iVMS-4200 Main View

Network Camera User Manual

Chapter 4 Wi-Fi Settings

Purpose:

By connecting to the wireless network, you don’t need to use cable of any kind for network connection, which is very convenient for the actual surveillance application.

Note: This chapter is only applicable for the cameras with the built-in Wi-Fi module.

4.1 Configuring Wi-Fi Connection in Manage and

Ad-hoc Modes

Purpose:

Two connection modes are supported. Choose a mode as desired and perform the steps to configure the Wi-Fi.

Wireless Connection in Manage Mode

Steps:

1. Enter the Wi-Fi configuration interface.

Configuration> Network> Advanced Settings> Wi-Fi

2. Click Search to search the online wireless connections.

Figure 4-1 Wi-Fi List

Network Camera User Manual

3. Click to choose a wireless connection on the list.

Figure 4-2 Wi-Fi Setting- Manage Mode

4. Check the radio button to select the Network mode as Manage, and the

Security mode of the network is automatically shown when you select the wireless network, please don’t change it manually.

Note: These parameters are exactly identical with those of the router.

5. Enter the key to connect the wireless network. The key should be that of the

wireless network connection you set on the router.

Wireless Connection in Ad-hoc Mode

If you choose the Ad-hoc mode, you don’t need to connect the wireless camera via a router. The scenario is the same as you connect the camera and the PC directly with a network cable.

Steps:

1. Choose Ad-hoc mode.

Figure 4-3 Wi-Fi Setting- Ad-hoc

Network Camera User Manual

2. Customize a SSID for the camera.

3. Choose the Security Mode of the wireless connection.

4. Enable the wireless connection function for your PC.

5. On the PC side, search the network and you can see the SSID of the camera

listed.

Figure 4-4 Ad-hoc Connection Point

6. Choose the SSID and connect.

Security Mode Description:

Figure 4-5 Security Mode

You can choose the Security Mode as not-encrypted, WEP, WPA-personal, WPA-enterprise, WPA2-personal, and WPA2-enterprise. WEP mode:

Network Camera User Manual

Figure 4-6 WEP Mode

 Authentication - Select Open or Shared Key System Authentication, depending on

the method used by your access point. Not all access points have this option, in which case they probably use Open System, which is sometimes known as SSID Authentication.

 Key length - This sets the length of the key used for the wireless encryption, 64 or

128 bit. The encryption key length can sometimes be shown as 40/64 and 104/128.

 Key type - The key types available depend on the access point being used. The

following options are available: HEX - Allows you to manually enter the hex key. ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and

13 characters for 128-bit WEP. WPA-personal and WPA2-personal Mode: Enter the required Pre-shared Key for the access point, which can be a hexadecimal number or a passphrase.

Figure 4-7 Security Mode- WPA-personal

WPA- enterprise and WPA2-enterprise Mode:

Network Camera User Manual

Choose the type of client/server authentication being used by the access point; EAP-TLS or EAP-PEAP.

EAP-TLS

Figure 4-8 EAP-TLS

 Identity - Enter the user ID to present to the network.  Private key password – Enter the password for your user ID.  EAPOL version - Select the version used (1 or 2) in your access point.  CA Certificates - Upload a CA certificate to present to the access point for

authentication.

EAP-PEAP:

 User Name - Enter the user name to present to the network  Password - Enter the password of the network  PEAP Version - Select the PEAP version used at the access point.  Label - Select the label used by the access point.  EAPOL version - Select version (1 or 2) depending on the version used at the

access point

 CA Certificates - Upload a CA certificate to present to the access point for

authentication

 For your privacy and to better protect your system against security risks, we

Network Camera User Manual

strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4.2 Easy Wi-Fi Connection with WPS function

Purpose:

The setting of the wireless network connection is never easy. To avoid the complex setting of the wireless connection you can enable the WPS function. WPS (Wi-Fi Protected Setup) refers to the easy configuration of the encrypted connection between the device and the wireless router. The WPS makes it easy to add new devices to an existing network without entering long passphrases. There are two modes of the WPS connection, the PBC mode and the PIN mode.

Note: If you enable the WPS function, you do not need to configure the parameters

such as the encryption type and you don’t need to know the key of the wireless

connection.

Steps:

Figure 4-9 Wi-Fi Settings - WPS

Network Camera User Manual

PBC Mode: PBC refers to the Push-Button-Configuration, in which the user simply has to push a button, either an actual or virtual one (as the button on the configuration interface of the IE browser), on both the Access Point (and a registrar of the network) and the new wireless client device.

1. Check the checkbox of to enable WPS.

2. Choose the connection mode as PBC.

Note: Support of this mode is mandatory for both the Access Points and the

connecting devices.

3. Check on the Wi-Fi router to see if there is a WPS button. If yes push the button and you can see the indicator near the button start flashing, which means the WPS function of the router is enabled. For detailed operation, please see the user guide of the router.

4. Push the WPS button to enable the function on the camera. If there is not a WPS button on the camera, you can also click the virtual button to enable the PBC function on the web interface.

5. Click Connect button. When the PBC mode is both enabled in the router and the camera, the camera and the wireless network is connected automatically.

PIN Mode:

The PIN mode requires a Personal Identification Number (PIN) to be read from either a sticker or the display on the new wireless device. This PIN must then be entered to connect the network, usually the Access Point of the network.

Steps:

1. Choose a wireless connection on the list and the SSID is loaded automatically.

2. Choose Use route PIN code.

Network Camera User Manual

Figure 4-10 Use PIN Code

If the PIN code is generated from the router side, you should enter the PIN code you get from the router side in the Router PIN code field.

3. Click Connect. Or You can generate the PIN code on the camera side. And the expired time for the PIN code is 120 seconds.

1. Click Generate.

2. Enter the code to the router, in the example, enter 48167581 to the router.

4.3 IP Property Settings for Wireless Network

Connection

The default IP address of wireless network interface controller is 192.168.1.64. When you connect the wireless network you can change the default IP.

Steps:

1. Enter the TCP/IP configuration interface.

Configuration> Network> Basic Settings > TCP/IP

2. Select the Wlan tab.

Network Camera User Manual

Figure 4-11 Setting WLAN Parameters

3. Customize the IPv4 address, the IPv4 Subnet Mask and the Default Gateway.

The setting procedure is the same with that of LAN. If you want to be assigned the IP address you can check the checkbox to enable the DHCP.

Network Camera User Manual

Chapter 5 Live View

5.1 Live View Page

Purpose:

The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

Descriptions of the live view page:

Figure 5-1 Live View Page

Menu Bar: Click each tab to enter Live View, Playback, Picture, and Configuration page respectively.

Live View Window: Display the live video. Toolbar:

Toolbar allows you to adjust the live view window size, the stream type, and the plug-ins. It also allows you to process the operations on the live view page, e.g., start/stop live view, capture, record, audio on/off, two-way audio, start/stop digital zoom, etc. For IE (Internet Explorer) users, plug-ins as webcomponents and quick time are selectable. And for Non-IE users, webcomponents, quick time, VLC or MJPEG is

Network Camera User Manual

selectable if they are supported by the web browser.

PTZ Control:

Perform panning, tilting and zooming actions of the camera. Control the light and the wiper (only available for cameras supporting PTZ function).

Preset/Patrol Settings: Set/call/delete the presets or patrols for PTZ cameras.

5.2 Starting Live View

In the live view window as shown in Figure 5-2, click on the toolbar to start the live view of the camera.

Figure 5-2 Live View Toolbar

Table 5-1 Descriptions of the Toolbar

Icon

Description

Start/Stop live view.

The window size is 4:3.

The window size is 16:9.

The original widow size.

Self-adaptive window size.

Live view with the main stream.

Live view with the sub stream.

Live view with the third stream.

Click to select the third-party plug-in.

Manually capture the picture.

Manually start/stop recording.

Enable/disable regional exposure

Enable/disable regional focus

Audio on and adjust volume /Mute.

Turn on/off microphone.

Note: The icons vary according to the different camera models.

Network Camera User Manual

5.3 Recording and Capturing Pictures Manually

In the live view interface, click on the toolbar to capture the live pictures or click

to record the live view. The saving paths of the captured pictures and clips can be

set on the Configuration > Local page. To configure remote scheduled recording, please refer to Section 6.1.

Note: The captured image will be saved as JPEG file or BMP file in your computer.

5.4 Operating PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to realize pan/tilt/zoom control of the camera.

Note: To realize PTZ control, the camera connected to the network must support the

PTZ function or have a pan/tilt unit installed to the camera. Please properly set the PTZ parameters on RS485 settings page referring to Section 6.2.4 RS485 Settings.

5.4.1 PTZ Control Panel

On the live view page, click next to the right side of the live view window to show

the PTZ control panel and click to hide it. Click the direction buttons to control the pan/tilt movements.

Figure 5-3 PTZ Control Panel

Network Camera User Manual

Click the zoom/focus/iris buttons to realize lens control.

Notes:

 There are eight direction arrows ( , , , , , , , ) in the control

panel. Click the arrows to realize adjustment in the relative positions.

 For the cameras which support lens movements only, the direction buttons are

invalid.

Table 5-2 Descriptions of PTZ Control Panel

Icon

Description

Zoom in/out

Focus near/far

Iris +/-

PTZ speed adjustment

Light on/off

Wiper on/off

Auxiliary focus

Initialize lens

Adjust speed of pan/tilt movements

Start Manual Tracking

Start 3D Zoom

Start one-touch patrol

Start one-touch park

5.4.2 Setting/Calling a Preset

 Setting a Preset:

1. In the PTZ control panel, select a preset number from the preset list.

Network Camera User Manual

Figure 5-4 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

• Pan the camera to the right or left.

• Tilt the camera up or down.

• Zoom in or out.

• Refocus the lens.

3. Click to finish the setting of the current preset.

4. You can click to delete the preset.

 Calling a Preset:

This feature enables the camera to point to a specified preset scene manually or when an event takes place. For the defined preset, you can call it at any time to the desired preset scene. In the PTZ control panel, select a defined preset from the list and click to call the preset. Or you can place the mouse on the presets interface, and call the preset by typing the preset No. to call the corresponding presets.

Figure 5-5 Calling a Preset

Network Camera User Manual

5.4.3 Setting/Calling a Patrol

Note:

No less than 2 presets have to be configured before you set a patrol.

Steps:

1. Click to enter the patrol configuration interface.

2. Select a path No., and click to add the configured presets.

3. Select the preset, and input the patrol duration and patrol speed.

4. Click OK to save the first preset.

5. Follow the steps above to add the other presets.

Figure 5-6 Add Patrol Path

6. Click OK to save a patrol.

7. Click to start the patrol, and click to stop it.

8. (Optional) Click to delete a patrol.

Network Camera User Manual

Chapter 6 Network Camera

Configuration

6.1 Configuring Local Parameters

Purpose:

The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.

Steps:

1. Enter the Local Configuration interface: Configuration > Local.

Figure 6-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type and live view performance.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected.

UDP: Provides real-time audio and video streams. HTTP: Allows the same quality as of TCP without setting specific ports for

streaming under some network environments.

Network Camera User Manual

MULTICAST: It’s recommended to select MCAST type when using the

Multicast function. For detailed information about Multicast, refer to Section

7.1.1 Configuring TCP/IP Settings.

 Play Performance: Set the play performance to Shortest Delay, Balanced or

Auto.

 Rules: It refers to the rules on your local browser, select enable or disable to

display or not display the colored marks when the motion detection, face detection, or intrusion detection is triggered. E.g., enabled as the rules are, and the face detection is enabled as well, when a face is detected, it will be marked with a green rectangle on the live view.

 Image Format: Choose the image format for picture capture.

 Record File Settings: Set the saving path of the recorded video files. Valid for the

record files you recorded with the web browser.

 Record File Size: Select the packed size of the manually recorded and

downloaded video files to 256M, 512M or 1G. After the selection, the maximum record file size is the value you selected.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files

in playback mode.

 Picture and Clip Settings: Set the saving paths of the captured pictures and

clipped video files. Valid for the pictures you capture with the web browser.

 Save snapshots in live view to: Set the saving path of the manually captured

pictures in live view mode.

 Save snapshots when playback to: Set the saving path of the captured

pictures in playback mode.

 Save clips to: Set the saving path of the clipped video files in playback mode.

Note: You can click Browse to change the directory for saving the clips and pictures,

and click Open to open the set folder of clips and picture saving.

3. Click Save to save the settings.

Network Camera User Manual

6.2 Configure System Settings

Purpose:

Follow the instructions below to configure the system settings, include System Settings, Maintenance, Security, and User Management, etc.

6.2.1 Configuring Basic Information

Enter the Device Information interface: Configuration > System > System Settings > Basic Information.

In the Basic Information interface, you can edit the Device Name and Device No.. Other information of the network camera, such as Model, Serial No., Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future.

Figure 6-2 Basic Information

Network Camera User Manual

Online Upgrade

For some camera models, when memory card is mounted, you can click the Update button that appears on the right of Firmware Version text field to see if there is a new version available. If a new version is available, the version number will be displayed in the New Version text field below, and you can click the Upgrade button to upgrade the firmware for the camera.

Figure 6-3 Online Upgrade

Note: When the camera is upgrading, don't power off the camera. During upgrading,

the camera may not be accessible. You need to wait 1 or 2 minutes before the upgrade finishes.

6.2.2 Configuring Time Settings

Purpose:

You can follow the instructions in this section to configure the time synchronization and DST settings.

Steps:

1. Enter the Time Settings interface, Configuration > System> System Settings >

Time Settings.

Network Camera User Manual

Figure 6-4 Time Settings

2. Select the Time Zone of your location from the drop-down menu.

3. Configure the NTP settings.

(1) Click to enable the NTP function. (2) Configure the following settings:

Server Address: IP address of NTP server. NTP Port: Port of NTP server.

Interval: The time interval between the two synchronizing actions with NTP

server.

(3) (Optional) You can click the Test button to test the time synchronization

function via NTP server.

Network Camera User Manual

Figure 6-5 Time Sync by NTP Server

Note: If the camera is connected to a public network, you should use a NTP server

that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP software can be used to establish a NTP server for time synchronization.

 Configure the manual time synchronization.

(1) Check the Manual Time Sync. item to enable the manual time

synchronization function.

(2) Click the icon to select the date, time from the pop-up calendar.

(3) (Optional) You can check Sync. with computer time item to synchronize the

time of the device with that of the local PC.

Figure 6-6 Time Sync Manually

 Click Save to save the settings.

6.2.3 Configuring RS485 Settings

Purpose:

The RS485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit.

Steps:

1. Enter RS-485 Port Setting interface: Configuration > System > System

Settings > RS485.

Network Camera User Manual

Figure 6-7 RS-485 Settings

2. Set the RS485 parameters and click Save to save the settings.

By default, the Baud Rate is set as 9600 bps, the Data Bit is 8, the stop bit is 1 and

the Parity and Flow Control is None.

Note: The Baud Rate, PTZ Protocol and PTZ Address parameters should be exactly

the same as the PTZ camera parameters.

6.2.4 Configuring DST Settings

Purpose:

Daylight Saving Time (DST) is a way of making better use of the natural daylight by setting your clock forward one hour during the summer months, and back again in the fall. Configure the DST according to your actual demand.

Steps:

1. Enter the DST configuration interface.

Configuration > System > System Settings > DST

Network Camera User Manual

Figure 6-8 DST Settings

2. Select the start time and the end time.

3. Select the DST Bias.

4. Click Save to activate the settings.

6.2.5 Configuring External Devices

Purpose:

For the device supported external devices, including the wiper on the housing or the LED light, you can control them via the Web browser. External devices vary according to the different camera models.

Steps:

1. Enter the External Device configuration interface.

Configuration > System > System Settings > External Device

Figure 6-9 External Device Settings

2. Check the Enable Supplement Light checkbox to enable the LED Light.

3. Select the mode for LED light. Timing and Auto are selectable.

 Timing: The LED will be turned on by the schedule you set. You should set

the Start Time and End Time.

Network Camera User Manual

Figure 6-10 Set Schedule

 Auto: The LED will be turned on according to the environment illumination.

4. Click Save to save the settings.

6.3 Maintenance

6.3.1 Upgrade & Maintenance

Purpose:

The upgrade & maintenance interface allows you to process the operations, including reboot, partly restore, restore to default, export/import the configuration files, and upgrade the device. Enter the Maintenance interface: Configuration > System > Maintenance > Upgrade & Maintenance.

 Reboot: Restart the device.  Restore: Reset all the parameters, except the IP parameters and user information,

to the default settings.

 Default: Restore all the parameters to the factory default.

Note: After restoring the default settings, the IP address is also restored to the default

IP address, please be careful for this action.  Export/Import Config. File: Configuration file is used for the batch

configuration of the camera, which can simplify the configuration steps when there are a lot of cameras needing configuring.

Steps:

1. Click Device Parameters to export the current configuration file, and save it

to certain place.

2. Click Browse to select the saved configuration file and then click Import to

start importing configuration file.

Note: You need to reboot the camera after importing configuration file.

 Upgrade: Upgrade the device to a certain version.

Network Camera User Manual

Steps:

1. Select firmware or firmware directory to locate the upgrade file.

Firmware: Locate the exact path of the upgrade file. Firmware Directory: Only the directory the upgrade file belongs to is required.

2. Click Browse to select the local upgrade file and then click Upgrade to start

remote upgrade.

Note: The upgrading process will take 1 to 10 minutes. Please don't disconnect

power of the camera during the process, and the camera reboots automatically after upgrade.

6.3.2 Log

Purpose:

The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand.

Before you start:

Please configure network storage for the camera or insert a SD card in the camera.

Steps:

1. Enter log searching interface: Configuration > System > Maintenance > Log.

Figure 6-11 Log Searching Interface

2. Set the log search conditions to specify the search, including the Major Type,

Minor Type, Start Time and End Time.

3. Click Search to search log files. The matched log files will be displayed on the

log list interface.

Network Camera User Manual

Figure 6-12 Log Searching

4. To export the log files, click Export to save the log files.

6.3.3 System Service

1. Enter the interface of configuring the remote connection: Configuration >

System > Maintenance > System Service

2. Live View Connection: Input a number in text field as the upper limit of the

remote connection number. E.g. when you specify the remote connection number as 10, then the 11th remote connection cannot be established.

Figure 6-13 Enable Live View Connection

6.4 Security Settings

Configure the parameters, including Authentication, Anonymous Visit, IP Address Filter, and Security Service from security interface.

Network Camera User Manual

6.4.1 Authentication

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authentication interface: Configuration > System > Security >

Authentication.

Figure 6-14 RTSP Authentication

2. Select the RTSP Authentication type basic or disable in the drop-down list to

enable or disable the RTSP authentication.

Note: If you disable the RTSP authentication, anyone can access the video stream by

the RTSP protocol via the IP address.

3. Click Save to save the settings.

6.4.2 IP Address Filter

Purpose:

This function makes it possible for access control.

Steps:

1. Enter the IP Address Filter interface: Configuration > System > Security > IP

Address Filter

Network Camera User Manual

Figure 6-15 IP Address Filter Interface

2. Check the checkbox of Enable IP Address Filter.

3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed

are selectable.

4. Set the IP Address Filter list.

 Add an IP Address

Steps:

(1) Click the Add to add an IP. (2) Input the IP Adreess.

Figure 6-16 Add an IP

(3) Click the OK to finish adding.

 Modify an IP Address

Steps:

(1) Left-click an IP address from filter list and click Modify. (2) Modify the IP address in the text filed.

Figure 6-17 Modify an IP

Network Camera User Manual

(3) Click the OK to finish modifying.

 Delete an IP Address or IP Addresses.

Select the IP address(es) and click Delete.

5. Click Save to save the settings.

6.4.3 Security Service

To enable the remote login, and improve the data communication security, the camera provides the security service for better user experience.

Steps:

1. Enter the security service configuration interface: Configuration > System >

Security > Security Service.

Figure 6-18 Security Service

2. Check the checkbox of Enable Illegal Login Lock, and then the IP address will

be locked if the admin user performs 7 failed user name/password attempts (5

times for the operator/user).

Note: If the IP address is locked, you can try to login the device after 30 minutes.

6.5 User Management

6.5.1 User Management

Purpose:

The admin user can add, delete or modify user accounts, and grant them different permissions. We highly recommend you manage the user accounts and permissions properly.

Network Camera User Manual

Steps:

1. Enter the User Management interface: Configuration >System >User

Management

Figure 6-19 User Management Interface

 Adding a User

The admin user has all permissions by default and can create/modify/delete other accounts. The admin user cannot be deleted and you can only change the admin password.

Steps:

1. Click Add to add a user.

2. Input the User Name, select Level and input Password.

Notes:

● Up to 31 user accounts can be created.

● Users of different levels own different default permissions. Operator and user

are selectable.

Network Camera User Manual

● STRONG PASSWORD RECOMMENDED–We highly recommend you

create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

3. You can check or uncheck the permissions for the new user.

4. Click OK to finish the user addition.

Figure 6-20 Add a User

 Modifying a User

Steps:

1. Left-click to select the user from the list and click Modify.

2. Modify the User Name, Level and Password.

Network Camera User Manual

3. STRONG PASSWORD RECOMMENDED–We highly recommend you

4. You can check or uncheck the permissions.

5. Click OK to finish the user modification.

Figure 6-21 Modify a User

 Deleting a User

Steps:

1. Click to select the user you want to delete and click Delete.

2. Click OK on the pop-up dialogue box to confirm the deletion.

Network Camera User Manual

6.5.2 Online Users

Purpose:

You can see the current users who are visiting the device through this interface. User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list.

Figure 6-22 View the Online Users

Network Camera User Manual

Chapter 7 Network Settings

Purpose:

Follow the instructions in this chapter to configure the basic settings and advanced settings.

7.1 Configuring Basic Settings

Purpose:

You can configure the parameters, including TCP/IP, DDNS, PPPoE, Port, and NAT, etc., by following the instructions in this section.

7.1.1 Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions can be configured simultaneously without conflicting to each other, and at least one IP version should be configured.

Steps:

1. Enter TCP/IP Settings interface: Configuration > Network > Basic

Settings > TCP/IP

Network Camera User Manual

Figure 7-1 TCP/IP Settings

2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6

Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings

and Multicast Address.

3. (Optional) Check the checkbox of Enable Multicast Discovery, and then the

online network camera can be automatically detected by client software via

private multicast protocol in the LAN.

4. Configure the DNS server. Input the preferred DNS server, and alternate DNS

server.

5. Click Save to save the above settings.

Notes:

 The valid value range of MTU is 1280 to 1500.  The Multicast sends a stream to the multicast group address and allows multiple

clients to acquire the stream at the same time by requesting a copy from the

Network Camera User Manual

multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.

 A reboot is required for the settings to take effect.

7.1.2 Configuring DDNS Settings

Purpose:

If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the camera.

Steps:

1. Enter the DDNS Settings interface: Configuration > Network > Basic

Settings > DDNS.

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

 DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS

website.

(3) Enter the User Name and Password registered on the DynDNS website. (4) Click Save to save the settings.

Network Camera User Manual

Figure 7-2 DynDNS Settings

 NO-IP:

Steps:

(1) Choose the DDNS Type as NO-IP.

Figure 7-3 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the User Name and Password. (5) Click Save and then you can view the camera with the domain name.

Note: Reboot the device to make the settings take effect.

Network Camera User Manual

7.1.3 Configuring PPPoE Settings

Steps:

1. Enter the PPPoE Settings interface: Configuration > Network > Basic

Settings > PPPoE

Figure 7-4 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Enter User Name, Password, and Confirm password for PPPoE access.

Note: The User Name and Password should be assigned by your ISP.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Click Save to save and exit the interface.

Note: A reboot is required for the settings to take effect.

7.1.4 Configuring Port Settings

Purpose:

Network Camera User Manual

You can set the port No. of the camera, e.g., HTTP port, RTSP port and HTTPS port.

Steps:

1. Enter the Port Settings interface, Configuration > Network > Basic Settings >

Port

Figure 7-5 Port Settings

2. Set the HTTP port, RTSP port, HTTPS port and server port of the camera.

HTTP Port: The default port number is 80, and it can be changed to any port No. which is not occupied. RTSP Port: The default port number is 554 and it can be changed to any port No. ranges from 1 to 65535. HTTPS Port: The default port number is 443, and it can be changed to any port No. which is not occupied. Server Port: The default server port number is 8000, and it can be changed to any port No. ranges from 2000 to 65535.

3. Click Save to save the settings.

Note: A reboot is required for the settings to take effect.

7.1.5 Configure NAT (Network Address Translation) Settings

Purpose:

NAT interface allows you to configure the UPnP™ parameters.

Universal Plug and Play (UPnP™) is a networking architecture that provides

compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the

Network Camera User Manual

implementation of networks in the home and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the NAT settings interface. Configuration > Network > Basic Settings >

NAT.

2. Check the checkbox to enable the UPnP™ function.

3. Choose a nickname for the camera, or you can use the default name.

4. Select the port mapping mode. Manual and Auto are selectable. And for manual

port mapping, you can customize the value of the external port.

5. Click Save to save the settings.

Figure 7-6 UPnP Settings

7.2 Configure Advanced Settings

Purpose:

You can configure the parameters, including SNMP, FTP, Email, HTTPS, QoS,

802.1x, etc., by following the instructions in this section.

7.2.1 Configuring SNMP Settings

Purpose:

You can set the SNMP function to get camera status, parameters and alarm related

Network Camera User Manual

information, and manage the camera remotely when it is connected to the network.

Before you start:

Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

Note: The SNMP version you select should be the same as that of the SNMP software.

And you also need to use the different version according to the security level you required. SNMP v1 provides no security and SNMP v2 requires password for access. And SNMP v3 provides encryption and if you use the third version, HTTPS protocol must be enabled.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

Steps:

1. Enter the SNMP Settings interface: Configuration > Network > Advanced Settings > SNMP.

Network Camera User Manual

Figure 7-7 SNMP Settings

2. Check the checkbox of Enable SNMPv1, Enable SNMP v2c, Enable SNMPv3 to enable the feature correspondingly.

3. Configure the SNMP settings.

Note: The settings of the SNMP software should be the same as the settings you

Network Camera User Manual

configure here.

4. Click Save to save and finish the settings.

Notes:

• A reboot is required for the settings to take effect.

• To lower the risk of information leakage, you are suggested to enable SNMP v3

instead of SNMP v1 or v2.

7.2.2 Configuring FTP Settings

Purpose:

You can configure the FTP server related information to enable the uploading of the captured pictures to the FTP server. The captured pictures can be triggered by events or a timing snapshot task. Steps:

1. Enter the FTP Settings interface: Configuration > Network > Advanced

Settings > FTP.

Figure 7-8 FTP Settings

2. Input the FTP address and port.

3. Configure the FTP settings; and the user name and password are required for the

Network Camera User Manual

FTP server login.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Set the directory structure and picture filing interval.

Directory: In the Directory Structure field, you can select the root directory, parent directory and child directory. When the parent directory is selected, you have the option to use the Device Name, Device Number or Device IP for the name of the directory; and when the Child Directory is selected, you can use the Camera Name or Camera No. as the name of the directory. Picture Filing Interval: For better picture management, you can set the picture filing interval from 1 day to 30 days. Pictures captured in the same time interval will be saved in one folder named after the beginning date and ending date of the time interval.

Picture Name: Set the naming rule for captured picture files. You can choose Default in the drop-down list to use the default rule, that is,

IP address_channel number_capture time_event type.jpg

(e.g., 10.11.37.189_01_20150917094425492_FACE_DETECTION.jpg).

Or you can customize it by adding a Custom Prefix to the default naming rule.

5. Check the Upload Picture checkbox to enable the function.

Upload Picture: To enable uploading the captured picture to the FTP server. Anonymous Access to the FTP Server (in which case the user name and

password won’t be required.): Check the Anonymous checkbox to enable the

Network Camera User Manual

anonymous access to the FTP server.

Note: The anonymous access function must be supported by the FTP server.

6. Click Save to save the settings.

7.2.3 Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.

Before you start:

Please configure the DNS Server settings under Configuration > Network > Basic Settings > TCP/IP before using the Email function.

Steps:

1. Enter the TCP/IP Settings (Configuration > Network > Basic Settings >

TCP/IP) to set the IPv4 Address, IPv4 Subnet Mask, IPv4 Default Gateway and

the Preferred DNS Server.

Note: Please refer to Section 7.1.1 Configuring TCP/IP Settings for detailed

information.

2. Enter the Email Settings interface: Configuration > Network >Advanced

Settings > Email.

3. Configure the following settings:

Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: IP address or host name (e.g., smtp.263xmail.com) of the SMTP Server. SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25 (not secured). And the SSL SMTP port is 465. Email Encryption: None, SSL, and TLS are selectable. When you select SSL or TLS and disable STARTTLS, e-mails will be sent after encrypted by SSL or TLS.

Network Camera User Manual

The SMTP port should be set as 465 for this encryption method. When you select SSL or TLS and enable STARTTLS, emails will be sent after encrypted by STARTTLS, and the SMTP port should be set as 25.

Note: If you want to use STARTTLS, make sure that the protocol is supported by

your e-mail server. If you check the Enable STARTTLS checkbox when the protocol is not supported by your e-mail sever, your e-mail will not be encrypted. Attached Image: Check the checkbox of Attached Image if you want to send emails with attached alarm images. Interval: The interval refers to the time between two actions of sending attached pictures. Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and input the login user name and password.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

The Receiver table: Select the receiver to which the email is sent. Up to 3 receivers can be configured. Receiver: The name of the user to be notified. Receiver’s Address: The email address of user to be notified.

Network Camera User Manual

Figure 7-9 Email Settings

4. Click Save to save the settings.

7.2.4 HTTPS Settings

Purpose:

HTTPS provides authentication of the web site and its associated web server, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https. E.g., If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inputting https://192.168.1.64:443 via the web browser.

Steps:

1. Enter the HTTPS settings interface. Configuration > Network > Advanced

Settings > HTTPS.

2. Check the checkbox of Enable to enable the function.

Network Camera User Manual

Figure 7-10 HTTPS Configuration Interface

3. Create the self-signed certificate or authorized certificate.

 Create the self-signed certificate

(1) Select Create Self-signed Certificate as the Installation Method. (2) Click Create button to enter the creation interface.

Figure 7-11 Create Self-signed Certificate (3) Enter the country, host name/IP, validity and other information. (4) Click OK to save the settings.

Note: If you already had a certificate installed, the Create Self-signed

Certificate is grayed out.

 Create the authorized certificate

(1) Select Create the certificate request first and continue the installation as

the Installation Method.

(2) Click Create button to create the certificate request. Fill in the required

information in the popup window.

Network Camera User Manual

(3) Download the certificate request and submit it to the trusted certificate

authority for signature.

(4) After receiving the signed valid certificate, import the certificate to the

device.

4. There will be the certificate information after your successfully creating and

installing the certificate.

Figure 7-12 Installed Certificate

5. Click the Save button to save the settings.

7.2.5 Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

Steps:

1. Enter the QoS Settings interface: Configuration > Network > Advanced

Settings > QoS

Figure 7-13 QoS Settings

Network Camera User Manual

2. Configure the QoS settings, including Video/Audio DSCP, Event/Alarm DSCP

and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger the DSCP value is, the higher the priority is.

Note: DSCP refers to the Differentiated Service Code Point; and the DSCP value

is used in the IP header to indicate the priority of the data.

3. Click Save to save the settings.

Note: A reboot is required for the settings to take effect.

7.2.6 Configuring 802.1X Settings

Purpose:

The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X.

Before you start:

The authentication server must be configured. Please apply and register a user name and password for 802.1X in the server.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

Steps:

1. Enter the 802.1X Settings interface, Configuration > Network > Advanced

Settings > 802.1X

Network Camera User Manual

Figure 7-14 802.1X Settings

2. Check the Enable IEEE 802.1X checkbox to enable the feature.

3. Configure the 802.1X settings, including Protocol, EAPOL version, User Name,

Password and Confirm.

Note: The EAPOL version must be identical with that of the router or the switch.

4. Enter the user name and password to access the server.

5. Click Save to finish the settings.

Note: A reboot is required for the settings to take effect.

Network Camera User Manual

Chapter 8 Video/Audio Settings

Purpose:

Follow the instructions below to configure the video setting, audio settings, ROI, and Display info. on Stream.

8.1 Configuring Video Settings

Steps:

1. Enter the Video Settings interface, Configuration > Video/Audio > Video

Figure 8-1 Video Settings

2. Select the Stream Type of the camera to main stream (normal), sub-stream or

third stream.

Notes:

• For some models, to enable the third stream, go to System > Maintenance >

Network Camera User Manual

System Service> Software and check the checkbox of Enable Third Stream to reboot the system and enable the third stream.

• The main stream is usually for recording and live view with good bandwidth,

and the sub-stream can be used for live view when the bandwidth is limited.

• To enable the third stream, go to System>Maintenance>System Service>

Software and check the checkbox of Enable Third Stream to reboot the system and enable the third stream.

3. You can customize the following parameters for the selected stream type.

Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio. Resolution: Select the resolution of the video output. Bitrate Type: Select the bitrate type to constant or variable. Video Quality: When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

Set the frame rate. The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Max. Bitrate: Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to the higher video quality, but the better bandwidth is required.

Note: The maximum limit of the max. bitrate value varies according to different

camera platforms. For certain cameras, the maximum limit is 8192 Kbps or 12288 Kbps. Video Encoding: If the Stream Type is set to main stream, H.264 and H.265 are selectable, and if the

Network Camera User Manual

stream type is set to sub stream or third stream, H.264, MJPEG, and H.265 are selectable. H.265 is a new encoding technology. Compared with H.264, it reduces the transmission bitrate under the same resolution, frame rate and image quality.

Note: Selectable video encoding types may vary according to different camera

modes.

H.264+ and H.265+:

• H.264+: If you set the main stream as the stream type, and H.264 as the video

encoding, you can see H.264+ available. H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, users can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

• H.265+: If you set the main stream as the stream type, and H.265 as the video

encoding, you can see H.265+ available. H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, users can estimate the HDD consumption by its maximum average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same maximum bitrate in most

scenes. You need to reboot the camera if you want to turn on or turn off the H.264+/H.265+. If you switch from H.264+ to H.265+ directly, and vice versa, a reboot is not required by the system.

Notes:

• Upgrade your video player to the latest version if live view or playback does

not work properly due to compatibility.

• The bitrate type must be variable if you want to use H.264+ or H.265+.

• With H.264+/H.265+ enabled, the parameters such as profile, I frame interval,

video quality, and SVC are greyed out if the bitrate type is variable.

• With H.264+/H.265+ enabled, some functions are not supported. For those

functions, corresponding interfaces will be hidden.

• H.264+/H.265+ can spontaneously adjust the bitrate distribution according the

Network Camera User Manual

requirements of the actual scene in order to realize the set maximum average

bitrate in the long term. The camera needs at least 3 days to adapt to a fixed

monitoring scene.

Profile:

Basic profile, Main Profile, and High Profile for coding are selectable.

I Frame Interval:

Set I Frame Interval from 1 to 400.

SVC:

Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to disable/enable the SVC function. Select Auto and the device will automatically extract frames from the original video when the network bandwidth is insufficient.

Smoothing:

It refers to the smoothness of the stream. The higher value of the smoothing is, the better fluency of the stream will be, though, the video quality may not be so satisfactory. The lower value of the smoothing is, the higher quality of the stream will be, though it may appear not fluent.

4. Click Save to save the settings.

Note:

The video parameters vary according to different camera models. Refer to the actual display page for camera functions.

8.2 Configuring Audio Settings

Steps:

1. Enter the Audio Settings interface: Configuration > Video/Audio > Audio.

Network Camera User Manual

Figure 8-2 Audio Settings

2. Configure the following settings.

Note: Audio settings vary according to different camera models.

Audio Encoding: G.722.1, G.711 ulaw, G.711alaw, G.726, MP2L2 and PCM are selectable. For MP2L2, the Sampling Rate and Audio Stream Bitrate are configurable. For PCM, the Sampling Rate can be set. Audio Input: MicIn and LineIn are selectable for the connected microphone and pickup respectively.

Input Volume: 0-100 adjustable. Environmental Noise Filter: Set it as OFF or ON. When the function is enabled,

the noise in the environment can be filtered to some extent.

3. Click Save to save the settings.

8.3 Configuring ROI Encoding

Purpose:

ROI (Region of Interest) encoding helps to discriminate the ROI and background information in video compression, which means, the technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

Note: ROI function varies according to different camera models.

Network Camera User Manual

Figure 8-3 Region of Interest Settings

Steps:

1. Enter the ROI settings interface: Configuration > Video/Audio > ROI.

2. Select the Stream Type for ROI encoding.

3. Check the checkbox of Enable under Fixed Region item.

4. Set Fixed Region for ROI. (1) Select the Region No. from the drop-down list. (2) Check the Enable checkbox to enable ROI function for the chosen region.

Network Camera User Manual

(3) Click Drawing. Click and drag the mouse on the view screen to draw a red

rectangle as the ROI region. You can click Clear to cancel former drawing. Click Stop Drawing when you finish.

(4) Select the ROI level. (5) Enter a region name for the chosen region. (6) Click Save the save the settings of ROI settings for chosen fixed region. (7) Repeat steps (1) to (6) to setup other fixed regions.

5. Set Dynamic Region for ROI. (1) Check the checkbox to enable Face Tracking.

Note: To enable face tracking function, the face detection function should be

supported and enabled. (2) Select the ROI level.

6. Click Save to save the settings.

Note: ROI level means the image quality enhancing level. The larger the value is, the

better the image quality would be.

8.4 Display Info. on Stream

Check the checkbox of Enable Dual-VCA, and the information of the objects (e.g. human, vehicle, etc.) will be marked in the video stream. Then, you can set rules on the connected rear-end device to detect the events including line crossing, intrusion, etc.

Figure 8-4 Display Info. on Stream

Network Camera User Manual

Chapter 9 Image Settings

Purpose:

Follow the instructions in this chapter to configure the image parameters, including display settings, OSD settings, privacy mask, and picture overlay.

9.1 Configuring Display Settings

Purpose:

Configure the image adjustment, exposure settings, focus, day/night switch, backlight settings, white balance, image enhancement, video adjustment, and other parameters in display settings.

Notes:

● Mounting scenario can be set as Indoor, Outdoor, Day, Night, Morning, Nightfall, Street, Low Illumination, Custom 1, and Custom 2.

● The display parameters vary according to the different camera models. Please refer to the actual interface for details.

Steps:

1. Enter the Display Settings interface, Configuration > Image > Display Settings.

Figure 9-1 Display Settings of Day/Night Auto-Switch

Network Camera User Manual

2. Set the image parameters of the camera.

Note: In order to guarantee the image quality in different illumination, it provides two

sets of parameters for users to configure.

 Image Adjustment

Brightness describes bright of the image, which ranges from 1 to 100. Contrast describes the contrast of the image, which ranges from 1 to 100. Saturation describes the colorfulness of the image color, which ranges from 1 to

100. Sharpness describes the edge contrast of the image, which ranges from 1 to 100.

 Exposure Settings

The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, and Manual.

Auto: The iris, shutter and gain values will be adjusted automatically according

to the brightness of the environment. Iris Priority: The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted automatically according to the brightness of the environment.

Figure 9-2 Manual Iris

Shutter Priority: The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment.

Network Camera User Manual

Figure 9-3 Manual Shutter

Manual: In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.

Figure 9-4 Manual Mode

Limit Gain: This feature is used to adjust gain of the image. The value ranges from 0 to 100. Slow Shutter: This function can be used in underexposure condition. It lengthens the shutter time to ensure full exposure. Slow Shutter Level: When slow shutter is set as ON, you can select the slow shutter level from the drop-down list. The slow shutter lever can be set to Slow Shutter*1.25, *1.5, *2, *3, *4, *6, *8.

Figure 9-5 Slow Shutter

 Focus

Network Camera User Manual

The Focus Mode can be set to Auto, Manual, and Semi-auto. Auto: The speed dome focuses automatically at any time according to objects in the scene. Semi-auto: The speed dome focuses automatically only once after panning, tilting and zooming.

Manual: In Manual mode, you need to use on the control panel to focus manually. Min. Focus Distance is used to limit the minimum focus distance. The value can

be set to 10cm, 50cm, 1.0m, 1.5m, 3m, 6m, 10m and 20m.

The minimum focus value varies depending on different speed dome models.

 Day/Night Switch

Select the Day/Night Switch mode according to different surveillance demand. Day, Night, Auto, and Scheduled-Switch are selectable for day/night switch.

Figure 9-6 Day/Night Switch

Day: the camera stays at day mode. Night: the camera stays at night mode. Auto: the camera switches between the day mode and the night mode according

to the illumination automatically. The sensitivity ranges from 1 to 3, the higher the value is, the easier the mode switches. Scheduled-Switch: Set the start time and the end time to define the duration for day/night mode.

 Backlight Settings

BLC Area: If you focus on an object against strong backlight, the object will be too dark to be seen clearly. BLC compensates light to the object in the front to

Network Camera User Manual

make it clear. OFF, Up, Down, Left, Right, Center, and Auto are selectable. WDR: Wide Dynamic Range can be used when there is a high contrast of the bright area and the dark area of the scene. HLC: High Light Compression function can be used when there are strong lights in the scene affecting the image quality.

 White Balance

White balance is the white rendition function of the camera used to adjust the color temperature according to the environment. The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp, and Auto-Tracking.

Auto: In Auto mode, the camera retains color balance automatically according to the current color temperature.

Manual White Balance: In MWB mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 9-7.

Figure 9-7 Manual White Balance

Outdoor: You can select this mode when the speed dome is installed in outdoor environment. Indoor: You can select this mode when the speed dome is installed in indoor environment. Fluorescent Lamp: You can select this mode when there are fluorescent lamps installed near the speed dome. Sodium Lamp: You can select this mode when there are sodium lamps installed near the speed dome. Auto-Tracking: In Auto-Tracking mode, white balance is continuously being adjusted in real-time according to the color temperature of the scene illumination.

 Image Enhancement

Digital Noise Reduction: DNR reduces the noise in the video stream. OFF,

Network Camera User Manual

Normal and Expert are selectable. Set the DNR level from 0 to 100 in Normal Mode. Set the DNR level from both space DNR level [0-100] and time DNR level [0-100] in Expert Mode. Defog Mode: You can enable the defog function when the environment is foggy and the image is misty. It enhances the subtle details so that the image appears clearer.

 Video Adjustment

Mirror: It mirrors the image so you can see it inversed. Mirror modes vary depending on different camera models. Video Standard: 50 Hz and 60 Hz are selectable. Choose according to the different video standards; normally 50 Hz for PAL standard and 60 Hz for NTSC standard. Capture Mode: It’s the selectable video input mode to meet the different demands of field of view and resolution.

 Others

The functions vary depending on different speed dome models. Lens Initialization: The lens operates the movements for initialization when you enable Lens Initialization.

Local Output: Set the local output ON or OFF according to the actual device.

9.2 Configuring OSD Settings

Purpose:

You can customize the camera name, time/date format, display mode, and OSD size displayed on the live view.

Network Camera User Manual

Figure 9-8 OSD Settings

Steps:

1. Enter the OSD Settings interface: Configuration > Image > OSD Settings.

2. Check the corresponding checkbox to select the display of camera name, date or

week if required.

3. Edit the camera name in the text field of Camera Name.

4. Select from the drop-down list to set the time format and date format.

5. Select from the drop-down list to set the time format, date format, display mode,

OSD size and OSD color.

6. Configure the text overlay settings.

(1) Check the checkbox in front of the textbox to enable the on-screen display. (2) Input the characters in the textbox.

Note: Up to 8 text overlays are configurable.

7. Adjust the position and alignment of text frames.

Left align, right align and custom are selectable. If you select custom, you can use the mouse to click and drag text frames in the live view window to adjust their positions.

Note: The alignment adjustment is only applicable to Text Overlay items.

Network Camera User Manual

8. Click Save to save the settings.

Network Camera User Manual

Chapter 10 Event Settings

This section explains how to configure the network camera to respond to alarm events, including basic event and smart event.

10.1 Basic Events

You can configure the basic events by following the instructions in this section, including motion detection, video tampering, alarm input, alarm output, and exception, etc. These events can trigger the linkage methods, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc.

Note: Check the checkbox of Notify Surveillance Center if you want the alarm

information to be pushed to PC or mobile client software as soon as the alarm is triggered.

10.1.1 Configuring Motion Detection

Purpose:

Motion detection detects the moving objects in the configured surveillance area, and a series of actions can be taken when the alarm is triggered. In order to detect the moving objects accurately and reduce the false alarm rate, normal configuration and expert configuration are selectable for different motion detection environment.

 Normal Configuration

Normal configuration adopts the same set of motion detection parameters in the daytime and at night.

Tasks 1: Set the Motion Detection Area Steps:

1. Enter the motion detection settings interface: Configuration > Event > Basic Event > Motion Detection.

2. Check the checkbox of Enable Motion Detection.

Network Camera User Manual

3. Check the checkbox of Enable Dynamic Analysis for Motion if you want to mark the detected objects with green rectangles.

Note: Select Disable for rules if you don’t want the detected objected displayed

with the green rectangles. Select disable rules from Configuration > Local Configuration > Live View Parameters-rules.

Figure 10-1 Enable Motion Detection

4. Click Draw Area. Click and drag the mouse on the live video to draw a motion detection area. Click Stop Drawing to finish drawing one area.

5. (Optional) Click Clear All to clear all of the areas.

Network Camera User Manual

6. (Optional) Move the slider to set the sensitivity of the detection.

Task 2: Set the Arming Schedule for Motion Detection

Figure 10-2 Arming Schedule

Steps:

1. Click Arming Schedule to edit the arming schedule.

2. Click on the time bar and drag the mouse to select the time period.

Figure 10-3 Arming Schedule

Note: Click on the selected time period, you can adjust the time period to the

desired time by either moving the time bar or input the exact time period.

Network Camera User Manual

3. (Optional) Click Delete to delete the current arming schedule, or click Save to save the settings.

4. Move the mouse to the end of each day, a copy dialogue box pops up, and you can copy the current settings to other days.

5. Click Save to save the settings.

Note: The time of each period can’t be overlapped. Up to 8 periods can be configured

for each day.

Task 3: Set the Linkage Method for Motion Detection

Check the checkbox to select the linkage method. Send Email, Notify Surveillance Center, and Upload to FTP/Memory Card/NAS are selectable. You can specify the linkage method when an event occurs.

Figure 10-4 Linkage Method

Note: The linkage methods vary according to the different camera models.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event occurs.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

Note: To send the Email when an event occurs, please refer to Section 7.2.3 to

complete Email setup in advance.

 Upload to FTP/Memory Card/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

Notes:

Network Camera User Manual

● Set the FTP address and the remote FTP server first. Refer to Section 7.2.2

Configuring FTP Settings for detailed information.

● Go to Configuration > Storage > Schedule Settings> Capture > Capture

Parameters page, enable the event-triggered snapshot, and set the capture

interval and capture number.

● The captured image can also be uploaded to the available SD card or network

disk.

 Expert Configuration

Expert mode is mainly used to configure the sensitivity and proportion of object on each area for different day/night switch.

Figure 10-5 Expert Mode of Motion Detection

 Day/Night Switch OFF

Steps:

1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported.

2. Select OFF for Switch Day and Night Settings.

3. Select the area by clicking the area No.

4. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area.

5. Set the arming schedule and linkage method as in the normal configuration mode.

Network Camera User Manual

6. Click Save to save the settings.

 Day/Night Auto-Switch

Steps:

1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported.

2. Select Auto-Switch for Switch Day and Night Settings.

3. Select the area by clicking the area No..

4. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime.

5. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area at night.

6. Set the arming schedule and linkage method as in the normal configuration mode.

7. Click Save to save the settings.

 Day/Night Scheduled-Switch

Steps:

1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported.

2. Select Scheduled-Switch for Switch Day and Night Settings.

Figure 10-6 Day/Night Scheduled-Switch

3. Select the start time and the end time for the switch timing.

4. Select the area by clicking the area No..

5. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime.

6. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area at night.

7. Set the arming schedule and linkage method as in the normal configuration mode.

Network Camera User Manual

8. Click Save to save the settings.

10.1.2 Configuring Video Tampering Alarm

Purpose:

You can configure the camera to trigger the alarm when the lens is covered and take certain alarm response actions.

Steps:

1. Enter the video tampering Settings interface, Configuration > Event > Basic Event > Video Tampering.

Figure 10-7 Video Tampering Alarm

2. Check Enable Video Tampering checkbox to enable the video tampering detection.

3. Set the video tampering area. Refer to Task 1: Set the Motion Detection Area in

Network Camera User Manual

Section 10.1.1.

4. Click Edit to edit the arming schedule for video tampering. The arming schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Task 2: Set the Arming Schedule for Motion Detection in Section 10.1.1.

5. Check the checkbox to select the linkage method taken for the video tampering. Audible warning, notify surveillance center, send email and trigger alarm output are selectable. Please refer to Task 3: Set the Linkage Method for Motion Detection in Section 10.1.1.

6. Click Save to save the settings.

10.1.3 Configuring Alarm Input

Steps:

1. Enter the Alarm Input Settings interface: Configuration > Event > Basic Event > Alarm Input.

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). Edit the name to set a name for the alarm input (optional).

Network Camera User Manual

Figure 10-8 Alarm Input Settings

3. Click Arming Schedule to set the arming schedule for the alarm input. Refer to Task 2: Set the Arming Schedule for Motion Detection in Section 10.1.1.

4. Click Linkage Method and check the checkbox to select the linkage method taken for the alarm input. Refer to Task 3: Set the Linkage Method for Motion Detection in Section 10.1.1.

5. You can copy your settings to other alarm inputs.

6. Click Save to save the settings.
