DS-2CD4D26FWD-IZ(S)
2.0 MP Ultra Low Light Smart Dome Camera
The Darkfighter series ultra-low light smart cameras are able to
capture high quality colored images in dim light environment.
DS-2CD4D26FWD-IZ(S) offers full HD resolution, 120dB WDR,
Auto-iris, PoE, Defog, EIS, 3D DNR, 6 behavior analyses, 1
exception detection, and face detection to meet a wide variety
of applications.
1/1.8” Progressive Scan CMOS
Auto-iris
1920 × 1080 @ 30fps
Ultra-low light
H.265, H.265+
120dB WDR
IP66
6 behavior analyses, 1 exception
detection, and face detection
Page 2
Function Description
Smart
6 behavior analyses, 1 exception detection, and face detection
Smart recording: Support edge recording and dual-VCA
Smart encoding: Support low bit rate, low latency, ROI enhance encoding
1920 × 1080 @30fps
Support rotate mode, suitable for environment as corridor
Support target cropping, details can be seen with low bandwidth
Streaming smoothness setting for different requirements of image quality and fluency
Support H.265+/H.265/H.264+/H.264/MJPEG video compression, multi-level video quality configuration; support
Baseline Profile/Main Profile/High Profile H.264 encoding complexity, and Main Profile H.265 encoding complexity
Multiple OSD color: Black & white self-adaptive; Custom
120dB WDR is supportable for backlight environment
Support defog, BLC, EIS
System
Support ONVIF (profile S/profile G), CGI, PSIA, ISAPI protocol
Support three streams, and Support 20 channels live view at the same time
Lightening protection, surge protection, voltage transient protection, anti-static protection
Interface
Support standard 128G Micro SD/SDHC/SDXC card storage
Support 10M/100M Ethernet port
Support Audio I/O, dual-track, RS-485 (-S)
Support Alarm I/O (-S)
Support CVBS analog output (4CIF resolution)
Security
Support three-level user authentication management, user and password authorization, and IP address filtering
Support security certificate as HTTPS
Lock user IP after certain times failed login attempts
Page 3
Specifications
Camera
Image Sensor
1/1.8″ Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
B/W: 0.0002 Lux @ (F1.2, AGC ON), 0.00027 Lux @ (F1.4, AGC ON), 0 Lux with IR"
Shutter Speed
1 s - 1/100,000 s
Slow Shutter
Support
Lens
2.8 – 12 mm F1.4, horizontal angle of view 90.1° - 31°
Lens Mount
Φ14
Auto-iris
DC drive
Day & Night
IR Cut Filter
Digital Noise Reduction
3D DNR
WDR
120dB
3-Axis Adjustment
Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.264+
Support
H.265 Type
Main Profile
H.265+
Support
Video Bit Rate
32 Kbps – 16 Mbps
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Image Enhancement
BLC/HLC/3D DNR/Defog/EIS
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Region of Interest
Support 4 fixed region for each stream, and dynamic face tracking
Target Cropping
Support
Day/Night Switch
Auto/Schedule/Triggered by Alarm In (-S)
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login,
HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Page 4
General Function
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter
Standard
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Audio
With –S model: 1 input (line in), 1 output, dual-track
Communication Interface
1 RJ45 10M/100M Ethernet port, with –S model: 1 RS-485 interface
Alarm
With –S model: 2 inputs, 2 outputs (up to DC24V 1A or AC110V 500mA )
Video Output
1Vp-p composite output (75 Ω/BNC)
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button
Yes
Audio
Environment Noise Filtering
Support
Audio I/O
Support
Audio Sampling Rate
Max. 48 kHz
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, region entrance detection, region exiting detection,
unattended baggage detection, object removal detection
Line Crossing Detection
Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported
Intrusion Detection
Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported
Region Entrance Detection
Enter a pre-defined virtual region from the outside place
Region Exit Detection
Exit from a pre-defined virtual region
Object Removal Detection
Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection
Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Exception Detection
Scene change detection
Face Detection
Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 20%, PoE (802.3af, class 3)
Terminal block for DC input
Power Consumption and
Current
12 V DC ± 20%: max. 9W/0.75A
PoE (802.3af): max. 10W/0.21A
IR Range
10 m to 30 m
Protection Level
IP66
Dimensions
Φ145.96 × 133.5 mm (Φ5.75″ × 5.26″)
Weight
1200 g (2.65 lbs)
Available Models:
DS-2CD4D26FWD-IZ; DS-2CD4D26FWD-IZS
*-S: with 1 audio input (line in), 1 audio output, 1 RS-485, 2 alarm inputs and 2 alarm outputs

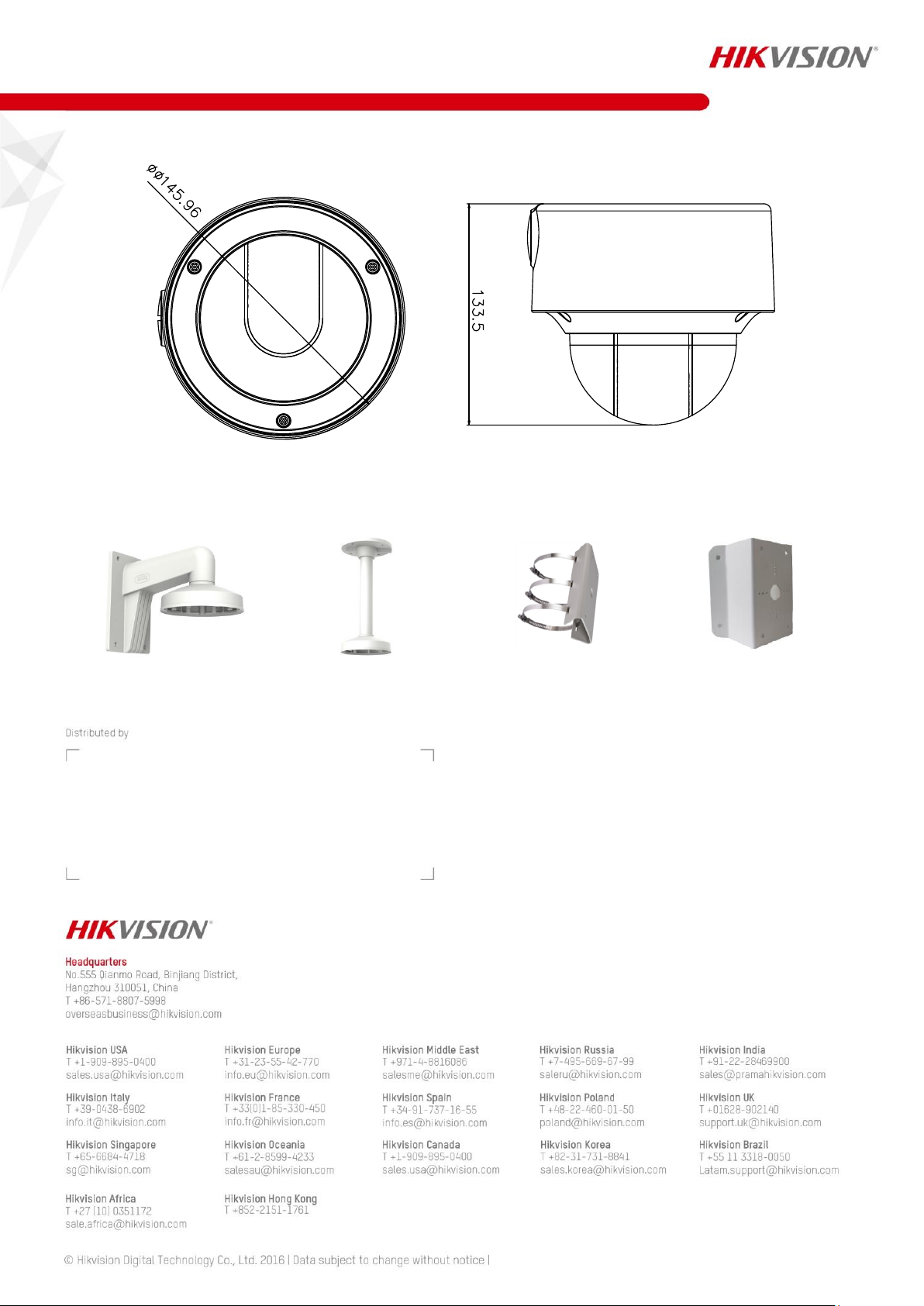

Page 5
Unit: mm
DS-1273ZJ-DM32
Wall Mount
DS-1271ZJ-DM32
Pendant Mount
DS-1275ZJ
Vertical Pole Mount
DS-1276ZJ
Corner Mount
Accessories
Dimensions
05040420161216
