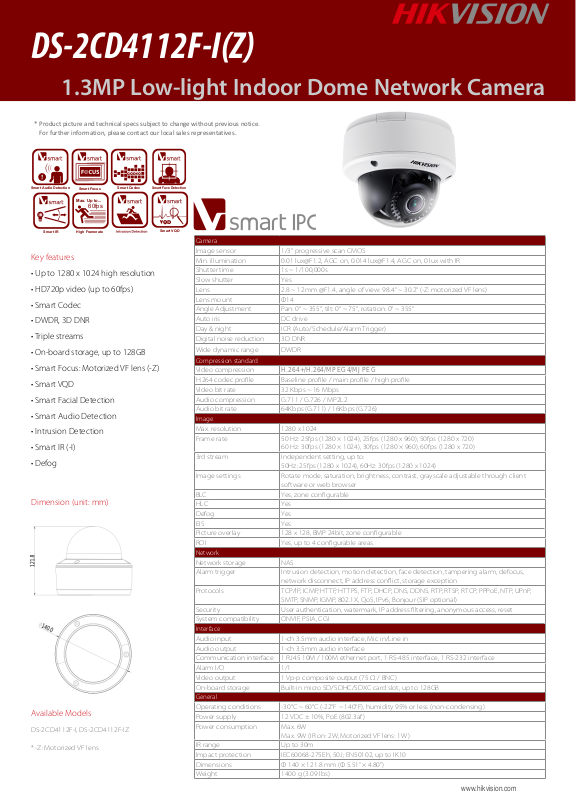

Hikvision DS-2CD4112F-IZ Specsheet

DS-2CD4112F-I(Z)

1.3MP Low-light Indoor Dome Network Camera

* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.

CODEC

Smart Audio Detection

Smart IR

Smart Focus

Max. Up to...

High Framerate

Key features

• Up to 1280 x 1024 high resolution

• HD720p video (up to 60fps)

• Smart Codec

• DWDR, 3D DNR

• Triple streams

• On-board storage, up to 128GB

• Smart Focus: Motorized VF lens (-Z)

• Smart VQD

• Smart Facial Detection

• Smart Audio Detection

• Intrusion Detection

• Smart IR (-I)

• Defog

Dimension (unit: mm)

Available Models

DS-2CD4112F-I, DS-2CD4112F-IZ

* -Z: Motorized VF lens

60fps

Smart Codec

Smart Face Detection

VQD

Smart VQD

Camera

Image sensor 1/3” progressive scan CMOS
Min. illumination 0.01 lux@F1.2, AGC on, 0.014 lux@F1.4, AGC on, 0 lux with IR
Shutter time 1s ~ 1/100,000s
Slow shutter Yes
Lens 2.8 ~ 12mm @F1.4, angle of view: 98.4° ~ 30.2° (-Z: motorized VF lens)
Lens mount Φ14
Angle Adjustment Pan: 0° ~ 355°, tilt: 0° ~ 75°, rotation: 0° ~ 355°
Auto iris DC drive
Day & night ICR (Auto/Schedule/Alarm Trigger)
Digital noise reduction 3D DNR

Wide dynamic range DWDR

Compression standard

Video compression
H.264 codec profile Baseline profile / main profile / high profile
Video bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711 / G.726 / MP2L2
Audio bit rate 64Kbps (G.711) / 16Kbps (G.726)


Max. resolution 1280 x 1024
Frame rate 50 Hz: 25fps (1280 × 1024), 25fps (1280 x 960), 50fps (1280 x 720)

3rd stream Independent setting, up to:

Image settings Rotate mode, saturation, brightness, contrast, grayscale adjustable through client

BLC Yes, zone configurable
HLC Yes
Defog Yes
EIS Yes
Picture overlay 128 x 128, BMP 24bit, zone configurable
ROI Yes, up to 4 configurable areas.

Network

Network storage NAS
Alarm trigger Intrusion detection, motion detection, face detection, tampering alarm, defocus,

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,

Security User authentication, watermark, IP address filtering, anonymous access, reset
System compatibility ONVIF, PSIA, CGI

Interface

Audio input 1-ch 3.5mm audio interface, Mic in/Line in
Audio output 1-ch 3.5mm audio interface
Communication interface 1 RJ45 10M / 100M ethernet port, 1 RS-485 interface, 1 RS-232 interface
Alarm I/O 1/1
Video output 1 Vp-p composite output (75 Ω / BNC)
On-board storage Built-in micro SD/SDHC/SDXC card slot, up to 128GB

General

Operating conditions -30°C ~ 60°C (-22°F ~ 140°F), humidity 95% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af )
Power consumption Max. 6W

IR range Up to 30m
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Dimensions Φ 140 × 121.8 mm (Φ 5.51” × 4.80”)
Weight 1400 g (3.09 lbs)

H.264+/H.264/MPEG4/MJPEG

60 Hz: 30fps (1280 × 1024), 30fps (1280 × 960), 60fps (1280 x 720)

50Hz: 25fps (1280 x 1024), 60Hz: 30fps (1280 x 1024)

software or web browser

network disconnect, IP address conflict, storage exception

SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)

Max. 9W (IR on: 2W, Motorized VF lens: 1W)
