QuickSpecs
HP E22 G4 FHD Monitor
Technical Specifications
c06922712 — DA16763 — Worldwide — Version 4 — April 13, 2021
Page 1
HP E22 G4 FHD Monitor

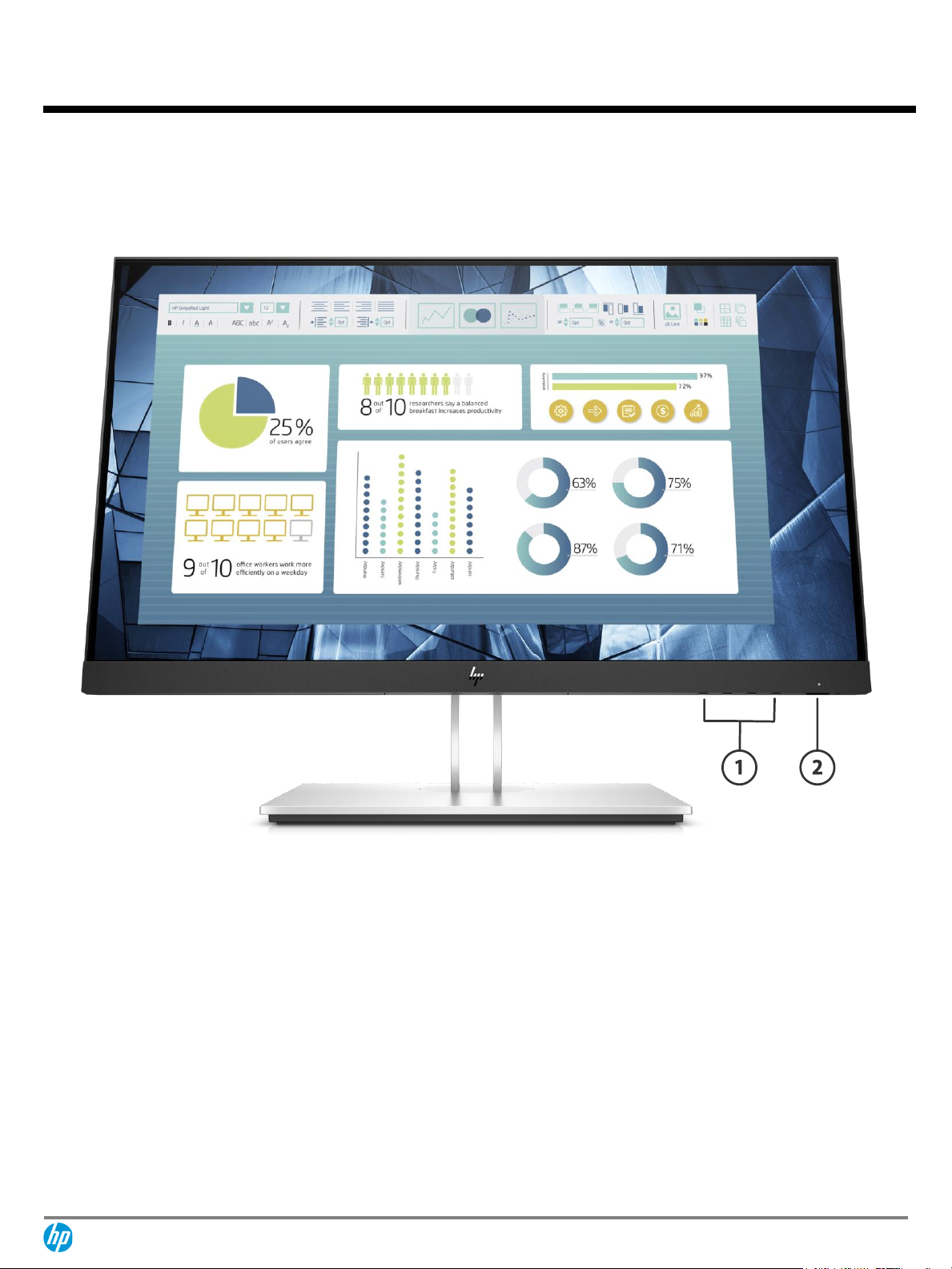

Front
1.
OSD Buttons
2.
Power Button
QuickSpecs
HP E22 G4 FHD Monitor
Technical Specifications
c06922712 — DA16763 — Worldwide — Version 4 — April 13, 2021
Page 2
HP E22 G4 FHD Monitor
Back
1.
PowerConnector
5.
USB-B Port
2.
DisplayPort™
6.
USB-A Ports (2)
3.
HDMI Port
7.
USB-A Ports (2)
4.
VGA Port
QuickSpecs
HP E22 G4 FHD Monitor
Technical Specifications
c06922712 — DA16763 — Worldwide — Version 4 — April 13, 2021
Page 3
Models: 9VH72AA
Panel Specifications
Display Size (Diagonal)
21.5-in
Display Panel Type
IPS
Micro-Edge Bezel
Yes, 3-sided
Curved Panel
N/A
Native Resolution/Timing
1920×1080 @ 60 Hz
Panel Bit Depth
8bit (6bit + FRC)
Aspect Ratio
16:9
Brightness - Typical
250 cd/m²
Static Contrast Ratio - Typical
1000:1
Dynamic Contrast Ratio (DCR)
5M:1
Flicker Free
Yes
Pixel Pitch
0.24795(H)mm x 0.24795(V)mm
Pixels Per Inch (PPI)
94
Backlight Lamp Life (to half brightness
- in hours)
30k minimum
Anti-Glare Panel
Yes
Response Time - Typical
5ms GtG (with overdrive)
Horizontal Viewing Angle (typical
CR>10)
178°
Vertical Viewing Angle (typical CR>10)
178°
Panel Active Area (w x h)
476.06mm x 267.79mm
Preset Graphic Modes/Supported
Resolutions
640 x 480 @ 60 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 1024 @ 60 Hz
1366 x 768 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 900 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
Maximum Resolution
1920 x 1080 @ 60 Hz
Recommended Resolution
1920 x 1080 @ 60 Hz
Vertical Scan Range
50Hz - 60Hz
Horizontal Scan Range
30KHz - 80KHz
Default Color Temperature
Neutral (6500K)
Maximum Pixel Clock Speed
170MHz
*VGA or DisplayPort™ 1.2 or HDMI 1.4 required to drive panel at its native resolution
NOTE: Performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Color Gamut Coverage
NTSC
72%
