Maintenance & Service Guide
HP EliteOne G5 23.8-in All-in-One
HP EliteOne G5 23.8-in Healthcare Edition All-in-One
© Copyright 2019 HP Development Company,
L.P.
AMD is a trademark of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by HP Inc. under license.
Intel, Celeron, Optane, and Pentium are
trademarks of Intel Corporation in the U.S. and
other countries. Microsoft and Windows are
trademarks of the Microsoft group of
companies. DisplayPort and the DisplayPort
logo are trademarks owned by the Video
Electronics Standards Association (VESA) in the
United States and other countries.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: June 2019
Document Part Number: L58941-001
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available in all editions or
versions of Windows. Systems may require
upgraded and/or separately purchased
hardware, drivers, software or BIOS update to
take full advantage of Windows functionality.
Windows 10 is automatically updated, which is
always enabled. ISP fees may apply and
additional requirements may apply over time
for updates. Go to http://www.microsoft.com
for details.
To access the latest user guides, go to
http://www.hp.com/support, and follow the
instructions to nd your product. Then select
User Guides.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a full refund subject to the
refund policy of your seller.
For any further information or to request a full
refund of the price of the computer, please
contact your seller.
Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to
http://www.microsoft.com for details.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits dened by applicable safety standards.
iii
iv Safety warning notice
Table of contents
1 Product features ........................................................................................................................................... 1
Overview ................................................................................................................................................................ 1
Front components .................................................................................................................................................. 2
Top components .................................................................................................................................................... 3
Infrared (IR) webcam (optional) .......................................................................................................... 3
Full High Denition (FHD) webcam (optional) ..................................................................................... 3
Side components ................................................................................................................................................... 4
Rear components ................................................................................................................................................... 4
Bottom components .............................................................................................................................................. 5
Keyboard features ................................................................................................................................................. 6
Using the RFID reader (select models only) .......................................................................................................... 6
RFID Asset Tag (select models only) ...................................................................................................................... 7
Locating the serial number and product number ................................................................................................. 7
2 Illustrated parts catalog ................................................................................................................................ 8
System parts .......................................................................................................................................................... 8
Miscellaneous plastic parts ................................................................................................................................. 10
Boards .................................................................................................................................................................. 11
Mass storage devices ........................................................................................................................................... 12
Processors and memory modules ....................................................................................................................... 13
Cables and adapters ............................................................................................................................................ 14
Keyboards and mice ............................................................................................................................................. 15
3 Routine care, SATA drive guidelines, and disassembly preparation .................................................................. 16
Electrostatic discharge information .................................................................................................................... 16
Generating static electricity .............................................................................................................. 16
Preventing electrostatic damage to equipment ............................................................................... 17
Personal grounding methods and equipment .................................................................................. 17
Grounding the work area ................................................................................................................... 18
Recommended materials and equipment ........................................................................................ 18
Computer operating guidelines and routine care ............................................................................................... 18
Service considerations ......................................................................................................................................... 20
Tools and software requirements ..................................................................................................... 20
Screws ............................................................................................................................................... 20
Cables and connectors ...................................................................................................................... 20
Hard drives ........................................................................................................................................ 21
v
Lithium coin cell battery .................................................................................................................... 21
SATA hard drives .................................................................................................................................................. 21
SMART ATA drives ................................................................................................................................................ 22
SATA hard drive cables ...................................................................................................................... 22
SATA data cable ............................................................................................................... 22
Cable management ........................................................................................................................... 22
4 Removal and replacement procedures ........................................................................................................... 23
Preparation for disassembly ............................................................................................................................... 23
Removing the rear port cover .............................................................................................................................. 23
Stands .................................................................................................................................................................. 24
Recline stand ..................................................................................................................................... 24
Adjustable height stand .................................................................................................................... 25
Access panel ......................................................................................................................................................... 25
Locating internal components ............................................................................................................................ 26
Hard drive ............................................................................................................................................................. 27
Optical drive ......................................................................................................................................................... 28

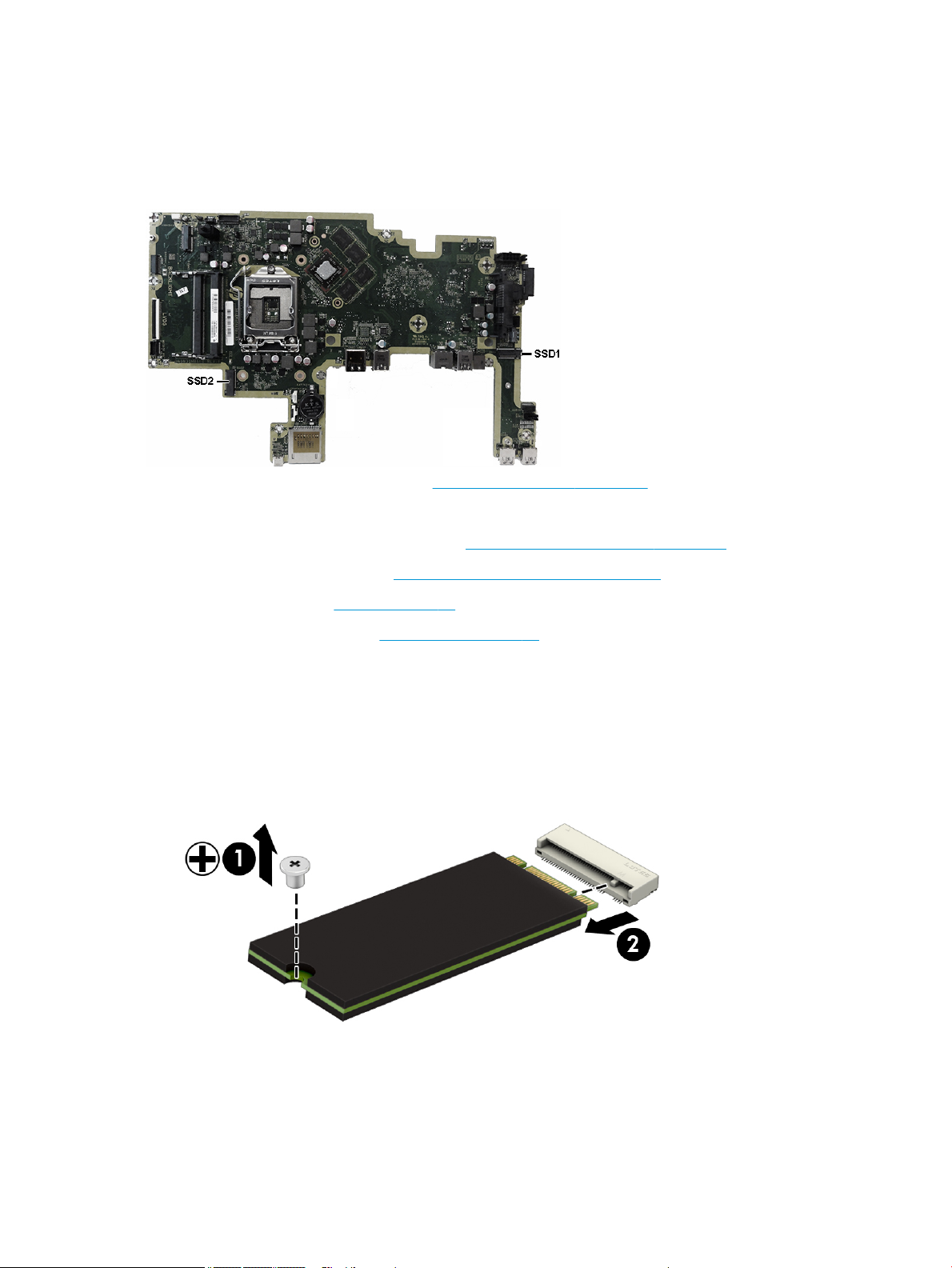

M.2 solid-state drive ............................................................................................................................................ 30
Memory ................................................................................................................................................................ 31
Battery ................................................................................................................................................................. 33
WLAN module ...................................................................................................................................................... 34
Power button and ngerprint sensor boards ...................................................................................................... 35
RF asset module (select products only) .............................................................................................................. 37
RF asset module antennas (select products only) .............................................................................................. 38
RFID board (select products only) ....................................................................................................................... 39
Heat sink .............................................................................................................................................................. 41
Processor ............................................................................................................................................................. 43
Webcam module .................................................................................................................................................. 44
Rear I/O cover ....................................................................................................................................................... 47
VESA mounting bracket/fan assembly ................................................................................................................ 48
Power supply ....................................................................................................................................................... 50
I/O bracket ............................................................................................................................................................ 52
Hard drive cage .................................................................................................................................................... 53
System board ....................................................................................................................................................... 54
System board callouts ......................................................................................................................................... 57
Audio board .......................................................................................................................................................... 58
Speakers .............................................................................................................................................................. 59
Display panel ....................................................................................................................................................... 60
Antennas .............................................................................................................................................................. 63
vi
5 Computer Setup (F10) Utility ........................................................................................................................ 65
Computer Setup (F10) Utilities ............................................................................................................................ 65
Using Computer Setup (F10) Utilities ................................................................................................ 65
Computer Setup–Main ....................................................................................................................... 67
Computer Setup—Security ............................................................................................................... 69
Computer Setup—Advanced ............................................................................................................. 73
Recovering the conguration settings ................................................................................................................ 79
6 Using HP PC Hardware Diagnostics ................................................................................................................ 80
Using HP PC Hardware Diagnostics Windows (select products only) ................................................................. 80
Downloading HP PC Hardware Diagnostics Windows ....................................................................... 80
Downloading the latest HP PC Hardware Diagnostics Windows version ....................... 81
Downloading HP Hardware Diagnostics Windows by product name or number
(select products only) ..................................................................................................... 81
Installing HP PC Hardware Diagnostics Windows ............................................................................. 81
Using HP PC Hardware Diagnostics UEFI ............................................................................................................. 81
Starting HP PC Hardware Diagnostics UEFI ....................................................................................... 82
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive .............................................. 82
Downloading the latest HP PC Hardware Diagnostics UEFI version .............................. 82
Downloading HP PC Hardware Diagnostics UEFI by product name or number
(select products only) ..................................................................................................... 82
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) ............................................. 83
Downloading Remote HP PC Hardware Diagnostics UEFI ................................................................. 83
Downloading the latest Remote HP PC Hardware Diagnostics UEFI version ................. 83
Downloading Remote HP PC Hardware Diagnostics UEFI by product name or
number ............................................................................................................................ 83
Customizing Remote HP PC Hardware Diagnostics UEFI settings .................................................... 83
7 Troubleshooting without diagnostics ............................................................................................................ 85
Safety and comfort .............................................................................................................................................. 85
Before you call for technical support .................................................................................................................. 85
Helpful hints ........................................................................................................................................................ 86
Solving general problems .................................................................................................................................... 87
Solving power problems ...................................................................................................................................... 90
Solving hard drive problems ................................................................................................................................ 91
Solving audio problems ....................................................................................................................................... 93
Solving printer problems ..................................................................................................................................... 94
Solving keyboard and mouse problems .............................................................................................................. 95
Solving hardware installation problems ............................................................................................................. 96
Solving network problems .................................................................................................................................. 97
Solving memory problems .................................................................................................................................. 99
vii
Solving USB ash drive problems ..................................................................................................................... 101
Solving Internet access problems ..................................................................................................................... 101
Solving software problems ............................................................................................................................... 102
8 Backing up, restoring, and recovering ......................................................................................................... 104
Backing up information and creating recovery media ...................................................................................... 104
Using Windows tools ....................................................................................................................... 104
Using the HP Cloud Recovery Download Tool to create recovery media (select products only) ... 104
Restoring and recovery ..................................................................................................................................... 105
Restoring, resetting, and refreshing using Windows tools ............................................................ 105
Recovering using HP Recovery media ............................................................................................. 105
Changing the computer boot order ................................................................................................ 105
9 POST error messages and diagnostic front panel LEDs and audible codes ....................................................... 106
POST numeric codes and text messages .......................................................................................................... 106
Interpreting system validation diagnostic front panel LEDs and audible codes .............................................. 111
10 Password security and resetting CMOS ...................................................................................................... 113
Resetting the password jumper ........................................................................................................................ 113
Clearing and resetting the BIOS ........................................................................................................................ 115
11 Power cord set requirements .................................................................................................................... 116
General requirements ........................................................................................................................................ 116
Japanese power cord requirements .................................................................................................................. 116
Country-specic requirements .......................................................................................................................... 117
12 Statement of memory volatility ................................................................................................................ 118
Nonvolatile memory usage ............................................................................................................................... 120
Questions and answers ..................................................................................................................................... 122
Using HP Sure Start (select models only) .......................................................................................................... 123
13 Specications .......................................................................................................................................... 124
Index ........................................................................................................................................................... 125
viii
1 Product features
Overview
NOTE: To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to
nd your product. Then select User Guides.
This product employs electronic labeling for indication of regulatory mark or statement. See Locating the
serial number and product number on page 7 for the operation to display.
Overview 1
Front components
NOTE: System appearance may vary. Healthcare Edition shown.
Table 1-1 Front components
Front components
(1) Webcam (3) Radio Frequency identication (RFID) tapping area and
(2) Speakers (2) (4) HP Sure View icon (select models only)
*The antenna is not visible from the outside of the computer. For optimal transmission, keep the area immediately around the antenna
free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.
To access this guide:
▲ Type HP Documentation in the taskbar search box, and then select HP Documentation.
antenna* (select models only)
2 Chapter 1 Product features
Top components
Infrared (IR) webcam (optional)
Table 1-2 Infrared (IR) webcam components
Infrared (IR) webcam components
Front View
(1) Webcam light (4) IR webcam
(2) IR light (5) Rear webcam adjustment wheel
(3) Full High Denition (FHD) webcam
Top view
(6) Digital microphones
Rear view
(7) Webcam light (8) FHD webcam
Full High Denition (FHD) webcam (optional)
Table
1-3 Full High Denition (FHD) webcam components
Full High Denition (FHD) webcam components
Front view
(1) Webcam light
(2) FHD webcam
Top view
(3) Digital microphones
Top components 3
Side components
Table 1-4 Side components
Side components
(1) Optical disc drive (optional) (4) Audio-out (headphone)/Audio-in (microphone) combo jack
(2) Optical disc drive light (optional) (5) Audio-out (headphone) jack
(3) Optical disc drive eject button (optional) (6) Fingerprint sensor (select models only)
Rear components
Table
1-5 Rear components
NOTE: The ngerprint sensor is not available on the
Healthcare Edition All-in-One.
Rear components
(1) DisplayPort™ connector (6) USB SuperSpeed ports (2)
(2) HDMI port (7) Stereo audio-out jack
4 Chapter 1 Product features
Table 1-5 Rear components (continued)
Rear components
(3) USB SuperSpeed ports with wake from keyboard or mouse
(2)
(4) Power connector (9) Stand release
(5) RJ-45 (network) jack (10) Security cable slot
Bottom components
(8) Security lock screws
Table 1-6 Bottom components
Bottom components
(1) HP Sure View button (select models only) (5) USB Type-C port
(2) USB SuperSpeed port (6) Hard drive activity light
(3) USB SuperSpeed port with HP Sleep and Charge (7) Power button
(4) SD card reader
Bottom components 5
Keyboard features
Your keyboard may be dierent than the one shown below.
Table 1-7 Keyboard components
Keyboard components
(1) Sleep (6) Mute Volume
(2) Fast Reverse (7) Decrease Volume
(3) Play/Pause (8) Increase Volume
(4) Stop (9) Function
(5) Fast Forward
Using the RFID reader (select models only)
Your computer supports radio frequency identication (RFID), which allows you to wirelessly share
information between a RFID tag or card and your computer. Information is transferred by tapping the tapping
area on the front bezel of the computer with your RFID tag or card. With RFID-enabled single sign-on
software, RFID allows you to sign in to your software application using the appropriate RFID card or tag.
NOTE: To locate the tapping area on your computer, see Front components on page 2. The RFID icon is lit
when the computer is turned on.
▲ To transfer information, tap the RFID tapping area on the front bezel of the computer with your RFID tag
or card.
To conrm that your RFID device is enabled, check the settings in BIOS (F10) Setup.
Computers with keyboards:
1. Turn on or restart the computer, and when the HP logo appears, press F10 to enter BIOS (F10) Setup.
2. Select Advanced, and then select Built-in Device Options.
3. Conrm that the check box for RFID Reader is selected.
6 Chapter 1 Product features
NOTE: To turn o the RFID reader, clear the check box.
4. To save your changes and exit BIOS (F10) Setup menus:
▲ Select the Save icon in the lower-right corner of the screen, and then follow the on-screen
instructions.
– or –
Select Main, select Save Changes and Exit, and then press Enter.
Your changes go into eect when the computer restarts.
RFID Asset Tag (select models only)
NOTE: The RFID Asset Tag is an optional feature available on the Healthcare Edition All-in-One only.
The RFID Asset Tag is used to track the location of the physical Healthcare Edition All-in-One unit. It has no
visible indicator that it is installed. However, you can determine if it is present on your system in the BIOS
(F10) Setup utility. If it is installed, the System Information list will show the text “RFID Asset Management
Tag Installed” near the bottom of the list.
To access the BIOS (F10) Setup utility, turn on or restart the computer, and when the HP logo appears, press
F10 to enter BIOS (F10) Setup.
Locating the serial number and product number
The serial number and product number are located on a label on the bottom edge of the bezel. You may need
these numbers when contacting HP about your computer model.
RFID Asset Tag (select models only) 7
2 Illustrated parts catalog
Component appearance varies depending on model.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
System parts
Table 2-1 Computer major components and their descriptions
Item Description
(1) Middle frame
For use in models with discrete graphics with dual antennas
For use in models with discrete graphics without dual antennas
For use in models with UMA graphics with dual antennas
For use in models with UMA graphics without dual antennas
8 Chapter 2 Illustrated parts catalog
Table 2-1 Computer major components and their descriptions (continued)
Item Description
For use in healthcare models with dual antennas
(2) Blower (Fan)
(3) Speakers
For use in standard models
For use in healthcare models
(4) Adjustment Height Stand (for use in healthcare models)
(5) Recline Stand
(6) Heat sink (for use in models with UMA graphics)
(7) Heat sink (for use in models with discrete graphics)
(8) Power supply
210 W
180 W
(9) Camera, pop-up
HD webcam
HD webcam, healthcare
IR webcam
IR webcam, healthcare
(10) VESA®/fan bracket
(11) I/O bracket
*
Power bracket
For use in standard models
For use in healthcare models
*
*
Display cable
Display panel (not illustrated)
Touch
Touch, healthcare
Touch, healthcare, privacy
Non-touch
Non-touch, privacy
*
not illustrated
System parts 9
Miscellaneous plastic parts
Component appearance varies depending on model.
Table 2-2 Miscellaneous plastic parts and their descriptions
Item Description
(1) Rear cover (main)
For use in standard models
For use in healthcare models
(2) Rear I/O cover
For use in standard models
For use in healthcare models
(3) Rear port cover
For use in standard models
For use in healthcare models
(4) Webcam holder (located under the webcam)
(5) Webcam cover
*
Optical drive cover (for use in models without an optical drive)
For use in standard models
For use in healthcare models
*
*
*
*
Card reader cover (for use in models without a card reader)
Fingerprint sensor cover (for use in models with out a ngerprint sensor)
VESA cover (for use in models with out a stand)
Optical drive bezel
For use in standard models
For use in healthcare models
10 Chapter 2 Illustrated parts catalog
Boards
Table 2-2 Miscellaneous plastic parts and their descriptions (continued)
Item Description
*
*
For use in models with UMA graphics, non-privacy
For use in models with UMA graphics, privacy
For use in models with discrete graphics, non-privacy
*
not illustrated
Webcam cover (for use in models without a webcam)
Front bezel
Component appearance varies depending on model.
Table 2-3 Boards and their descriptions
Item Description
(1) System board
Models with UMA graphics
Models with discrete graphics
(2) Power button board
(3) Audio board
For use in models with discrete graphics
For use in models with UMA graphics
For use in healthcare models
Boards 11
Table 2-3 Boards and their descriptions (continued)
Item Description
(4) Fingerprint sensor board
*
*
*
Intel Wireless-AC 9560 802.11ac 2 × 2 Wi-Fi + Bluetooth® 5.0 (vPro)
Intel Wireless-AC 9560 802.11ac 2 × 2 Wi-Fi + Bluetooth 5.0 (non-vPro)
Intel Wi-Fi 6 AX200 + Bluetooth 5.0 (802.11ax, 2 × 2, vPro, supporting gigabit le transfer speeds)
Intel Wi-Fi 6 AX200 + Bluetooth 5.0 (802.11ax, 2 × 2, non-vPro, supporting gigabit le transfer speeds)
Realtek RTL8822BE 802.11 ac 2 × 2 Wi-Fi + BT 4.2 Combo Adapter (MU-MIMO supported)
*
not illustrated
RFID module
RF asset module
WLAN modules
Mass storage devices
Table 2-4 Mass storage devices and their descriptions
Description
Optical drive
DVD Blu-ray-writer
DVD-ROM drive
Hard drive, 2.5 inch
2 TB, 5400 rpm, 7.0 mm
1 TB, 7200 rpm, 9.5 mm
500 GB, 7200 rpm, 7.0 mm
500 GB, 5400 rpm, 7.0 mm
500 GB, 7200 rpm hard drive, 7.0 mm, self-encrypting (SED)
500 GB, 5400 rpm hard drive, 7.0 mm, FIPS
Solid-state drive, 2.5 inch, SATA-3, TLC
512 GB, FIPS 140-2
512 GB, self-encrypting (SED)
512 GB
256 GB, FIPS 140-2
256 GB, self-encrypting (SED)
256 GB
M.2 solid-state drive (NVMe, PCIe)
2 TB, TLC
12 Chapter 2 Illustrated parts catalog
Table 2-4 Mass storage devices and their descriptions (continued)
Description
1 TB, TLC
512 GB, value
512 GB, TLC
512 GB, self-encrypting (SED), TLC
512 GB, 32 GB Optane™ memory module
256 GB, value
256 GB, TLC
256 GB, self-encrypting (SED), TLC
128 GB, TLC
16 GB Optane memory module
Processors and memory modules
Table 2-5 Processors and memory modules and their descriptions
Description
Intel Processors (include replacement thermal material)
Intel Core i9-9900 (3.1 GHz, 8 core, 65 W)
Intel Core i7-9700 (3.0 GHz, 8 core, 65 W)
Intel Core i5-9600 (3.1 GHz, 6 core, 65 W)
Intel Core i5-9500 (3.0 GHz, 6 core, 65 W)
Intel Core i5-9400 (2.9 GHz, 6 core, 65 W)
Intel Core i3-9300 (3.7 GHz, 4 core, 65 W)
Intel Core i3-9100 (3.6 GHz, 4 core, 65 W)
Intel Core i7-8700 (3.2 GHz, 6 core, 65 W)
Intel Core i5-8500 (3.06 GHz, 6 core, 65 W)
Intel Core i3-8100 (3.6 GHz, 4 core, 65 W)
Intel Pentium G5620 (4.0 GHz, 2 core, 54 W)
Intel Pentium G5600 (3.6 GHz, 2 core, 54 W)
Intel Pentium G5420 (3.8 GHz, 2 core, 58 W)
Intel Celeron G4930 (3.2 GHz, 2 core, 54 W)
Memory modules (SODIMM; DDR4-2666)
32 GB
16 GB
Processors and memory modules 13
Table 2-5 Processors and memory modules and their descriptions (continued)
Description
8 GB
4 GB
Cables and adapters
Table 2-6 Cables and adapters and their descriptions
Description
LVDS (display) cable
LVDS (display) cable, privacy
DVI display cable
Power button cable (for use in models with a non-touch screen)
Power button cable (for use in models with a touch screen)
Combination, ngerprint sensor, power, touch cable (for use in models with a touch screen)
Side audio jack cable
Side audio jack cable, 175 mm (6.9 in)
Audio board cable, DGP
Audio board cable, UMA, healthcare
RFID cable, healthcare
RFID cable, LED, healthcare
Backlight cables
BOE
LGD
INX
SDC
Privacy
Touch models
DisplayPort cable, 1.8 m (6 ft)
Antennas (for use with a WLAN module)
Antennas (for use with an RFID module)
Adapters
DisplayPort-to-DVI
DisplayPort-to-HDMI 2.0
USB-to-serial port
14 Chapter 2 Illustrated parts catalog
Keyboards and mice
Table 2-7 Keyboards and mice and their descriptions
Description
Keyboard
USB
USB, essential
HP conferencing
USB, slim
USB, slim, PCR
PS/2, slim
Wireless with mouse
USB, slim, smartcard
USB business slim, antimicrobial
USB business slim, grey
USB, unbranded
USB/PS2, washable
USB, collaboration
Wireless, collaboration
Wireless, premium, keyboard
Wireless, premium, keyboard and mouse
USB, healthcare, wired
Mouse
USB, washable
USB, grey
USB, hardened
USB, antimicrobial
USB, optical
USB, laser
USB, premium
USB, ngerprint
Keyboards and mice 15
3 Routine care, SATA drive guidelines, and
disassembly preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
IMPORTANT: When the computer is plugged into an AC power source, voltage is always applied to the
system board. You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
Electrostatic discharge information
A sudden discharge of static electricity from your nger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device
exposed to electrostatic discharge (ESD) might not appear to be aected at all and can work perfectly
throughout a normal cycle. The device might function normally for a while, but it has been degraded in the
internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt silicon junctions.
IMPORTANT: To prevent damage to the device when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
Generating static electricity
Note the following:
● Dierent activities generate dierent amounts of static electricity.
● Static electricity increases as humidity decreases.
Table
3-1 Static electricity occurrence based on activity and humidity
Relative humidity
Event 55% 40% 10%
Walking across carpet
Walking across vinyl oor
Motions of bench worker
Removing DIPs (dual in-line packages) from plastic tube
7,500 V
3,000 V
400 V
400 V
15,000 V
5,000 V
800 V
700 V
35,000 V
12,000 V
6,000 V
2,000 V
16 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
Table 3-1 Static electricity occurrence based on activity and humidity (continued)
Relative humidity
Removing DIPs from vinyl tray
Removing DIPs from polystyrene foam
Removing bubble pack from PCB (printed circuit board)
Packing PCBs in foam-lined box
Multiple electric components can be packaged together in plastic tubes, trays, or polystyrene foam.
NOTE: As little as 700 V can degrade a product.
Preventing electrostatic damage to equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of
sensitivity. The following packaging and grounding precautions are necessary to prevent static electricity
damage to electronic components.
● To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
● Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.
● Keep electrostatic-sensitive parts in their containers until they arrive at static-free stations.
● Place items on a grounded surface before removing them from their container.
● Always be properly grounded when touching a sensitive component or assembly.
2,000 V
3,500 V
7,000 V
5,000 V
4,000 V
5,000 V
20,000 V
11,000 V
11,500 V
14,500 V
26,500 V
21,000 V
● Avoid contact with pins, leads, or circuitry.
● Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive
foam.
Personal grounding methods and equipment
Use the following equipment to prevent static electricity damage to electronic components:
● Wrist straps are exible straps with a maximum of 1 MΩ ±10% resistance in the ground cords. To
provide proper ground, a strap must be worn snug against bare skin. The ground cord must be
connected and t snugly into the banana plug connector on the grounding mat or workstation.
● Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with
most types of shoes or boots. On conductive oors or dissipative oor mats, use them on both feet with
a maximum of 1 MΩ ±10% resistance between the operator and ground.
Table
3-2 Static shielding protection levels
Static shielding protection levels
Method Voltage
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
1,500
7,500
15,000
Electrostatic discharge information 17
Grounding the work area
To prevent static damage at the work area, use the following precautions:
● Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to the
work surface and properly grounded tools and equipment.
● Use static-dissipative mats, foot straps, or air ionizers to give added protection.
● Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate. Handle
them only at static-free work areas.
● Turn o power and input signals before inserting and removing connectors or test equipment.
● Use xtures made of static-safe materials when xtures must directly contact dissipative surfaces.
● Keep work area free of nonconductive materials such as ordinary plastic assembly aids and polystyrene
foam.
● Use eld service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended materials and equipment
HP recommends the following materials and equipment to prevent static electricity:
● Antistatic tape
● Antistatic smocks, aprons, or sleeve protectors
● Conductive bins and other assembly or soldering aids
● Conductive foam
● Conductive tabletop workstations with ground cord of 1 MΩ ±10% resistance
● Static-dissipative table or oor mats with hard tie to ground
● Field service kits
● Static awareness labels
● Wrist straps and footwear straps providing 1 MΩ ±10% resistance
● Material handling packages
● Conductive plastic bags
● Conductive plastic tubes
● Conductive tote boxes
● Opaque shielding bags
● Transparent metallized shielding bags
● Transparent shielding tubes
Computer operating guidelines and routine care
Follow these guidelines to properly set up and care for the computer and monitor:
18 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
● Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
● Operate the computer on a sturdy, level surface. Leave a 10.2 cm (4 in) clearance on all vented sides of
the computer and above the monitor to permit the required airow.
● Never restrict the airow into the computer by blocking any vents or air intakes. Do not place the
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airow.
● Never operate the computer with any of the access panels or any of the expansion card slot covers
removed.
● Do not stack computers or place computers so near each other that they are subject to each other’s
recirculated or preheated air.
● If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be
provided on the enclosure, and the same operating guidelines listed above will still apply.
● Keep liquids away from the computer and keyboard.
● Never cover the ventilation slots with any type of material.
● Install or enable power management functions of the operating system or other software, including
sleep states.
● To clean the computer, rst turn o the computer.
● Disconnect AC power.
● Disconnect all powered external devices.
● Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
matter can block the vents and limit the airow.
● In addition to the standard care guidelines, to clean the healthcare model, use any of the following
germicidal wipe formulations to clean all exposed surfaces of the computer. Start with the display
and nish with any exible cables. Allow the computer to air-dry before use. (For more
information, see the directions provided by the manufacturer of the wipes.)
IMPORTANT: Do not use cleaners that contain any petroleum based materials such as benzene,
thinner, or any volatile substance to clean the display screen or cabinet. These chemicals may
damage the display.
Table 3-3 Recommended Healthcare Edition All-in-One cleaning formulas
Recommended cleaning formulas
Benzyl-C12–18–alkyldimethyl ammonium chlorides: <0.1%, quaternary ammonium compounds, C12–14–
alkyl[(ethylphenyl)methyl]dimethyl, chlorides: <0.1%
Isopropanol: 10–20%, benzyl-C12–18–alkyldimethyl ammonium chlorides: <0.5%, quaternary ammonium compounds,
C12–18–alkyl[(ethylphenyl)methyl]dimethyl, chlorides: <0.5%
Quaternary ammonium compounds, C12–18–alkyl[(ethylphenyl)methyl]dimethyl, chlorides: <0.5%, benzyl-C12–18–
alkyldimethyl ammonium chlorides: <0.5%
Isopropyl alcohol: 55%, alkyl dimethyl benzyl ammonium chlorides: 0.25%, alkyl (68% C12, 32% C14) dimethyl
ethylbenzyl ammonium chloride: 0.25%
Isopropanol: 10–20%, ethylene glycol monobutyl ether (2–butoxyethanol): 1–5%, diisobutylphenoxyethoxyethyl
dimethyl benzyl ammonium chloride: 0.1–0.5%
Sodium hypochlorite 0.1–1%
Computer operating guidelines and routine care 19
Table 3-3 Recommended Healthcare Edition All-in-One cleaning formulas (continued)
Recommended cleaning formulas
Cellulose: 10–30%, ethyl alcohol: 0.1–1%
Isopropanol: 60–70%, water 30–40%
NOTE: Contact your local HP sales representative for recommended brands of germicidal wipes
which have been tested for cleaning the computer.
IMPORTANT: Using cleaning methods or disinfectants that are not approved could damage the device.
Do not immerse the device in liquid.
Always follow the instructions provided by the cleaning product manufacturer.
Do not use petroleum-based cleaning uids, such as acetone.
Do not use abrasive cleaning aids or products.
Do not expose the device to temperatures above 70°C.
Service considerations
Keep these considerations in mind during the disassembly and assembly of the computer.
Tools and software requirements
To service the computer, you need the following tools:
● Torx T-15 screwdriver
● Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
● Phillips P1 screwdriver
● Non-conductive, non-marking pry tool
● Diagnostics software
Screws
The screws used in the computer are not interchangeable. They could have standard or metric threads and
may be of dierent lengths. If an incorrect screw is used during the reassembly process, it can damage the
unit. HP strongly recommends that all screws removed during disassembly be kept with the part that was
removed and then returned to their proper locations.
IMPORTANT: As you remove each subassembly from the computer, place it away from the work area to
prevent damage.
Cables and connectors
Apply only the tension required to seat or unseat the cables during insertion or removal from the connector.
Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and
ensure that the cables are routed so that they cannot be caught or snagged by parts being removed or
replaced.
20 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
IMPORTANT: When servicing this computer, be sure to place cables in their proper location during the
reassembly process. Improper cable placement can damage the computer.
Hard drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies
to failed drives as well as replacement spares.
● If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging
● Do not remove hard drives from the shipping package for storage. Keep hard drives in their protective
● Avoid dropping drives from any height onto any surface.
● If you are inserting or removing a hard drive, turn o the computer. Do not remove a hard drive while the
● Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
● Do not use excessive force when inserting a drive.
● Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic elds
and label the package “Fragile: Handle With Care.”
packaging until they are actually mounted in the computer.
computer is on or in standby mode.
touching the connector.
such as monitors or speakers.
Lithium coin cell battery
The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime
of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this guide for
instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of re and chemical burn if the battery is
handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or re, or
expose it to temperatures higher than 140°F (60°C). Do not attempt to recharge the battery.
NOTE: Do not dispose of batteries, battery packs, and accumulators with general household waste. In order
to forward them to recycling or proper disposal, please use the public collection system or return them to HP,
their authorized partners, or their agents.
SATA hard drives
Table
3-4 SATA hard drive characteristics
Serial ATA hard drive characteristics
Number of pins/conductors in data cable 7/7
Number of pins in power cable 15
Maximum data cable length 100 cm (39.37 in)
Data interface voltage dierential 400 mV–700 mV
Drive voltages 3.3 V, 5 V, 12 V
SATA hard drives 21
Table 3-4 SATA hard drive characteristics (continued)
Serial ATA hard drive characteristics
Jumpers for conguring drive N/A
Data transfer rate 6.0 Gbps
SMART ATA drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers
have built-in drive failure prediction that warns the user or network administrator of an impending failure or
crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as
reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is
imminent, it generates a fault alert.
SATA hard drive cables
SATA data cable
Always use an HP-approved SATA 6.0 Gbps cable as it is fully backwards compatible with the SATA 1.5 Gbps
drives.
Current HP desktop products ship with SATA 6.0 Gbps hard drives.
SATA data cables are susceptible to damage if overexed. Never crease a SATA data cable and never bend it
tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
Cable management
Always follow good cable management practices when working inside the computer.
● Keep cables away from major heat sources like the heat sink.
● Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when the parts
are moved.
● When folding a at ribbon cable, never fold to a sharp crease. Sharp creases may damage the wires.
● Do not bend any cable sharply. A sharp bend can break the internal wires.
● Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
● Never crease a SATA data cable.
22 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
4 Removal and replacement procedures
The following sections provide information about disassembling various components of the computer.
Preparation for disassembly
See Routine care, SATA drive guidelines, and disassembly preparation on page 16 for initial safety procedures.
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
IMPORTANT: Turn o the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the system
is plugged into an active AC outlet. In some systems, the cooling fan is on even when the computer is in
the Standby or Suspend modes. Always disconnect the power cord before servicing a unit.
3. Disconnect all external devices from the computer
4. If the computer is on a stand, remove the computer from the stand.
CAUTION: Beware of sharp edges inside the chassis.
Removing the rear port cover
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. If the security lock screws are secured, use a T15 tamper-resistant Torx security screwdriver to remove
both screws (1).
3. Slide the rear port cover retainer tabs toward each other (2) to release the port cover.
Preparation for disassembly 23
4. Pull the port cover (3) toward the bottom and o the computer.
Stands
Two stands are available for the computer:
●
Recline stand
●
Adjustable height stand
Recline stand
To remove the stand:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover, if it is installed. For instructions, see Removing the rear port cover
on page 23.
3. Press the release latch under the stand (1).
4. Lift the stand up (2), and then pull the stand hooks out of the computer (3).
24 Chapter 4 Removal and replacement procedures
Adjustable height stand
To remove the stand:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover, if it is installed. For instructions, see Removing the rear port cover
on page 23.
3. Press the release latch under the stand (1).
4. Lift the stand up (2), and then pull the stand hooks out of the computer (3)).
Access panel
The computer has one main rear access panel that allows access to internal components.
To remove the access panel:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Pull up the notches of the access panel, and then lift the access panel o the computer.
To replace the access panel, reverse the removal procedures.
Access panel 25
Locating internal components
Table 4-1 Internal components
Internal components
(1) Memory modules (4) M.2 card (optional)
(2) RTC battery (5) Optical disc drive (optional)
(3) RFID Asset Tag module (optional on the
Healthcare Edition All-in-One only)
(6) Hard drive
26 Chapter 4 Removal and replacement procedures
Hard drive
The 2.5-inch primary hard drive is installed on the right side of the computer on top of the optical disc drive
(ODD). To locate the hard drive on the system board, see Locating internal components on page 26.
For a list of available hard drives, see Mass storage devices on page 12.
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Pull the hard drive latch away from the hard drive to release the drive (1).
6. Slide the hard drive toward the edge of the computer and lift the hard drive out of the drive cage.
7. Remove the four mounting screws from the 2.5-inch hard drive. Be sure to keep the screws together
with the blue rubber grommets to use to install a replacement drive.
To install a hard drive, reverse the disassembly instructions.
Hard drive 27
Optical drive
The optical disc drive is located under the hard drive on the right side of the computer. To locate the optical
disc drive on the system board, see Locating internal components on page 26.
For a list of available optical drives, see Mass storage devices on page 12.
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the hard drive (see Hard drive on page 27).
6. Push and hold the green tab (1) while pushing in the green latch (2) at the back of the optical disc drive
enclosure and slide the drive (3) out of the chassis.
7. Pull the green latch o the optical drive.
Keep this latch to install on the new optical drive.
28 Chapter 4 Removal and replacement procedures
8. Align the three pins on the latch with the holes in the new optical disc drive and press the latch rmly
onto the new drive.
NOTE: You must reuse the latch removed from the old optical disc drive.
9. Align the new optical drive with the opening in the side of the computer. Push the drive in rmly until it
snaps into place.
NOTE: The optical drive can be installed in only one way.
Optical drive 29
M.2 solid-state drive
Two M.2 solid-state drive connectors are available on the system board. The connector labeled SSD2 (near
the processor) ts only 22 mm × 80 mm M.2 solid-state drives. The connector labeled SSD1 (on the right side
of the board) ts both 22 mm × 80 mm and 22 mm × 30 mm M.2 solid-state drives.
For a list of available solid-state drives, see Mass storage devices on page 12.
To remove the M.2 solid-state drive:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the Phillips screw (1) that secures the drive to the computer.
6. Pull the drive away to remove it from the socket (2).
To install the solid-state drive, reverse the removal procedures.
30 Chapter 4 Removal and replacement procedures
Memory
For a list of available memory modules, see Processors and memory modules on page 13.
For proper system operation, the memory modules must meet the following qualications:
Table 4-2 Memory components and specications
Component Specication
Memory modules 1.2 V DDR4-SDRAM memory modules
Compliance Unbuered non-ECC DDR4-2667 MHZ-compliant
Pins Industry-standard 260 pins containing the mandatory Joint Electronic Device
Support Support CAS latency DDR4 2667 MHz (15–15–15 timing)
Slots 2
Maximum Memory 16 GB per memory slot, 32 GB total
Supported 4 Gbit and 8 Gbit non-ECC memory technologies single-sided and double-sided SODIMMs
Note The system will not operate properly if you install unsupported SODIMM memory.
Engineering Council (JEDEC) specication
SODIMMs constructed with ×8 and ×16 DDR devices are supported; memory modules
constructed with x4 SDRAM are not supported.
HP oers upgrade memory for this computer and advises that the consumer purchase it to avoid
compatibility issues with unsupported third-party memory.
The system will automatically operate in single channel mode, dual channel mode, or ex mode, depending
on how the memory modules are installed. Refer to the following table to identify the memory module
channel locations.
Table
4-3 Populating memory module sockets
Location System board label Channel
Lower socket SODIMM1 Channel B
Upper socket SODIMM3 Channel A
The system will automatically operate in single channel mode, dual channel mode, or ex mode, depending
on how the memory modules are installed.
● The system will operate in single channel mode if the memory module slots are populated in one
channel only.
● The system will operate in a higher-performing dual channel mode if the memory capacity of the
memory module in Channel A is equal to the memory capacity of the memory module in Channel B.
● The system will operate in ex mode if the memory capacity of the memory module in Channel A is not
equal to the memory capacity of the memory module in Channel B. In ex mode, the channel populated
with the least amount of memory describes the total amount of memory assigned to dual channel and
Memory 31
the remainder is assigned to single channel. If one channel will have more memory than the other, the
larger amount should be assigned to channel A.
● In any mode, the maximum operational speed is determined by the slowest memory module in the
system.
There are two memory slots on the system board. To remove or install memory modules:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. To remove a memory module, press outward on the two latches on each side of the memory module (1),
then pull the memory module out of the slot (2).
6. Slide the new memory module into the slot at approximately a 30° angle (1), then press the memory
module down (2) so that the latches lock it in place.
NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab
on the memory slot.
7. Reassemble the computer.
The computer automatically recognizes the additional memory when you turn on the computer.
32 Chapter 4 Removal and replacement procedures
Battery
The battery is located below the processor. The battery that comes with the computer provides power to the
real-time clock. When replacing the battery, use a battery equivalent to the battery originally installed in the
computer. The computer comes with a 3 V lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of re and
burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (149°F).
Do not disassemble, crush, puncture, short external contacts, or dispose of in re or water.
Replace the battery only with the HP spare designated for this product.
IMPORTANT: Before replacing the battery, it is important to back up the computer CMOS settings. When the
battery is removed or replaced, the CMOS settings will be cleared.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briey touching a
grounded metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC outlet.
The lithium battery is used only when the computer is not connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, go to http://www.hp.com/recycle.
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the
positive side up(1) . Push the other edge down until the clamp snaps over the other edge of the battery
(2).
6. Reassemble the computer.
Battery 33
WLAN module
The WLAN module is located on the system board above the memory modules. The WLAN module is secured
with one Phillips screw and has two connected antennas.
For a list of available WLAN modules, see Boards on page 11.
NOTE: The procedure to replace the WLAN module must be performed by an HP technician.
NOTE: WLAN module appearance can vary.
To remove the WLAN module:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Disconnect the antenna cables from the module (1).
6. Remove the Phillips screw (2) that secures the module to the computer.
7. Lift the module to a 45° angle, and then pull it away to remove it from the socket (3).
To install the WLAN module, reverse the removal procedures.
When connecting the antennas cables, connect the cable labeled 1 (black sticker) to the AUX 1 connector on
the module and the cable labeled 2 (white sticker) to the MAIN 2 connector on the module.
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
34 Chapter 4 Removal and replacement procedures
Power button and ngerprint sensor boards
NOTE: A ngerprint sensor is available only on select models.
If a ngerprint sensor is installed, the power button board and ngerprint sensor board are wired together
into one assembly, located at the bottom right of the computer. If the ngerprint sensor is not installed, you
can remove the power button board using the following steps but omitting the ngerprint sensor steps.
To remove the power button and ngerprint sensor boards:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the Torx screw from the power button board bracket (1), and two Phillips screws from the
ngerprint sensor board (2).
6. Lift the boards from the computer.
Power button and ngerprint sensor boards 35

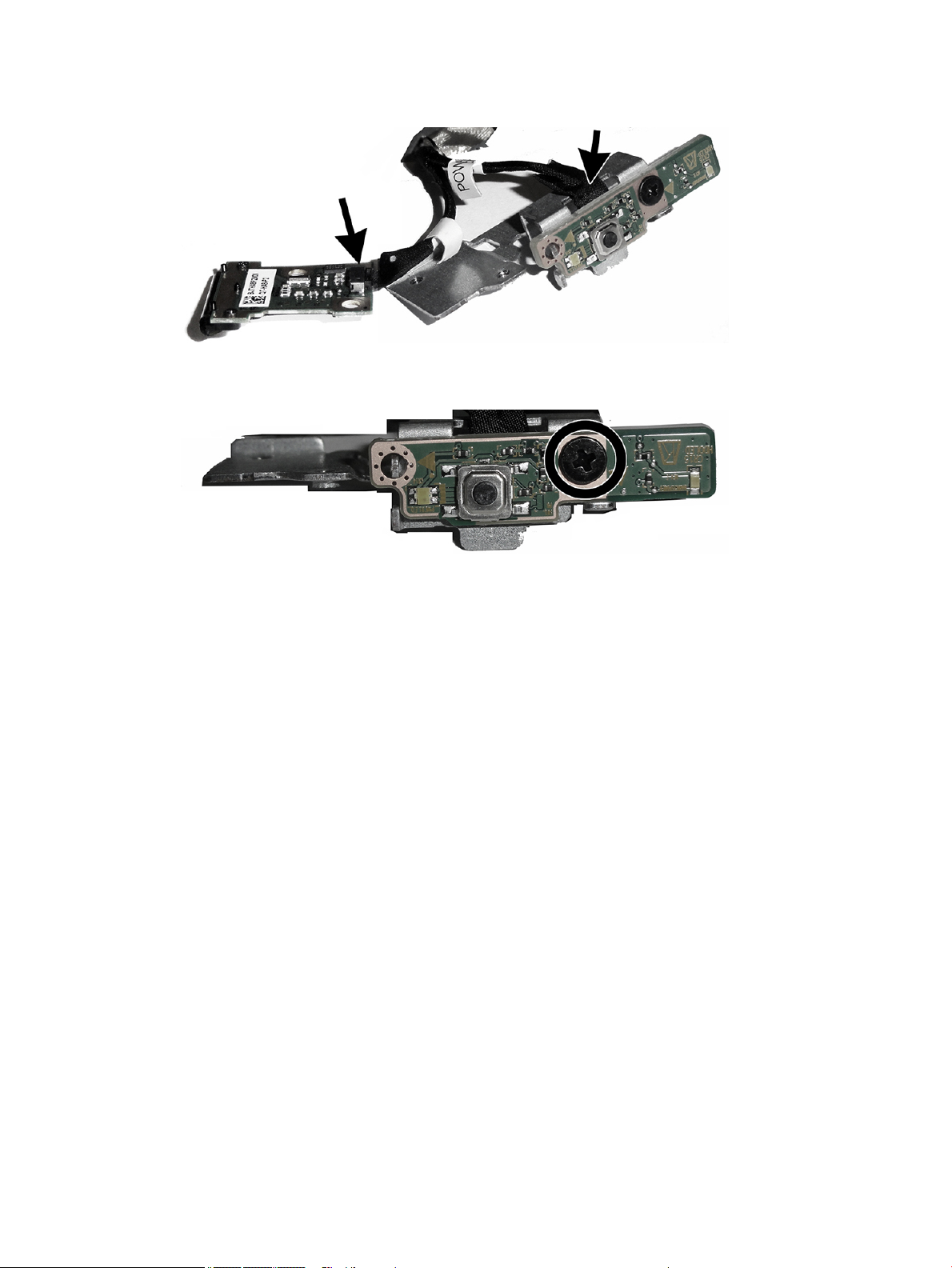

7. If necessary, disconnect the cables from each board.
8. If necessary, remove the Phillips screw that secures the power button board to the bracket, and then
remove the board from the bracket.
To install the power button and ngerprint sensor boards, reverse the removal procedures.
36 Chapter 4 Removal and replacement procedures
RF asset module (select products only)
The RF asset module is installed in the SSD1 socket.
To remove the RF asset module:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Disconnect the antenna cables from the RF asset module (1), remove the Torx screw (2) that secures the
module to the computer, and then remove the module from the socket (3).
To install the RF asset module, reverse the removal procedures.
RF asset module (select products only) 37
RF asset module antennas (select products only)
To remove the RF asset module antennas:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Disconnect the antenna cables from the RF asset module (1), remove the cables from the routing and
clips along the bottom of the chassis (2), and then peel the antennas from the computer (3).
To install the RF asset module antennas, reverse the removal procedures.
38 Chapter 4 Removal and replacement procedures
RFID board (select products only)
An RFID board may be included with healthcare models. It is located near the bottom of the chassis.
To remove the RFID board:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).

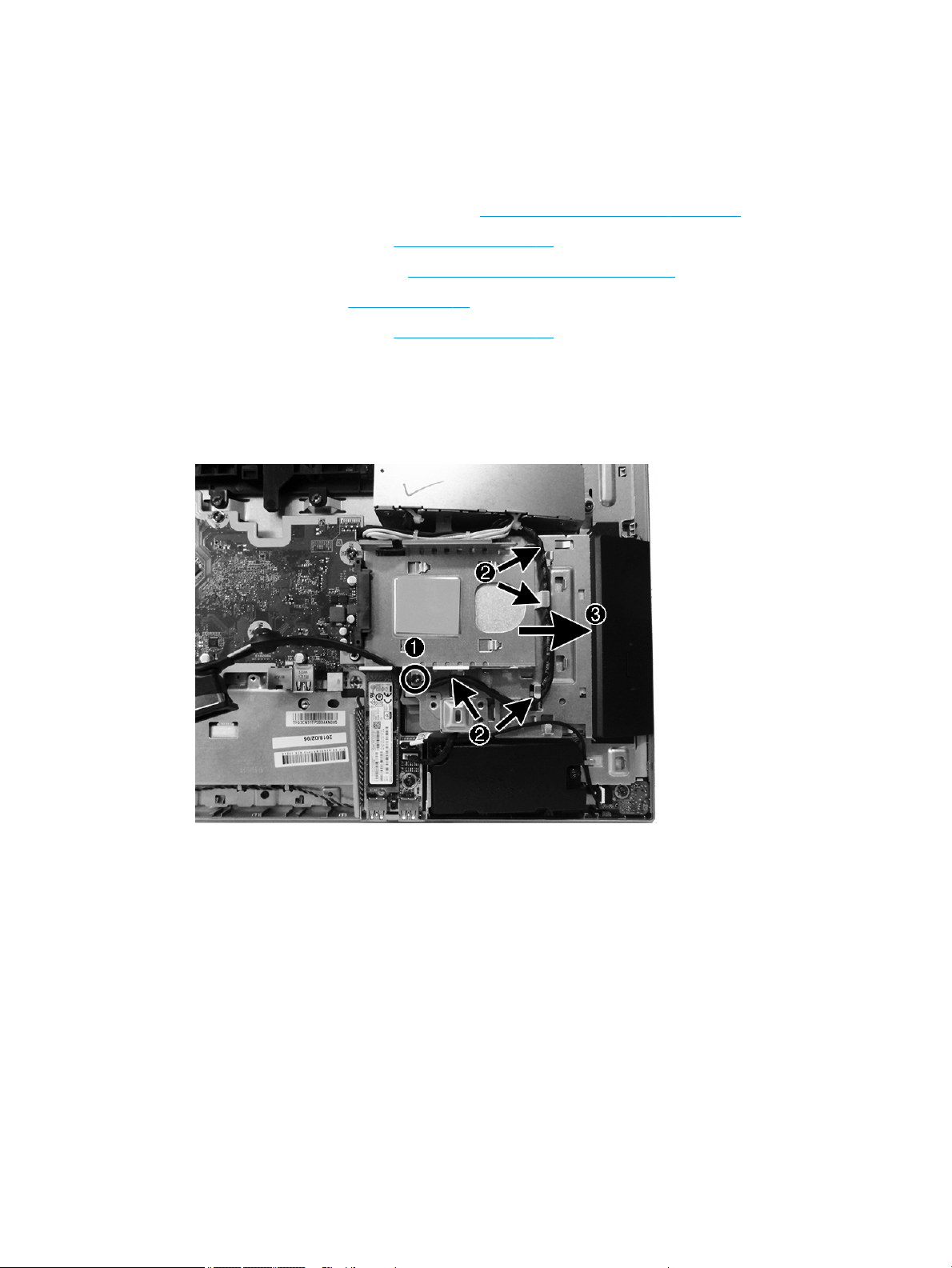

5. Disconnect the cable ZIF connector on the board (1), remove the two Phillips screws (2) that secure the
board to the computer, and then remove the board from the computer (3).
RFID board (select products only) 39
To install the RFID board, reverse the removal procedures.
If you need to insert an SE SIM card into the RFID module, insert the card into the location as shown in the
following image.
40 Chapter 4 Removal and replacement procedures
Heat sink
IMPORTANT: HP oers models with either integrated UMA graphics or discrete graphics. The heat sink on
models with discrete graphics includes two extra screws.
To remove the heat sink:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. If a discrete heat sink is installed, remove the VESA mounting bracket/fan assembly (see VESA mounting
6. In the order indicated on the heat sink, loosen the captive Torx screws (1) from the heat sink component
7. (Models with discrete graphics only) Remove the non-captive Torx screws (2) from the heat sink
bracket/fan assembly on page 48).
that services the main processor.
IMPORTANT: Remove heat sink retaining screws in diagonally opposite pairs (as in an X) to even the
downward forces on the processor. This is especially important as the pins on the socket are very fragile,
and any damage to them could require replacing the system board.
component that services the graphics processor.
8. Remove the non-captive Torx screws from the brackets at the top of the heat sink (3).
Heat sink 41
9. Lift the heat sink out of the computer.
IMPORTANT: To reduce a degradation in thermal performance, be sure not to touch the thermal grease
on the surface of the processor or the heat sink.
To replace the heat sink, reverse the removal procedures.
42 Chapter 4 Removal and replacement procedures
Processor
For a list of available processors, see Processors and memory modules on page 13.
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the heat sink (see Heat sink on page 41).
6. Rotate the locking lever to its full open position (1).
7. Raise and rotate the microprocessor retainer to its fully open position (2), and then carefully lift the
processor from the socket (3).
IMPORTANT: Do not touch the pins in the processor socket. These pins are very fragile and handling
them could cause irreparable damage. Damaged pins might require that you replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to the
processor’s solder connections.
NOTE: After installing a new processor onto the system board, always update the system ROM to ensure
that the latest version of the BIOS is being used on the computer. The latest system BIOS can be found on the
Web at: http://www.hp.com.
Processor 43
Webcam module
The webcam is located at the top of the computer, under a plastic shield. The top heat sink screws also secure
the webcam plastic shield.
To remove the webcam module:
NOTE: Webcam appearance can vary.
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. If a discrete heat sink is installed, remove the VESA mounting bracket/fan assembly (see VESA mounting
bracket/fan assembly on page 48).
6. Remove the heat sink (see Heat sink on page 41).
7. To remove the webcam plastic shield, remove the two Torx screws (1), and then remove the webcam
shield from the computer (2).
8. Remove the two Phillips screws (1) that secure the webcam assembly to the computer.
9. Disconnect the webcam cable from the system board (2).
44 Chapter 4 Removal and replacement procedures
10. Remove the webcam cable from the routing path in the webcam bracket and the clips built into the
computer (3).
NOTE: The following illustration shows the healthcare model.
11. Remove the webcam assembly from the computer.
12. If you need to remove the webcam bracket, remove the VESA bracket/fan assembly (VESA mounting
bracket/fan assembly on page 48), and then remove the four Torx screws (1) that secure the webcam
bracket to the computer.
Webcam module 45
13. Remove the webcam bracket from the computer (2).
To install the webcam assembly and associated parts, reverse the removal procedures.
46 Chapter 4 Removal and replacement procedures
Rear I/O cover
The rear I/O cover is located at the bottom of the computer below the VESA bracket/fan assembly. It is
secured with two screws.
To remove the rear I/O cover:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the two Torx screws (1) that secure the cover to the computer.
6. Remove the rear I/O cover from the computer (2).
To install the bottom I/O cover, reverse the removal procedures.
Rear I/O cover 47
VESA mounting bracket/fan assembly
The VESA mounting bracket/fan assembly is located under the stand.
To remove the VESA mounting bracket/fan assembly:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the ve Torx screws that secure the assembly to the computer.
6. Disconnect the fan cable from the system board (2).
7. Lift the assembly o the computer.
48 Chapter 4 Removal and replacement procedures
8. If it is necessary to remove the fan from the bracket, remove the four Torx screws that secure the fan to
the bracket.
9. Separate the fan from the bracket.
To replace the VESA mounting bracket/fan assembly, reverse the removal procedures.
VESA mounting bracket/fan assembly 49
Power supply
The power supply is located in the upper left side of the computer.
To remove the power supply:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the VESA mounting bracket/fan assembly (see VESA mounting bracket/fan assembly
on page 48).
6. Remove the three Torx screws (1) that secure the power supply to the computer.
7. Disconnect the power supply cable from the system board connector (2).
8. Lift the power connector from its housing in the I/O bracket (3).
9. Remove the power cable from the clips built into the computer (4).
50 Chapter 4 Removal and replacement procedures
10. Remove the power supply from the computer.
To install the power supply, reverse the removal procedures.
Make note of the foam strips that must be installed under the power supply, as shown in the following image.
Power supply 51
I/O bracket
The I/O bracket is located under the plastic rear I/O cover. It is secured with ve Torx screws, one of which is
under the power connector.
To remove the I/O bracket:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the access panel (see Access panel on page 25).
3. Remove the rear port cover (see Removing the rear port cover on page 23).
4. Remove the stand (see Stands on page 24).
5. Remove the access panel (see Access panel on page 25).
6. Remove the rear I/O cover (see Rear I/O cover on page 47).
7. Remove the power connector from its mounting location on the I/O bracket (see step 3 in Power supply
on page 50).
8. Remove the ve Torx screws that secure the I/O bracket to the computer.
9. Lift the I/O bracket from the computer.
To replace the I/O bracket, reverse the removal procedures.
52 Chapter 4 Removal and replacement procedures
Hard drive cage
The hard drive cage is located under the hard drive. It is secured with one Torx screw.
To remove the hard drive cage:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the access panel (see Access panel on page 25).
3. Remove the rear port cover (see Removing the rear port cover on page 23).
4. Remove the stand (see Stands on page 24).
5. Remove the access panel (see Access panel on page 25).
6. Remove the Torx screw (1) that secures the hard drive cage to the computer.
7. Remove the power supply cable from the clips around the hard drive cage (2).
8. Slide the hard drive cage away from the system board to disengage it from the clips, and then lift the
hard drive cage from the chassis (3).
To replace the hard drive cage, reverse the removal procedures.
Hard drive cage 53
System board
The system board is secured with nine Torx screws.
To remove the system board:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the memory modules (see Memory on page 31).
6. Remove the M.2 solid-state drive (see M.2 solid-state drive on page 30).
7. Remove the WLAN module (see WLAN module on page 34).
8. Remove the VESA bracket/fan assembly (see VESA mounting bracket/fan assembly on page 48.
9. Remove the heat sink (see Heat sink on page 41).
10. Remove the processor (see Processor on page 43.
11. Remove the hard drive cage (see Hard drive cage on page 53.
12. Remove the I/O bracket (see I/O bracket on page 52.
13. Remove the rear I/O cover (see Rear I/O cover on page 47.
54 Chapter 4 Removal and replacement procedures
14. Disconnect all cables from the system board, noting their location for reinstallation:
(1): Camera cable
(2): Power supply cable
(3): Front audio cable
(4): Speaker cable
(5): Front panel cable
(6): Converter cable
(7): LVDS (display) cable
15. In the order printed on the system board, remove the nine Torx screws (1)-(9) that secure the system
board to the computer.
NOTE: System board appearance can vary.
16. Lift the system board up and out of the computer.
To install the system board, reverse the removal procedures. Be sure to replace the screws in the order
indicated on the system board.
System board 55
Updating SMBIOS Information
When replacing the system board, you must reprogram the SMBIOS information on the aected computer.
Failure to reprogram the board will result in eventual failure, such as an activation failure (need to reactivate
the system) or a system recovery failure.
To update SMBIOS information in Computer Setup:
1. Turn on or restart the computer.
2. Press Esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the
screen.
NOTE: If you do not press Esc at the appropriate time, you must restart the computer and again press
Esc when the display light turns green to access the utility.
3. Press F10 to enter Computer Setup.
4. Go to Main > Set Machine Unique Data.
5. Edit the elds listed.
6. Select Save changes and exit.
System ID Setup Page
Setup Field Name Comment Label
Product Name Enter the Model name and number or marketing name. Flexbuild
Serial Number Enter the Serial Number of Unit. Support
SKU Number Enter the SKU or Product Number including Localization Code. Support
Asset Tag Enter the 18-byte identier assigned to the computer. Support
Feature Byte Enter the Feature Byte string. The feature byte string is case sensitive.
The label includes spaces after every four characters. You can enter or ignore these
spaces – their only purpose is to help with data entry. There is a character
limitation of 40 bytes per line. When you reach this limit, go to the next line to
continue data entry. BIOS ignores the spaces and lines.
If you make an error during data entry, the data will not validate, and the computer
asks you to correct your data input.
Build ID The Build ID of the unit. Flexbuild
Flexbuild
56 Chapter 4 Removal and replacement procedures
System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
CMOS Yellow Reset CMOS CPUFAN White Fan connector
2D WCAM White Webcam connector BAT Black RTC battery
PSWD Blue Clear system passwords RFID White RFID module (healthcare
models only)
PROCESSOR Silver Processor socket SSD2 Black M.2 SSD drive
PSU Black Main power connector PB Black Power button board
ODD Black Optical drive connector LVDS Black Display connector
HDD Black Hard drive connector DIMM1 Black Memory module
SSD1 Black M.2 SSD drive DIMM3 Black Memory module
F_AUDIO White Front audio BACKLIGHT Black Backlight cable
SPKR Black Speaker WIRELESS Black WLAN module connector
System board callouts 57
Audio board
The audio board is located on the bottom corner of the computer. It is secured with one Torx screw.
To remove the audio board:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the access panel (see Access panel on page 25).
3. Remove the rear port cover (see Removing the rear port cover on page 23).
4. Remove the stand (see Stands on page 24).
5. Remove the access panel (see Access panel on page 25).
6. Disconnect the cable from the audio board (1)
7. Remove the Torx screw (2) that secures the audio board to the computer.
8. Lift the audio board out of the computer.
To replace the audio board, reverse the removal procedures.
58 Chapter 4 Removal and replacement procedures
Speakers
The speakers are located at the bottom of the computer. Two separate speakers are each secured by two Torx
screws.
To remove the speakers:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the rear I/O cover (see Rear I/O cover on page 47).
6. Disconnect the speaker cable from the system board (1).
7. Remove two Torx screws (2) that secure each speaker to the computer.
8. Remove speaker cable from the clips and routing path built into the chassis (3).
9. Remove the speakers from the computer.
To install the speakers, reverse the removal procedures.
When installing the speakers, make sure the rubber grommets are correctly installed in the speakers.
Speakers 59
Display panel
Spare parts for both touch and non-touch display are available as a raw panel.
IMPORTANT: Install the new display panel together with all other parts in the replacement kit. Do not reuse
any old parts. Return all old parts to HP for warranty processing.
IMPORTANT: Use the exact cable that shipped with the replacement panel. Failure to use the correct cable
can result in panel failure.
IMPORTANT: You must install the latest touch drivers. Failure to install the latest drivers could result in a
loss of touch functionality. Go to www.hp.com/support to install the latest drivers.
To remove the display panel:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the M.2 solid-state drive from above the right speaker (see Heat sink on page 41).
6. Remove the power button board and ngerprint sensor board (see Power button and ngerprint sensor
boards on page 35).
7. Remove the audio board (see Audio board on page 58).
8. Remove the rear I/O cover (see Rear I/O cover on page 47).
9. Remove the 12 Phillips screws (1)-(12) that secure the main frame to the display panel.
10. Lift the left side of the frame (1).
11. Disconnect the display ribbon cable, and then route the cable through the hole in the frame (2).
60 Chapter 4 Removal and replacement procedures
12. Route the power button/ngerprint sensor/touch cable and backlight cable through the holes in the
frame (3).
NOTE: Non-touch models do not have a cable routed through the frame.
13. Lift the frame from the display.
14. Disconnect the backlight cable (1) from the rear of the display panel.
15. Disconnect the display cable (2) from the rear of the display panel.
16. Disconnect the touch cable (3) from the rear of the display panel.
Display panel 61
17. Separate the middle frame from the display by sliding the bezel down, and then removing it from the
display.
NOTE: Display and middle frame appearance can vary.
To install the display panel, reverse the removal procedures.
62 Chapter 4 Removal and replacement procedures
Antennas
The antennas route from the WLAN module to transceivers at the top of the computer. The transceivers are
secured to the computer with adhesive.
Models are available with either single antennas or dual antennas.
NOTE: WLAN module orientation can vary.
To remove the antennas:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the M.2 solid-state drive from above the right speaker (see Heat sink on page 41).
6. Remove the power button board and ngerprint sensor board (see Power button and ngerprint sensor
7. Remove the audio board (see Audio board on page 58).
8. Remove the rear I/O cover (see Rear I/O cover on page 47).
9. Separate the display from the computer (see Display panel on page 60).
boards on page 35).
10. Disconnect the antennas from the WLAN module (1).
11. Remove the Phillips screw from the top of the right antenna (2), and then peel the antenna o the frame
(3).
Antennas 63
12. Remove the Phillips screw from the left antenna (1), and then peel the antenna from the chassis (2).
13. From the back of the frame, pull the antenna cables through the hole in the frame (1).
14. Remove the cables from the clips on the back of the frame (2).
15. Pull the right antenna cable through the hole in the frame (3).
To install the antenna, reverse the removal procedures.
NOTE: When connecting the antennas cables, be sure to match the numbers on the cable with the same
number printed on the WLAN module.
64 Chapter 4 Removal and replacement procedures
5 Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following tasks:
● Change settings from the defaults or restore the settings to default values.
● View the system conguration, including settings for processor, graphics, memory, audio, storage,
communications, and input devices.
● Modify the boot order of bootable devices such as hard drives or USB ash media devices.
● Enter the Asset Tag or property identication number assigned by the company to this computer.
● Enable the power-on password prompt during system restarts (warm boots) as well as during power-on.
● Establish an administrator password that controls access to the Computer Setup (F10) Utility and the
settings described in this section.
● Establish minimum requirements for valid passwords, including length and required types of characters.
● Secure integrated I/O functionality, including the serial, USB, or audio, or embedded NIC, so that they
cannot be used until they are unsecured.
● Enable or disable dierent types of boot sources.
● Congure features such as Secure Boot, power management, virtualization support, and language and
keyboard type used in Setup and POST.
● Replicate the system setup by saving system conguration information on a USB device and restoring it
on one or more computers.
● Enable or disable DriveLock security or securely erase a hard drive (when supported by drive).
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system. To access the
Computer Setup Utilities menu, complete the following steps:
1. Turn on or restart the computer.
2. Repeatedly press F10 when the power button light turns white to access the utility.
You can also press Esc to a menu that allows you to access dierent options available at startup,
including the Computer Setup utility.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
repeatedly press F10 when the power button light turns white to access the utility.
3. A choice of four headings appears in the Computer Setup Utilities menu: Main, Security, Advanced, and
UEFI Drivers.
NOTE: Selecting UEFI Drivers restarts the computer into the third-party option ROM management
application. You can access this application directly by pressing F3 during startup.
Computer Setup (F10) Utilities 65
4. Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys
to select the option you want, then press Enter. To return to the Computer Setup Utilities menu, press
Esc.
5. To apply and save changes, select Main > Save Changes and Exit.
● If you have made changes that you do not want applied, select Ignore Changes and Exit.
● To restore settings from the Advanced and Main menus to original values, select Apply Factory
Defaults and Exit.
● To restore settings from the Advanced and Main menus to those previously saved by Save Custom
Defaults, select Apply Custom Defaults and Exit. If no custom defaults have been saved, then
factory defaults are used.
NOTE: Settings in the Security menu are not modied by Apply Defaults. Those values are reset by
Restore Security Settings to Factory Defaults at the bottom of the Security menu.
NOTE: Not all settings shown in the following sections are available for all models
IMPORTANT: Do not turn computer power o while the BIOS is saving the Computer Setup (F10) changes
because the settings could become corrupted. It is safe to turn o the computer only after exiting the F10
Setup screen.
66 Chapter 5 Computer Setup (F10) Utility
Computer Setup–Main
NOTE: Support for specic Computer Setup options can vary, depending on the hardware conguration.
Table 5-1 Computer Setup—Main
Option Description
System Information Lists all information in following list if Advanced System Information is selected. Lists smaller subset if
Basic System Information is selected.
● Product name
● Installed memory size
● Storage devices
Processor
● Processor type
● Processor cache size (L1/L2/L3)
● Processor speed
● Processor cores
● MicroCode revision
● Processor stepping
● Memory speed
● DIMM size (for each installed module)
Firmware
● System BIOS
● ME Firmware version (Intel only)
● ME Firmware mode (Intel only)
● Audio controller
● Video BIOS version
● Reference code revision
● Super I/O rmware version
● USB Type-C controller rmware version
● RFID Asset Management Tag
Service
● Born on date
● Serial number
● SKU number
● UUID (Universally Unique Identier)
● Asset tracking number
●
Feature byte
● Build ID
● Product family
● System board ID
Computer Setup (F10) Utilities 67
Table 5-1 Computer Setup—Main (continued)
Option Description
● System board CT number
● Integrated MAC Address
System Diagnostics If the hard drive has the HP Advanced Diagnostics installed, the application will launch. If HP Advanced
Diagnostics is not installed, then a basic version built into the BIOS will provide the capability to perform
the following functions:
● Memory Test
● Storage Tests
● Hard Drive Check
● Language
BIOS Event Log Lets you view, export, or clear the BIOS event log.
● View BIOS Event Log
● Export to USB Key
● Clear BIOS Event Log on Next Boot
Update System BIOS Lets you update the system BIOS from www.hp.com or another network server, from a removable USB
drive, or from a le located on the hard drive.
● Check [current selection] for BIOS Updates
The string that appears here depends on the setting in BIOS Update Preferences.
● Lock BIOS Version
If this option is checked, the system is locked to the current BIOS version and updates are not
allowed.
● BIOS Rollback Policy
■ Unrestricted Rollback to older BIOS—Lets you roll back to any previous version of BIOS.
■ Restricted Rollback to older BIOS—If selected, Minimum BIOS Version becomes active, which
lets you manually enter the minimum BIOS version that can be rolled back to.
● Allow BIOS Updates Using a Network
● BIOS Update Preferences
■ Check for Update on Next Reboot. Default is Disabled.
■ BIOS Source—Lets you select either HP.com or a custom URL. If Custom URL is selected, Edit
Custom URL becomes active. Using a custom URL is recommended only for a managed IT
environment.
■ Automatic BIOS Update Setting
Allows conguration of a periodic check for updates:
NOTE: If Microsoft Windows BitLocker Drive Encryption (BDE) is enabled, it must be
temporarily suspended before the BIOS is ashed.
■ Do not update
■ Check for updates and prompt the user to accept or reject the update at that time
■ Check for updates and install all new versions
■ Check for updates and install only new versions marked important
■ BIOS Update Frequency
68 Chapter 5 Computer Setup (F10) Utility
Table 5-1 Computer Setup—Main (continued)
Option Description
■ Daily
■ Weekly
■ Monthly (default)
● Network Conguration Settings
Congure settings to use for download and upload.
● Update System and Supported Device Firmware Using Local Media
Lets you access les on either USB storage or the hard drive. The HP BIOS Update and Recovery
application included in BIOS Softpaqs at www.hp.com will copy the BIOS le to the correct location
on the hard drive or USB device.
Change Date and Time Lets you update system date and time.
Set Machine Unique Data Allows you to set or view data that is unique to each machine such as feature byte, build ID, serial number,
SKU number, product family, system board CT number, and product name.
System IDs Lets you set the following values:
● Asset Tracking Number
● Ownership Tag
Replicated Setup Backup current settings to USB device
Saves system conguration to a formatted USB ash media device.
Restore current settings from USB device
Restores system conguration from a USB ash media device.
Save Custom Defaults Saves the current system conguration settings as the custom default set.
Apply Custom Defaults
and Exit
Apply Factory Defaults
and Exit
Ignore Changes and Exit Exits Computer Setup without applying or saving any changes.
Save Changes and Exit Saves changes to current system conguration, exits Computer Setup, and reboots.
Suppress POST errors Select to turn o any errors generated by Power On Self Test (POST) during boot up.
Applies the custom default settings to the computer after rebooting. Does not apply to options in the
Security menu.
Restores the factory system conguration settings to the computer after rebooting. Does not apply to
options in the Security menu.
Computer Setup—Security
NOTE: Support for specic Computer Setup options can vary, depending on the hardware conguration.
Table 5-2 Computer Setup—Security
Option Description
Create BIOS
Administrator Password
Lets you set and enable a BIOS administrator password, which controls access to the following features:
● Setup Menu (F10)
● 3rd Party Option ROM Management (F3)
● Update system ROM
Computer Setup (F10) Utilities 69
Table 5-2 Computer Setup—Security (continued)
Option Description
● WMI commands that change system settings
● BIOS Conguration Utility (BCU)
● Alternative power-on password
NOTE: Creating a BIOS user disables the Fast Boot option.
NOTE: If the password is set, it is required to change Computer Setup options, update the BIOS, and
make changes to certain plug and play settings under Windows.
Change BIOS
Administrator Password
(This selection is active
only if a BIOS
administrator password is
set.)
Create POST Power-On
Password
Change POST Power-On
Password (This selection
is active only if a BIOS
administrator password is
set.)
Password Policies Let you set the guidelines for a valid password. Options include:
Lets you change the BIOS administrator password.
You must know the current password to be able to change it.
The power-on password prompt appears after a power cycle or reboot. If the user does not enter the
correct power-on password, the unit will not boot.
Lets you change the POST power-on password.
You must know the current password to be able to change it.
● Password minimum length
● Requires at least one symbol
● Requires at least one number
● Requires at least one upper case character
● Requires at least one lower case character
● Allow spaces
Clear Password Jumper
Select Honor to allow or Ignore to not allow the absence of the password jumper to clear the passwords at
boot up. Default is Honor.
Security Conguration TPM Embedded Security
● TPM Specication Version
Displays the current TPM version.
● TPM Device
Lets you set the Trusted Platform Module as available or hidden.
● TPM State
Select to enable the TPM.
● ClearTPM
Select to reset the TPM to an unowned state. After the TPM is cleared, it is also turned o. To
temporarily suspend TPM operations, turn the TPM o instead of clearing it.
IMPORTANT: Clearing the TPM resets it to factory defaults and turns it o. You will lose all created
keys and data protected by those keys.
● TPM Activation Policy
70 Chapter 5 Computer Setup (F10) Utility
Table 5-2 Computer Setup—Security (continued)
Option Description
○ F1 to boot
○ Allow user to reject
○ No prompts
BIOS SureStart
● Verify Boot Block on every boot – Select to enable HP SureStart.
● BIOS Data Recovery Policy – Select Automatic or Manual to determine data recovery process. Manual
recovery is intended only for situations when you want forensic analysis before HP SureStart
recovery. When this policy is set to manual, HP SureStart will not correct any issues that are found
until the local user enters the manual recovery key sequence. This can result in a computer that
cannot boot until the manual recovery key sequence is input.
● Dynamic Runtime Scanning of Boot Block. Veries the integrity of the BIOS boot block region several
times each hour while the computer is running. Default is Enabled.
● Sure Start BIOS Settings Protection. When enabled, HP Sure Start locks all critical BIOS settings and
provides enhanced protection for these settings using nonvolatile (ash) memory.
NOTE: An administrator password must be set to activate this setting.
● Enhanced HP Firmware Runtime Intrusion Prevention and Detection – Enables monitoring of HP
system rmware executing out of main memory while the operating system is running. Any
anomalies detected in HP system rmware that is active while the operating system is running will
result in a Sure Start security event being generated.
● Sure Start Security Event Policy—controls HP Sure Start behavior upon identifying a critical security
event (any modication to HP rmware) while the operating system is running.
– Log Event Only—HP Sure Start will log all critical security events in the HP Sure Start audio log
within the HP Sure Start nonvolatile (ash) memory.
– Log Event and notify user—In addition to logging all critical security events, HP Sure Start will
notify the user within the operating system that a critical event has occurred.
– Log Event and power o system—In addition to logging all critical security events, HP Sure
Start turns of the computer upon detecting a HP Sure Start Security Event. Because of the
potential for data loss, HP recommends this setting only in situations where security integrity
of the system is a higher priority than the risk of potential data loss.
Secure Platform Management (SPM)
● HP Sure Run Current State
● SPM Current State
Physical Presence Interference
When selected, the user is notied at system power up when changes have been made to system security
policy, and the user must manually agree to those changes before they are conrmed.
Smart Cover
Cover Removal Sensor
Lets you disable the cover sensor or congure what action is taken if the computer cover was removed.
Default is Disabled.
Notify user alerts the user with a POST error on the rst boot after the sensor detects removal of
NOTE:
the cover. If the password is set, Administrator Password requires that the password be entered to boot
the computer if the sensor detects that the cover has been removed.
Intel Software Guard Extensions (SGX)
Computer Setup (F10) Utilities 71
Table 5-2 Computer Setup—Security (continued)
Option Description
Intel SGX is a set of processor code instructions from that allows user-level code to allocate private
regions of memory, that unlike normal process memory is also protected from processes running at
higher privilege levels.
● Software control
● Disable
● Enable
Utilities Hard Drive Utilities
● Save/Restore MBR of System Hard Drive
NOTE: Windows 10 systems are generally not formatted to include an MBR. Instead they use GUID
Partition Table (GPT) format, which better supports large hard drives.
Enabling this feature will save the Master Boot Record (MBR) of the system hard drive. If the MBR
gets changed, the user will be prompted to restore the MBR. Default is Disabled.
The MBR contains information needed to successfully boot from a disk and to access the data stored
on the disk. Master Boot Record Security may prevent unintentional or malicious changes to the
MBR, such as those caused by some viruses or by the incorrect use of certain disk utilities. It also
allows you to recover the last known good MBR, should changes to the MBR be detected when the
system is restarted.
NOTE: Most operating systems control access to the MBR of the current bootable disk; the BIOS
cannot prevent changes that may occur while the operating system is running.
Restores the backup Master Boot Record to the current bootable disk. Default is Disabled.
Only appears if all of the following conditions are true:
– MBR security is enabled
– A backup copy of the MBR has been previously saved
– The current bootable disk is the same disk from which the backup copy was saved
IMPORTANT: Restoring a previously saved MBR after a disk utility or operating system has
modied the MBR, may cause the data on the disk to become inaccessible. Only restore a previously
saved MBR if you are condent that the current bootable disk's MBR has been corrupted or infected
with a virus.
● Save/Restore GPT of System Hard Drive
Enabling this feature saves the GUID Partition Table (GPT) of the system hard drive. If the GPT is
subsequently changed, the user is prompted to choose whether to restore GPT.
● DriveLock/Automatic DriveLock
Allows you to assign or modify a master or user password for hard drives. When this feature is
enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither is
successfully entered, the hard drive will remain inaccessible until one of the passwords is
successfully provided during a subsequent cold-boot sequence.
NOTE: This selection appears only when at least one drive that supports the DriveLock feature is
attached to the system.
IMPORTANT: Be aware that these settings take place immediately. A save is not necessary.
IMPORTANT: Be sure to document the DriveLock password. Losing a DriveLock password will
render a drive permanently locked.
After you select a drive, the following options are available:
Set DriveLock Master Password. Sets the drive’s master password but does not enable DriveLock.
Enable DriveLock. Sets the drive’s user password and enables DriveLock.
72 Chapter 5 Computer Setup (F10) Utility
Table 5-2 Computer Setup—Security (continued)
Option Description
● Secure Erase
Lets you select a hard drive to completely erase.
Once a hard drive has been erased with a program that utilizes Secure Erase rmware commands, no
le recovery program, partition recovery program, or other data recovery method will be able to
extract data from the drive.
● Allow OPAL Hard Drive SED Authentication
Default is Disabled.
System Management
Command
Restore Security
Settings to Default
Allows authorized personnel to reset security settings during a service event. Default is Enabled.
This action resets security devices, clears BIOS passwords (not including DriveLock), and restores settings
in the Security menu to factory defaults.
Computer Setup—Advanced
NOTE: Support for specic Computer Setup options can vary, depending on the hardware conguration.
Table 5-3 Computer Setup—Advanced (for advanced users)
Option Heading
Display Language Lets you select the language of the menus in F10 Setup and the keyboard layout.
Scheduled Power-On This feature wakes the system up from a powered o state at a specied date and time.
Boot Options Select the devices that the computer can boot from, as well as other options, including:
● Startup Delay (sec). Enabling this feature will add a user-specied delay to the POST process. One
● Fast Boot. Default is Enabled.
● CD-ROM Boot. Default is Enabled.
● USB Storage Boot. Default is Enabled.
purpose for the delay is to provide additional time to activate hotkeys such as Esc for the Startup
Menu or F10 for Computer Setup.
● Network (PXE) Boot. Default is Enabled.
● After Power Loss. Default is Power O.
■ Power o—Causes the computer to remain powered o when power is restored.
■ Power on—Causes the computer to power on automatically as soon as power is restored.
■ Previous state—Causes the computer to power on automatically as soon as power is restored,
if it was on when power was lost.
NOTE: If the system is congured to Power On from Keyboard Ports (see Power Management
Options), then this setting is forced to Power On’.
● Prompt on Memory Size Change. Default is Enabled.
● Prompt on Fixed Storage Change. Default is Disabled.
● Audio Alerts During Boot. Default is Enabled. When disabled, most audible beeps from errors,
warnings, and password prompts during boot up are suppressed.
● NumLock on at Boot. Default is Disabled.
Computer Setup (F10) Utilities 73
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
● UEFI Boot Order.
Default is Enabled. Specify the order in which UEFI boot sources (such as a internal hard drive, USB
hard drive, USB optical drive, or internal optical drive) are checked for a bootable operating system
image.
UEFI boot sources always have precedence over legacy boot sources.
● Legacy Boot Order
Specify the order in which legacy boot sources (such as a network interface card, internal hard drive,
USB optical drive, or internal optical drive) are checked for a bootable operating system image.
Specify the order of attached hard drives. The rst hard drive in the order will have priority in the
boot sequence and will be recognized as drive C (if any devices are attached).
NOTE: To drag a device to a preferred place, press Enter.
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system has
started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specied in Boot Order, restart the computer
and press Esc (to access the Startup menu) and then F9 (Boot Menu), or only F9 (skipping the Startup
menu) when the power button light turns white. After POST is completed, a list of bootable devices is
displayed. Use the arrow keys to select the preferred bootable device and press Enter. The computer then
boots from the selected non-default device for this one time.
HP Sure Recover HP Sure Recover
When enabled the system rmware honors locate and remote requests to reinstall the operating system.
When disabled all requests to reinstall the operating system are ignored.
Recover from Network
If enabled the system rmware gets the recovery agent from the network. If disabled the system
rmware gets the recovery agent from a local drive.
Recover after Boot Failure
If enabled and no bootable UEFI operating system is found, the system rmware will launch HP Sure
Recover.
Secure Boot
Conguration
Congure Legacy Support and Secure Boot
Lets you turn o all legacy support on the computer, including booting to DOS, running legacy graphics
cards, booting to legacy devices, and so on.
Lets you make sure an operating system is legitimate before booting to it, making Windows resistant to
malicious modication from preboot to full operating system booting, preventing rmware attacks. UEFI
and Windows Secure Boot only allow code signed by pre-approved digital certicates to run during the
rmware and OS boot process.
● Legacy Support Enable and Secure Boot Disable
● Legacy Support Disable and Secure Boot Enable
● Legacy Support Disable and Secure Boot Disable
Default is Legacy Support Disable and Secure Boot Disable.
Secure Boot Key Management
Lets you manage the custom key settings.
Import Custom Secure Boot keys
Default is Disabled.
74 Chapter 5 Computer Setup (F10) Utility
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Clear Secure Boot Keys
Lets you delete any previously loaded custom boot keys. Clearing keys will disable secure boot. Default is
Disabled.
Reset Secure Boot keys to factory defaults
Default is Disabled.
Enable MS UEFI CA key
Disabling this setting alters the Secure Boot key list to further restrict the allowed software
components. Set this option to Disable to support Device Guard.
Ready BIOS for Device Guard Use
Requires BIOS Administrator password to be congured and Secure Boot to be enabled.
System Options Congure storage controller for Intel Optane
Enables the Intel Optane memory module.
Turbo-boost
Default is Enabled.
Hyperthreading
Lets you control processor capability. Default is Enabled.
Multi-processor
Use this option to disable multi-processor support under the operating system. Default is Enabled.
Virtualization Technology (VTx) (Intel only)
Controls the virtualization features of the processor. Changing this setting requires turning the computer
o and then back on. Default is Disabled.
Virtualization Technology for Directed I/O (VTd) (Intel only)
Controls virtualization DMA remapping features of the chipset. Changing this setting requires turning the
computer o and then back on. Default is Disabled.
M.2 SSD1
Lets you disable the M.2 solid-state drive slot. Default is Enabled.
M.2 WLAN/BT
Lets you disable the wireless module slot. Default is Enabled.
M.2 SSD2
Lets you disable the M.2 solid-state drive slot. Default is Enabled.
Allow PCIe/PCI SERR# Interrupt
Allows PCI devices to report PCI/PCIe System Error signals, such as address parity errors, data parity
errors, and critical errors other than parity. Default is Enabled.
Power Button Override
Lets you disable or enable and select the number of seconds you have to hold down the power button for
it to force the system to power o. Default is 4 sec.
USB Type-C Connector System Software Interface (UCSI)
Default is Enabled.
Built-In Device Options Embedded LAN Controller
Computer Setup (F10) Utilities 75
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Select to show the device in the operating system. Default is Enabled.
Wake On LAN
Lets you either disable the Wake On LAN feature, or congure where the computer boots, including the
network or hard drive. Default is Boot to Network.
Video memory size
Use this option to manage graphics memory allocation. The value you choose is allocated permanently to
graphics and is unavailable to the operating system.
Integrated Camera
Clear to disable the integrated camera. Default is Enabled.
Touch Device
Select to show the touch device in the operating system. Default is Enabled.
Audio Device
Select to show the device in the operating system. Default is Enabled.
Microphone
Clear to disable the microphone. This does not aect devices plugged into audio jacks. Default is Enabled.
Internal Speakers (does not aect external speakers)
Clear to disable the chassis speaker or speakers. This function is applicable to normal audio playback in
the operating system and does not aect the error or warning beeps during POST. Default is Enabled.
Headphone Output
Clear to disable the headphone jack. Default is Enabled.
Increase Idle Fan Speed(%)
Sets idle fan speed percentage. This setting only changes the minimum fan speed. The fan is still
automatically controlled.
M.2 USB/Bluetooth
Select to enable the M.2 controller. Default is Enabled.
LAN/WLAN auto switching
Select to enable auto switching between a wired and wireless connection. Default is Disabled.
Wake on WLAN
Select to enable wake on WLAN. Default is Disabled.
Port Options Rear USB ports
Lets you disable the ports. Default is Enabled.
Bottom USB ports
Lets you disable the ports. Default is Enabled.
USB Legacy Port Charging
Lets you enable USB charging port capability when the computer is in hibernate or shutdown mode.
Default is Enabled.
USB Type-C Downstream Charging
Lets you enable USB charging port capability when the computer is in hibernate or shutdown mode.
Default is Enabled.
76 Chapter 5 Computer Setup (F10) Utility
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Media Card Reader
Default is Enabled.
SATA0
Lets you disable the connector. Default is Enabled.
SATA1
Lets you disable the connector. Default is Enabled.
Restrict USB Devices
Specify the following categories of USB devices to enable:
● Allow all USB devices (default)
● Allow only keyboard and mouse
● Allow all but storage devices and hubs.
When some devices are restricted, the system will disable USB ports that do not meet the allowed
criteria. This feature is usually combined with similar policies within the operating system since USB
devices can be moved to dierent ports. The ports disabled by the BIOS will remain disabled until the
system is restarted.
Option ROM Launch
Policy
Power Management
Options
These policies control whether Legacy Option ROMs or UEFI drivers are loaded. Default is All UEFI.
Congure Option ROM Launch Policy
● All legacy
● All UEFI
● All UEFI except video
Runtime Power Management
Allows certain operating systems to reduce processor voltage and frequency when the current software
load does not require the full capabilities of the processor. Default is Enabled.
Extended Idle Power States
Allows certain operating systems to decrease the processors power consumption when the processor is
idle. Default is Enabled.
S5 Maximum Power Savings
Enabling this feature reduces the power of the system as much as possible in the S5 state. Power is
removed from the wake up circuitry, the expansion slots, and any management features while in S5.
Default is Disabled.
SATA Power Management
Enables or disables SATA bus and/or device power management. Default is Enabled.
PCI Express Power Management
Enabling this option permits the PCI Express links to use Active Power State Management (ASPM) to enter
lower power states while not in use. Default is Enabled.
Power On from Keyboard Ports
When enabled, this feature allows a key press to power on the system when it is o (S5 state). If using a
USB keyboard, it must be plugged into one of the rear ports labeled with the keyboard icon. Default is
Disabled.
Unique Sleep State Blink Rates
Computer Setup (F10) Utilities 77
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
This feature is designed to provide a visual indication of what sleep state the system is in. Each sleep
state has a unique blink pattern. Default is Disabled.
NOTE: A normal shutdown goes to the S4 state.
S0 (On) = Solid white LED.
S3 (Stand By) = 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (white LED) — repeated
cycles of 3 blinks and a pause.
S4 (Hibernation) = 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (white LED) —
repeated cycles of 4 blinks and a pause.
S5 (Soft O) = LED is o.
Remote Management
Options
Intel Active Management Engine (ME) (Intel only). Default is Enabled.
Allows you to disable the Intel Management Engine, which disables Intel Active Management Technology
and all underlying Intel ME technologies. This option also disables ME functions that allow for ME
rmware updates.
Intel Active Management Technology (AMT) (Intel only). Default is Enabled.
Allows you to discover, repair, and protect networked computing devices. Disabling AMT does not disable
ME rmware updates.
USB Key Provisioning Support. Default is Disabled.
USB Redirection Support. Default is Enabled.
USB redirection allows USB devices plugged into a client computer to be transparently redirected to the
guest operating system.
Uncongure AMT on next boot. Default is Do Not Apply.
SOL Terminal Emulation Mode. Default is ANSI.
SOL terminal emulation mode is only activated during remote AMT redirection operations. The emulation
options allow administrators to select which mode works best with their console.
Show Uncongure ME Conrmation Prompt. Default is Enabled.
Verbose Boot Messages. Default is Enabled.
Verbose boot shows additional logging information during the boot. mainly for debugging if something
goes wrong during bootup.
Watchdog Timer. Default is Enabled.
Allows you to set amount of time for a operating system and BIOS watchdog alert to be sent if the timers
are not deactivated. BIOS watchdog is deactivated by BIOS and would indicate that a halt occurred during
execution if the alert is sent to the management console. An operating system alert is deactivated by the
operating system image and would indicate that a hang occurred during its initialization.
● OS Watchdog Timer (min). Default is 5 min.
● BIOS Watchdog Timer (min). Default is 5 min.
CIRA Timeout (min)
CIRA is Customer Initiated Remote Assistance, an Intel service to help users employing Active
Management Technology (AMT).
Electronic labels Displays system labels.
78 Chapter 5 Computer Setup (F10) Utility
Recovering the conguration settings
This method of recovery requires that you rst perform the Save to Removable Media command with the
Computer Setup (F10) Utility before Restore is needed. (See Computer Setup–Main on page 67 in the
Computer Setup—File table.)
The Save to Removable Media option creates a le named HPSETUP.TXT on an inserted USB ash media
device. This le can be edited to change the settings on Restore. An asterisk (*) marks the selected option for
a setting.
NOTE: It is recommended that you save any modied computer conguration settings to a USB ash media
device and save the device for possible future use.
To restore the conguration, insert the USB ash media device with the saved conguration and perform the
Restore from Removable Media command with the Computer Setup (F10) Utility. (See Computer Setup–Main
on page 67 in the Computer Setup—File table.)
Recovering the conguration settings 79
6 Using HP PC Hardware Diagnostics
Using HP PC Hardware Diagnostics Windows (select products only)
HP PC Hardware Diagnostics Windows is a Windows-based utility that allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs within the Windows
operating system in order to diagnose hardware failures.
If HP PC Hardware Diagnostics Windows is not installed on your computer, rst you must download and install
it. To download HP PC Hardware Diagnostics Windows, see Downloading HP PC Hardware Diagnostics
Windows on page 80.
After HP PC Hardware Diagnostics Windows is installed, follow these steps to access it from HP Help and
Support or HP Support Assistant.
1. To access HP PC Hardware Diagnostics Windows from HP Help and Support:
a. Select the Start button, and then select HP Help and Support.
b. Select HP PC Hardware Diagnostics Windows.
– or –
To access HP PC Hardware Diagnostics Windows from HP Support Assistant:
a. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Select the question mark icon in the taskbar.
b. Select Troubleshooting and xes.
c. Select Diagnostics, and then select HP PC Hardware Diagnostics Windows.
2. When the tool opens, select the type of diagnostic test you want to run, and then follow the on-screen
instructions.
NOTE: If you need to stop a diagnostic test at any time, select Cancel.
When HP PC Hardware Diagnostics Windows detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. The screen displays one of the following options:
● A Failure ID link is displayed. Select the link and follow the on-screen instructions.
● A Quick Response (QR) code is displayed. With a mobile device, scan the code and then follow the on-
screen instructions.
● Instructions for calling support are displayed. Follow those instructions.
Downloading HP PC Hardware Diagnostics Windows
● The HP PC Hardware Diagnostics Windows download instructions are provided in English only.
● You must use a Windows computer to download this tool because only .exe les are provided.
80 Chapter 6 Using HP PC Hardware Diagnostics
Downloading the latest HP PC Hardware Diagnostics Windows version
To download HP PC Hardware Diagnostics Windows, follow these steps:
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. Select Download HP Diagnostics Windows, and then select a location on your computer or a USB ash
drive.
The tool is downloaded to the selected location.
Downloading HP Hardware Diagnostics Windows by product name or number (select products only)
NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the
product name or number.
To download HP PC Hardware Diagnostics Windows by product name or number, follow these steps:
1. Go to http://www.hp.com/support.
2. Select Get software and drivers, select your type of product, and then enter the product name or
number in the search box that is displayed.
3. In the Diagnostics section, select Download, and then follow the on-screen instructions to select the
specic Windows diagnostics version to be downloaded to your computer or USB ash drive.
The tool is downloaded to the selected location.
Installing HP PC Hardware Diagnostics Windows
To install HP PC Hardware Diagnostics Windows, follow these steps:
▲ Navigate to the folder on your computer or the USB ash drive where the .exe le was downloaded,
double-click the .exe le, and then follow the on-screen instructions.
Using HP PC Hardware Diagnostics UEFI
NOTE: For Windows 10 S computers, you must use a Windows computer and a USB ash drive to download
and create the HP UEFI support environment because only .exe les are provided. For more information, see
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive on page 82.
HP PC Hardware Diagnostics UEFI (Unied Extensible Firmware Interface) allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs outside the operating
system so that it can isolate hardware failures from issues that are caused by the operating system or other
software components.
If your PC will not boot into Windows, you can use HP PC Hardware Diagnostics UEFI to diagnose hardware
issues.
When HP PC Hardware Diagnostics Windows detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. For assistance in solving the problem:
▲ Select Get Support, and then use a mobile device to scan the QR code that displays on the next screen.
The HP Customer Support - Service Center page displays, with your Failure ID and product number
automatically lled in. Follow the on-screen instructions.
– or –
Contact support, and provide the Failure ID code.
Using HP PC Hardware Diagnostics UEFI 81
NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode, and you
must use the attached keyboard.
NOTE: If you need to stop a diagnostic test, press esc.
Starting HP PC Hardware Diagnostics UEFI
To start HP PC Hardware Diagnostics UEFI, follow these steps:
1. Turn on or restart the computer, and quickly press esc.
2. Press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB ash drive
NOTE: To download the HP PC Hardware Diagnostics UEFI tool to a USB ash drive, see
Downloading the latest HP PC Hardware Diagnostics UEFI version on page 82.
b. Hard drive
c. BIOS
3. When the diagnostic tool opens, select a language, select the type of diagnostic test you want to run,
and then follow the on-screen instructions.
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive can be useful in the following situations:
● HP PC Hardware Diagnostics UEFI is not included in the preinstall image.
● HP PC Hardware Diagnostics UEFI is not included in the HP Tool partition.
● The hard drive is damaged.
NOTE: The HP PC Hardware Diagnostics UEFI download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are provided.
Downloading the latest HP PC Hardware Diagnostics UEFI version
To download the latest HP PC Hardware Diagnostics UEFI version to a USB ash drive:
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. Select Download HP Diagnostics UEFI, and then select Run.
Downloading HP PC Hardware Diagnostics UEFI by product name or number (select products only)
NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the
product name or number.
To download HP PC Hardware Diagnostics UEFI by product name or number (select products only) to a USB
ash drive:
82 Chapter 6 Using HP PC Hardware Diagnostics
1. Go to http://www.hp.com/support.
2. Enter the product name or number, select your computer, and then select your operating system.
3. In the Diagnostics section, follow the on-screen instructions to select and download the specic UEFI
Diagnostics version for your computer.
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only)
Remote HP PC Hardware Diagnostics UEFI is a rmware (BIOS) feature that downloads HP PC Hardware
Diagnostics UEFI to your computer. It can then execute the diagnostics on your computer, and it may upload
results to a precongured server. For more information about Remote HP PC Hardware Diagnostics UEFI, go to
http://www.hp.com/go/techcenter/pcdiags, and then select Find out more.
Downloading Remote HP PC Hardware Diagnostics UEFI
NOTE: HP Remote PC Hardware Diagnostics UEFI is also available as a Softpaq that can be downloaded to a
server.
Downloading the latest Remote HP PC Hardware Diagnostics UEFI version
To download the latest Remote HP PC Hardware Diagnostics UEFI version, follow these steps:
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. Select Download Remote Diagnostics, and then select Run.
Downloading Remote HP PC Hardware Diagnostics UEFI by product name or number
NOTE: For some products, it may be necessary to download the software by using the product name or
number.
To download HP Remote PC Hardware Diagnostics UEFI by product name or number, follow these steps:
1. Go to http://www.hp.com/support.
2. Select Get software and drivers, select your type of product, enter the product name or number in the
search box that is displayed, select your computer, and then select your operating system.
3. In the Diagnostics section, follow the on-screen instructions to select and download the Remote UEFI
version for the product.
Customizing Remote HP PC Hardware Diagnostics UEFI settings
Using the Remote HP PC Hardware Diagnostics setting in Computer Setup (BIOS), you can perform the
following customizations:
● Set a schedule for running diagnostics unattended. You can also start diagnostics immediately in
interactive mode by selecting Execute Remote HP PC Hardware Diagnostics.
● Set the location for downloading the diagnostic tools. This feature provides access to the tools from the
HP website or from a server that has been precongured for use. Your computer does not require the
traditional local storage (such as a disk drive or USB ash drive) to run remote diagnostics.
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) 83
● Set a location for storing the test results. You can also set the user name and password settings used for
uploads.
● Display status information about the diagnostics run previously.
To customize Remote HP PC Hardware Diagnostics UEFI settings, follow these steps:
1. Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.
2. Select Advanced, and then select Settings.
3. Make your customization selections.
4. Select Main, and then Save Changes and Exit to save your settings.
Your changes take eect when the computer restarts.
84 Chapter 6 Using HP PC Hardware Diagnostics
7 Troubleshooting without diagnostics
This chapter provides information on how to identify and correct minor problems, such as USB devices, hard
drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems with the
computer, refer to the tables in this chapter for probable causes and recommended solutions.
NOTE: For information on specic error messages that may appear on the screen during Power-On Self-Test
(POST) at startup, refer to POST error messages and diagnostic front panel LEDs and audible codes
on page 106.
Safety and comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment may
result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/ergo for
more information on choosing a workspace and creating a safe and comfortable work environment. For more
information, refer to the Safety & Regulatory Information guide.
Before you call for technical support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the exact
problem before calling for technical support.
● Run the HP diagnostic tool.
● Run the hard drive self-test in Computer Setup. Refer to Computer Setup (F10) Utility on page 65 for
more information.
● Check the Power LED on the front of the computer to see if it is ashing red. The ashing lights are error
codes that will help you diagnose the problem. Refer to POST error messages and diagnostic front panel
LEDs and audible codes on page 106 for more information.
● If you are working on a network, plug another computer with a dierent cable into the network
connection. There may be a problem with the network plug or cable.
● If you recently added new hardware, remove the hardware and see if the computer functions properly.
● If you recently installed new software, uninstall the software and see if the computer functions properly.
● Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When booting
the operating system, use “Last Known Conguration.”
● Refer to the comprehensive online technical support at http://www.hp.com/support.
● Refer to Helpful hints on page 86 in this guide.
Access HP Customer Support Center at https://support.hp.com/us-en for the latest online support
information, software and drivers, proactive notication, and worldwide community of peers and HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following tasks to ensure that
your service call is handled properly:
● Be in front of your computer when you call.
● Write down the computer serial number and product ID number before calling.
Safety and comfort 85
● Spend time troubleshooting the problem with the service technician.
● Remove any hardware that was recently added to your system.
● Remove any software that was recently installed.
● Restore the system from the Recovery Disc Set that you created or restore the system to its original
factory condition in System Software Requirement Disks (SSRD).
IMPORTANT: Restoring the system will erase all data on the hard drive. Be sure to back up all data les
before running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized service provider
or dealer.
Helpful hints
If you encounter problems with the computer or software, see the following list of general suggestions before
taking further action:
● Check that the computer is plugged into a working electrical outlet.
● Check that the computer is turned on and the white power light is on.
● Check the power LED on the front of the computer to see if it is ashing red. The ashing lights are error
codes that will help you diagnose the problem. Refer to POST error messages and diagnostic front panel
LEDs and audible codes on page 106 for more information.
● Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
● Check all cable connections for loose connections or incorrect connections.
● Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for at
least four seconds then press the power button again to restart the computer. If the system will not shut
down, unplug the power cord, wait a few seconds, then plug it in again. The computer will restart if it is
set to power on automatically as soon as power is restored in Computer Setup. If it does not restart,
press the power button to start the computer.
● Be sure that all the needed device drivers have been installed. For example, if you are using a printer,
you need a driver for that model printer.
● Remove all bootable media (such as a USB device) from the system before turning it on.
● If you have installed an operating system other than the factory-installed operating system, check to be
sure that it is supported on the system.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to the
system board. You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
86 Chapter 7 Troubleshooting without diagnostics
Solving general problems
You may be able to easily resolve the general problems described in this section. If a problem persists and you
are unable to resolve it yourself or if you feel uncomfortable about performing the operation, contact an
authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect
the power cord from the AC outlet and allow the internal system components to cool before touching.
Cannot access the Computer Setup (F10) Utility when booting the computer.
Cause Solution
The Computer Setup (F10) Utility is set to “fast boot” causing the
F10 access screen to display too briey when booting the
computer.
Computer appears locked up and will not turn o when the power button is pressed.
Cause Solution
Software control of the power switch is not functional. 1. Press and hold the power button for at least four seconds
Computer will not respond to keyboard or mouse.
Cause Solution
Computer is in Sleep state. To resume from Sleep state, press the power button.
Before turning on the computer, press and hold F10. Turn on the
computer and continue to hold F10 until the Computer Setup
(F10) Utility is displayed.
- or –
Follow the Windows instructions for rebooting the computer into
the Computer Setup (F10) Utility.
until the computer turns o.
2. Disconnect the power cord from the electrical outlet.
IMPORTANT: When attempting to resume from Sleep state, do
not hold down the power button for more than 4 seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
System has locked up. Restart computer.
USB cables may not be seated properly. Disconnect, then reconnect USB cables to keyboard and mouse.
Computer date and time display is incorrect.
Cause Solution
RTC (real-time clock) battery may need to be replaced.
NOTE: Connecting the computer to a live AC outlet prolongs the
life of the RTC battery.
Reset the date and time under Control Panel (Computer Setup
can also be used to update the RTC date and time). If the problem
persists, replace the RTC battery. See the Removal and
Replacement section for instructions on installing a new battery,
or contact an authorized dealer or reseller for RTC battery
replacement.
Solving general problems 87
Computer date and time display is incorrect.
Cause Solution
To access Control Panel in Windows 10, type control panel in
the taskbar search box, and then select Control Panel.
There is no sound or sound volume is too low.
Cause Solution
System volume may be set low or muted. 1. Check the front panel to see if an amber light indicates the
system has been muted. Tap the touch-sensitive button to
toggle the mute on and o.
2. Check the Computer Setup settings to make sure the
internal system speaker is not muted (this setting does not
aect the external speakers).
3. Make sure the external speakers are properly connected and
powered on and that the speakers' volume control is set
correctly.
4. Use the system volume control available in the operating
system to make sure the speakers are not muted or to
increase the volume.
Cannot remove computer cover or access panel.
Cause Solution
Smart Cover Lock, featured on some computers, is locked. Unlock the Smart Cover Lock using Computer Setup.
In case of forgotten password, power loss, or computer
malfunction, you must manually disable the Smart Cover lock . A
key to unlock the Smart Cover Lock is not available from HP. Keys
are typically available from a hardware store.
Poor performance.
Cause Solution
Processor is too hot. 1. Make sure airow to the computer is not blocked. Leave a
10.2-cm (4-inch) clearance on all vented sides of the
computer to permit the required airow.
2. Make sure fans are connected and working properly (some
fans only operate when needed).
3. Make sure the processor heat sink is installed properly.
Hard drive is full. Transfer data from the hard drive to create more space on the
hard drive.
Low on memory. Add more memory.
Hard drive fragmented. Defragment hard drive.
Program previously accessed did not release reserved memory
back to the system.
88 Chapter 7 Troubleshooting without diagnostics
Restart the computer.
Poor performance.
Cause Solution
Virus resident on the hard drive. Run virus protection program.
Too many applications running. 1. Close unnecessary applications to free up memory.
2. Add more memory.
3. Some applications run in the background and can be closed
by right-clicking on their corresponding icons in the task
tray. To prevent these applications from launching at
startup:
In Windows 10:
a. Type msconfig in the taskbar search box, and then
select mscong.
b. On the Startup tab of the System Conguration Utility,
click Open Task Manager.
c. Select applications that you do not want to launch
automatically, and the click Disable.
Some software applications, especially games, are stressful on
the graphics subsystem.
Cause unknown. Restart the computer.
Computer powered o automatically and the Power LED ashes red four times and then white two times.
Cause Solution
Processor thermal protection activated:
A fan may be blocked or not turning.
OR
The heat sink is not properly attached to the processor.
System does not power on and the LEDs on the front of the computer are not ashing.
1. Lower the display resolution for the current application or
consult the documentation that came with the application
for suggestions on how to improve performance by
adjusting parameters in the application.
2. Add more memory.
3. Upgrade the graphics solution.
1. Ensure that the computer air vents are not blocked and the
processor cooling fan is running.
2. Open the access panel, press the power button, and see if
the processor fan (or other system fan) spins. If the fan does
not spin, make sure the fan cable is plugged onto the system
board header.
3. If fan a plugged in and not spinning, replace it.
Cause Solution
System unable to power on. Press and hold the power button for less than 4 seconds. If the
hard drive LED turns white, then:
1. If equipped with a voltage selector, check that the voltage
selector (located on the rear of the power supply) is set to
the appropriate voltage. Proper voltage setting depends on
your region.
Solving general problems 89
System does not power on and the LEDs on the front of the computer are not ashing.
Cause Solution
2. Remove the expansion cards one at a time until the 5V_aux
light on the system board turns on.
3. Replace the system board.
OR
Press and hold the power button for less than 4 seconds. If the
hard drive LED does not turn on white then:
1. Check that the unit is plugged into a working AC outlet.
2. Open the access panel and check that the power button
cable is properly connected to the system board.
3. Check that the power supply cables are properly connected
to the system board.
4. Check to see if the 5V_aux light on the system board is
turned on. If it is turned on, then replace the power button
assembly.
5. If the 5V_aux light on the system board is o, then replace
the power supply.
6. Replace the system board.
Solving power problems
Common causes and solutions for power problems are listed in the following table.
Power supply shuts down intermittently.
Cause Solution
If equipped with a voltage selector, voltage selector switch on
rear of computer chassis (some models) not switched to correct
line voltage (115V or 230V).
Power supply will not turn on because of internal power supply
fault.
Computer powered o automatically and the power LED ashes red two times, once every second, followed by a two-second
pause, and the computer beeps two times. (Beeps stop after fth iteration but LEDs continue ashing.)
Computer powered o automatically and the power LED ashes red four times and then white two times.
Cause Solution
Processor thermal protection activated:
A fan may be blocked or not turning.
OR
The heat sink is not properly attached to the processor.
Select the proper AC voltage using the selector switch.
Replace the power supply.
1. Ensure that the computer air vents are not blocked and the
processor cooling fan is running.
2. Open the access panel, press the power button, and see if
the processor fan (or other system fan) spins. If the fan does
not spin, make sure the fan cable is plugged onto the system
board header.
3. If fan a plugged in and not spinning, replace it.
90 Chapter 7 Troubleshooting without diagnostics
Power LED ashes red four times, once every second, followed by a two-second pause, and the computer beeps four times. (Beeps
stop after fth iteration but LEDs continue ashing.)
Computer powered o automatically and the Power LED ashes red three times and then white four times.
Cause Solution
Power failure (power supply is overloaded). 1. If equipped with a voltage selector, check that the voltage
Solving hard drive problems
selector, located on the rear of the power supply (some
models), is set to the appropriate voltage. Proper voltage
setting depends on your region.
2. Open the access panel and ensure the power supply cable is
seated into the connector on the system board.
3. Check if a device is causing the problem by removing ALL
attached devices (such as hard drives or optical drives and
expansion cards). Power on the system. If the system enters
POST, then power o and replace one device at a time and
repeat this procedure until failure occurs. Replace the device
that is causing the failure. Continue adding devices one at a
time to ensure all devices are functioning properly.
4. Replace the power supply.
5. Replace the system board.
Hard drive error occurs.
Cause Solution
Hard disk has bad sectors or has failed. 1. In Windows 10, type file in the taskbar search box, and
then select File Explorer from the list of applications. In the
left column, expand This PC, right-click on a drive, select
Properties, and then select the Tools tab. Under Error
checking click Check.
2. Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause Solution
Either the directory structure is bad or there is a problem with a
le.
Drive not found (identied).
Cause Solution
In Windows 10, type file in the taskbar search box, and then
select File Explorer from the list of applications. In the left
column, expand This PC, right-click on a drive, select Properties,
and then select the Tools tab. Under Error checking click Check.
Cable could be loose. Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconguration directions in the Solving hardware installation
problems on page 96 section. If the system still does not
Solving hard drive problems 91
Drive not found (identied).
Cause Solution
recognize the new device, check to see if the device is listed within
Computer Setup. If it is listed, the probable cause is a driver
problem. If it is not listed, the probable cause is a hardware
problem.
If this is a newly installed drive, run the Computer Setup utility
and try adding a POST delay under Advanced > Boot Options.
The device is attached to a SATA port that has been hidden in
Computer Setup.
Drive responds slowly immediately after power-up. Run Computer Setup and increase the POST Delay in Advanced >
Nonsystem disk/NTLDR missing message.
Cause Solution
The system is trying to start from the hard drive but the hard
drive may have been damaged.
System les missing or not properly installed. 1. Insert bootable media and restart the computer.
Hard drive boot has been disabled in Computer Setup. Run the Computer Setup utility and enable the hard drive entry in
Bootable hard drive is not attached as rst in a multi-hard drive
conguration.
Run the Computer Setup utility and ensure Device Available is
selected for the device's SATA port in Advanced > Port Options.
Boot Options.
▲ Perform Drive Protection System (DPS) testing in system
ROM.
2. Boot to the windows installation media and select the
recovery option. If only a restore kit is available, then select
the File Backup Program option, and then restore the
system.
3. Install system les for the appropriate operating system.
the Advanced > Boot Options list.
If attempting to boot from a hard drive, ensure it is attached to
the system board dark blue SATA connector.
Bootable hard drive is not listed rst in the Boot Order. Run the Computer Setup utility and select Advanced > Boot
Computer will not boot from hard drive.
Cause Solution
The device is attached to a SATA port that has been hidden in
Computer Setup.
Boot order is not correct. Run the Computer Setup utility and change boot sequence in
Hard drive is damaged. Observe if the front panel Power LED is blinking RED and if any
92 Chapter 7 Troubleshooting without diagnostics
Options and ensure the bootable hard drive is listed immediately
under the Hard Drive entry.
1. Check SATA cable connections.
2. Run the Computer Setup utility and ensure Device Available
is selected for the device's SATA port in Advanced > Port
Options.
Advanced > Boot Options.
beeps are heard. See POST error messages and diagnostic front
panel LEDs and audible codes on page 106 to determine possible
causes for the blinking red and beep codes.
