DatasheetDatasheet
HP EliteDisplay E273d 27-inchHP EliteDisplay E273d 27-inch
Docking MonitorDocking Monitor
Streamlined connectivity for a clean deskStreamlined connectivity for a clean desk
Simplify your desk and get plenty of
room to work with the HP EliteDisplay
E273d 27-inch Docking Monitor. Set
up your devices and network at the
display one time and connect your
notebook through USB-C™ or USB-A.
Command your workspace from one connectionCommand your workspace from one connection
Create a space for your entire notebook fleet to touch down immediately through USB-C™ or USB-A and
access devices and a wired network. This docking display will even power your PC through USB-C™.
Take meetings from your display.Take meetings from your display.
Be a better global citizen with our first display manufactured with ocean-bound plastics to help reduce
waterway pollution. We go one step further with 100% fiber recyclable packaging.
Expand your viewExpand your view
Add a second display daisy-chained through your PC’s USB-C™ connection. 3-sided micro-edge bezels
ensure a virtually seamless view on one or dual displays.
The docking display you can feel good aboutThe docking display you can feel good about
Be a better global citizen with our first display manufactured with ocean-bound plastics to help reduce
waterway pollution. We go one step further with 100% fiber recyclable packaging.
FeaturingFeaturing
Add a second display daisy-chained through your PC’s USB-C™ connection. 3-sided micro-edge bezels
ensure a virtually seamless view on one or dual displays.
Clear your clutter by mounting your HP EliteDesk Mini Desktop PC directly behind the display and powering it
through USB-C™. Or, lift the whole solution and mount it on a wall or arm.
Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently
customize portrait or landscape views on multiple displays.
Filter blue light emission and shift colors to a warmer spectrum for more comfortable viewing with HP Low
Blue Light mode.
Manage your display and make it work for you. HP Display Assistant allows you to quickly resize screen
partitions so you can work in separate regions of the screen and helps deter theft by dimming a display
that’s disconnected without approval.
Rest assured that your IT investment is supported with our three-year standard limited warranty. To extend
your protection, select an optional HP Care service.
1
1
22
2
3
4
Data sheet | HP EliteDisplay E273d 27-inch Docking Monitor
HP EliteDisplay E273d 27-inch Docking Monitor Specifications TableHP EliteDisplay E273d 27-inch Docking Monitor Specifications Table
Display typeDisplay type IPS with LED backlight
Display size (diagonal)Display size (diagonal) 27"
Viewing angleViewing angle 178° horizontal; 178° vertical
BrightnessBrightness 250 cd/m²
Contrast ratioContrast ratio 1000:1 static; 5000000:1 dynamic
Response RatioResponse Ratio 5 ms gray to gray
Product colourProduct colour Silver bezel, Black stand
Aspect ratioAspect ratio 16:9
Native resolutionNative resolution FHD (1920 x 1080 @ 60 Hz)
Resolutions supportedResolutions supported
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1440 x 900; 1600 x 900; 1680 x 1050; 1920 x 1080; 640
x 480; 720 x 400; 800 x 600
Display featuresDisplay features Anti-glare; LED backlights; On-screen controls; Plug and Play
User controlsUser controls
Brightness; Color control; Contrast; Exit; Image control; Information; Management; Power control; Input
control; Menu control; USB host selection
Input signalInput signal
1 HDMI 1.4 (with HDCP support); 1 VGA; 1 USB Type-C™ (Alternative mode DisplayPort™ 1.2, power delivery
up to 65 W); 1 USB (by DisplayLink)
Ports and ConnectorsPorts and Connectors
1 audio (in/out); 1 audio-in; 1 RJ-45; 1 DisplayPort™ 1.2 (output); 6 USB 3.1 (4 downstream, power delivery up
to 7.5 W, 1 DisplayLink, 1 Type-C™ upstream)
CameraCamera 720p integrated HD with dual array microphone and LED
EnvironmentalEnvironmental Operating temperature: 5 to 35°C; Operating humidity: 20 to 80% non-condensing
PowerPower Input voltage 100 to 240 VAC
Power consumptionPower consumption 170 W (maximum), 40 W (typical), 0.5 W (standby)
DimensionsDimensions 61.09 x 4.63 x 36.3 cm (Without stand.)
WeightWeight 7.52 kg (With stand.)
Ergonomic featuresErgonomic features Swivel: ±45°; Tilt: -5 to +20°; Pivot rotation: 90°
Physical security featuresPhysical security features Security lock-ready
Certification and complianceCertification and compliance
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CEL; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB;
TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC
Environmental specificationsEnvironmental specifications Arsenic-free display glass; Low halogen; Mercury-free display backlights
What's in the boxWhat's in the box
AC power cord; HDMI cable; USB Type-C™ cable; USB Type-A to B cable; DC jack dongle; External power
supplier; QSP; Product notice
WarrantyWarranty 3 year limited warranty including 3 year of parts and labour. Certain restrictions and exclusions apply.
1
1
1
1
3
2
Data sheet | HP EliteDisplay E273d 27-inch Docking Monitor
HP EliteDisplay E273d 27-inch Docking MonitorHP EliteDisplay E273d 27-inch Docking Monitor

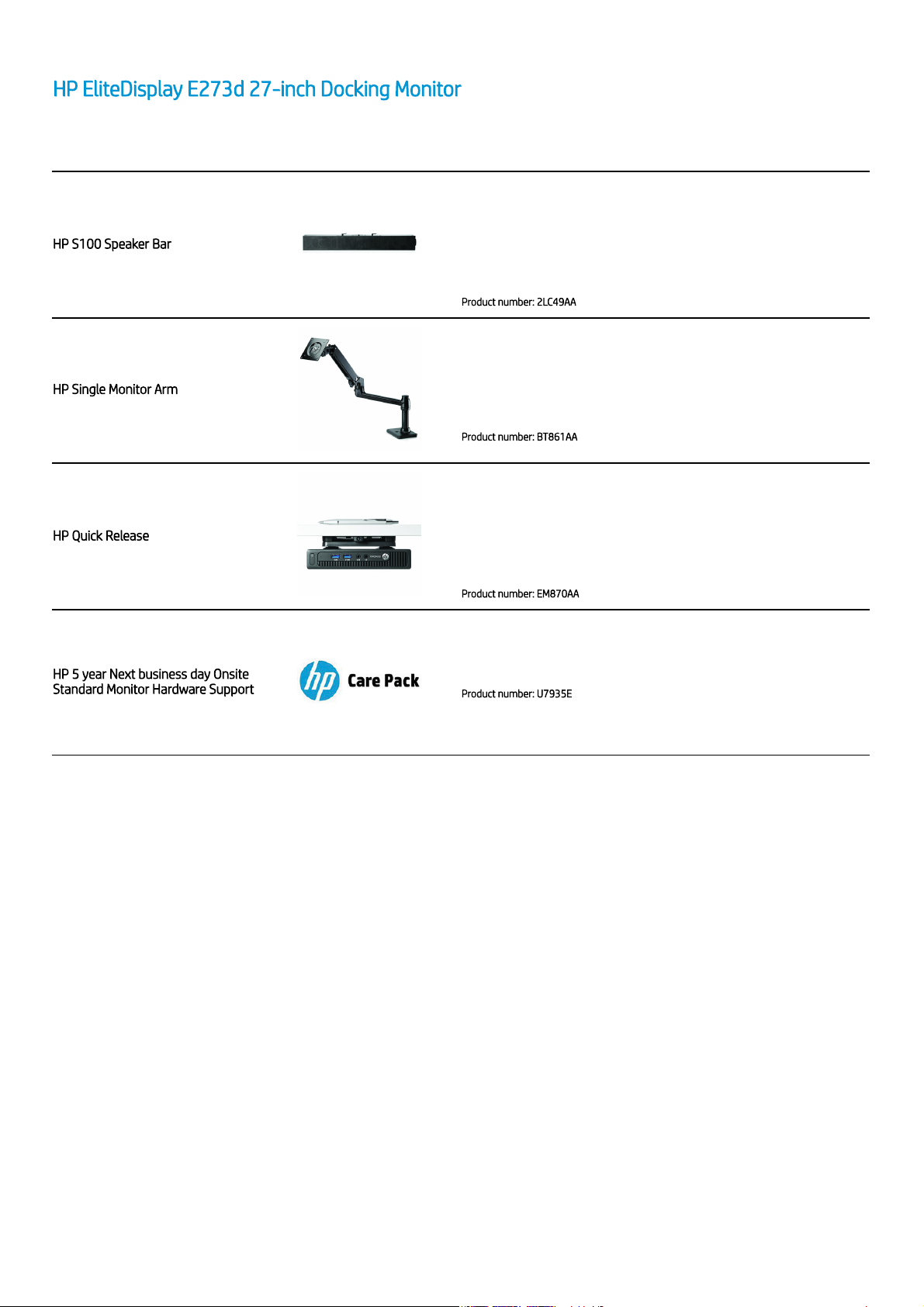

Accessories and services (not included)
HP S100 Speaker BarHP S100 Speaker Bar
Add rich stereo audio to select 2017 and 2018 HP ProDisplays, HP EliteDisplays, and HP Z
Displays without crowding your desk with the HP S100 Speaker Bar, which fits neatly
underneath the display head and connects through USB. Add rich stereo audio to select 2017
and 2018 HP ProDisplays, HP EliteDisplays, and HP Z Displays without crowding your desk
with the HP S100 Speaker Bar, which fits neatly underneath the display head and connects
through USB. CRT and TFT monitors designed to deliver picture perfection to the most
demanding of users. HP works closely with many component and monitor suppliers to ensure
every model meets user needs for image brightness, contrast, focus, purity, convergence and
geometry. All HP Business monitors are compliant with the main environmental standards,
such as MPR-II, TCO '99.
Product number: 2LC49AAProduct number: 2LC49AA
HP Single Monitor ArmHP Single Monitor Arm
The HP Single Monitor Arm is the perfect desk accessory for your work life. Sleek and
streamlined, the HP Single Monitor Arm is designed to complement the way you work. Users
who require superior comfort and connectivity for logging serious time in front of their
displays. CRT and TFT monitors designed to deliver picture perfection to the most demanding
of users. HP works closely with many component and monitor suppliers to ensure every
model meets user needs for image brightness, contrast, focus, purity, convergence and
geometry. All HP Business monitors are compliant with the main environmental standards,
such as MPR-II, TCO '99.
Product number: BT861AAProduct number: BT861AA
HP Quick ReleaseHP Quick Release
A secure and easy-to-use mounting solution for your VESA-compliant HP thin clients,
compatible HP flat panel monitors and other HP desktop products. Attach to any a compatible
stand, bracket or wall mount and make the most of your workspace. A secure and easy-to-use
mounting solution for your VESA-compliant HP thin clients, compatible HP flat panel monitors
and other HP desktop products. Attach to any a compatible stand, bracket or wall mount and
make the most of your workspace. CRT and TFT monitors designed to deliver picture
perfection to the most demanding of users. HP works closely with many component and
monitor suppliers to ensure every model meets user needs for image brightness, contrast,
focus, purity, convergence and geometry. All HP Business monitors are compliant with the
main environmental standards, such as MPR-II, TCO '99.
Product number: EM870AAProduct number: EM870AA
HP 5 year Next business day OnsiteHP 5 year Next business day Onsite
Standard Monitor Hardware SupportStandard Monitor Hardware Support
Receive 5 years of next business day onsite HW Support from an HP-qualified technician for
your computing device, if the issue cannot be solved remotely.
Product number: U7935EProduct number: U7935E
1
1
Data sheet | HP EliteDisplay E273d 27-inch Docking Monitor
HP EliteDisplay E273d 27-inch Docking MonitorHP EliteDisplay E273d 27-inch Docking Monitor
Messaging FootnotesMessaging Footnotes
Video over USB-C™ requires a PC with USB-C™ DisplayPort™ Alt mode or Thunderbolt™. Power delivery over USB-C™ up to 65 Watts. Refer to Power Output in product QuickSpecs for exact specifications, PC must be compatible with the
display's power output.
Internet access required and sold separately.
Additional display sold separately. Source PC must have a USB-C™ or USB-A connector. PC connection to the display through USB-C™ is only supported up to 65 Watts power delivery. USB-A connection requires source PC to support
DisplayLink. Not compatible over DisplayPort™, VGA or HDMI connections.
Display contains 5% ocean bound plastics, the equivalent of more than three 16 oz. recycled plastic water bottles.
Additional display sold separately. Source PC must have a USB-C™ or USB-A connector. PC connection to the display through USB-C™ is only supported up to 65 Watts power delivery. USB-A connection requires source PC to support
DisplayLink. Not compatible over DisplayPort™, VGA or HDMI connections.
HP EliteDesk Mini Desktop PC sold separately. Requires HP B300 PC Mounting Bracket for Monitors, sold separately
Mounting hardware sold separately.
Each accessory sold separately.
HP Care Packs sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
www.hp.com/go/cpc. HP Services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws,
and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
Technical Specifications FootnotesTechnical Specifications Footnotes
All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
Lock is sold separately.
Sign up for updatesSign up for updates hp.com/go/getupdatedhp.com/go/getupdated
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other
countries. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.
July 2019
