ProLiant 3000 Servers
Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Second Edition (January 1999)
Part Number 179776-002
Compaq Computer Corporation
Notice
The information in this publication is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR
EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR
USE OF THIS MATERIAL. THIS INFORMATION IS PROVIDED “AS IS” AND COMPAQ
COMPUTER CORPORATION DISCLAIMS ANY WARRANTIES, EXPRESS, IMPLIED OR
STATUTORY AND EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE AND AGAINST
INFRINGEMENT.
This publication contains information protected by copyright. No part of this publication may be
photocopied or reproduced in any form without prior written consent from Compaq Computer
Corporation.
1999 Compaq Computer Corporation.
All rights reserved. Printed in the U.S.A.
The software described in this guide is furnished under a license agreement or nondisclosure agreement.
The software may be used or copied only in accordance with the terms of the agreement.
Compaq, Deskpro, Fastart, Compaq Insight Manager, Systempro, Systempro/LT, ProLiant, ROMPaq,
QVision, SmartStart, NetFlex, QuickFind, PaqFax, ProSignia, registered United States Patent and
Trademark Office.
Netelligent, Systempro/XL, SoftPaq, QuickBlank, QuickLock are trademarks and/or service marks of
Compaq Computer Corporation.
Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
Other product names mentioned herein may be trademarks and/or registered trademarks of their
respective companies.
Compaq ProLiant 3000 Servers Setup and Installation Guide for use with 350-MHz or greater Intel
processor-based servers only
Second Edition (January 1999)
Part Number 179776-002
Contents
About This Guide
Text Conventions........................................................................................................................ix
Symbols in Text...........................................................................................................................x
Symbols on Equipment................................................................................................................x
Rack Stability .............................................................................................................................xi
Getting Help ..............................................................................................................................xii
Compaq Website ................................................................................................................xii
Telephone Numbers ...........................................................................................................xii
Chapter 1
Compaq ProLiant 3000 Server Features
System Features....................................................................................................................... 1-1
Processor .......................................................................................................................... 1-1
Cache Memory and System Architecture......................................................................... 1-2
System Memory ............................................................................................................... 1-2
Expansion Slots................................................................................................................ 1-2
Expansion Boards............................................................................................................. 1-2
Media Bays....................................................................................................................... 1-3
Keyboard.......................................................................................................................... 1-3
Video................................................................................................................................ 1-3
SCSI ................................................................................................................................. 1-4
High-Availability Features............................................................................................... 1-4
System Management ........................................................................................................ 1-5
ROM................................................................................................................................. 1-5
Fans .................................................................................................................................. 1-5
Power Supply ................................................................................................................... 1-5
Warranty........................................................................................................................... 1-6
Management and Configuration Tools.................................................................................... 1-6
SmartStart......................................................................................................................... 1-6
Disk Drive Fault Tolerance.............................................................................................. 1-7
Compaq Insight Manager................................................................................................. 1-7
Automatic Server Recovery-2 (ASR2)............................................................................. 1-8
iii
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
iv
Compaq ProLiant 3000 Server Features
Security Features ..................................................................................................................... 1-8
Compaq Integrated Remote Console................................................................................ 1-9
Compaq Integrated Management Display (Optional on Tower Models) ......................... 1-9
Supported Drive Configurations.............................................................................................1-10
continued
Chapter 2
Installation Overview
Server Warnings and Precautions............................................................................................ 2-2
Pre-installation Planning.......................................................................................................... 2-3
Power Requirements......................................................................................................... 2-3
Grounding......................................................................................................................... 2-4
Server Temperature Requirements................................................................................... 2-4
Installation Procedure.............................................................................................................. 2-5
Installing a Rack-Mount Model........................................................................................ 2-5
Installing a Tower Model ................................................................................................. 2-6
Chapter 3
Rack-Mountable Server Installation
Rack Warnings and Precautions.............................................................................................. 3-3
Rack Temperature Requirements ............................................................................................ 3-5
Airflow Requirements ............................................................................................................. 3-6
Unpacking the Server .............................................................................................................. 3-7
Locating Materials and Documentation ........................................................................... 3-7
Preparing the Mounting Brackets and Slide Rail Assemblies ................................................3-10
Attaching the Bracket Rail to the Mounting Bracket .....................................................3-11
Attaching the Mounting Bracket Slide Assembly to the Rack........................................3-16
Measuring with the Template..........................................................................................3-16

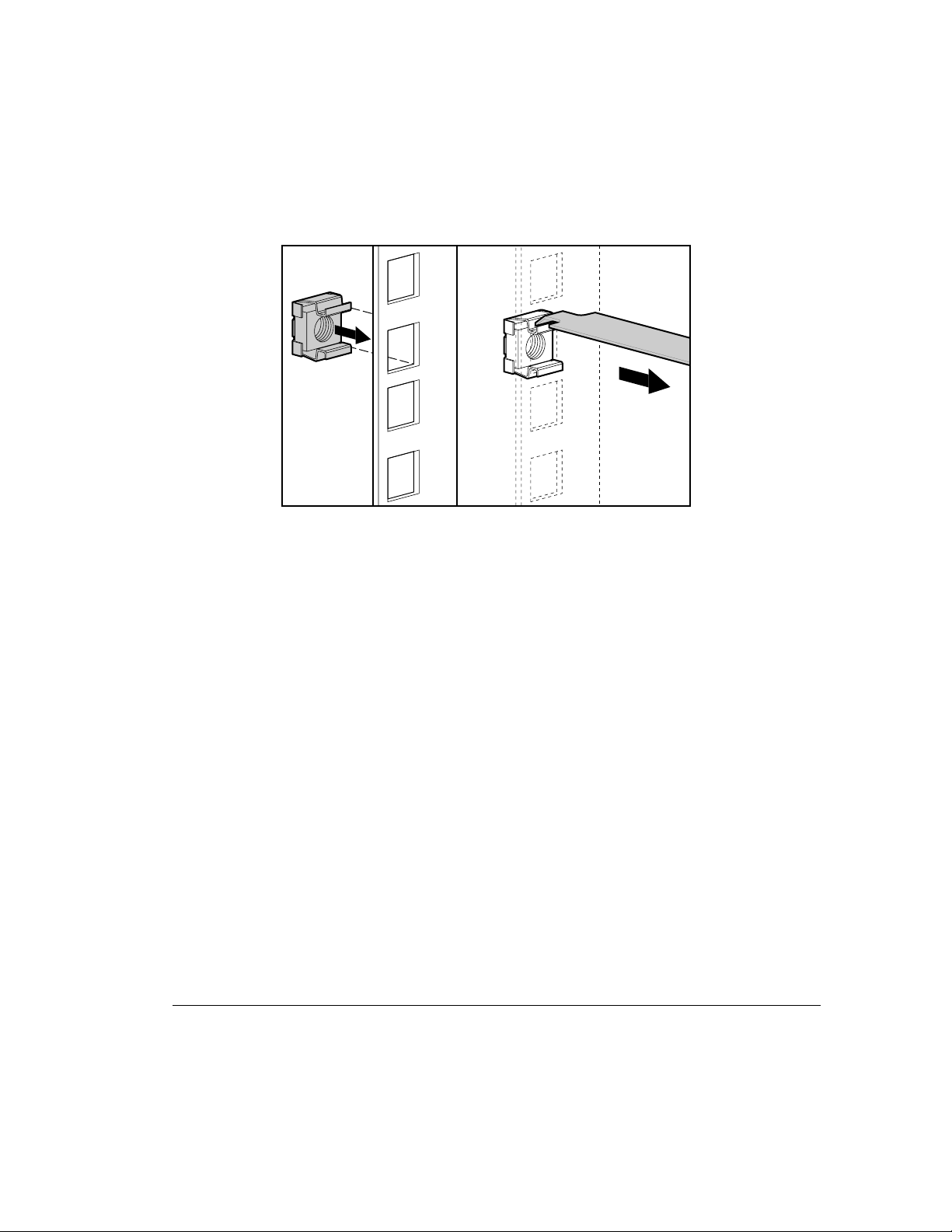

Inserting Cage Nuts in the Rack Frame...........................................................................3-18
Attaching the Mounting Bracket Assembly to the Rack .................................................3-19
Attaching Component Rails to the Server.......................................................................3-22
Attaching the Cable Management Arm Bracket.....................................................................3-23
Loading the Rack Server ........................................................................................................3-24
Attaching the Cable Management Arm..................................................................................3-26
Attaching the Optional Cable Support....................................................................................3-28
Optional Installation Service ..................................................................................................3-29
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Chapter 4
Installing Hardware Options
Preparing the Server ................................................................................................................ 4-2
Accessing Non Hot-Plug Areas............................................................................................... 4-5
Accessing System Board Components............................................................................. 4-5
Installing Processor .......................................................................................................... 4-8
Installing DIMM Memory...............................................................................................4-10
Installing PCI/ISA Expansion Boards.............................................................................4-12
Installing Fans .................................................................................................................4-13
Accessing Drive Cage and Media Bays ..........................................................................4-14
Installing Integrated Management Display......................................................................4-21
Accessing Hot-Plug Areas......................................................................................................4-23
Removing and Installing the Hot-Plug SCSI Drives.......................................................4-23
SCSI ID Numbers............................................................................................................4-25
Accessing the Hot-Plug Power Supplies .........................................................................4-28
Pre-Failure Warranty..............................................................................................................4-29
Compaq Insight Manager Alert.......................................................................................4-29
Chapter 5
Server Configuration and Utilities
Configuring the Server with SmartStart .................................................................................. 5-1
Using the System Configuration Utility.................................................................................. 5-3
Resolving Resource Conflicts.................................................................................................. 5-4
Starting the System Configuration Utility............................................................................... 5-5
System Configuration Utility Main Menu............................................................................... 5-6
System Configuration Menu............................................................................................. 5-6
System Partition ............................................................................................................... 5-8
Creating a New System Partition ..................................................................................... 5-9
Verifying the System Partition........................................................................................5-10
Upgrading the System Partition.......................................................................................5-10
Configuration Backup.............................................................................................................5-11
Configuration Backup and Configuration History Files..................................................5-11
Configuring PCI Boards Automatically .................................................................................5-13
Removing Boards...................................................................................................................5-13
Installing an Operating System...............................................................................................5-13
SMP Operating System Support......................................................................................5-14
v
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
vi
Server Configuration and Utilities
Loading Compaq Device Drivers...........................................................................................5-15
Novell NetWare Device Drivers from Compaq ..............................................................5-15
Microsoft Windows NT Device Drivers from Compaq ..................................................5-16
SCO OpenServer and SCO UnixWare Device Drivers from Compaq............................5-17
IBM OS/2 Device Drivers from Compaq........................................................................5-18
Banyan VINES Device Drivers from Compaq................................................................5-19
Diagnostics and Other Utilities...............................................................................................5-20
continued
Chapter 6
Integrated Management
Integrated Management Display (Optional on Tower Models)............................................... 6-1
Normal Run-time Behavior.............................................................................................. 6-1
Navigation Buttons ........................................................................................................... 6-3
Display Symbols............................................................................................................... 6-4
System Behavior with Error Events ................................................................................. 6-5
Menu Structure................................................................................................................. 6-6
Integrated Management Log.................................................................................................... 6-7
Multiple Ways of Viewing the Log.................................................................................. 6-8
List of Events...................................................................................................................6-11
Appendix A
Regulatory Compliance Notices
Regulatory Compliance Identification Numbers.....................................................................A-1
Federal Communications Commission Notice........................................................................A-1
Class A Equipment...........................................................................................................A-2
Class B Equipment...........................................................................................................A-2
Modifications....................................................................................................................A-3
Cables...............................................................................................................................A-4
Canadian Notice (Avis Canadien)...........................................................................................A-4
Class A Equipment...........................................................................................................A-4
Class B Equipment...........................................................................................................A-4
European Union Notice...........................................................................................................A-4
Japanese Notice .......................................................................................................................A-5
Taiwanese Notice ....................................................................................................................A-5
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
vii
Regulatory Compliance Notices
Laser Devices ..........................................................................................................................A-6
Laser Safety Warnings .....................................................................................................A-6
Compliance with CDRH Regulations ..............................................................................A-6
Compliance with International Regulations .....................................................................A-6
Laser Product Label..........................................................................................................A-7
Laser Information.............................................................................................................A-7
Battery Replacement Notice....................................................................................................A-8
Mouse Compliance Statement.................................................................................................A-8
Regulatory Compliance Label Location..................................................................................A-9
continued
Appendix B
Power Cord Set Requirements
General Requirements .............................................................................................................B-1
Appendix C
Internal CD-ROM Drive
Index
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
viii About This Guide
About This Guide
This guide is designed to be used as step-by-step instructions for installation,
and as a reference for operation, troubleshooting, and future upgrades.
The power supplies in this computer system produce hazardous energy levels.
The guide is for the person who installs, administers, and repairs servers.
Compaq assumes you are qualified in the servicing of computer equipment and
trained in recognizing hazards in products with hazardous energy levels
WARNING: There is a risk of personal injury from hazardous
energy levels. The installation of options and routine maintenance
and service of this product shall be performed by individuals who
are knowledgeable about the procedures, precautions, and
hazards associated with equipment containing hazardous energy
circuits.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Text Conventions
This document uses the following conventions to distinguish elements of text:
Keys Keys appear in boldface. A plus sign (+) between two
USER INPUT User input appears in a different typeface and in
FILENAMES File names appear in uppercase italics.
ix
keys indicates that they should be pressed
simultaneously.
uppercase.
Menu Options,
These appear in initial capital letters.
Command Names,
Dialog Box Names
COMMANDS,
These always appear in uppercase.
DIRECTORY
NAMES, and DRIVE
NAMES
Type When you are instructed to type information, type the
information without pressing the Enter key.
Enter When you are instructed to enter information, type the
information and then press the Enter key.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
x About This Guide
Symbols in Text
These symbols may be found in the text of this guide. They have the following
meanings.
IMPORTANT: Presents clarifying information or specific instructions.
NOTE: Presents commentary, sidelights, or interesting points of information.
Symbols on Equipment
These icons may be located on equipment in areas where hazardous conditions
may exist.
WARNING: Indicates that failure to follow directions in the
warning could result in bodily harm or loss of life.
CAUTION: Indicates that failure to follow directions could result
in damage to equipment or loss of information.
Any surface or area of the equipment marked with these
symbols indicates the presence of electrical shock hazards.
Enclosed area contains no operator serviceable parts.
WARNING: To reduce the risk of injury from electrical shock
hazards, do not open this enclosure.
Any RJ-45 receptacle marked with these symbols indicates a
Network Interface Connection.
WARNING: To reduce the risk of electrical shock, fire, or
damage to the equipment, do not plug telephone or
telecommunications connectors into this receptacle.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack Stability
xi
Any surface or area of the equipment marked with these
symbols indicates the presence of a hot surface or hot
component. If this surface is contacted, the potential for injury
exists.
WARNING: To reduce the risk of injury from a hot
component, allow the surface to cool before touching.
Power Supplies or Systems marked with these symbols
indicate the equipment is supplied by multiple sources of
power.
WARNING: To reduce the risk of injury from electrical
shock, remove all power cords to completely disconnect
power from the system.
WARNING: To reduce the risk of personal injury or damage to
the equipment, be sure that:
■ The leveling jacks are extended to the floor.
■ The full weight of the rack rests on the leveling jacks.
■ The stabilizing feet are attached to the rack if it is a single
rack installations.
■ The racks are coupled together in multiple rack installations.
■ A rack may become unstable if more than one component is
extended for any reason. Extend only one component at a
time.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
xii About This Guide
Getting Help
If you have a problem and have exhausted the information in this guide, you
can get further information and other help in the following locations.
Compaq Website
The Compaq website has information on this product as well as the latest
drivers and Flash ROM images. You can access the Compaq website by
logging on to the Internet at http://www.compaq.com.
Telephone Numbers
For the name of your nearest Compaq Authorized Reseller:
In the United States, call 1-800-345-1518
In Canada, call 1-800-263-5868
For Compaq technical support:
In the United States and Canada, call 1-800-386-2172
For Compaq technical support phone numbers outside the United States and
Canada, visit the Compaq website at:
www.compaq.com
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: A-FRNT.DOC Last Saved On: 1/12/99 3:01 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Chapter 1
Compaq ProLiant 3000 Server
Features
Compaq ProLiant 3000 servers deliver Intel processor technology, expanded
storage capacity, dual memory controllers, dual peer PCI buses, and advanced
high-availability features.
Performance is maximized with up to two Intel processors, a new system
architecture that improves overall system bandwidth, and up to 4 GB of
registered SDRAM Error Checking and Correction (ECC) memory.
Input/output performance is enhanced by features such as Wide-Ultra SCSI-3
hard drives and an optional Wide Ultra2 SCSI drive cage package.
Compaq ProLiant 3000 servers provide reliability and high-availability
features, including redundant hot-pluggable power supplies, hot-pluggable
Wide-Ultra drives, optional redundant fans, and support for the Smart Array
family of controllers.
System Features
1-1
Processor
The following system features are on all Compaq ProLiant 3000 models, unless
otherwise noted.
■ Support for up to two 400-MHz or greater Intel processors with
corresponding Processor Power Modules, and 512-K cache
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq ProLiant 3000 Server Features
1-2
Cache Memory and System Architecture
■ 512-KB secondary (L2) cache
■ Highly parallel System Architecture with Dual Memory controllers and
dual peer PCI buses
System Memory
■ Supports registered SDRAM, 60-ns or faster, 32-, 64-, 128-, 256-, or
512-MB DIMMs
■ Expandable to 4 GB
■ Supports up to 8 memory DIMM modules, each DIMM socket supporting
one DIMM module. One module is installed or removed at a time.
Expansion Slots
Eight I/O expansion slots:
■ Five dedicated PCI slots
■ Three shared PCI/ISA slots
Expansion Boards
■ Compaq Netelligent 10/100 TX PCI UTP Controller pre-installed in a
PCI slot
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Media Bays
Keyboard
The Compaq ProLiant 3000 server can house up to 12 mass storage devices.
■ Hot-Plug Drives
❏ Seven 1-inch drives or six 1.6-inch drives (Standard)
❏ Eight 1-inch drives or six 1.6-inch drives with optional Duplex
Drive cage
❏ Ten 1-inch Ultra2 drives with optional Ultra2 simplex drive cage
: An Ultra2-compatible array controller must be used with the Ultra2
NOTE
simplex drive cage option. Connecting the Ultra2 simplex drive cage to the
integrated SCSI ports is not supported.
■ Preinstalled IDE CD-ROM drive
■ Two additional half-height drive bays (removable media area)
■ Preinstalled 3 ½”, 1.44-MB diskette drive
1-3
Video
The keyboard connector is hot-pluggable. Any standard keyboard can be
plugged in without powering down the system or causing keyboard errors.
■ Integrated PCI Video Controller provides maximum resolution of
1024 x 768, 256 color, non-interlaced
■ 16 to 16.7 million colors, depending on graphics mode. 1-MB video
SGRAM standard
■ Supports SVGA, VGA, and EGA graphics resolution
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq ProLiant 3000 Server Features
1-4
SCSI
■ Dual Channel Integrated Wide-Ultra SCSI-3 controller
■ The following optional controller boards are currently supported for
controller duplexing or expanding storage capacity (see
http://www.compaq.com
❏ Wide-Ultra SCSI-3 Controller
❏ SMART-2 Array Controller
❏ SMART-2DH Array Controller
❏ SMART-2SL Array Controller
❏ Smart Array 221 Controller
❏ Smart Array 3200 Controller
High-Availability Features
■ Hot-Plug SCSI drive bays
■ Hot-Plug Power Supplies
for updates on device support
)
■ Wide-Ultra SCSI controllers
■ Optional Hot-Plug Redundant Power supplies
■ Optional redundant NIC and SCSI controllers
■ Optional redundant fans
■ Optional RAID support with Smart Array family controllers
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
System Management
■ The Server Parameter Tracking utility provides timely server
environment and subsystem information by using a combination of
hardware, firmware, and industry-standard management software.
Information provided by this utility includes fault, performance, and
configuration status.
■ The Server Fault Tolerance feature provides many disk subsystem and
memory system error correction fault-tolerance options.
■ The Rapid Recovery Services provide fast identification and resolution
of complex faults. Highlights of this integrated server management
feature include: Integrated Management Logs, Automatic Server
Recovery- 2 (ASR-2), and Compaq Integrated Remote Console.
■ Integrated Management Display (IMD), optional on tower models,
offers a text-based user interface. The IMD displays and stores key
system events at the server so that critical information is at your
fingertips.
■ Integrated Management Log (IML) provides a detailed log of key
system events. This log is accessible through Compaq Insight Manager,
the Remote Insight board, the Compaq Survey Utility, the Compaq IML
Management Utility, and the IMD.
1-5
ROM
■ Software upgradable firmware, including diagnostics
■ ROMPaq Utility used to upgrade ROM
Fans
■ Standard: Two 120-mm fans and one 92-mm CPU auxiliary fan
■ Optional: Two 120-mm redundant fans
Power Supply
■ Standard: One hot-plug power supply: 500-W at 110V, 700-W at 220V
■ Optional: One hot-plug power supply: 500-W at 110V, 700-W at 220V
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq ProLiant 3000 Server Features
1-6
Warranty
■ Pre-Failure Warranty on processors, memory, hard drives, and power
supplies
■ 3-year next business day parts and labor coverage
Management and Configuration Tools
Compaq offers an extensive set of features and optional tools to support
effective server management and configuration. These features, described in
detail here, are:
■ SmartStart
■ Fault Tolerance
■ Compaq Insight Manager
■ Automatic Server Recovery-2 (ASR-2)
■ Integrated Management Display (IMD), optional on tower models
■ Integrated Management Log
SmartStart
■ Integrated Remote Console (IRC)
SmartStart is the intelligent way to configure your Compaq server with major
operating system software. SmartStart helps you achieve a well-integrated
server that ensures maximum dependability and supportability. For further
information about configuration, see Chapter 5, “Server Configuration and
Utilities.”
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Disk Drive Fault Tolerance
Disk drive fault tolerance for Compaq servers is covered in more detail in the
Compaq Server Online Reference Guide on the Systems Reference Library
(SRL) CD. The following Redundant Array of Inexpensive Disks (RAID) types
are supported:
■ RAID 0 - no fault tolerance
■ RAID 1 - mirroring
■ RAID 4 - data guarding
■ RAID 5 - distributed data guarding
Compaq Insight Manager
Compaq Insight Manager is an easy-to-use utility for collecting server
information. This information is used by Insight Manager to perform the
following functions:
■ Sends fault condition alerts to a predetermined destination
■ Monitors fault conditions and server performance
1-7
■ Controls server security and configuration
■ Remotely controls servers
■ Initiates rapid recovery services
■ Web browser access for monitoring of management information
In Compaq servers, every hardware subsystem, such as disk storage, system
memory, and system processor, has a robust set of management capabilities.
Compaq Full-Spectrum Fault Management prevents faults before they happen,
keeps the system up and running in the unlikely event of a failure, and delivers
rapid server recovery to normal operation after a fault. See Chapter 5, “Server
Configuration and Utilities,” for more information.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq ProLiant 3000 Server Features
1-8
Automatic Server Recovery-2 (ASR2)
If there is a critical system failure, Automatic Server Recovery-2 allows you to
restart the server and page a designated system administrator. For more
information, see the Compaq Server Online Reference Guide on the Systems
Reference Library CD (SRL).
Security Features
■ Power-On Password
■ Administrator Password
■ Network Server Mode
■ Diskette Boot Control
■ Power Switch Disable (operating system dependent)
■ Serial/Parallel Interface Control
■ Remote Access Password
Refer to the Compaq Server Online Reference Guide on the Systems Reference
Library (SRL) CD for more information on these security features.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq Integrated Remote Console
When the Compaq ProLiant 3000 server is equipped with an optional supported
modem, you can perform a wide range of configuration activities using the
standard Compaq Integrated Remote Console (IRC). Some of the IRC features
include:
■ Accessible using ANSI terminal
■ Operates independently of the operating system
■ Provides for remote server reboot
■ Provides access to system configuration
■ Uses out-of-band communication with dedicated management modem
installed in the server
For more information about the IRC, see the Integrated Remote Console User
Guide shipped with the server.
Compaq Integrated Management Display (Optional on Tower Models)
1-9
The Integrated Management Display (IMD) is an LCD display panel that assists
you in diagnosing and servicing the server without using a keyboard and
monitor.
The features of the Integrated Management Display include:
■ Flexibility - The Integrated Management Display rotates to support both
tower and rack configurations.
■ Manageability - Typical service and administrative information
displayed includes:
❏ POST (Power-On Self-Test) messages
❏ User-defined administrative information
❏ POST and run-time error events
❏ System information
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Compaq ProLiant 3000 Server Features
1-10
■ Ease of Use - The Integrated Management Display provides a 16x4
character display and four button control panel to easily navigate
through menus.
For information about using the IMD, see Chapter 6.
Supported Drive Configurations
Standard server configurations can include as many as seven Smart Array
family controllers. Each Smart Array controller can support two Compaq
ProLiant Storage Systems or one Compaq ProLiant Storage System and up to
ten 1-inch internal, hot-pluggable Ultra2 hard drives with the Ultra2 simplex
drive cage.
A maximum practical SCSI configuration, optimizing performance and storage,
would include the following:
■ One network interface controller (NIC)
■ Seven Smart Array Controllers
■ Fourteen Compaq ProLiant Storage Systems
■ One hundred and five 18-GB drives
This configuration would yield a total storage capacity of 1890 GB.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: B-CH01.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Chapter 2
Installation Overview
This chapter presents an overview of the installation and configuration
procedure for Compaq ProLiant 3000 servers. For detailed discussions of rack
installation, hardware option installation, and configuration, see the
corresponding chapters in this guide. Topics in this chapter include:
■ Server Warnings and Precautions - This section presents the
precautions and warnings necessary to ensure safe installation of your
server.
■ Pre-installation Planning - This section discusses the power,
grounding, and temperature requirements of the Compaq ProLiant 3000
server.
■ Installation Procedure - This section is a summary of the steps you
will follow to install your Compaq ProLiant 3000 server.
2-1
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installation Overview
2-2
Server Warnings and Precautions
WARNING:
To reduce the risk of personal injury from hot
surfaces, allow the hot plug drives and internal system
components to cool before touching.
WARNING:
To reduce the risk of electric shock or damage to
the equipment:
Do not disable the power cord grounding plug. The
■
grounding plug is an important safety feature.
Plug the power cord into a grounded electrical outlet that
■
is easily accessible at all times.
Install the power supply before connecting the power cord
■
to the power supply.
Unplug the power cord before removing the power supply
■
from the server.
If the system has multiple power supplies, disconnect
■
power from the system by unplugging all power cords
from the power supplies
CAUTION:
Protect the server from power fluctuations and
temporary interruptions with a regulating uninterruptible power
supply (UPS). This device protects the hardware from damage
caused by power surges and voltage spikes and keeps the
system in operation during a power failure.
CAUTION:
The Compaq ProLiant Server must always be
operated with the system unit cover on. Proper cooling will not
be achieved if the system unit cover is removed.
IMPORTANT:
Because of the 100 to 120 VAC electrical rating of each
power supply, some local electrical authorities may require either one
15-Ampere circuit for each power supply or one 20-Ampere circuit for
each pair of power supplies.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Pre-installation Planning
This section discusses the power, grounding, and temperature requirements of
the Compaq ProLiant 3000 server.
Power Requirements
2-3
WARNING:
To reduce the risk of personal injury, fire, or
damage to the equipment, do not overload the AC supply
branch circuit that provides power to the server. Consult the
electrical authority having jurisdiction over your facility wiring
and installation requirements.
■ The power load needs to be balanced between available AC supply
branch circuits.
■ The overall system AC current load must not exceed 80 percent of the
branch circuit AC current rating.
■ If power strips are used, the load should not exceed 80 percent of the
power strip's marked electrical current rating.
The installation of this equipment shall be in accordance with Local/Regional
electrical regulations governing the installation of Information Technology
Equipment by licensed electricians. This equipment is designed to operate in
installations covered by the National Electric Code (ANSI/NFPA 70, 1993) and
the code for Protection of Electronic Computer/Data Processing Equipment
(NFPA-75, 1992).
This product is also designed for IT power system with Phase to Phase voltage
230 V.
For electrical power ratings on options, refer to the product's rating label or user
documentation supplied with that option.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installation Overview
2-4
Grounding
For proper operation and safety, this equipment is required to be properly
grounded in accordance with NFPA 70-1993, Article 250. All power
distribution devices, branch wiring, and receptacles must be "Listed" grounding
type devices.
When using power strips for electrical distribution, ensure that ground integrity
is maintained for each connection made. Plug each component into a reliably
grounded outlet.
Server Temperature Requirements
To ensure continued safe and reliable operation of the equipment, locate the
system in a well-ventilated, climate-controlled environment.
The Compaq Maximum Recommended Ambient Operating Temperature
(TMRA) for most server products is 35°C (95°F). Therefore, the temperature in
the room where the rack is located should not exceed 35°C (95°F).
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installation Procedure
There are two installation procedures presented in the following paragraphs.
Each procedure is a summary of the steps you will follow to install your
Compaq ProLiant 3000 server. The procedure you will use depends on whether
you are installing a rack-mount model or a tower model server. Detailed
instructions for each of the numbered steps are included in later chapters of this
guide.
Installing a Rack-Mount Model
1. Select an appropriate site for your rack.
2. Make sure that stabilizer feet are installed on the rack.
3. Unpack the server.
4. Unpack the rack mounting hardware.
5. Install any hardware options in the server. See Chapter 4 and the options
kits for detailed instructions.
6. To make the server lighter and more manageable, do not install SCSI
drives in the server until after you load the server into the rack. You may
also lighten the server by removing the power supplies and reinstalling
them after you have mounted the server in the rack.
2-5
7. Set switches: processor board switches, system board switches, and
SCSI ID settings. Refer to the ProLiant 3000 Hardware Installation and
Configuration poster.
8. Attach rack mounting hardware to the rack and to the server. See
Chapter 3 for detailed instructions.
9. Slide the server into the rack. See Chapter 3.
10. Attach the cable management arm to the cable management arm bracket.
See Chapter 3.
11. Attach the optional cable support to the back of the rack. The cable
support is needed only if you are routing cables from one side of the
rack to the other. See Chapter 3.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installation Overview
2-6
12. Connect cables: keyboard, mouse, monitor, network, and power cables.
13. Turn on the computer and insert the SmartStart and Support Software
CD to configure and manage the server. When the server boots from the
SmartStart program, it automatically starts the System Configuration
Utility. See Chapter 5 for detailed information.
14. Register your server.
For complete details on the SmartStart program, read the SmartStart installation
card included in your SmartStart package.
After the SmartStart program has finished configuring your system, you have
completed the installation of your new Compaq server.
Installing a Tower Model
1. Unpack the server.
2. Install any hardware options in the server. See Chapter 4 and the options
kits for detailed instructions.
3. Set system board switches. Refer to Hardware Installation and
Configuration poster.
4. Connect cables: keyboard, mouse, monitor, network, and power cables.
5. Turn on the computer and insert the SmartStart and Support Software
CD to configure and manage the server. When the server boots from the
SmartStart program, it automatically starts the System Configuration
Utility. See Chapter 5 for detailed information.
6. Register your server.
For complete details on the SmartStart program, read the SmartStart installation
card included in your SmartStart package.
After the SmartStart program has finished configuring your system, installation
of your new Compaq server is complete.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: C-CH02.DOC Last Saved On: 1/12/99 3:15 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Chapter 3
Rack-Mountable Server
Installation
This chapter covers the following information:
■ How to attach the mounting hardware to the server and to the rack
■ How to install the server into the rack
You may choose the optional installation service from Compaq to install your
rack products. See “Optional Installation Service” at the end of this chapter.
The Compaq Installing Rack Products CD is included with your server. The
Rack Builder Configuration and the Rack Information Library can be found on
the web on the Compaq website at
CD Kit, part number 298721-001, ships with all Compaq racks and can be
ordered through a Compaq authorized reseller. A summary of the content of
each CD follows:
■ Rack Builder Configuration Tool CD
This CD allows you simulate potential Compaq Rack configurations
based on your input. Rack Builder provides the information such as:
www.compaq.com
3-1
. The entire Rack Resource
❏ Graphical preview of properly configured racks
❏ Site planning data, including power requirements, cooling
mandates, and physical specifications
❏ Ordering information, including required components, part
numbers, and appropriate quantities
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-2
■ Installing Rack Products CD
This set contains several CDs, which give a visual overview of
operations required to configure a Compaq rack with rack-mountable
components. This CD covers key configuration steps such as:
❏ Site planning
❏ Installation of rack-mountable servers and rack options
❏ Cabling
❏ Coupling multiple racks together
■ Rack Information Library CD
This CD allows you to view, search, and print documentation for
Compaq racks and rack options. It also assists in the setup and
optimization of your new Compaq rack to best fit the needs of your
environment.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack Warnings and Precautions
Before beginning these procedures, make sure you understand the following
warnings and caution.
3-3
WARNING:
To reduce the risk of personal injury or damage to
the equipment, at least two people are needed to safely unload
the rack from the pallet. An empty 42U rack weighs 253 LB (115
kg), is over seven ft (2.1m) tall, and may become unstable when
being moved on its casters. Do not stand in front of the rack as it
rolls down the ramp from the pallet, but handle it from the sides.
WARNING:
Because the rack allows you to stack computer
components on a vertical rather than a horizontal plane, you must
take precautions to provide for rack stability and safety. It is
important that you follow these basic instructions to protect both
personnel and property, and that you heed all cautions and
warnings throughout the installation instructions.
WARNING:
Always load the heaviest item first and always load
the rack from the bottom up. This will make the rack "bottomheavy" and help prevent the rack from becoming unstable. See
"Rules for the Rack Builder" on the Compaq Installing Rack
Products CD for the rules that govern the vertical placement of
rack-mounted components.
WARNING:
A rack may become unstable if more than one
component is extended for any reason. To reduce the risk of
personal injury, always ensure that the rack is adequately
stabilized before extending a component outside the rack, and
extend only one component at a time.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-4
WARNING:
Before beginning to work on the rack, be sure that
the leveling jacks are extended to the floor, that the full weight of
the rack rests on the level floor, and that either stabilizers are
installed or that multiple racks are coupled together for stability.
CAUTION:
Do not place anything on power cords or cables.
Arrange them so that no one may accidentally step or trip over
them. Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug.
WARNING:
the equipment, a minimum of two people
To reduce the risk of personal injury or damage to
lift the server
MUST
into the rack. The server weighs about 50 pounds (22.6
kilograms). If the unit is to be loaded above chest level, a third
person must assist in aligning the rails while the other two
support the unit.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack Temperature Requirements
The operating temperature inside the rack will always be higher than the room
temperature, and is dependent on the configuration of equipment in your rack.
The TMRA for each piece of equipment should be checked before installation.
The maximum internal rack temperature for your configuration should not
exceed the values shown in the following table:
Table 3-1
Rack Internal Temperature Maximums
Equipment Included Maximum Internal Rack Temperature
Rack-Mountable ProLiant Servers 50°C/122°F
Compaq Rack-Mountable options 40°C/104°F
Other manufacturers' options See other manufacturer’s specifications
3-5
CAUTION:
To reduce the risk of damage to the equipment when
installing third-party options:
Make sure that the option equipment does not impede
■
airflow to the Rack-Mountable ProLiant Servers or increase
the internal rack temperature beyond the Compaq specified
maximum rating.
Make sure that the Manufacturer’s Maximum Recommended
■
Ambient Operating Temperature of the option equipment is
not exceeded when installed in the rack.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-6
Airflow Requirements
Compaq ProLiant rack-mountable servers draw cool air in through the front
door and exhaust warm air out the rear door of the server. Therefore, the front
door of the rack must be adequately ventilated to allow ambient room air to
enter the cabinet, and the rear door must be adequately ventilated to allow the
warm air to escape from the cabinet. Do not block the ventilation apertures.
CAUTION:
If a third-party rack is used, the following minimum
requirements should be observed to ensure adequate airflow and
to prevent damage to the equipment:
Front: The front must have a minimum of 25 inches of
unrestricted ventilation.
Side: The clearance between the installed module and the side
panels of the rack should be a minimum of 2.75 inches.
Rear: The clearance between the back of the rack and the wall
should be a minimum of 30 inches. The equipment should
be operating without a rear door.
: If all of the vertical space in the rack is not filled by components, the
NOTE
gaps that are left cause a change in airflow through the rack and across the
components. These gaps should be covered with blanking panels.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Unpacking the Server
Unpack the server box and locate the materials and documentation necessary to
install your rack-mountable server.
Locating Materials and Documentation
All of the equipment needed to install the ProLiant 3000 server in the rack is
included with the rack and with the server.
1
6
3-7
2
3
7
5
Figure 3-1. Rack mounting hardware included with the server
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
4
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-8
Contents of the rack model server box include:
■ Compaq ProLiant 3000 server
■ Cables - refer to Cabling Guidelines for Compaq ProLiant 3000 Servers
■ Rack mounting hardware (numbers reference Figure 3-1)
1 One pair 26-inch slide rail assemblies
2 One pair slide rail mounting brackets
3 Cable management arm bracket
4 Cable management arm
5 Cable management arm screws
6 Plastic rail covers (one pair)
7 Cable management arm support bracket
❏ Template that can be used to mark the rack for proper attachment of
the rack mounting brackets (not shown)
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
■ Documentation and software
❏ Server Setup and Management Pack
❏ Installing Rack Products CD
❏ Rack Builder Configuration Tool
3-9
Available via the web at
❏ Rack Information Library
Available via the web at
www.compaq.com
www.compaq.com
In addition to these supplied items, you may need:
■ Torx T-15 screwdriver
■ Phillips screwdriver
■ Slotted screwdriver
■ Application software diskettes, such as SmartStart
■ Options to be installed, such as
❏ Optional uninterruptible power supply (UPS)
❏ Optional monitor, keyboard, and so on
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-10
Preparing the Mounting Brackets and Slide Rail Assemblies
Each pair of mounting brackets, with attached slide rail assemblies, supports
one rack-mountable server.
Figure 3-2. Rack mounting brackets; alignment tabs identify the front flanges
Each slide rail assembly consists of an outer bracket rail and an inner
component rail (see Figure 3-3). These pieces can be separated; the bracket rails
attach to the rack mounting brackets (shown in Figure 3-2), and the component
rails attach to the sides of the server chassis.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Figure 3-3. Slide rail assembly (outer bracket rail and inner component rail
3-11
IMPORTANT:
To make the installation of the mounting bracket easier,
attach the bracket rail to the rack mounting bracket before attaching the
mounting bracket assembly to the rack. This way, the joined mounting
bracket and bracket rail can be fastened to the rack as one assembly.
Attaching the Bracket Rail to the Mounting Bracket
Please read all of the following eight steps before you begin.
1. Unpack the hardware mounting kit. Lay the two-piece slide rail
assembly (outer bracket rail and inner component rail) and fasteners on a
flat surface along with the mounting brackets and fasteners that came
with the rack.
2. Extend the component rail from the bracket slide rail until the
component rail release latch clicks. Holding down the latch, slip this
piece out of each bracket rail, as shown in figure 3-4.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-12
Figure 3-4. Removing the component rail from the bracket rail
3. Put the component rails to one side. You will attach them to the rack
server chassis later, in the section, "Attaching Component Rails to the
Server."
The next figure shows the separated bracket rail with its inner sliding piece and
the flat, one-piece component rail.
Figure 3-5. Separated bracket rail (top) and component rail
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
The bracket rail consists of a fixed outer rail that screws to the rack mounting
bracket, and an inner slide on a steel ball bearing movement. This inner slide
does not detach.
Figure 3-6. Bracket rail with inner slide. The front of the rail is highlighted.
4. Lay the bracket rail inside the mounting bracket with the front of both
pieces oriented in the same direction. Align the front screw holes in the
mounting bracket and the bracket rail.
3-13
To identify the front of the mounting bracket and the bracket rail:
❏ The front of the mounting bracket has alignment tabs on its flange.
❏ The front of the bracket rail allows the inner slide to move forward
on ball bearings.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-14
5. Extend the inner slide from the front of the bracket rail. With this piece
extended, you will see two screw holes aligned in the mounting bracket
and the bracket rail. These are the two exposed holes near the back end
of the bracket rail and the front hole accessible through a slot in the
inner slide.
6. Fasten the bracket rail to the mounting bracket with one 8-32 x 1/4-inch
slotted screws. (Do not use nuts or washers with the screws.) See step 1
of the following figure.
7. Adjust the inner slide to access the other two screw holes, one at a time,
through the slotted opening in the inner slide. Use two more 8-32 x 1/4inch slotted screws to fasten the bracket rail to the mounting bracket.
See steps 2 and 3 of Figure 3-7.
Figure 3-7 shows inserting the screws into the appropriate holes. The
screws will line up with the 26-inch markings stamped along one edge
of the mounting bracket. These marks identify the mounting holes for
the 26-inch slides used in Compaq racks. (The other markings stamped
along the opposite edge are for use with slides that support other
components.)
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3-15
1
2
3
26
26
Figure 3-7. Attaching the bracket rail to the mounting bracket
You will use a total of four 8-32 x 1/4-inch slotted screws to fasten the
bracket rail to the mounting bracket. When all five screws are fastened,
the mounting bracket and bracket rail form a mounting bracket slide
assembly that you will attach to the rack.
8. Repeat steps 4 through 7 with the other bracket rail and mounting
bracket. You now have a pair of mounting bracket slide assemblies to be
attached to the rack.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-16
Attaching the Mounting Bracket Slide Assembly to the Rack
WARNING:
the equipment, be sure that the rack leveling feet are extended to
the floor and support the full weight of the rack. Each rack must
be level and stable. Racks that are not coupled together require
the installation of stabilizers. This
perform any work on the rack.
Measuring with the Template
The template provided with the server offers an easy and reliable way to
properly position the server in the rack. Use the tabs on the template to suspend
it from the lower hole of a two-hole set of perforations in the vertical side rails.
Pencil mark the attachment points for the mounting bracket assemblies, the
cage nuts for the face-plate thumbscrews, and the top of the server. Use the tick
marks on the rack side rails to ensure level installation of the server. See
illustrations and instructions printed on the template.
IMPORTANT:
the mounting bracket assemblies. To remind you of the proper placement of
the server in the rack, refer to the Rack Builder report you printed when you
planned your rack configuration. Always mount the heaviest item on the
bottom of the rack and work from the bottom to the top.
1. Starting at the bottom of the rack, or at the top of a previously mounted
component, measure the screw hole locations for the server's mounting
bracket assemblies. Pencil mark the locations on the outside of the rack.
Do this on both the front and the back of the rack.
Determine the server's place in the rack before you install
To reduce the risk of personal injury or damage to
be done before you
must
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3-17
IMPORTANT:
The template is two-sided (front and back) and printed with
arrows that show you where the screws will be inserted, both for the
mounting bracket assemblies and for the thumbscrews that will secure the
server's face plate to the front of the rack.
Align the template carefully with the holes on the rack, to determine the
exact placement of the screws.
2. When you mark the positioning of the mounting bracket screws, also
mark the positioning in the front of the rack for the cage nuts. These are
two slots marked "C" on the template. The cage nuts will hold the
thumbscrews through the server's face plate.
Be sure to follow the alignment instructions on the template, and keep the sides
of the template squared with the sides of the rack. Tick marks on the rack’s
vertical rails will help you maintain the proper alignment.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-18
Figure 3-8. Measuring with the template
3. After marking the front of the rack, turn the template over and mark the
back rails of the rack. Open the rear door of the rack to access the back
rails.
4. On the back of the rack, mark the rail to show the top of the template.
This will help you align a template for the next component.
Inserting Cage Nuts in the Rack Frame
After marking the positions for the fasteners in both the front and back of the
rack, use the fitting tool to insert cage nuts on the inside of the rails at the
marked locations. The cage nuts and fitting tool are included in the hardware kit
supplied with the rack.
1. Position the cage nut as shown in Figure 3-9, on the inside of the rail.
2. Hook one of the lips of the cage nut through the square rail perforation.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3. Insert the tip of the fitting tool through the other side of the perforation
and hook the opposite lip of the cage nut.
Figure 3-9. Inserting cage nuts
4. Using the fitting tool as a lever, pry the cage nut into position.
5. Repeat for each cage nut.
3-19
Attaching the Mounting Bracket Assembly to the Rack
The tabs on the front of the mounting bracket help to align it with the front of
the rack frame. Cage nuts are not used for the front attachment of the mounting
bracket.
For use with 350-MHz or greater Intel processor-based servers only
Compaq ProLiant 3000 Servers Setup and Installation Guide
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-20
1. Attach a mounting bracket assembly to the front of the rack first, using
one M6 x 1.0-12L Phillips screw in the bottom hole of the bracket. Do
not use the washers supplied with the Compaq rack.
IMPORTANT:
Use only the bottom hole of the bracket as shown
in Figure 3-10.
Figure 3-10. Attaching mounting bracket assembly to the front of the rack
2. Carefully align the mounting bracket assembly with the rear rack frame.
3. Secure the back end of the mounting bracket assembly to the back
corner brace of the rack with one M6 x 1.0-12L Phillips screw through
the bottom hole of the bracket and the cage nut, as shown in
Figure 3-11.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Top View
CZR4-012.eps
Figure 3-11. Cage nut and back of mounting bracket assembly installed
4. After attaching both mounting bracket assemblies to the rack, prepare
the server for mounting in the rack.
3-21
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-22
Attaching Component Rails to the Server
1. Place the tab on a component rail at the front of the server chassis. The
holes in the component rail will line up only one way with the chassis.
2. Attach the flat side of a component rail to each side of the server chassis
with five 8-32 x 1/4-inch Phillips screws. Do not use washers with the
screws.
Figure 3-12. Attaching a component rail to the server
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Attaching the Cable Management Arm Bracket
The cable management arm bracket fastens to the top right rear of the rack
server's chassis. The bracket provides an attachment point for the cable
management arm from the server to the rear frame of the rack.
Attach the cable management arm bracket to the back of the server with two
6-32 x 1/4 Phillips screws.
Attach the rack rail covers to the rack.
3-23
Figure 3-13. Attaching a cable management arm bracket to the server
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-24
Loading the Rack Server
Load and secure the server to the rack with the face plate thumbscrews before
continuing to attach any more mounting bracket assemblies. Make sure that this
pair of brackets is correctly aligned and installed and that the server fits before
you continue.
WARNING:
the equipment, a minimum of two people
To reduce the risk of personal injury or damage to
lift the server
MUST
into the rack. The server weighs 50 pounds (22.6 kilograms). If
the unit is to be loaded above chest level, a third person must
assist in aligning the rails while the other two support the unit.
IMPORTANT:
To make the server lighter and more manageable, do not
install drives in the server until after you load the server into the rack. You
may also temporarily remove power supplies and reinstall them after you
have mounted the server in the rack.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1. Pull the slide rails forward from the mounting brackets.
2. Carefully align the server's component rails with the rack's slide rails
and slide the server into the rack.
3-25
CAUTION:
Be sure to keep the component parallel to the floor
when sliding the component rails into the slide rails. Tilting the
component up or down could result in damage to the rails.
Figure 3-14. Loading the rack server
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-26
3. Press the component rail release latch on either side of the server and
slide the server into the rack.
IMPORTANT:
may have to apply some pressure. After the first time, the ball bearings in the
slide will move easily.
IMPORTANT:
the latches lock. To return the server to the rack, depress the latches and
slide the server into the rack.
4. Secure the server face plate to the front of the rack by screwing the
thumbscrews into the cage nuts.
5. Tighten the thumbscrews before you close the rack door to prevent the
door from hitting protruding thumbscrews.
Attaching the Cable Management Arm
WARNING:
when pressing the component rail release latches and sliding the
component into the rack. The slide rails could pinch your
fingertips.
The first time you slide the component into the rack, you
When servicing the server, fully extend the component until
To reduce the risk of personal injury, be careful
A double-hinged cable management arm and fasteners ship with each server.
The cable management arm attaches to the server's cable management arm
bracket and to the rear frame of the rack. All cables to and from the server are
tied to this arm. The two hinges allow the cable management arm with attached
cables to swing out of the way when you need to access the server pull-out
trays.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1. For easier handling, first slide the server into the rack, then attach the
cable management arm to the cable management arm bracket. If you
attach the arm before loading the server in the rack, the arm may swing
around and interfere with the loading process.
2. After you have loaded the server into the rack, attach one end of the
cable management arm to the server's cable management arm bracket
using two M6 x 1.0-12L Phillips screws. Align the arm to the bracket as
shown in Figure 3-15.
3-27
Figure 3-15. Attaching the cable management arm to the cable management arm bracket
3. Align the other end of the cable management arm on the outside of the
rear brace of the rack. Align a screw retaining plate on the inside of the
rack. Attach the arm to the rack with two 10-32 x 5/8-inch Phillips
washer-face hex-head screws.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Rack-Mountable Server Installation
3-28
Figure 3-16. Attaching the cable management arm to the rear brace of the rack
Attaching the Optional Cable Support
The optional cable support attached to the rear of the rack on both sides. All
cables to and from the server are tied to this support, which allows the server
cables to stretch from the right rear of the server across to the cable channel on
the other side of the rack, where the other cables are bundled in the cable
channel.
The cable support is needed only if you intend to route cables from one side of
the rack to a cable channel on the other side of the rack.
Attach the cable support to both rear braces of the rack using four
M6 x 1.0-12L Phillips screws.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Figure 3-17. Attaching the cable support to the cable management arm
Optional Installation Service
The installation service covers the entire hardware installation from unpacking
the components to routing the cables and running a test of the system.
In North America, Compaq will make all of the arrangements to have the
rack system installed by qualified Guaranteed Service Providers. An order form
with pricing is available from the Compaq fax retrieval service. Call
1-800-345-1518, select PaqFax, and request Document No. 4552. Installation
can also be ordered from and provided directly by an Authorized Compaq
Service Providers.
3-29
Outside of North America, installation can be ordered from and provided
directly by an Authorized Compaq Service Provider. Phone numbers can be
found on the Compaq website at:
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: D-CH03.DOC Last Saved On: 1/12/99 1:24 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
www.compaq.com
Compaq ProLiant 3000 Servers Setup and Installation Guide
Chapter 4
Installing Hardware Options
This chapter is divided into three major parts:
■ Preparing the Server - This section describes how to properly shut
down your server in order to install hardware options.
■ Accessing Non Hot-Plug Areas - you must shut down the server power
in order to install options, upgrades, or replacements in the following
areas:
❏ Processor and sockets
❏ Memory and sockets
❏ System Board
❏ Drive Cage Backplane Board
❏ Media Bays
❏ PCI/ISA slots
❏ Fans
4-1
❏ Integrated Management Display
■ Accessing Hot-Plug Areas - you can install hot-plug options, upgrades,
or replacements without shutting down the power in the following areas:
❏ SCSI drive bays
❏ Power supplies
: The illustrations in this chapter may vary slightly depending on
NOTE
whether you have a tower model or rack model.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-2
Preparing the Server
WARNING:
To reduce the risk of injury from
electrical shock, remove all power cords to
completely disconnect power from the system.
WARNING:
To reduce the risk of electric shock or damage to
the equipment:
Do not disable the power cord grounding plug. The
■
grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) electrical
■
outlet that is easily accessible at all times.
WARNING:
To reduce the risk of personal injury from hot
surfaces, allow the internal system components to cool before
touching.
CAUTION:
Electrostatic discharge can damage electronic
components. Be sure you are properly grounded before beginning
any installation procedure.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1. Back up your server data.
2. Shut down the operating system in an orderly manner, as directed in
your operating system instructions.
3. Power down the server and remove the power cord.
4-3
IMPORTANT:
The system power in the ProLiant 3000 server does not
completely shut off with the front panel Power On/Standby switch. The two
positions of the switch function as ON and STANDBY, rather than ON and
OFF. The STANDBY position removes power from most of the electronics and
the drives but portions of the power supply and some internal circuitry
remain active. Consequently, to completely remove all power from the
system, you must disconnect the power cord from the server. In systems
with multiple power supplies, you must disconnect all the power cords to
completely remove power from the system.
: After you move the Power On/Standby switch to the Standby position,
NOTE
it may take the operating system up to 30 seconds before shutting down the
power.
WARNING:
Before removing the server top panel, make sure
that the server is turned off and that the power cord is
disconnected from the electrical outlet.
4. Disconnect any other external equipment connected to the computer.
5. Loosen the top thumbscrew on the front of the unit using a T15 Torx
driver. See Figure 4-1.
6. Loosen the bottom thumbscrew. See Figure 4-1.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-4
7. Slide the side cover toward the rear of the unit about 1 inch (2.5 cm),

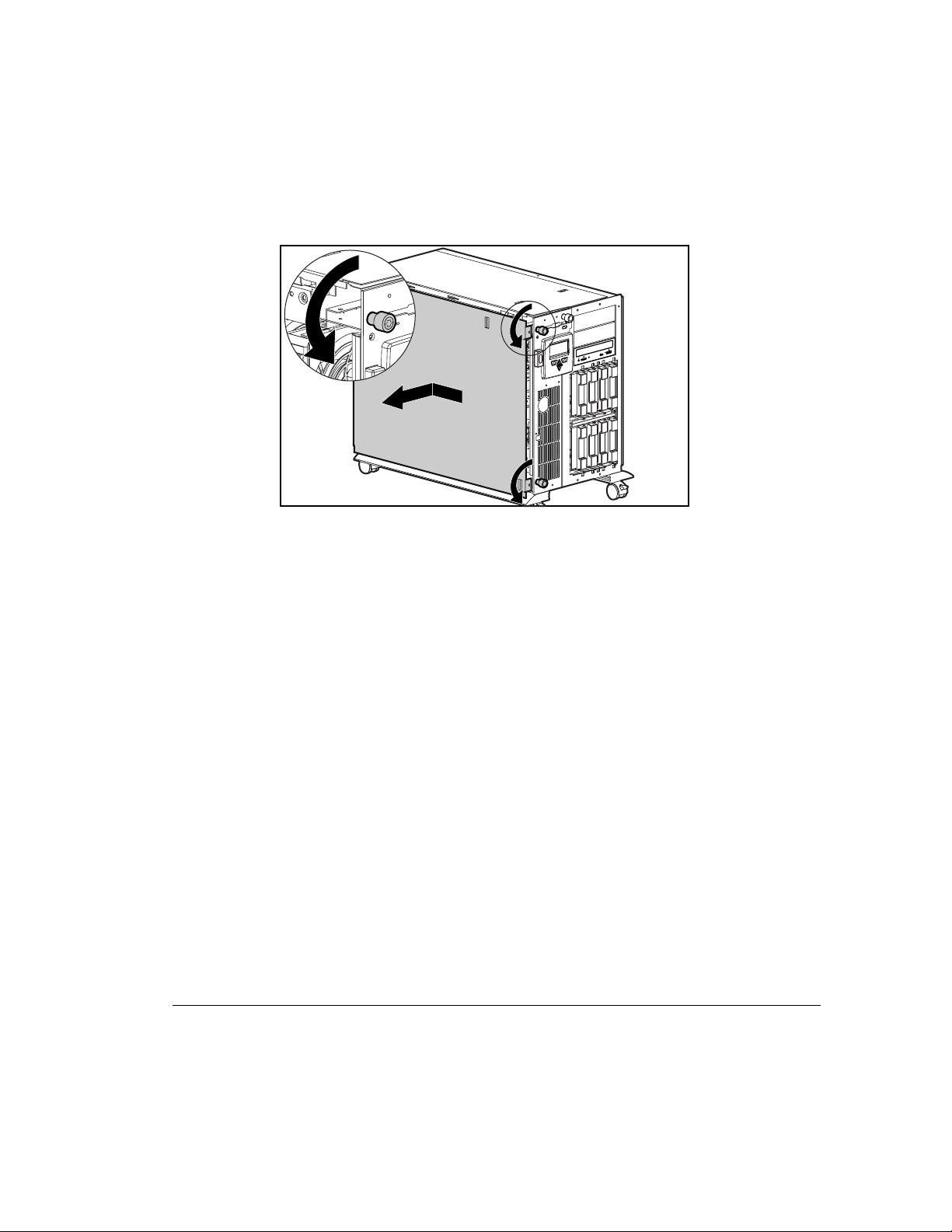

Figure 4-1. Removing the server cover
then remove the cover.
COMPACT
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Accessing Non Hot-Plug Areas
To install options, upgrades, or replacements in these areas, you must first shut
down the server power.
Accessing System Board Components
With the access panel and processor removed, you should be able to locate and
identify the System Board components shown in Figure 4-2.
4-5
1
2 3
31
30
29
28
27 25 23 151620 181921
Figure 4-2. System board features
4 5 6 7 8 9
26
24
22
Table 4-1
System Board Features
Ref. Component
1-3
4-8
9
10
11
Shared PCI/ISA slots
PCI slots
Auxiliary Fan
Secondary processor power module
Memory DIMM sockets 1-4
10
11
12
13
14
17
Continued
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-6
System Board Features
Continued
Ref. Component
12
13
14
15
16-17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Secondary processor slot
CPU Fan header
Redundant CPU Fan header
Power connector
Power connectors
Power connector
IMD connector
Primary processor slot
Primary processor power module
Memory DIMM sockets 5-8
Floppy signal cable connector
Processor settings switch
IDE signal cable connector
I/O feature connector
Internal SCSI connector - SCSI Port 2
Internal SCSI connector - SCSI Port 1
I/O Fan header
Redundant I/O Fan header
System Configuration settings switch
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
System Board Switches
Table 4-2 defines the System Configuration setting switches, 31 in Figure 4-2,
on the system board. The Open (OFF) position is the default configuration for
each switch.
Table 4-2
System Configuration Setting Switches
Switch Open (Off) Position Closed (On) Position
1 Video Enable integrated video Disable integrated video
4-7
2 Lock
Configuration
3 Rack-Mount System is tower configuration System is rack-mount
4 Diskette
Override
5 Password
Enable
6 Maintenance* NV RAM is valid NV RAM is invalidated,
* See the
switch.
ProLiant 3000 Service and Maintenance Guide
Configuration can be
changed
Diskette boot is controlled by
configuration
Power on password is
enabled
Configuration can not be
changed
configuration
Diskette is enabled for booting
regardless of configuration
Power on password is disabled
configuration is lost
for information on the use of this
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-8
Installing Processor
For the location of the processor settings switch and Bus/Ratio settings, refer to
the Hardware Installation and Configuration poster or to the hood label located
on the small access panel.
1. Prepare the server for installation. See section “Preparing the Server,”
2. Install the Intel processor.
: To allow easier access, you can tilt the server on its right side (side
NOTE
opposite of the removed panel). Be sure to lock the casters if you tilt the
server.
: Your processor and Processor Power Module may differ from the
NOTE
models illustrated.
outlined earlier in this chapter.
Figure 4-3. Installing the Intel processor
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3. Install the Processor Power Module associated with the processor.
2
4-9
1
Figure 4-4. Installing the Processor Power Module
3
4. Set processor setting switch to the appropriate setting for your processor.
: For the appropriate processor setting switch position, please refer to
NOTE
your server’s
Hardware Installation and Configuration
poster.
5. Restore server to normal operation. Reverse steps in section "Preparing
the Server."
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-10
Installing DIMM Memory
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Install DIMMs as shown in Figure 4-5. For information on populating
memory sockets, see the following section titled “Memory Sockets.”
Figure 4-5. Latching DIMMs
3. Restore server to normal operation. Reverse steps in section, "Preparing
the Server."
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Memory Sockets
For the best performance, DIMM sockets should be added alternating between
system board memory sockets. For optimum performance, memory should be
installed in the following sequence:
DIMM 5
DIMM 1
DIMM 6
DIMM 2
DIMM 7
DIMM 3
DIMM 8
DIMM 4
: Refer to the following figure for the socket numbers.
NOTE
4-11
DIMM1
DIMM2
DIMM3
DIMM4
DIMM8 DIMM7 DIMM6 DIMM5
Figure 4-6. Memory socket numbering
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-12
Installing PCI/ISA Expansion Boards
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Install expansion board.
Figure 4-7. Installing PCI/ISA expansion board
: There are no special considerations for populating the PCI/ISA slots.
NOTE
3. Restore server to normal operation. Reverse steps in section, "Preparing
the Server."
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Fans
1. Prepare the server for installation. See section "Preparing the Server,"
2. Install fan as shown in Figure 4-8. Refer to Figures 4-9 and 4-10 for fan
Figure 4-8. Installing fan
3. Restore server to normal operation. Reverse steps in section "Preparing
4-13
outlined earlier in this chapter.
slot location and fan header location.
1
the Server."
Fan 1
(CPU)
Fan 3
(I/O)
Figure 4-9. Fan slot location
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Fan 2
(CPU Redundant)
Fan 4
(I/O Redundant)
Compaq ProLiant 3000 Servers Setup and Installation Guide
Installing Hardware Options
4-14
Fan 4 (IO Redundant)
Fan 1
(CPU)
Fan 3
(IO)
Figure 4-10. Fan header location
Accessing Drive Cage and Media Bays
These instructions cover the removal of the hot-plug SCSI drive cage and
removable media cage, installation of the Simplex Enable board, and
installation of optional tape drive.
: Installation of the Simplex Enable board disables controller duplexing
NOTE
of the internal SCSI drives. Refer to the
Guidelines Reference Guide
simplex modes.
: Your drive cage may differ from the model illustrated.
NOTE
Remove Drive Cage
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Loosen the thumbscrews on the front of the drive cage. See
Figure 4-11.
3. Pull out the latch at the back of the drive cage (shown in Figure 4-12)
and pull out the drive cage 2 to 3 inches to allow better access to cables.
for more information on configurating duplex and
Fan 2
(CPU Redundant)
Compaq ProLiant 3000 Cabling
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Figure 4-11. Loosen thumbscrews
4-15
Figure 4-12. Pull the drive cage partially out
4. Remove all cables from the back of the drive cage.
5. Completely remove the drive cage.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
COMPACT
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-16
Installing Simplex Enable Board Option
: This procedure applies only if you have an optional Wide-Ultra duplex
NOTE
drive cage installed.
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Remove drive cage. See section “Removing Drive Cage.”
3. Remove the Duplex Enable board from the back of the drive cage.
Figure 4-13. Removing the Duplex Enable board
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
4. Insert the Simplex Enable board.
Figure 4-14. Installing the Simplex Enable board
4-17
CAUTION:
The SCSI backplane board must have either a Duplex
Enable board or a Simplex Enable board installed in order for the
SCSI bus to be terminated properly. If neither of these boards is
installed, the service LEDs of all drives will light as a warning.
5. Install drive cage. See section “Installing Drive Cage.”
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-18
Installing Tape Drive
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Remove drive cage. See section “Removing Drive Cage.”
3. Remove face plate.
COMPACT
1
2
Figure 4-15. Removing face plate
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
4. Install tape drive into media bay.
4-19
2
2
COMPACT
3
1
Figure 4-16. Installing tape drive
5. Install face plate.
6. Connect SCSI cable, located in the server, from the tape drive to the
internal SCSI Port 1 or 2 or SCSI controller board in a PCI slot, if one is
installed.
: There are no special considerations as to which SCSI controller the
NOTE
tape drive is connected.
7. Install drive cage. See section “Installing Drive Cage.”
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-20
Installing Drive Cage
: Your drive cage may differ from the model illustrated.
NOTE
1. Replace the drive cage. Do not push it back fully until after you install
cables.
Figure 4-17. Re-installing the drive cage
2. Reconnect the SCSI cables on the back of the drive cage. Refer to
Compaq ProLiant 3000 Servers Cabling Guidelines for information on
SCSI cabling.
3. Pull out the drive cage latch and push the drive cage back fully until the
drive cage latch can be pushed into place.
4. Tighten the thumbscrews on the front of the drive cage.
5. Connect SCSI controller cables. See Compaq ProLiant 3000 Servers
Cabling Guidelines for more information on connecting SCSI cables.
6. Restore server to normal operation. Reverse steps in section "Preparing
the Server."
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Integrated Management Display
1. Prepare the server for installation. See section "Preparing the Server,"
outlined earlier in this chapter.
2. Remove IMD blank.
Figure 4-18. Removing IMD blank
3. Install IMD.
4-21
T
AC
P
M
O
C
T
PAC
M
O
C
2
Figure 4-19. Installing IMD
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
2
2
1
2
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-22
4. Connect IMD cable to system board.
Figure 4-20. Connecting IMD cable
5. Restore server to normal operation. Reverse steps in section "Preparing
the Server."
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Accessing Hot-Plug Areas
This section describes accessing the following areas:
■ Hot-Plug SCSI Drives
■ Hot-Plug Power Supplies
Components in these areas have color-coded latches or levers to signify that
they are hot-plug devices.
Removing and Installing the Hot-Plug SCSI Drives
Wide-Ultra Hard Drives
1
4-23
2
3
Figure 4-21. Removing a Wide-Ultra hard drive
: Pinch both sides of drive levers to unlock, then swing the levers out.
NOTE
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-24
2
1
Figure 4-22. Installing a Wide-Ultra hard drive
Ultra2 Hard Drives
3
1
2
Figure 4-23. Removing an Ultra2 hard drive
: Press the drive lever to unlock, then swing the lever out.
NOTE
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Figure 4-24. Installing an Ultra2 hard drive
SCSI ID Numbers
: The duplex information below applies only if you have the Wide-Ultra
NOTE
duplex drive cage installed. The Wide-Ultra simplex and Ultra2 simplex drive cages
cannot be used in a duplex configuration.
4-25
1
2
There are five possible numbering schemes, depending on whether you are
using 1-inch height drives, 1.6-inch height drives, and a simplex, or duplex
configuration. The following five figures illustrate these five schemes.
IMPORTANT:
For the Wide-Ultra duplex drive cage, the Simplex Enable
board must be installed on the back of the drive cage for the simplex modes
and the Duplex Enable board must be installed for the duplex modes.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-26
4
3
2
1
0
Figure 4-25. SCSI ID numbers - Single SCSI Channel Ultra2 simplex drive cage
with 1-inch drives
11
10
9
8
5
3 Not Used
2 6
1 5
0 4
Figure 4-26. SCSI ID numbers - Single SCSI Channel Wide-Ultra drive cage
(Simplex Mode) with 1-inch drives
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
SCSI Channel A or Channel B
36
15
04
Figure 4-27. SCSI ID Numbers - Single SCSI Channel
Wide-Ultra drive cage (Simplex Mode) with
1.6-inch drives
SCSI Channel A SCSI Channel B
33
22
11
00
Figure 4-28. SCSI ID Numbers - Dual SCSI Channels
Wide-Ultra drive cage (Duplex Mode) with
1-inch drives
SCSI Channel A SCSI Channel B
33
11
00
Figure 4-29. SCSI ID Numbers - Dual SCSI Channels
Wide-Ultra drive cage (Duplex Mode) with
1.6-inch drives
4-27
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Installing Hardware Options
4-28
Accessing the Hot-Plug Power Supplies
1. Remove power supply plate.
Figure 4-30. Removing power supply plate
2. Install power supply.
Figure 4-31. Installing power supply
For use with 350-MHz or greater Intel processor-based servers only
2
1
2
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Pre-Failure Warranty
The Compaq ProLiant 3000 server includes Pre-Failure Warranty for Pentium
II processors, hard drives, power supplies, and DIMMs purchased from
Compaq through an Authorized Compaq Reseller. Supported components are
eligible for replacement under this warranty before they actually fail, if the
system determines that these components have degraded below predetermined
reliability thresholds within the product warranty period.
Compaq Insight Manager Alert
When Compaq Insight Manager alerts you that a component may be eligible for
Pre-Failure Warranty replacement, follow the on-screen instructions or contact
an Authorized Compaq Service Provider in your area.
Insight Manager Status Indicator
A yellow status indicator on the Insight Manager control panel indicates that a
component is in a degraded condition. Compaq recommends that you replace a
component that is in a prefailure condition.
4-29
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: E-CH04.DOC Last Saved On: 1/12/99 1:28 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Chapter 5
Server Configuration and
Utilities
This chapter describes the tools that Compaq provides to assist you in the
configuration and management of your Compaq ProLiant 3000 Server.
Configuring the Server with SmartStart
SmartStart is the intelligent way to configure the server and to load the system
software, there by achieving a well-integrated server are ensuring maximum
dependability and supportability. The SmartStart and Support Software CD
holds the Compaq System Configuration Utility and ROMPaq. To use the
SmartStart and Support Software CD, refer to the Server Setup and
Management Pack included in the shipping box.
To install the Compaq SmartStart and Software Support CD:
1. Turn on the computer.
5-1
2. Insert the CD-ROM into the tray, handling the CD by the edges rather
than by the flat surfaces of the disc.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-2
Figure 5-1. Inserting the CD-ROM
3. When the busy indicator lights, the drive is ready to receive commands.
Data can be retrieved from the disc.
COMPACT
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Using the System Configuration Utility
The Compaq System Configuration Utility performs a wide range of
configuration activities, including:
■ Automatically configuring PCI and ISA Plug and Play boards
■ Providing switch and jumper settings
■ Resolving resource conflicts in areas such as memory, port addresses,
and interrupt requests (IRQ)
■ Managing the installation of mass storage devices such as hard drives,
tape drives, and diskette drives
■ Setting and storing power-on features like date and time
■ Storing configuration information in nonvolatile memory
■ Assisting in installing an operating system
■ Assisting in running diagnostic tools such as Test and Inspect Utilities
The first time the server is configured, the SmartStart program automatically
creates a system partition and installs the System Configuration Utility and
other Compaq utilities in that partition.
5-3
IMPORTANT:
This Compaq system utilities partition should not be
confused with the partition(s) created by your operating system.
In Compaq ProLiant 3000 servers, the system ROM automatically configures
memory and processor changes.
The System Configuration Utility uses option configuration (.CFG) files to set
up and configure the computer. The .CFG files provide information such as
switch settings, IRQs, and software installation guidelines. The .CFG files for
Compaq computers are located on the System Configuration diskettes and
SmartStart and Support Software CD (SmartStart CD).
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-4
For PCI boards, the utility reads the configuration options from the PCI board's
configuration space from a PCI configuration file (.PCF).
■ Compaq Option Configuration Files diskette
■ Non-Compaq Option Configuration Files diskette
■ SmartStart and Support Software CD
The .CFG file provides board resource requirements and switch and jumper
setting alternatives. Although ISA boards do not have the automatic
configuration capabilities of PCI boards, the System Configuration Utility can
allocate system resources to these boards and provide instructions for setting
switches and jumpers.
Resolving Resource Conflicts
If you add a PCI expansion board later, the system detects this change when
you turn on the computer. The system ROM reads the PCI board identifier and
compares it with the current configuration information stored in nonvolatile
memory. The system ROM automatically configures PCI boards. If a user
selection is required, a POST message directs you to run the System
Configuration Utility. Additionally, you may change the default automatic
settings by running the System Configuration Utility.
The System Configuration Utility reads the option configuration .CFG files to
determine any resource conflicts, such as two devices requiring the same
hardware interrupt. If the system identifies a conflict, the software then
rechecks all the expansion board specifications to determine if settings for a
previously read board can be changed to automatically resolve the conflict
between the two boards.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Starting the System Configuration Utility
To start the Compaq System Configuration Utility for the first time, refer to the
SmartStart Installation poster.
After the first time, access the System Configuration Utility as follows:
1. Press the Ctrl+Alt+Del keys to reboot the server.
2. When the following prompt appears at the top of the screen during
Power-On Self-Test (POST), press the F10 key. The System
Configuration Utility main menu displays the following:
5-5
Press "
IMPORTANT:
F10
" key for System Partition Utilities
F10
The text appears for only two seconds. If you do not press
during this time, you must reboot the server.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-6
System Configuration Utility Main Menu
This overview of the main menu options explains how to access the main menu
and how to set the power-on features. The following options are available from
the main menu:
■ System Configuration - Takes you through the configuration process
step-by-step. Select the System Configuration option when a
configuration change is required. For example, select this option when
adding, replacing, or removing expansion boards, or when adding a
diskette or hard drive.
■ Operating System Installation - Allows you to install one of the
operating systems listed or to specify installation of an operating system
that is not listed.
■ Diagnostics and Utilities - Tests and inspects the computer.
■ Exit from this Utility - Restarts the computer.
System Configuration Menu
The following options are available from the System Configuration Utility
menu:
■ Configure Hardware
■ Power-On Defaults
■ System Partition
■ Configuration Backup
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Configuring Hardware
When you select the Configure Hardware menu, a screen with five steps is
displayed. A listing and a brief explanation of each step follows.
Step 1: Important System Configuration
Information
This step provides an overview of the configuration process.
Step 2: Add or Remove Boards
Use this step to add the PCI or ISA boards to the configuration or remove any
boards from the configuration.
Step 3: View or Edit Details
Use this step to make necessary configuration changes.
5-7
IMPORTANT:
If you edit a function or resource in Step 3, be sure to review
Step 4 also.
Step 4: Examine Required Switches
This step displays the required switch and jumper settings for most ISA boards.
Find the appropriate board’s switch and jumper settings and adjust them to
match the settings displayed on the screen.
Step 5: Save and Exit
Use this step to save the configuration update when you have made changes.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-8
Setting Power-On Defaults
You can set and change the Power-On features at any time.
1. Select System Configuration from the Main Menu; then select
Power-On Defaults.
2. Set the current date in the format:
MM-DD-YYYY
3. Set the correct time in the format:
HH:MM:SS
4. Set the Power-On Num Lock state:
( ) Off
(*) On
* This activates the numeric keypad when the computer is turned ON.
System Partition
The System Partition option allows you to copy and delete configuration files
and create, upgrade, or delete a system partition on the hard drive for the
utilities.
The following menu options are available:
■ Create System Partition
■ Upgrade System Partition
■ Delete System Partition
■ Copy Files
■ Delete Files
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Creating a New System Partition
If you used SmartStart to configure your server and install your operating
system, this procedure (“Creating a New System Partition”) was done
automatically for you. Use this procedure only if the operating system was not
installed on the server and you wish to create a system partition.
1. Insert the Compaq SmartStart and Support Software CD in the
CD-ROM drive and turn on the server.
5-9
IMPORTANT:
The system partition requires about 32 MB of disk space at
the beginning of the hard drive and an unused entry in the boot record.
SmartStart prompts you to overwrite an existing DOS partition on the hard
drive.
2. If the system is configured and there is hard drive space for the system
partition, SmartStart automatically creates the partition and copies
Compaq Utilities from the Compaq SmartStart and Support Software
CD to the partition. This process takes two reboots. Leave the CD in the
drive until the process is complete. The process is complete when the
CD main menu displays.
3. If the system is not configured, select the second or third button on the
SmartStart first screen to configure the system automatically.
4. After the system boots to save the configuration, the Compaq SmartStart
and Support Software CD creates the system partition and copies the
Compaq Utilities to it. This process takes two reboots.
5. Leave the CD in the drive until the process completes. The process is
complete when the CD main menu displays.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-10
Verifying the System Partition
To verify that the system partition exists:
1. Remove any media from the CD-ROM drive and the diskette drive.
2. Reboot the system by pressing Ctrl+Alt+Del or by turning the server
OFF and then ON again.
3. Press the F10 key when the following prompt appears.
Press "
IMPORTANT:
F10
" key for System Partition Utilities
F10
The text appears for only two seconds. If you do not press
within the two seconds, you must reboot the server.
4. If a system partition exists, the server boots to the partition. If not, a
message displays that no system partition exists.
Upgrading the System Partition
To upgrade the system partition:
1. Insert the Compaq SmartStart and Support Software CD in the
CD-ROM drive and turn on the computer.
2. Select Upgrade System Partition.
3. Select to upgrade the utilities. SmartStart copies the new utilities from
the CD to the system partition.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Configuration Backup
The Configuration Backup option allows you to create a backup of the system
configuration and to restore the system configuration from the backup.
The following menu options are available:
■ Backup
■ Restore
Configuration Backup and Configuration History Files
When you save and exit the System Configuration Utility, the utility keeps a
history of the configuration. The utility maintains three versions of the system
configuration files, including the current and two previous configurations in
both binary (.SCI) and text (.CHL) file formats.
■ The .SCI files can be used to restore a previous configuration using the
System Configuration menu and Restore System Configuration from a
.SCI File submenu.
5-11
■ The .CHL files are text-based files displaying information that is stored
in the corresponding .SCI file.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-12
SYSTEM.SCI
Table 5-1
System Configuration History Log Files
Filename Description
Current configuration information
SYSTEM1.SCI
SYSTEM2.SCI
SYSTEM.CHL
SYSTEM1.CHL
SYSTEM2.CHL
IMPORTANT:
If there is not enough disk space for the entire System
Previous configuration information
Previous configuration information
(oldest)
Textual representation of SYSTEM.SCI file
Textual representation of SYSTEM1.SCI
file
Textual representation of SYSTEM2.SCI
file (oldest)
Configuration History Log, the utility deletes log files starting with the oldest
files (
SYSTEM2.SCI and SYSTEM2.CHL
) until enough disk space is available
for the current configuration backup and history files.
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Configuring PCI Boards Automatically
The system ROM automatically configures PCI boards. If a user selection is
required, a POST message directs you to run the System Configuration Utility.
Also, you may use the System Configuration Utility to change the default
automatic settings.
Removing Boards
System ROM automatically reconfigures the server after a PCI board or DIMM
is removed.
Installing an Operating System
Compaq ProLiant 3000 servers support the following operating systems:
■ Novell NetWare 3.2, NetWare 4.2, NetWare 4.2 SMP, and NetWare 5
■ Novell NetWare For Small Business 4.2
■ Microsoft Windows NT 3.51 and 4.x
5-13
■ SCO OpenServer 5.xx and 5.xx with SMP
■ SCO UnixWare 2.1.x OSMP, and UnixWare 7.0.x OSMP
■ SCO UnixWare 2.1.x, and UnixWare 7
■ IBM OS/2 2.x SMP 2.11, Warp 3.x, Warp 4.0, Warp Server 4.0, Warp
Server Advanced 4.0, and Warp Server Advanced 4.0 with SMP
■ Banyan VINES 6.x, 7.X and 8.x
■ Sun Solaris x86 2.5, 2.51, and 2.6
When you select the Operating System Installation feature from the System
Configuration Utility main menu, the utility provides prompts to simplify the
installation.
Compaq ProLiant 3000 Servers Setup and Installation Guide
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Server Configuration and Utilities
5-14
First the utility prompts you to select the correct operating system. Use the
arrow keys to select the operating system and press the Enter key. The utility
then prompts you for the operating system CD or diskette.
No operating systems ship with the server. Support for all operating systems
may not be available on this SmartStart and Support Software CD. Some
operating systems have driver support/updates but not an integrated SmartStart
installation. You can still configure your server and manually install your
operating system.
SMP Operating System Support
Compaq provides optimized drivers for multiple CPU systems for the following
operating systems:
■ Microsoft Windows NT 3.51, 4.x, and 5.0 when available
■ Novell NetWare 4.2 SMP and NetWare 5
■ SCO OpenServer 5.xx MPS
■ IBM OS/2 2.11 SMP, and Warp Server 4.0 with SMP
■ SCO UnixWare 2.1.x OSMP, UnixWare 7.0.x OSMP
For use with 350-MHz or greater Intel processor-based servers only
Writer: Cheri Stewart Project: Compaq ProLiant 3000 Servers Setup and Installation Guide Comments: 179776-002
File Name: F-CH05.DOC Last Saved On: 1/5/99 11:24 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Loading...
