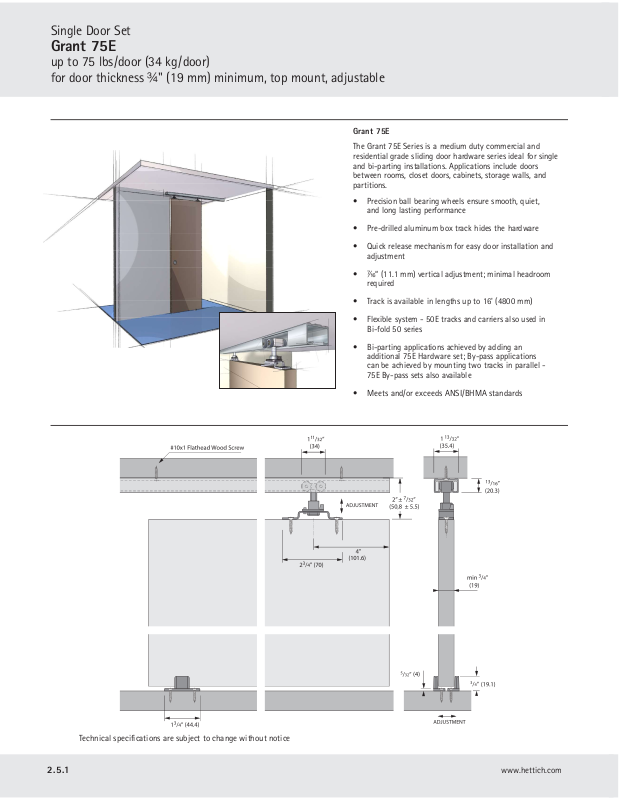

Single Door Set
Grant 75E
up to 75 lbs/door (34 kg/door)
for door thickness w" (19 mm) minimum, top mount, adjustable
Grant 75E
The Grant 75E Series is a medium duty commercial and
residential grade sliding door hardware series ideal for single
and bi-parting installations. Applications include doors
between rooms, closet doors, cabinets, storage walls, and
partitions.
• Precision ball bearing wheels ensure smooth, quiet,
and long lasting performance
• Pre-drilled aluminum box track hides the hardware
• Quick release mechanism for easy door installation and
adjustment
• v“ (11.1 mm) vertical adjustment; minimal headroom
required
• Track is available in lengths up to 16' (4800 mm)
• Flexible system - 50E tracks and carriers also used in
Bi-fold 50 series
• Bi-parting applications achieved by adding an
additional 75E Hardware set; By-pass applications
can be achieved by mounting two tracks in parallel -
75E By-pass sets also available
•
Meets and/or exceeds ANSI/BHMA standards
2. 5.1
Technical specifications are subject to change without notice
www.hettich.com
