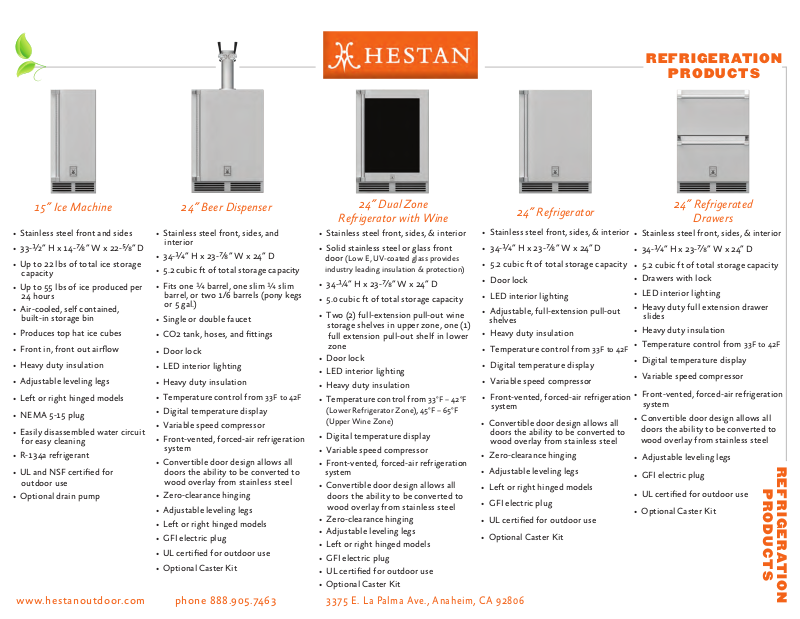

Hestan GFDSL242 Specifications

REFRIGERATION
PRODUCTS
15” Ice Machine 24” Beer Dispenser
• Stainless steel front and sides
⁄” H x 14-⁄” W x 22-⁄” D
• 33-
• Up to 22 lbs of total ice storage capacity
• Up to 55 lbs of ice produced per 24 hours
• Air-cooled, self contained, built-in storage bin
• Produces top hat ice cubes
• Front in, front out airow
• Heavy duty insulation
• Adjustable leveling legs
• Left or right hinged models
• NEMA 5-15 plug
• Easily disassembled water circuit for easy cleaning
• R-134a refrigerant
• UL and NSF certied for outdoor use
• Optional drain pump
www.hestanoutdoor.com phone 888.905.7463
• Stain
less steel front, sides, and
interior
• 34-
⁄” H x 23-⁄” W x 24” D
• 5.2 cubic ft of total storage capacity
• Fits one ¼ barrel, one slim ¼ slim barrel, or two 1/6 barrels (pony kegs or 5 gal.)
• Single or double faucet
• CO2 tank, hoses, and ttings
• Door lock
• LED interior lighting
• Heavy duty insulation
• Temperature control from
• Digital temperature display
• Variable speed compressor
• Front-vented, forced-air refrigeration system
• Convertible door design allows all doors the ability to be converted to wood overlay from stainless steel
• Zero-clearance hinging
• Adjustable lev
• Left or right hinged models
• GFI electric plug
• UL certied for outdoor use
• Optional Caster Kit
eling legs
33F to 42F
24” Dual Zone
Refrigerator with Wine
less steel front, sides, & interior
• Stain
• Solid stainless steel or glass front
(Low E, UV-coated glass provides
door
industry leading insulation & protection)
• 34-
⁄” H x 23-⁄” W x 24” D
• 5.0 cubic ft of total storage capacity
• Two (2) full-extension pull-out wine storage shelves in upper zone, one (1) full extension pull-out shelf in lower zone
• Door lock
• LED interior lighting
• Heavy duty insulation
• Temperature control from
(Lower Refrigerator Zone) (Upper Wine Zone)
• Digital temperature display
• Variable speed compressor
• Front-vented, forced-air refrigeration system
• Convertible door design allows all doors the ability to be converted to wood overlay from stainless steel
• Zero-clearance hinging
• Adjustable leveling legs
• Left or right hinged models
• GFI electric plug
• UL certied for outdoor use
• Optional Caster Kit
33°F – 42°F
,
45°F – 65°F
• Stain
• 34-
• 5.2 cubic ft of total storage capacity
• Door lock
• LED interior lighting
• Adjustable, full-extension pull-out shelves
• Heavy duty insulation
• Temperature control from
• Digital temperature display
• Variable speed compressor
• Front-vented, forced-air refrigeration system
• Convertible door design allows all doors the ability to be converted to wood overlay from stainless steel
• Zero-clearance hinging
• Adjustable leveling legs
• Left or right hinged models
• GFI electric plug
• UL certied for outdoor use
• Optional Caster Kit
24” Refrigerator
less steel front, sides, & interior
⁄” H x 23-⁄” W x 24” D
3375 E. La Palma Ave., Anaheim, CA 92806
33F to 42F
24” Refrigerated
Drawers
• Stainless steel front, sides, & interior
⁄” H x 23-⁄” W x 24” D
• 34-
• 5.2 cubic ft of total storage capacity
• Drawers with lock
• LED interior lighting
• Heavy duty full extension drawer slides
• Heavy duty insulation
• Temperature control from
• Digital temperature display
• Variable speed compressor
• Front-vented, forced-air refrigeration system
• Convertible door design allows all doors the ability to be converted to wood overlay from stainless steel
• Adjustable leveling legs
• GFI electric plug
• UL certied for outdoor use
• Optional Caster Kit
33F to 42F
PRODUCTS
REFRIGERATION
REFRIGERATION
PRODUCTS
ISLAND, CUTOUT,
REFRIGERATION
34”
Models Description
GRS_24 24” Outdoor Refrigerator, Solid Door with Lock
OUTDOOR
ICE MACHINE
24”
15”
34
OUTDOOR
REFRIGERATOR /
BEER DISPENSER
3⁄8”
24”
24”
Electrical
Requirements
115V, 60Hz., 1 Phase, 2.3 amps
NOTE: See outdoor
beer dispenser manual for detailed installation information and faucet tower cutout dimensions.
GRR24 24” Outdoor Refrigerator Drawers with Lock
GRWS_24
GRWG_24
GFDS_241 24” Outdoor Single Faucet Beer Dispenser, Solid Door with Lock
GFDS_242 24” Outdoor Double Faucet Beer Dispenser, Solid Door with Lock
GIM_15
_= Specify (L) or (R) for Left or Right Hinge model
24” Outdoor Dual Zone Refrigerator w Wine, Solid Door with Lock
24” Outdoor Dual Zone Refrigerator w Wine, Glass Door with Lock
15” Outdoor Ice Machine
www.hestanoutdoor.com phone 888.905.7463
115V, 60Hz., 1 Phase, 2.3 amps
115V, 60Hz., 1 Phase, 2.3 amps
115V, 60Hz., 1 Phase, 2.3 amps
115V, 60Hz., 1 Phase, 2.3 amps
115V, 60Hz., 1 Phase, 2.3 amps
120V, 60Hz, 3.4 amps
Hestan Outdoor products are approved for outdoor use only. Hestan Commercial Corporation reserves the right to change materials and specications without notice.
All Products
Ice Machine Only
3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:
011023
