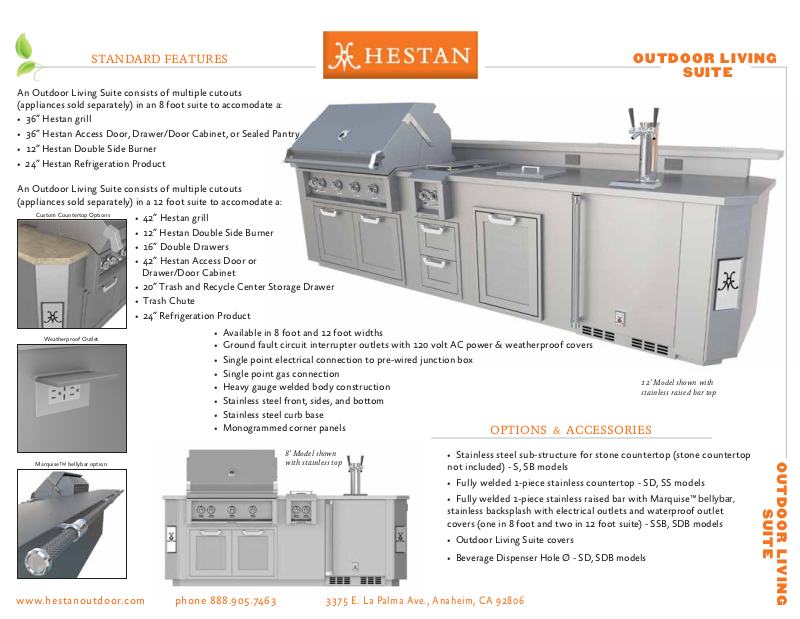

Hestan GESDB12, GESDB08 Specifications

STANDARD FEATURES

An Outdoor Living Suite consists of multiple cutouts
(appliances sold separately) in an 8 foot suite to accomodate a:

• 36” Hestan grill

• 36” Hestan Access Door, Drawer/Door Cabinet, or Sealed Pantry

• 12” Hestan Double Side Burner

• 24” Hestan Refrigeration Product

An Outdoor Living Suite consists of multiple cutouts
(appliances sold separately) in a 12 foot suite to accomodate a:

Custom Countertop Options

Weatherproof Outlet

• 42” Hestan grill

• 12” Hestan Double Side Burner

• 16” Double Drawers

• 42” Hestan Access Door or
Drawer/Door Cabinet

• 20” Trash and Recycle Center Storage Drawer

• Trash Chute

• 24” Refrigeration Product

• Available in 8 foot and 12 foot widths

• Ground fault circuit interrupter outlets with 120 volt AC power & weatherproof covers

• Single point electrical connection to pre-wired junction box

• Single point gas connection

• Heavy gauge welded body construction

• Stainless steel front, sides, and bottom

• Stainless steel curb base

• Monogrammed corner panels

OUTDOOR LIVING

SUITE

12’ Model shown with
stainless raised bar top

OPTIONS & ACCESSORIES

Marquise™ bellybar option

www.hestanoutdoor.com phone [phone]

8’ Model shown
with stainless top

• Stainless steel sub-structure for stone countertop (stone countertop
not included) - S, SB models

• Fully welded 1-piece stainless countertop - SD, SS models

• Fully welded 1-piece stainless raised bar with Marquise™ bellybar,
stainless backsplash with electrical outlets and waterproof outlet
covers (one in 8 foot and two in 12 foot suite) - SSB, SDB models

• Outdoor Living Suite covers

• Beverage Dispenser Hole Ø - SD, SDB models

3375 E. La Palma Ave., Anaheim, CA 92806

OUTDOOR LIVING

SUITE

52.00

98 or 146

SHOWN WITH OPTIONAL BEVERAGE
DISPENSER - SD, SDB models

OUTDOOR LIVING

SUITE

SHOWN WITH
OPTIONAL RAISED BAR

- SSB, SDB models

120V OUTLET WITH

WEATHERPROOF

COVER

18.24

2 PLCS

1.5

2 PL

54.24

2.75

INSTALLATION/ASSEMBLY SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN OR PROFESSIONAL OUTDOOR
EQUIPMENT INSTALLER. THE ELECTRICAL COMPONENTS SUPPLIED WITH SUITES MUST BE INSTALLED BY A LICENSED
ELECTRICIAN AND CONNECTED IN ACCORDANCE WITH LOCAL CODES. GAS CONNECTIONS MUST BE MADE BY A LICENSED
PLUMBER IN ACCORDANCE WITH LOCAL CODES.

Built - In

Models

GE ___8 8’ Cooking Suite

GE___12 12’ Cooking Suite

S: no top SD: ss top w/ beer dispenser SS: ss top SSB: ss top w/bar SDB: ss top w/bar and beer dispenser SB: no top w/ bar

Description

96 or 144

Overall Dimensions*

W (in.) D (in.) H (in.)

98 37 36 650

146 37 36 940

36.00

31.75

Weight

58.75

42.00

15.0

30.00

37.00

GAS REQUIREMENTS : ⁄” NPT gas connection.

Minimum gas supply is 7” water column for natural
gas and 11” for propane. Operating pressure at the
manifold is 4” water column for natural gas and 10”
for propane. All units require a regulated gas supply.

ELECTRICAL REQUIREMENTS

120V, 60Hz, 20 amp circtuit breaker from main service panel

Hestan Outdoor products are approved for outdoor use only. Hestan Commercial
Corporation reserves the right to change materials and specications without notice.
Specify type of gas when ordering.

* Dimensions are of suite body and do not include actual appliance dimensions

:

www.hestanoutdoor.com phone [phone]

3375 E. La Palma Ave., Anaheim, CA 92806CONTACT US:
