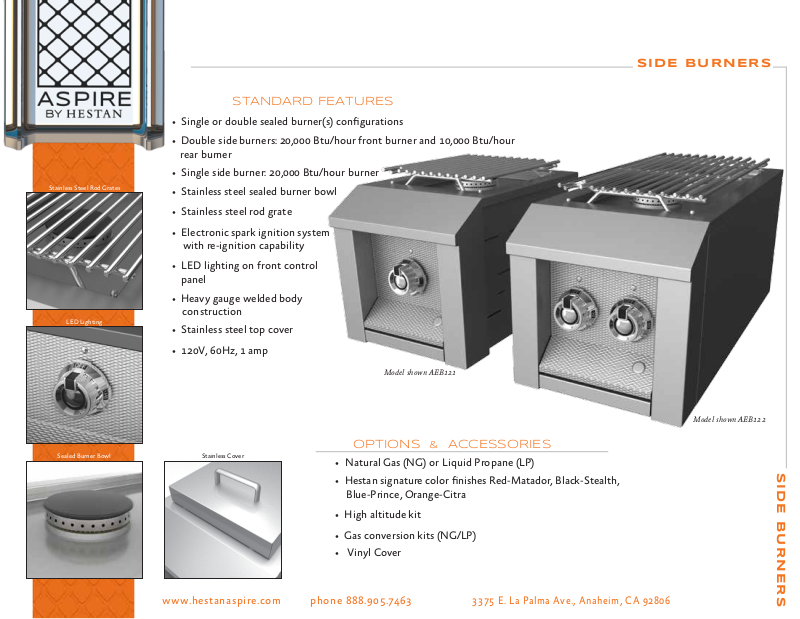

Hestan AEB121LPSS, AEB122LPSS, AEB121NGSS Specifications

Stainless Steel Rod Grates

LED Lighting

STANDARD FEATURES

• Single or double sealed burner(s) congurations

• Double side burners: 20,000 Btu/hour front burner and 10,000 Btu/hour
rear burner

• Single side burner: 20,000 Btu/hour burner

• Stainless steel sealed burner bowl

• Stainless steel rod grate

• Electronic spark ignition system
with re-ignition capability

• LED lighting on front control
panel

• Heavy gauge welded body
construction

• Stainless steel top cover

• 120V, 60Hz, 1 amp

SIDE BURNERS

Sealed Burner Bowl

Model shown AEB121

OPTIONS & ACCESSORIES

Stainless Cover

• Natural Gas (NG) or Liquid Propane (LP)

• Hestan signature color nishes Red-Matador, Black-Stealth,
Blue-Prince, Orange-Citra

• High altitude kit

• Gas conversion kits (NG/LP)

• Vinyl Cover

www.hestanaspire.com phone [phone]

Model shown AEB122

SIDE BURNERS

3375 E. La Palma Ave., Anaheim, CA 92806

W

4

3

" MIN.

4

SIDE BURNERS

H

36"

REF.

36"

REF.

LAYOUT FOR

19"

1

"

2

2

MIN.

OPENING FOR

ASPIRE

ACCESS DOOR

3-1/2" X 5-1/2"

OPENING FOR

GAS SUPPLY

& ELECTRICAL

2

1

"

4

TOP VIEW

1

D

1

"

2

10 in² MIN.
VENTILATION
OPENING ON
BOTH SIDES
AND REAR

9

"

16

NOTCH

All Models Description Total Btu’s

AEB121 NG / -LP Single Side Burner, Built-in, 12”

AEB 122 NG / -LP

Double Side Burner, Built-In, 12”

NON-COMBUSTIBLE

ENCLOSURE (ISLAND)

1" MAX.

COUNTERTOP

OVERHANG

Cutout Dimensions

W(in.) D(in.) H(in.)

11 20,000

ASPIRE

ACCESS DOOR

(SOLD SEPARATELY)

ELECTRICAL REQUIREMENTS

GAS REQUIREMENTS : ⁄” NPT gas connection. Minimum gas supply

is 7” water column for natural gas and 11” for propane. Operating
pressure at the manifold is 4” water column for natural gas and 10”
for propane. All units require a regulated gas supply.

Aspire by Hestan products are approved for outdoor use only. Hestan Commercial
Corporation reserves the right to change materials and specications without
notice. Specify type of gas when ordering.

13-⅞

-

24

11-⁄

-⁄

11

:

120V, 60Hz, 1 amps

30,00011
