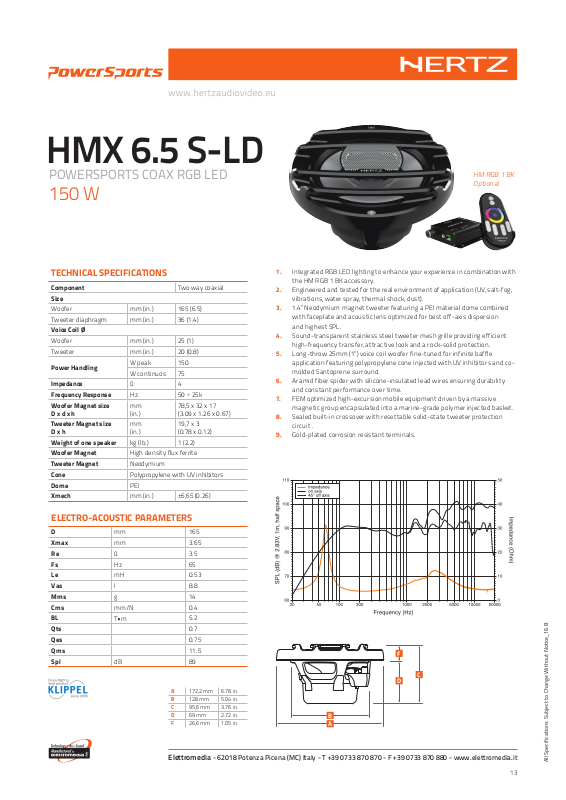

Hertz HMX 6.5 S-LD Technical Specifications

HMX 6.5 S-LD

POWERSPORTS COAX RGB LED

150 W

HM RGB 1 BK
Optional

TECHNICAL SPECIFICATIONS

Component Two way coaxial
Size

Woofer mm (in.) 165 (6.5)

Tweeter diaphragm mm (in.) 36 (1.4)

Voice Coil Ø

Woofer mm (in.) 25 (1)

Tweeter mm (in.) 20 (0.8)

Power Handling

Impedance Ω 4
Frequency Response Hz 50 ÷ 25k
Woofer Magnet size

D x d x h
Tweeter Magnet size

D x h
Weight of one speaker kg (lb.) 1 (2.2)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Polypropylene with UV inhibitors
Dome PEI
Xmech mm (in.) ±6,65 (0.26)

W peak 150

W continuos 75

mm
(in.)

mm
(in.)

78,5 x 32 x 17
(3.09 x 1.26 x 0.67)

19,7 x 3
(0.78 x 0.12)

ELECTRO-ACOUSTIC PARAMETERS

D mm 165
Xmax mm 3.65
Re Ω 3.5
Fs Hz 65
Le mH 0.53
Vas I 8.8
Mms g 14
Cms mm/N 0.4
BL
Qts 0.7
Qes 0.75
Qms 11.5
Spl dB 89

T•m

5.2

A 172,2 mm 6.78 in.
B 128 mm 5.04 in.
C 95,6 mm 3.76 in.
D 69 mm 2.72 in.
F 26,6 mm 1.05 in.

1. Integrated RGB LED lighting to enhance your experience in combination with

the HM RGB 1 BK accessory.

2. Engineered and tested for the real environment of application (UV, salt-fog,

vibrations, water spray, thermal shock, dust).

3. 1.4” Neodymium magnet tweeter featuring a PEI material dome combined

with faceplate and acoustic lens optimized for best off-axis dispersion
and highest SPL.

4. Sound-transparent stainless steel tweeter mesh grille providing efficient

high-frequency transfer, attractive look and a rock-solid protection.

5. Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle

application featuring polypropylene cone injected with UV inhibitors and co-
molded Santoprene surround.

6. Aramid fiber spider with silicone-insulated lead wires ensuring durability

and constant performance over time.

7. FEM optimized high-excursion mobile equipment driven by a massive

magnetic group encapsulated into a marine-grade polymer injected basket.

8. Sealed built-in crossover with resettable solid-state tweeter protection

circuit .

9. Gold-plated corrosion resistant terminals.

F

C

D

B
A

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - www.elettromedia.it

All Specifications Subject to Change Without Notice_16.B
