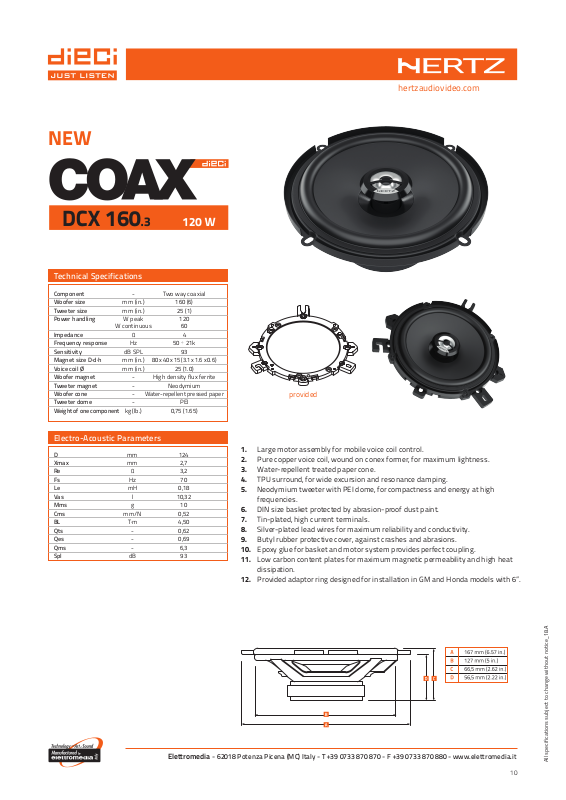

Hertz DCX 160.3 TECHNICAL SPECIFICATIONS

NEW

Technical Specifications

Component - Two way coaxial
Woofer size mm (in.) 160 (6)
Tweeter size mm (in.) 25 (1)
Power handling W peak 120

W continuous 60

Impedance Ω 4
Frequency response Hz 50 ÷ 21k
Sensitivity dB SPL 93
Magnet size D·d·h mm (in.)
Voice coil Ø mm (in.) 25 (1.0)
Woofer magnet - High density flux ferrite
Tweeter magnet - Neodymium
Woofer cone ­Tweeter dome - PEI
Weight of one component

kg (lb.) 0,75 (1.65)

80 x 40 x 15 (3.1 x 1.6 x 0.6)

Water-repellent pressed paper

hertzaudiovideo.com

provided

Electro-Acoustic Parameters

D mm 124
Xmax mm 2,7
Re Ω 3,2
Fs Hz 70
Le mH 0,18
Vas l 10,32
Mms g 10
Cms mm/N 0,52
BL T·m 4,50
Qts - 0,62
Qes - 0,69
Qms - 6,3
Spl dB 93

1. Large motor assembly for mobile voice coil control.

2. Pure copper voice coil, wound on conex former, for maximum lightness.

3. Water-repellent treated paper cone.

4. TPU surround, for wide excursion and resonance damping.

5. Neodymium tweeter with PEI dome, for compactness and energy at high

frequencies.

6. DIN size basket protected by abrasion-proof dust paint.

7. Tin-plated, high current terminals.

8. Silver-plated lead wires for maximum reliability and conductivity.

9. Butyl rubber protective cover, against crashes and abrasions.

10. Epoxy glue for basket and motor system provides perfect coupling.

11. Low carbon content plates for maximum magnetic permeability and high heat

dissipation.

12. Provided adaptor ring designed for installation in GM and Honda models with 6”.

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - www.elettromedia.it

All specifications subject to change without notice_18.A
