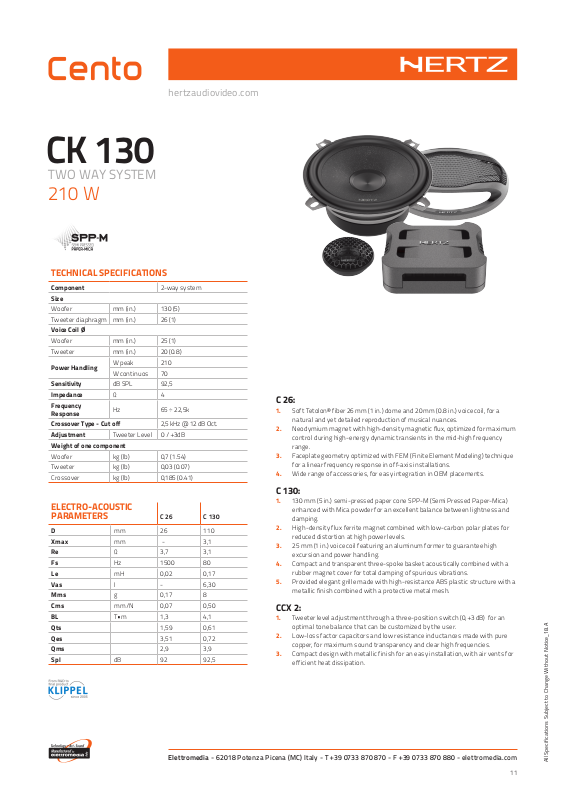

Hertz CK 130 TECHNICAL SPECIFICATIONS

hertzaudiovideo.com

CK 130

TWO WAY SYSTEM

210 W

TECHNICAL SPECIFICATIONS

Component 2-way system
Size

Woofer mm (in.) 130 (5)

Tweeter diaphragm mm (in.) 26 (1)

Voice Coil Ø

Woofer mm (in.) 25 (1)

Tweeter mm (in.) 20 (0.8)

Power Handling

Sensitivity dB SPL 92,5
Impedance Ω 4
Frequency

Response
Crossover Type - Cut off 2,5 kHz @ 12 dB Oct.
Adjustment Tweeter Level 0 / +3dB
Weight of one component

Woofer kg (lb) 0,7 (1.54)

Tweeter kg (lb) 0,03 (0.07)

Crossover kg (lb) 0,185 (0.41)

ELECTRO-ACOUSTIC
PARAMETERS C 26 C 130

D mm 26 110
Xmax mm - 3,1
Re Ω 3,7 3,1
Fs Hz 1500 80
Le mH 0,02 0,17
Vas I - 6,30
Mms g 0,17 8
Cms mm/N 0,07 0,50
BL
Qts 1,59 0,61
Qes 3,51 0,72
Qms 2,9 3,9
Spl dB 92 92,5

W peak 210

W continuos 70

Hz 65 ÷ 22,5k

T•m

1,3 4,1

C 26:

1. Soft Tetolon® fiber 26 mm (1 in.) dome and 20 mm (0.8 in.) voice coil, for a

natural and yet detailed reproduction of musical nuances.

2. Neodymium magnet with high-densit y magnetic flux , optimized for maximum

control during high-energy dynamic transient s in the mid-high frequency
range.

3. Faceplate geometr y optimized with FEM (Finite Element Modeling ) technique

for a linear frequency response in off-axis installations.

4. Wide range of accessories, for easy integration in OEM placements.

C 130 :

1. 130 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica)

enhanced with Mica powder for an excellent balance between lightness and
damping.

2. High-density flux ferrite magnet combined with low-carbon polar plates for

reduced distortion at high power levels.

3. 25 mm (1 in.) voice coil featuring an aluminum former to guarantee high

excursion and power handling.

4. Compact and transparent three-spoke basket acoustically combined with a

rubber magnet cover for total damping of spurious vibrations.

5. Provided elegant grille made with high-resistance ABS plastic structure with a

metallic finish combined with a protective metal mesh.

CCX 2:

1. Tweeter level adjustment through a three-position switch (0, +3 dB) for an

optimal tone balance that can be customized by the user.

2. Low-loss factor capacitors and low resistance inductances made with pure

copper, for ma ximum sound transparency and clear high frequencies.

3. Compact design with metallic finish for an easy installation, with air vents for

efficient heat dissipation.

Elettromedia - 62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - elettromedia.com

11

All Specifications Subject to Change Without Notice_18.A
