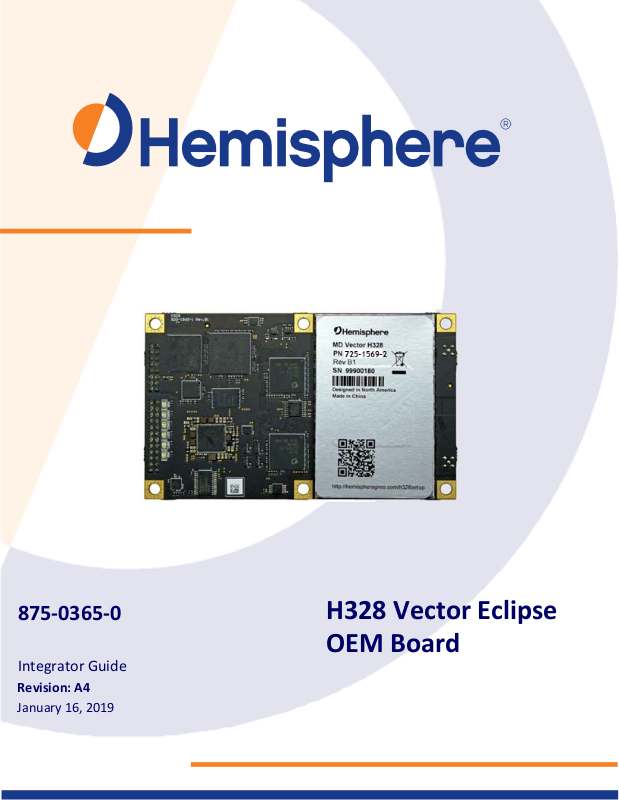

Hemisphere GPS Vector H328 Integrator Manual

875-0365-0

Integrator Guide

Revision: A4

January 16, 2019

H328 Vector Eclipse
OEM Board

Table of Contents

Device Compliance, License and Patents ............................................................................ 4

H328 Terms & Definitions ................................................................................................... 6

Chapter 1: Introduction .............................................................................................................. 8

Overview ............................................................................................................................. 8

Product Overview ............................................................................................................... 9

What’s Included in Your Kit............................................................................................... 10

Key Features ...................................................................................................................... 11

Athena RTK ........................................................................................................................ 13

aRTK Position Aiding ......................................................................................................... 14

Firmware ........................................................................................................................... 15

Using PocketMax to Communicate with the H328 ........................................................... 15

Chapter 2: Integrating the H328 ............................................................................................... 16

Overview ........................................................................................................................... 16

H328 Integration ............................................................................................................... 17

Mechanical Layout ............................................................................................................ 18

Connectors ........................................................................................................................ 19

Mounting Options ............................................................................................................. 20

Header Layouts and Pin-outs ............................................................................................ 21

Signals ............................................................................................................................... 26

Ports .................................................................................................................................. 26

Chapter 3: Understanding the H328 OEM Board .................................................................... 30

Overview ........................................................................................................................... 30

Timing Signal ..................................................................................................................... 31

Event Marker Input ........................................................................................................... 32

Grounds ............................................................................................................................. 32

Speed Radar Output .......................................................................................................... 33

Shielding ............................................................................................................................ 33

Receiver Mounting ............................................................................................................ 34

Antenna Mounting ............................................................................................................ 34

875-0365-0 H328 Integrator Guide Rev A4 Page 2 of 74

Mounting Orientation ....................................................................................................... 35

H328 Orientation and Sensor Calibration ......................................................................... 37

Planning the Optimal Antenna Placement ....................................................................... 41

Thermal Concerns ............................................................................................................. 43

Chapter 4: Operating the H328................................................................................................. 44

Overview ........................................................................................................................... 44

Powering the H328 On/Off ............................................................................................... 45

Communicating with the H328 ......................................................................................... 45

Configuring the H328 ........................................................................................................ 46

LED Indicators ................................................................................................................... 47

Configuring the Data Message Output ............................................................................. 48

‘THIS’ Port and the ‘OTHER’ Port ...................................................................................... 48

Saving the H328 Configuration ......................................................................................... 49

Configuration Defaults ...................................................................................................... 50

Appendix A: Troubleshooting ................................................................................................... 52

Overview ........................................................................................................................... 52

Troubleshooting ................................................................................................................ 52

Appendix B: Technical Specifications ........................................................................................ 56

Technical Specifications .................................................................................................... 56

H328 Technical Specifications........................................................................................... 57

Appendix C: Frequently Asked Questions ................................................................................. 62

FAQ .................................................................................................................................... 62

Appendix C: Frequently Asked Questions (FAQ) .............................................................. 63

Index .................................................................................................................................. 75

End User License Agreement ............................................................................................ 76

Warranty Notice ................................................................................................................ 80

875-0365-0 H328 Integrator Guide Rev A4 Page 3 of 74

Device Compliance, License and Patents

Device Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

E-Mark Statement: This product is not to be used for driverless/autonomous driving.

Copyright Notice

Copyright Hemisphere GNSS, Inc. (2019). All rights reserved.

chemical, manual or otherwise, without the prior written permission of Hemisphere GNSS.

Trademarks

Hemisphere GNSS®, the Hemisphere GNSS logo, TRACERTM, Crescent®, EclipseTM, e-Dif®, L-DifTM, PocketMax4TM,

are the properties of their respective owners.

Patents

Hemisphere GNSS products may be covered by one or more of the following patents:

6111549

6876920

7400956

8000381

6397147

7142956

7429952

8018376

6469663

7162348

7437230

8085196

6501346

7277792

7460942

8102325

6539303

7292185

7689354

8138970

6549091

7292186

7808428

8140223

6711501

7373231

7835832

8174437

6744404

7388539

7885745

8184050

6865465

7400294

7948769

8190337

8214111

8217833

8265826

8271194

8307535

8311696

8334804

RE41358

Australia Patents

2002244539

2002325645

2004320401

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause undesired

operation.

This product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The
declaration of conformity may be consulted at

No part of this manual may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into
any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,

S320TM, SBX-4TM, VectorTM, XF1TM, and XF2TM are proprietary trademarks of Hemisphere GNSS, Inc. Other trademarks

HTTPS://HEMISPHEREGNSS.COM/ABOUT-US/QUALITY-COMMITMENT.

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 4 of 74

Device Compliance, License and Patents, Continued

Notice to Customers

Contact your local dealer for technical assistance. To find the authorized dealer near you:

WWW.HGNSS.COM

Technical Support

If you need to contact Hemisphere GNSS Technical Support:

SUPPORT.HGNSS.COM

Documentation

Hemisphere GNSS is committed to the quality and continuous improvement of our products and services. We urge

website: SUPPORT.HGNSS.COM

Hemisphere GNSS, Inc
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: [phone]
Fax: [phone]

[e-mail]

Hemisphere GNSS, Inc.
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: [phone]
Fax: [phone]

Feedback

you to provide Hemisphere GNSS with any feedback regarding this guide by opening a support case at the following

875-0365-0 H328 Integrator Guide Rev A4 Page 5 of 74

H328 Terms & Definitions

Introduction

The following table lists the terms and definitions used in this document.

H328 terms &

Term

Definition

1PPS

1 pulse-per-second is a pulse output by the receiver

synchronization.

Activation

Activation refers to a feature added through a one-

see Subscription.

Atlas

Atlas is a subscription-based service provided by
Hemisphere GNSS.

Base Station

The Base Station is a receiver placed over a familiar

or the internet.

BeiDou

BeiDou is a Chinese satellite-based navigation system.

Firmware

Firmware is the software loaded into the receiver that

GNSS engine.

GALILEO

Galileo is a global navigation satellite system

Space Agency.

GLONASS

Global Orbiting Navigation Satellite System (GLONASS)

maintained by Russia.

GNSS

Global Navigation Satellite System (GNSS) is a system

GLONASS and Galileo.

definitions

precisely once per second and is used for hardware

time purchase. For features that require recurring fees,

point, provides real-time observations, and sends
those observations to nearby RTK rovers via UHF radio

controls the functionality of the receiver and runs the

implemented by the European Union and European

is a Global Navigation Satellite System deployed and

that provides autonomous 3D position (latitude,
longitude, and altitude) and accurate timing globally by
using satellites. Current GNSS providers are: GPS,

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 6 of 74

H328 terms &

Term

Definition

GPS

Global Positioning System (GPS) is a global navigation
satellite system implemented by the United States.

Multipath

Multipath occurs when the GNSS signal reaches the

GNSS solutions.

NMEA

National Marine Electronics Association (NMEA) is a

for communication between marine electronics.

ROX

ROX is a Hemisphere GNSS propriety RTK message

branded.

RTCM

Radio Technical Commission for Maritime Services

be used together.

RTK

Real-Time-Kinematic (RTK) is a real-time differential

differential corrections.

SBAS

Satellite Based Augmentation System (SBAS) is a

satellite throughout a wide area or region.

Subscription

A subscription is a feature that is enabled for a limited

subscription is renewed.

WAAS

Wide Area Augmentation System (WAAS) is a

parts of North America.

H328 Terms & Definitions, Continued

definitions,

continued

antenna by two or more paths. This causes incorrect
pseudo-range measurements and leads to less precise

marine electronics organization that sets standards

format that can be used as an alternative to RTCM3
when both the base and rover are Hemisphere

(RTCM) is a standard used to define RTK message
formats so that receivers from any manufacturer can

GPS method that provides better accuracy than

system that provides differential corrections over

time. Once the end-date of the subscription has been
reached, the feature will turn off until the

satellite-based augmentation system (SBAS) that
provides free differential corrections over satellite in

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 7 of 74

Overview

Introduction

This Integrator Guide helps you integrate your H328 OEM board with your

Reference Manual.

Contents

Topic

See Page

Product Overview

9

What’s Included in Your Kit

10

Key Features

11

Athena RTK

13

aRTK Position Aiding

14

Firmware

15

Using PocketMax to Communicate with the H328

15

Chapter 1: Introduction

positioning product. You can download this manual from the Hemisphere
GNSS website at WWW.HGNSS.COM.

This manual does not cover receiver operation, the PocketMax utility, or
commands and messages (NMEA 0183, NMEA2000® or HGPS proprietary).
For information on these subjects refer to the Hemisphere GNSS Technical

875-0365-0 H328 Integrator Guide Rev A4 Page 8 of 74

Product Overview

Product

The Vector Eclipse H328 is our most advanced GNSS heading and positioning

Model

GNSS Systems

L-band

H328™

• GPS

QZSS L1CA

Yes

overview

board.

The Vector H328 uses dual antenna ports to create a series of additional
capabilities to Eclipse™ Vector technology including fast, high-accuracy
heading over short baselines, RTK positioning, onboard Atlas L-band, RTK­enabled heave, low-power consumption, and precise timing. It is well suited
for sophisticated machine control and navigation solutions in complex
dynamic environments.

The Eclipse™ H328 OEM board is available in the hardware configuration
shown in Table 1-1.

Table 1-1: H328 board options

L1CA/L1P/L2P/L2C/L5

• GLONASS

G1/G2/Pcode (P1/P2)

• BeiDou B1/B2/B3

• Galileo E1BC/E5a/E5b

•

875-0365-0 H328 Integrator Guide Rev A4 Page 9 of 74

What’s Included in Your Kit

Kit contents

The H328 is available in two configurations:

Eclipse™ H328 OEM Board/H328 Adapter Board Schematics, and click Open.

• H328 OEM board only - designed for integrators who are familiar with

Eclipse board integration

• H328 OEM board and H328 adaptor board

(by request only P/N 725-1521-0).

For more information on requesting the H328 adaptor board, go to the

HGNSS OEM Products page or contact your local dealer.

To access a pdf version of the OEM adapter board schematics, go to the

HGNSS Home page/Products/OEM Boards/Position & Heading/Vector™

875-0365-0 H328 Integrator Guide Rev A4 Page 10 of 74

Key Features

Overview

With small form factor, low power consumption, and simple on-board

• 744-channel GNSS engine

• Two CAN ports (NMEA2000, ISO-

11783)

• Sub-meter horizontal accuracy

95%

• One Ethernet 10/100 TCP/IP

• Raw measurement output (via

documented binary messages)

• Event marker input

• Tracer™ technology that

with correction data

• e-Dif®-ready - a base station-free

• Position update rates up to 50 Hz

• Three full-duplex serial ports - two

control

• One USB device port

• One PPS timing output

firmware, the H328 is an ideal solution for integrators, offering scalability
and expandability from L1 GPS with SBAS to multi- frequency GPS, GLONASS,
BeiDou, Galileo and QZSS (with RTK capability).

Key features of the H328 include:

provides consistent performance

differential positioning

3.3V CMOS UART (one with flow
control) and one RS232 with flow

875-0365-0 H328 Integrator Guide Rev A4 Page 11 of 74

Continued on next page

Key Features, Continued

Overview,

H328 is offered in the common industry form factor (100L x 60W mm) with

reacquisition, and more robust solutions due to better cycle slip detection.

continued

integrated L-band. The reliable positioning performance of H328 is further
enhanced by Athena RTK, Atlas corrections, aRTK, SureFix and TRACER™
technology.

The dual antenna H328 provides accurate heading with an on-board gyro and
tilt sensor that provides heading during short GNSS outages.

With the H328, RTK performance is scalable. The H328 uses the same
centimeter-level accuracy in L1- only mode or employs the full performance
of fast RTK convergence over long distances with L1/L2/L5 GPS signals. H328
benefits from fewer RTK dropouts in congested environments, faster

875-0365-0 H328 Integrator Guide Rev A4 Page 12 of 74

Athena RTK

Athena RTK

Athena RTK (Real Time Kinematic) technology is available on Eclipse-based

long baseline applications

Atlas L-band

Atlas L-band is Hemisphere's industry leading correction service, which can

For more information about Atlas L-band, see: HTTP://HGNSS.COM/ATLAS

GNSS receivers. This is Hemisphere's most advanced RTK software and can
be added to the H328 as an activation.

Athena RTK has the following benefits:

• Improved Initialization time - Performing initializations in less than 15

seconds at better than 99.9% of the time

• Robustness in difficult operating environments - Extremely high

productivity under the most aggressive of geographic and landscape­oriented environments

• Performance on long baselines - Industry-leading position stability for

be added to the H328 as a subscription. Atlas L-band has the following
benefits:

• Positioning accuracy - Competitive positioning accuracies down to 4cm

rms in certain applications

• Positioning sustainability - Cutting edge position quality maintenance in

the absence of correction signals, using Hemisphere’s patented
technology

• Scalable service levels - Capable of providing virtually any accuracy,

precision and repeatability level in the 4cm to 50cm range

• Convergence time - Industry-leading convergence times of 10-40 minutes

For more information about Athena RTK, see: HTTP://HGNSS.COM/TECHNOLOGY

875-0365-0 H328 Integrator Guide Rev A4 Page 13 of 74

aRTK Position Aiding

aRTK position

aRTK is an innovative feature available in Hemisphere’s H328 that greatly

degradation of accuracy until RTK corrections resume.

aiding

mitigates the impact of land-based communication instability.

Powered by Hemisphere’s Atlas L-band system service, aRTK augments the
ability to maintain an RTK solution when the original RTK data link is lost or
interrupted. The aRTK provides an additional layer of communication
redundancy to RTK users, assuring that productivity is not impacted by
intermittent data connectivity.

H328 receives aRTK augmentation correction data over satellite, while also
receiving the land- based RTK correction data. The receiver internally
operates with two sources of RTK correction, creating one additional layer of
correction redundancy as compared to typical RTK systems.

After a few seconds of RTK correction loss aRTK is established. The receiver
uses Atlas corrections in the absence of RTK. This allows for a slower

875-0365-0 H328 Integrator Guide Rev A4 Page 14 of 74

Firmware

Firmware

The software that runs the H328 is often referred to as firmware since it

The H328 currently ships with the Athena based firmware.

PocketMax

Hemisphere’s PocketMax is a free utility program that runs on your Windows

(https://hemispheregnss.com/).

operates at a low level. You can upgrade the firmware in the field through
Ports A, B, or C, as new versions become available.

Using PocketMax to Communicate with the H328

PC or Windows mobile device. Simply connect your Windows device to the
H328 via the COM port and open PocketMax.

Simply connect your Windows device to the H328 via a COM port and open
PocketMax.

The screens within PocketMax allow you to easily interface with the H328 to:

• Select the internal SBAS, external beacon, or RTCM correction source and

monitor reception (beacon optional)

• Configure GPS message output and port settings

• Record various types of data

• Monitor the H328’s status and function

PocketMax is available for download from the Hemisphere GNSS website

875-0365-0 H328 Integrator Guide Rev A4 Page 15 of 74

Overview

Introduction

This chapter provides instructions on how to integrate your H328 board to
your positioning product.

Contents

Topic

See Page

H328 Integration

17

Mechanical Layout

18

Connectors

19

Mounting Options

20

Header Layouts and Pin-outs

21

Signals

26

Ports

26

Chapter 2: Integrating the H328

875-0365-0 H328 Integrator Guide Rev A4 Page 16 of 74

H328 Integration

Introduction

Successful integration of the H328 within a system requires electronics

Circuit design and layout

H328

The H328 GNSS engine is a low-level module intended for custom integration

amplified antenna

Message

The H328 accepts proprietary ASCII commands over any serial port.

Reference Manual.

expertise that includes:

• Power supply design

• Serial port level translation

• Reasonable radio frequency competency

• An understanding of electromagnetic compatibility

•

integration
requirements

with the following general requirements:

• Regulated power supply input: 3.3 VDC ± 3% @ 1.9A maximum continuous

• 2x 3.3V CMOS UART and 1x RS232 serial ports" and "USB device port

• Radio frequency (RF) input to the engine from a GNSS antenna is required

to be amplified (10 to 40 dB gain)

• Antenna input impedance is 50 Ω capable of supplying 5VDC @ 75ma for

interface

The H328 can output standard NMEA 0183 messages as well as Hemisphere
proprietary ASCII messages. The H328 also supports a selection of binary
messages, including Hemisphere proprietary.

For more information on NMEA 0183 and Hemisphere proprietary ASCII and
binary commands and messages, refer to the Hemisphere GNSS Technical

875-0365-0 H328 Integrator Guide Rev A4 Page 17 of 74

Mechanical Layout

H328

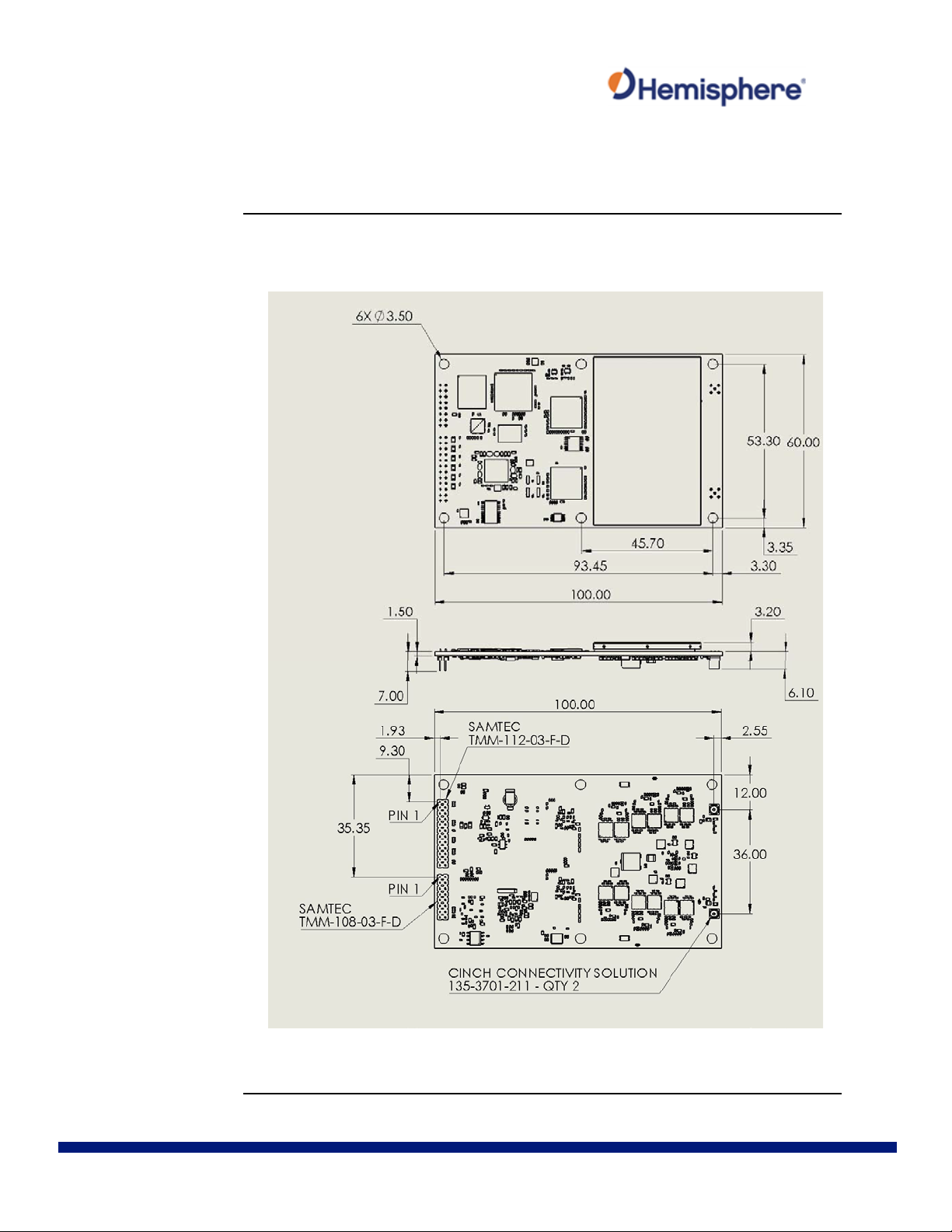

Figure 2-1 shows the mechanical layout for the H328 OEM board. Dimensions

Figure 2-1: Vector Eclipse H328 mechanical layout

mechanical
layout

are in millimeters (inches) for all layouts.

875-0365-0 H328 Integrator Guide Rev A4 Page 18 of 74

Connectors

H328

Table 2-1 describes H328 connectors and mating connectors. You can use

Eclipse Board and

Connector Type

Through-Hole Connector

Mating Connector

H328

RF

MMCX, female straight

135-3701-211

MMCX, male

Power/

24-pin (12x2) male

Board Mates:
Power/

16-pin (8x2) male header

Board Mates:

Cable Mates: TCSD

connectors

different compatible connectors; however, the requirements may be
different. The antenna input impedance is 50 Ω.

Table 2-1: H328 connectors

jack

Emerson (Johnson)

data

header, 0.0787 in (2 mm)
pitch

Samtec TMM-112-03-G-D

straight plug

Samtec CLT, ESQT,
MMS, SMM, SQT,
SQW, TLE
Eg: Samtec TLE-112­01-G-DV-K

Cable Mates: TCSD

875-0365-0 H328 Integrator Guide Rev A4 Page 19 of 74

data

0.0787 in (2 mm) pitch

Samtec TMM-108-03-G-D

Samtec CLT, ESQT,
MMS, SMM, SQT,
SQW, TLE
Eg: Samtec TLE-108­01-G-DV-K

Mounting Options

Overview

There are two options for mounting the H328:

• Indirect Electrical Connection (cable) method

Direct electrical

Place an RF connector, header connector, and mounting holes on the carrier

(0.138 in).

Indirect

The second method is to mount the H328 mechanically, so you can connect a

increased expense.

• Direct Electrical Connection method

connection

board and then mount the H328 on the standoffs and RF and header
connectors. This method is very cost effective as it does not use cable
assemblies to interface the H328.

Note: Be aware of the GPS RF signals present on the carrier board and
ensure the correct standoff height to avoid any stress on the board when
fastening.

The H328 uses a standoff height of 7.0 mm (0.2756 in). With this height,
there should be no washers between either the standoff and the H328, or
the standoff and the carrier board. You may need to change the standoff
height if you select a different header connector.

If you want to use a right angle MMCX connector, use a taller header
connector than the Samtec part number suggested in this guide. This will
provide clearance to have a right-angle cable-mount connector and reduce
the complexity, by not having the carrier board handle the RF signals. See
Table 2-1 for H328 connector information.

The mounting holes of the H328 have a standard inner diameter of 3.50 mm

electrical
connection
(cable) method

ribbon power/data cable to the H328. This requires cable assemblies and
there is a reliability factor present with cable assemblies in addition to

875-0365-0 H328 Integrator Guide Rev A4 Page 20 of 74

Header Layouts and Pin-outs

Overview

The H328 uses a dual-row header connector to interface with power,

Figure 2-2 Identifying the first pin on the header connector

communications, and other signals.

To identify the first header pin, orient the board so the diamond is to the
upper left of the pins; the first pin is on the left directly below the diamond.
The pins are then sequentially numbered per row from top to bottom.

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 21 of 74

Header Layouts and Pin-outs, Continued

H328 24- pin

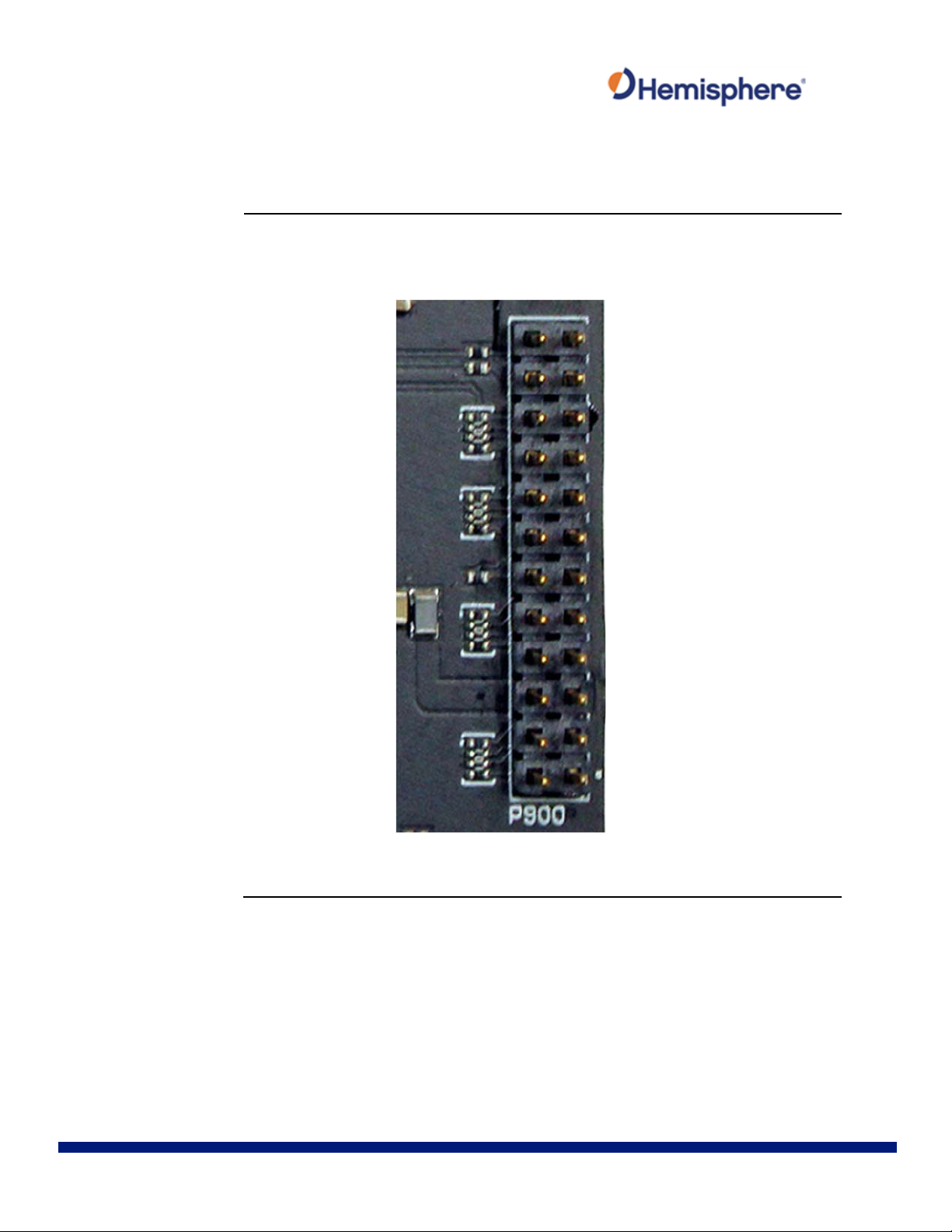

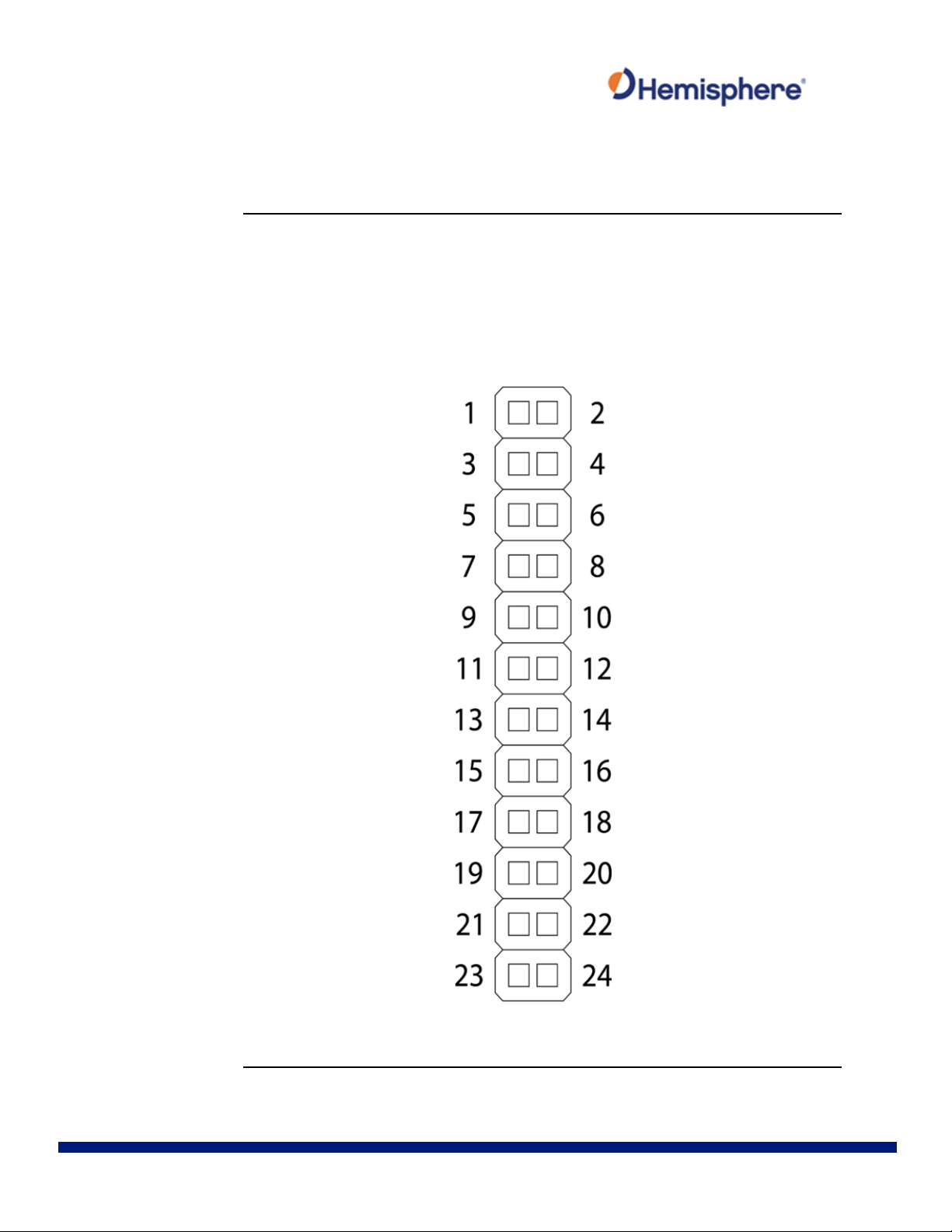

The H328 boards have a 24-pin header. Figure 2-3 shows the H328 24-pin

Figure 2-3: H328 24-pin header layout

out

header layout and Table 2-2 provides the 24-pin header pin-out.

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 22 of 74

Header Layouts and Pin-outs, Continued

Table 2-2 provides the 24-pin header pin-out.

Pin

Name

Signal

Description

1

Ground

Power

Ground

2

Alarm

3.3V CMOS

GPIO Active high

3

Speed

3.3V CMOS

VARF

4

1 PPS

3.3 V CMOS

PPS, Rising Edge

5

Power IN

3.3V

PWR

6

Power IN

3.3V

PWR

7

Port C RX

3.3V CMOS

COM 3_RX

8

Manual Mark

3.3V CMOS

Manual Mark, Falling Edge

9

ERROR

3.3V CMOS

Error Detected. (Not currently
supported)

10

PValid

3.3V CMOS

Indicates a valid GNSS position
supported)

11

Port B CTS (RS-232/RS-422)

3.3V CMOS

COM2 CTS / SPI

12

RESET

3.3V CMOS

RESET, Active Low

13

Port B RTS (RS-232/RS-422)

3.3V CMOS

COM2 RTS / SPI / Gyro MISO

14

Port B RX (RS-232/RS-422)

3.3V CMOS

COM2 RX

15

Port A CTS (RS-232)

RS-232

COM1 CTS

16

Port B TX (RS-232/RS-422)

3.3V CMOS

COM2 TX

17

Port A RTS (RS-232)

RS-232

COM1 RTS

18

Port A RX (RS-232)

RS-232

COM1 232 RX

19

Port C TX

3.3V CMOS

COM3 TX

20

Port A TX (RS-232)

RS-232

COM1 232 TX

21*

USB D-

USB

USB-

22*

USB D+

USB

USB+

23

Ground

Power

Ground

24

Ground

Power

Ground

Note: Pins are not 5 V tolerant. The pin voltage range is 0 to 3.3 VDC, unless otherwise

Table 2-2: H328 24-Pin header pin-out

solution is available ( Not currently

noted. Leave any data or I/O pins that will not be used unconnected.

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 23 of 74

Header Layouts and Pin-outs, Continued

H328 16-pin out

The H328 board has a 16-pin header. Figure 2-4 shows the Eclipse 16-pin

Figure 2-4: Eclipse 16-pin header layout

header layout and Table 2-3 provides the Eclipse 16-pin header pin-out.

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 24 of 74

Header Layouts and Pin-outs, Continued

Table 2-3 provides the Eclipse H328 16-pin header pin-out.

Pin

Name

Type

Description

1

Ethernet RX-

Ethernet

ENET RX-

2

Ethernet RX+

Ethernet

ENET RX+

3

RDCT

3.3V CMOS

Center tap power for Ethernet

bias for Ethernet)

4

Ethernet TX+

Ethernet

ENET TX+

5

Ethernet TX-

Ethernet

ENET TX-

6

RDCT

3.3V CMOS

Center tap power for Ethernet

are connected internally)

7

Ethernet LED

3.3V CMOS

LED A

8

n/c

n/c

n/c 9 Ground

Power

GND

10

CAN1 TX

3.3V CMOS

CAN Transmit Port A

11

CAN1 RX

3.3V CMOS

CAN Receive Port A

12

CAN2 TX / SPI

3.3V CMOS

CAN Transmit Port B / Gyro SCLK

13

CAN2 RX / SPI

3.3V CMOS

CAN Receive Port B / Gyro CS

14

USB ID

3.3V CMOS

USB ID

15

USB VBUS

5V

VBus / Power

16

Ground

Power

Ground

Note: Pins are not 5 V tolerant. The pin voltage range is 0 to 3.3 VDC, unless otherwise
noted. Leave any data or I/O pins that will not be used disconnected.

Table 2-3: H328 16-Pin header pin-out

magnetics. (Provides a voltage

magnetics. (Provides a voltage
bias for Ethernet. Both RDCT pins

875-0365-0 H328 Integrator Guide Rev A4 Page 25 of 74

Signals

Overview

This section provides information on the signals available via connectors.

RF Input

The H328 is designed to work with active GNSS antennas with an LNA gain

compromise the tracking performance of the H328.

Serial ports

The H328 has three serial communication ports:

Note: Hardware is capable of flow control with a firmware update.

range of 10 to 40 dB. The purpose of the range is to accommodate for losses
in the cable system. Essentially, there is a maximum cable loss budget of 30
dB for a 40dB gain antenna. Depending on the chosen antenna, the loss
budget will likely be lower (a 24dB gain antenna would have a 14 dB loss
budget).

When designing the internal and external cable assemblies and choosing the
RF connectors, do not exceed the loss budget; otherwise, you will

Ports

• Port A- RS-232

− Pin 18 (RX), input, Pin 20 (TX), output Pin 15 (CTS), input Pin 17 (RTS),

output

• Port B- RS-232/RS-422

− Pin 14 (RX), input Pin 16 (TX), output Pin 11 (CTS), input Pin 13 (RTS),

output

• Port C- RS-232 Pin 7 (RX), input Pin 19 (TX), output

If serial ports B or C are used for external devices which use RS-232, an RS­232 transceiver is required.

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 26 of 74

Ports, Continued

USB ports

The H328 USB device port: serves as a high-speed data communications port,

Ethernet

The Hemisphere H328 receiver board has Ethernet support. It is disabled by

appropriate).

such as for a PC.

Note: USB OTG ID must be connected to ground for the USB port to operate.

The H328 USB data line is bi-directional and is a differential pair. The USB

data lines should be laid out on printed wire board (PWB) with 90 Ω±15%

differential impedance.

The traces should be over a solid continuous ground plane to maintain
parallel traces and symmetry. There shall be no traces or breaks in the
ground plane underneath the D+ and D- traces.

It is recommended to leave a minimum 20 mil spacing between USB signals
and other signals. Treat the data lines as if they are RF signals. USB Transient
Voltage Suppressors (TVS’s) should be considered on D+ and D- for transient
and electrostatic discharge protection.

Note: The USB_ID pin needs to be grounded for the USB port to function.

overview

default, but may be enabled.

The H328 is connected to a carrier board or enclosure which connects the
H328’s Ethernet pins to a standard RJ-45 jack (with integrated magnetics as

875-0365-0 H328 Integrator Guide Rev A4 Page 27 of 74

Continued on next page

Ports, Continued

Enabling /

The full current state of Ethernet configuration may be checked with the

$JETHERNET,MODE,OFF

disabling
ethernet

command “$JETHERNET”. When Ethernet is disabled, the following response
displays:
$JETHERNET
$>JETHERNET,MAC,8C-B7-F7-F0-00-01
$>JETHERNET,MODE,OFF
$>JETHERNET,PORTI,OFF
$> Current Ethernet IP Address: None

To enable Ethernet, determine if the receiver is allowed to be assigned an IP
address automatically via DHCP, or statically assigned. If you are unsure,
please contact the administrator of the network you wish to connect it to.

To enable Ethernet support with a DHCP-assigned IP address, simply use the
command:
$JETHERNET,MODE,DHCP

The receiver will attempt to get an address from the DHCP server on the
network. You should be able to see the current IP address reported by a
“$JETHERNET” query change.

To enable Ethernet support with a statically assigned IP address, use the
command:
$JETHERNET,MODE,STATIC,ip,subnet,gateway,dns

In the previous command, ip/subnet/gateway/dns are each replaced with
the relevant IP address. The gateway and dns parameters are optional, and
only useful for allowing outgoing connections from the H328 (not currently
supported) . The following is an example command:
$JETHERNET,MODE,STATIC,192.168.0.42,255.255.255.0.

To disable Ethernet, use the command:

875-0365-0 H328 Integrator Guide Rev A4 Page 28 of 74

Continued on next page

Ports, Continued

Enabling

With Ethernet enabled, you can test sending an ICMP ping to the H328

$JETHERNET,PORTI,OFF

ethernet
services

receiver from a PC on the same network. No actual services are enabled on
Ethernet by default, so to make practical use of Ethernet support, enable a
service.

The only Ethernet service implemented is the PORTI virtual serial port.
Additional types of Ethernet services may be implemented in future
firmware versions.

The PORTI virtual serial port allows a listening TCP port to be opened, acting
like a local serial port of the receiver. Only one TCP client may be connected
at a time.

Note: Enabling “PORTI” on Ethernet should only be done with the H328
connected to a trusted network, since it gives full access to the receiver as a
local serial port, and has no authentication or security mechanisms.

To enable the PORTI service, use the command $JETHERNET,PORTI, port
where port is replaced with the desired TCP port number. Any port in the
range 1 to 65535 is allowable, but it is recommended to consider which TCP
port numbers are typically reserved for various common protocols and avoid
those port numbers. To disable the PORTI service, use the command

875-0365-0 H328 Integrator Guide Rev A4 Page 29 of 74

Chapter 3: Understanding the H328 OEM Board

Introduction

This chapter provides information you need to better understand the H328
OEM board and functions.

Contents

Topic

See Page

Timing Signal

31

Event Marker Input

32

Grounds

32

Speed Radar Output

33

Shielding

33

Receiver Mounting

34

Antenna Mounting

34

Mounting Orientation

35

H328 Orientation and Sensor Calibration

37

Planning the Optimal Antenna Placement

41

Thermal Concerns

43

Overview

875-0365-0 H328 Integrator Guide Rev A4 Page 30 of 74

Timing Signal

1PPS timing

The one pulse per second (1 PPS) timing signal is used in applications where

signal

devices require time synchronization.

Note: 1 PPS is typical of most GPS boards but not essential to normal
receiver operation. Do not connect this pin if you do not need this function.

The 1 PPS signal is 3.3 V CMOS, active high with rising edge synchronization.

The 1 PPS signal is capable of driving a load impedance greater than 10 kΩ in

parallel with 10 pF. The pulse is approximately 1 ms. The pulse width can be
adjusted by 100 ns.

The H328 supports a programmable PPS. Users can select the frequency to
1,2,5 or 10Hz. The H328 can support widths up to 900ms.

The width command parameter is in µs (microseconds).

$JPPS,RATE,<Rate_In_Hz (limited to 1.0 ,2.0 ,5.0 ,10.0 >,[SAVE]

or if you prefer to work with the period (inverse of RATE)

$JPPS,PERIOD,<Period in seconds (limited to 1.0, 0.5, 0.2, 0.1)

PPS Width can be controlled using

$JPPS,WIDTH,<width in µs (microseconds)>,[SAVE]

Note: $JSAVE does NOT save the JPPS configuration so the desired 1PPS

configuration settings must be applied every time the receiver is powered
on. Each parameter must be individually saved as it is entered (by adding the
optional SAVE at the end of the command).

875-0365-0 H328 Integrator Guide Rev A4 Page 31 of 74

Event Marker Input

Event marker

A GPS solution may need to be forced in an instance, (such as indicating to

recognize the input.

Grounds

You must connect all grounds together when connecting the ground pins of

ground information.

input

Grounds

the GPS receiver when a photo is taken from a camera used for aerial
photography), and not synchronized with GPS time, depending on the
application.

Note: Event marker input is typical of most GPS boards but not essential to
normal receiver operation. Do not connect this pin if you do not need this
function.

The event marker input is 3.3 V CMOS, active low with falling edge

synchronization. The input impedance and capacitance is higher than 10 kΩ

and 10 pF respectively, with a threshold of lower than 0.7 V required to

the H328. These are not separate analog and digital grounds which require
separate attention. Refer to Table 2-1 through Table 2-2 for H328 pin-out

875-0365-0 H328 Integrator Guide Rev A4 Page 32 of 74

Speed Radar Output

Speed radar

Pin 3 relates to the Speed Radar Pulse on the H328:

Shielding

The H328 is a sensitive instrument. When integrated into an enclosure, the

allowing air circulation for cooling.

output

Shielding

Speed Radar Pulse - Outputs a square wave with 50% duty cycle. The

frequency of the square wave varies directly with speed. 97 Hz represents a
speed of 1 m/s (3.28ft./s).

Note: Speed radar output is not essential to normal receiver operation. Do
not connect these pins if you do not need this function.

Note: This pin has no form of isolation or surge protection if using the Speed
Radar Pulse output. Hemisphere GNSS strongly recommends incorporating
some form of isolation circuitry into the supporting hardware.

Contact Hemisphere GNSS Customer Support for an example of an optically
isolated circuit.

H328 requires shielding from other electronics to ensure optimal operation.

The H328 shield design consists of a thin piece of metal with specific
diameter holes, preventing harmful interference from penetrating, while still

875-0365-0 H328 Integrator Guide Rev A4 Page 33 of 74

Receiver Mounting

Receiver

The H328 is a precision instrument. To ensure optimal operation, consider

Antenna

The H328 is compatible with the following Hemisphere GNSS single and dual

• Proper antenna placement

mounting

mounting the receiver to minimize vibration and shock.

When mounting the H328 immediately adjacent to the GPS antenna,
Hemisphere GNSS highly recommends shielding the board from the LNA of
the antenna.

Note: This step can be more complex than some integrators initially
estimate. Confirm the operation in your application as early in the project as
possible.

Antenna Mounting

mounting

frequency antennas:

• Single frequency: A21 and A31 (beacon)

• Dual frequency: A45 and A43 (beacon)

When mounting the antennas, consider the following:

• Mounting orientation (pitch or roll)

875-0365-0 H328 Integrator Guide Rev A4 Page 34 of 74

Mounting Orientation

Mounting

The H328 outputs heading, pitch, and roll readings regardless of the

conjunction, output heading, pitch, and roll values.

Pitch

If the angle calculated between the primary and secondary antenna is the

by 180 degrees. Therefore, send $JATT,HBIAS,180.

orientation

orientation

orientation of the antennas.

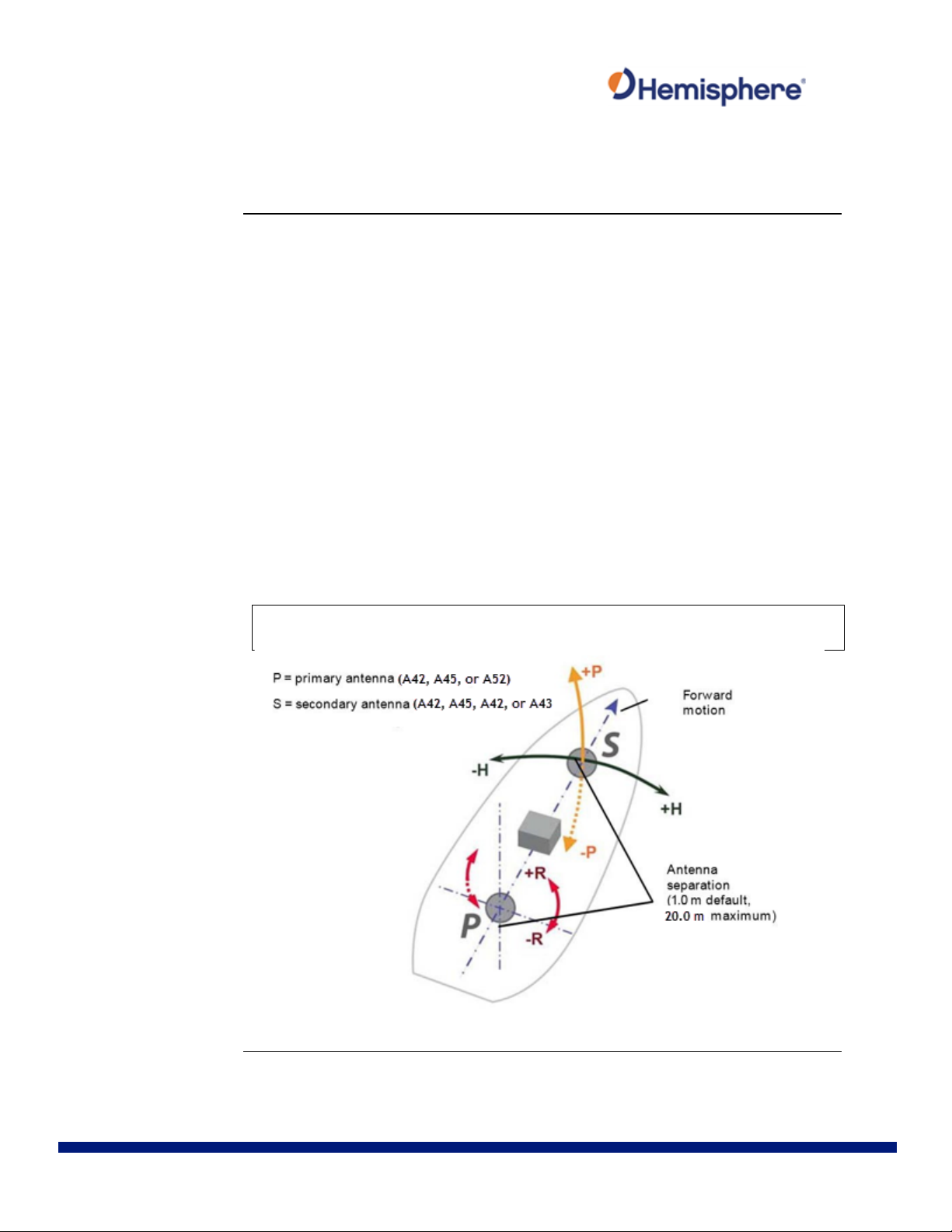

Heading is calculated from the vector created between the primary and
secondary antenna.

A heading, pitch, or roll bias may need to be set after installing the antennas
so the heading, pitch, and roll are correctly calibrated. The primary antenna
is used for positioning and the primary and secondary antennas, working in

pitch, send $JATT,ROLL,NO, $JATT,NEGTILT,NO, and $JATT,HBIAS,0 to the
receiver to tell the receiver the antennas are calculating pitch instead of roll
($JATT,ROLL,NO) and that a heading bias is not necessary.

If the pitch is calculated from the secondary to the primary antenna, send
$JATT,ROLL,NO, $JATT,NEGTILT,YES, and $JATT,HBIAS,180 to the receiver to
tell the receiver the antennas are calculating pitch.

Pitch is calculated from the primary to the secondary antenna, but needs to
be calculated from the secondary to the primary antenna. Swap the sign of
the angle with $JATT,NEGTILT,YES.

Heading is calculated from the primary to secondary antenna, it will be out

875-0365-0 H328 Integrator Guide Rev A4 Page 35 of 74

Continued on next page

Mounting Orientation, Continued

Roll orientation

If the angle calculated between the primary and secondary antenna is the

roll, send $JATT,ROLL,YES, $JATT,NEGTILT,NO, and $JATT,HBIAS,-90 to the
receiver. This tells the receiver the antennas are calculating roll instead of
pitch ($JATT,ROLL,NO).

When heading should be 0 degrees, the heading output will be 90 (since the
antennas are calculating roll). Therefore, set the heading bias to -90 with
$JATT,HBIAS,-90.

If the roll is calculated from the secondary to the primary antenna, send
$JATT,ROLL,YES, $JATT,NEGTILT,YES, and $JATT,HBIAS,90 to the receiver. This
tells the receiver the antennas are calculating roll.

Roll is calculated from the primary to the secondary antenna. Swap the sign
of the angle with $JATT,NEGTILT,YES.

Heading is also calculated from the primary to secondary antenna, it will
show as 270 degrees when it should be 0. Add a heading bias of 90 with
$JATT,HBIAS,90.

Note: Regardless of which mounting orientation you use, the H328 provides
the ability to output the heave of the machine via the $GPHEV message. For
more information on this message refer to the Hemisphere GNSS Technical

Reference Manual.

875-0365-0 H328 Integrator Guide Rev A4 Page 36 of 74

H328 Orientation and Sensor Calibration

H328

The H328 can determine mounting orientation in 90-degree steps using

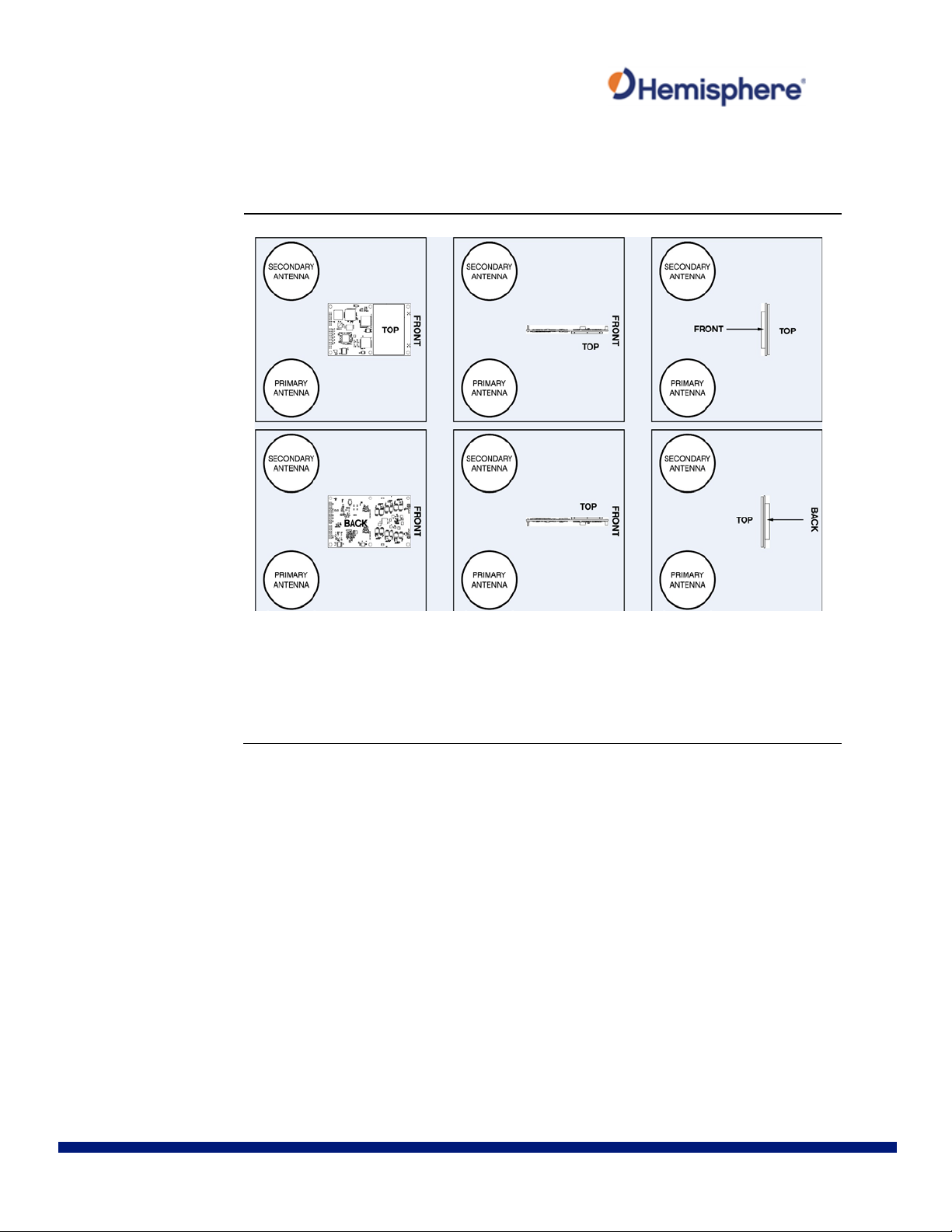

Figure 3-1: Group A

orientation and
sensor
calibration

integrated inertial sensors. This allows the receiver to be installed in various
orientations without affecting performance. A simple one-time calibration
procedure is required to complete the orientation and sensor calibration:

1. Determine which of Group A, B, C or D the installation matches

2. Send the appropriate $JATT,ACC180,YES/NO and

3. $JATT,ACC90,YES/NO commands which match the installation

4. Send the command $JATT,TILTCAL to finalize the calibration

$JATT,ACC90,NO

$JATT,ACC180,NO

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 37 of 74

H328 Orientation and Sensor Calibration, Continued

H328

Figure 3-2: Group B

orientation and
sensor
calibration,

continued

$JATT,ACC90,YES

$JATT,ACC180,NO

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 38 of 74

H328 Orientation and Sensor Calibration, Continued

H328

Figure 3-3: Group C

orientation and
sensor
calibration,

continued

$JATT,ACC90,NO

$JATT,ACC180,YES

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 39 of 74

H328 Orientation and Sensor Calibration, Continued

H328

Figure 3-4: Group D

orientation and
sensor
calibration,

continued

$JATT,ACC90,YES

$JATT,ACC180,YES

875-0365-0 H328 Integrator Guide Rev A4 Page 40 of 74

Planning the Optimal Antenna Placement

Planning the

Proper antenna placement is important to obtain a high-precision GNSS

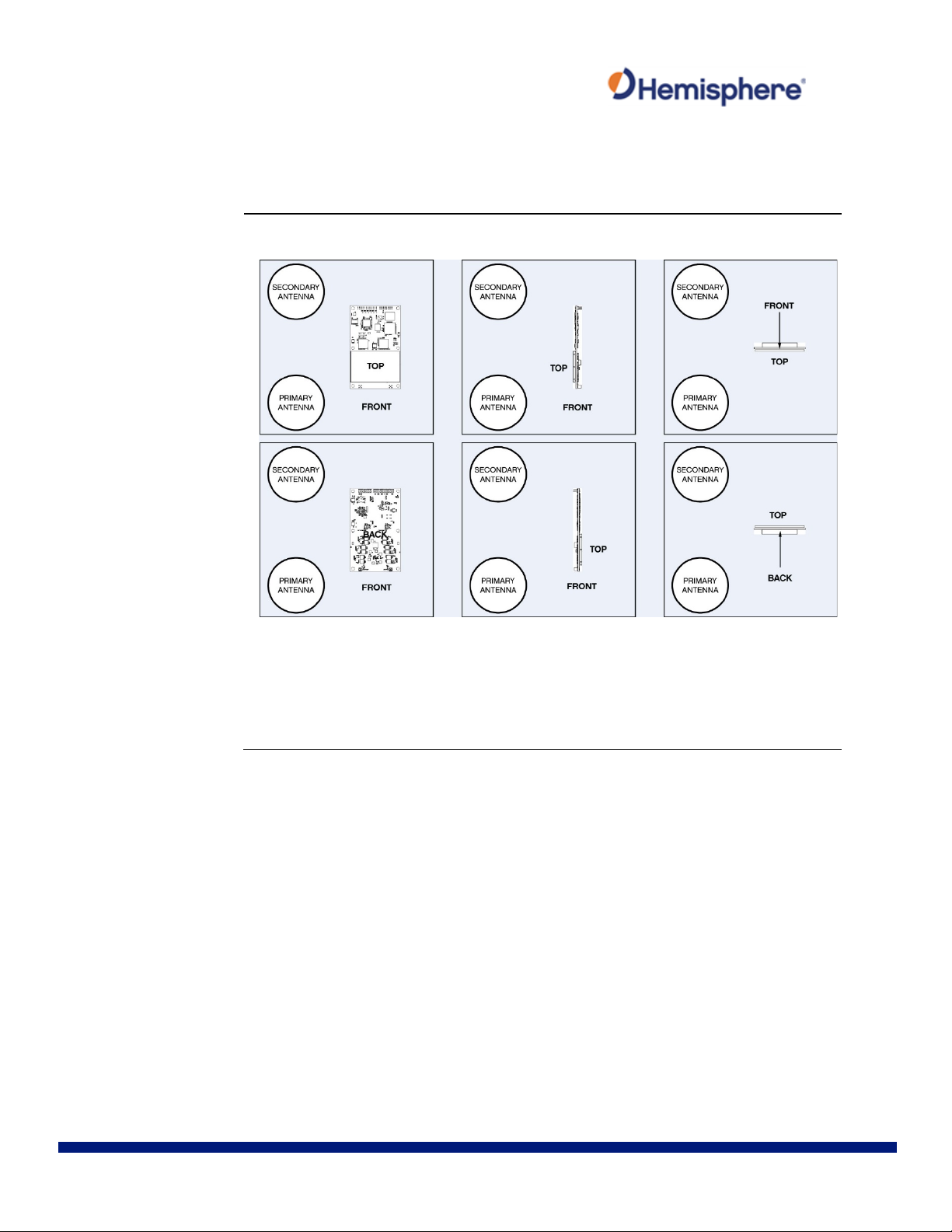

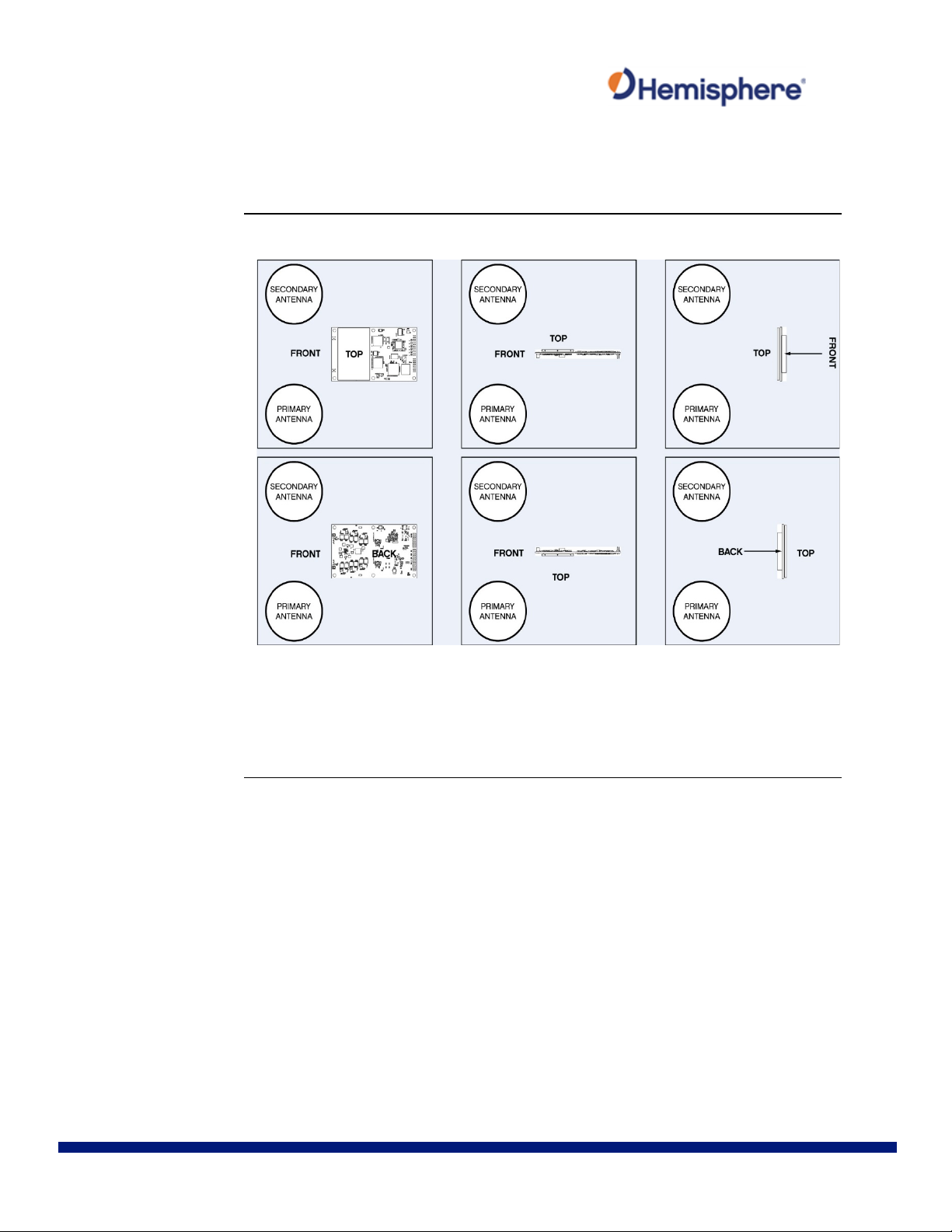

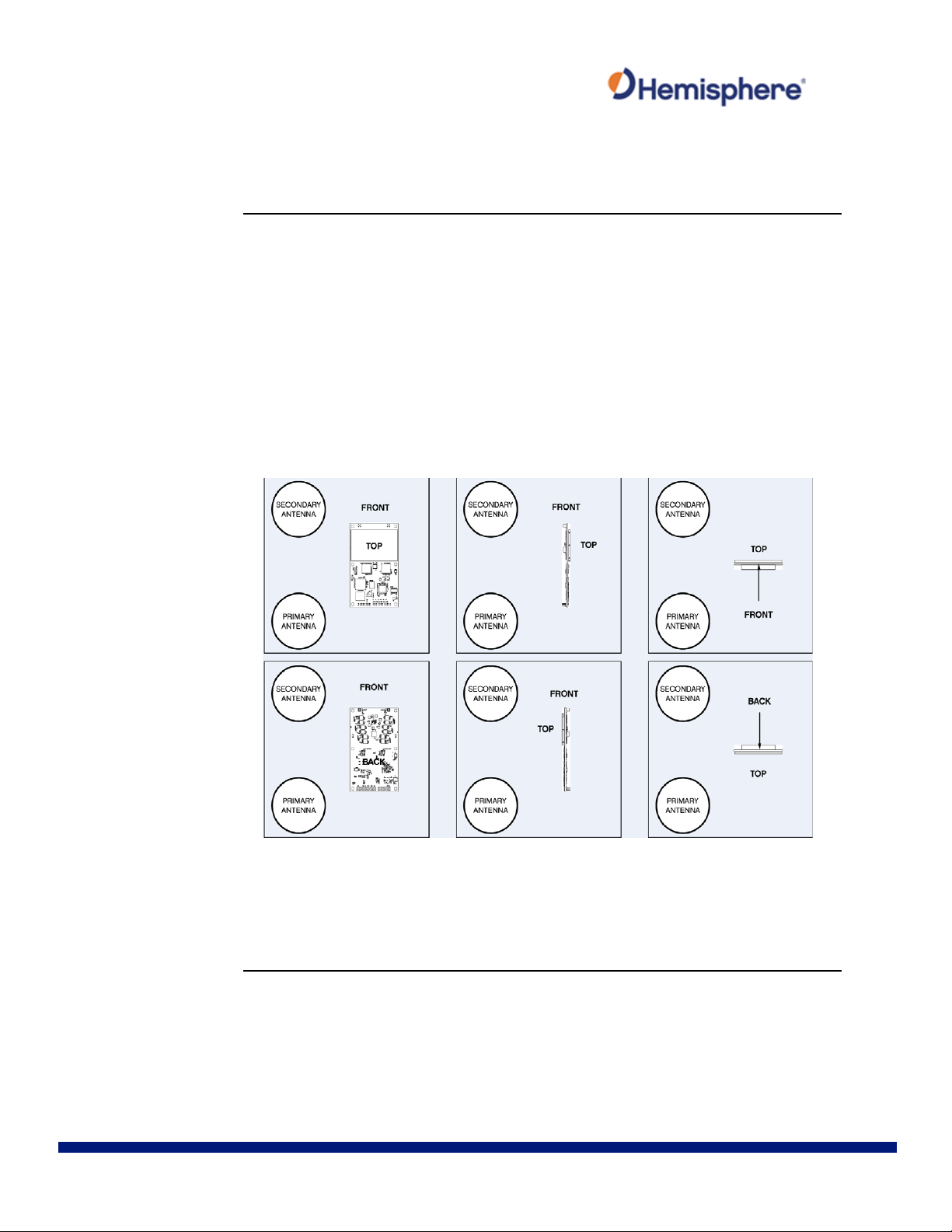

Figure 3-5: Recommended orientation and resulting signs of HPR values

optimal
antenna
placement

reading.

Place the antennas:

• With a clear view of the horizon

• Away from other electronics and antennas

• Along the vessel’s centerline

You must install the primary antenna along the vessel’s centerline; you
cannot adjust the position readings if the primary antenna is installed off the
centerline. Positions are computed for the primary antenna.

Install on a level plane with a 20.0 m* maximum separation (default of 1.0 m)
away from radio frequencies as high as possible. For optimal performance,
orient the antennas so the antennas’ connectors face the same direction.

Note: *A multi-frequency activation is necessary if using a baseline greater
than 5m.

875-0365-0 H328 Integrator Guide Rev A4 Page 41 of 74

Continued on next page

Planning the

Figure 3-7: Antenna installation: cross-section of boat

Planning the Optimal Antenna Placement, Continued

optimal
antenna
placement,
continued

Figure 3-6: Alternate orientation and resulting signs of HPR values

875-0365-0 H328 Integrator Guide Rev A4 Page 42 of 74

Thermal Concerns

Thermal

The H328 receiver will generate heat, and may raise the ambient

concerns

temperature inside an enclosure. Ensure the internal enclosure temperature
does not exceed the maximum operating temperature for the H328.

To achieve maximum dissipation, metal standoffs must be used on all six
mounting points of the H328. Users should implement preferred industry
standards for heat management.

Note: Thermal design may only be a concern if the integrated product’s
maximum design temperature is expected to be close to the temperature of
the H328.

875-0365-0 H328 Integrator Guide Rev A4 Page 43 of 74

Overview

Introduction

This chapter provides H328 operation information, such as communicating

Contents

Topic

See Page

Powering the H328 On/Off

45

Communicating with the H328

45

Configuring the H328

46

LED Indicators

47

Configuring the Data Message Output

48

‘THIS’ Port and the ‘OTHER’ Port

48

TSP2019115123019293_MapTitles

49

Saving the H328 Configuration

49

Configuration Defaults

50

Chapter 4: Operating the H328

with the H328, firmware, and configuration defaults.

Note: Install the antenna outdoors so it has a clear view of the entire sky. If
you place the antenna indoors near a window, for example, you will likely
not track a sufficient number of satellites. With a properly installed antenna,
the H328 provides a position within approximately 60 seconds.

875-0365-0 H328 Integrator Guide Rev A4 Page 44 of 74

Powering the H328 On/Off

Powering the

The H328 is powered by a 3.3 VDC power source. Once you connect

separately.

Communicating

The H328 features three primary serial ports (Port A, Port B, Port C), which

output is limited to NMEA data messages as these are industry standard.

H328

appropriate power, the H328 is active. Although the H328 proceeds through
an internal startup sequence upon application of power, it is ready to
communicate immediately.

The antenna ports provide 5 V of power. You do not need to source power

Communicating with the H328

with the H328

can be configured independently. You can configure the ports for any
combination of NMEA 0183, binary, and RTCM SC- 104 data. The default data

875-0365-0 H328 Integrator Guide Rev A4 Page 45 of 74

Configuring the H328

Configuring the

You can configure all aspects of H328 operation through any serial port using

PocketMax).

H328

proprietary commands. For information on these commands refer to the

Hemisphere GNSS Technical Reference Manual.

You can configure the following:

• Select one of the two firmware applications

• Set communication port baud rates

• Select which messages to output on the serial ports and the update

message rate

• Set various receiver operating parameters

For a complete list of commands and messages refer to the Hemisphere

GNSS Technical Reference Manual.

To issue commands to the H328 you will need to connect it to a terminal
program or Hemisphere GNSS’ software applications (SLXMon or

875-0365-0 H328 Integrator Guide Rev A4 Page 46 of 74

LED Indicators

Overview

The H328 features the following surface-mounted diagnostic LEDs to indicate

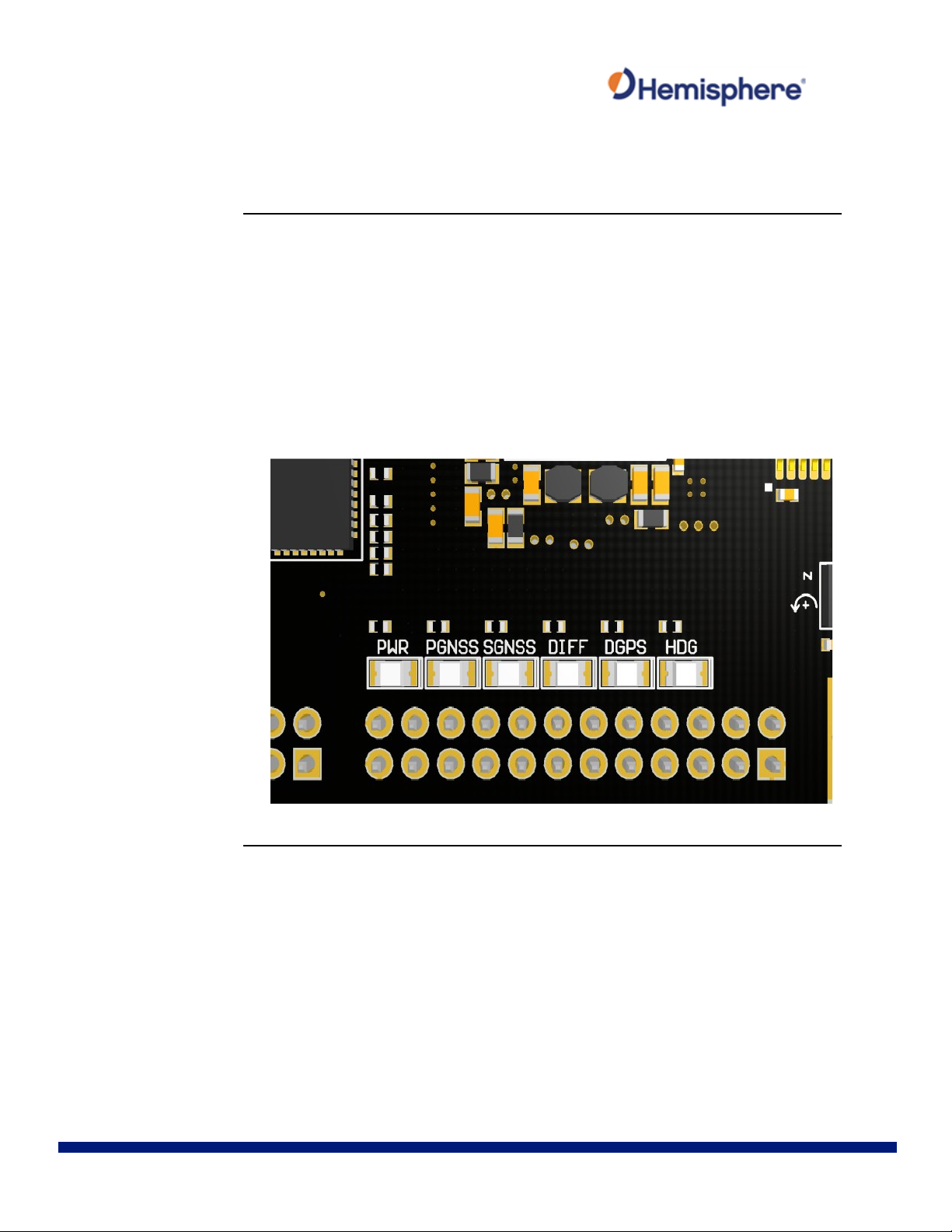

Figure 4-1: Onboard LEDs

board status (see Figure 4-1):

• PWR - Power

• PGNSS – Primary GNSS lock

• SGNSS-Secondary GNSS lock

• DIFF - Differential lock

• DGPS - DGPS position

• HDG-Heading

875-0365-0 H328 Integrator Guide Rev A4 Page 47 of 74

Configuring the Data Message Output

Overview

The H328 features three primary bi-directional ports (Ports A, B and C. You

to the Hemisphere GNSS Technical Reference Manual.

Overview

Both Port A and Port B use the phrases “THIS” and “OTHER” when referring
to themselves and each other in commands.

‘THIS’ port

‘THIS’ port is the port you are currently connected to for inputting

can configure messages for all ports by sending proprietary commands to the
H328 through any port. For a complete list of commands and messages refer

‘THIS’ Port and the ‘OTHER’ Port

commands. To output data through the same port (‘THIS’ port) you do not
need to specify 'THIS' port. For example, when using Port A to request the
GPGGA data message be output at 5 Hz on the same port (Port A), issue the
following command:

$JASC,GPGGA,5<CR><LF>

The ‘OTHER’ port is either Port A or Port B, whichever one you are not using
to issue commands. If you are using Port A to issue commands, then Port B is
the ‘OTHER’ port, and vice versa. To specify the ‘OTHER’ port for the data
output you need to include 'OTHER' in the command. For example, if you use
Port A to request the GPGGA data message be output at 5 Hz on Port B, issue
the following command:

$JASC,GPGGA,5,OTHER<CR><LF>

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 48 of 74

‘THIS’ Port and the ‘OTHER’ Port, Continued

‘OTHER’ port

When using Port A or Port B to request message be output on Port C, you

$JASC,GPGLL,10,PORTC<CR><LF>

Saving the H328

Each time you change the H328’s configuration you may want to save the

Hemisphere GNSS Technical Reference Manual.

must specifically indicate (by name) you want the output on Port C. For
example, if you use Port A to request the GPGLL data message be output at
10 Hz on Port C, issue the following command:

$JASC,GPGLL,10,PORTC<CR><LF>

When using Port A or Port B to request message output on Port C, you must
specifically indicate (by name) you want the output on Port C. For example, if
you use Port A to request the GPGLL data message be output at 10 Hz on
Port C, issue the following command:

Saving the H328 Configuration

configuration

configuration, so you do not have to reconfigure the receiver each time you
power it on.

To save the configuration, issue the $JSAVE command to the H328 using a
terminal program or Hemisphere GNSS’ applications (SLXMon or PocketMax).

The H328 will save the configuration to non-volatile memory and indicates
(after several seconds) when the configuration has been saved. Refer to the

875-0365-0 H328 Integrator Guide Rev A4 Page 49 of 74

Configuration Defaults

Configuration

Below is the standard configuration for the H328. For more information on

$JATT,PBIAS,0.0

defaults

these commands refer to the Hemisphere GNSS Technical Reference Manual.
$JOFF,ALL
$JOFF,PORTA
$JOFF,PORTB
$JOFF,PORTC
$JOFF,PORTD

$JAGE,2700
$JLIMIT,10
$JMASK,5
$JNP,8
$JWAASPRN,AUTO
$JDIFF,WAAS
$JPOS,51.0,-114.0
$JSMOOTH,LONG
$JTAU,COG,0.00
$JTAU,SPEED,0.00
$JAIR,AUTO
$JALT,NEVER
$JFREQ,AUTO

$JATT,HTAU,0.1
$JATT,HRTAU,2.0
$JATT,COGTAU,0.0
$JATT,MSEP,1.0
$JATT,GYROAID,YES
$JATT,TILTAID,YES
$JATT,LEVEL,NO
$JATT,EXACT,NO
$JATT,HIGHMP,YES
$JATT,FLIPBRD,NO
$JATT,HBIAS,0.0
$JATT,NEGTILT,NO
$JATT,NMEAHE,0

875-0365-0 H328 Integrator Guide Rev A4 Page 50 of 74

Continued on next page

Configuration Defaults, Continued

Configuration

$JATT,PTAU,0.5

$JSAVE

defaults,
continued

$JATT,ROLL,NO
$JATT,SPDTAU,0.0

$JASC,GPGGA,1,PORTA
$JASC,GPHDT,10,PORTA
$JASC,GPROT,10,PORTA
$JASC,GPHPR,1,PORTA

$JASC,GPGGA,1,PORTB
$JASC,GPHDT,10,PORTB
$JASC,GPROT,10,PORTB
$JASC,GPHPR,1,PORTB

$JBAUD,19200,PORTA,SAVE
$JBAUD,19200,PORTB,SAVE

875-0365-0 H328 Integrator Guide Rev A4 Page 51 of 74

Overview

Introduction

Appendix A provides troubleshooting for H328 operation.

Contents

Topic

See Page

Troubleshooting

52

H328

Table A-1: H328 Troubleshooting

Issue

Possible Solution

What is the first thing

Try to isolate the source of the problem. Problems

Shielding and isolating interference

• No data from the

• Check receiver power status (use a Multimeter)

data cable connections

Troubleshooting

Appendix A: Troubleshooting

troubleshooting

to check if I have a
problem with the
operation of the
H328?

H328

• No communication

are likely to fall within one of the following
categories:

• Power, communication, and configuration

• GPS reception and performance

• Beacon reception and performance

• SBAS reception and performance

• External corrections

• Installation

•

• Confirm communication with H328 via

Hemisphere query command $JI, $JSHOW

• Verify the H328 is locked to GPS satellites (this

can often be done on the receiving device or by
using SLXMon)

• Check integrity and connectivity of power and

875-0365-0 H328 Integrator Guide Rev A4 Page 52 of 74

Continued on next page

Troubleshooting, Continued

H328

Table A-1: H328 Troubleshooting (continued)

Issue

Possible Solution

Random binary data

• Verify the RTCM or Bin messages are not being

higher for the baud rate for all devices.

No GPS Lock

• Check integrity of antenna cable

receiving device or by using SLXMon)

No SBAS

• Check antenna cable integrity

but your position accuracy may be degraded.

troubleshooting

, continued

from the H328

accidentally output (send a $JSHOW command).

• Verify the baud rate settings of H328 and

remote device match.

• Potentially, the volume of data requested to be

output by the H328 could be higher than the
current baud rate supports. Try using 19200 or

• Verify antenna’s view of the sky

• Verify the lock status and signal to noise ratio of

GPS satellites (this can often be done on the

• Verify antenna’s view of the sky, especially

towards the SBAS satellites, south in the
northern hemisphere.

• Verify the bit error rate and lock status of SBAS

satellites (this can often be done on the
receiving device or by using SLXMon - monitor
BER value).

• SBAS corrections are only applied to the

position, not to the heading. If SBAS lock is lost,
you will still have the same heading accuracy,

875-0365-0 H328 Integrator Guide Rev A4 Page 53 of 74

Continued on next page

Troubleshooting, Continued

H328

Table A-1: H328 Troubleshooting (continued)

Issue

Possible Solution

No DGPS position in

• Verify the baud rate of the RTCM input port

of the RTCM input port).

Non-DGPS output

• Verify H328 SBAS and lock status (or external

degraded.

troubleshooting

, continued

external RTCM mode

matches the baud rate of the external source.

• Verify the pinout between the RTCM source and

the RTCM input port (the “ground” pin and pin­out must be connected, and from the “transmit”
from the source must connect to the “receiver”

source is locked).

• Confirm baud rates match an external source

correctly

• Issue a $JDIFF command and see if the expected

differential mode is in fact the current mode.

• Differential corrections are only applied to the

position, not to the heading. If differential lock is
lost, you will still have the same heading
accuracy, but your position accuracy may be

875-0365-0 H328 Integrator Guide Rev A4 Page 54 of 74

Continued on next page

Troubleshooting, Continued

H328

Table A-1: H328 Troubleshooting (continued)

Issue

Possible Solution

No heading

• Ensure the antennas are connected to the proper ports:

direction

troubleshooting

, continued

or incorrect
heading
values

J1000 and J2000 are for the primary and secondary
antennas.

• Heading is from primary to secondary antenna, so the

secondary antenna should be toward the bow and
primary toward the stern.

• Check the measurement of the antenna separation.

• The Measured (MSEP) and Calculated (CSEP) values are in

meters and should agree to within 1 cm. CSEP
continuously changes, so average this reading over
several minutes to obtain an approximate value.

• Check CSEP value is fairly constant without varying more

than 1 cm. Larger variations may indicate a high
multipath environment and require moving the antenna
locations.

• Reduce antenna separation - Hemisphere GNSS

recommends the separation between the antennas
remain below 5 m for accurate and timely heading
reading output

• $JATT,SEARCH command forces the H328 to acquire a

new heading solution. This should also be used after
entering a new MSEP value

• $JATT, GYROAID, YES Enable gyro aid as this will give

heading for up to 3 minutes in times of GNSS signal loss

• Enable tilt aid to reduce heading search times

• Check the applications receiver using the $JAPP query;

the receiver should answer $JAPP, MFAATT, 1,2

• Monitor the number of satellites and SNR values for both

antennas within SLXMON; at least 3 satellites should have
SNR values > 20

• Antenna connectors should both be facing the same

875-0365-0 H328 Integrator Guide Rev A4 Page 55 of 74

Appendix B: Technical Specifications

Introduction

Appendix B provides the H328 technical specifications.

Contents

Topic

See Page

H328 Technical Specifications

57

Technical Specifications

875-0365-0 H328 Integrator Guide Rev A4 Page 56 of 74

H328 Technical Specifications

H328 specifications

Tables B1-B6 provide the technical specifications for the H328.

H328 sensor

Table B-1: H328 Sensor specifications

Item

Specification

Receiver type

GPS, GLONASS, BeiDou, Galileo and QZSS, RTK with
carrier phase and L-band dual antenna

Channels

744

Satellites

12 L1CA GPS

3 SBAS or 3 additional L1CA GPS 2 L-band

Primary

GPS L1,L1P,L2C,L2P,L5 GLONASS G1,G2,Pcode BeiDou

L-band

Secondary

GPS L1,L1P,L2C,L2P GLONASS G1,G2

L-band

GPS sensitivity

-142 dBm

SBAS tracking

3-channel, parallel tracking

Update rate

10 Hz standard, 20 Hz and 50 Hz available

specifications

12 L1P GPS
12 L2P GPS
12 L2C GPS
15 L5 GPS
12 G1 GLONASS
12 G2 GLONASS
12 G3 GLONASS
22 B1 BeiDou
22 B2 BeiDou
14 B3 BeiDou
12 Galileo E1
12 Galileo E5a
12 Galileo E5b
4 QZSS

antenna

B1,B2,B3
Galileo E1,E5a,E5b QZSS L1

antenna

875-0365-0 H328 Integrator Guide Rev A4 Page 57 of 74

BeiDou B1,B2 Galileo E1,E5b QZSS L1

Continued on next page

H328 Technical Specifications, Continued

H328 sensor

Table B-1: H328 Sensor specifications (continued)

Item

Specification

Horizontal accuracy

RMS

(67%)

2DMRS

(95%)

RTK

1,2

8 mm + 1
ppm

15 mm +
2 ppm

SBAS (WAAS)1

0.3 m

0.6 m

Autonomous,
no SA1

1.2 m

2.4 m

Heading accuracy

< 0.17º rms @ 0.5 m antenna separation

< 0.02º rms @ 5.0 m antenna separation

Pitch/roll accuracy

< 1° rms

Heave accuracy

30 cm4

Rate of turn

145°/s maximum

Timing (1PPS) accuracy

20 ns

Cold start time

< 60 s typical (no almanac or RTC)

Warm start time

< 30 s typical (almanac and RTC)

Hot start time

< 10 s (almanac, RTC, and position)

Maximum speed

1,850 km/h (999 kts)

Maximum altitude

18,288 m (60,000 ft)

Differential options

SBAS, Autonomous, External RTCM v2.3,
RTCM v3.x, L-band (Atlas), and DGPS

Antenna LNA gain input

10 to 40 dB

specifications,

continued

< 0.09º rms @ 1.0 m antenna separation
< 0.04º rms @ 2.0 m antenna separation

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 58 of 74

H328 Technical Specifications, Continued

H328

Table B-2: H328 Communication specifications

Item

Specification

Serial ports

2 full duplex RS-232, 1 full duplex RS­232/RS-422

CAN

2 CAN ports NMEA2000, ISO-11783

Baud rates

4800 - 115200

Data I/O protocol

NMEA 0183, CAN, Hemisphere GPS binary

Correction I/O protocol

Hemisphere GNSS’ ROX, RTCM v2.3 (DGPS),
RTCM v3 (RTK), CMR, CMR+3, and Atlas

Timing output

1 PPS CMOS, active high, rising edge sync,
10 kΩ, 10 pF load

Event marker input

CMOS, active low, falling edge sync, 10 kΩ

10 pF load

USB

1 USB Device, OTG with future firmware
update

Ethernet

1x 10/100 base-T

H328 power

Table B-3: H328 Power specifications

Item

Specification

Input voltage

3.3 VDC +/- 5%

Power consumption

4.95W Maximum (All signals and L-band)

Current consumption

1.5A Maximum

Antenna voltage input

5 VDC Maximum

Antenna short circuit

Yes

Antenna input

50 Ω

communication
specifications

specifications

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 59 of 74

H328 Technical Specifications, Continued

H328

Table B-4: H328 Environmental specifications

Item

Specification

Operating temperature

-40°C to +85°C (-40°F to+185°F)

Storage temperature

-40°C to +85°C (-40°F to+185°F)

Humidity

95% non-condensing (when installed in an
enclosure)

Shock and vibration4

Vibration: EP455 Section 5.15.1 Random

with screw mounting holes used)

EMC4

CE (ISO 14982 Emissions and Immunity) FCC
Part 15, Subpart B CISPR22

H328

Table B-5: H328 Mechanical specifications

Item

Specification

Dimensions

100 L x 60 W x 10 H mm (2.81 L x 1.60 W x 0.40
H in)

Weight

35-37 grams

Status indication (LED)

Power, GNSS lock, Differential lock, DGNSS
position, Heading lock

Power/Data connector

24-pin (12x2) male header 0.078 in (2 mm) pitch
16-pin (8x2) male header 0.078 in (2 mm) pitch

Antenna connector

MMCX, female, straight

environmental
specifications

Mechanical Shock: EP455 Section 5.14.1
Operational (when mounted in an enclosure

mechanical
specifications

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 60 of 74

H328 Technical Specifications, Continued

H328 L-band

Table B-6: H328 L-band sensor specifications

Item

Specification

Receiver Type

Single Channel

Channels

1525 to 1560 MHz

Sensitivity

140 dBm

Channel Spacing

5.0 kHz

Satellite

Manual and Automatic

Requisition Time

15 seconds (typical)

H328 aiding

Table B-7: H328 aiding devices

Device

Description

Gyro

Provides smooth heading, fast

occurred.5

Tilt Sensor

Provide pitch and roll data and

reacquisition of heading solution.

1

Depends on multi-path environment, number of satellites in view, satellite

Under static conditions

sensor
specifications

devices

heading reacquisition, and reliable
< 3° heading for periods up to 3
minutes when loss of GPS has

assist in fast startup and

geometry, and ionospheric activity

2

Depends also on baseline length

3

Receive only, does not transmit this format

4

When integrated in conjunction with the recommended shielding and

protection as outlined in this guide

5

875-0365-0 H328 Integrator Guide Rev A4 Page 61 of 74

Appendix C: Frequently Asked Questions

Contents

Topic

See Page

Appendix C: Frequently Asked Questions (FAQ)

63

Index

75

FAQ

875-0365-0 H328 Integrator Guide Rev A4 Page 62 of 74

Appendix C: Frequently Asked Questions (FAQ)

Integration

The following is a list of common questions and solutions when integrating

Question

Solution

Do I need to use the 1 PPS and
event marker?

No, these are not necessary for
H328 operation.

What should I do with the 1 PPS
signal if I do not want to use it?

We recommend you tie to ground
through a 1k resistor.

What should I do with the manual

it?

Do not connect the pin because this

Do I need to use the lock indicators?

No, these are present for

These signals are active low.

Do I need to use a shield-can for the

Not necessarily, but you may need

boards.

the H328 OEM board.

Table C-1: Integration

mark input if I am not going to use

signal is active low.

H328?

applications where it is desirable to
have an LED visible to the user.
These signals need to be transistor­buffered, as these lines can only
offer 1 mA. Depending on the
product and the application, LEDs
can be very useful to the end user.

to if there are RF interference
issues, such as if the H328 interferes
with other devices. A shield-can is a
good start in terms of investigating
the benefit. If you are designing a
smart antenna system, a shield-can
is likely needed. Hemisphere GNSS
recommends you always conduct an
RF pre- scan when integrating OEM

875-0365-0 H328 Integrator Guide Rev A4 Page 63 of 74

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

Integration,

Table C-1: Integration (continued)

Question

Solution

If my company wishes to integrate

Hemisphere GNSS recommends you

to use this Integrator’s Guide.

continued

this product, what type of
engineering resources will I need to
do this successfully?

have sufficient engineering
resources with the appropriate skills
in and understanding of the
following:

• Electronic design (including power

supplies and level translation)

• RF implications of working with

GPS equipment

• Circuit design and layout

• Mechanical design and layout

As an integrator, you are
responsible for ensuring the correct
resources are in place to technically
complete integration. Hemisphere
GNSS makes every effort to provide
adequate support, but you should
expect to have reasonable expertise

875-0365-0 H328 Integrator Guide Rev A4 Page 64 of 74

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

Support and

Table C-2: Support and repair

Question

Solution

How do I solve a problem I cannot

Hemisphere GNSS recommends

information.

What if I cannot resolve a problem

Contact your dealer to see if they

information.

repair

isolate?

after trying to diagnose it myself?

contacting the dealer first. With
their experience with this product,
and other products from
Hemisphere GNSS, they should be
able to help isolate a problem. If the
issue is beyond the capability or
experience of the dealer.

Hemisphere GNSS Technical
Support is available from 8:00 AM
to 5:00 PM Mountain Standard
Time, Monday through Friday.
See “Technical Support” for
Technical Support contact

have any information which may
help to solve the problem. They
may be able to provide some in­person assistance.

If this is not viable, or does not solve
the problem, Hemisphere GNSS
Technical Support is available from
8:00 AM to 5:00 PM Mountain
Standard Time, Monday through
Friday.

See “Technical Support” for
Technical Support contact

875-0365-0 H328 Integrator Guide Rev A4 Page 65 of 74

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

Support and

Table C-3: Support and repair (continued)

Question

Solution

Can I contact Hemisphere GNSS

Yes, however, Hemisphere GNSS

support. They may be able to solve

HGNSS equipment.

repair,
continued

Technical Support directly regarding
technical problems?

recommends speaking to the
dealer first as they are the local

the problem quickly, due to
proximity and experience with

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 66 of 74

Appendix C: Frequently Asked Questions (FAQ), Continued

Power,

Table C-4: Pow er, communication, and configuration

Question

Solution

My H328 system does not

This could be one of a few issues:

the equipment.

communication,
and
configuration

appear to be
communicating.

• Examine the H328 cables and connectors

for signs of damage or offset.

• Ensure the H328 system is properly

powered with the correct voltage.

• Ensure there is a good connection to the

power supply since it is required to
terminate the power input with the
connector.

• Check the documentation of the receiving

device, if not a PC, to ensure the transmit
line from the H328 is connected to the
receive line of the other device. Also,
ensure the signal grounds are connected.

• If the H328 is connected to a custom or

special device, ensure the serial
connection to it does not have any
incompatible signal lines present which
prevent proper communication.

• Make sure the baud rate of the H328

matches the other device. The other
device must also support an 8-data bit, 1
stop bit, no parity port configuration (8-N-

1). Some devices support different
settings, and may be user configurable.
Ensure the settings match.

• Consult the troubleshooting section of the

other device’s documentation to
determine if there may be a problem with

875-0365-0 H328 Integrator Guide Rev A4 Page 67 of 74

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

Power,

Table C-4: Pow er, communication, and configuration (continued)

Question

Solution

Am I able to configure two serial

Yes, all the ports are independent.

to 4800 and another port to 19200.

Am I able to have the H328 output

Yes, different NMEA messages can

some data may not be transmitted.

How can I determine the current

The $JSHOW command will request

$>JSHOW,ASC,GPGSA,1.0,OTHER

How can I be sure the configuration

Query the receiver to make sure the

“save complete” message appears.

communication,
and
configuration,

continued

ports with different baud rates?

different NMEA messages through
multiple ports?

configuration of the H328?

For example, you may set one port

be sent to the serial ports you
choose. These NMEA messages may
also be at different update rates. A
high enough baud rate is needed to
transmit all the data; otherwise,

the configuration information from
the H328. The response will be
similar to:
$>JSHOW,BAUD,19200
$>JSHOW,BIN,1,5.0
$>JSHOW,BAUD,4800,OTHER
$>JSHOW,ASC,GPGGA,1.0,OTHER
$>JSHOW,ASC,GPVTG,1.0,OTHER

will be saved for the subsequent
power cycle?

875-0365-0 H328 Integrator Guide Rev A4 Page 68 of 74

current configuration is correct by
issuing a $JSHOW command. If not,
make the necessary changes and
reissue the $JSHOW command.

Once the current configuration is
acceptable, issue a $JSAVE
command and wait for the receiver
to indicate the save is complete. Do
not power off the receiver until the

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

Power,

Table C-4: Pow er, communication, and configuration (continued)

Question

Solution

How do I change the baud rate of a

Connect at the current baud rate of

application to the desired rate.

What is the best software tool to

Hemisphere GNSS uses three

the Windows .NET framework.

communication,
and
configuration,

continued

port from that port?

use to communicate with the H328
and configure it?

the H328 port and then issue a
$JBAUD command to change the
port baud rate to the desired rate.
Now change the baud rate in your

different software applications:

• SLXMon - Available at

www.hgnss.com. This application
is a very useful tool for graphically
viewing tracking performance and
position accuracy, and for
recording data. It can also
configure message output and
port settings. SLXMon runs on
Windows 95 or higher.

• PocketMax - Available at

www.hgnss.com. Similar to
SLXMon, you can use this
application to graphically view
tracking performance and position
accuracy, record data, and
configure message output and
port settings. PocketMax runs on
multiple Windows platforms using

875-0365-0 H328 Integrator Guide Rev A4 Page 69 of 74

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

GNSS reception

Table C-5: GNSS reception and performance

Question

Solution

How do I know what the H328 is

The H328 supports standard NMEA

LEDs indicating receiver status.

Do I have to be careful when

For best performance, the H328

greater the positioning accuracy.

How do I know if the H328 has

The H328 outputs the $RD1 message

needing to use NMEA commands.

and
performance

doing?

using the H328 to ensure it tracks
properly?

data messages. The $GPGSV and
Bin99 data messages contain satellite
tracking and SNR information. If
available, the contained in the
$GPGGA message. Additionally, the
H328 has surface-mounted status

antenna must have a clear view of the
sky for satellite tracking. The H328 can
tolerate a certain amount of signal
blockage because redundant satellites
are often available. Only four satellites
are required for a position; however,
the more satellites are used, the

acquired an SBAS signal?

875-0365-0 H328 Integrator Guide Rev A4 Page 70 of 74

which contains the SBAS Bit Error Rate
(BER) for each SBAS channel. The BER
value describes the rate of errors
received from SBAS. Ideally, this
should be zero. However, the H328
performs well up to 150 BER. The
SLXMon and PocketMax3 utilities
provide this information without

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

SBAS reception

Table C-5: GNSS reception and performance (continued)

Question

Solution

How do I know if the H328 is

The H328 outputs the $GPGGA

needing to use NMEA commands.

How do I select an SBAS satellite?

By default, the H328 will

recommended).

Do I need a dual frequency antenna

Hemisphere GNSS recommends

antenna.

and
performance

offering a differentially-corrected or
RTK- corrected position?

message as the main positioning
data message. This message
contains a quality fix value which
describes the GPS status. If this
value is 2, the position is
differentially corrected; if this value
is 4 or 5, the position is RTK (or
Atlas)-corrected.

The SLXMon and PocketMax utilities
provide this information without

automatically attempt to track the
appropriate SBAS satellites. If
multiple satellites are available, the
one with the lowest BER value is
selected to be used to decode the
corrections.
You can manually select which SBAS
satellites to track (not

for SBAS?

875-0365-0 H328 Integrator Guide Rev A4 Page 71 of 74

using a dual frequency antenna with
the H328.

While some receiver function is
possible with an L1-only antenna,
full receiver performance will only
be realized with a dual frequency

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

External

Table C-6: Exte rnal co rr ections

Question

Solution

My H328 system does not appear to

Technical Reference Manual.

corrections

be using DGPS or RTK corrections
from an external correction source.
What could be the problem?

To isolate the issue:

• Make sure DGPS corrections are

RTCM v2.3 protocol.

• Make sure RTK corrections are

either ROX, RTCM v3, CMR, or
CMR+ protocol.

• Verify the baud rates used by the

H328 match the external
correction source.

• The external correction should be

using an 8-data bit, no parity, 1
stop bit (8-N-1) serial port
configuration.

• Inspect the cable connection to

ensure there is no damage.

• Check the pin-out information for

the cables to ensure the transmit
line of the external correction
source is connected to the receive
line of the H328’s serial port and
the signal grounds are connected.

• Make sure the H328 has been set

to receive external corrections by
issuing the $JDIFF command.
Refer to the Hemisphere GNSS

875-0365-0 H328 Integrator Guide Rev A4 Page 72 of 74

Continued on next page

Appendix C: Frequently Asked Questions (FAQ), Continued

Installation

Table C-7: Installation

Question

Solution

How will the antenna selection and

For best results select a multipath-

performance.

mounting affect H328
performance?

resistant antenna. Ensure the
antenna tracks all the available
signals for the receiver.

Mount the antenna:

• With the best possible view of the

sky

• In a location with the lowest

possible multipath

• Using a magnetic mount for the

antenna will not affect

Continued on next page

875-0365-0 H328 Integrator Guide Rev A4 Page 73 of 74

Appendix C: Frequently Asked Questions (FAQ), Continued

Installation,

Table C-7: Installation (continued)

Question

Solution

I could not install my antennas at

You may enter a non-level bias

the $JATT,NEGTILT command).

continued

the same height. How do I calibrate
for the height offset?

calculation which adjusts the
pitch/roll output to calibrate the
measurement if the antenna array is
not installed on a horizontal plane.

To calibrate the pitch/roll reading,
send the following command:

$JATT,PBIAS,x<CR><LF>

where x is a bias (in degrees) which
will be added to the pitch/roll
measurement. The acceptable pitch
bias range is -15.0º to 15.0º (default
is 0.0º).

To determine the current pitch
compensation angle, send the
following command:

$JATT,PBIAS<CR><LF>

The pitch/roll bias is added after the
negation of the pitch/roll
measurement (if so invoked with

875-0365-0 H328 Integrator Guide Rev A4 Page 74 of 74

Index

‘OTHER’ port ....................................... 48, 49

‘THIS’ port ................................................. 48

‘THIS’ Port and the ‘OTHER’ Port ... 3, 44, 48,

49

1PPS............................................................. 6

1PPS timing signal ..................................... 31

Activation .................................................... 6

antenna placement ....................... 34, 41, 42

aRTK .................................................... 12, 14

Atlas ...................................................... 6, 13

Base Station ................................................ 6

BeiDou ......................................................... 6

Convergence time .................................... 13

Data Message Output ............................... 48

dual antenna ................................... 9, 12, 57

Dual frequency ......................................... 34

Ethernet .......................11, 25, 27, 28, 29, 59

event marker ....................................... 32, 63

Event marker input ....................... 11, 32, 59

Firmware ........................................2, 6, 8, 15

GALILEO ....................................................... 6

GLONASS ..................................................... 6

GPS .............................................................. 7

Grounds ........................................... 2, 30, 32

Integration ...........................2, 16, 17, 63, 64

LED Indicators ........................................... 47

Message interface ..................................... 17

Mounting .............. 2, 3, 16, 20, 30, 34, 35, 36

Multipath .................................................... 7

NMEA .......................................................... 7

Perpendicular Orientation ....................... 36

PocketMax ...........................8, 15, 46, 49, 69

Positioning accuracy ................................. 13

Positioning sustainability ......................... 13

Radio ........................................................... 7

RF Input ..................................................... 26

ROX .............................................................. 7

RTCM ........................................................... 7

RTK .................................................... 6, 7, 13

RTK positioning ........................................... 9

SBAS ...................................................... 7, 58

Scalable service levels .............................. 13

sensor calibration .................... 37, 38, 39, 40

Sensor Calibration .......... 3, 30, 37, 38, 39, 40

serial communication ports ...................... 26

Serial ports .......................................... 26, 59

Single frequency ....................................... 34

Speed radar output ................................... 33

Subscription ............................................ 6, 7

Thermal ..................................................... 43

Tracer™ ..................................................... 11

UHF .............................................................. 6

WAAS .................................................... 7, 58

End User license

IMPORTANT - This is an agreement (the "Agreement") between you, the end purchaser ("Licensee") and

Software. Hemisphere reserves the right to reduce and limit access to such support at any time.

End User License Agreement

agreement

Hemisphere GNSS Inc. ("Hemisphere") which permits Licensee to use the Hemisphere software (the "Software")
that accompanies this Agreement. This Software may be licensed on a standalone basis or may be embedded in a
Product. Please read and ensure that you understand this Agreement before installing or using the Software Update
or using a Product.

In this agreement any product that has Software embedded in it at the time of sale to the Licensee shall be referred
to as a "Product". As well, in this Agreement, the use of a Product shall be deemed to be use of the Software which
is embedded in the Product.

BY INSTALLING OR USING THE SOFTWARE UPDATE OR THE PRODUCT, LICENSEE THEREBY AGREES TO BE LEGALLY
BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS, (I) DO NOT INSTALL OR USE
THE SOFTWARE, AND (II) IF YOU ARE INSTALLING AN UPDATE TO THE SOFTWARE, DO NOT INSTALL THE UPDATE
AND PROMPTLY DESTROY IT.

HEMISPHERE PROVIDES LIMITED WARRANTIES IN RELATION TO THE SOFTWARE. AS WELL, THOSE WHO USE THE
EMBEDDED SOFTWARE DO SO AT THEIR OWN RISK. YOU SHOULD UNDERSTAND THE IMPORTANCE OF THESE AND
OTHER LIMITATIONS SET OUT IN THIS AGREEMENT BEFORE INSTALLING OR USING THE SOFTWARE OR THE
PRODUCT.

1.

LICENSE. Hemisphere hereby grants to Licensee a non-transferable and non-exclusive license to
use the Software as embedded in a Product and all Updates (collectively the "Software"), solely
in binary executable form.

2.

RESTRICTIONS ON USE. Licensee agrees that Licensee and its employees will not directly or
indirectly, in any manner whatsoever:

a.

install or use more copies of the Software than the number of copies that have been
licensed;

b.

use or install the Software in connection with any product other than the Product the
Software was intended to be used or installed on as set out in the documentation that
accompanies the Software.

c.

copy any of the Software or any written materials for any purpose except as part of
Licensee's normal backup processes;

d.

modify or create derivative works based on the Software;

e.

sub-license, rent, lease, loan or distribute the Software;

f.

permit any third party to use the Software;

g.

use or operate Product for the benefit of any third party in any type of service
outsourcing, application service, provider service or service bureau capacity;

h.

reverse engineer, decompile or disassemble the Software or otherwise reduce it to a
human perceivable form;

i.

Assign this Agreement or sell or otherwise transfer the Software to any other party except
as part of the sale or transfer of the whole Product.

3.

UPDATES. At Hemisphere's discretion Hemisphere may make Updates available to Licensee. An
update ("Update") means any update to the Software that is made available to Licensee
including error corrections, enhancements and other modifications. Licensee may access,
download and install Updates during the Warranty Period only. All Updates that Licensee
downloads, installs or uses shall be deemed to be Software and subject to this Agreement.
Hemisphere reserves the right to modify the Product without any obligation to notify, supply or
install any improvements or alterations to existing Software.

4.

SUPPORT. Hemisphere may make available directly or through its authorized dealers telephone
and email support for the Software. Contact Hemisphere to find the authorized dealer near you.
As well, Hemisphere may make available user and technical documentation regarding the

Continued on next page

End User license

BACKUPS AND RECOVERY. Licensee shall back-up all data used, created or stored by the

parties.

End User License Agreement, Continued

agreement,

continued

5.

Software on a regular basis as necessary to enable proper recovery of the data and related
systems and processes in the event of a malfunction in the Software or any loss or corruption of
data caused by the Software. Licensee shall assume all risks of loss or damage for any failure to
comply with the foregoing.

6.

OWNERSHIP. Hemisphere and its suppliers own all rights, title and interest in and to the
Software and related materials, including all intellectual property rights. The Software is
licensed to Licensee, not sold.

7.

TRADEMARKS. "Hemisphere GNSS", "Crescent", "Eclipse" and the associated logos are
trademarks of Hemisphere. Other trademarks are the property of their respective owners.
Licensee may not use any of these trademarks without the consent of their respective owners.

8.

LIMITED WARRANTY. Hemisphere warrants solely to the Licensee, subject to the exclusions and
procedures set forth herein below, that for a period of one (1) year from the original date of
purchase of the Product in which it is embedded (the "Warranty Period"), the Software, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Software and any media will be free of defects in materials and
workmanship. For any Update, Hemisphere warrants, for 90 days from performance or delivery,
or for the balance of the original Warranty Period, whichever is greater, that the Update, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Update and any media will be free of defects in materials and workmanship.
Notwithstanding the foregoing, Hemisphere does not warrant that the Software will meet
Licensee's requirements or that its operation will be error free.

9.

WARRANTY EXCLUSIONS. The warranty set forth in Section (8) will not apply to any deficiencies
caused by (a) the Product not being used as described in the documentation supplied to
Licensee, (b) the Software having been altered, modified or converted in any way by anyone
other than Hemisphere approved by Hemisphere, (c) any malfunction of Licensee's equipment
or other software, or (d) damage occurring in transit or due to any accident, abuse, misuse,
improper installation, lightning (or other electrical discharge) or neglect other than that caused
by Hemisphere. Hemisphere GNSS does not warrant or guarantee the precision or accuracy of
positions obtained when using the Software (whether standalone or embedded in a Product).
The Product and the Software is not intended and should not be used as the primary means of
navigation or for use in safety of life applications. The potential positioning and navigation
accuracy obtainable with the Software as stated in the Product or Software documentation
serves to provide only an estimate of achievable accuracy based on specifications provided by
the US Department of Defense for GPS positioning and DGPS service provider performance
specifications, where applicable.

10.

WARRANTY DISCLAIMER. EXCEPT AS EXPRESSLY SET OUT IN THIS AGREEMENT, HEMISPHERE
MAKES NO REPRESENTATION, WARRANTY OR CONDITION OF ANY KIND TO LICENSEE,
WHETHER VERBAL OR WRITTEN AND HEREBY DISCLAIMS ALL REPRESENTATIONS, WARRANTIES
AND CONDITIONS OF ANY KIND INCLUDING FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, ACCURACY, RELIABILITY OR THAT THE USE OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR-FREE AND HEREBY DISCLAIMS ALL REPRESENTATIONS,
WARRANTIES AND CONDITIONS ARISING AS A RESULT OF CUSTOM, USAGE OR TRADE AND
THOSE ARISING UNDER STATUTE.

11.

LIMITS ON WARRANTY DISCLAIMER. Some jurisdictions do not allow the exclusion of implied
warranties or conditions, so some of the above exclusions may not apply to Licensee. In that
case, any implied warranties or conditions which would then otherwise arise will be limited in
duration to ninety (90) days from the date of the license of the Software or the purchase of the
Product. The warranties given herein give Licensee specific legal rights and Licensee may have
other rights which may vary from jurisdiction to jurisdiction.

12.

CHANGE TO WARRANTY.No employee or agent of Hemisphere is authorized to change the
warranty provided or the limitation or disclaimer of warranty provisions. All such changes will
only be effective if pursuant to a separate agreement signed by senior officers of the respective

Continued on next page

End User license

WARRANTY CLAIM. In the event Licensee has a warranty claim Licensee must first check for

functionality of the Product,

End User License Agreement, Continued

agreement,

continued

13.

and install all Updates that are made available. The warranty will not otherwise be honored.
Proof of purchase may be required. Hemisphere does not honor claims asserted after the end
of the Warranty Period.

14.

LICENSEE REMEDIES. In all cases which involve a failure of the Software to conform in any
material respect to the documentation during the Warranty Period or a breach of a warranty,
Hemisphere's sole obligation and liability, and Licensee's sole and exclusive remedy, is for
Hemisphere, at Hemisphere's option, to (a) repair the Software, (b) replace the Software with
software conforming to the documentation, or (c) if Hemisphere is unable, on a reasonable
commercial basis, to repair the Software or to replace the Software with conforming software
within ninety (90) days, to terminate this Agreement and thereafter Licensee shall cease using
the Software. Hemisphere will also issue a refund for the price paid by Licensee less an amount
on account of amortization, calculated on a straight-line basis over a deemed useful life of three
(3) years.

15.

LIMITATION OF LIABILITY. IN NO EVENT WILL HEMISPHERE BE LIABLE TO LICENSEE FOR ANY
INCIDENTAL, CONSEQUENTIAL, SPECIAL OR INDIRECT DAMAGES INCLUDING ARISING IN
RELATION TO ANY LOSS OF DATA, INCOME, REVENUE, GOODWILL OR ANTICIPATED SAVINGS
EVEN IF HEMISPHERE HAS BEEN INFORMED OFTHE POSSIBILITY OF SUCH LOSS OR DAMAGE.
FURTHER, IN NO EVENT WILL HEMISPHERE'S TOTAL CUMULATIVE LIABILITY HEREUNDER, FROM
ALL CAUSES OF ACTION OF ANY KIND, EXCEED THE TOTAL AMOUNT PAID BY LICENSEE TO
HEMISPHERE TO PURCHASE THE PRODUCT. THIS LIMITATION AND EXCLUSION APPLIES
IRRESPECTIVE OF THE CAUSE OF ACTION, INCLUDING BUT NOT LIMITED TO BREACH OF
CONTRACT, NEGLIGENCE, STRICT LIABILITY, TORT, BREACH OF WARRANTY,
MISREPRESENTATION OR ANY OTHER LEGAL THEORY AND WILL SURVIVE A FUNDAMENTAL
BREACH.

16.

LIMITS ON LIMITATION OF LIABILITY. Some jurisdictions do not allow for the limitation or
exclusion of liability for incidental or consequential damages, so the above limitation or
exclusion may not apply to Licensee and Licensee may also have other legal rights which may
vary from jurisdiction to jurisdiction.

17.

BASIS OF BARGAIN. Licensee agrees and acknowledges that Hemisphere has set its prices and
the parties have entered into this Agreement in reliance on the limited warranties, warranty
disclaimers and limitations of liability set forth herein, that the same reflect an agreed-to
allocation of risk between the parties (including the risk that a remedy may fail of its essential
purpose and cause consequential loss), and that the same forms an essential basis of the
bargain between the parties. Licensee agrees and acknowledges that Hemisphere would not
have been able to sell the Product at the amount charged on an economic basis without such
limitations.

18.

PROPRIETARY RIGHTS INDEMNITY. Hemisphere shall indemnify, defend and hold harmless
Licensee from and against any and all actions, claims, demands, proceedings, liabilities, direct
damages, judgments, settlements, fines, penalties, costs and expenses, including royalties and
attorneys' fees and related costs, in connection with or arising out of any actual infringement of
any third party patent, copyright or other intellectual property right by the Software or by its
use, in accordance with this Agreement and documentation, PROVIDED THAT: (a) Hemisphere
has the right to assume full control over any action, claim, demand or proceeding, (b) Licensee
shall promptly notify Hemisphere of any such action, claim, demand, or proceeding, and (c)
Licensee shall give Hemisphere such reasonable assistance and tangible material as is
reasonably available to Licensee for the defense of the action, claim, demand or proceeding.
Licensee shall not settle or compromise any of same for which Hemisphere has agreed to
assume responsibility without Hemisphere's prior written consent. Licensee may, at its sole cost
and expense, retain separate counsel from the counsel utilized or retained by Hemisphere.
INFRINGEMENT. If use of the Software may be enjoined due to a claim of infringement by a
third party then, at its sole discretion and expense, Hemisphere may do one of the following: (a)
negotiate a license or other agreement so that the Product is no longer subject to such a
potential claim, (b) modify the Product so that it becomes non- infringing, provided such
modification can be accomplished without materially affecting the performance and

19.

Continued on next page

End User license

(c) replace the Software, or the Product, with non-infringing software, or product, of equal or

force and effect.

End User License Agreement, Continued

agreement,

continued

better performance and quality, or (d) if none of the foregoing can be done on a commercially
reasonable basis, terminate this license and Licensee shall stop using the Product and
Hemisphere shall refund the price paid by Licensee less an amount on account of amortization,
calculated on a straight-line basis over a deemed useful life of three (3) years.

19.

The foregoing sets out the entire liability of Hemisphere and the sole obligations of Hemisphere
to Licensee in respect of any claim that the Software or its use infringes any third party rights.

20.

INDEMNIFICATION. Except in relation to an infringement action, Licensee shall indemnify and
hold Hemisphere harmless from any and all claims, damages, losses, liabilities, costs and
expenses (including reasonable fees of lawyers and other professionals) arising out of or in
connection with Licensee's use of the Product, whether direct or indirect, including without
limiting the foregoing, loss of data, loss of profit or business interruption. TERMINATION.
Licensee may terminate this Agreement at any time without cause. Hemisphere may terminate
this Agreement on 30 days’ notice to Licensee if Licensee fails to materially comply with each
provision of this Agreement unless such default is cured within the 30 days. Any such
termination by a party shall be in addition to and without prejudice to such rights and remedies
as may be available, including injunction and other equitable remedies. Upon receipt by
Licensee of written notice of termination from Hemisphere or termination by Licensee, Licensee
shall at the end of any notice period (a) cease using the Software; and (b) return to Hemisphere
(or destroy and provide a certificate of a Senior Officer attesting to such destruction) the
Software and all related material and any magnetic or optical media provided to Licensee. The
provisions of Sections 6), 7), 8), 9), 10), 15), 21), 26) and 27) herein shall survive the expiration
or termination of this Agreement for any reason.

21.

EXPORT RESTRICTIONS. Licensee agrees that Licensee will comply with all export control
legislation of Canada, the United States, Australia and any other applicable country's laws and
regulations, whether under the Arms Export Control Act, the International Traffic in Arms
Regulations, the Export Administration Regulations, the regulations of the United States
Departments of Commerce, State, and Treasury, or otherwise as well as the export control
legislation of all other countries.

22.

PRODUCT COMPONENTS. The Product may contain third party components. Those third party
components may be subject to additional terms and conditions. Licensee is required to agree to
those terms and conditions in order to use the Product.

23.

FORCE MAJEURE EVENT. Neither party will have the right to claim damages as a result of the
other's inability to perform or any delay in performance due to unforeseeable circumstances
beyond its reasonable control, such as labor disputes, strikes, lockouts, war, riot, insurrection,
epidemic, Internet virus attack, Internet failure, supplier failure, act of God, or governmental
action not the fault of the non-performing party.

24.

FORUM FOR DISPUTES. The parties agree that the courts located in Calgary, Alberta, Canada
and the courts of appeal there from will have exclusive jurisdiction to resolve any disputes
between Licensee and Hemisphere concerning this Agreement or Licensee's use or inability to
use the Software and the parties hereby irrevocably agree to attorn to the jurisdiction of those
courts. Notwithstanding the foregoing, either party may apply to any court of competent
jurisdiction for injunctive relief.

25.

APPLICABLE LAW. This Agreement shall be governed by the laws of the Province of Alberta,
Canada, exclusive of any of its choice of law and conflicts of law jurisprudence.

26.

CISG. The United Nations Convention on Contracts for the International Sale of Goods will not

GENERAL. This is the entire agreement between Licensee and Hemisphere relating to the Product and Licensee's

use of the same, and supersedes all prior, collateral or contemporaneous oral or written representations,
warranties or agreements regarding the same. No amendment to or modification of this Agreement will be binding
unless in writing and signed by duly authorized representatives of the parties. Any and all terms and conditions set
out in any correspondence between the parties or set out in a purchase order which are different from or in
addition to the terms and conditions set forth herein, shall have no application and no written notice of same shall
be required. In the event that one or more of the provisions of this Agreement is found to be illegal or
unenforceable, this Agreement shall not be rendered inoperative, but the remaining provisions shall continue in full

apply to this Agreement or any transaction hereunder.

Warranty notice

COVERED PRODUCTS: This warranty covers all products manufactured by Hemisphere GNSS and purchased by the

settings. UNSAFE DRIVING OR SYSTEM CONTROL SETTINGS CAN RESULT IN PROPERTY DAMAGE, INJURY, OR DEATH.

Warranty Notice

end purchaser (the "Products"), unless otherwise specifically and expressly agreed in writing by Hemisphere GNSS.
LIMITED WARRANTY: Hemisphere GNSS warrants solely to the end purchaser of the Products, subject to the
exclusions and procedures set forth below, that the Products sold to such end purchaser and its internal
components shall be free, under normal use and maintenance, from defects in materials, and workmanship and will
substantially conform to Hemisphere GNSS's applicable specifications for the Product, for a period of 12 months
from delivery of such Product to such end purchaser (the ”Warranty Period”). Repairs and replacement components
for the Products are warranted, subject to the exclusions and procedures set forth below, to be free, under normal
use and maintenance, from defects in material and workmanship, and will substantially conform to Hemisphere
GNSS's applicable specifications for the Product, for 90 days from performance or delivery, or for the balance of the
original Warranty Period, whichever is greater.
EXCLUSION OF ALL OTHER WARRANTIES. The LIMITED WARRANTY shall apply only if the Product is properly and
correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS
relevant User’s Manual and Specifications, AND the Product is not modified or misused. The Product is provided “AS
IS” and the implied warranties of MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE and ALL OTHER
WARRANTIES,
express, implied or arising by statute, by course of dealing or by trade usage, in connection with the design, sale,
installation, service or use of any products or any component thereof, are EXCLUDED from this transaction and shall
not apply to the Product. The LIMITED WARRANTY is IN LIEU OF any other warranty, express or implied, including
but not limited to, any warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, title, and non­infringement.
LIMITATION OF REMEDIES. The purchaser’s EXCLUSIVE REMEDY against Hemisphere GNSS shall be, at Hemisphere
GNSS's option, the repair or replacement of any defective Product or components thereof. The purchaser shall
notify Hemisphere GNSS or a Hemisphere GNSS's approved service center immediately of any defect. Repairs shall
be made through a Hemisphere GNSS approved service center only. Repair, modification or service of Hemisphere
GNSS products by any party other than a Hemisphere GNSS approved service center shall render this warranty null
and void. The remedy in this paragraph shall only be applied in the event that the Product is properly and correctly
installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS's relevant
User’s Manual and Specifications, AND the Product is not modified or misused. NO OTHER REMEDY (INCLUDING,
BUT NOT LIMITED TO, SPECIAL, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR CONTINGENT DAMAGES FOR LOST
PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS)
SHALL BE AVAILABLE
TO PURCHASER, even if Hemisphere GNSS has been advised of the possibility of such damages. Without limiting the
foregoing, Hemisphere GNSS shall not be liable for any damages of any kind resulting from installation, use, quality,
performance or accuracy of any Product.

HEMISPHERE IS NOT RESPONSIBLE FOR PURCHASER’S NEGLIGENCE OR UNAUTHORIZED USES OF THE PRODUCT.

IN NO EVENT SHALL Hemisphere GNSS BE IN ANY WAY RESPONSIBLE FOR ANY DAMAGES RESULTING FROM
PURCHASER’S OWN NEGLIGENCE, OR FROM OPERATION OF THE PRODUCT IN ANY WAY OTHER THAN AS SPECIFIED
IN Hemisphere GNSS's RELEVANT USER’S MANUAL AND SPECIFICATIONS. Hemisphere GNSS is NOT
RESPONSIBLE for defects or performance problems resulting from (1) misuse, abuse, improper installation, neglect
of Product; (2) the utilization of the Product with hardware or software products, information, data, systems,
interfaces or devices not made, supplied or specified by Hemisphere GNSS; (3) the operation of the Product under
any specification other than, or in addition to, the specifications set forth in Hemisphere GNSS's relevant User’s
Manual and Specifications; (4) damage caused by accident or natural events, such as lightning (or other electrical
discharge) or fresh/ salt water immersion of Product; (5) damage occurring in transit; (6) normal wear and tear; or
(7) the operation or failure of operation of any satellite-based positioning system or differential correction service;
or the availability or performance of any satellite-based positioning signal or differential correction signal.
THE PURCHASER IS RESPONSIBLE FOR OPERATING THE VEHICLE SAFELY. The purchaser is solely responsible for the
safe operation of the vehicle used in connection with the Product, and for maintaining proper system control

Continued on next page

Warranty

The purchaser is solely responsible for his/her safety and for the safety of others. The purchaser is solely

[e-mail] WWW.HGNSS.COM

Warranty Notice, Continued

notice,

continued

responsible for maintaining control of the automated steering system at all times. THE PURCHASER IS SOLELY
RESPONSIBLE FOR ENSURING THE PRODUCT IS PROPERLY AND CORRECTLY INSTALLED, CONFIGURED, INTERFACED,
MAINTAINED, STORED, AND OPERATED IN ACCORDANCE WITH Hemisphere GNSS's RELEVANT USER’S MANUAL
AND SPECIFICATIONS. Hemisphere GNSS does not warrant or guarantee the positioning and navigation precision or
accuracy obtained when using Products. Products are not intended for primary navigation or for use in safety of life
applications. The potential accuracy of Products as stated in Hemisphere GNSS literature and/or Product
specifications serves to provide only an estimate of achievable accuracy based on performance specifications
provided by the satellite service operator (i.e. US Department of Defense in the case of GPS and differential
correction service provider. Hemisphere GNSS reserves the right to modify Products without any obligation to
notify, supply or install any improvements or alterations to existing Products.
GOVERNING LAW. This agreement and any disputes relating to, concerning or based upon the Product shall be
governed by and interpreted in accordance with the laws of the State of Arizona.
OBTAINING WARRANTY SERVICE. In order to obtain warranty service, the end purchaser must bring the Product to
a Hemisphere GNSS approved service center along with the end purchaser's proof of purchase. Hemisphere GNSS
does not warrant claims asserted after the end of the warranty period. For any questions regarding warranty
service or to obtain information regarding the location of any of Hemisphere GNSS approved service center, contact
Hemisphere GNSS at the following address:

Hemisphere GNSS

8515 E. Anderson Drive Scottsdale, AZ 85255, USA
Phone: [phone]
Fax: [phone]

Hemisphere GNSS Inc.

8515 East Anderson Drive, Suite A

Scottsdale, Arizona, US 85255

Phone: [phone]

Fax: [phone]

[e-mail]

WWW.HGNSS.COM
