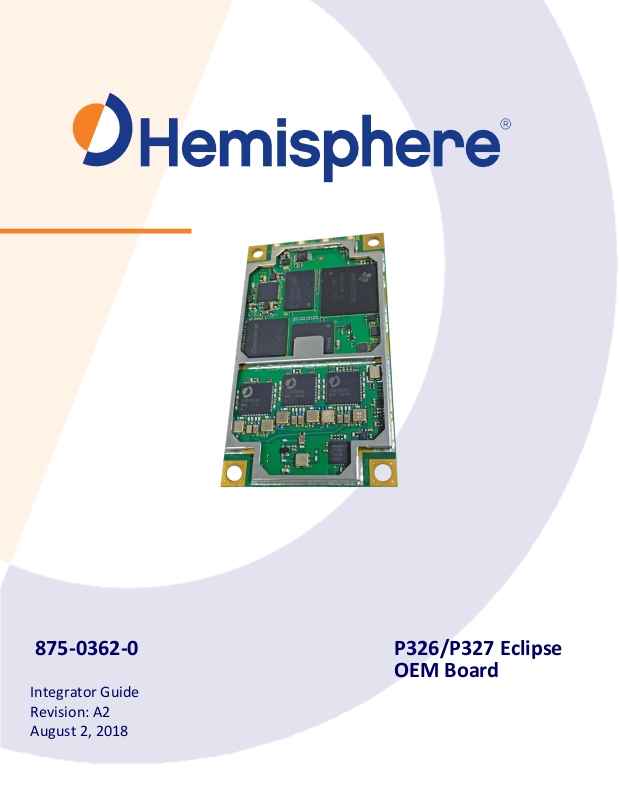

875-0362-0 P326/P327 Eclipse
OEM Board
Integrator Guide
Revision: A2
August 2, 2018
Page 2
Table of Contents
Device Compliance, License and Patents ............................................................................ 4
P326/P327 Terms & Definitions.......................................................................................... 6
Chapter 1: Introduction .............................................................................................................. 8
Overview ............................................................................................................................. 8
Product Overview ............................................................................................................... 9
Key Features ...................................................................................................................... 14
What’s Included in Your Kit............................................................................................... 16
Firmware ........................................................................................................................... 16
Using PocketMax to Communicate with the P326/P327 ................................................. 17
Chapter 2: Integrating the P326/P327 ...................................................................................... 18
Overview ........................................................................................................................... 18
P326 and P327 Integration ............................................................................................... 19
Mechanical Layout ............................................................................................................ 20
Connectors ........................................................................................................................ 22
Mounting Options ............................................................................................................. 23
Header Layouts and Pin-outs ............................................................................................ 24
Signals ............................................................................................................................... 31
Ports .................................................................................................................................. 31
CAN ................................................................................................................................... 33
Chapter 3: Understanding the P326/P327 ............................................................................... 34
Overview ........................................................................................................................... 34
Timing Signal ..................................................................................................................... 35
Event Marker Input ........................................................................................................... 35
Grounds ............................................................................................................................. 36
Speed Radar Output .......................................................................................................... 36
Shielding ............................................................................................................................ 37
Receiver Mounting ............................................................................................................ 38
Thermal Concerns ............................................................................................................. 38
Chapter 4: Operating the P326/P327 ....................................................................................... 39
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 2 of 74
Page 3
Overview ........................................................................................................................... 39
Powering the P326/P327 On/Off ...................................................................................... 40
Communicating with the P326/P327 ................................................................................ 40
Configuring the P326/P327 ............................................................................................... 41
LED Indicators ................................................................................................................... 42
Configuring the Data Message Output ............................................................................. 43
‘THIS’ Port and the ‘OTHER’ Port ...................................................................................... 43
Saving the P326/P327 Configuration ................................................................................ 44
Using Port D for RTCM Input............................................................................................. 45
Atlas L-band Messages/Commands .................................................................................. 46
Configuration Defaults ...................................................................................................... 47
Appendix A: Troubleshooting ................................................................................................... 48
Overview ........................................................................................................................... 48
Troubleshooting ................................................................................................................ 49
Appendix B: Technical Specifications ........................................................................................ 51
Technical Specifications .................................................................................................... 51
P326 and P327 Technical Specifications ........................................................................... 52
Appendix C: Frequently Asked Questions (FAQ) ...................................................................... 62
FAQ .................................................................................................................................... 62
Appendix C: Frequently Asked Questions (FAQ) .............................................................. 63
Index .................................................................................................................................. 75
End User License Agreement ............................................................................................ 76
Warranty Notice ................................................................................................................ 80
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 3 of 74
Page 4
Device Compliance, License and Patents
Device Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
E-Mark Statement: This product is not to be used for driverless/autonomous driving.
Copyright Notice
Copyright Hemisphere GNSS, Inc. (2018). All rights reserved.
chemical, manual or otherwise, without the prior written permission of Hemisphere GNSS.
Trademarks
Hemisphere GNSS®, the Hemisphere GNSS logo, TRACERTM, Crescent®, EclipseTM, e-Dif®, L-DifTM, PocketMax4TM,
are the properties of their respective owners.
Patents
Hemisphere GNSS products may be covered by one or more of the following patents:
6111549
6876920
7400956
8000381
6397147
7142956
7429952
8018376
6469663
7162348
7437230
8085196
6501346
7277792
7460942
8102325
6539303
7292185
7689354
8138970
6549091
7292186
7808428
8140223
6711501
7373231
7835832
8174437
6744404
7388539
7885745
8184050
6865465
7400294
7948769
8190337
8214111
8217833
8265826
8271194
8307535
8311696
8334804
RE41358
Australia Patents
2002244539
2002325645
2004320401
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
This product complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The
declaration of conformity may be consulted at
No part of this manual may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into
any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical,
S320TM, SBX-4TM, VectorTM, XF1TM, and XF2TM are proprietary trademarks of Hemisphere GNSS, Inc. Other trademarks
HTTPS://HEMISPHEREGNSS.COM/ABOUT-US/QUALITY-COMMITMENT.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 4 of 74
Continued on next page
Page 5
Device Compliance, License and Patents, Continued
Notice to Customers
Contact your local dealer for technical assistance. To find the authorized dealer near you:
WWW.HGNSS.COM
Technical Support
If you need to contact Hemisphere GNSS Technical Support:
SUPPORT.HGNSS.COM
Documentation
Hemisphere GNSS is committed to the quality and continuous improvement of our products and services. We urge
website: SUPPORT.HGNSS.COM
Hemisphere GNSS, Inc
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: (480) 348-6380
Fax: (480) 270-5070
PRECISION@HGNSS.COM
Hemisphere GNSS, Inc.
8515 East Anderson Drive
Scottsdale, AZ 85255 USA
Phone: (480) 348-6380
Fax: (480) 270-5070
Feedback
you to provide Hemisphere GNSS with any feedback regarding this guide by opening a support case at the following
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 5 of 74
Page 6
P326/P327 Terms & Definitions
Introduction
The following table lists the terms and definitions used in this document.
P326/P327
Term
Definition
1PPS
1 pulse-per-second is a pulse output by the receiver
synchronization.
Activation
Activation refers to a feature added through a one-
see Subscription.
Atlas
Atlas is a subscription-based service provided by
Hemisphere.
Base Station
The Base Station is a receiver placed over a familiar
or the internet.
BeiDou
BeiDou is a Chinese satellite-based navigation system.
Firmware
Firmware is the software loaded into the receiver that
GNSS engine.
GALILEO
Galileo is a global navigation satellite system
Space Agency.
GLONASS
Global Orbiting Navigation Satellite System (GLONASS)
maintained by Russia.
GNSS
Global Navigation Satellite System (GNSS) is a system
GLONASS and Galileo.
terms &
definitions
precisely once per second and is used for hardware
time purchase. For features that require recurring fees,
point, provides real-time observations, and sends
those observations to nearby RTK rovers via UHF radio
controls the functionality of the receiver and runs the
implemented by the European Union and European
is a Global Navigation Satellite System deployed and
that provides autonomous 3D position (latitude,
longitude, and altitude) and accurate timing globally by
using satellites. Current GNSS providers are: GPS,
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 6 of 74
Page 7
P326/P327
Term
Definition
GPS
Global Positioning System (GPS) is a global navigation
satellite system implemented by the United States.
Multipath
Multipath occurs when the GNSS signal reaches the
GNSS solutions.
NMEA
National Marine Electronics Association (NMEA) is a
for communication between marine electronics.
ROX
ROX is a Hemisphere GNSS propriety RTK message
branded.
RTCM
Radio Technical Commission for Maritime Services
be used together.
RTK
Real-Time-Kinematic (RTK) is a real-time differential
differential corrections.
SBAS
Satellite Based Augmentation System (SBAS) is a
satellite throughout a wide area or region.
Subscription
A subscription is a feature that is enabled for a limited
subscription is renewed.
WAAS
Wide Area Augmentation System (WAAS) is a
parts of North America.
P326/P327 Terms & Definitions, Continued
terms &
definitions,
continued
antenna by two or more paths. This causes incorrect
pseudo-range measurements and leads to less precise
marine electronics organization that sets standards
format that can be used as an alternative to RTCM3
when both the base and rover are Hemisphere
(RTCM) is a standard used to define RTK message
formats so that receivers from any manufacturer can
GPS method that provides better accuracy than
system that provides differential corrections over
time. Once the end-date of the subscription has been
reached, the feature will turn off until the
satellite-based augmentation system (SBAS) that
provides free differential corrections over satellite in
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 7 of 74
Page 8
Overview
Introduction
This Integrator Guide provides information to help you integrate your
this manual from the Hemisphere GNSS website at WWW.HGNSS.COM.
Contents
Topic
See Page
Product Overview
9
Key Features
14
What’s Included in Your Kit
16
Firmware
16
Using PocketMax to Communicate with the P326/P327
17
Chapter 1: Introduction
P326/P327 OEM boards with your positioning product. You can download
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 8 of 74
Page 9
Product Overview
Product

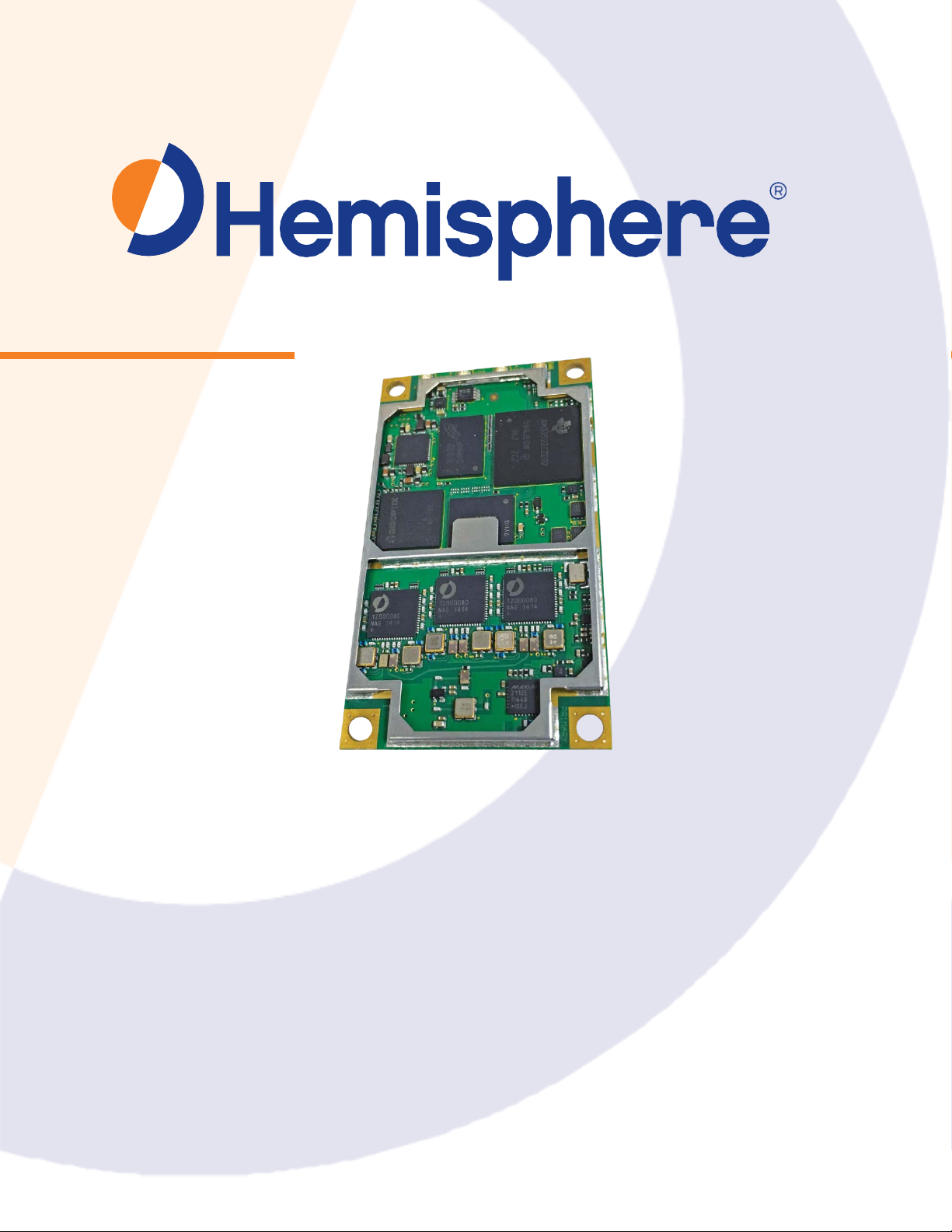

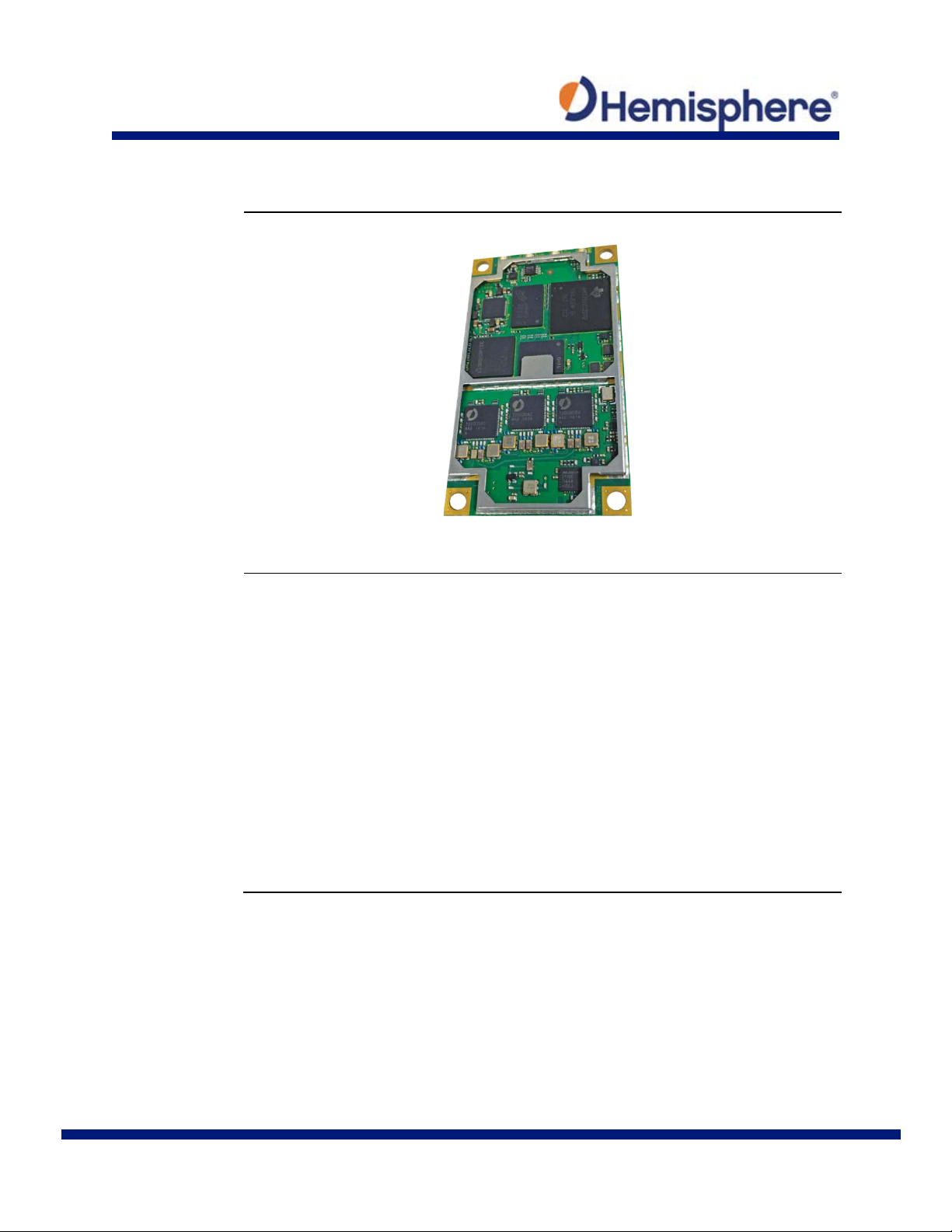

The Eclipse™ P326 and P327 OEM boards are available in two models as
Model
GNSS Systems
Compatibility
L-band
support
P326™
L1CA/L1P/L1C/L2P/L2C/
GLONASS
Hemisphere GNSS’
Yes
B1/B2 B3 (separate
BEIDOU
E1BC/E5a/E5b Galileo
L1CA/L1C/L2C/L5 QZSS*
P327
L1CA/L1P/L1C/L2P/L2C/
GLONASS
Industry standard pin- out
Yes
B1/B2 B3 (separate
BEIDOU
E1BC/E5a/E5b Galileo
L1CA/L1C/L2C/L5 QZSS*
*Future FW update
Support, GNSS Reference Guide).
overview
shown in Table 1-1.
Table 1-1: P326/P327 board options
L5 GPS
G1/G2/P code (P1/P2)
variant without L5)
L5 GPS
G1/G2/P code (P1/P2)
standard pin-out
configuration (34-pin)
configuration (20- pin)
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 9 of 74
variant without L5)
Note: This guide does not cover receiver operation, the PocketMax™ utility,
or commands and messages (NMEA 0183, NMEA2000® or HGNSS
proprietary).
For information on these subjects refer to the Hemisphere GNSS Technical
Reference (go to WWW.HGNSS.COM and follow the links to Resources &
Continued on next page
Page 10
Product Overview, Continued
Product

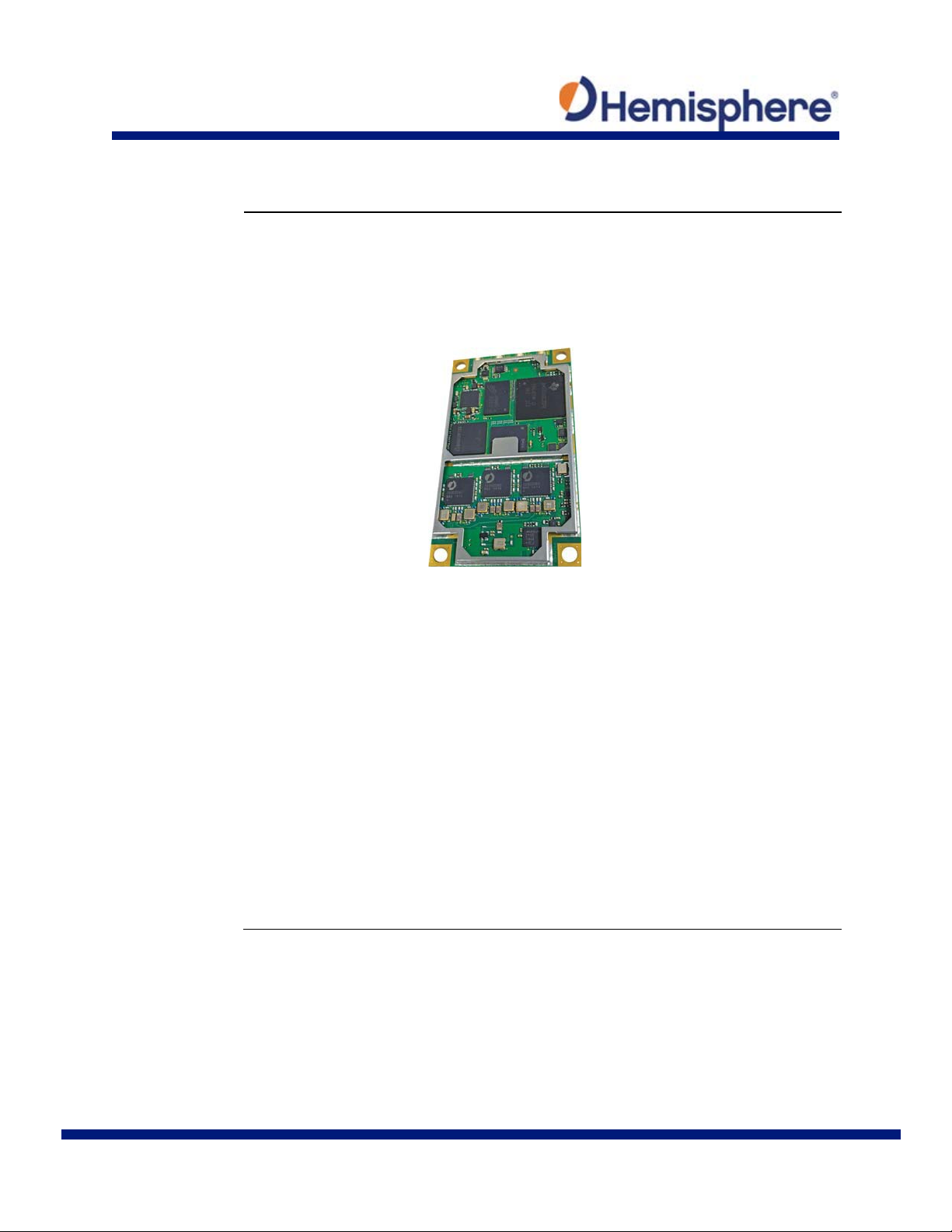

Figure 1-1 P326/P327 OEM Board
Athena RTK
Athena RTK (Real Time Kinematic) technology is available on Eclipse-based
baseline applications
overview,
continued
GNSS receivers. This is Hemisphere's most advanced RTK processing software
and can be added to the P326/P327 as an activation.
Athena RTK has the following benefits:
• Improved Initialization time - Performing initializations in less than 15
seconds at better than 99.9% of the time
• Robustness in difficult operating environments - Extremely high
productivity under the most aggressive of geographic and landscapeoriented environments
• Performance on long baselines - Industry-leading position stability for long
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 10 of 74
Continued on next page
Page 11
Product Overview, Continued
Atlas L-band
Atlas L-band is Hemisphere's industry leading correction service, which can
For more
For more information about Athena RTK, see:
://
For more information about Atlas L-band, see: HTTP://HGNSS.COM/ATLAS
be added to the P326/P327 as a subscription. Atlas L-band has the following
benefits:
• Positioning accuracy - Competitive positioning accuracies down to 4 cm
RMS in certain applications
• Positioning sustainability - Cutting edge position quality maintenance in
the absence of correction signals, using Hemisphere’s patented technology
• Scalable service levels - Capable of providing virtually any accuracy,
precision and repeatability level in the 4cm to 50cm range
• Convergence time - Industry-leading convergence times of 10-40 minutes
information
HTTP
HNSS.COM/TECHNOLOGY
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 11 of 74
Page 12
Product Overview, Continued
aRTK Position
aRTK is an innovative feature available in Hemisphere’s P326 and P327, that
source becomes unavailable for a period of time.
Aiding
greatly mitigates the impact of land-based communication instability.
Powered by Hemisphere’s Atlas L-band system service, aRTK provides an
additional layer of communication redundancy to RTK users, assuring that
productivity is not impacted by intermittent data connectivity.
P326 and P327 receive aRTK augmentation correction data over satellite,
while also receiving the land- based RTK correction data. With this, the
receiver internally operates with two sources of RTK correction, creating one
additional layer of correction redundancy as compared to typical RTK
systems.
Once that process is established (which takes only a few seconds), the
receiver is able to operate in the absence of either correction source, and
continue generating RTK positions in case the land-based RTK correction
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 12 of 74
Page 13
Product Overview, Continued
TRACER
Most accurate positioning tech-niches such as RTK and Atlas (Hemisphere’s
interference environment.
L-band global correction service) operate by using a correction data stream
source.
One of the limitations in those positioning methods is the need for constant
connectivity with the correction source. In most cases, the user receiver
needs to receive correction data with very low data interruption to maintain
a reasonable position accuracy.
For instance, certain systems in the GNSS market only allow as much as 10 to
20 seconds of signal interruption before RTK level accuracy solution
completely stops being provided to the user.
Tracer is a core feature used in Hemisphere GNSS products to sustain
positioning in the absence of corrections. With the use of specialized
algorithms, Tracer greatly mitigates the impact of correction loss on the
system positioning accuracy.
Tracer is of fundamental importance in an environment where connectivity
over satellite, radio, or Internet is not stable, as it will for the most part allow
users to operate with negligible loss of accuracy during outage periods. The
length of the outage and associated performance loss will vary with the
positioning technique used, as well as the satellite geometry and
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 13 of 74
Page 14
Key Features
Overview
With its small form factor, low power consumption, and simple on-board
reacquisition, and more robust solutions due to better cycle slip detection.
firmware P326 and P327 is an ideal solution for integrators, offering
scalability and expandability from L1 GPS with SBAS to L1/L2 GPS, GLONASS,
BEIDOU, and Galileo (with RTK capability).
P326 and P327 are offered in common industry form factors:
• P326 is a drop-in replacement for Hemisphere GNSS’ Crescent
Eclipse receivers (34-pin) with integrated L-band
• P327 has a mechanical design compatible with popular after-market
products (20-pin) with integrated L-band
The reliable positioning performance of P326 and P327 is further enhanced
by Athena RTK, Atlas corrections, aRTK, and TRACER™ technology.
With P326 and P327, RTK performance is scalable. Utilize the same
centimeter-level accuracy in either L1-only mode, or employ the full
performance of fast RTK performance over long distances with L1/L2/L5 GPS
signals benefit from fewer RTK dropouts in congested environments, faster
®
and mini
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 14 of 74
Continued on next page
Page 15
Key Features, Continued
P326/P327 key
Key features of the P326/P327 include:
features
•
394-channel GNSS engine
•
Sub-meter horizontal accuracy 95%
•
Raw measurement output (via documented binary messages)
•
Position update rates of 20 Hz max
•
Tracer™ technology that provides consistent performance with
correction data
•
e-Dif®-ready - a base station-free way of differentially positioning
•
Quick times to first fix
•
Four full-duplex serial ports
•
Two CAN ports (P326 only)
•
USB ports
− USB host (P326 only) and USB device ports
•
1 PPS timing output
•
Event marker input
For complete specifications of P326 and P327 boards, see Appendix C
Technical Specifications.
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 15 of 74
Page 16
What’s Included in Your Kit
P326/P327 kit
The P326 and P327 are available in two configurations:
and navigate to the OEM Products page or contact your local dealer.
Firmware
The software that runs the P326 and P327 is often referred to as firmware
and P327 board.
• P326 and P327 OEM boards only - designed for integrators who are familiar
with Eclipse board integration
• P326 and P327 OEM boards and Universal Development Kit - designed for
integrators who are new to Eclipse board integration
The Universal Development Kit is designed to work with various
Hemisphere GNSS OEM boards and includes an enclosure with carrier
board, adapter boards, and various cables.
For more information on the Universal Development Kit visit www.HGNSS.COM
Firmware
since it operates at a low level. You can upgrade the firmware in the field
through any serial port as new versions become available.
The P326 and P327 currently ships with the Athena based firmware 5.5.0 or
higher. Refer to the Hemisphere GNSS Technical Reference (go to
www.hgnss.com and follow the links to Resources & Support, GNSS
Reference Guide) for information on the querying and talking to the P326
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 16 of 74
Page 17
Using PocketMax to Communicate with the P326/P327
PocketMax
Hemisphere’s PocketMax is a free utility program that runs on your Windows
(www.hgnss.com).
PC or Windows mobile device. Simply connect your Windows device to the
P326 and P327 via the COM port and open PocketMax.
The screens within PocketMax allow you to easily interface with the P326
and P327 to:
• Select the internal SBAS, external beacon, or RTCM correction source and
monitor reception (beacon optional)
• Configure GPS message output and port settings
• Record various types of data
• Monitor the P326 or P327’s status and function
PocketMax is available for download from the Hemisphere GNSS website
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 17 of 74
Page 18
Overview
Introduction
This chapter provides instructions on how to integrate your P326/P327
boards to your positioning product.
Contents
Topic
See Page
P326 and P327 Integration
19
Mechanical Layout
20
Connectors
22
Mounting Options
23
Header Layouts and Pin-outs
24
Signals
31
Ports
31
CAN
33
Chapter 2: Integrating the P326/P327
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 18 of 74
Page 19
P326 and P327 Integration
Introduction
Successful integration of the P326 and P327 within a system requires
• Circuit design and layout
P326/P327
The P326 and P327 GPS engine is a low-level module intended for custom
Antenna input impedance is 50Ω
Message
The P326 and P327 use a NMEA 0183 interface, allowing you to easily make
Reference Guide).
electronics expertise that includes:
• Power supply design
• Reasonable radio frequency competency
• An understanding of electromagnetic compatibility
integration
requirements
integration with the following general integration requirements:
• Regulated power supply input (3.3 VDC ± 3%) and 700 mA continuous
• Low-level serial port (3.3 V CMOS) and/or USB port communications
• Radio frequency (RF) input to the engine from a GNSS antenna is required
to be actively amplified (10 to 40 dB gain)
• GPS antenna is powered with a separate regulated voltage source up to 15
VDC maximum
•
interface
configuration changes by sending text-type commands to the receiver.
The P326 and P327 also support a selection of binary messages. There is a
wider array of information available through the binary messages, plus
binary messages are inherently more efficient with data. If the application
has a requirement for raw measurement data, this information is available
only in a binary format.
For more information on NMEA 0183 commands and messages as well as
binary messages, refer to the Hemisphere GNSS Technical Reference (go to
WWW.HGNSS.COM and follow the links to Resources & Support, GNSS
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 19 of 74
Page 20
Mechanical Layout
P326/P327

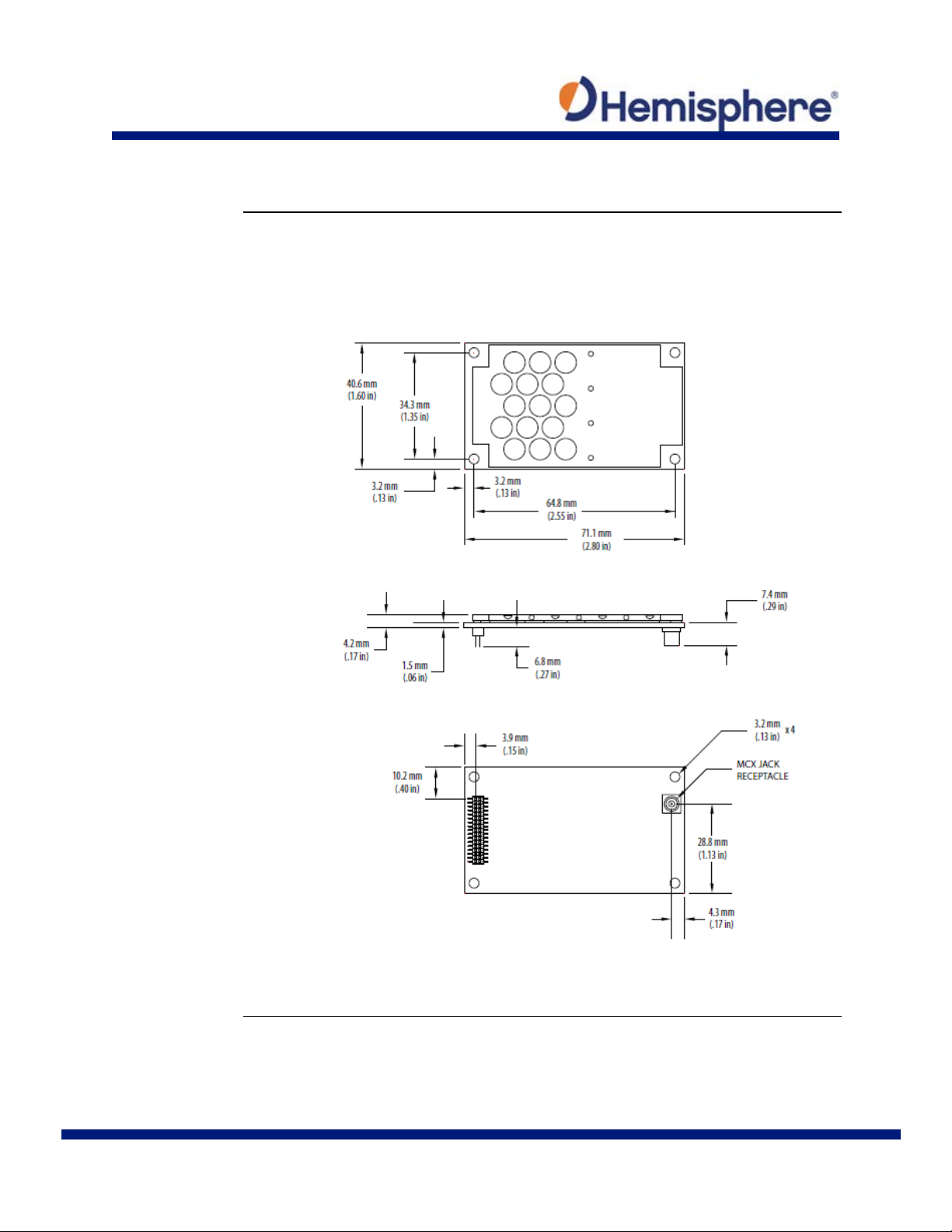

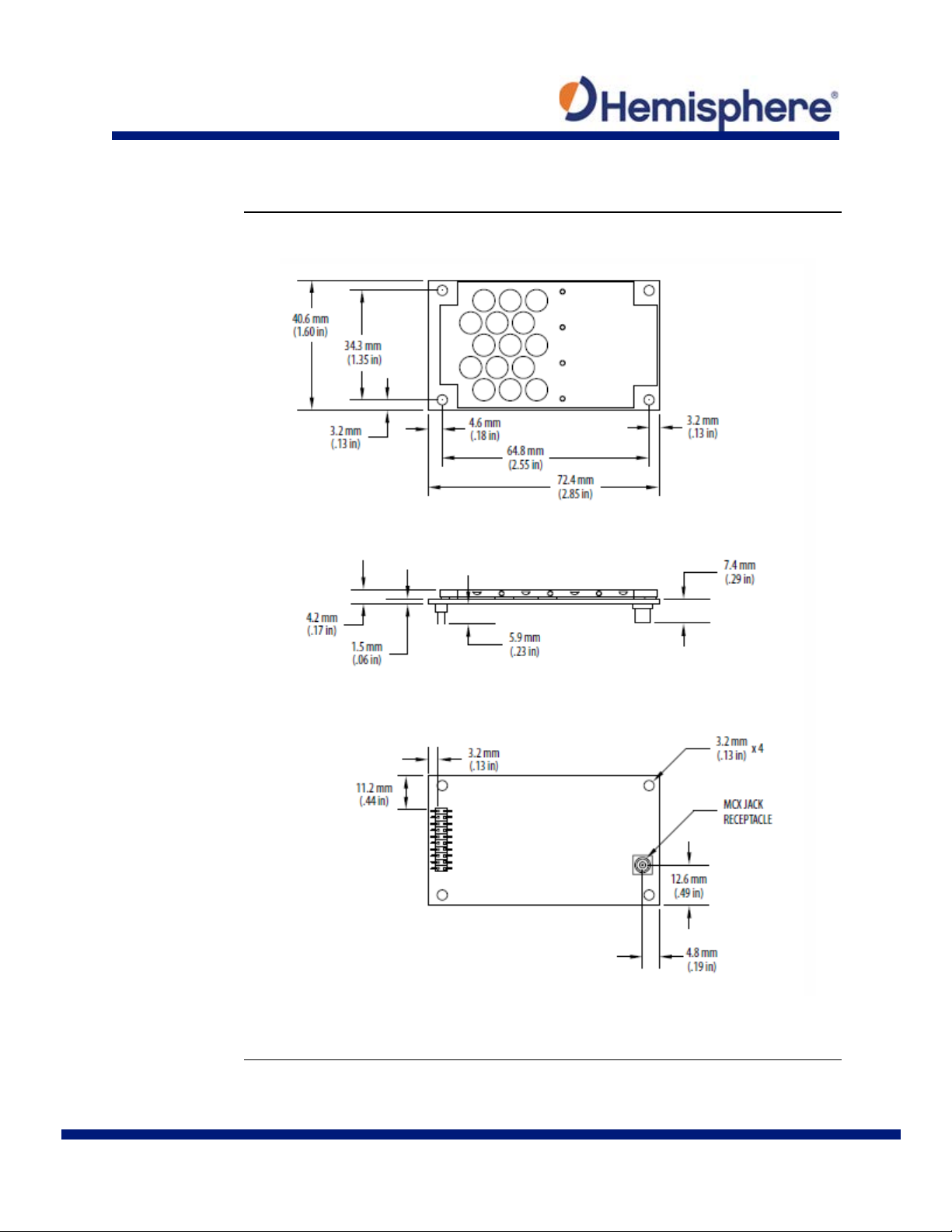

Figure 2-1 shows the mechanical layout for the P326 OEM board. Figure 2-2
Figure 2-1: Eclipse P326 mechanical layout
mechanical
layout
shows the mechanical layout for the P327 OEM board.
Dimensions are in millimeters (inches) for all layouts.
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 20 of 74
Page 21
Mechanical Layout, Continued
P326/P327
Figure 2-2: Eclipse P327 mechanical layout
mechanical
layout,
continued
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 21 of 74
Page 22
Connectors
P326/P327
Table 2-1 describes P326 and P327 connectors and mating connectors. You
Eclipse Board and
Connector Type
SMT Connector
Mating Connector
P326
RF
MCX, female straight jack
MCX, male straight
127824-01
Power/ data
34-pin (17x2) male
17x2 female SMT
01-G-DV
P327
RF
MCX, female straight jack
MCX, male straight
127824-01
Power/ data
20-pin (10x2) male
D-SM
10x2 female SMT
01-G-DV
Note: For the Samtec FTSH headers, ‘-04’ indicates 0.150” posts.
connectors
can use different compatible connectors; however, the requirements may be
different. The antenna input impedance is 50Ω.
Table 2-1: P326 and P327 connectors
Emerson
(Johnson) 133-3711-202
header,
0.05 in (1.27 mm) pitch
Samtec FTSH-117-04-LDV
Emerson
(Johnson) 133-3711-202
plug
Samtec RSP-
header socket,
0.05 in (1.27
mm)pitch
Samtec FLE-117-
plug
Samtec RSP-
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 22 of 74
header,
0.08 in (2 mm) pitch
Samtec TMM-110-01-T-
header socket,
0.08 in (2
mm)pitch
Samtec TLE-110-
Page 23
Mounting Options
Overview
There are two options for mounting the P326 and P327:
• Indirect Electrical Connection (cable) method
Direct electrical
Place an RF connector, header connector, and mounting holes on the carrier
P327 connector information.
• Direct Electrical Connection method
connection
board and then mount the P326 and P327 on the standoffs and RF and
header connectors. This method is very cost effective as it does not use cable
assemblies to interface the P326 and P327.
Note: Use care when routing RF traces. Trace impedance shall be 50 ohms.
Ensure the trace has no breaks in the ground plane beneath it and that the
RF trace does not cross or run adjacent to power or data traces.
Use metal standoffs, bolts, nuts or screws. Plastic or nylon standoffs are not
appropriate for vibration concerns. PCB snap-in place standoffs shall be
avoided. The pressure and snapping action put undue stress on the board
and compromise solder integrity. In addition, metal standoffs help heat
dissipate off the GNSS board.
The P326 and P327 uses a standoff height of 7.9 mm (5/16 in or 0.3125 in).
With this height, there should be no washers between either the standoff
and the P326 or the standoff and the carrier board; otherwise, you must
make accommodations. You may need to change the standoff height if you
select a different header connector.
If you want to use a right angle MCX connector, use a taller header than the
Samtec part number suggested in this guide. This will provide clearance to
have a right-angle cable-mount connector and reduce the complexity by not
having the carrier board handle the RF signals. See Table 2-1 for P326 and
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 23 of 74
Continued on next page
Page 24
Mounting Options, Continued
Direct electrical
The mounting holes of the P326 and P327 have a standard inner diameter of
Indirect
The second method is to mount the P326 and P327 mechanically so you can
addition to increased expense.
Overview
The P326 and P327 use a dual-row header connector to interface with

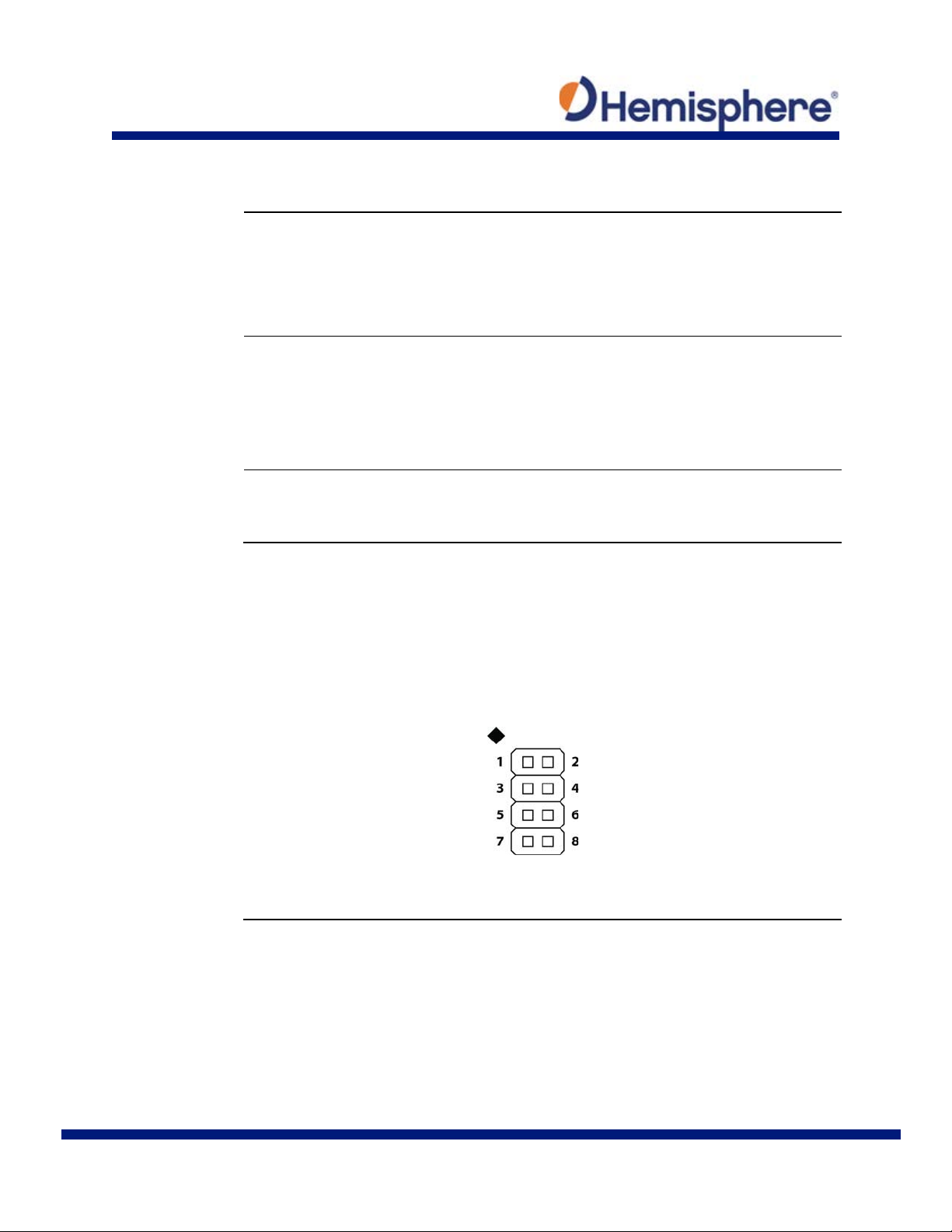

Figure 2-3: Identifying the first pin on the header connector
connection,
continued
electrical
connection
(cable) method
3.2mm (0.125 in).
connect a ribbon power/data cable to the P326 and P327. This requires cable
assemblies and there is a reliability factor present with cable assemblies in
Header Layouts and Pin-outs
power, communications, and other signals.
To identify the first header pin, orient the board so the diamond is to the
upper left of the pins; the first pin is on the left directly below the diamond
(see Figure 2-3).The pins are then sequentially numbered per row from topto-bottom.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 24 of 74
Continued on next page
Page 25
Header Layouts and Pin-outs, Continued
P326 Header
The P326 boards have a 34-pin header. Figure 2-4 shows the P326 34-pin

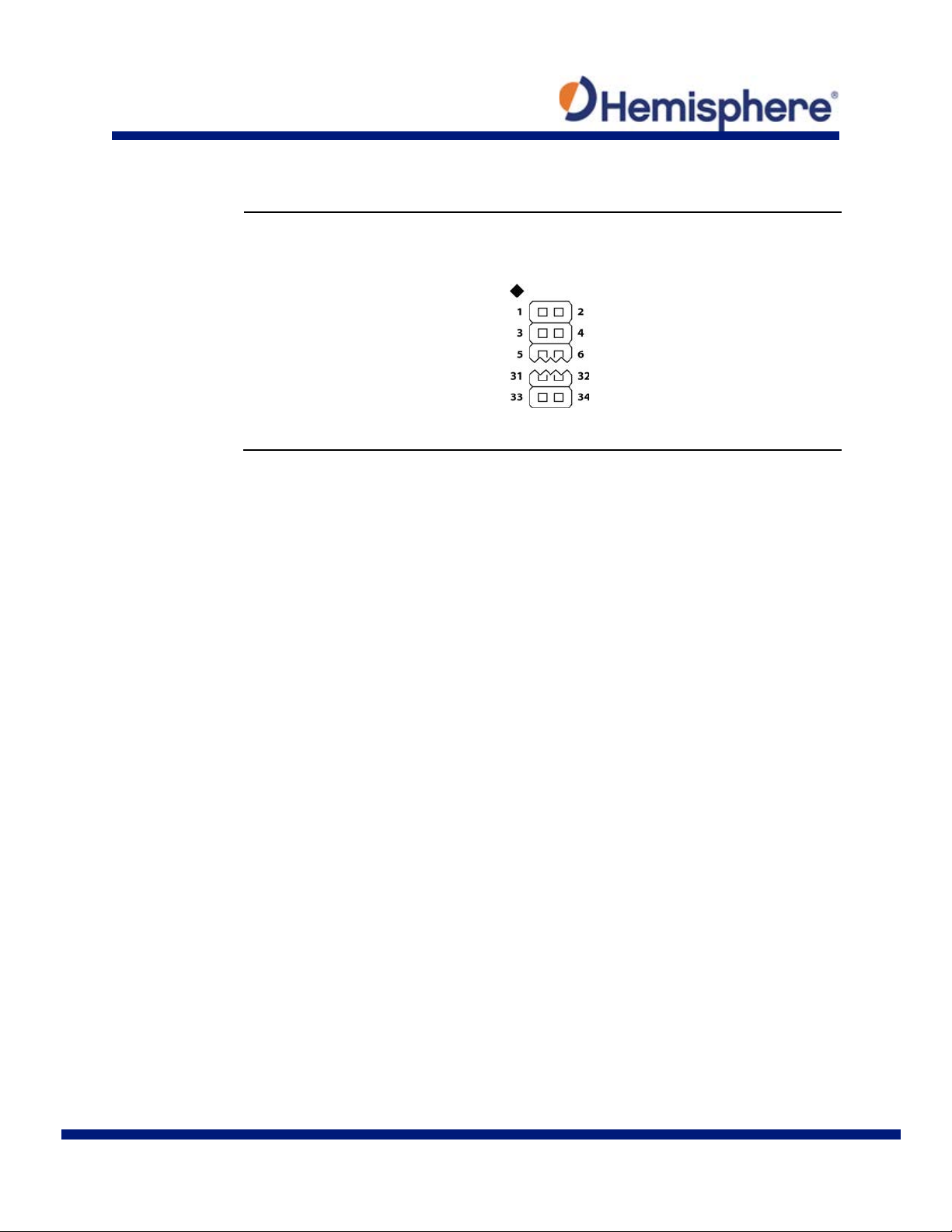

Figure 2-4: P326 34-pin header layout
and pin-out
header layout.
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 25 of 74
Page 26
Header Layouts and Pin-outs, Continued
P326 Header
Table 2-2 provides the P326 34-pin header pin-out.
Pin
Name
Type
Description
1
3.3 V
Power
Receiver power supply, 3.3 V
2
3.3 V
Power
Receiver power supply, 3.3 V
3
Antenna Pwr
Power
Antenna power, DC, 15 V max
4
Batt Backup
Power
Power, 1.5 to 5.5 V, 500 nA
typical
5
USB DEV+
I/O
USB device data +
6
USB DEV–
I/O
USB device data -
7
GND
Power
Receiver ground
8
GND
Power
Receiver ground
9
PATX
Output
Port A serial output, 3.3 V
CMOS, idle high
10
PARX
Input
Port A serial input, 3.3 V
CMOS, idle high
11
PBTX
Output
Port B serial output, 3.3 V
CMOS, idle high
12
PBRX
Input
Port B serial input, 3.3 V
CMOS, idle high
13
PDTX
Output
Port D serial output, 3.3 V
CMOS, idle high
14
PDRX
Input
Port D serial input, 3.3 V
CMOS, idle high
15
1 PPS
Output
Active high, rising edge, 3.3 V
CMOS
16
Manual Mark
Input
Active low, falling edge, 3.3 V
CMOS
17
GPS Lock
Output
Status indicator, 3.3 V CMOS,
active low
18
Diff Lock
Output
Status indicator, 3.3 V CMOS,
active low
and pin-out,
continued
Table 2-2: P326 34-pin header pin-out
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 26 of 74
Continued on next page
Page 27
Header Layouts and Pin-outs, Continued
P326 Header
Table 2-2: P326 34-pin header pin-out (continued)
Pin
Name
Type
Description
19
DGPS Lock
Output
Status indicator, 3.3 V CMOS,
active low
20
n/c
n/c
n/c
21*
TX CAN A
Output*
Selectable between, CAN A
purpose (input/output)
22*
TX CAN B
Output*
Selectable between, CAN B
purpose (input/output)
23*
RX CAN A/GPIO2
Input*
Selectable between, CAN A
purpose (input/output)
24*
RX CAN B/GPIO3
Input*
Selectable between, CAN B
purpose (input/output)
25
Speed Output
Output
0 - 3 V variable clock output
26
Speed Ready
Output
Active low, speed valid
indicator, 3.3 V CMOS
27
GND
Power
Receiver ground
28
GND
Power
Receiver ground
29
USB HOST D+
I/O
USB HOST data +
and pin-out,
continued
(default) /GPIO0
(default) /GPIO1
transmit (default)/ General
transmit (default)/ General
receive (default)/ General
receive (default)/ General
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 27 of 74
Continued on next page
Page 28
Header Layouts and Pin-outs, Continued
P326 Header
Pin
Name
Type
Description
30
USB HOST D-
I/O
USB HOST data -
31
PCTX
Output
Port C serial output, 3.3 V
CMOS, idle high
32
PCRX
Input
Port C serial input, 3.3 V
CMOS, idle high
33
n/c
n/c
n/c
34
Reset
Input
Reset, 3.3 V typical, not
required
*Selectable pin with input/output option
and pin-out,
continued
Table 2-2: P326 34-pin header pin-out (continued)
Note: Pins are not 5 V tolerant. The pin voltage range is 0 to 3.3 VDC,
unless otherwise noted. Leave any data or I/O pins that will not be used
unconnected.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 28 of 74
Page 29
Header Layouts and Pin-outs, Continued
P327 Header
The P327 board has a 20-pin header. Figure 2-5 shows the Eclipse P327 20-
Pin
Name
Type
Description
1
Antenna Pwr
Power
Antenna power, DC, 15 V max
2
3.3 V
Power
Receiver power supply, 3.3V
3
USB DEV–
I/O
USB device data -
4
USB DEV+
I/O
USB device data +
5
Reset
Open
collector
Reset, open collector, 3.3 V
typical, not required
6
PCRX
Input
Port C serial input, 3.3 V
CMOS, idle high
7
PCTX
Output
Port C serial output, 3.3 V
CMOS, idle high
8
PDRX
Input
Port D serial input, 3.3 V
CMOS, idle high
9
PDTX
Output
Port D serial output, 3.3 V
CMOS, idle high
and pin-out
pin header layout.

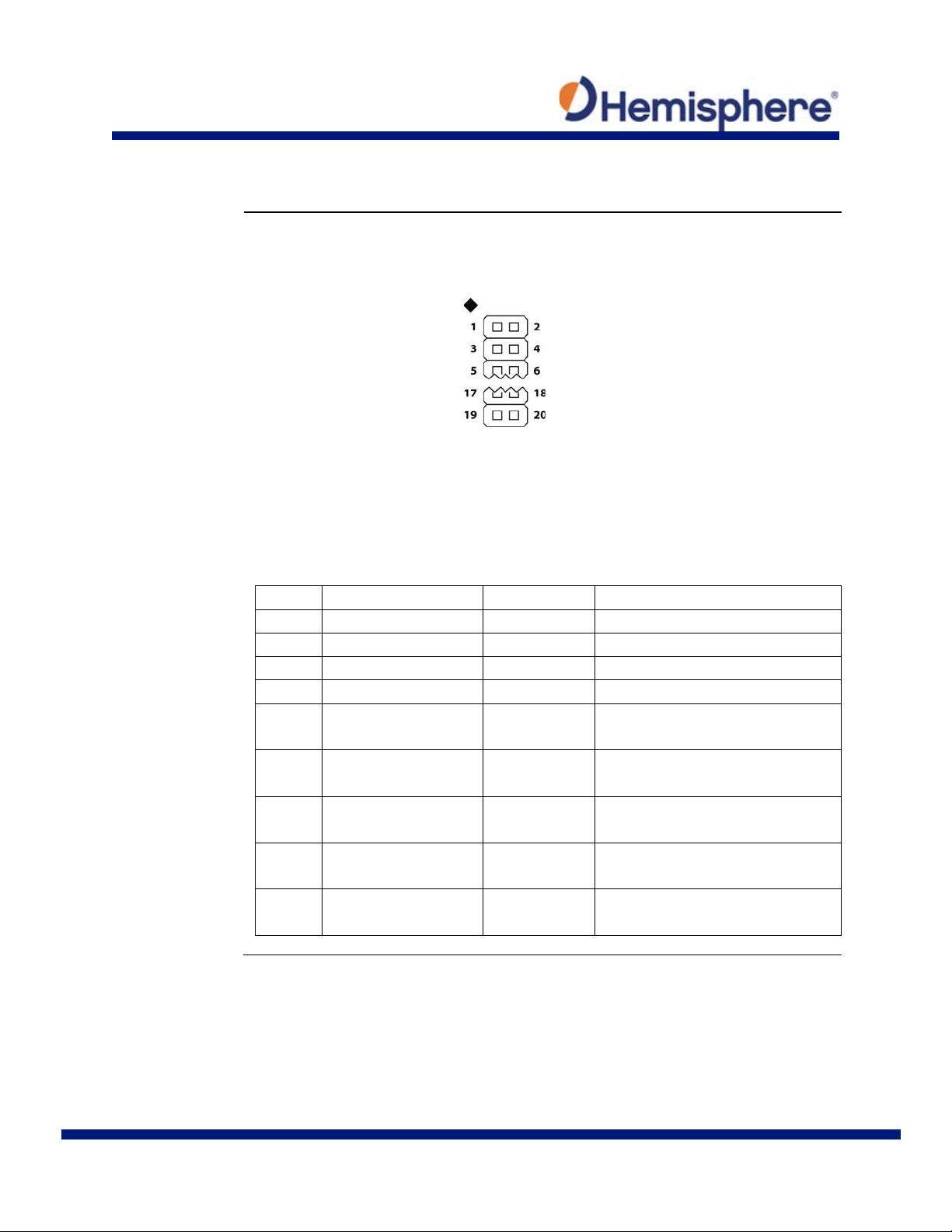

Figure 2-5: Eclipse P327 20-pin header layout
Table 2-3 provides the Eclipse P327 20-pin header pin-out.
Table 2-3: P327 20-pin header pin-out
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 29 of 74
Continued on next page
Page 30
Header Layouts and Pin-outs, Continued
P327 Header
Pin
Name
Type
Description
10
GND
Power
Receiver ground
11
PATX
Output
Port A serial output, 3.3 V
CMOS, idle high
12
PARX
Input
Port A serial input, 3.3 V
CMOS, idle high
13
GND
Power
Receiver ground
14
PBTX
Output
Port B serial output, 3.3 V
CMOS, idle high
15
PBRX
Input
Port B serial input, 3.3 V
CMOS, idle high
16
GND
Power
Receiver ground
17
Manual Mark
Input
Active low, falling edge, 3.3 V
CMOS
18
GND
Power
Receiver ground
19
1 PPS
Output
Active high, rising edge, 3.3 V
CMOS
20
Position Valid
Indicator
Output
Status indicator, 3.3 V CMOS,
active low
and pin-out,
continued
Table 2-3: P327 20-pin header pin-out (continued)
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 30 of 74
Note:
Pins are not 5 V tolerant. The pin voltage range is 0 to 3.3 VDC, unless
otherwise noted.
Leave any data or I/O pins that will not be used unconnected.
Page 31
Signals
Overview
This section provides information on the signals available via connectors.
RF Input
The P326 and P327 is designed to work with active GNSS antennas with an
compromise the tracking performance of the P326 and P327.
Serial ports
The P326 and P327 have four serial communication ports:
signal level from 3.3 V CMOS to RS-232.
Communication
Port D is exclusively for external DGPS correction input to the P326 and P327,
such as from Hemisphere GNSS’ SBX beacon board and RTK communication.
LNA gain range of 10 to 40 dB.
The purpose of the range is to accommodate for losses in the cable system.
Essentially, there is a maximum cable loss budget of 30 dB for a 40 dB gain
antenna. Depending on the chosen antenna, the loss budget will likely be
lower (a 24 dB gain antenna would have a 14 dB loss budget).
When designing the internal and external cable assemblies and choosing the
RF connectors, do not exceed the loss budget; otherwise, you will
Ports
• Port A, Port B, Port C - main ports
• Port D - Exclusively used to interface with the SBX beacon board or an
external corrections source or RTK communications. This port will not
output normal GPS-related NMEA messages. When communicating into
either Port A, B, or C, a virtual connection may be established to the device
on Port D using the $JCONN command. See “Communication Port D” below
for more information on Port D.
The P326 and P327 serial ports’ 3.3 V CMOS signal level can be translated to
interface to other devices. For example, if serial Ports A, B, and/or C are used
port D
to communicate to external devices (such as PCs) you must translate the
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 31 of 74
Continued on next page
Page 32
Ports, Continued
USB ports
The P326 has both a USB host port and a USB device port.
The P327 has only a USB device port:
• USB device port (data communication) shown in Figure 2-6 serves as a
high-speed data communications port, such as for a PC
• USB host port (data storage) shown in Figure 2-7 serves as a data storage
port, such as with a USB flash drive
The USB data lines are bidirectional and are differential pairs. The USB data
lines should be laid out on printed wire board (PWB) with 90 Ω ±15%
differential impedance.
The traces should be over a solid continuous ground plane. Maintain parallel
traces and symmetry. There shall be no traces or breaks in the ground plane
underneath the D+ and D- traces.
It is also recommended to leave a minimum 20 mil spacing between USB
signals and other signals. Treat the data lines as if they are RF signals.
Device can use USB Type-B or Mini-B connectors. If Mini-B is used, “ID” pin 4
is NOT CONNECTED.
Normally, a device uses 5 V; however, since Eclipse uses more than 900 mA
(2.5 W) it cannot use the BUS-supplied 5 V and therefore it is not connected.
Host shall use USB Type-A connector. If Mini-A is used, “ID” pin 4 is tied to
GROUND.
Mini-A connectors are not widely used and this defeats the purpose and
usability of USB drives and typical accessories.
Host port should provide at least 500 mA (2.5W) of power at all times.
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 32 of 74
Page 33
CAN
CAN transceiver
A CAN Transceiver is required. The P326 CAN RX and CAN TX are 3.3V CMOS

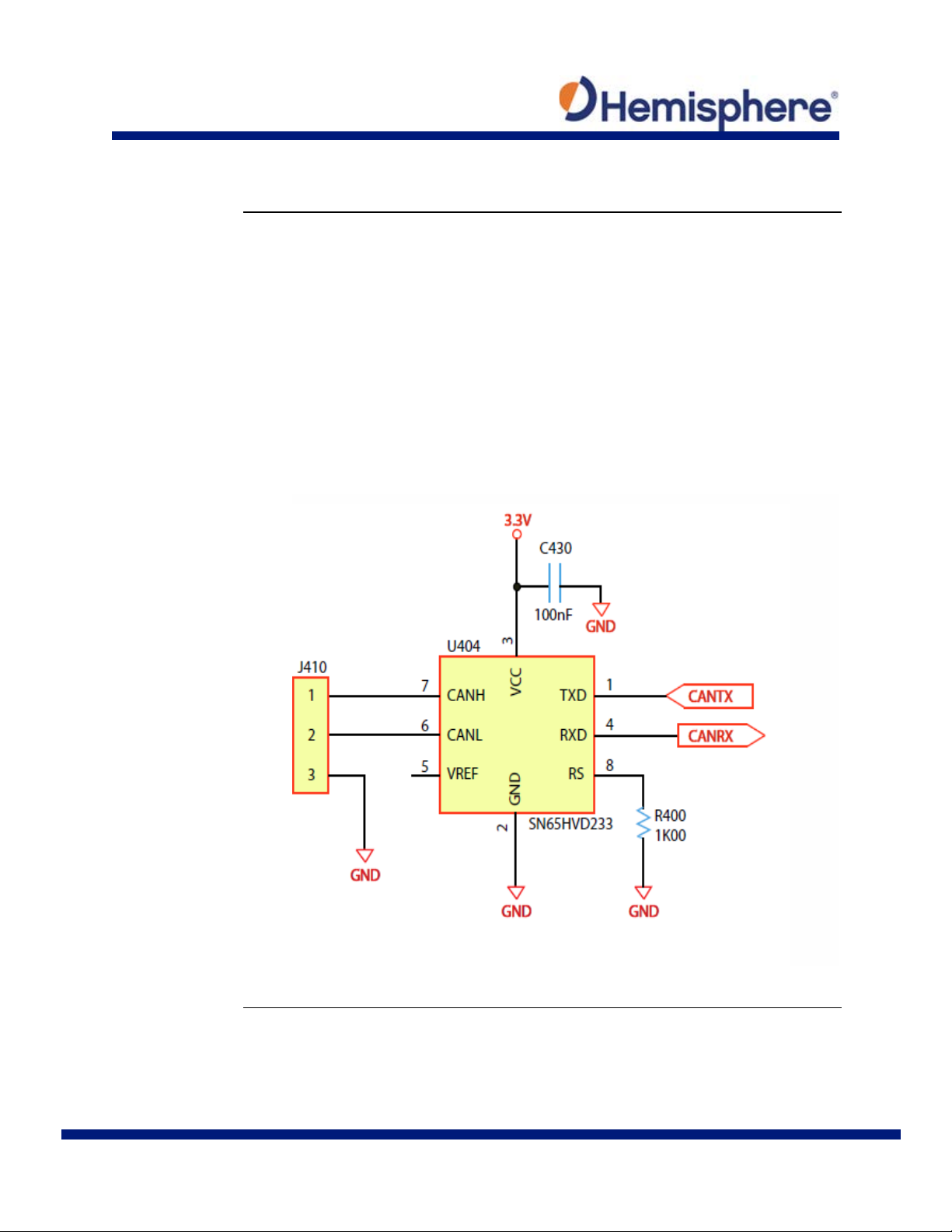

Figure 2-6: P326 CAN design example
pins. The P326 connects to the transceiver on the single ended CMOS port.
CANH and CANL are CAN standard pins on the physical bus side of the
transceiver, the P326 does not connect to this portion of the transceiver.
Example devices are the TI SN65HVD233 (see Figure 2-8). CAN TX shall be
connected to the CAN transceiver “CAN Transmit Data Input”. CAN RX shall
be connected to the CAN transceiver “CAN Receive Data Output”. Slope
control is not a design parameter determined by the P326 and is dependent
on Integrator’s application.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 33 of 74
Page 34
Overview
Introduction
Chapter 3 provides the information you need to understand the P326/P327
OEM Boards.
Contents
Topic
See Page
Timing Signal
35
Event Marker Input
35
Grounds
36
Speed Radar Output
36
Shielding
37
Receiver Mounting
38
Thermal Concerns
38
Chapter 3: Understanding the P326/P327
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 34 of 74
Page 35
Timing Signal
1PPS timing
The one pulse per second (1 PPS) timing signal is used in applications where
The pulse is approximately 1 ms. The pulse width can be adjusted by 100 ns.
Event marker
An instantaneous GPS solution may be triggered with the Even Marker. This
recognize the input.
signal
devices require time synchronization.
Note: 1 PPS is typical of most GPS boards but not essential to normal
receiver operation. Do not connect this pin if you do not need this function.
The 1 PPS signal is 3.3 V CMOS, active high with rising edge synchronization.
Event Marker Input
input
GPS solution will be time stamped and will not be synchronized with other
data messages. The Event Marker is ideal for an application such as recording
the time and position a photo is taken from a camera used in aerial
photography.
Note: Event marker input is typical of most GPS boards but not essential to
normal receiver operation. Do not connect this pin if you do not need this
function
The event marker input is 3.3 V CMOS, active low with falling edge
synchronization. The input impedance and capacitance is higher than 10 k Ω
and 10 pF respectively, with a threshold of lower than 0.7 V required to
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 35 of 74
Page 36
Grounds
Grounds
You must connect all grounds together when connecting the ground pins of
ground information for the P326 and P327.
Speed radar
Note: Speed radar output is not essential to normal receiver operation. Do
Ready Signal on the P326 and P327.
the P326 and P327. These are not separate analog and digital grounds that
require separate attention. Refer to Table 2-1 through Table 2-2 pin-out
Speed Radar Output
output
not connect these pins if you do not need this function.
The following two pins on the P326 relate to the Speed Radar.
• Speed Radar Pulse - Outputs a square wave with 50% duty cycle. The
frequency of the square wave varies directly with speed. 97 Hz represents a
speed of 1 m/s (3.28 ft/s).
• Speed Radar Ready Signal - Indicates when the speed signal on the Speed
Radar Pulse pin is valid. In static situations, such as when the vehicle has
stopped, the GPS position may still have slight variations from one moment
to the next. During these instances, the signal on the Speed Radar Ready
Signal pin is ‘high’ or +Vcc, indicating the speed coming out of the Speed
Radar Pulse pin is erroneous and not truly indicative of the GPS receiver’s
actual speed. Therefore, it should not be referred to or be used. Once the
vehicle starts moving again and meets a minimum threshold speed, the
output on the Speed Radar Ready Signal pin will go ‘low,’ indicating valid
speed information is present on the Speed Radar Pulse pin.
Table 2-4 provides the location of the Speed Radar Pulse and Speed Radar
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 36 of 74
Continued on next page
Page 37
Speed Radar Output, Continued
Speed radar
Table 2-4: P326 and P327 speed radar output availability
Eclipse Board
Speed Radar Pulse
Speed Radar Ready Signal
P326
Pin 25
Pin 26
P327
N/A
N/A
Shielding
The P326 and P327 are sensitive instruments. When integrated into an
while still allowing air circulation for cooling.
output,
continued
Shielding
Note: Neither pin has any form of isolation or surge protection. If utilizing the
Speed Radar Pulse output. Hemisphere GNSS strongly recommends
incorporating some form of isolation circuitry into the supporting hardware.
Contact Hemisphere GNSS Customer Support for an example of an optically
isolated circuit.
enclosure, the P326 requires shielding from other electronics to ensure
optimal operation.
The P326 and P327 shield design consists of a thin piece of metal with
specific diameter holes, preventing harmful interference from penetrating,
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 37 of 74
Page 38
Receiver Mounting
Receiver
The P326 and P327 are precision instruments. To ensure optimal operation,
project as possible.
Thermal
The P326 and P327 receiver consumes a few watts of power, which
mounting
consider mounting the receiver in a way to minimize vibration and shock.
When mounting the P326 or P327, immediately adjacent to the GPS antenna,
Hemisphere GNSS highly recommends shielding the board from the LNA of
the antenna. This step can be more complex than some integrators initially
estimate. Attempt to confirm the operation in your application as early in the
Thermal Concerns
concerns
ultimately will generate heat. Since this may raise the ambient temperature
inside an enclosure, consider managing the heat inside the enclosure to
ensure the internal temperature does not exceed the maximum operating
temperature for the P326/P327. Some suggestions for heat management are
heat sinks or heat conductive foam.
Note: Thermal design may only be a concern if the integrated product’s
maximum design temperature is expected to be close to that of the P326 and
P327.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 38 of 74
Page 39
Overview
Introduction
This chapter provides P326 and P327 operation information, such as
Contents
Topic
See Page
Powering the P326/P327 On/Off
40
Communicating with the P326/P327
40
Configuring the P326/P327
41
LED Indicators
42
Configuring the Data Message Output
43
‘THIS’ Port and the ‘OTHER’ Port
43
Saving the P326/P327 Configuration
44
Using Port D for RTCM Input
45
Atlas L-band Messages/Commands
46
Configuration Defaults
47
Chapter 4: Operating the P326/P327
communicating with the P326 and P327, firmware, and configuration
defaults.
Note: Install the antenna outdoors so it has a clear view of the entire sky. If
you place the antenna indoors near a window, for example, you will likely
not track a sufficient number of satellites. With a properly installed antenna
the P326 and P327 provides a position within approximately 60 seconds.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 39 of 74
Page 40
Powering the P326/P327 On/Off
Powering the
The P326 and P327 is powered by a 3.3 VDC power source.
application of power, it is ready to communicate immediately.
Communicating
The P326 and P327 features three primary serial ports (Port A, Port B, Port C)
P326/P327
After you connect appropriate power the P326 and P327 is active. Although
the P326 and P327 proceeds through an internal startup sequence upon
Communicating with the P326/P327
with the
P326/P327
that you can configure independently from each other.
You can configure the ports for any combination of NMEA 0183, binary, and
RTCM SC-104 data. The usual data output is limited to NMEA data messages
as these are industry standard.
Note: You may use the three serial ports to separate the different data types
and output different rates. If the P326 and P327 is required to output
different data types simultaneously, ensure data logging and the processing
software used can correctly parse the different data from a single stream.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 40 of 74
Page 41
Configuring the P326/P327
Configuring the
You can configure all aspects of P326 and P327 operation through any serial
it?” for descriptions of HyperTerminal, SLXMon, and PocketMax.
P326/P327
port using proprietary commands. For information on these commands refer
to the Hemisphere GNSS Technical Reference (go to WWW.HGNSS.COM , follow
the links to Resources & Support, GNSS Reference Guide.
You can configure the following:
• Select one of the two firmware applications
• Set communication port baud rates
• Select which messages to output on the serial ports and the update rate of
each message
• Set various receiver operating parameters
For a complete list of commands and messages refer to the Hemisphere
GNSS Technical Reference (go to www.hemispheregnss.com and follow the
links to Resources & Support, GNSS Reference Guide)
To issue commands to the P326 and P327 you will need to connect it to a
terminal program such as HyperTerminal or either of Hemisphere GNSS’
software applications (SLXMon or PocketMax). See “What is the best
software tool to use to communicate with the P326 or P327 and configure
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 41 of 74
Page 42
LED Indicators
Overview

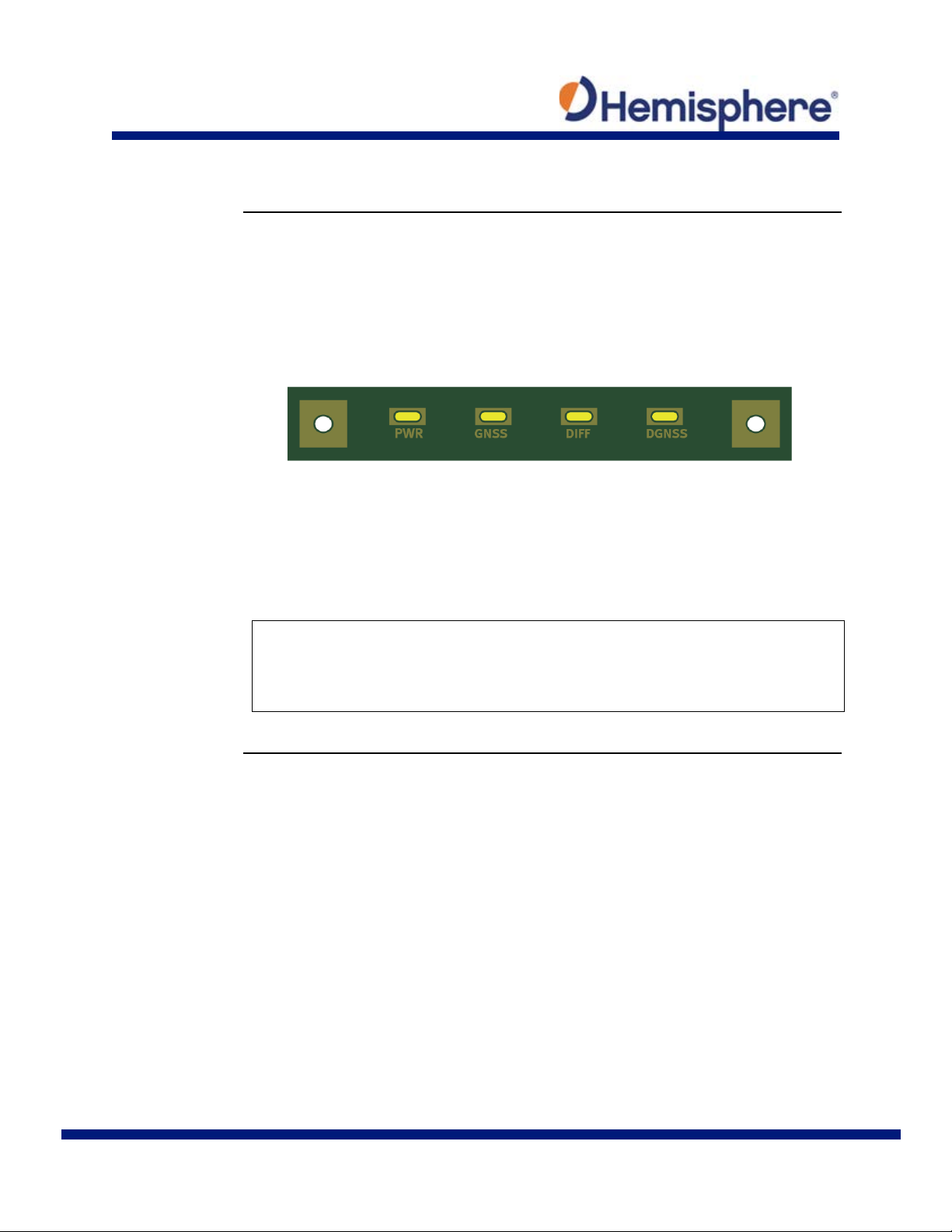

The P326 and P327 features the following surface-mounted diagnostic LEDs
that indicate board status (see Figure 2-9):
• PWR - Power
• GNSS - GNSS lock
• DIFF - Differential lock
• DGNSS - DGNSS position
Figure 2-9: Onboard LEDs
With the exception of the power LED the signals that drive the LEDs are
available via the header connector. Refer to Table 2-1 through Table 2-2 for
pin number descriptions for the P326 and P327.
Note: Each signal pin can offer only 1 mA of current and is active low. Since 1
mA of current may be inadequate for the application, you may want to
transistor-buffer these signals to provide more current capacity for
acceptable LED luminance.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 42 of 74
Page 43
Configuring the Data Message Output
Overview
The P326 and P327 feature three primary bidirectional ports (Ports A, B and
Reference Guide).
Overview
Both Port A and Port B use the phrases “THIS” and “OTHER” when referring
to themselves and each other in NMEA messages.
‘THIS’ port
‘THIS’ port is the port you are currently connected to for inputting
$JASC,GPGGA,5<CR><LF>
C) and a differential-only port (Port D).
You can configure messages for all ports by sending proprietary commands
to the P326 and P327 through any port. For a complete list of commands and
messages refer to the Hemisphere GNSS Technical Reference (go to
WWW.HGNSS.COM and follow the links to Resources & Support, GNSS
‘THIS’ Port and the ‘OTHER’ Port
commands.
To output data through the same port (‘THIS’ port) you do not need to
specify 'THIS' port. For example, when using Port A to request the GPGGA
data message be output at 5 Hz on the same port (Port A), issue the
following command:
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 43 of 74
Page 44
‘THIS’ Port and the ‘OTHER’ Port, Continued
‘OTHER’ port
The ‘OTHER’ port is either Port A or Port B, whichever one you are not using
$JASC,GPGLL,10,PORTC<CR><LF>
Saving the
Each time you change the P326 and P327’s configuration, you should save
links to Resources & Support, GNSS Reference Guide).
to issue commands.
If you are using Port A to issue commands, then Port B is the ‘OTHER’ port,
and vice versa. To specify the ‘OTHER’ port for the data output you need to
include 'OTHER' in the command. For example, if you use Port A to request
the GPGGA data message be output at 5 Hz on Port B, issue the following
command:
$JASC,GPGGA,5,OTHER<CR><LF>
When using Port A or Port B to request message be output on Port C, you
must specifically indicate (by name) you want the output on Port C. For
example, if you use Port A to request the GPGLL data message be output at
10 Hz on Port C, issue the following command:
Saving the P326/P327 Configuration
P326/P327
configuration
the configuration to avoid reconfiguring the receiver each time you power it
on.
To save the configuration, issue the $JSAVE command to the P326 and P327
using a terminal program such as HyperTerminal or either of Hemisphere
GNSS’ applications (SLXMon or PocketMax). The P326 and P327 will take
approximately five seconds to save the configuration to non-volatile memory
and will indicate when the configuration has been saved. Refer to the
Hemisphere GNSS Technical Reference (go to WWW.HGNSS.COM and follow the
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 44 of 74
Page 45
Using Port D for RTCM Input
Using port D for
Port D has been optimized to interface with Hemisphere GNSS’ SBX-4 beacon
Resources & Support, GNSS Reference Guide).
RTCM input
board and operates at 9600 bauds (8 data bits, no parity and 1 stop bit – 8-N-
1).
To configure the P326 and P327 to use Port D, issue the following command:
$JDIFF,BEACON<CR><LF>
To return to using SBAS as the correction source, send the following
command to the P326 and P327:
$JDIFF,WAAS<CR><LF>
For a complete list of commands and messages, refer to the Hemisphere
GNSS Technical Reference (go to WWW.HGNSS.COM and follow the links to
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 45 of 74
Page 46
Atlas L-band Messages/Commands
Atlas L-band
To configure the P326 or P327 to automatically set the L-Band frequency
$JASC,RD1,1
messages/
commands
parameters, use the following command:
$JFREQ,AUTO<CR><LF>
The L-band frequency can also be tuned manually with the command:
$JFREQ,freq,symb<CR><LF>
where ‘freq’ is the frequency in kHz and ‘symb’ is the symbol baud rate.
To enable L-band mode for tracking the Atlas communication satellites, issue
the following command:
$JDIFF,LBAND,SAVE<CR><LF>
To ensure that the Atlas solution is enabled, send the following command:
$JDIFF,INCLUDE,ATLAS<CR><LF>
Output of the L-band diagnostic message can be enabled by issuing the
command:
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 46 of 74
Page 47
Configuration Defaults
Configuration
Below is the standard configuration for the P326 and P327.
$JSAVE
defaults
For more information on these commands refer to the Hemisphere GNSS
Technical Reference (go to WWW.HGNSS.COM and follow the links to Resources
& Support, GNSS Reference Guide).
$JOFF,PORTA
$JOFF,PORTB
$JOFF,PORTC
$JBAUD,19200,PORTA
$JBAUD,19200,PORTB
$JBAUD,19200,PORTC
$JAGE,2700
$JLIMIT,10.0
$JMASK,5
$JDIFF,WAAS
$JPOS,33.0,-111.0
$JSMOOTH,LONG900
$JAIR,AUTO
$JALT,NEVER
$JNP,7
$JWAASPRN,AUTO
$JTAU,COG,0.00
$JTAU,SPEED,0.00
$JASC,GPGGA,1,PORTA
$JASC,GPGGA,1,PORTB
$JFREQ,AUTO
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 47 of 74
Page 48
Appendix A: Troubleshooting
Introduction
Appendix A provides troubleshooting for anomalous P326 and P327
operation.
Contents
Topic
See Page
Troubleshooting
49
Overview
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 48 of 74
Page 49
Troubleshooting
P326/P327
Table A-1: P326/P327 Troubleshooting
Symptom
Possible Solution
Receiver fails to
• Verify polarity of power leads
• Check power input voltage
No data from
• (1) Check receiver power status (this may be done
data cable connections
Random data
• Verify that the RCTM or Bin messages are not being
higher for the baud rate for all devices
No GNSS lock
• Check integrity of antenna cable
satellites (this can often be done on the receiving)
troubleshooting
power
P326/P327
from P326/P327
• Check 1.0 A in-line power cable fuse connection
• Check integrity of power cable connections
with an ammeter)
• (2) Verify P326 and P327 is locked to a valid DGPS
signal (this can often be done on the receiving device
or by using SLXMon)
• (2) Verify that P326 and P327 is locked to GPS
satellites (this can often be done on the receiving
device or by using SLXMon)
• (2) Check integrity and connectivity of power and
accidentally output (send a $JSHOW command)
• Verify that the baud rate settings of P326 and P327
and remote device match
• Potentially, the volume of data requested to be
output by the P326 and P327 could be higher than
the current baud rate supports. Try using 19200 or
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 49 of 74
• Verify antenna’s view of the sky
• Verify the lock status and signal to noise ratio of GPS
Continued on next page
Page 50
Troubleshooting, Continued
P326/P327
Table A-1: P326/P327 Troubleshooting (continued)
Symptom
Possible Solution
No SBAS
• Check antenna cable integrity
device or by using SLXMon -monitor BER value)
No DGPS position
• Verify that the baud rate of the RTCM input port
input port).
Non-DGPS output
• Verify P326 and P327 SBAS and lock status (or
external source is locked)
troubleshooting
, continued
• Verify antenna’s view of the sky, especially towards
that SBAS satellites, south in the northern
hemisphere
• Verify the bit error rate and lock status of SBAS
satellites (this can often be done on the receiving
in external RTCM
mode
matches the baud rate of the external source
• Verify the pinout between the RTCM source and the
RTCM input port (the “ground” pin and pinout must
be connected, and from the “transmit” from the
source must connect to the “receiver” of the RTCM
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 50 of 74
Page 51
Appendix B: Technical Specifications
Introduction
Appendix B provides the P326/P327 technical specifications.
Contents
Topic
See Page
P326 and P327 Technical Specifications
52
Technical Specifications
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 51 of 74
Page 52
P326 and P327 Technical Specifications
P326 specifications
Tables B1-B6 provide the technical specifications for the P326.
P326 sensor
Table B-1: P326 Sensor specifications
Item
Specification
Receiver type
GPS, GLONASS, BeiDou, and Galileo RTK
with carrier phase and L-band
Channels
12 L1CA GPS
12 Galileo E1
GPS sensitivity
-142 dBm
SBAS tracking
3-channel, parallel tracking
Update rate
1 Hz standard, 10 Hz and 20 Hz available
specifications
12 L1P GPS
12 L2P GPS*
12 L2C GPS*
15 L5 GPS*
12 G1 GLONASS
12 G2 GLONASS
12 G3 GLONASS
22 B1 BeiDou
22 B2 BeiDou*
14 B3 BeiDou*
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 52 of 74
Continued on next page
Page 53
P326 and P327 Technical Specifications, Continued
P326 sensor
Table B-1: P326 Sensor specifications (continued)
Item
Specification
Horizontal accuracy
RMS
(67%)
2DMRS
(95%)
RTK
1,2
8 mm + 1
ppm
15 mm +
2 ppm
SBAS (WAAS)1
0.3 m
0.6 m
Autonomous,
no SA1
1.2 m
2.4 m
Timing (1PPS) accuracy
20 ns
Cold start time
< 60 s typical (no almanac or RTC)
Warm start time
< 30 s typical (almanac and RTC)
Hot start time
< 10 s (almanac, RTC, and position)
Maximum speed
1,850 kph (999 kts)
Maximum altitude
18,288 m (60,000 ft)
Differential options
SBAS, Autonomous, External RTCM v2.3,
RTK v3, L-band (Atlas), and DGPS
specifications,
continued
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 53 of 74
Page 54
P326 and P327 Technical Specifications, Continued
P326
Table B-2: P326 Communication specifications
Item
Specification
Serial ports
4 full-duplex 3.3 V CMOS
2 CAN
Baud rates
4800 - 115200
Data I/O protocol
NMEA 0183, CAN, Hemisphere GPS binary
Correction I/O protocol
Hemisphere GNSS’ ROX, RTCM v2.3 (DGPS),
RTCMv3 (RTK), CMR, CMR+4, Atlas
Timing output
1 PPS CMOS, active high, rising edge sync,
10 k Ω, 10 pF load
Event marker input
CMOS, active low, falling edge sync, 10 k Ω,
10 pF load
USB
1 USB Host, 1 USB Device
P326 power
Table B-3: P326 Power specifications
Item
Specification
Input voltage
3.3 VDC +/- 5%
Power consumption
1.0 W (GPS L1)
1.6 W (GPS/GLONASS L1/L2G1/G2)
Current consumption
305 mA nominal (GPS L1)
696 mA nominal (All Signals + L-band)
Antenna voltage input
15 VDC maximum
Antenna short circuit
protection
Yes
Antenna gain input
range
10 to 40 dB
Antenna input
impedance
50Ω
communication
specifications
specifications
(3 main serial ports, 1 differential-only port)
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 54 of 74
485 mA nominal (GPS/GLONASS L1/L2 G1/G2)
Continued on next page
Page 55
P326 and P327 Technical Specifications, Continued
P326
Table B-4: P326 Environmental specifications
Item
Specification
Operating temperature
-40°C to +85°C (-40°F to+185°F)
Storage temperature
-40°C to +85°C (-40°F to+185°F)
Humidity
95% non-condensing (when installed in an
enclosure)
Shock and vibration5
Vibration: EP455 Section 5.15.1 Random
with screw mounting holes utilized)
EMC5
CE (ISO 14982 Emissions and Immunity) FCC
Part 15, Subpart B CISPR22
P326
Table B-5: P326 Mechanical specifications
Item
Specification
Dimensions
71.1 L x 40.6 W x 10.1 H mm (2.81 L x 1.60 W x
0.40 H in)
Weight
< 23 g (< 0.81 oz)
Status indication (LED)
Power, GNSS lock, Differential lock, DGNSS
position
Power/Data connector
34-pin (17x2) male header 0.05” (1.27 mm) pitch
Antenna connector
MCX, female, straight
environmental
specifications
mechanical
specifications
Mechanical Shock: EP455 Section 5.14.1
Operational (when mounted in an enclosure
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 55 of 74
Continued on next page
Page 56
P326 and P327 Technical Specifications, Continued
P326 L-band
Table B-6: P326 L-band sensor specifications
Item
Specification
Receiver Type
Single Channel
Channels
1525 to 1560 MHz
Sensitivity
140 dBm
Channel Spacing
5.0 kHz
Satellite Selection
Manual and Automatic
Reacquisition Time
15 seconds (typical)
protection as outlined in this guide
sensor
specifications
1
Depends on multi-path environment, number of satellites in view, satellite
geometry, and ionospheric activity
2
Depends also on baseline length
3
Requires an L-band subscription
4
Receive only, does not transmit this format
5
When integrated in conjunction with the recommended shielding and
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 56 of 74
Page 57
P326 and P327 Technical Specifications, Continued
P327 specifications
Tables B7 – B12 provide the technical specifications for the P327.
P327 sensor
Table B7 P327 Sensor specifications
Item
Specification
Receiver type
GPS, GLONASS, BeiDou, and Galileo RTK with
carrier phase and L-band
Channels
12 L1CA GPS
12 Galileo E1
GPS sensitivity
-142 dBm
SBAS tracking
3-channel, parallel tracking
Update rate
1 Hz standard, 10 Hz and 20 Hz available
specifications
12 L1P GPS
12 L2P GPS*
12 L2C GPS*
15 L5 GPS*
12 G1 GLONASS
12 G2 GLONASS
12 G3 GLONASS
22 B1 BeiDou
22 B2 BeiDou*
14 B3 BeiDou*
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 57 of 74
Continued on next page
Page 58
P326 and P327 Technical Specifications, Continued
P327 sensor
Table B7 P327 Sensor specifications (continued)
Item
Specification
Horizontal accuracy
RMS (67%)
2DMRS
(95%)
RTK
1,2
8 mm + 1
ppm
15 mm + 2
ppm
SBAS (WAAS)1
0.3 m
0.6 m
Autonomous, no
SA1
1.2 m
2.4 m
Timing (1PPS) accuracy
20 ns
Cold start time
< 60 s typical (no almanac or RTC)
Warm start time
< 30 s typical (almanac and RTC)
Hot start time
< 10 s (almanac, RTC, and position)
Maximum speed
1,850 kph (999 kts)
Maximum altitude
18,288 m (60,000 ft)
Differential options
SBAS, Autonomous, External RTCM v2.3, RTK
v3, L-band (Atlas), and DGPS
P327
Table B8 P327 Communication specifications
Item
Specification
Serial ports
4 full-duplex 3.3 V CMOS
(3 main serial ports, 1 differential-only port)
Baud rates
4800 - 115200
Data I/O protocol
NMEA 0183, Hemisphere GPS binary
Correction I/O protocol
Hemisphere GNSS’ ROX, RTCM v2.3 (DGPS),
RTCMv3 (RTK), CMR, CMR+4, Atlas
Timing output
1 PPS CMOS, active high, rising edge sync, 10 k
Ω, 10 pF load
Event marker input
CMOS, active low, falling edge sync, 10 k Ω, 10
pF load
USB
1 USB Device
specifications,
continued
communication
specifications
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 58 of 74
Page 59
P326 and P327 Technical Specifications, Continued
P327 power
Table B-9: P327 Power specifications
Item
Specification
Input voltage
3.3 VDC +/- 5%
Power
1.0 W (GPS L1)
1.6 W (GPS/GLONASS L1/L2G1/G2)
Current
303 mA nominal (GPS L1)
mA nominal (All Signals + L-band)
Antenna voltage
input
15 VDC maximum
Antenna short
circuit protection
Yes
Antenna gain input
range
10 to 40 dB
Antenna input
impedance
50Ω
specifications
consumption
consumption
484 mA nominal (GPS/GLONASS L1/L2 G1/G2) 696
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 59 of 74
Continued on next page
Page 60
P326 and P327 Technical Specifications, Continued
P327
Table B-10: P327 Environmental specifications
Item
Specification
Operating
temperature
-40°C to +85°C (-40°F to+185°F)
Storage
temperature
-40°C to +85°C (-40°F to+185°F)
Humidity
95% non-condensing (when installed in an enclosure)
Shock and
Vibration: EP455 Section 5.15.1 Random
mounting holes utilized)
EMC5
CE (ISO 14982 Emissions and Immunity) FCC Part15,
Subpart B CISPR22
P327
Table B-11: P327 Mechanical specifications
Item
Specification
Dimensions
72.4 L x 40.6 W x 10.1 H mm
(2.81 L x 1.60 W x 0.40 H in)
Weight
< 23 g (< 0.81 oz)
Status indication
(LED)
Power, GNSS lock, Differential lock, DGNSS position
Power/Data
connector
20-pin (10x2) male header 0.08” (2 mm) pitch
Antenna connector
MCX, female, straight
environmental
specifications
mechanical
specifications
vibration5
Mechanical Shock: EP455 Section 5.14.1 Operational
(when mounted in an enclosure with screw
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 60 of 74
Continued on next page
Page 61
P326 and P327 Technical Specifications, Continued
P327 l-band
Table B-12: P327 L-band sensor specifications
Item
Specification
Receiver Type
Single Channel
Channels
1525 to 1560 MHz
Sensitivity
140 dBm
Channel Spacing
5.0 kHz
Satellite Selection
Manual and Automatic
Reacquisition Time
15 seconds (typical)
protection as outlined in this guide
sensor
specifications
1
Depends on multi-path environment, number of satellites in view, satellite
geometry, and ionospheric activity
2
Depends also on baseline length
3
Requires an L-band subscription
4
Receive only, does not transmit this format
5
When integrated in conjunction with the recommended shielding and
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 61 of 74
Page 62
Appendix C: Frequently Asked Questions (FAQ)
Contents
Topic
See Page
Appendix C: Frequently Asked Questions (FAQ)
63
FAQ
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 62 of 74
Page 63
Appendix C: Frequently Asked Questions (FAQ)
Integration
The following is a list of common questions and solutions when integrating
Question
Solution
Do I need to use the 1 PPS and
event marker?
No, these are not necessary for
P326 and P327 operation.
What should I do with the 1 PPS
signal if I do not want to use it?
This signal will be strobing at 1 Hz,
so it should not be connected.
What should I do with the manual
it?
Do not connect the pin because this
Do I need to use the lock indicators?
No, these are present for
These signals are active low.
Do I need to use a shield-can for the
Not necessarily, but you may need
when integrating OEM boards.
the P326/P327 OEM boards.
mark input if I am not going to use
signal is active low.
applications where it is desirable to
have an LED visible to the user.
These signals need to be transistorbuffered, as these lines can only
offer 1 mA. Depending on the
product and the application, LEDs
can be very useful to the end user.
P326 and P327?
to if there are RF interference
issues, such as if the P326 and P327
interferes with other devices. A
shield-can is a good start in terms of
investigating the benefit. If you are
designing a smart antenna system, a
shield-can is likely needed.
Hemisphere GNSS recommends that
you always conduct an RF pre- scan
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 63 of 74
Continued on next page
Page 64
Appendix C: Frequently Asked Questions (FAQ), Continued
Integration,
Question
Solution
If my company wishes to integrate
Hemisphere GNSS recommends you
Mechanical design and layout
What type of assistance can I expect
Integration of a GNSS board has
this Integrator’s Guide.
continued
this product, what type of
engineering resources will I need to
do this successfully?
from Hemisphere GNSS when
integrating P326 or P327?
have sufficient engineering
resources with the appropriate skills
in and understanding of the
following:
• Electronic design (including power
supplies and level translation)
• RF implications of working with
GPS equipment
• Circuit design and layout
•
such benefits as:
• Lower system cost
• Improved branding (rather than
relabeling an existing product)
• Better control of system design
among others
As an integrator, you are
responsible for ensuring that the
correct resources are in place to
technically complete it. Hemisphere
GNSS will provide reasonable
assistance.
However, Hemisphere GNSS does
not have dedicated engineering
resources for in- depth integration
support. Hemisphere GNSS will do
its best to provide support as
necessary, but you should expect to
have reasonable expertise to use
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 64 of 74
Continued on next page
Page 65
Appendix C: Frequently Asked Questions (FAQ), Continued
Support and
Question
Solution
How do I solve a problem I cannot
Hemisphere GNSS recommends
information.
What if I cannot resolve a problem
Contact your dealer to see if they
information.
Repair
isolate?
after trying to diagnose it myself?
contacting the dealer first. With
their experience with this product,
and other products from
Hemisphere GNSS, they should be
able to help isolate a problem. If the
issue is beyond the capability or
experience of the dealer.
Hemisphere GNSS Technical
Support is available from 8:00 AM
to 5:00 PM Mountain Standard
Time, Monday through Friday.
See “Technical Support” for
Technical Support contact
have any information that may help
to solve the problem. They may be
able to provide some in-person
assistance.
If this is not viable, or does not solve
the problem, Hemisphere GNSS
Technical Support is available from
8:00 AM to 5:00 PM Mountain
Standard Time, Monday through
Friday.
See “Technical Support” for
Technical Support contact
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 65 of 74
Continued on next page
Page 66
Appendix C: Frequently Asked Questions (FAQ), Continued
Support and
Question
Solution
Can I contact Hemisphere GNSS
Yes, however, Hemisphere GNSS
equipment.
Repair,
continued
Technical Support directly regarding
technical problems?
recommends speaking to the dealer
first as they are the local support.
They may be able to solve the
problem quickly, due to proximity
and experience with our
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 66 of 74
Page 67
Appendix C: Frequently Asked Questions (FAQ), Continued
Power,
Question
Solution
My P326 or P327 system
This could be one of a few issues:
the equipment.
Communication,
and
Configuration
does not appear to be
communicating.
• Examine the P326 or P327 cables and
connectors for signs of damage or offset.
• Ensure the P326 or P327 system is
properly powered with the correct
voltage.
• Ensure there is a good connection to the
power supply since it is required to
terminate the power input with the
connector.
• Check the documentation of the receiving
device, if not a PC, to ensure the transmit
line from the P326 or P327 is connected
to the receive line of the other device.
Also, ensure the signal grounds are
connected.
• If the P326 or P327 is connected to a
custom or special device, ensure the serial
connection to it does not have any
incompatible signal lines present that
prevent proper communication.
• Make sure the baud rate of the P326 or
P327 matches the other device. The other
device must also support an 8-data bit, 1
stop bit, no parity port configuration (8-N-
1). Some devices support different
settings that may be user configurable.
Ensure the settings match.
• Consult the troubleshooting section of the
other device’s documentation to
determine if there may be a problem with
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 67 of 74
Continued on next page
Page 68
Appendix C: Frequently Asked Questions (FAQ), Continued
Power,
Question
Solution
Am I able to configure two serial
Yes, all the ports are independent.
Am I able to have the P326 or P327
Yes, different NMEA messages can
some data may not be transmitted.
How can I determine the current
The $JSHOW command will request
$>JSHOW,ASC,GPGSA,1.0,OTHER
How can I be sure the configuration
Query the receiver to make sure the
“save complete” message appears.
Communication,
and
Configuration,
continued
ports with different baud rates?
For example, you may set one port
to 4800 and another port to 19200.
output different NMEA messages
through multiple ports?
configuration of the P326 orP327?
will be saved for the subsequent
power cycle?
be sent to the serial ports you
choose. These NMEA messages may
also be at different update rates. A
high enough baud rate is needed to
transmit all the data; otherwise,
the configuration information from
the P326 and P327. The response
will be similar to:
$>JSHOW,BAUD,19200
$>JSHOW,BIN,1,5.0
$>JSHOW,BAUD,4800,OTHER
$>JSHOW,ASC,GPGGA,1.0,OTHER
$>JSHOW,ASC,GPVTG,1.0,OTHER
current configuration is correct by
issuing a $JSHOW command. If not,
make the necessary changes and
reissue the $JSHOW command.
Once the current configuration is
acceptable, issue a $JSAVE
command and wait for the receiver
to indicate the save is complete. Do
not power off the receiver until the
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 68 of 74
Continued on next page
Page 69
Appendix C: Frequently Asked Questions (FAQ), Continued
Power,
Question
Solution
How do I change the baud rate of a
Connect at the current baud rate of
your application to the desired rate.
What is the best software tool to
Hemisphere GNSS uses three
Communication,
and
Configuration,
continued
port from that port?
the P326 or P327 port and then
issue a $JBAUD command to change
the port baud rate to the desired
rate. Now change the baud rate in
use to communicate with the P326
or P327 and configure it?
different software applications:
• HyperTerminal™ - Available on all
Windows® 95, 98, ME, and XP. This
tool allows you to configure the
P326 or P327 by directly typing
commands into the terminal
window. The output from the
P326 or P327 is simultaneously
shown. When using
HyperTerminal, ensure it is
configured to use the correct PC
communication port and baud
rate, and that the local echo
feature is on.
• SLXMon - Available at
www.hgnss.com. This application
is a very useful tool for graphically
viewing tracking performance and
position accuracy, and for
recording data. It can also
configure message output and
port settings. SLXMon runs on
Windows 95 or higher.
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 69 of 74
Continued on next page
Page 70
Appendix C: Frequently Asked Questions (FAQ), Continued
Power,
Question
Solution
What is the best software tool to
• PocketMax - Available at
using the Windows .NET framework.
GNSS Reception
Question
Solution
How do I know what the P326 or
The P326 and P327 supports standard
indicate receiver status.
Do I have to be careful when
For best performance, the P326 and
greater the positioning accuracy.
Communication,
and
Configuration,
continued
and
Performance
use to communicate with the
P326 or P327 and configure it?
WWW.HGNSS.COM. Similar to SLXMon,
you can use this application to
graphically view tracking
performance and position accuracy,
record data, and configure message
output and port settings. PocketMax
runs on multiple Windows platforms
P327 is doing?
using the P326 or P327 to ensure
it tracks properly?
NMEA data messages. The $GPGSV
andBin99 data messages contain
satellite tracking and SNR information.
If available, the computed position is
contained in the $GPGGA message.
Additionally, the P326 and P327 has
surface-mounted status LEDs that
P327’s antenna must have a clear
view of the sky for satellite tracking.
The P326 and P327 can tolerate a
certain amount of signal blockage
because redundant satellites are often
available. Only four satellites are
required for a position; however, the
more satellites that are used, the
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 70 of 74
Continued on next page
Page 71
Appendix C: Frequently Asked Questions (FAQ), Continued
SBAS Reception
Question
Solution
How do I know if the P326 or P327
The P326 and P327 outputs the
NMEA commands.
How do I know if the P326 or P327
The P326 and P327 outputs the
needing to use NMEA commands.
and
Performance
has acquired an SBAS signal?
is offering a differentially-corrected
or RTK- corrected position?
$RD1 message that contains the
SBAS Bit Error Rate (BER) for each
SBAS channel.
The BER value describes the rate of
errors received from SBAS. Ideally,
this should be zero. However, the
P326 and P327 performs well up to
150 BER. The SLXMon and
PocketMax utilities provide this
information without needing to use
$GPGGA message as the main
positioning data message. This
message contains a quality fix value
that describes the GPS status. If this
value is 2, the position is
differentially corrected; if this value
is 4, the position is RTK-corrected.
The SLXMon and PocketMax utilities
provide this information without
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 71 of 74
Continued on next page
Page 72
SBAS Reception
Question
Solution
How do I select an SBAS satellite?
By default, the P326 and P327 will
more information.
Do I need a dual frequency antenna
Hemisphere GNSS recommends
antenna.
Appendix C: Frequently Asked Questions (FAQ), Continued
and
Performance,
continued
automatically attempt to track the
appropriate SBAS satellites. If
multiple satellites are available, the
one with the lowest BER value is
selected to be used to decode the
corrections.
You can manually select which SBAS
satellites to track (not
recommended). Refer to the
Hemisphere GNSS Technical
Reference (go to WWW.HGNSS.COM
and follow the links to Resources &
Support, GNSS Reference Guide) for
for SBAS?
using a dual frequency antenna with
the P326 and P327.
While some receiver function is
possible with an L1-only antenna,
full receiver performance will only
be realized with a dual frequency
Continued on next page
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 72 of 74
Page 73
Appendix C: Frequently Asked Questions (FAQ), Continued
External
Question
Solution
My P326 or P327 system does not
This could be due to several factors.
Guide) for more information.
Corrections
appear to be using DGPS or RTK
corrections from an external
correction source. What could be
the problem?
To isolate the issue:
• Make sure DGPS corrections are
RTCM v2.3 protocol.
• Make sure RTK corrections are
either ROX, RTCM v3, CMR, or
CMR+ protocol.
• Verify the baud rates used by the
P326 and P327 match that of the
external correction source.
• The external correction should be
using an 8-data bit, no parity, 1
stop bit (8-N-1) serial port
configuration.
• Inspect the cable connection to
ensure there is no damage.
• Check the pinout information for
the cables to ensure the transmit
line of the external correction
source is connected to the receive
line of the P326 and P327’s serial
port and that the signal grounds
are connected.
• Make sure the P326 and P327 has
been set to receive external
corrections by issuing the $JDIFF
command. Refer to the
Hemisphere GNSS Technical
Reference (go to WWW.HGNSS.COM
and follow the links to Resources
& Support, GNSS Reference
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 73 of 74
Continued on next page
Page 74
Appendix C: Frequently Asked Questions (FAQ), Continued
Installation
Question
Solution
Does it matter where I mount the
Yes, the mounting location must
reference
How will the antenna selection and
For best results select a multipath-
performance.
P326 or P327’s antenna?
mounting affect P326 orP327
performance?
provide a clear view of the sky for
satellite tracking. Additionally, the
position that it computes is based
on the center of the antenna. It
should be placed in the location for
which the user would like a
position. Often antennas are
mounted on the centerline of a
vehicle, or on a pole-mount for geo-
resistant antenna. Ensure the
antenna tracks all the available
signals for the receiver.
Mount the antenna:
• With the best possible view of the
sky
• In a location with the lowest
possible multipath
Using a magnetic mount for the
antenna will not affect
875-0362-0 P326/P327 Integrator Guide Rev A2 Page 74 of 74
Page 75
Index
1PPS............................................................. 6
Activation .................................................... 6
Atlas ...................................................... 6, 11
Base Station ................................................ 6
BeiDou ......................................................... 6
Convergence time .................................... 11
Firmware ............................................... 6, 16
GALILEO ....................................................... 6
GLONASS ..................................................... 6
GPS .............................................................. 7
Multipath .................................................... 7
NMEA .......................................................... 7
Positioning accuracy ................................. 11
Positioning sustainability ......................... 11
Radio ........................................................... 7
ROX .............................................................. 7
RTCM ........................................................... 7
RTK .............................................. 6, 7, 10, 11
SBAS ................................................ 7, 53, 58
Scalable service levels .............................. 11
Subscription ............................................ 6, 7
UHF .............................................................. 6
WAAS .............................................. 7, 53, 58
Page 76
End User license
IMPORTANT - This is an agreement (the "Agreement") between you, the end purchaser ("Licensee") and
Software. Hemisphere reserves the right to reduce and limit access to such support at any time.
End User License Agreement
agreement
Hemisphere GNSS Inc. ("Hemisphere") which permits Licensee to use the Hemisphere software (the "Software")
that accompanies this Agreement. This Software may be licensed on a standalone basis or may be embedded in a
Product. Please read and ensure that you understand this Agreement before installing or using the Software Update
or using a Product.
In this agreement any product that has Software embedded in it at the time of sale to the Licensee shall be referred
to as a "Product". As well, in this Agreement, the use of a Product shall be deemed to be use of the Software which
is embedded in the Product.
BY INSTALLING OR USING THE SOFTWARE UPDATE OR THE PRODUCT, LICENSEE THEREBY AGREES TO BE LEGALLY
BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS, (I) DO NOT INSTALL OR USE
THE SOFTWARE, AND (II) IF YOU ARE INSTALLING AN UPDATE TO THE SOFTWARE, DO NOT INSTALL THE UPDATE
AND PROMPTLY DESTROY IT.
HEMISPHERE PROVIDES LIMITED WARRANTIES IN RELATION TO THE SOFTWARE. AS WELL, THOSE WHO USE THE
EMBEDDED SOFTWARE DO SO AT THEIR OWN RISK. YOU SHOULD UNDERSTAND THE IMPORTANCE OF THESE AND
OTHER LIMITATIONS SET OUT IN THIS AGREEMENT BEFORE INSTALLING OR USING THE SOFTWARE OR THE
PRODUCT.
1.
LICENSE. Hemisphere hereby grants to Licensee a non-transferable and non-exclusive license to
use the Software as embedded in a Product and all Updates (collectively the "Software"), solely
in binary executable form.
2.
RESTRICTIONS ON USE. Licensee agrees that Licensee and its employees will not directly or
indirectly, in any manner whatsoever:
a.
install or use more copies of the Software than the number of copies that have been
licensed;
b.
use or install the Software in connection with any product other than the Product the
Software was intended to be used or installed on as set out in the documentation that
accompanies the Software.
c.
copy any of the Software or any written materials for any purpose except as part of
Licensee's normal backup processes;
d.
modify or create derivative works based on the Software;
e.
sub-license, rent, lease, loan or distribute the Software;
f.
permit any third party to use the Software;
g.
use or operate Product for the benefit of any third party in any type of service
outsourcing, application service, provider service or service bureau capacity;
h.
reverse engineer, decompile or disassemble the Software or otherwise reduce it to a
human perceivable form;
i.
Assign this Agreement or sell or otherwise transfer the Software to any other party except
as part of the sale or transfer of the whole Product.
3.
UPDATES. At Hemisphere's discretion Hemisphere may make Updates available to Licensee. An
update ("Update") means any update to the Software that is made available to Licensee
including error corrections, enhancements and other modifications. Licensee may access,
download and install Updates during the Warranty Period only. All Updates that Licensee
downloads, installs or uses shall be deemed to be Software and subject to this Agreement.
Hemisphere reserves the right to modify the Product without any obligation to notify, supply or
install any improvements or alterations to existing Software.
4.
SUPPORT. Hemisphere may make available directly or through its authorized dealers telephone
and email support for the Software. Contact Hemisphere to find the authorized dealer near you.
As well, Hemisphere may make available user and technical documentation regarding the
Continued on next page
Page 77
End User license
BACKUPS AND RECOVERY. Licensee shall back-up all data used, created or stored by the
parties.
End User License Agreement, Continued
agreement,
continued
5.
Software on a regular basis as necessary to enable proper recovery of the data and related
systems and processes in the event of a malfunction in the Software or any loss or corruption of
data caused by the Software. Licensee shall assume all risks of loss or damage for any failure to
comply with the foregoing.
6.
OWNERSHIP. Hemisphere and its suppliers own all rights, title and interest in and to the
Software and related materials, including all intellectual property rights. The Software is
licensed to Licensee, not sold.
7.
TRADEMARKS. "Hemisphere GNSS", "Crescent", "Eclipse" and the associated logos are
trademarks of Hemisphere. Other trademarks are the property of their respective owners.
Licensee may not use any of these trademarks without the consent of their respective owners.
8.
LIMITED WARRANTY. Hemisphere warrants solely to the Licensee, subject to the exclusions and
procedures set forth herein below, that for a period of one (1) year from the original date of
purchase of the Product in which it is embedded (the "Warranty Period"), the Software, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Software and any media will be free of defects in materials and
workmanship. For any Update, Hemisphere warrants, for 90 days from performance or delivery,
or for the balance of the original Warranty Period, whichever is greater, that the Update, under
normal use and maintenance, will conform in all material respects to the documentation
provided with the Update and any media will be free of defects in materials and workmanship.
Notwithstanding the foregoing, Hemisphere does not warrant that the Software will meet
Licensee's requirements or that its operation will be error free.
9.
WARRANTY EXCLUSIONS. The warranty set forth in Section (8) will not apply to any deficiencies
caused by (a) the Product not being used as described in the documentation supplied to
Licensee, (b) the Software having been altered, modified or converted in any way by anyone
other than Hemisphere approved by Hemisphere, (c) any malfunction of Licensee's equipment
or other software, or (d) damage occurring in transit or due to any accident, abuse, misuse,
improper installation, lightning (or other electrical discharge) or neglect other than that caused
by Hemisphere. Hemisphere GNSS does not warrant or guarantee the precision or accuracy of
positions obtained when using the Software (whether standalone or embedded in a Product).
The Product and the Software is not intended and should not be used as the primary means of
navigation or for use in safety of life applications. The potential positioning and navigation
accuracy obtainable with the Software as stated in the Product or Software documentation
serves to provide only an estimate of achievable accuracy based on specifications provided by
the US Department of Defense for GPS positioning and DGPS service provider performance
specifications, where applicable.
10.
WARRANTY DISCLAIMER. EXCEPT AS EXPRESSLY SET OUT IN THIS AGREEMENT, HEMISPHERE
MAKES NO REPRESENTATION, WARRANTY OR CONDITION OF ANY KIND TO LICENSEE,
WHETHER VERBAL OR WRITTEN AND HEREBY DISCLAIMS ALL REPRESENTATIONS, WARRANTIES
AND CONDITIONS OF ANY KIND INCLUDING FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, ACCURACY, RELIABILITY OR THAT THE USE OF THE SOFTWARE WILL BE
UNINTERRUPTED OR ERROR-FREE AND HEREBY DISCLAIMS ALL REPRESENTATIONS,
WARRANTIES AND CONDITIONS ARISING AS A RESULT OF CUSTOM, USAGE OR TRADE AND
THOSE ARISING UNDER STATUTE.
11.
LIMITS ON WARRANTY DISCLAIMER. Some jurisdictions do not allow the exclusion of implied
warranties or conditions, so some of the above exclusions may not apply to Licensee. In that
case, any implied warranties or conditions which would then otherwise arise will be limited in
duration to ninety (90) days from the date of the license of the Software or the purchase of the
Product. The warranties given herein give Licensee specific legal rights and Licensee may have
other rights which may vary from jurisdiction to jurisdiction.
12.
CHANGE TO WARRANTY.No employee or agent of Hemisphere is authorized to change the
warranty provided or the limitation or disclaimer of warranty provisions. All such changes will
only be effective if pursuant to a separate agreement signed by senior officers of the respective
Continued on next page
Page 78
End User license
WARRANTY CLAIM. In the event Licensee has a warranty claim Licensee must first check for
functionality of the Product,
End User License Agreement, Continued
agreement,
continued
13.
and install all Updates that are made available. The warranty will not otherwise be honored.
Proof of purchase may be required. Hemisphere does not honor claims asserted after the end
of the Warranty Period.
14.
LICENSEE REMEDIES. In all cases which involve a failure of the Software to conform in any
material respect to the documentation during the Warranty Period or a breach of a warranty,
Hemisphere's sole obligation and liability, and Licensee's sole and exclusive remedy, is for
Hemisphere, at Hemisphere's option, to (a) repair the Software, (b) replace the Software with
software conforming to the documentation, or (c) if Hemisphere is unable, on a reasonable
commercial basis, to repair the Software or to replace the Software with conforming software
within ninety (90) days, to terminate this Agreement and thereafter Licensee shall cease using
the Software. Hemisphere will also issue a refund for the price paid by Licensee less an amount
on account of amortization, calculated on a straight-line basis over a deemed useful life of three
(3) years.
15.
LIMITATION OF LIABILITY. IN NO EVENT WILL HEMISPHERE BE LIABLE TO LICENSEE FOR ANY
INCIDENTAL, CONSEQUENTIAL, SPECIAL OR INDIRECT DAMAGES INCLUDING ARISING IN
RELATION TO ANY LOSS OF DATA, INCOME, REVENUE, GOODWILL OR ANTICIPATED SAVINGS
EVEN IF HEMISPHERE HAS BEEN INFORMED OFTHE POSSIBILITY OF SUCH LOSS OR DAMAGE.
FURTHER, IN NO EVENT WILL HEMISPHERE'S TOTAL CUMULATIVE LIABILITY HEREUNDER, FROM
ALL CAUSES OF ACTION OF ANY KIND, EXCEED THE TOTAL AMOUNT PAID BY LICENSEE TO
HEMISPHERE TO PURCHASE THE PRODUCT. THIS LIMITATION AND EXCLUSION APPLIES
IRRESPECTIVE OF THE CAUSE OF ACTION, INCLUDING BUT NOT LIMITED TO BREACH OF
CONTRACT, NEGLIGENCE, STRICT LIABILITY, TORT, BREACH OF WARRANTY,
MISREPRESENTATION OR ANY OTHER LEGAL THEORY AND WILL SURVIVE A FUNDAMENTAL
BREACH.
16.
LIMITS ON LIMITATION OF LIABILITY. Some jurisdictions do not allow for the limitation or
exclusion of liability for incidental or consequential damages, so the above limitation or
exclusion may not apply to Licensee and Licensee may also have other legal rights which may
vary from jurisdiction to jurisdiction.
17.
BASIS OF BARGAIN. Licensee agrees and acknowledges that Hemisphere has set its prices and
the parties have entered into this Agreement in reliance on the limited warranties, warranty
disclaimers and limitations of liability set forth herein, that the same reflect an agreed-to
allocation of risk between the parties (including the risk that a remedy may fail of its essential
purpose and cause consequential loss), and that the same forms an essential basis of the
bargain between the parties. Licensee agrees and acknowledges that Hemisphere would not
have been able to sell the Product at the amount charged on an economic basis without such
limitations.
18.
PROPRIETARY RIGHTS INDEMNITY. Hemisphere shall indemnify, defend and hold harmless
Licensee from and against any and all actions, claims, demands, proceedings, liabilities, direct
damages, judgments, settlements, fines, penalties, costs and expenses, including royalties and
attorneys' fees and related costs, in connection with or arising out of any actual infringement of
any third party patent, copyright or other intellectual property right by the Software or by its
use, in accordance with this Agreement and documentation, PROVIDED THAT: (a) Hemisphere
has the right to assume full control over any action, claim, demand or proceeding, (b) Licensee
shall promptly notify Hemisphere of any such action, claim, demand, or proceeding, and (c)
Licensee shall give Hemisphere such reasonable assistance and tangible material as is
reasonably available to Licensee for the defense of the action, claim, demand or proceeding.
Licensee shall not settle or compromise any of same for which Hemisphere has agreed to
assume responsibility without Hemisphere's prior written consent. Licensee may, at its sole cost
and expense, retain separate counsel from the counsel utilized or retained by Hemisphere.
INFRINGEMENT. If use of the Software may be enjoined due to a claim of infringement by a
third party then, at its sole discretion and expense, Hemisphere may do one of the following: (a)
negotiate a license or other agreement so that the Product is no longer subject to such a
potential claim, (b) modify the Product so that it becomes non- infringing, provided such
modification can be accomplished without materially affecting the performance and
19.
Continued on next page
Page 79
End User license
(c) replace the Software, or the Product, with non-infringing software, or product, of equal or
force and effect.
End User License Agreement, Continued
agreement,
continued
better performance and quality, or (d) if none of the foregoing can be done on a commercially
reasonable basis, terminate this license and Licensee shall stop using the Product and
Hemisphere shall refund the price paid by Licensee less an amount on account of amortization,
calculated on a straight-line basis over a deemed useful life of three (3) years.
19.
The foregoing sets out the entire liability of Hemisphere and the sole obligations of Hemisphere
to Licensee in respect of any claim that the Software or its use infringes any third party rights.
20.
INDEMNIFICATION. Except in relation to an infringement action, Licensee shall indemnify and
hold Hemisphere harmless from any and all claims, damages, losses, liabilities, costs and
expenses (including reasonable fees of lawyers and other professionals) arising out of or in
connection with Licensee's use of the Product, whether direct or indirect, including without
limiting the foregoing, loss of data, loss of profit or business interruption. TERMINATION.
Licensee may terminate this Agreement at any time without cause. Hemisphere may terminate
this Agreement on 30 days notice to Licensee if Licensee fails to materially comply with each
provision of this Agreement unless such default is cured within the 30 days. Any such
termination by a party shall be in addition to and without prejudice to such rights and remedies
as may be available, including injunction and other equitable remedies. Upon receipt by
Licensee of written notice of termination from Hemisphere or termination by Licensee, Licensee
shall at the end of any notice period (a) cease using the Software; and (b) return to Hemisphere
(or destroy and provide a certificate of a Senior Officer attesting to such destruction) the
Software and all related material and any magnetic or optical media provided to Licensee. The
provisions of Sections 6), 7), 8), 9), 10), 15), 21), 26) and 27) herein shall survive the expiration
or termination of this Agreement for any reason.
21.
EXPORT RESTRICTIONS. Licensee agrees that Licensee will comply with all export control
legislation of Canada, the United States, Australia and any other applicable country's laws and
regulations, whether under the Arms Export Control Act, the International Traffic in Arms
Regulations, the Export Administration Regulations, the regulations of the United States
Departments of Commerce, State, and Treasury, or otherwise as well as the export control
legislation of all other countries.
22.
PRODUCT COMPONENTS. The Product may contain third party components. Those third party
components may be subject to additional terms and conditions. Licensee is required to agree to
those terms and conditions in order to use the Product.
23.
FORCE MAJEURE EVENT. Neither party will have the right to claim damages as a result of the
other's inability to perform or any delay in performance due to unforeseeable circumstances
beyond its reasonable control, such as labor disputes, strikes, lockouts, war, riot, insurrection,
epidemic, Internet virus attack, Internet failure, supplier failure, act of God, or governmental
action not the fault of the non-performing party.
24.
FORUM FOR DISPUTES. The parties agree that the courts located in Calgary, Alberta, Canada
and the courts of appeal there from will have exclusive jurisdiction to resolve any disputes
between Licensee and Hemisphere concerning this Agreement or Licensee's use or inability to
use the Software and the parties hereby irrevocably agree to attorn to the jurisdiction of those
courts. Notwithstanding the foregoing, either party may apply to any court of competent
jurisdiction for injunctive relief.
25.
APPLICABLE LAW. This Agreement shall be governed by the laws of the Province of Alberta,
Canada, exclusive of any of its choice of law and conflicts of law jurisprudence.
26.
CISG. The United Nations Convention on Contracts for the International Sale of Goods will not
GENERAL. This is the entire agreement between Licensee and Hemisphere relating to the Product and Licensee's
use of the same, and supersedes all prior, collateral or contemporaneous oral or written representations,
warranties or agreements regarding the same. No amendment to or modification of this Agreement will be binding
unless in writing and signed by duly authorized representatives of the parties. Any and all terms and conditions set
out in any correspondence between the parties or set out in a purchase order which are different from or in
addition to the terms and conditions set forth herein, shall have no application and no written notice of same shall
be required. In the event that one or more of the provisions of this Agreement is found to be illegal or
unenforceable, this Agreement shall not be rendered inoperative but the remaining provisions shall continue in full
apply to this Agreement or any transaction hereunder.
Page 80
Warranty notice
COVERED PRODUCTS: This warranty covers all products manufactured by Hemisphere GNSS and purchased by the
settings. UNSAFE DRIVING OR SYSTEM CONTROL SETTINGS CAN RESULT IN PROPERTY DAMAGE, INJURY, OR DEATH.
Warranty Notice
end purchaser (the "Products"), unless otherwise specifically and expressly agreed in writing by Hemisphere GNSS.
LIMITED WARRANTY: Hemisphere GNSS warrants solely to the end purchaser of the Products, subject to the
exclusions and procedures set forth below, that the Products sold to such end purchaser and its internal
components shall be free, under normal use and maintenance, from defects in materials, and workmanship and will
substantially conform to Hemisphere GNSS's applicable specifications for the Product, for a period of 12 months
from delivery of such Product to such end purchaser (the ”Warranty Period”). Repairs and replacement components
for the Products are warranted, subject to the exclusions and procedures set forth below, to be free, under normal
use and maintenance, from defects in material and workmanship, and will substantially conform to Hemisphere
GNSS's applicable specifications for the Product, for 90 days from performance or delivery, or for the balance of the
original Warranty Period, whichever is greater.
EXCLUSION OF ALL OTHER WARRANTIES. The LIMITED WARRANTY shall apply only if the Product is properly and
correctly installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS
relevant User’s Manual and Specifications, AND the Product is not modified or misused. The Product is provided “AS
IS” and the implied warranties of MERCHANTABILITY and FITNESS FOR A PARTICULAR PURPOSE and ALL OTHER
WARRANTIES,
express, implied or arising by statute, by course of dealing or by trade usage, in connection with the design, sale,
installation, service or use of any products or any component thereof, are EXCLUDED from this transaction and shall
not apply to the Product. The LIMITED WARRANTY is IN LIEU OF any other warranty, express or implied, including
but not limited to, any warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, title, and noninfringement.
LIMITATION OF REMEDIES. The purchaser’s EXCLUSIVE REMEDY against Hemisphere GNSS shall be, at Hemisphere
GNSS's option, the repair or replacement of any defective Product or components thereof. The purchaser shall
notify Hemisphere GNSS or a Hemisphere GNSS's approved service center immediately of any defect. Repairs shall
be made through a Hemisphere GNSS approved service center only. Repair, modification or service of Hemisphere
GNSS products by any party other than a Hemisphere GNSS approved service center shall render this warranty null
and void. The remedy in this paragraph shall only be applied in the event that the Product is properly and correctly
installed, configured, interfaced, maintained, stored, and operated in accordance with Hemisphere GNSS's relevant
User’s Manual and Specifications, AND the Product is not modified or misused. NO OTHER REMEDY (INCLUDING,
BUT NOT LIMITED TO, SPECIAL, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR CONTINGENT DAMAGES FOR LOST
PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS)
SHALL BE AVAILABLE
TO PURCHASER, even if Hemisphere GNSS has been advised of the possibility of such damages. Without limiting the
foregoing, Hemisphere GNSS shall not be liable for any damages of any kind resulting from installation, use, quality,
performance or accuracy of any Product.
HEMISPHERE IS NOT RESPONSIBLE FOR PURCHASER’S NEGLIGENCE OR UNAUTHORIZED USES OF THE PRODUCT.
IN NO EVENT SHALL Hemisphere GNSS BE IN ANY WAY RESPONSIBLE FOR ANY DAMAGES RESULTING FROM
PURCHASER’S OWN NEGLIGENCE, OR FROM OPERATION OF THE PRODUCT IN ANY WAY OTHER THAN AS SPECIFIED
IN Hemisphere GNSS's RELEVANT USER’S MANUAL AND SPECIFICATIONS. Hemisphere GNSS is NOT
RESPONSIBLE for defects or performance problems resulting from (1) misuse, abuse, improper installation, neglect
of Product; (2) the utilization of the Product with hardware or software products, information, data, systems,
interfaces or devices not made, supplied or specified by Hemisphere GNSS; (3) the operation of the Product under
any specification other than, or in addition to, the specifications set forth in Hemisphere GNSS's relevant User’s
Manual and Specifications; (4) damage caused by accident or natural events, such as lightning (or other electrical
discharge) or fresh/ salt water immersion of Product; (5) damage occurring in transit; (6) normal wear and tear; or
(7) the operation or failure of operation of any satellite-based positioning system or differential correction service;
or the availability or performance of any satellite-based positioning signal or differential correction signal.
THE PURCHASER IS RESPONSIBLE FOR OPERATING THE VEHICLE SAFELY. The purchaser is solely responsible for the
safe operation of the vehicle used in connection with the Product, and for maintaining proper system control
Continued on next page
Page 81
Warranty
The purchaser is solely responsible for his/her safety and for the safety of others. The purchaser is solely
TECHSUPPORT@HREGNSS.COM WWW.HGNSS.COM
Warranty Notice, Continued
notice,
continued
responsible for maintaining control of the automated steering system at all times. THE PURCHASER IS SOLELY
RESPONSIBLE FOR ENSURING THE PRODUCT IS PROPERLY AND CORRECTLY INSTALLED, CONFIGURED, INTERFACED,
MAINTAINED, STORED, AND OPERATED IN ACCORDANCE WITH Hemisphere GNSS's RELEVANT USER’S MANUAL
AND SPECIFICATIONS. Hemisphere GNSS does not warrant or guarantee the positioning and navigation precision or
accuracy obtained when using Products. Products are not intended for primary navigation or for use in safety of life
applications. The potential accuracy of Products as stated in Hemisphere GNSS literature and/or Product
specifications serves to provide only an estimate of achievable accuracy based on performance specifications
provided by the satellite service operator (i.e. US Department of Defense in the case of GPS and differential
correction service provider. Hemisphere GNSS reserves the right to modify Products without any obligation to
notify, supply or install any improvements or alterations to existing Products.
GOVERNING LAW. This agreement and any disputes relating to, concerning or based upon the Product shall be
governed by and interpreted in accordance with the laws of the State of Arizona.
OBTAINING WARRANTY SERVICE. In order to obtain warranty service, the end purchaser must bring the Product to
a Hemisphere GNSS approved service center along with the end purchaser's proof of purchase. Hemisphere GNSS
does not warrant claims asserted after the end of the warranty period. For any questions regarding warranty
service or to obtain information regarding the location of any of Hemisphere GNSS approved service center, contact
Hemisphere GNSS at the following address:
Hemisphere GNSS
8515 E. Anderson Drive Scottsdale, AZ 85255, USA
Phone: +1-480-348-6380
Fax: +1-480-270-5070
Page 82
Hemisphere GNSS Inc.
8515 East Anderson Drive, Suite A
Scottsdale, Arizona, US 85255
Phone: 480-348-6380
Fax: 480-270-5070
PRECISION@HGNSS.COM
WWW.HGNSS.COM
Loading...
