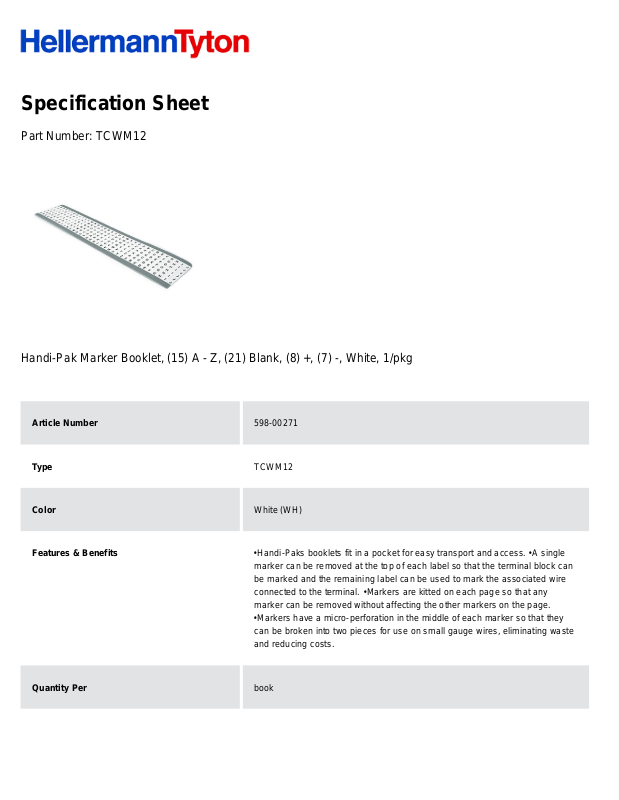

Specification Sheet
Part Number:
TCWM12
Handi-Pak Marker Booklet, (15) A - Z, (21) Blank, (8) +, (7) -, White, 1/pkg
Article Number
598-00271
Type
TCWM12
Color
White (WH)
Features & Benefits
•
Handi-Paks booklets fit in a pocket for easy transport and access. •
A single
marker can be removed at the top of each label so that the terminal block can
be marked and the remaining label can be used to mark the associated wire
connected to the terminal. •
Markers are kitted on each page so that any
marker can be removed without affecting the other markers on the page.
•
Markers have a micro-perforation in the middle of each marker so that they
can be broken into two pieces for use on small gauge wires, eliminating waste
and reducing costs.
Quantity Per
book
Product Description
Handi-Pak Marker Booklets are convenient pocket sized books that contain
pages of black, pre-printed legends on a white background. The legends are
printed on a plastic coated cloth label that remains flexible for use in identifying
wires and cables. A strong adhesive assures long lasting identification on small
wires, cables or anything requiring permanent or temporary identification.
Short Description
Handi-Pak Marker Booklet, (15) A - Z, (21) Blank, (8) +, (7) -, White, 1/pkg
Global Part Name
TCWM12-TYHC-WH
Technical Description
Handi-Pak, 15 Markers Each of A–Z, 21 Markers Blank, 8 Markers "+" and 7
Markers "-" , White
Length L (Imperial)
1.625
Length L (Metric)
41.27
Width W (Imperial)
0.25
Width W (Metric)
6.35
Bundle Diameter Min (Imperial)
.13
Bundle Diameter Min (Metric)
3.40
Bundle Diameter Max (Imperial)
.29
Bundle Diameter Max (Metric)
7.50
Height H (Imperial)
1.5
Height H (Metric)
38.1
Outside Diameter Max(Imperial)
0.375
Outside Diameter Min (metric)
2.54
Outside Diameter Min(Imperial)
0.1
Outside Diameter Max (metric)
9.52
Material
Vinyl Cloth (TYHC)
Material Shortcut
TYHC
Adhesive
Rubber
Halogen free
No
Adhesive Operating Temperature
-40°F to +248°F (-40°C to +120°C)
Operating Temperature (Metric)
-40°F to +248°F (-40°C to +120°C)
Reach Complaint(Article 33)
No
ROHS Complaint
Yes
Package Quantity(Imperial)
1
Package Quantity (Metric)
1
Customs Number
3919905060
Labels per Column
15
Labels per Row
3
