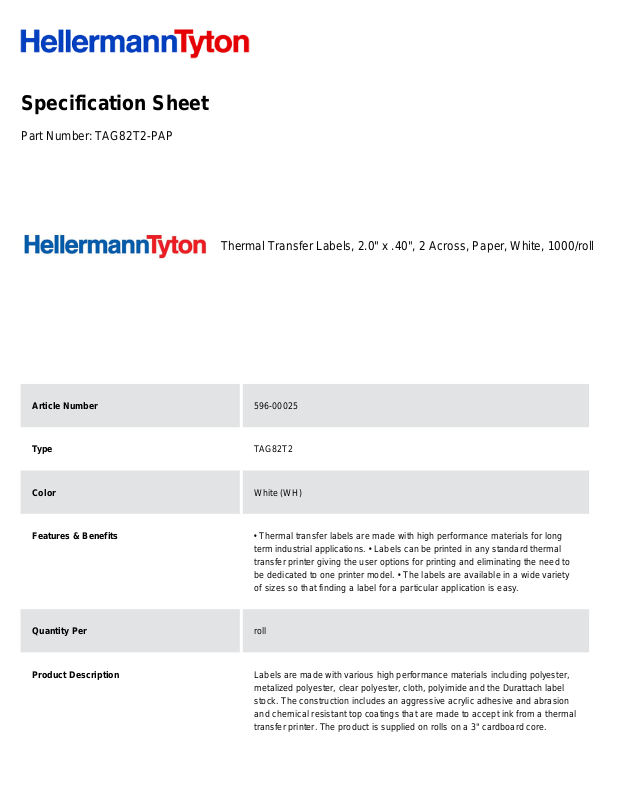

HellermannTyton TAG82T2-PAP Specification Sheet

Specification Sheet
Part Number:
TAG82T2-PAP
Thermal Transfer Labels, 2.0" x .40", 2 Across, Paper, White, 1000/roll
596-00025
Type
TAG82T2
Color
White (WH)
Features & Benefits
• Thermal transfer labels are made with high performance materials for long
term industrial applications. • Labels can be printed in any standard thermal
transfer printer giving the user options for printing and eliminating the need to
be dedicated to one printer model. • The labels are available in a wide variety
of sizes so that finding a label for a particular application is easy.
Quantity Per
roll
Product Description
Labels are made with various high performance materials including polyester,
metalized polyester, clear polyester, cloth, polyimide and the Durattach label
stock. The construction includes an aggressive acrylic adhesive and abrasion
and chemical resistant top coatings that are made to accept ink from a thermal
transfer printer. The product is supplied on rolls on a 3" cardboard core.
Short Description
Thermal Transfer Labels, 2.0" x .40", 2 Across, Paper, White, 1000/roll
Global Part Name
TAG82T2-PAP-WH
Width W (Imperial)
2.0
Width W (Metric)
50.8
Bundle Diameter Min (Imperial)
.14
Bundle Diameter Min (Metric)
3.50
Bundle Diameter Max (Imperial)
0.29
Bundle Diameter Max (Metric)
7.37
Height H (Imperial)
.396
Height H (Metric)
36.30
Width of Liner (Metric)
102.0
Width of Liner (imperial)
4.05
Material
Paper (PAP)
Material Shortcut
PAP
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +194°F (-40°C to +90°C)
Operating Temperature (Metric)
-40°F to +302°F (-40°C to +150°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Package Quantity(Imperial)
1000
Package Quantity (Metric)
1000
Labels per Column
1
Labels per Row
2
0.22
Weight (Imperial)
0.5
