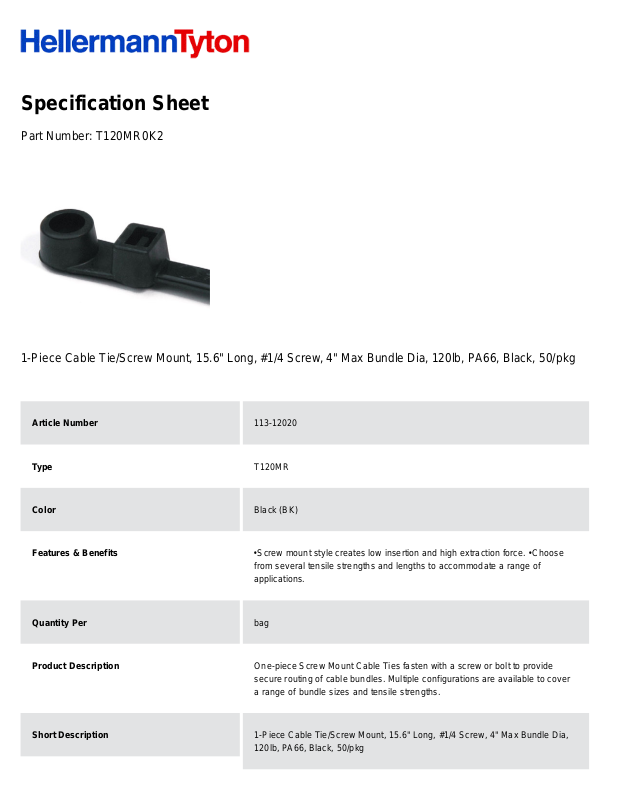

Specification Sheet
Part Number:
T120MR0K2
1-Piece Cable Tie/Screw Mount, 15.6" Long, #1/4 Screw, 4" Max Bundle Dia, 120lb, PA66, Black, 50/pkg
Article Number
113-12020
Type
T120MR
Color
Black (BK)
Features & Benefits
•
Screw mount style creates low insertion and high extraction force. •
Choose
from several tensile strengths and lengths to accommodate a range of
applications.
Quantity Per
bag
Product Description
One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide
secure routing of cable bundles. Multiple configurations are available to cover
a range of bundle sizes and tensile strengths.
Short Description
1-Piece Cable Tie/Screw Mount, 15.6" Long, #1/4 Screw, 4" Max Bundle Dia,
120lb, PA66, Black, 50/pkg
Global Part Name
T120MR-PA66-BK
Minimum Tensile Strength (Imperial)
120
Minimum Tensile Strength (Metric)
535
Length L (Imperial)
15.6
Length L (Metric)
395.0
Fixation Method
Fixing hole
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.3
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.2
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.0
Bundle Diameter Max (Metric)
102.0
Thickness T (Imperial)
0.07
