HellermannTyton Surface Raceway Catalog Page

Routing, Protection and Insulation

Power Rated Raceway Fittings and Junction Boxes

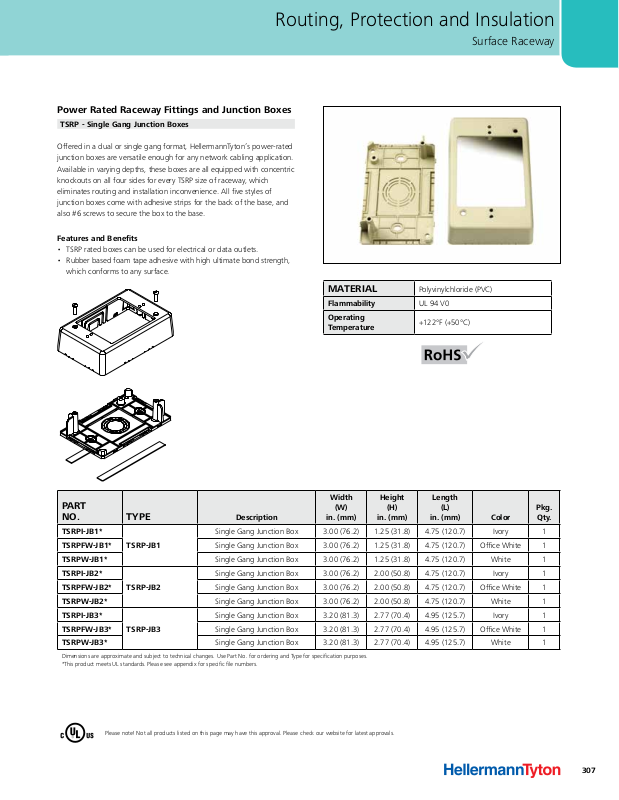

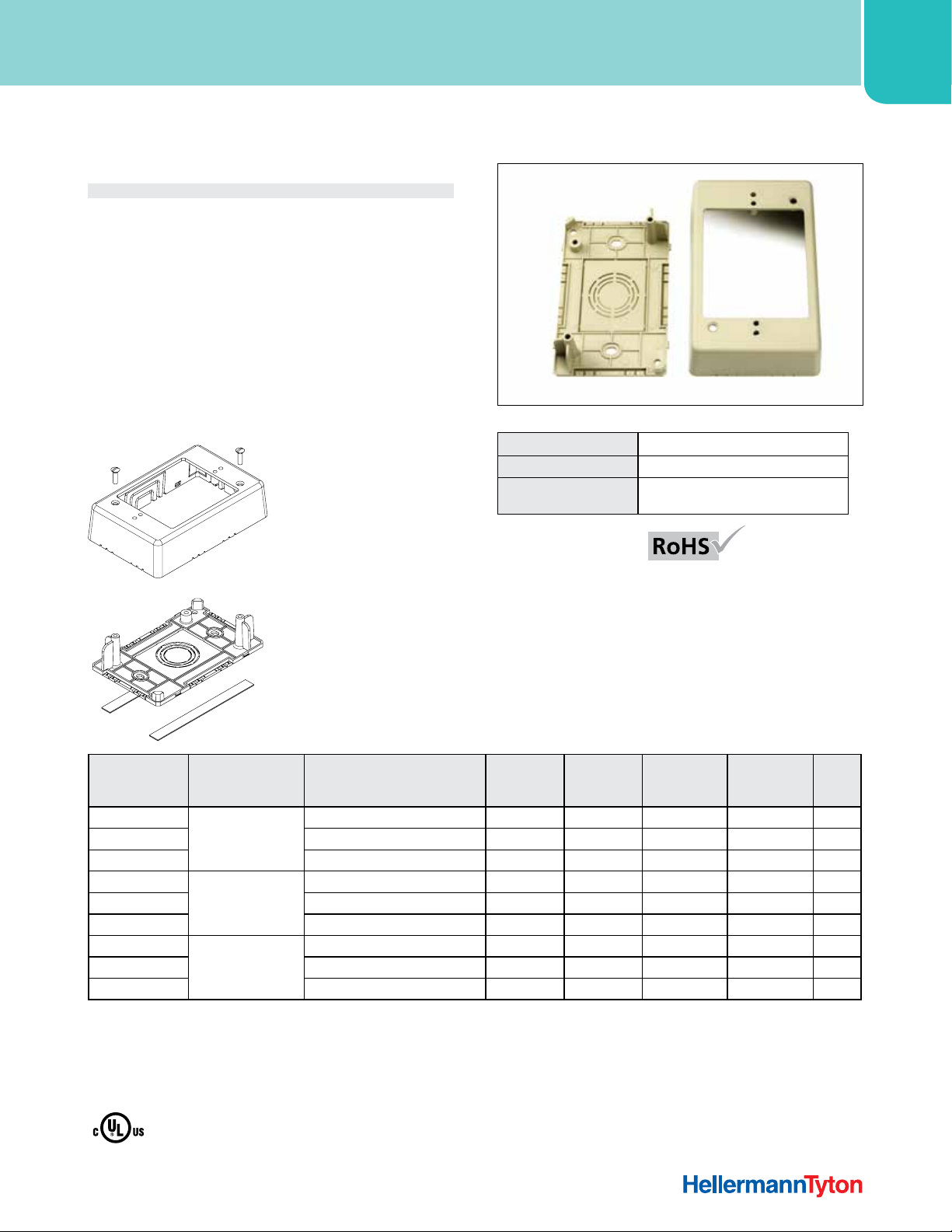

TSRP - Single Gang Junction Boxes

Offered in a dual or single gang format, HellermannTyton’s power-rated
junction boxes are versatile enough for any network cabling application.
Available in varying depths, these boxes are all equipped with concentric
knockouts on all four sides for every TSRP size of raceway, which
eliminates routing and installation inconvenience. All five styles of
junction boxes come with adhesive strips for the back of the base, and
also #6 screws to secure the box to the base.

Features and Benefits

• TSRP rated boxes can be used for electrical or data outlets.

• Rubber based foam tape adhesive with high ultimate bond strength,
which conforms to any surface.

Surface Raceway

MATERIAL

Flammability UL 94 V0

Operating
Temperature

PART
NO. TYPE Description

TSRPI-JB1*

TSRPFW-JB1* Single Gang Junction Box 3.00 (76.2) 1.25 (31.8) 4.75 (120.7) Oce White 1

TSRPW-JB1* Single Gang Junction Box 3.00 (76.2) 1.25 (31.8) 4.75 (120.7) White 1

TSRPI-JB2*

TSRPFW-JB2* Single Gang Junction Box 3.00 (76.2) 2.00 (50.8) 4.75 (120.7) Oce White 1

TSRPW-JB2* Single Gang Junction Box 3.00 (76.2) 2.00 (50.8) 4.75 (120.7) White 1

TSRPI-JB3*

TSRPFW-JB3* Single Gang Junction Box 3.20 (81.3) 2.77 (70.4) 4.95 (125.7) Oce White 1

TSRPW-JB3* Single Gang Junction Box 3.20 (81.3) 2.77 (70.4) 4.95 (125.7) White 1

Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
*This product meets UL standards. Please see appendix for specific file numbers.

TSRP-JB1

TSRP-JB2

TSRP-JB3

Single Gang Junction Box 3.00 (76.2) 1.25 (31.8) 4.75 (120.7) Ivory 1

Single Gang Junction Box 3.00 (76.2) 2.00 (50.8) 4.75 (120.7) Ivory 1

Single Gang Junction Box 3.20 (81.3) 2.77 (70.4) 4.95 (125.7) Ivory 1

Width

(W)

in. (mm)

Height

(H)

in. (mm)

Polyvinylchloride (PVC)

+122°F (+50°C)

Length

(L)

in. (mm) Color

Pkg.

Qty.

Please note! Not all products listed on this page may have this approval. Please check our website for latest approvals.

307
