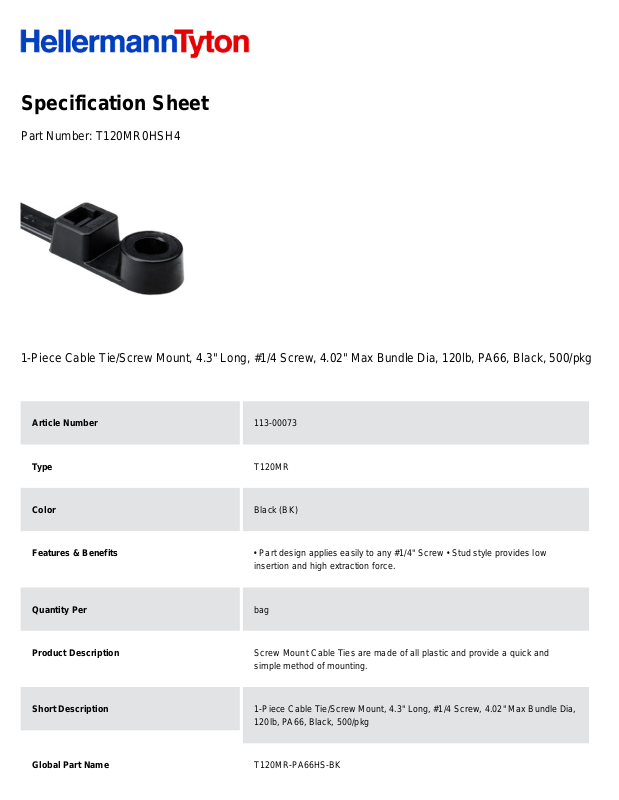

HellermannTyton T120MR0HSH4 Specification Sheet

Specification Sheet
Part Number:
T120MR0HSH4
1-Piece Cable Tie/Screw Mount, 4.3" Long, #1/4 Screw, 4.02" Max Bundle Dia, 120lb, PA66, Black, 500/pkg
113-00073
Type
T120MR
Color
Black (BK)
Features & Benefits
• Part design applies easily to any #1/4" Screw • Stud style provides low
insertion and high extraction force.
Quantity Per
bag
Product Description
Screw Mount Cable Ties are made of all plastic and provide a quick and
simple method of mounting.
Short Description
1-Piece Cable Tie/Screw Mount, 4.3" Long, #1/4 Screw, 4.02" Max Bundle Dia,
120lb, PA66, Black, 500/pkg
Global Part Name
T120MR-PA66HS-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.6
Length L (Metric)
395.0
Fixation Method
Fixing hole
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.3
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.2
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.0
Bundle Diameter Max (Metric)
102.0
Thickness T (Imperial)
0.07
Thickness T (Metric)
1.8
Cable Tie Head Length (Imperial)
1.1
Cable Tie Head Width (Imperial)
0.5
Height H (Imperial)
0.31
Height H (Metric)
7.9
Mounting Hole Diameter D (Imperial)
0.26
Mounting Hole Diameter D (Metric)
6.5 mm
Mounting Hole Diameter D Max (Metric)
6.5
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
