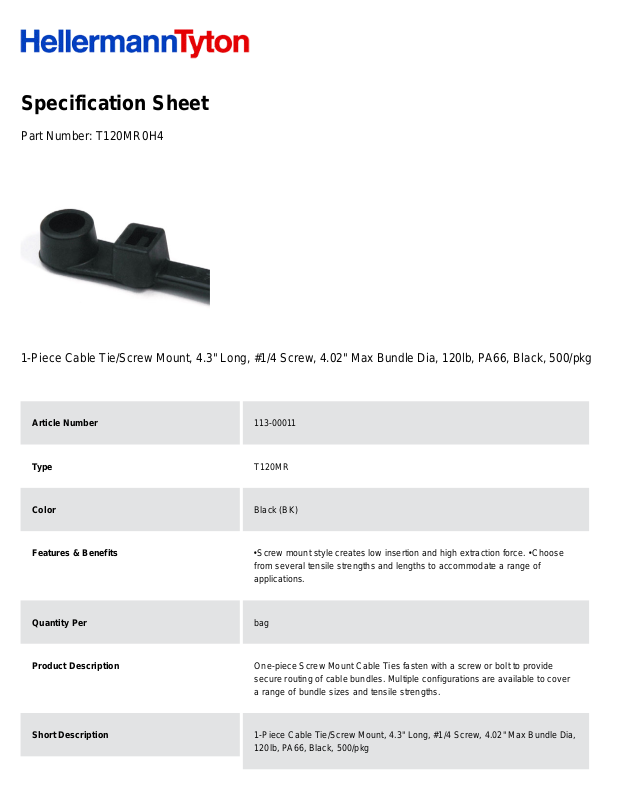

Specification Sheet
Part Number:
T120MR0H4
1-Piece Cable Tie/Screw Mount, 4.3" Long, #1/4 Screw, 4.02" Max Bundle Dia, 120lb, PA66, Black, 500/pkg
Article Number
113-00011
Type
T120MR
Color
Black (BK)
Features & Benefits
•
Screw mount style creates low insertion and high extraction force. •
Choose
from several tensile strengths and lengths to accommodate a range of
applications.
Quantity Per
bag
Product Description
One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide
secure routing of cable bundles. Multiple configurations are available to cover
a range of bundle sizes and tensile strengths.
Short Description
1-Piece Cable Tie/Screw Mount, 4.3" Long, #1/4 Screw, 4.02" Max Bundle Dia,
120lb, PA66, Black, 500/pkg
Global Part Name
T120MR-PA66-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
15.6
Length L (Metric)
395.0
Fixation Method
Fixing hole
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.3
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.2
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
4.0
Bundle Diameter Max (Metric)
102.0
Thickness T (Imperial)
0.07
Thickness T (Metric)
1.8
Cable Tie Head Length (Imperial)
1.1
Cable Tie Head Width (Imperial)
0.5
Height H (Imperial)
0.31
Height H (Metric)
7.9
Mounting Hole Diameter D (Imperial)
0.26
Mounting Hole Diameter D (Metric)
6.5 mm
Mounting Hole Diameter D Max (Metric)
6.5
Material
Polyamide 6.6 (PA66)
Material Shortcut
PA66
Flammability
UL 94 V2
Operating Temperature (Metric)
-40°F to +221°F (-40°C to +105°C)
ROHS Complaint
Yes
UL Recognized (US)
Yes
UL Recognized (US and Canada)
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
