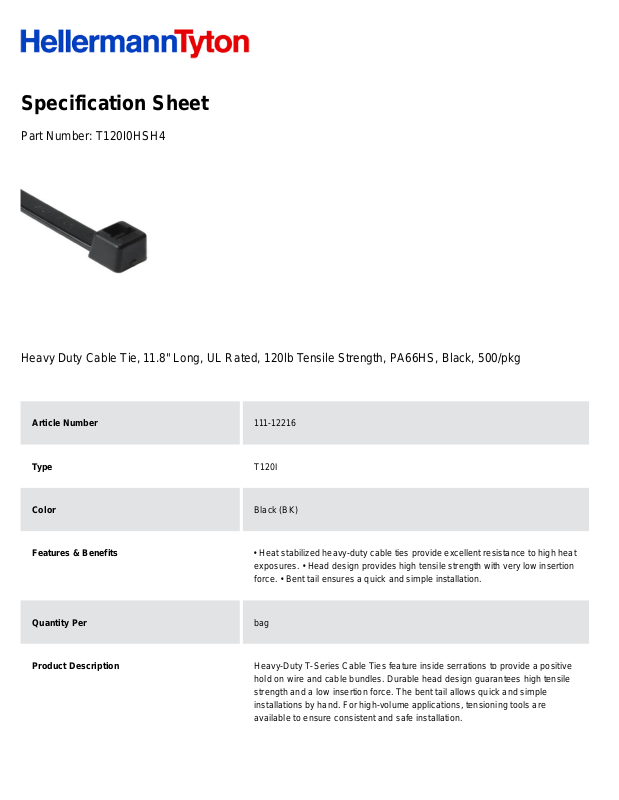

Specification Sheet
Part Number:
T120I0HSH4
Heavy Duty Cable Tie, 11.8" Long, UL Rated, 120lb Tensile Strength, PA66HS, Black, 500/pkg
Article Number
111-12216
Type
T120I
Color
Black (BK)
Features & Benefits
• Heat stabilized heavy-duty cable ties provide excellent resistance to high heat
exposures. • Head design provides high tensile strength with very low insertion
force. • Bent tail ensures a quick and simple installation.
Quantity Per
bag
Product Description
Heavy-Duty T-Series Cable Ties feature inside serrations to provide a positive
hold on wire and cable bundles. Durable head design guarantees high tensile
strength and a low insertion force. The bent tail allows quick and simple
installations by hand. For high-volume applications, tensioning tools are
available to ensure consistent and safe installation.
Short Description
Heavy Duty Cable Tie, 11.8" Long, UL Rated, 120lb Tensile Strength, PA66HS,
Black, 500/pkg
Global Part Name
T120I-PA66HS-BK
Minimum Tensile Strength (Imperial)
120.0
Minimum Tensile Strength (Metric)
535.0
Length L (Imperial)
11.8
Length L (Metric)
300.0
Identification Plate Position
none
Releasable Closure
No
Tie Closure
plastic pawl
Variant
Inside Serrated
Width W (Imperial)
0.30
Width W (Metric)
7.6
Bundle Diameter Min (Imperial)
0.20
Bundle Diameter Min (Metric)
5.0
Bundle Diameter Max (Imperial)
3.2
Bundle Diameter Max (Metric)
81.3
Thickness T (Metric)
1.6
Cable Tie Width Max (Imperial)
0.3
Cable Tie Width Max (Metric)
7.61
Material
Polyamide 6.6 heat stabilized (PA66HS)
Material Shortcut
PA66HS
Flammability
UL 94 V2
Halogen free
Yes
Operating Temperature (Metric)
-40°F to +257°F (-40°C to +125°C)
ROHS Complaint
Yes
Certification/Specification WEB
UL-ZODZ2.E64139
UL Recognized (US)
Yes
UL Listed (US and Canada)
Yes
UL Recognized (US and Canada)
Yes
UL Listed (US
Yes
Package Quantity(Imperial)
500
Package Quantity (Metric)
500
Customs Number
3926909988
