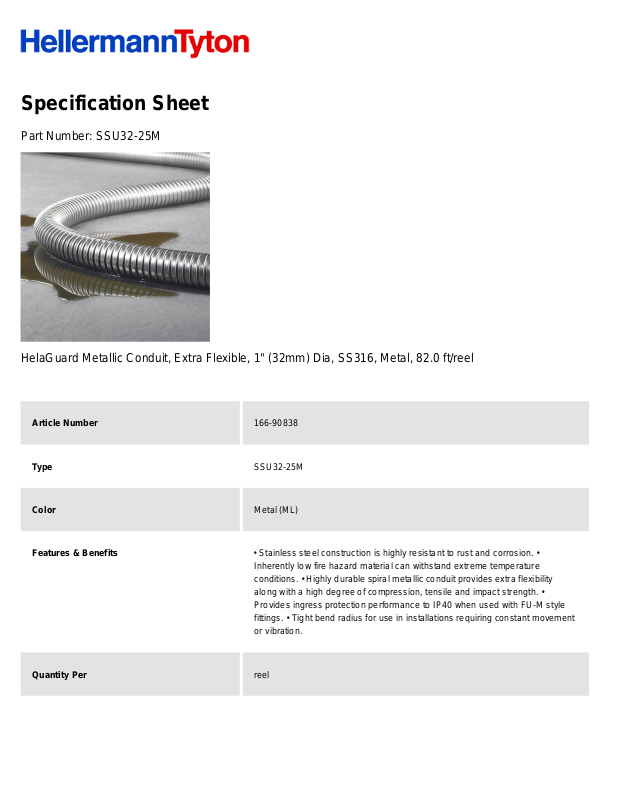

Specification Sheet
Part Number:
SSU32-25M
HelaGuard Metallic Conduit, Extra Flexible, 1" (32mm) Dia, SS316, Metal, 82.0 ft/reel
Article Number
166-90838
Type
SSU32-25M
Color
Metal (ML)
Features & Benefits
• Stainless steel construction is highly resistant to rust and corrosion. •
Inherently low fire hazard material can withstand extreme temperature
conditions. • Highly durable spiral metallic conduit provides extra flexibility
along with a high degree of compression, tensile and impact strength. •
Provides ingress protection performance to IP40 when used with FU-M style
fittings. • Tight bend radius for use in installations requiring constant movement
or vibration.
Quantity Per
reel
Product Description
A highly flexible stainless steel conduit used in constrained spaces and highly
corrosive environments. SSU conduit is inherently low fire hazard, provides
high mechanical strength and is anti-static. Designed for use where an extra
flexible stainless steel conduit is needed in machinery, instrumentation and
security within harsh environments or extreme temperature conditions. Use
with FU-M series metallic fittings for IP40 ingress ratings or FSU-E conduit
endcap inserts for a smooth entry point into conduit.
Short Description
HelaGuard Metallic Conduit, Extra Flexible, 1" (32mm) Dia, SS316, Metal, 82.0
ft/reel
Global Part Name
SSU32-25M-SS316-ML
Length L (Imperial)
82.0
Length L (Metric)
25.0
Inner Diameter D (Imperial)
1.09
Inner Diameter D (Metric)
27.8
Outside Diameter OD(Imperial)
1.25
Outside Diameter OD(metric)
31.7
Nominal Diameter (Imperial)
1
Nominal Diameter (Metric)
32
Material
Stainless Steel (SS316)
Material Shortcut
SS316
